Bridgeport Proto-Trak Plus 2-Axis CNC VERTICAL MILLING MACHINES, NO ATC

$7,500

Make:
Bridgeport
Model:
Proto-Trak Plus 2-Axis
Year:
1991
Ref #:
163750

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

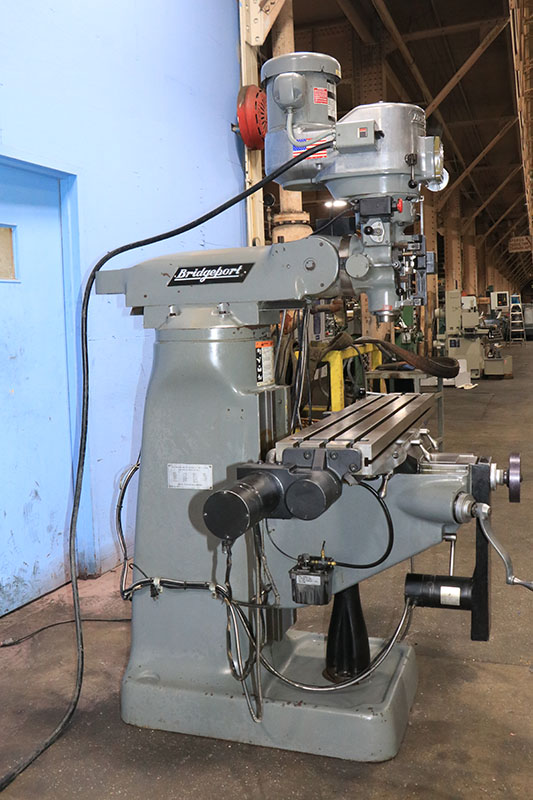

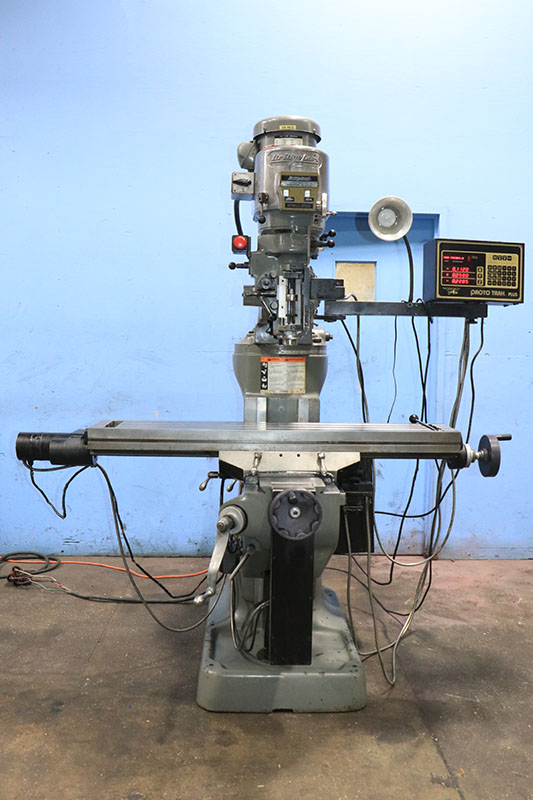

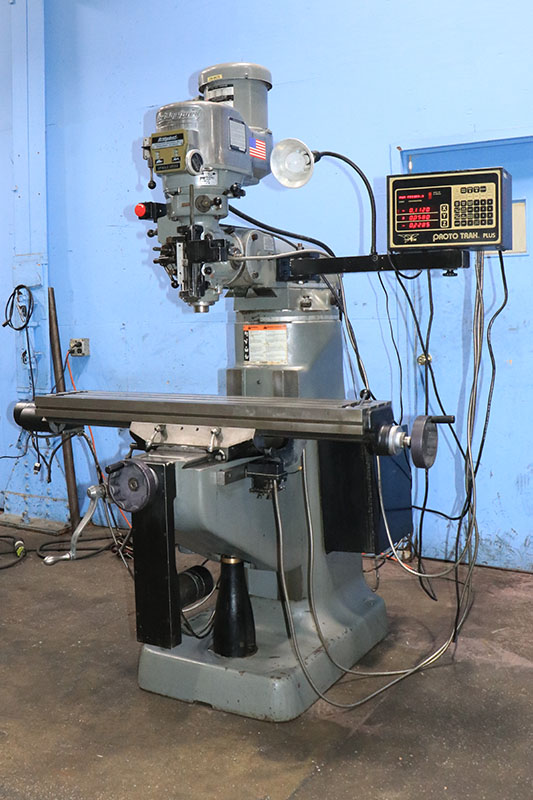

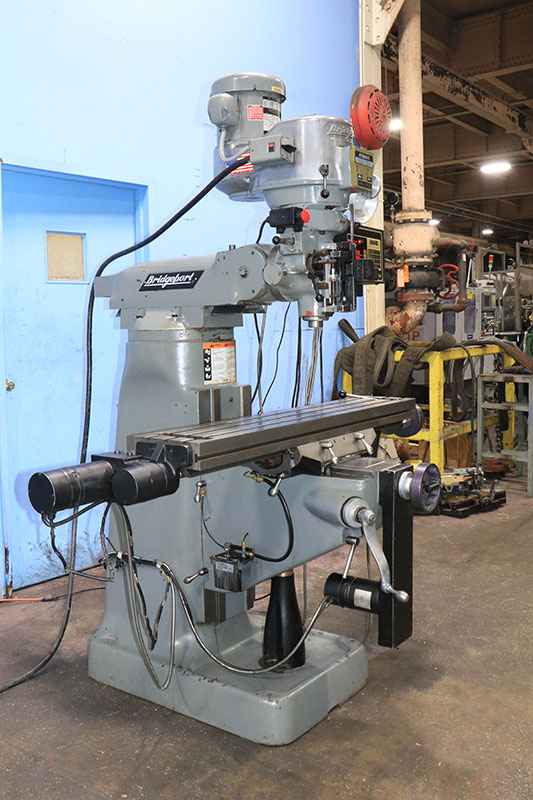

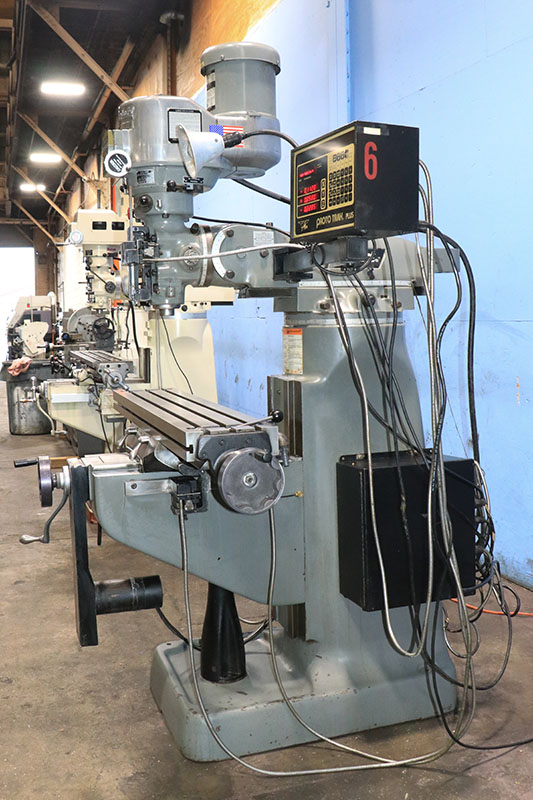

BRIDGEPORT PROTO-TRAK 2-AXIS CNC VERTICAL MILL
MODEL: SERIES-I W/PROTO-TRAK PLUS CONTROL
w/HAND WHEELS AND 3 AXIS DIGITAL READOUTS

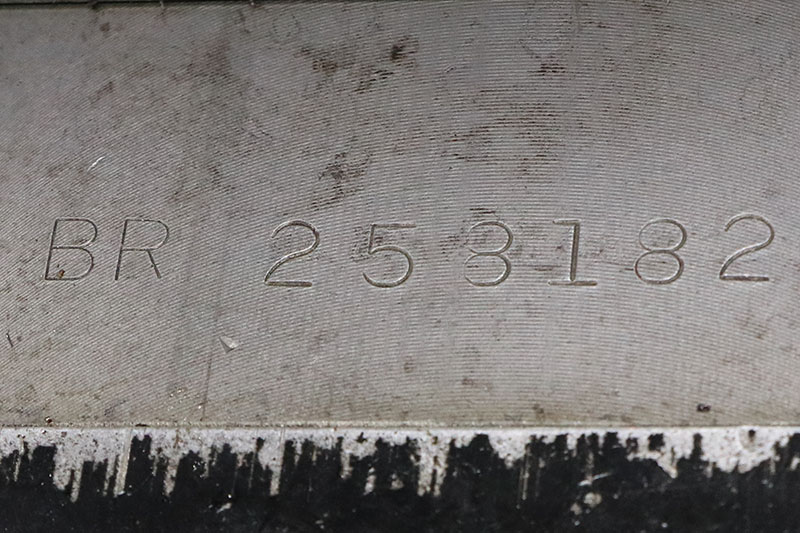

  S/N:BR-258182,  NEW: 1991

SPECIFICATIONS:

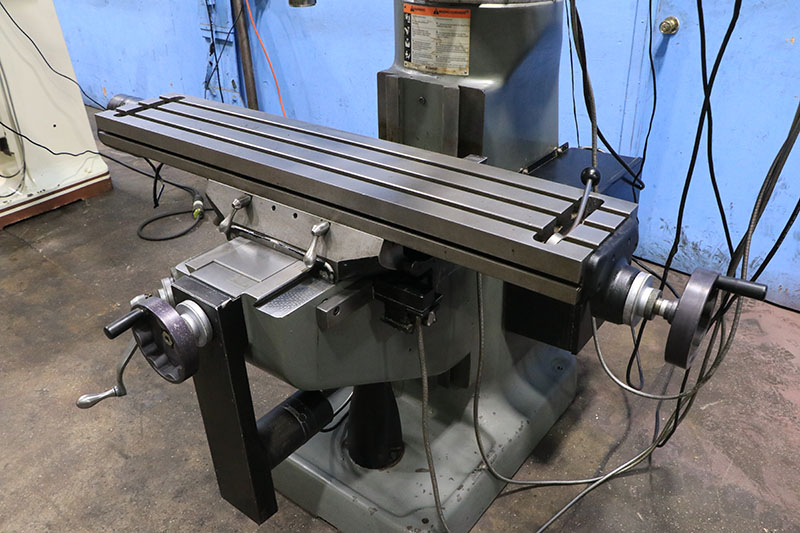

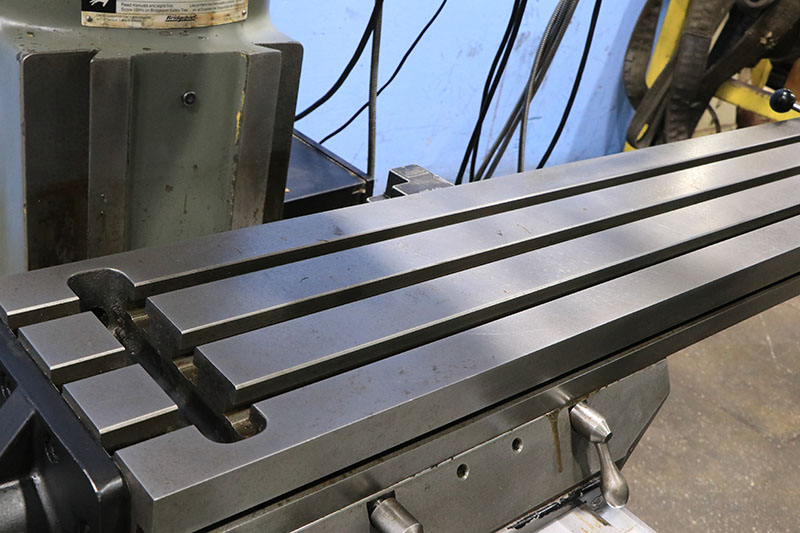

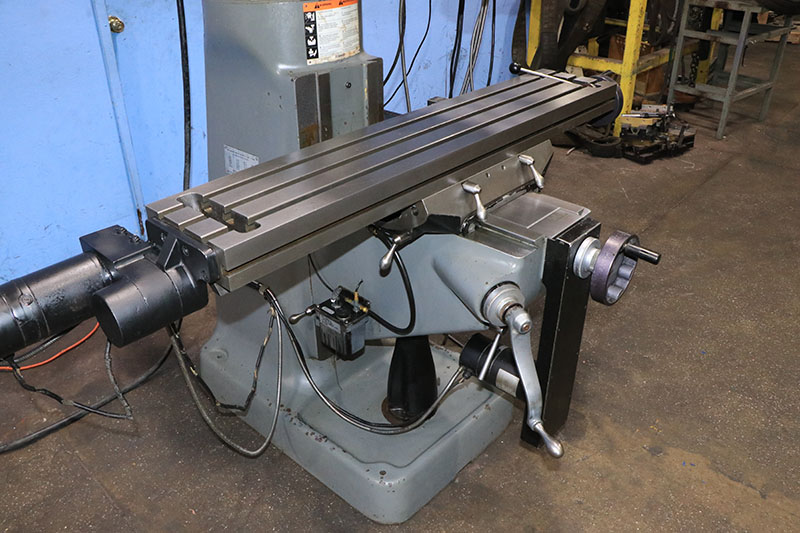

WORKING SURFACE OF TABLE ................. 9" x 48"
LONGITUDINAL TABLE TRAVEL ................ 32"
CROSS TABLE TRAVEL ....................... 12"
QUILL TRAVEL ............................. 5"
KNEE TRAVEL .............................. 16"
SPINDLE TAPER ............................ R-8
VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM
SPINDLE FEEDS(3) ................... .0015, .003, .006" IPR
FLOOR SPACE: ............................. 60" x 63" x 82"
WEIGHT APPROXIMATELY: .................... 2,400 LBS.

EQUIPPED WITH:
EZ-TRAK PLUS 2-AXIS CNC CONTROL (MADE BY SOUTHWESTERN IND.)
   WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS
   LINEAR& CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,
   BOLT HOLE PATTERNS, RS-232
IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT
GROUND BALLSCREWS ON TABLE & SADDLE

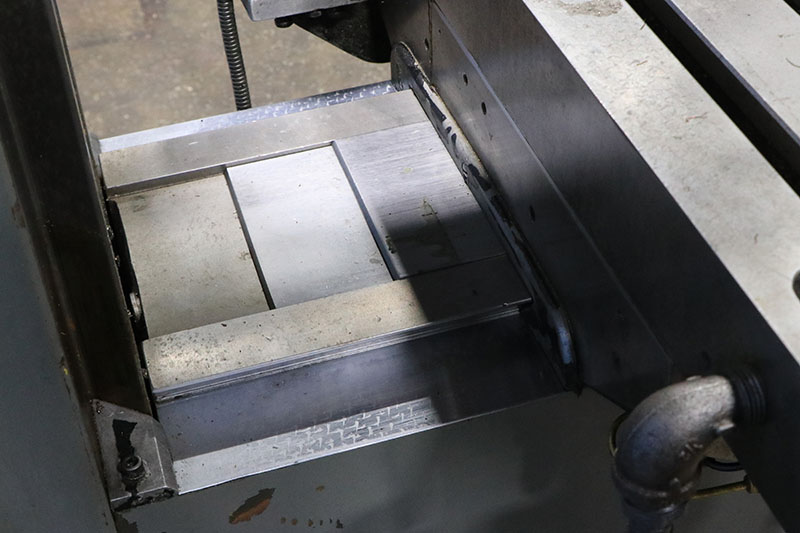

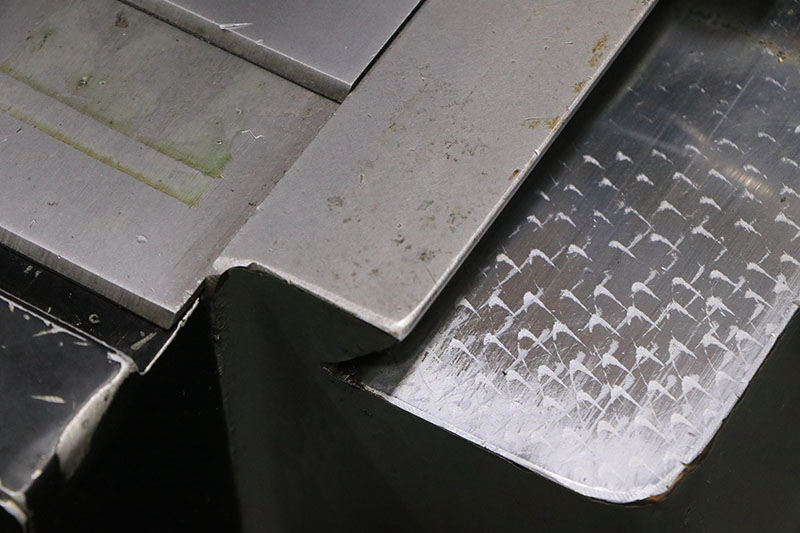

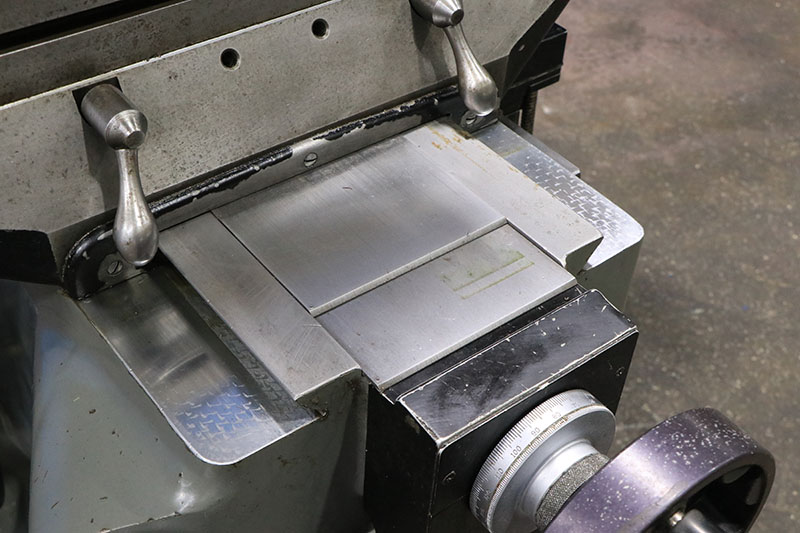

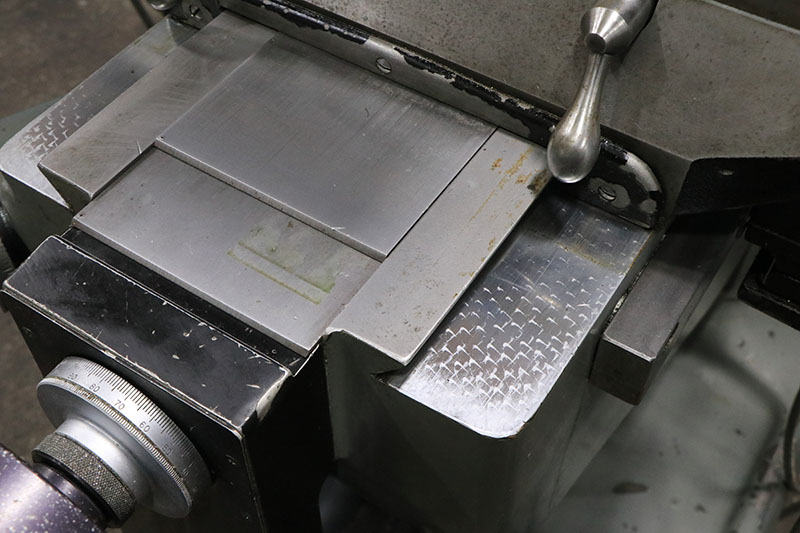

CHROME WAYS

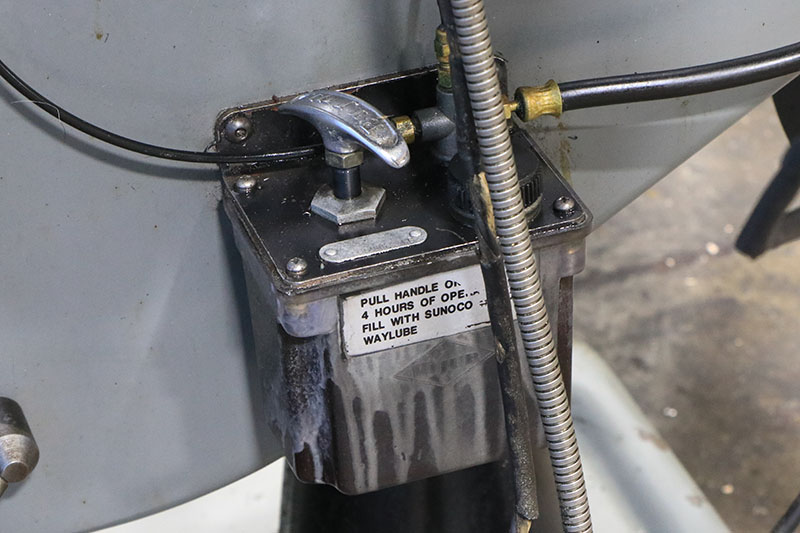

BIJUR LUBRICATION SYSTEM
2 HP (3 HP 30 MIN DUTY) MAIN MOTOR

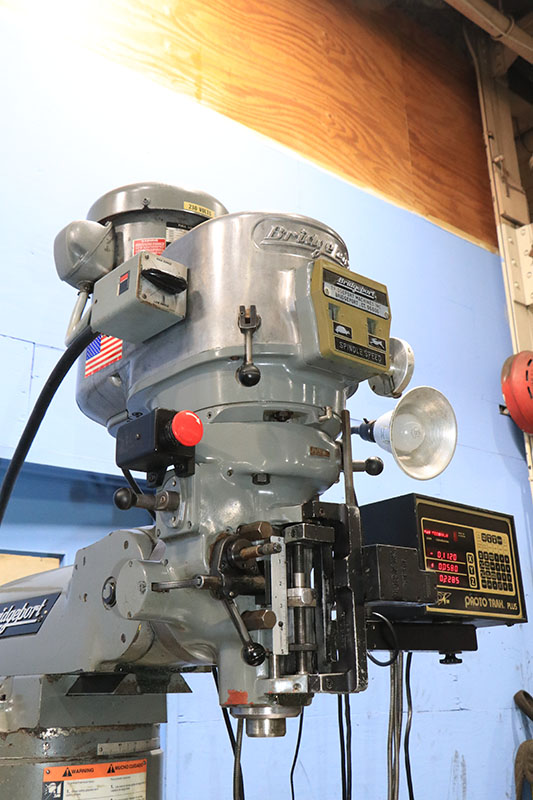

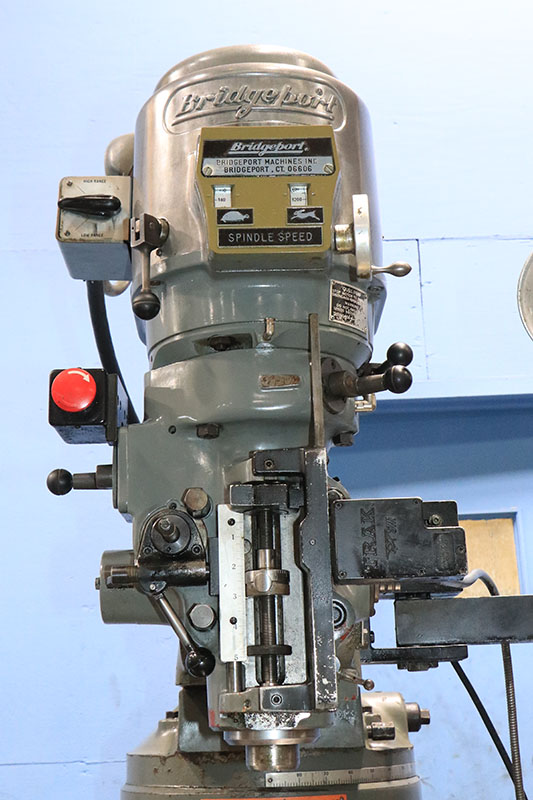

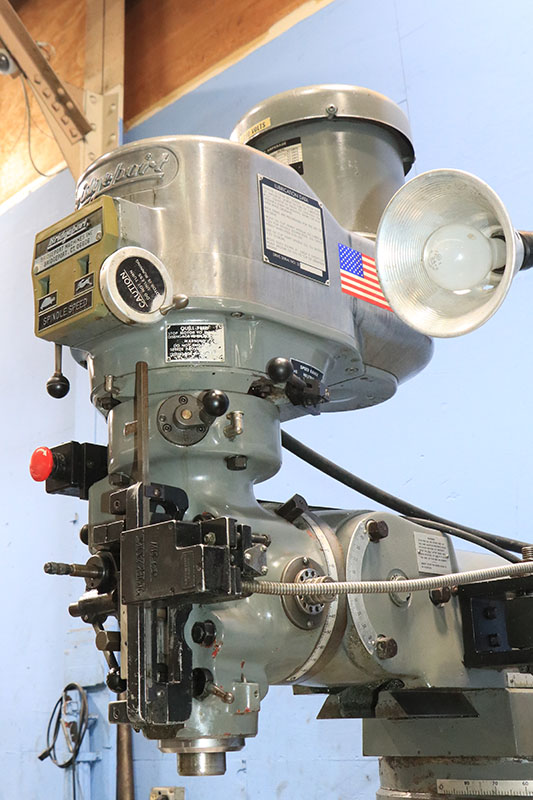

SERIES I HEAD

TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
