Brown & Sharpe 1024U, 1981, I.D. ATTACH., HYD. TABLE, AUTO INFEED UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 1024U, 1981, I.D. ATTACH., HYD. TABLE, AUTO INFEED

Year:: 1981

Ref #:: 177815

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

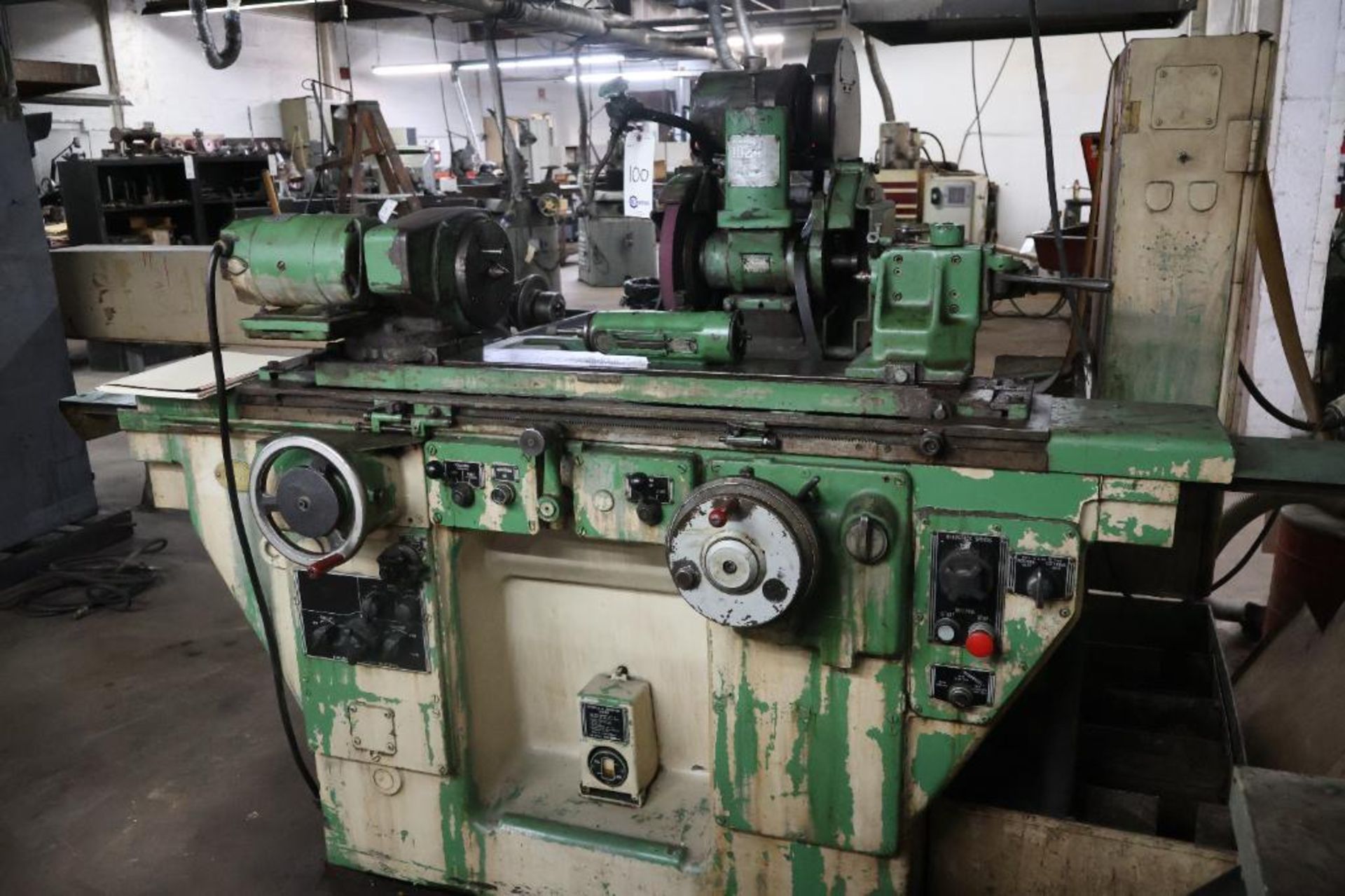

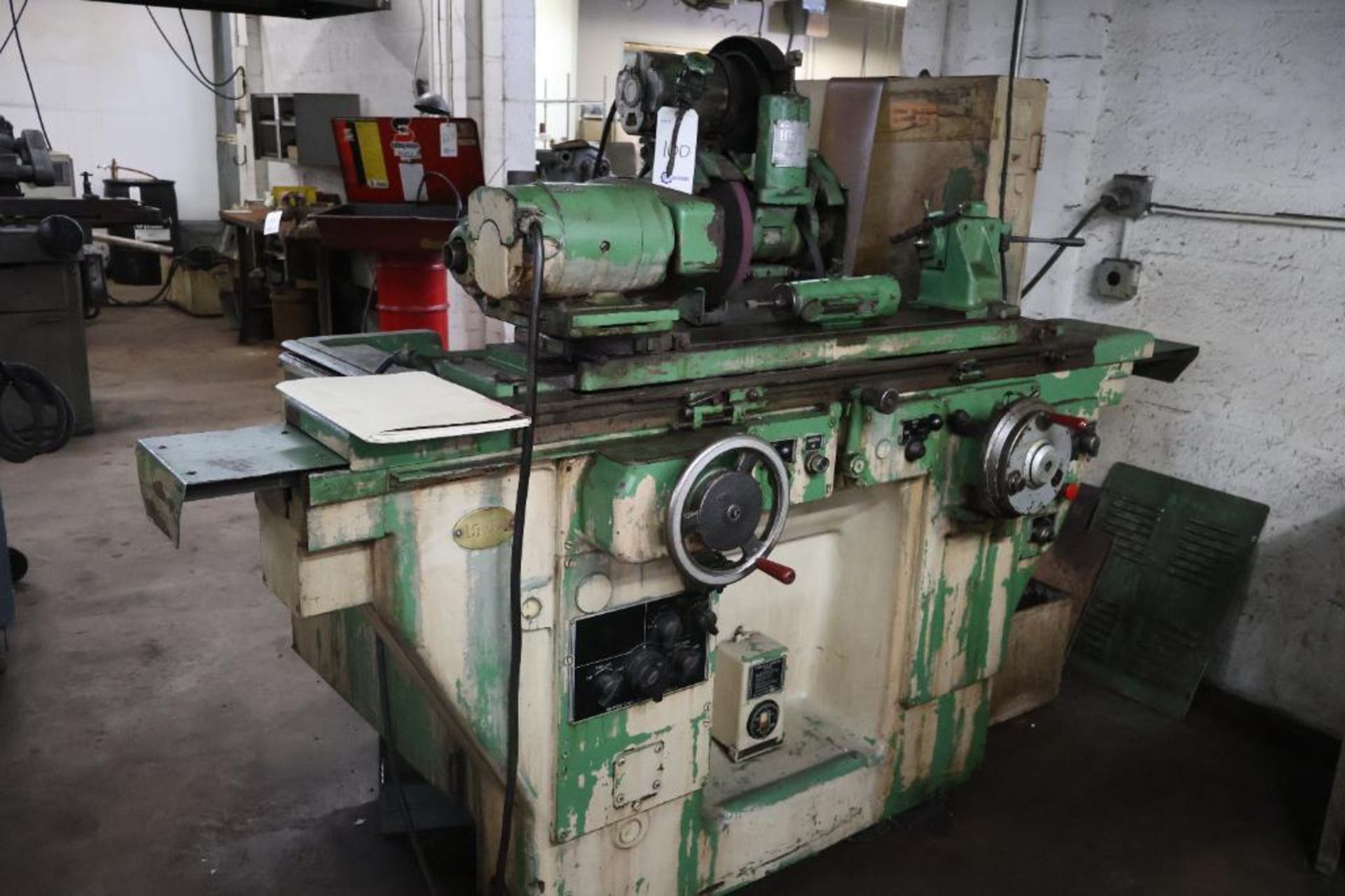

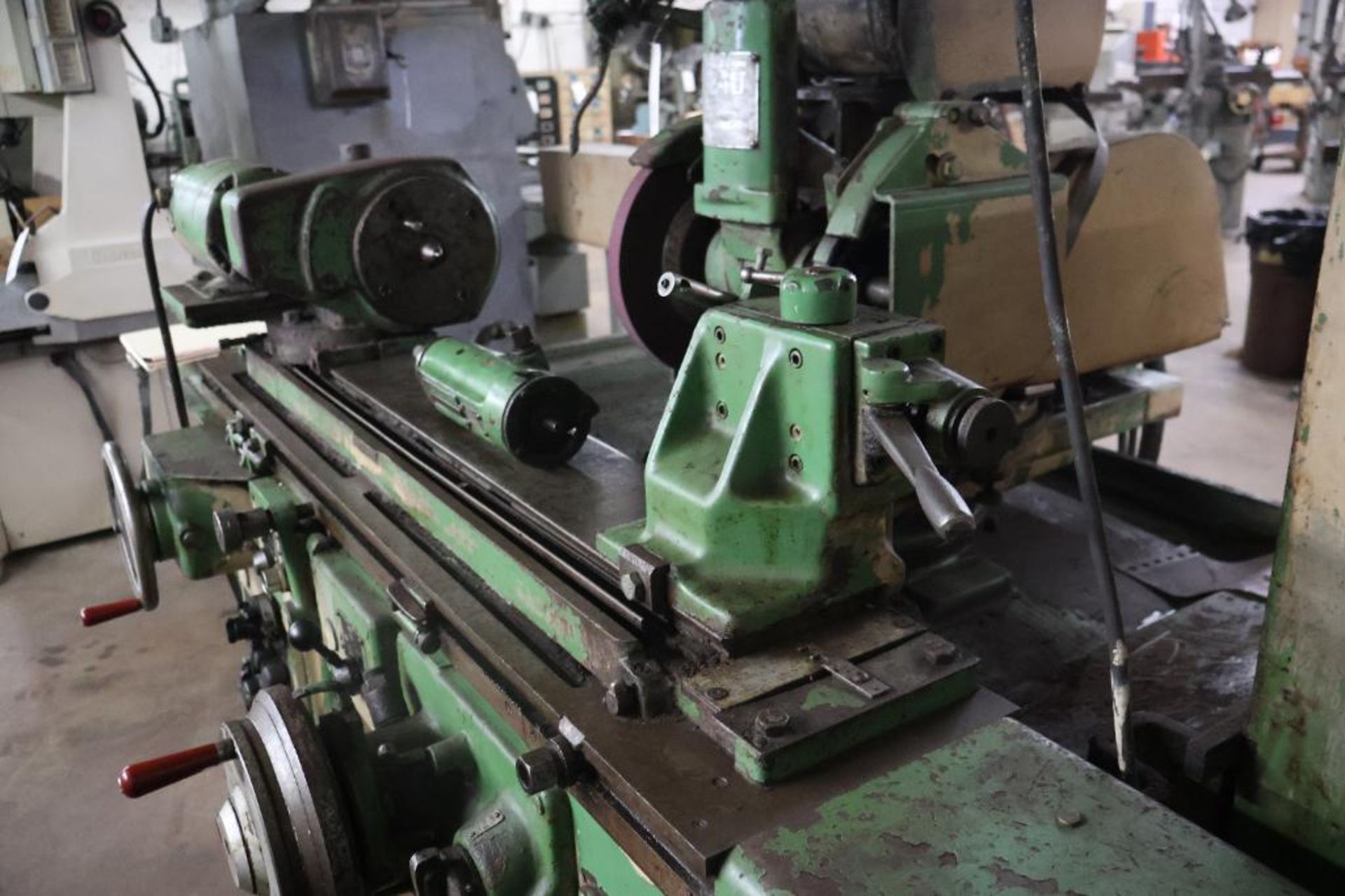

  10" X 24" BROWN & SHARPE "MADE IN USA"
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

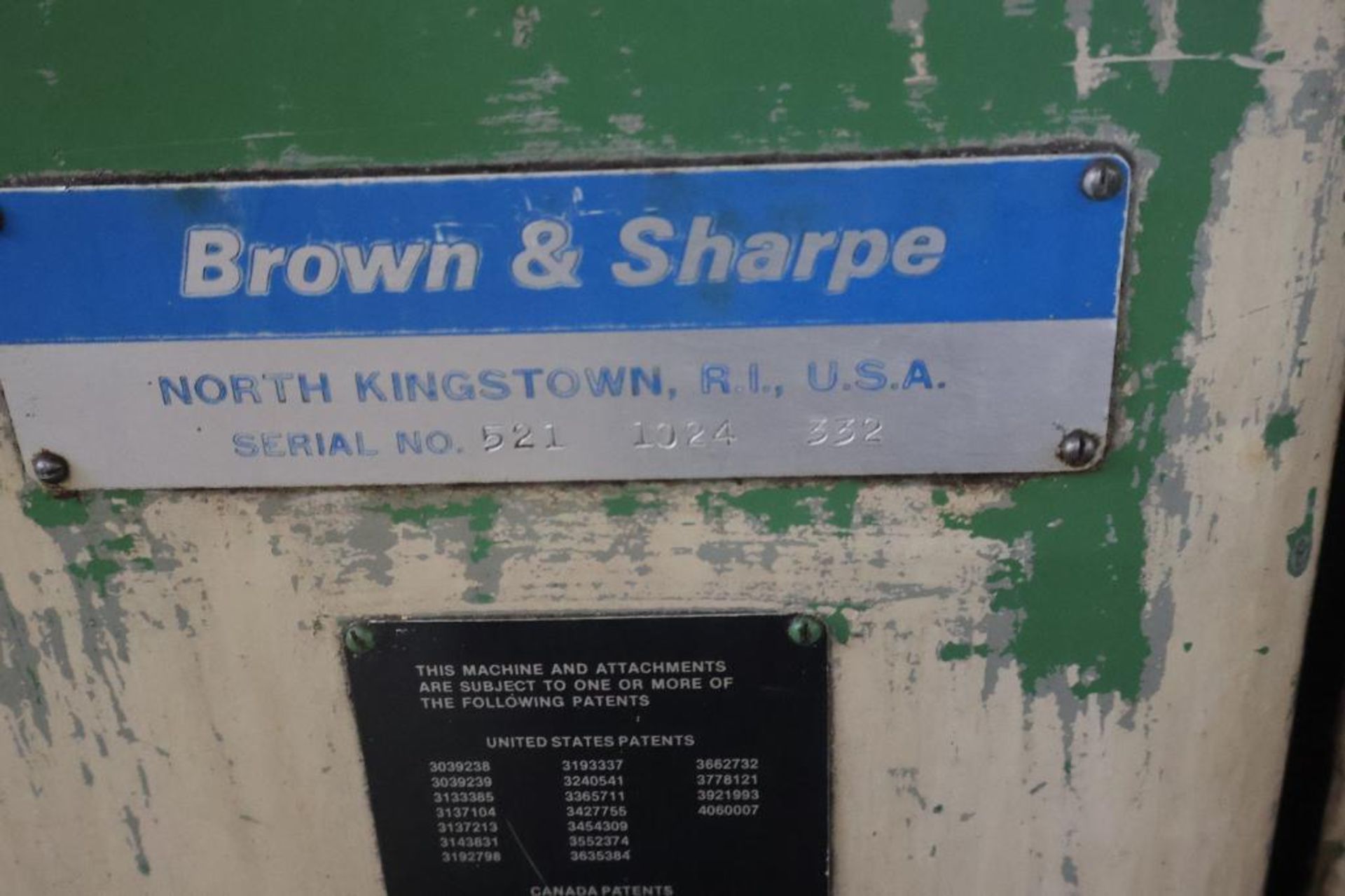

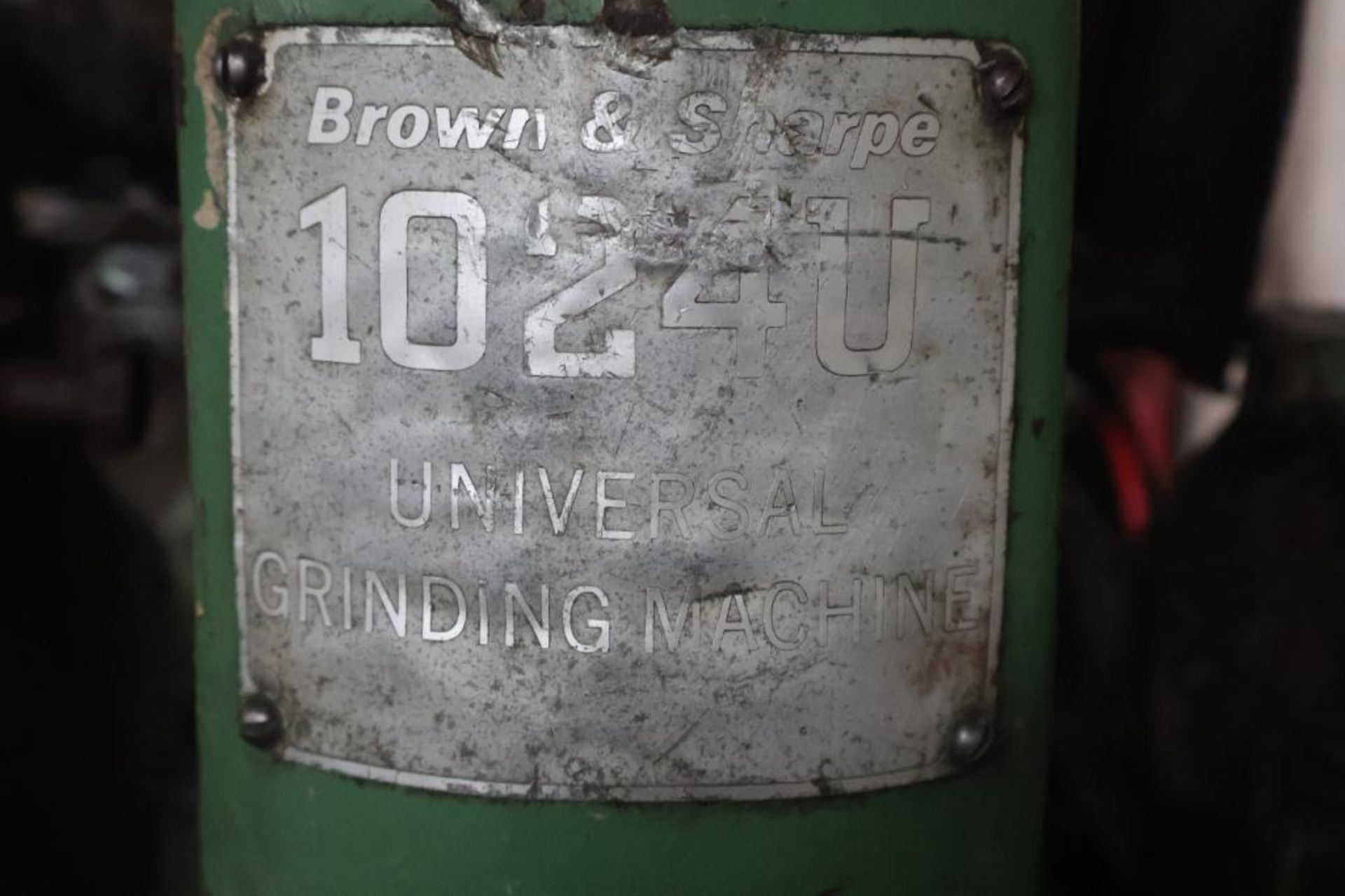

 MODEL: 1024U    S/N: 521-1024-332    NEW: 1981


UNIQUE TO BROWN & SHARPE GRINDERS FEATURE,

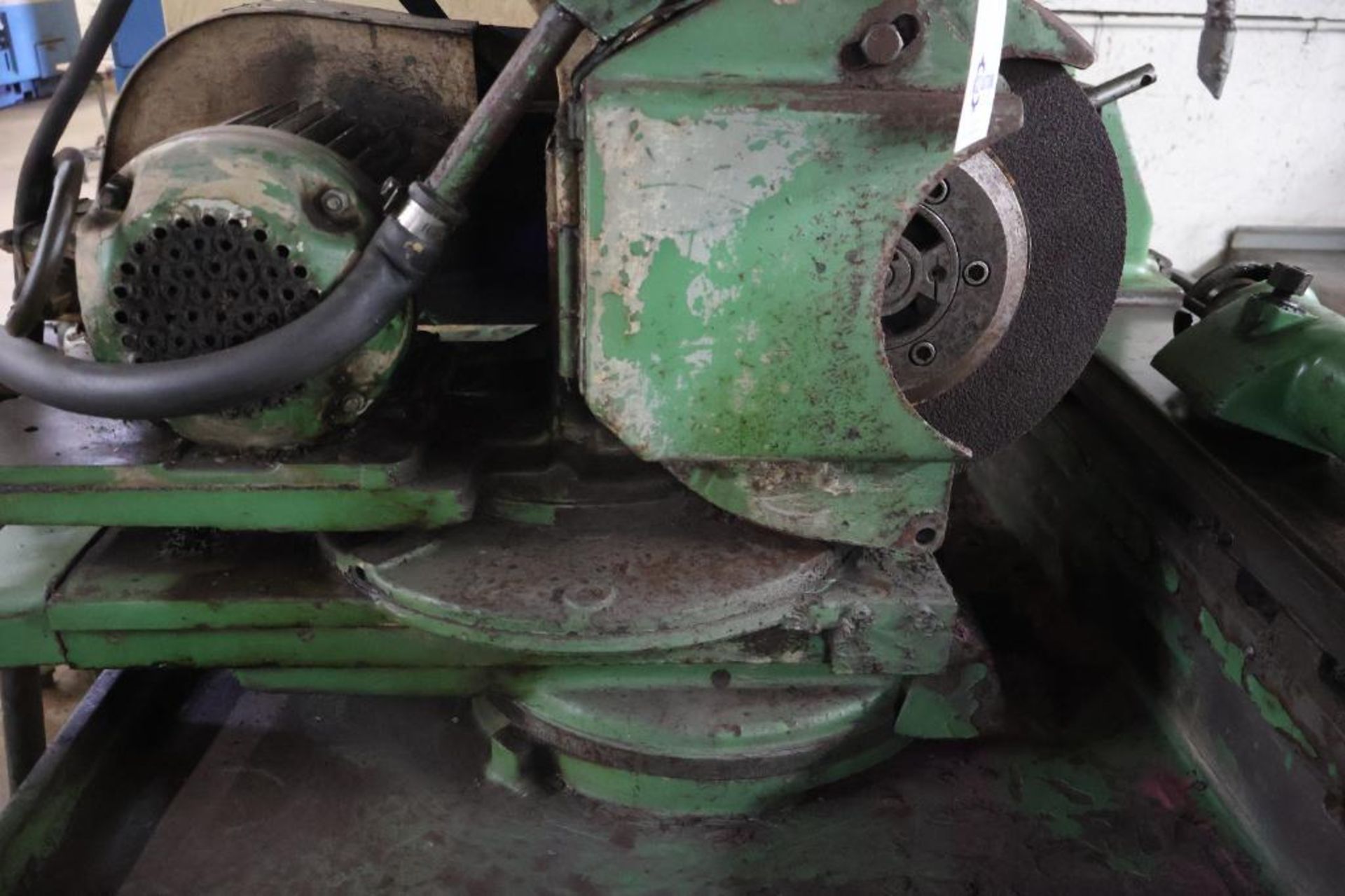

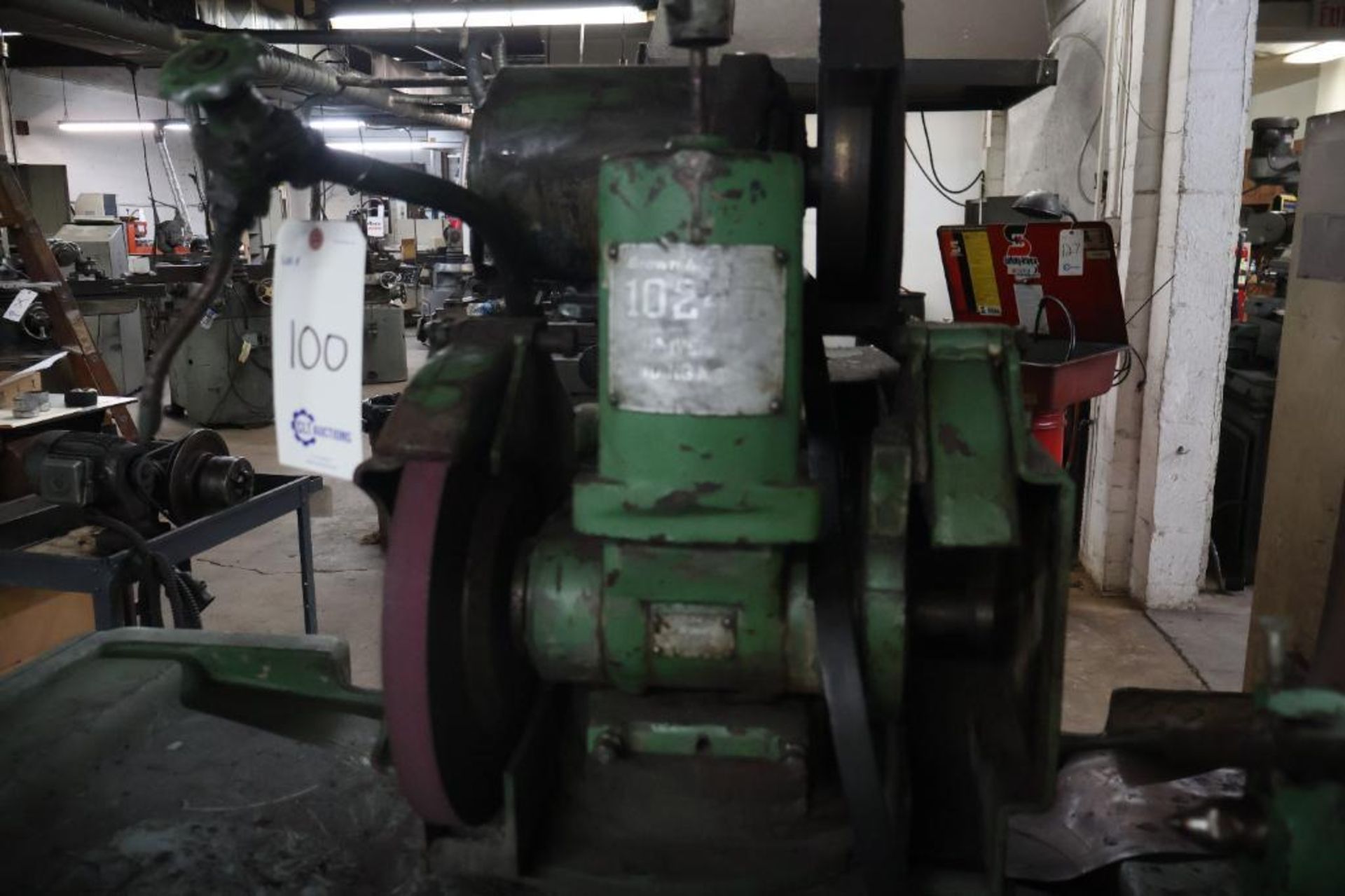

 - DOUBLE SWIVEL WHEELHEAD:

THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL
 AND INTERNAL GRINDING SPINDLES CAN BE SWIVELED TO
 90° EITHER SIDE OF ZERO.  AN ADDITIONAL SWIVEL
 THROUGH 90° IS PROVIDED AT THE WHEEL SLIDE.
 ANY COMPOUND SETTING REQUIRED IN COMBINATION
 STRAIGHT & TAPER OR DOUBLE TAPER GRINDING,
 O.D. OR I.D., CAN BE MADE QUICKLY AND
 ACCURATELY.

THE UNIVERSAL TURRET, WHICH SUPPORTS THE WHEEL
 SPINDLE HEAD, PROVIDES FURTHER ADJUSTMENT FOR
 CHANGE OF WHEEL LOCATION.  THE TURRET SWIVELS
 ON THE WHEEL SLIDE, AND CAN BE LOCKED IN ANY
 OF FOUR POSITIONS. EACH CHANGE MOVES THE WHEEL 2".
 RIGHT HAND WHEEL MOUNTING PROVIDES FOUR
 ADDITIONAL WHEEL POSITIONS.


SWING OVER TABLE .................... 10"
DISTANCE BETWEEN CENTERS,
 NOMINAL ............................ 24"
DISTANCE BETWEEN CENTERS,
 MAXIMUM ............................ 26-3/4"

INFINITELY VARIABLE TABLE SPEED ..... 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
  SLOW .............................. 0.1"
  FAST .............................. 1.5"
DWELL AT EACH OR ALTERNATE
 TABLE REVERSAL ..................... 0 - 2-1/2 SEC.
TABLE SWIVEL, SCALES FOR
 ANGULAR SETTING. ................... 8-1/4°
SCALES-TAPER PER FT. ................ 3-1/2"

WHEELHEAD SPINDLE SPEEDS (3) ... 2100, 2400 & 2800 RPM

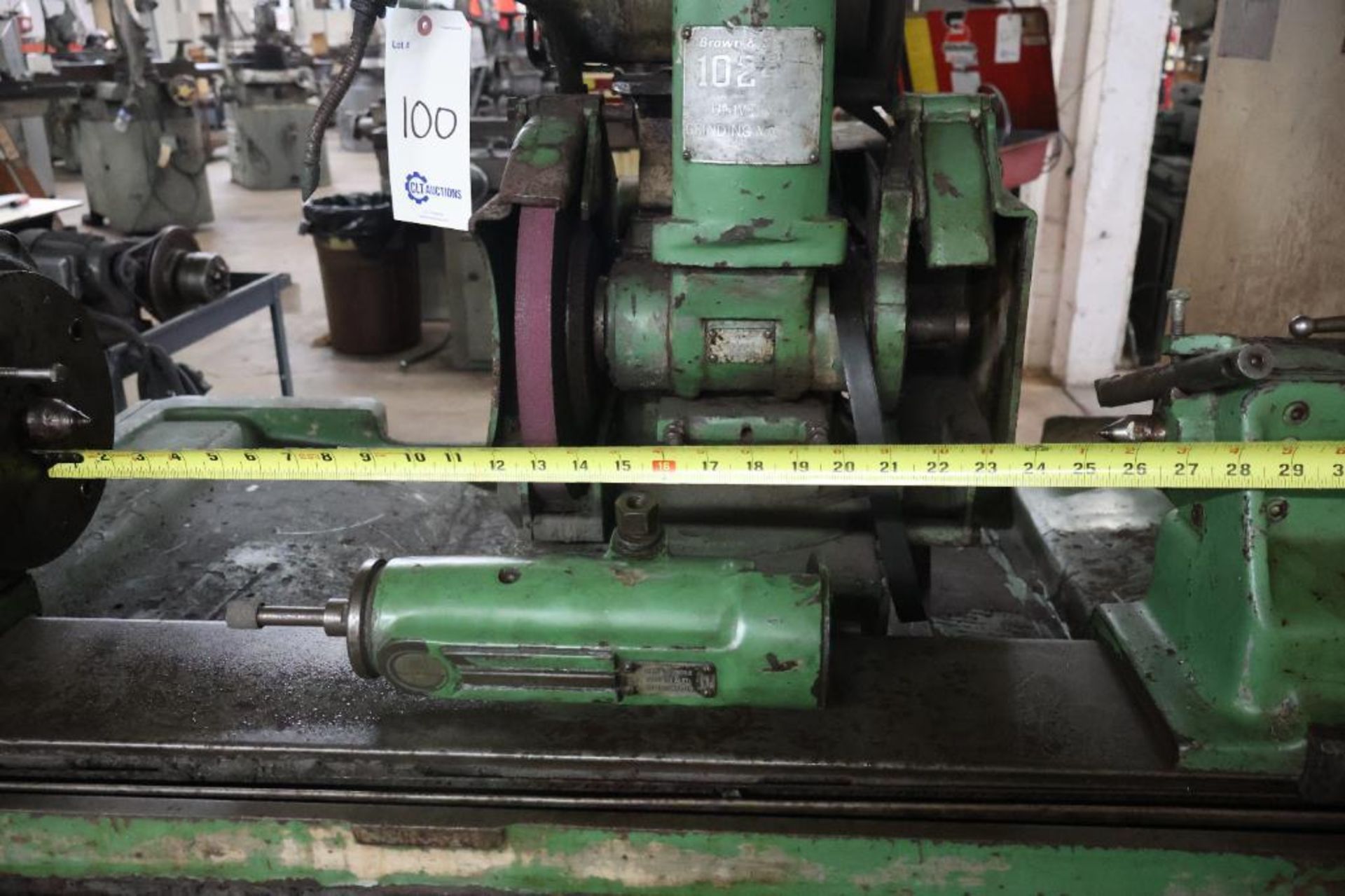

GRINDING WHEEL SIZE ................ 12" X 1" X 5"
MINIMUM GRINDING WHEEL WIDTH ....... 3/8"
SWIVEL AT THE WHEELSLIDE ........... 90° EITHER WAY
WHEEL SPINDLE SWIVELS .............. 90° EITHER WAY


MAX. TRAVEL OF WHEELSLIDE .......... 5"
CROSSFEED HANDWHEEL GRAD. .......... 0.00002"
AUTOMATIC CROSS FEED, REDUCTION
 IN DIAMETER  OR WORK AT EACH
 OR ALTERNATE REVERSALS ............ 0.0001" - .003"

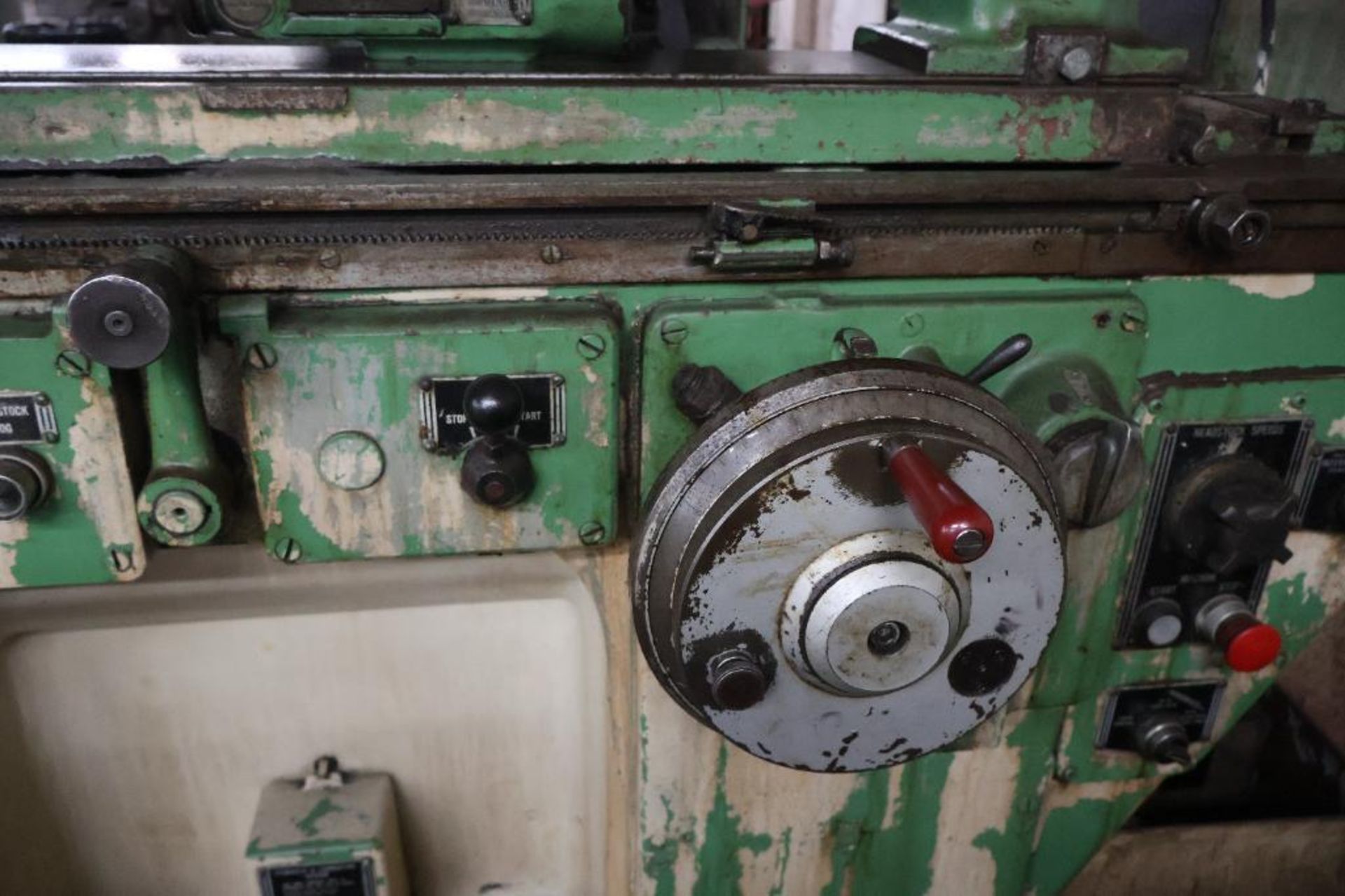

HAND FEED PER REV. OF HANDWHEEL:
SLOW ............................... 0.1"
FAST ............................... 0.3"

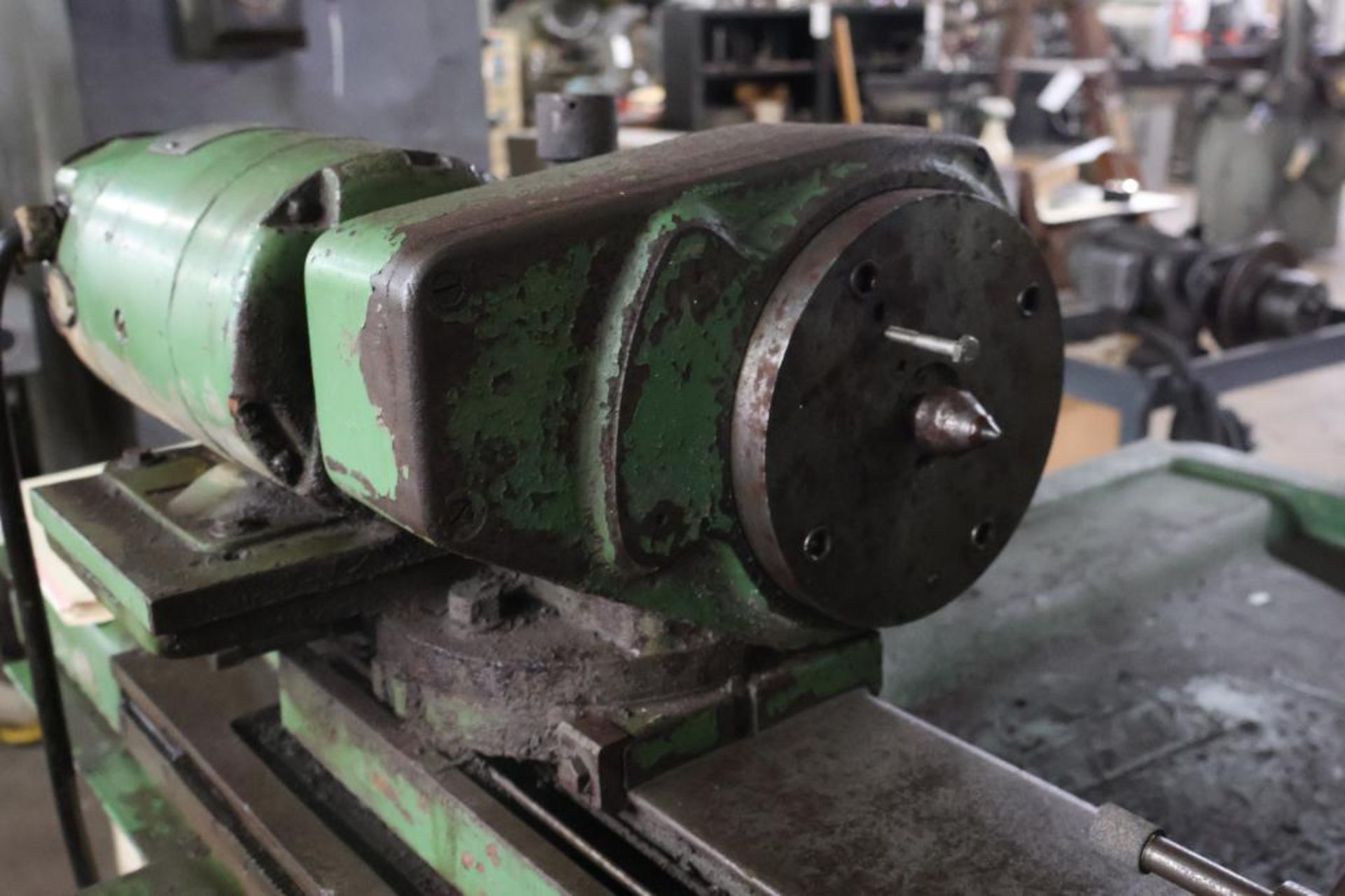

WORKHEAD SWIVEL .................... 180°

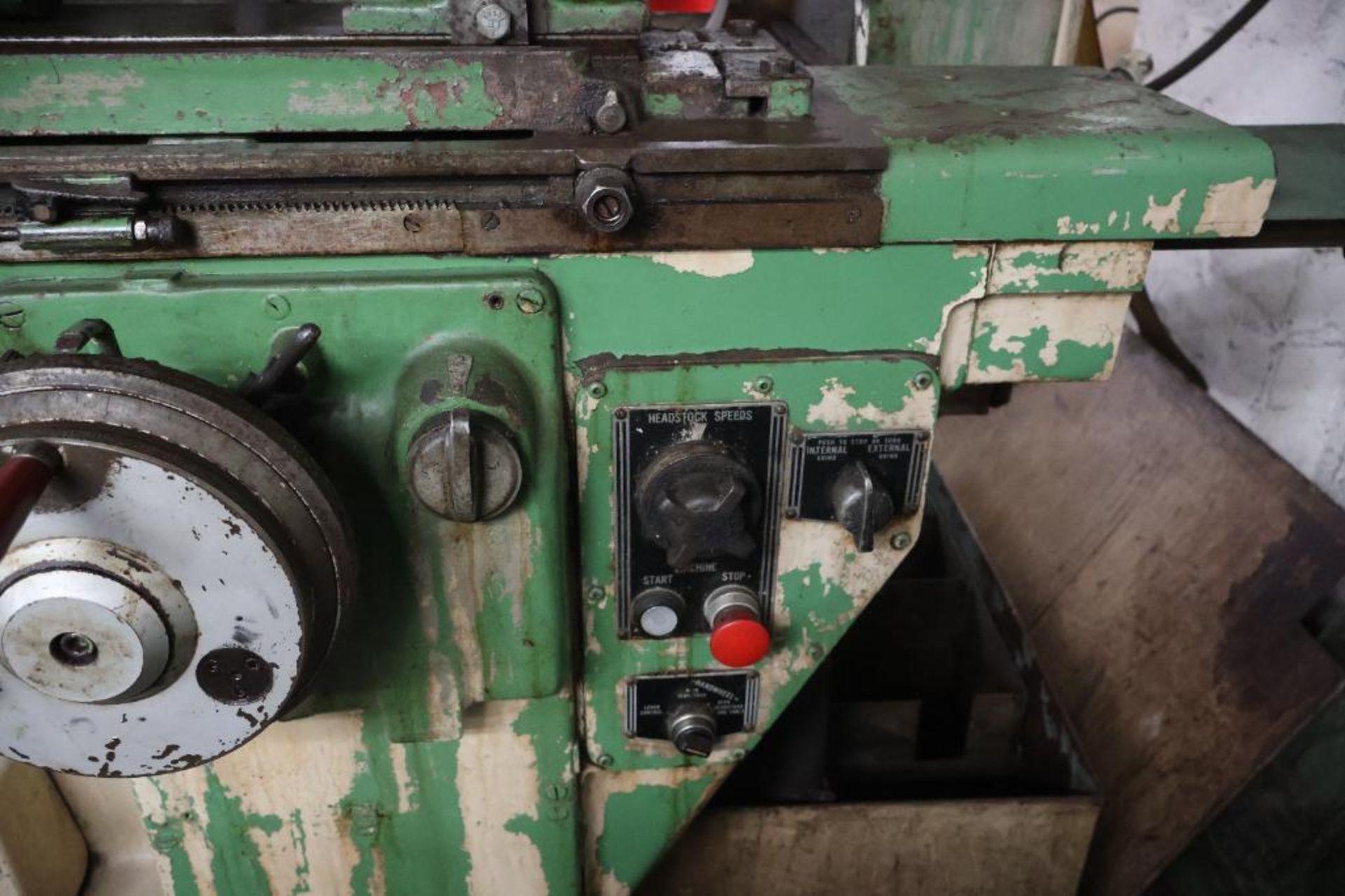

WORKHEAD, INFINITELY VARIABLE
  SPINDLE SPEEDS ................... 60 TO 500 RPM
WORKHEAD, SPINDLE TAPER ............ A2-5"

TAILSTOCK SPINDLE TAPER ............ #7 JARNO
TAILSTOCK SPINDLE TRAVEL ........... 5/8"

APPROXIMATE WEIGHT ................ 5,100 LBS
APPROX. DIMS. .................. 98" x 62" x 65"H

MACHINE FEATURES:
DUAL RIGHT OR LEFT END WHEEL MOUNTING
DOUBLE SWIVEL WHEELHEAD DESIGN (SEE ABOVE FOR DESCRIPTION)
INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"

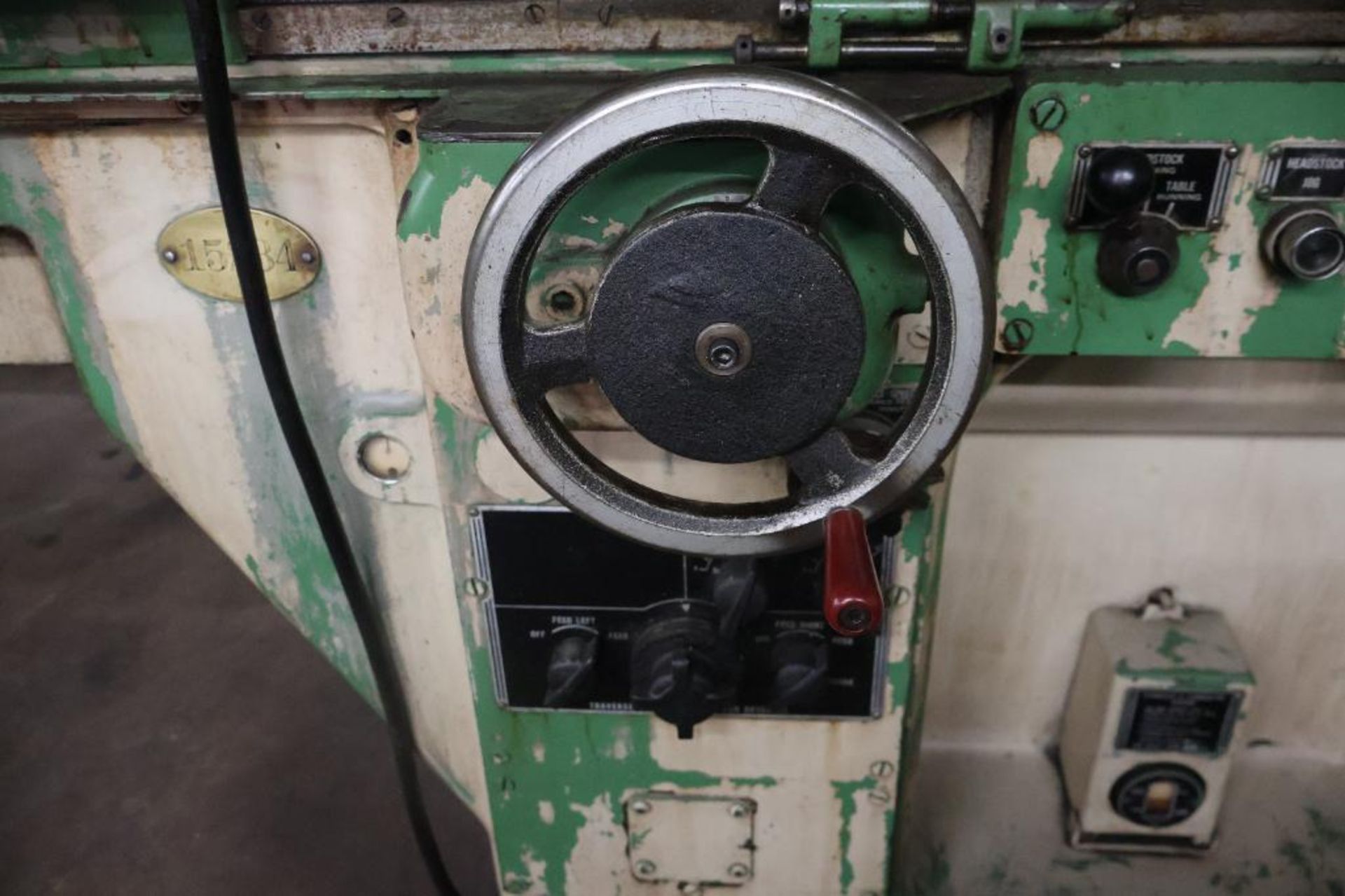

HYDRAULIC TABLE TRAVERSE
AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
ADJUSTABLE TABLE DWELL

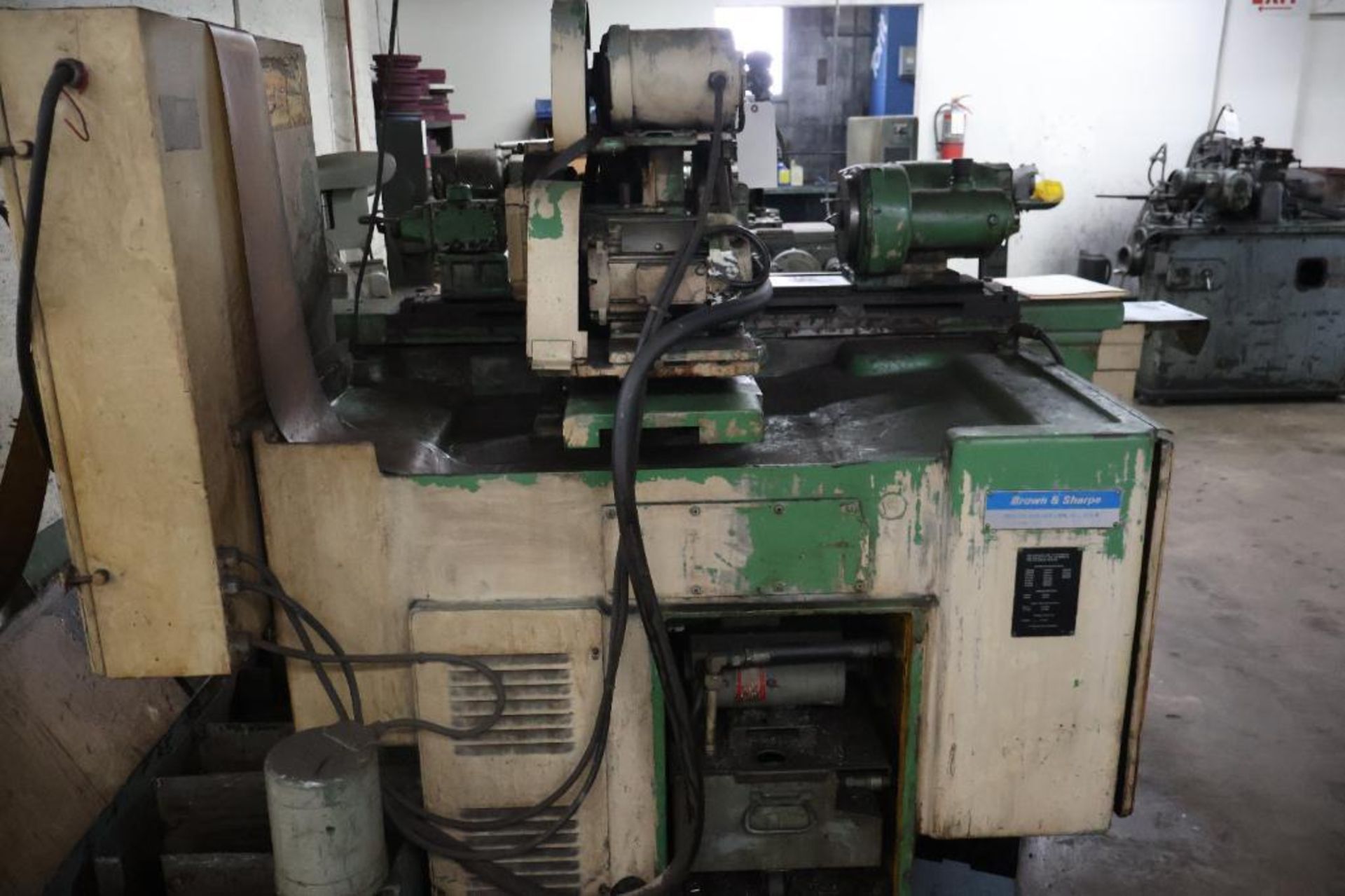

SELF-CONTAINED HYDRAULIC SYSTEM
OIL CHILLER UNIT (FAN COOLED)


EQUIPPED WITH:

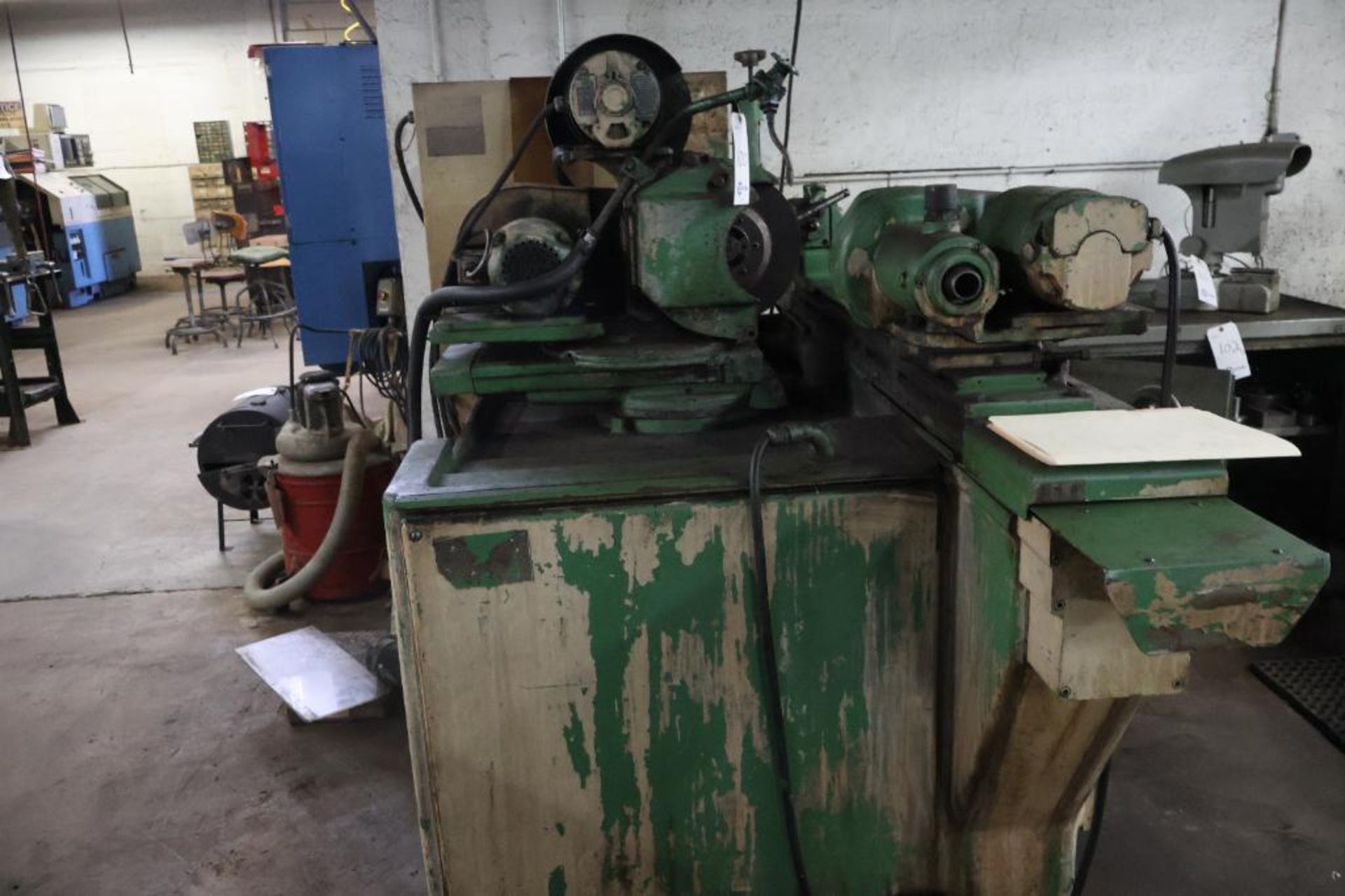

SWING DOWN I.D. GRINDING ATTACHMENT
B & S I.D. GRINDING SPINDLE
B & S WORKHEAD SPINDLE IS DUAL "LIVE" & "DEAD"
CENTER IN WORKHEAD
EXTERNAL COOLANT TANK & PUMP

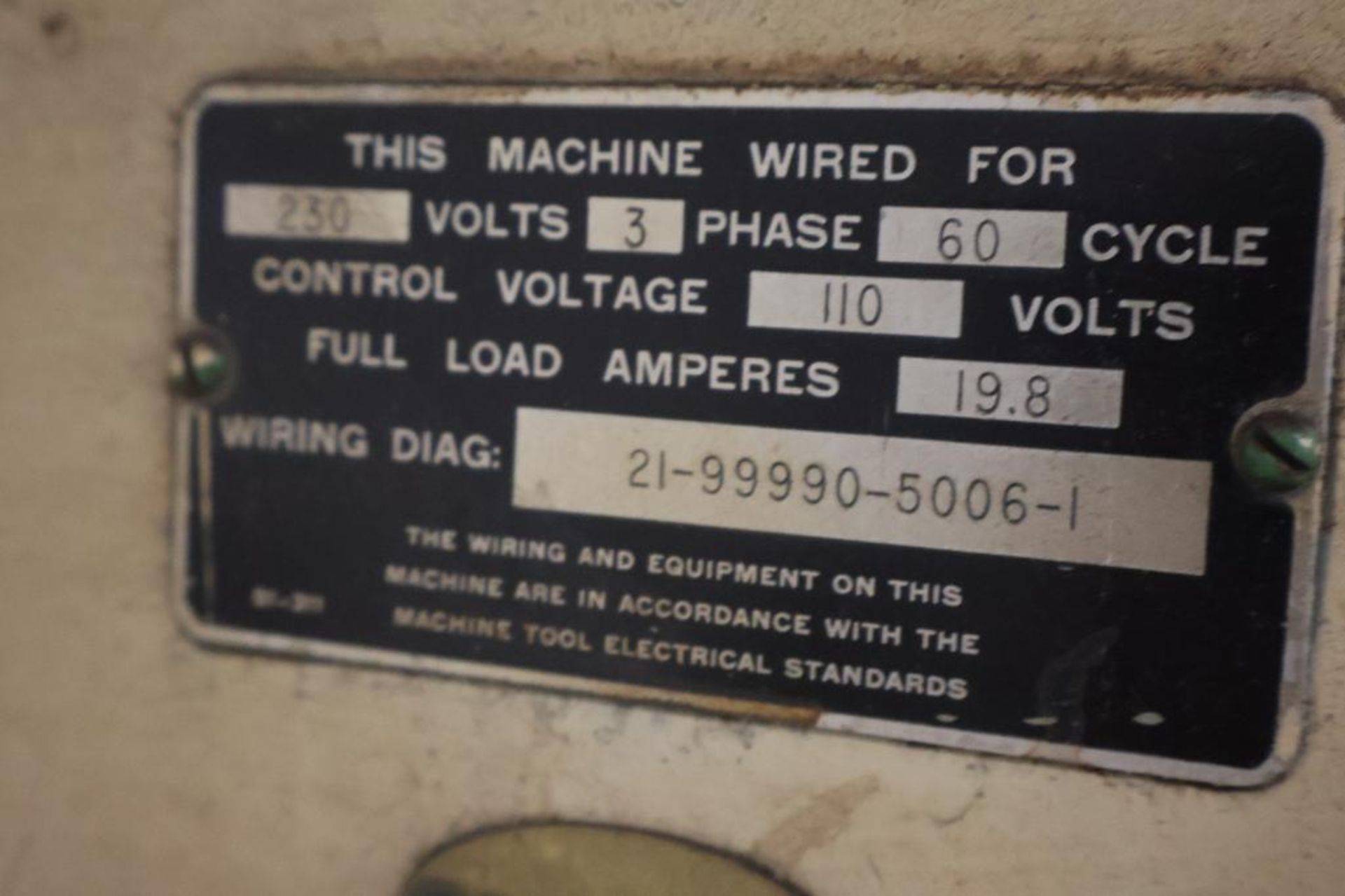

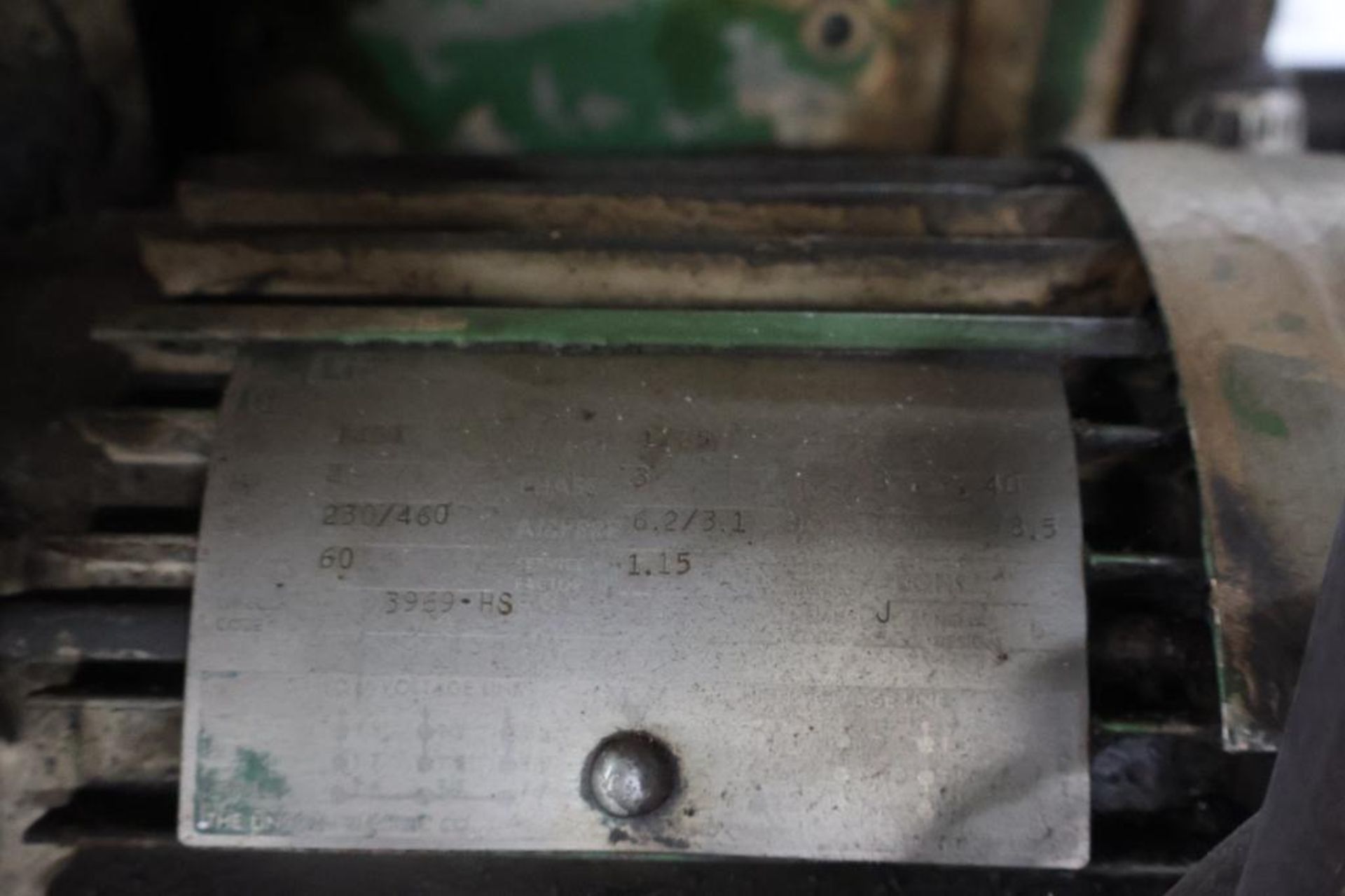

MOTORS ARE 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS


** SUPERIOR CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
