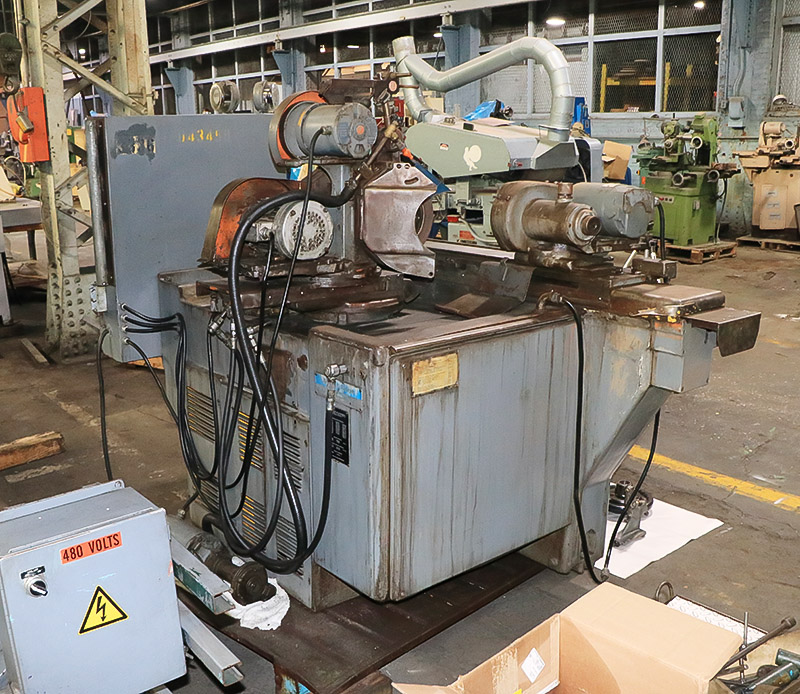

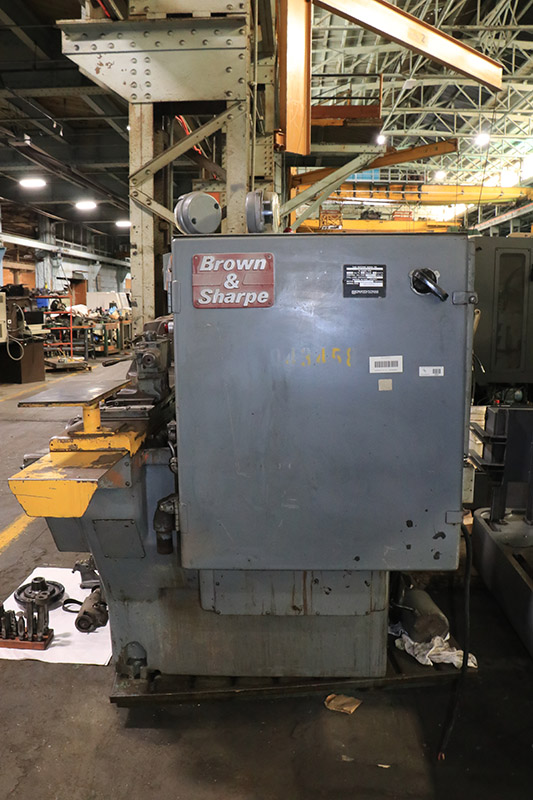

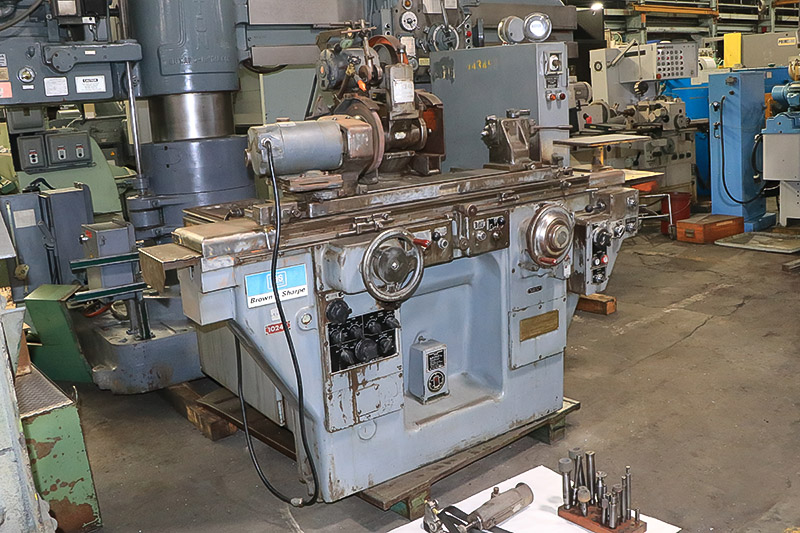

Brown & Sharpe 1024U, NEW 1976, I.D., FULL AUTO CYCLE, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 1024U, NEW 1976, I.D., FULL AUTO CYCLE,

Year:: 1976

Ref #:: 161427

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

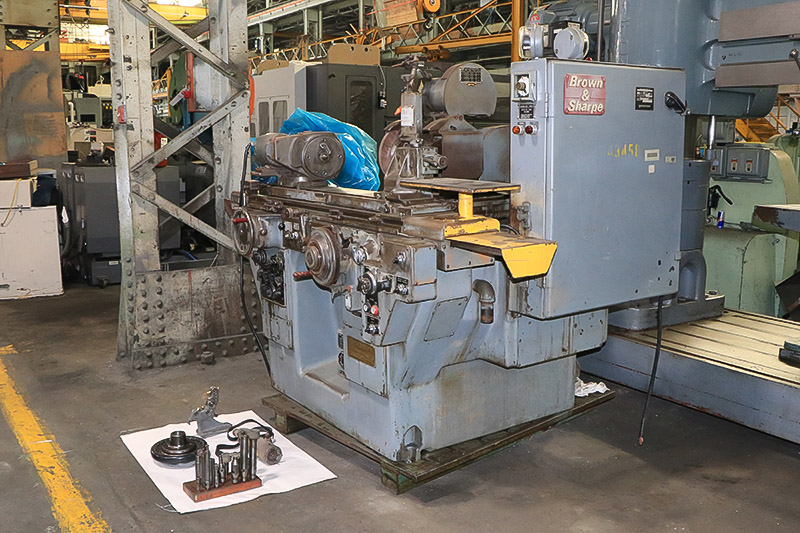

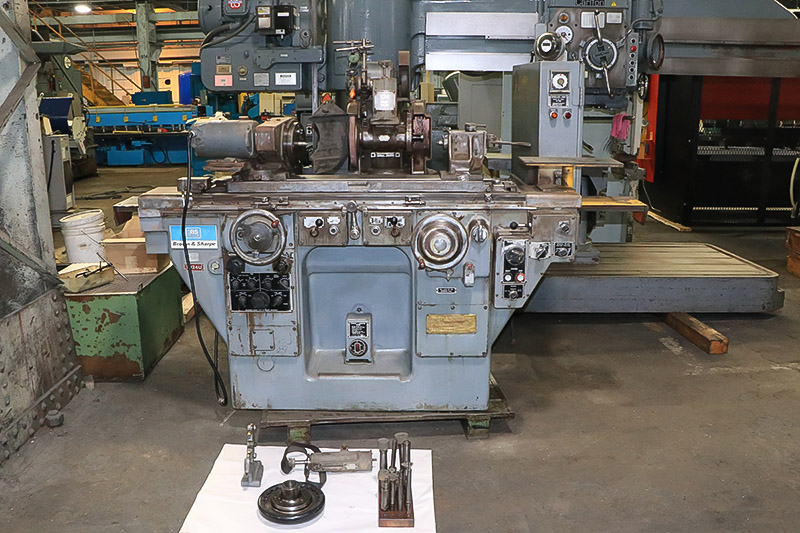

  10" X 24" BROWN & SHARPE UNIVERSAL
    I.D./O.D. CYLINDRICAL GRINDER

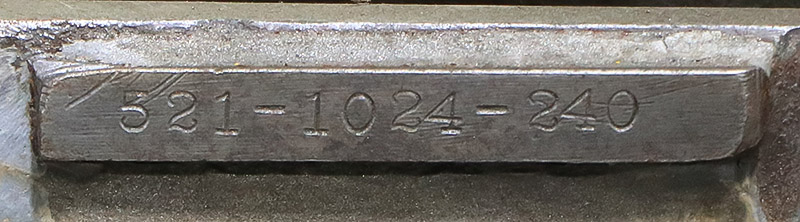

MODEL: 1024U     S/N: 521-1024-240       NEW: 1976



** FULL AUTO CYCLE (PICK, PLUNGE, RAPID, SPARKOUT TIMER)**

  SWING OVER TABLE ......................... 10"
DISTANCE BETWEEN CENTERS, NOMINAL .......... 24"
DISTANCE BETWEEN CENTERS, MAXIMUM .......... 26-3/4"

  WHEELHEAD SPINDLE SPEEDS (3) ............. 2100, 2400 & 2800 RPM
GRINDING WHEEL SIZE ........................ 12" X 1" X 5"
MINIMUM GRINDING WHEEL WIDTH ............... 3/8"
SWIVEL AT THE WHEELSLIDE ................... 90 DEGREES EITHER WAY
WHEEL SPINDLE SWIVELS ...................... 90 DEGREES EITHER WAY

  INFINITELY VARIABLE SPINDLE SPEEDS ....... 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ............... A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ...... 90 DEGREES

  INFINITELY VARIABLE TABLE SPEED .......... 3" TO 150" IPM

TABLE PER REV. OF HANDWHEEL:
SLOW ....................................... 0.1"
FAST ....................................... 1.5"
DWELL AT EACH OR ALTERNATE TABLE REV. ...... 0 - 2-1/2 SEC.

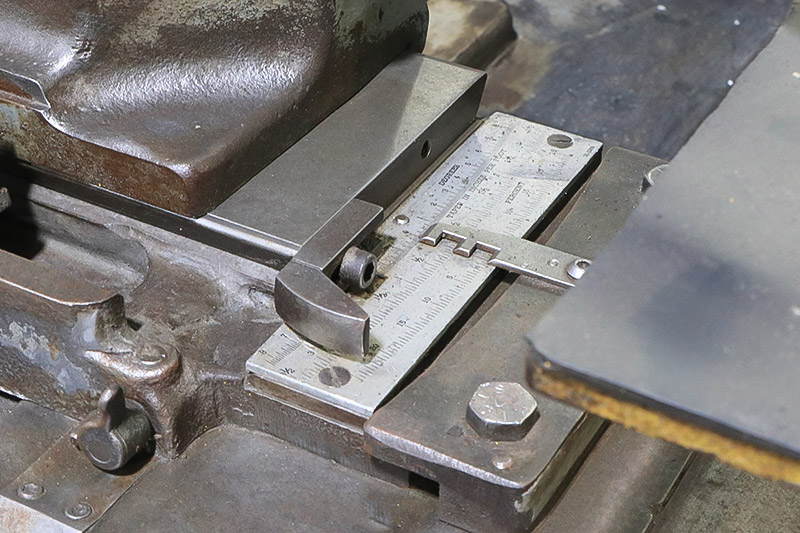

TABLE SWIVEL, SCALES FOR ANGULAR SETTING ... 8-1/4 DEG.
SCALES-TAPER PER FT. ....................... 3-1/2"

  MAX. TRAVEL OF WHEELSLIDE ................ 5"
CROSSFEED HANDWHEEL GRAD. .................. 0.00002"
AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER
  OR WORK AT EACH OR ALTERNATE REVERSALS ... 0.0001" - .003"
HAND FEED PER REV. OF HANDWHEEL:
SLOW ....................................... 0.1"
FAST ....................................... 0.3"

  TAILSTOCK SPINDLE TAPER ...................#7 JARNO
TAILSTOCK SPINDLE TRAVEL ................... 5/8"

  APPROXIMATE WEIGHT ....................... 5,100 LBS

MACHINE FEATURES:

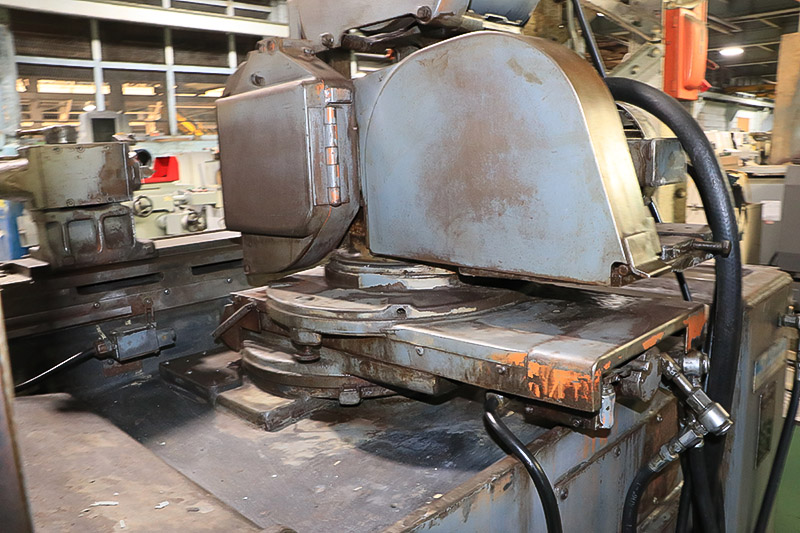

DUAL RIGHT OR LEFT END WHEEL MOUNTING
SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
  SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
  COMBINATION STRAIGHT AND TAPER GRINDING,
  EXTERNAL OR INTERNAL.

INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"
HYDRAULIC TABLE TRAVERSE

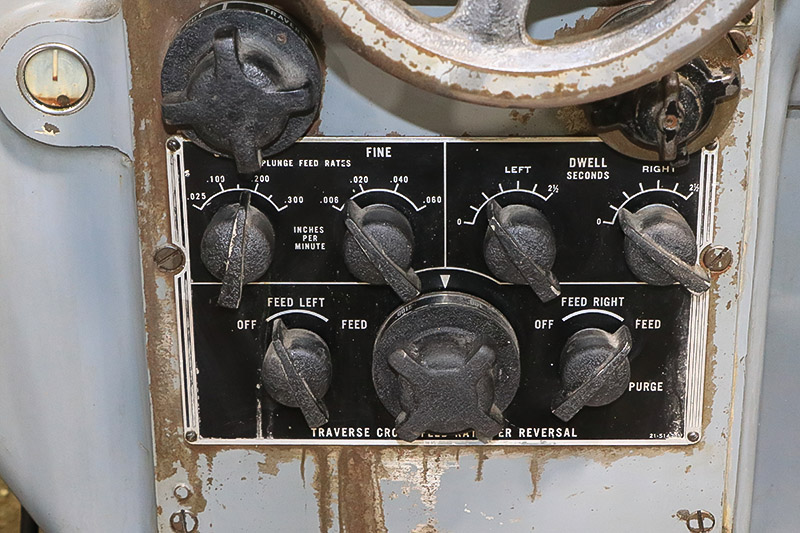

AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
AUTO PLUNGE INFEED

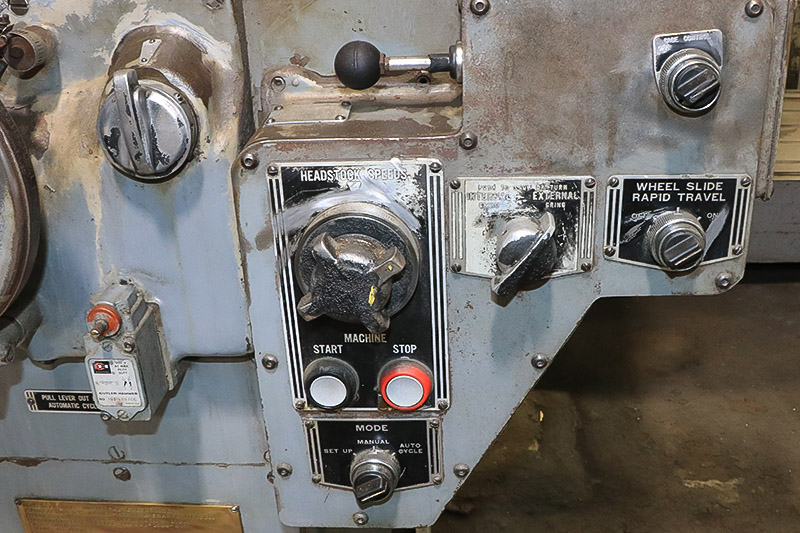

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

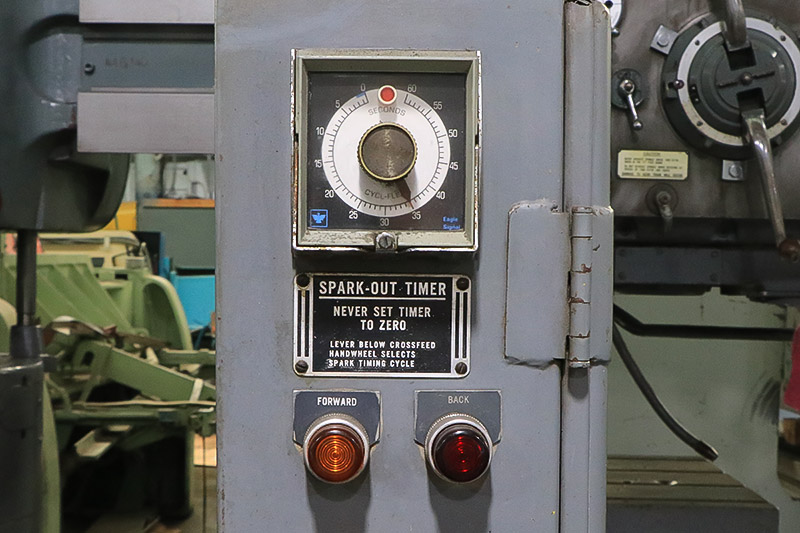

SPARKOUT TIMER
ADJUSTABLE TABLE DWELL
SELF-CONTAINED HYDRAULIC SYSTEM
OIL CHILLER UNIT (FAN COOLED)


EQUIPPED WITH:

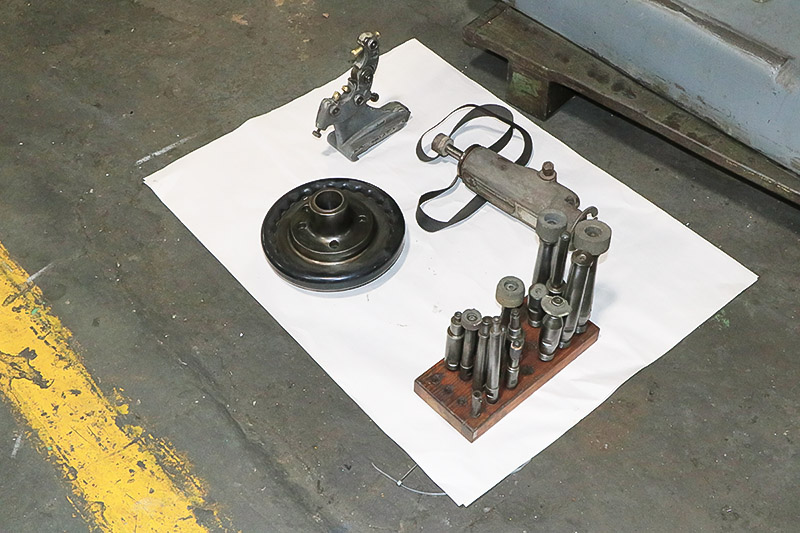

SWING DOWN INTERNAL GRINDING ATTACHMENT
WITH B & S I.D. SPINDLE, EXTRA ARBORS WITH WHEELS

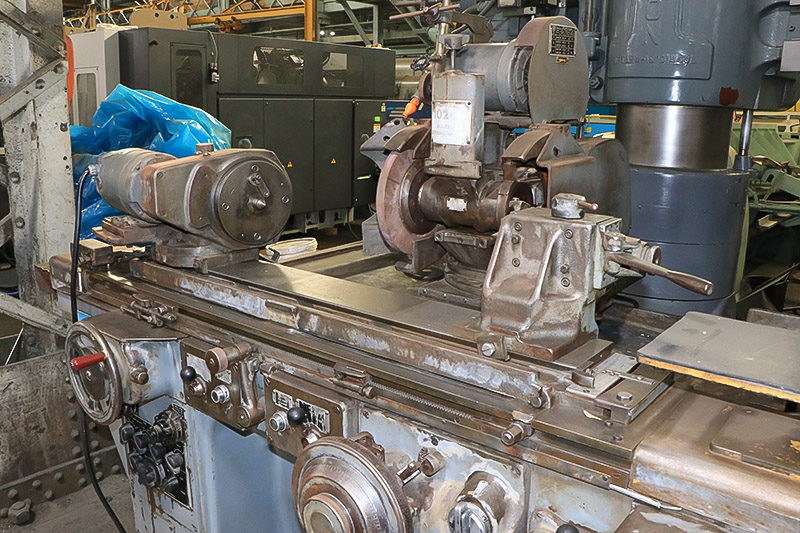

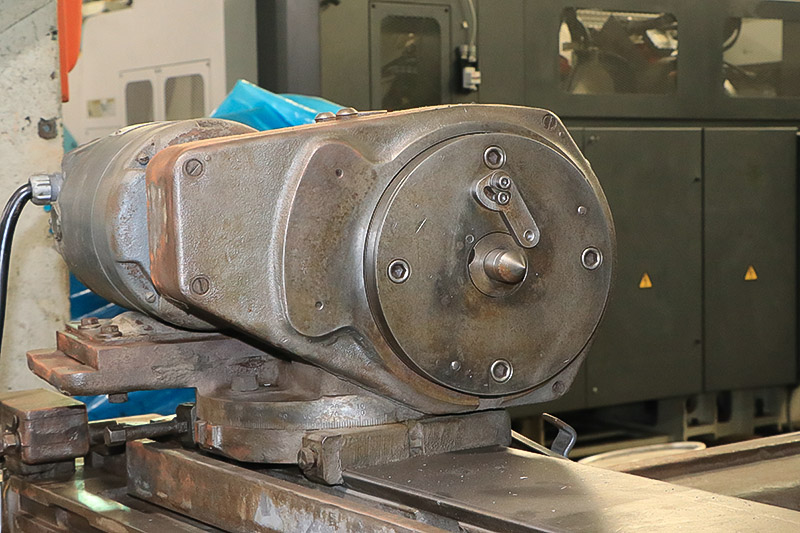

DUAL DEAD/LIVE HEADSTOCK SPINDLE
COOLANT SYSTEM
3-POINT STEADY REST SUPPORT
COLLET CHUCK
MOTORS ARE 3/60/230-460 VOLTS

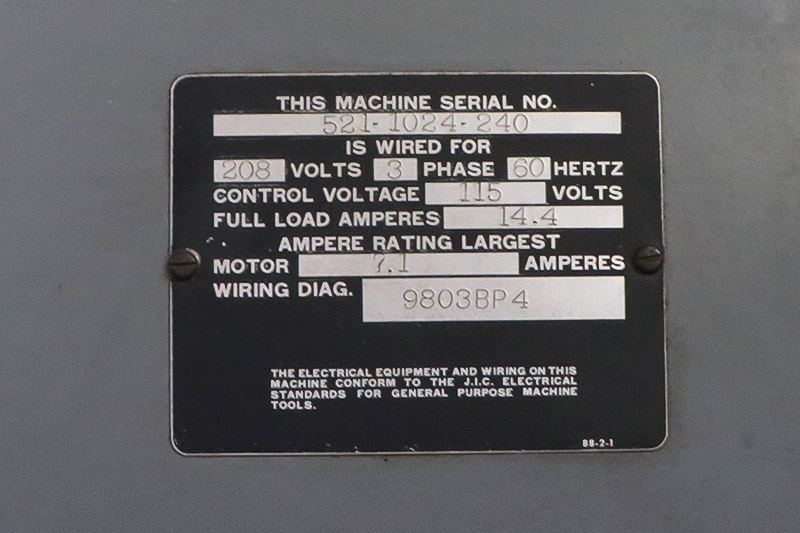

MACHINE IS PRESENTLY WIRED FOR 208 VOLTS

  ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
