Bullard 54" Cutmaster VERTICAL BORING MILLS & VERTICAL TURRET LATHES

Price on Request

Make:
Bullard
Model:
54" Cutmaster
Year:
Ref #:
164117

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

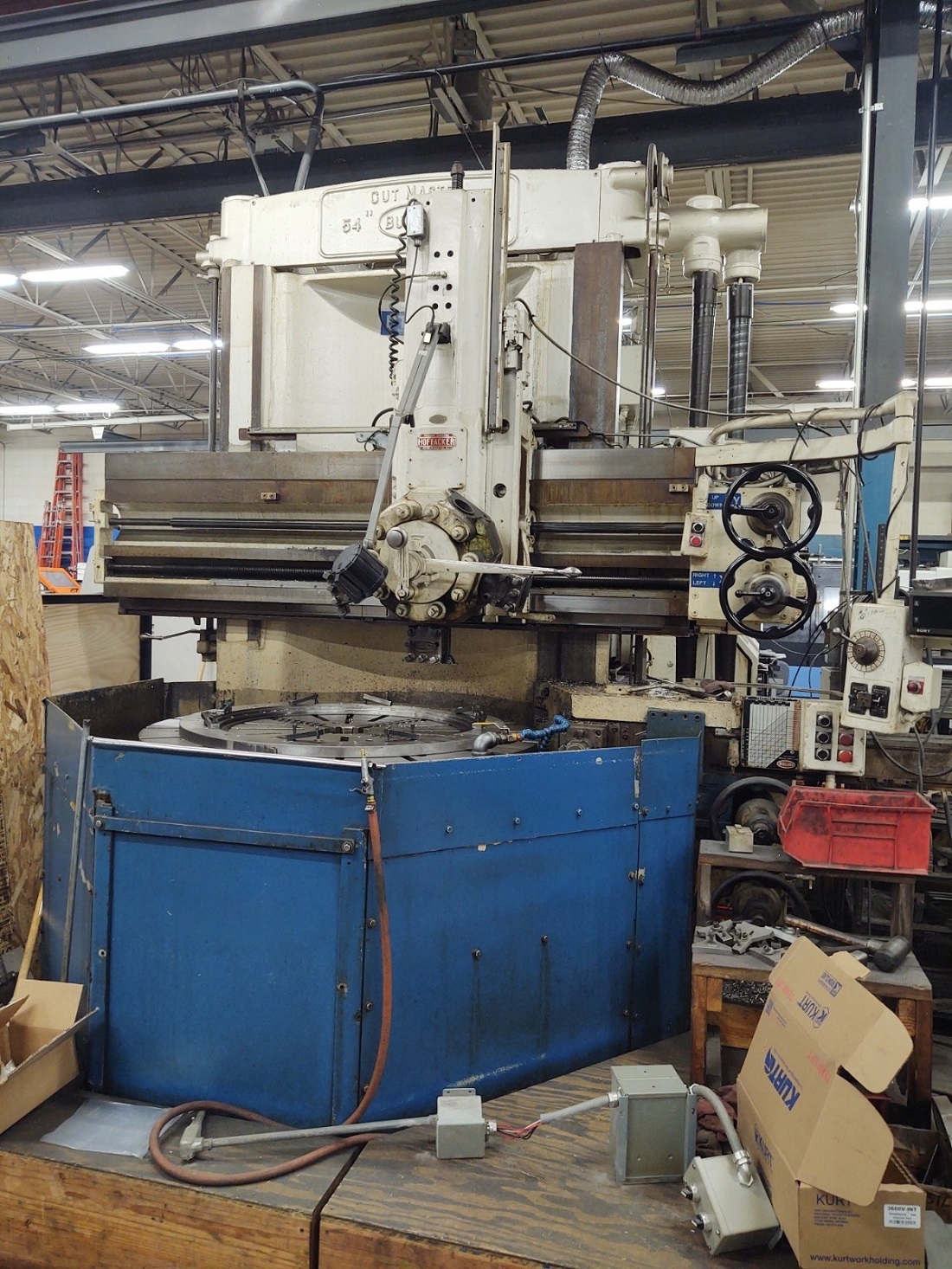

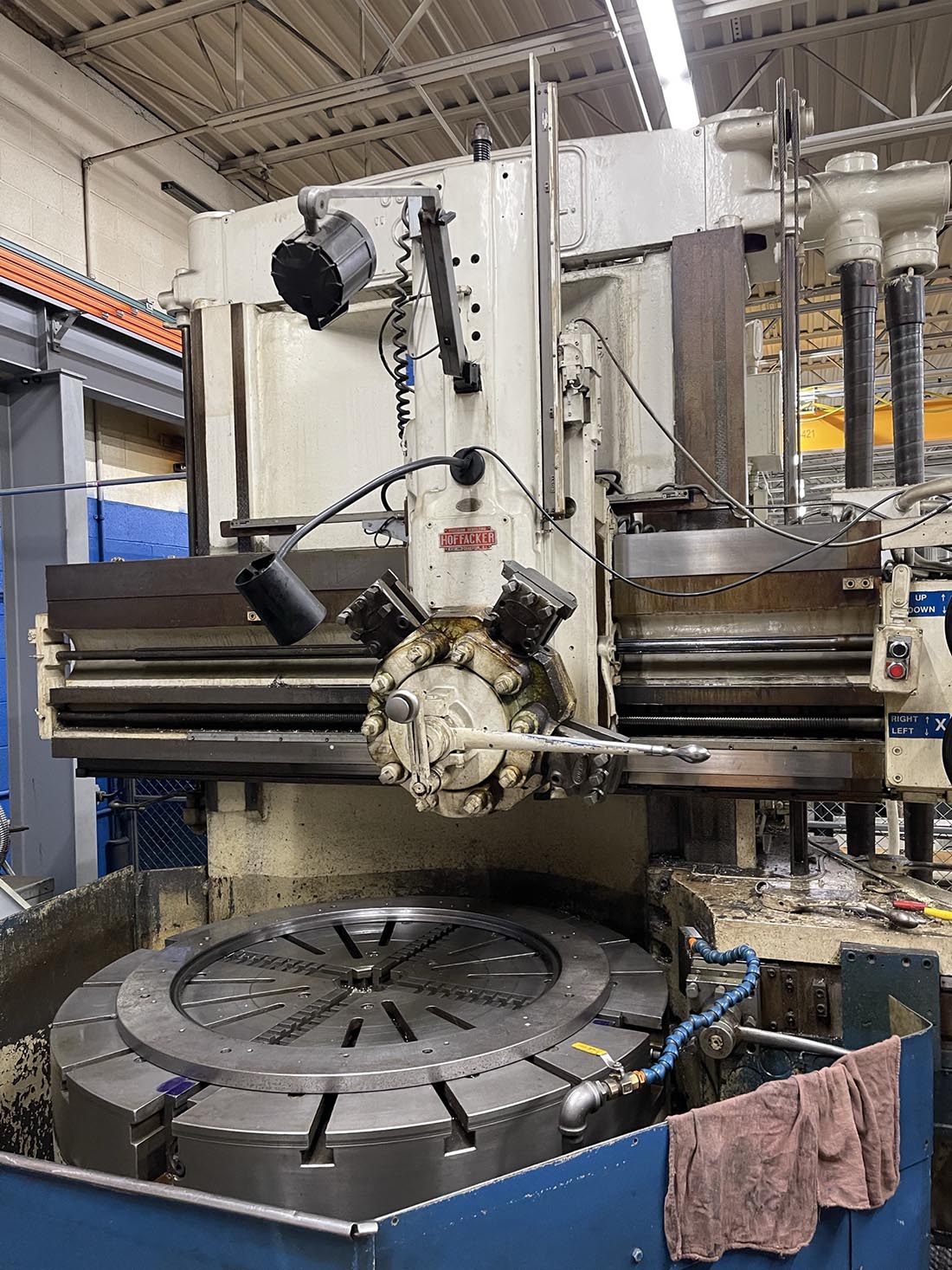

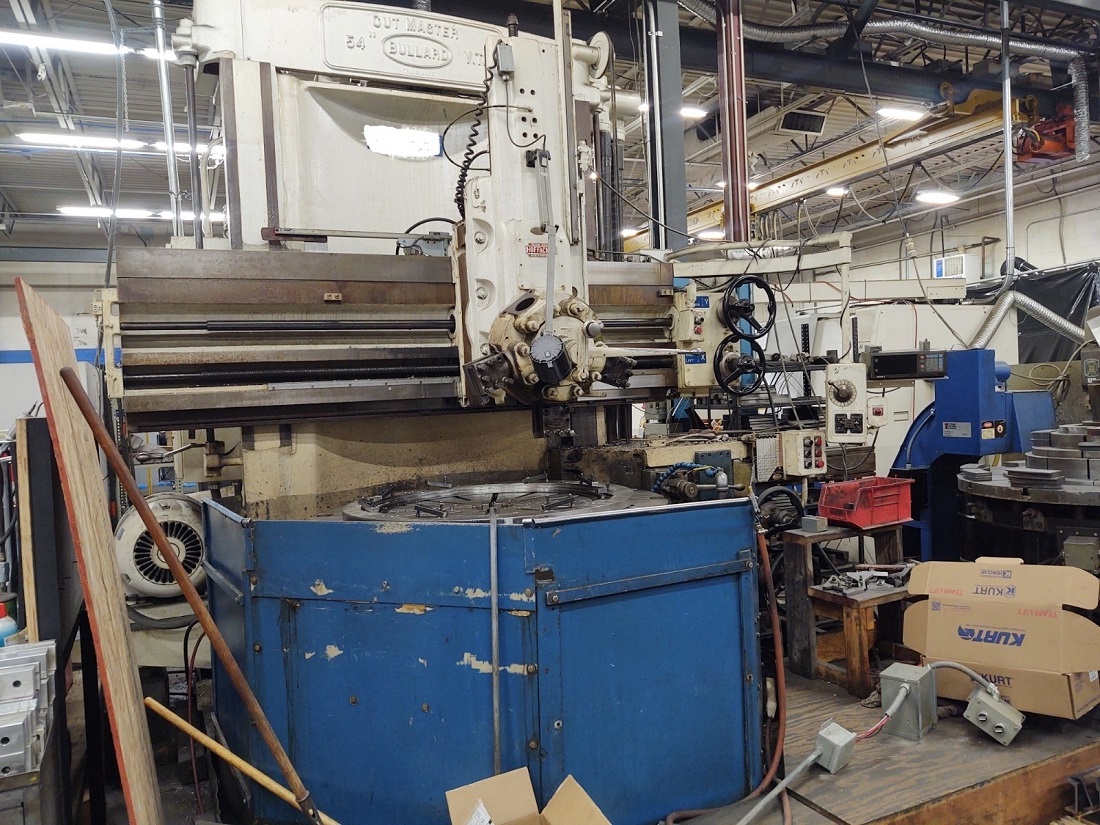

54" BULLARD VERTICAL BORING MILL
MODEL: 54" CUTMASTER,  S/N: 25623

SPECIFICATIONS
CHUCK DIAMETER.......................... 54"
MAXIMUM SWING WITH SIDE HEAD UP......... 58"
MAXIMUM SWING WITH SIDE HEAD DOWN....... 62"
MAXIMUM HEIGHT UNDER RAIL............... 44"

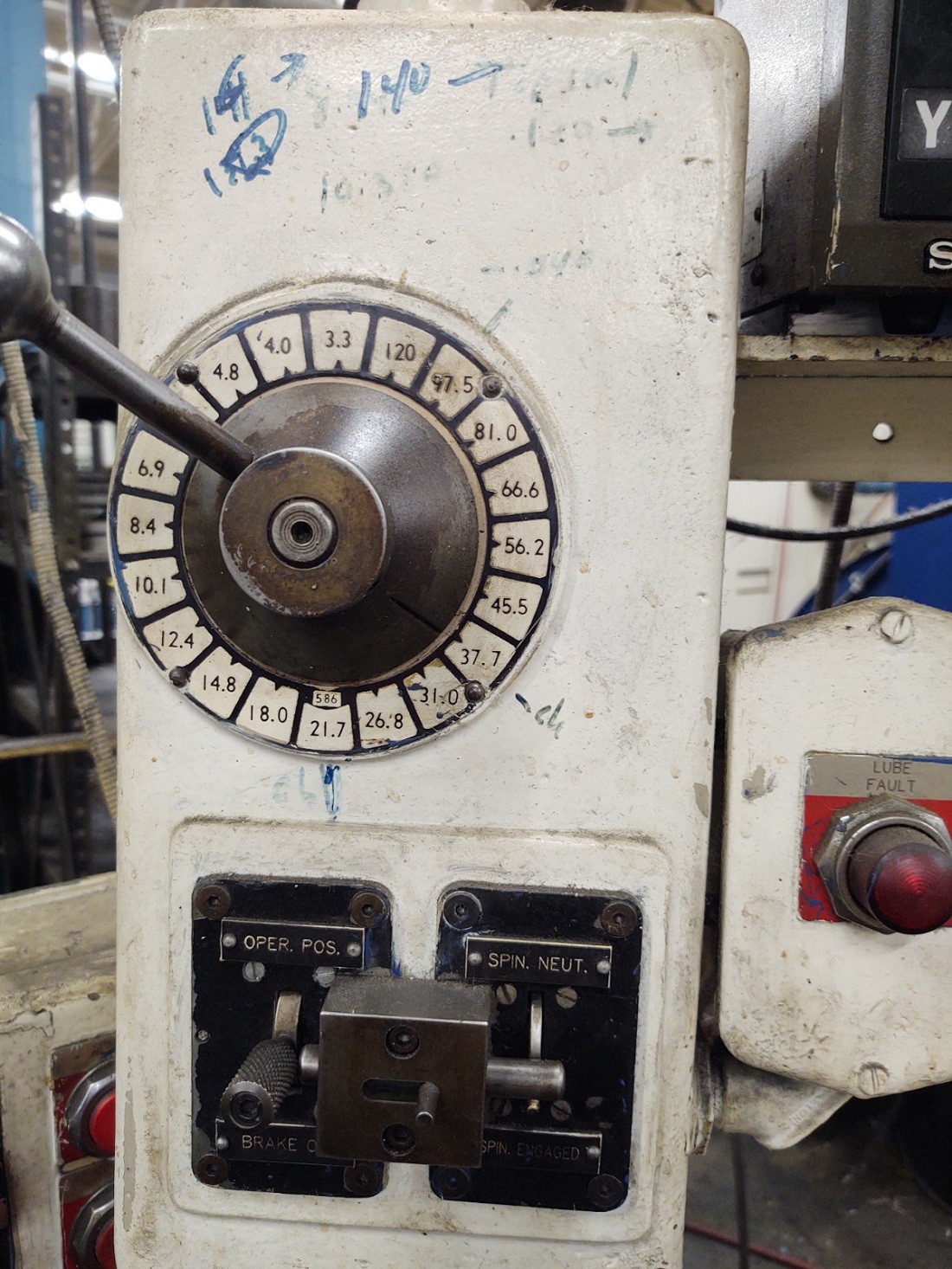

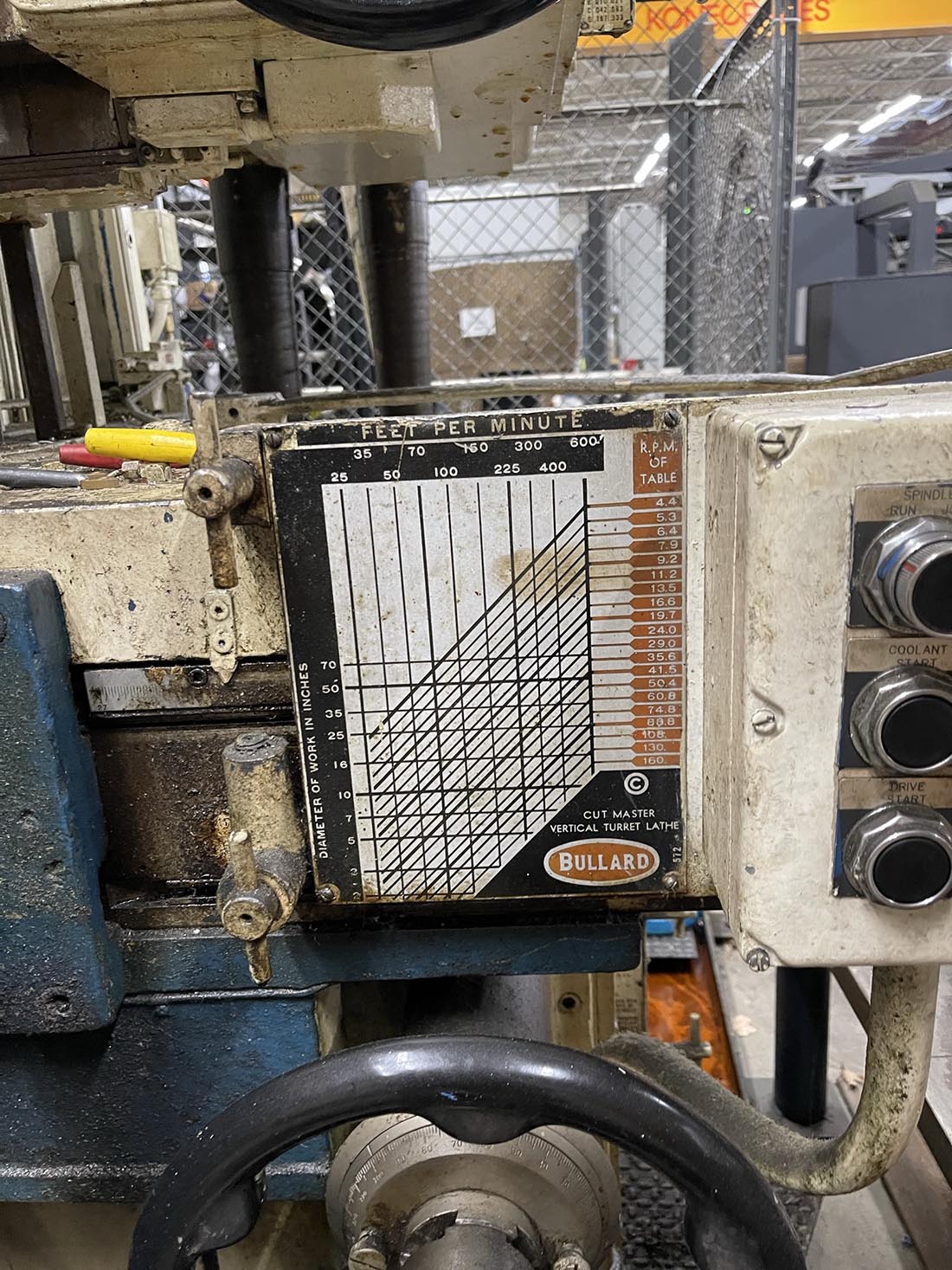

SPEED RANGE (20 SPEEDS)................. 3.3 TO 120 RPM
TABLE MOTOR............................. 30 HP

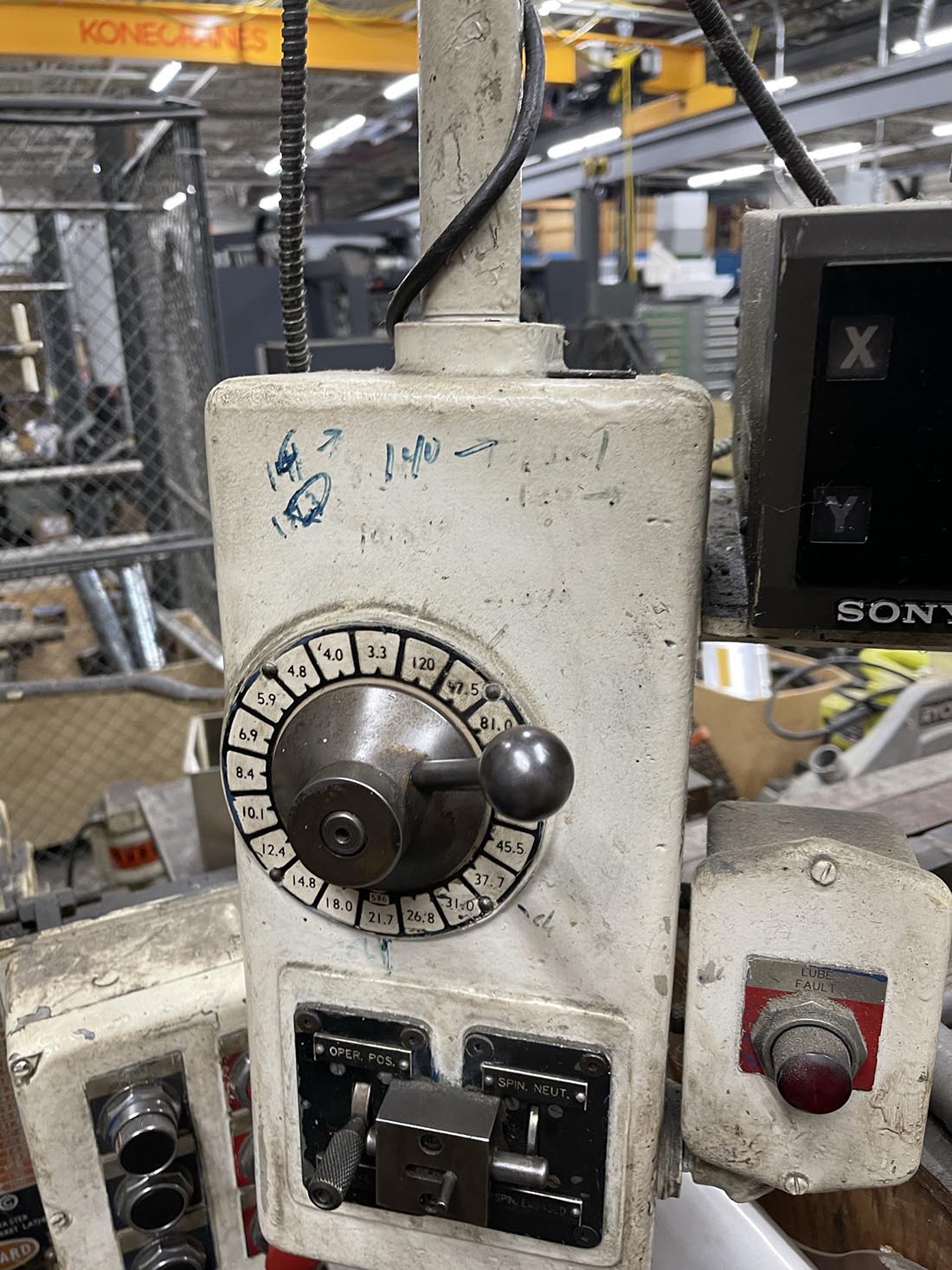

FEEDS (16 FEEDS)........................ .0026 TO .125 IPR
VERTICAL TRAVEL OF TURRET............... 30-3/8"
SWIVEL OF TURRET........................ 30 DEG LEFT & RIGHT
HORIZONTAL TRAVEL OF SIDE HEAD ......... 27"
VERTICAL TRAVEL OF SIDE HEAD............ 44-1/4"
APPROXIMATE FLOOR SPACE................. 115" x 136" x 124"
HEIGHT WITH RAIL AND TURRET UP.......... 152"
APPROXIMATE WEIGHT ..................... 50,000 LBS

EQUIPPED WITH:

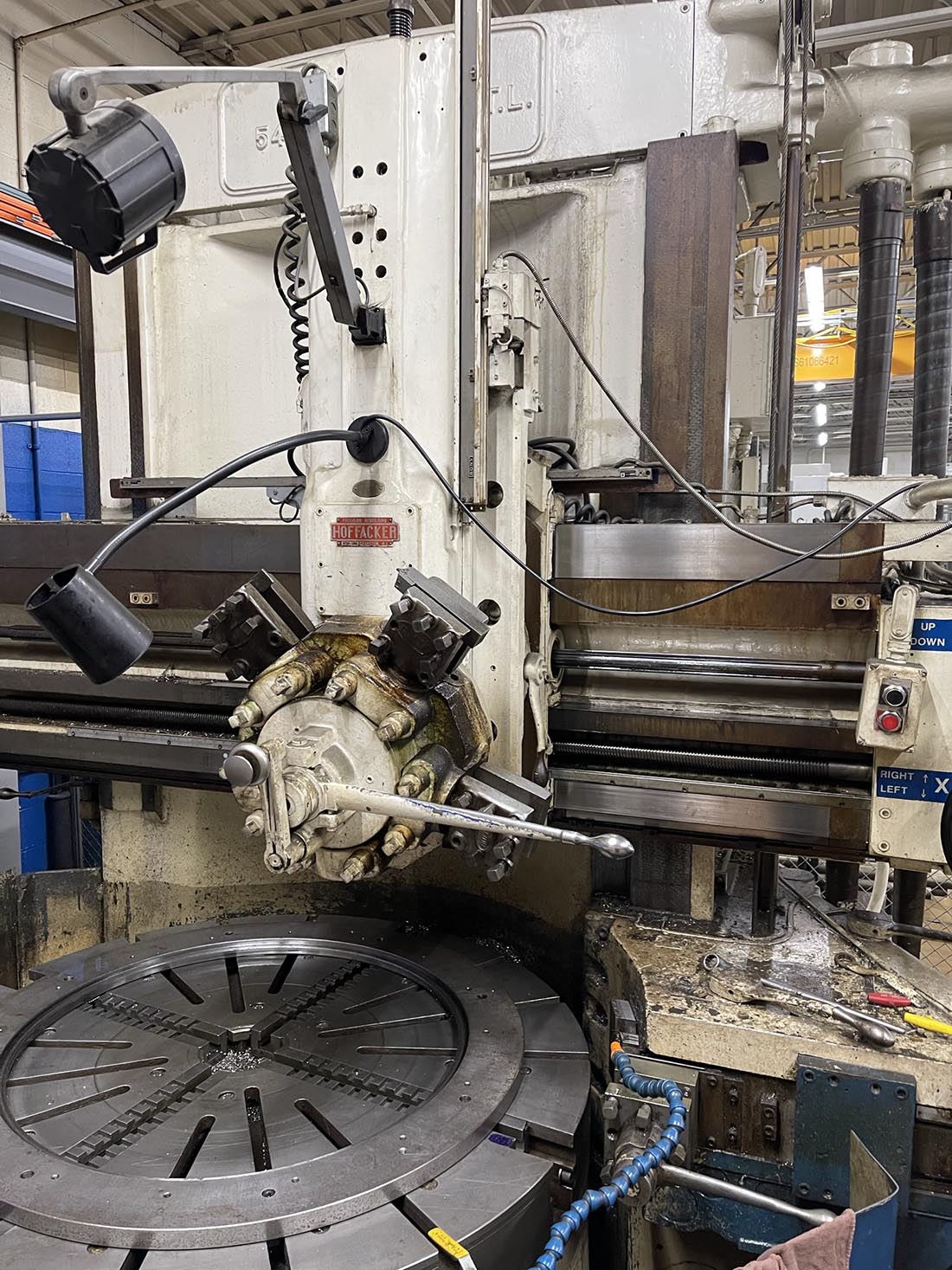

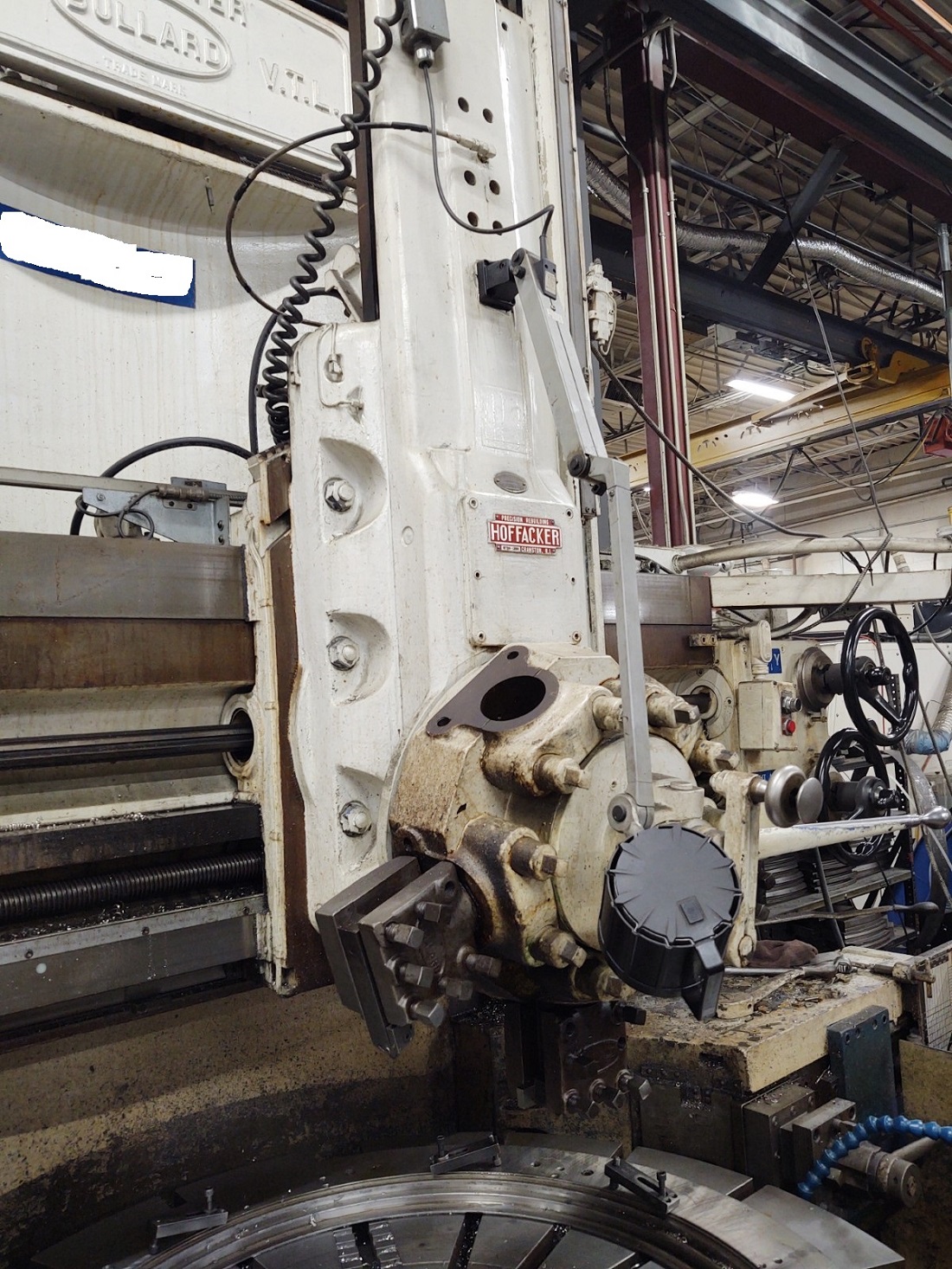

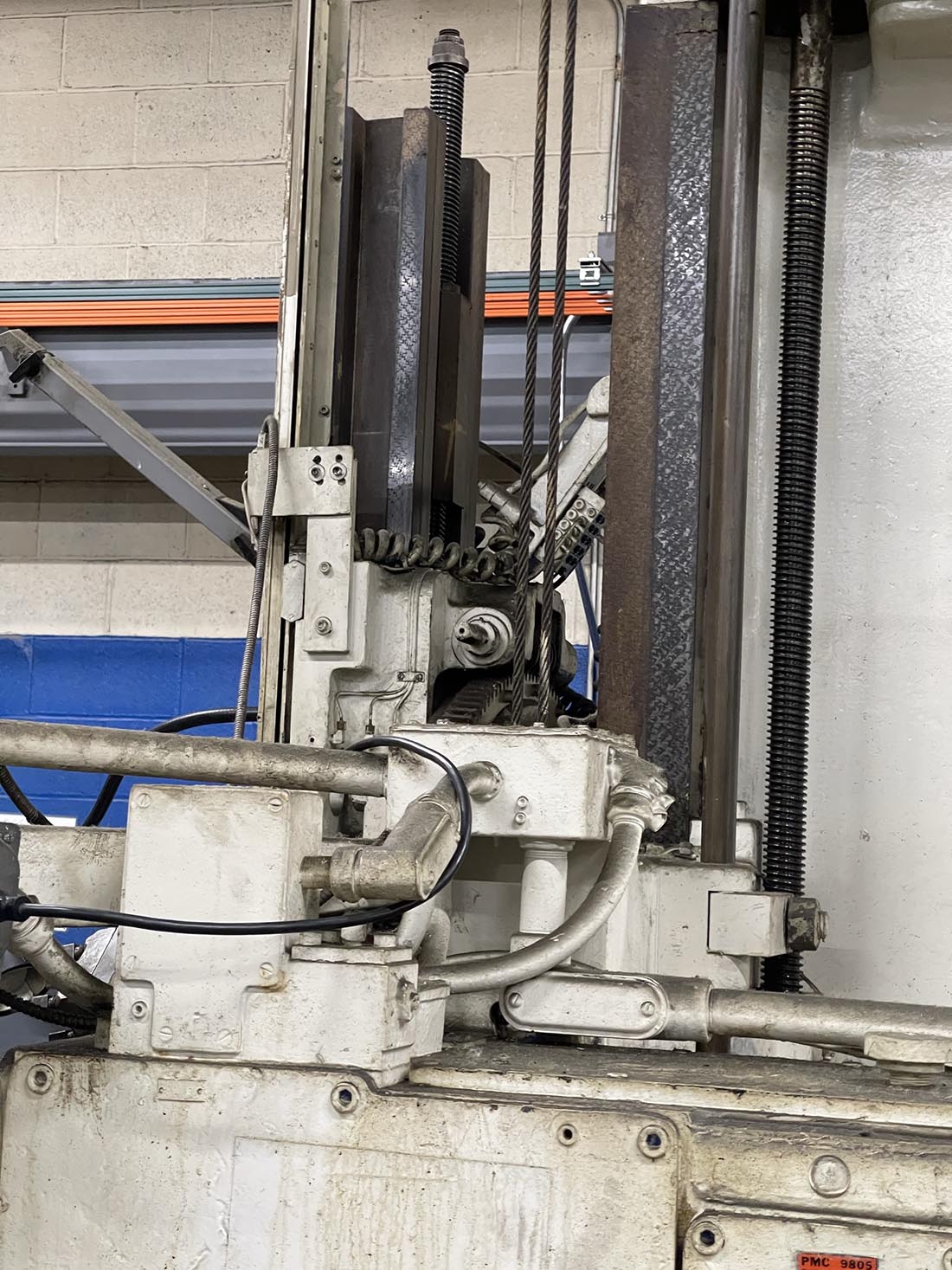

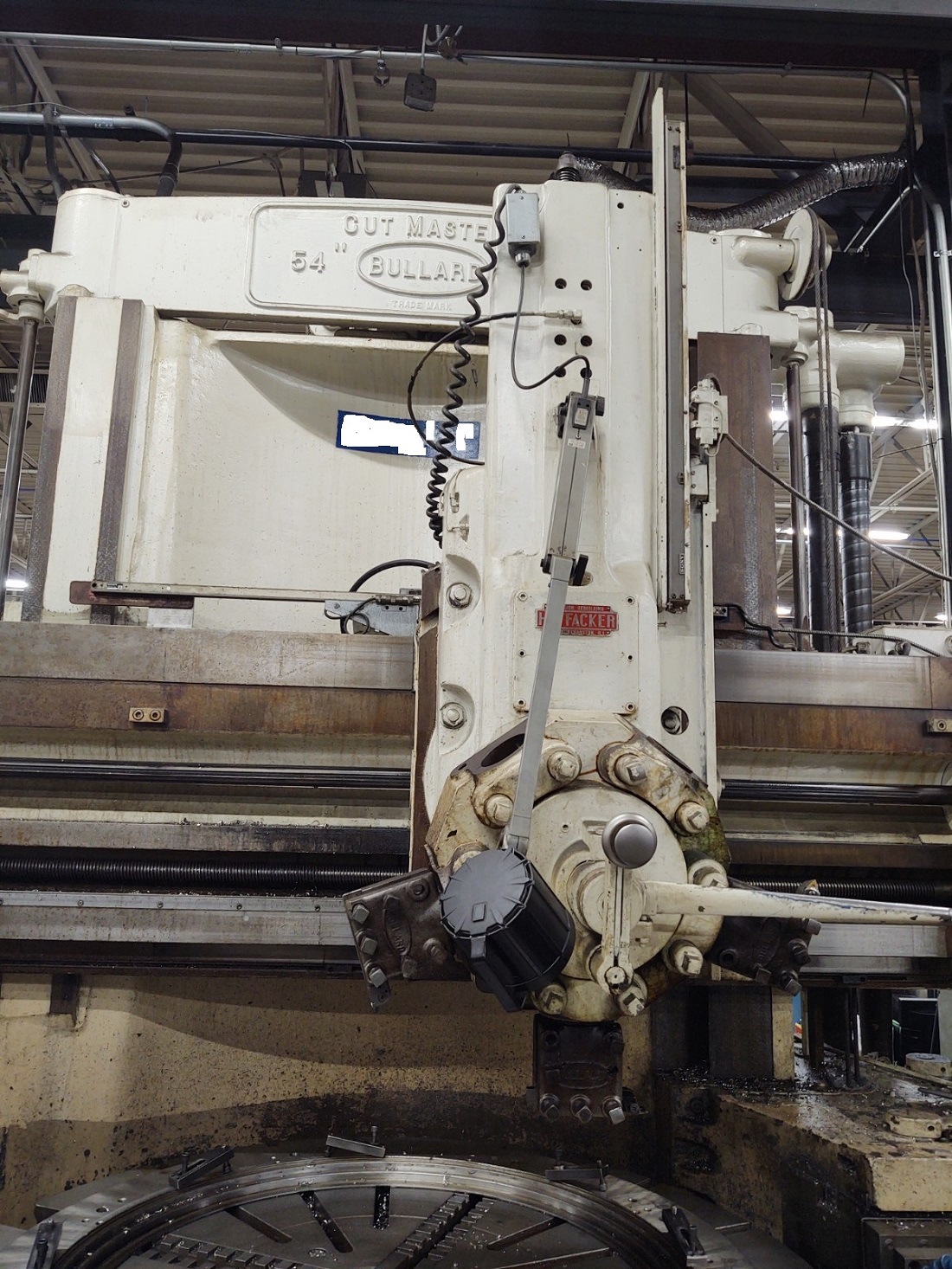

* 5-SIDED TURRET

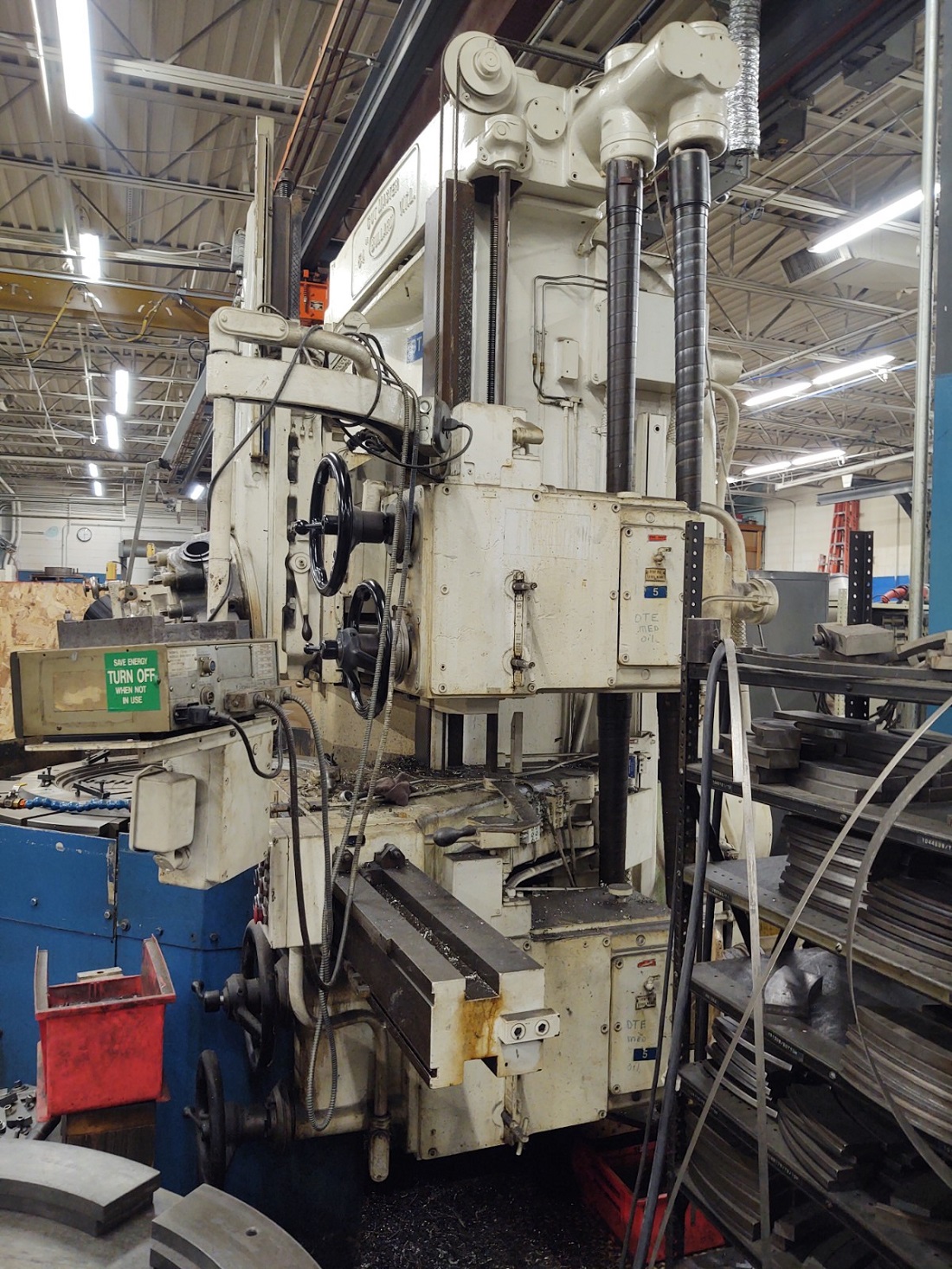

* SIDE HEAD

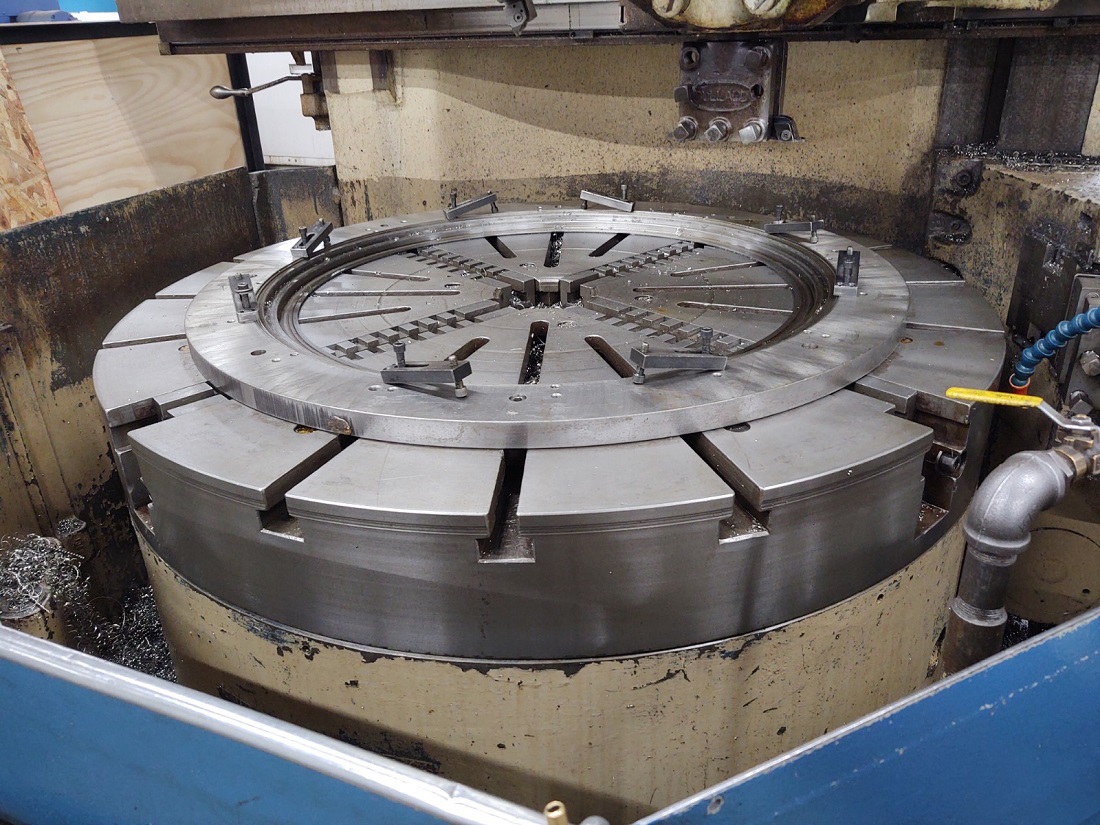

* 4-JAW INDEPENDANT CHUCK

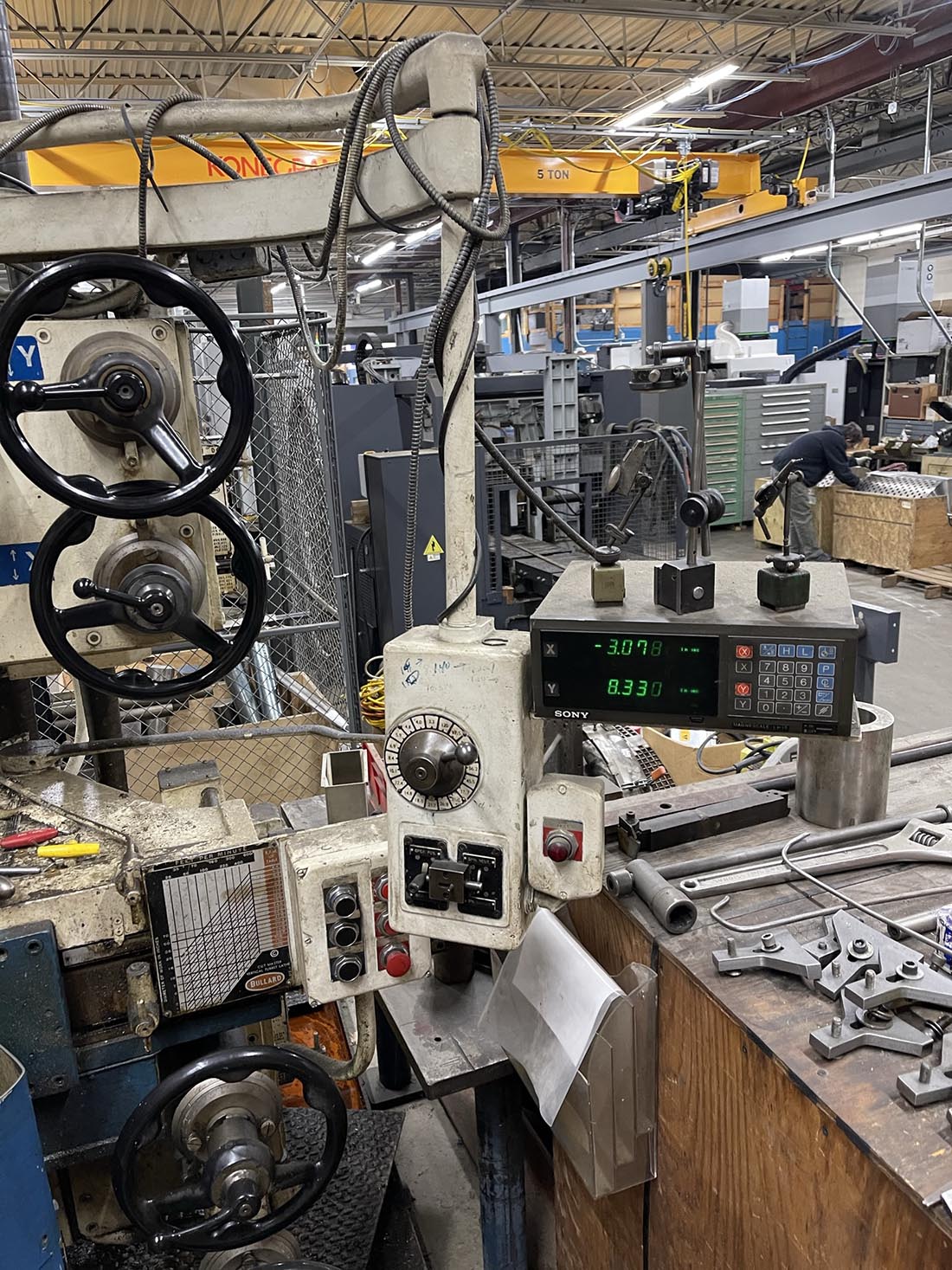

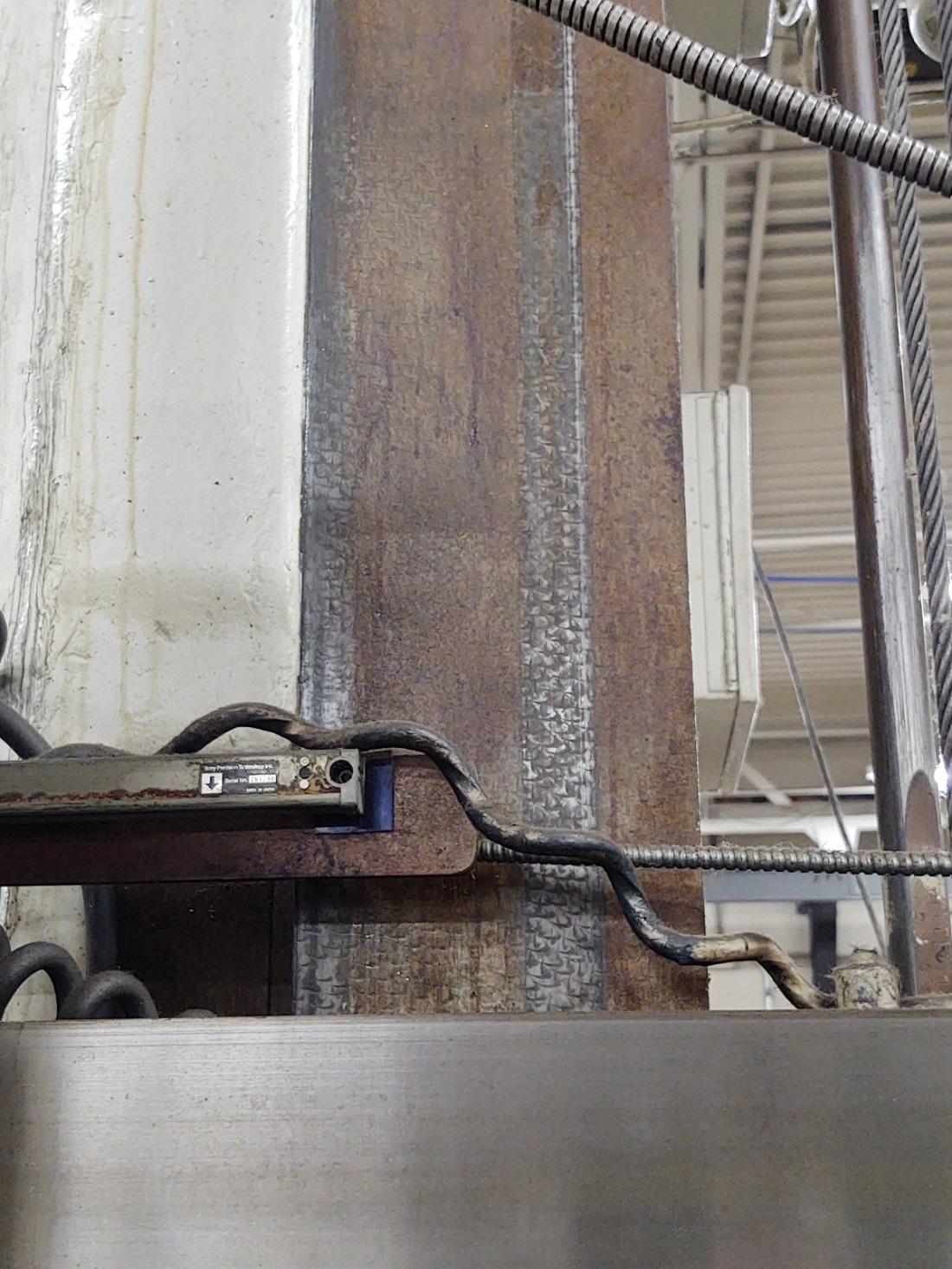

* SONY TWO AXIS DIGITAL READOUT ON TURRET
* 30 HORSE POWER MAIN DRIVE MOTOR
