Bullard Spiral Drive VERTICAL BORING MILLS & VERTICAL TURRET LATHES

$14,500

Make:
Bullard
Model:
Spiral Drive
Year:
Ref #:
163746

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

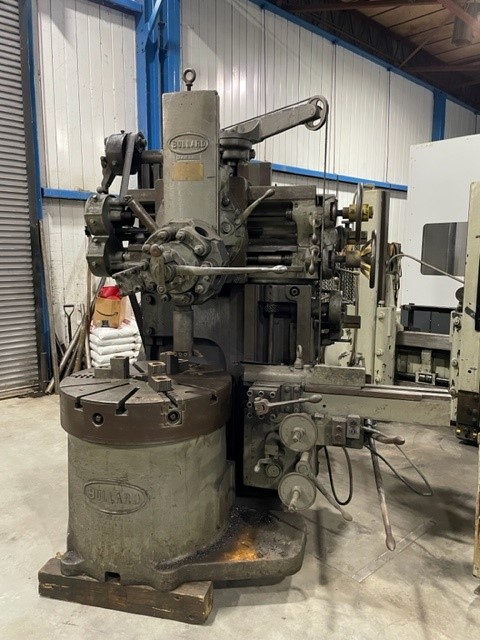

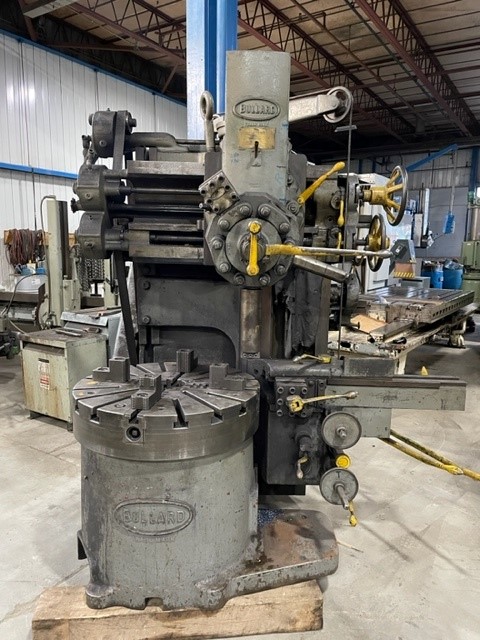

34" BULLARD VERTICAL BORING MILL
MODEL: SPIRAL DRIVE,  S/N: 21411

SPECIFICATIONS:
TABLE DIAMETER ............................ 34"
MAXIMUM SWING WITH SIDE HEAD UP ........... 38"
MAX HEIGHT UNDER RAIL ..................... 25-1/2"
VERTICAL TRAVEL OF TURRET HEAD ............ 24"
SIDE HEAD RAM HORIZONTAL TRAVEL ........... 20"
TABLE SPEEDS (12) ......................... 6 - 99 RPM
APPROXIMATE DIMENSIONS .................... 7'L-R x 8'D x 90"H
APPROXIMATE WEIGHT ........................ 17,000 LBS

EQUIPPED WITH:
34" 4-JAW MANUAL CHUCK
SWIVELING 5-SIDED INDEXABLE TURRET
SIDEHEAD WITH 4-SIDED INDEXABLE TOOL
POWER FEEDS & RAPIDS TO BOTH TURRET & SIDEHEAD
25 HORSE POWER MAIN DRIVE MOTOR
