Chevalier FM-32K W/Anilam 3200 MK 2- Axis Control CNC VERTICAL MILLING MACHINES

Price on Request

Make:: Chevalier

Model:: FM-32K W/Anilam 3200 MK 2- Axis Control

Year:: 2000

Ref #:: 178556

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

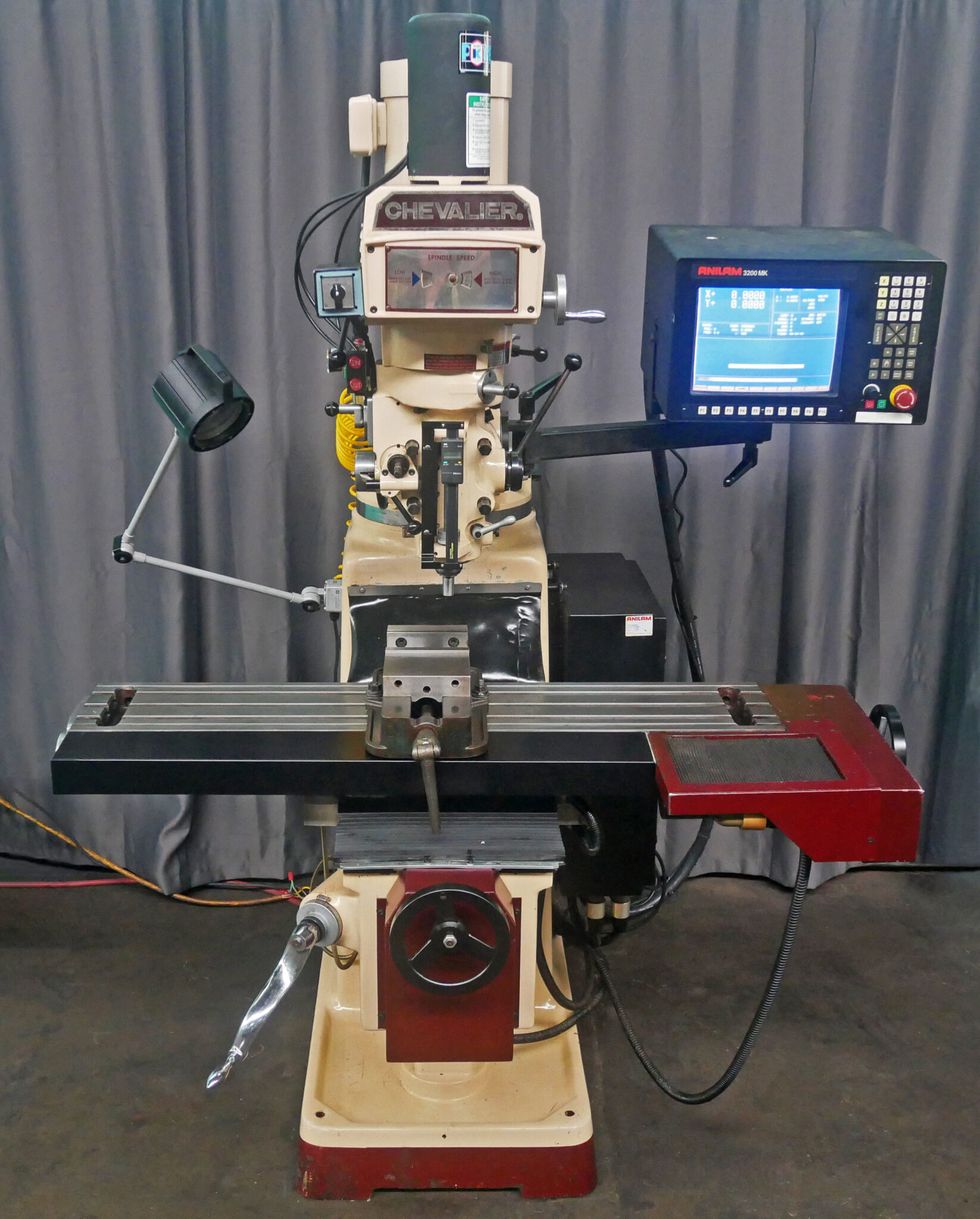

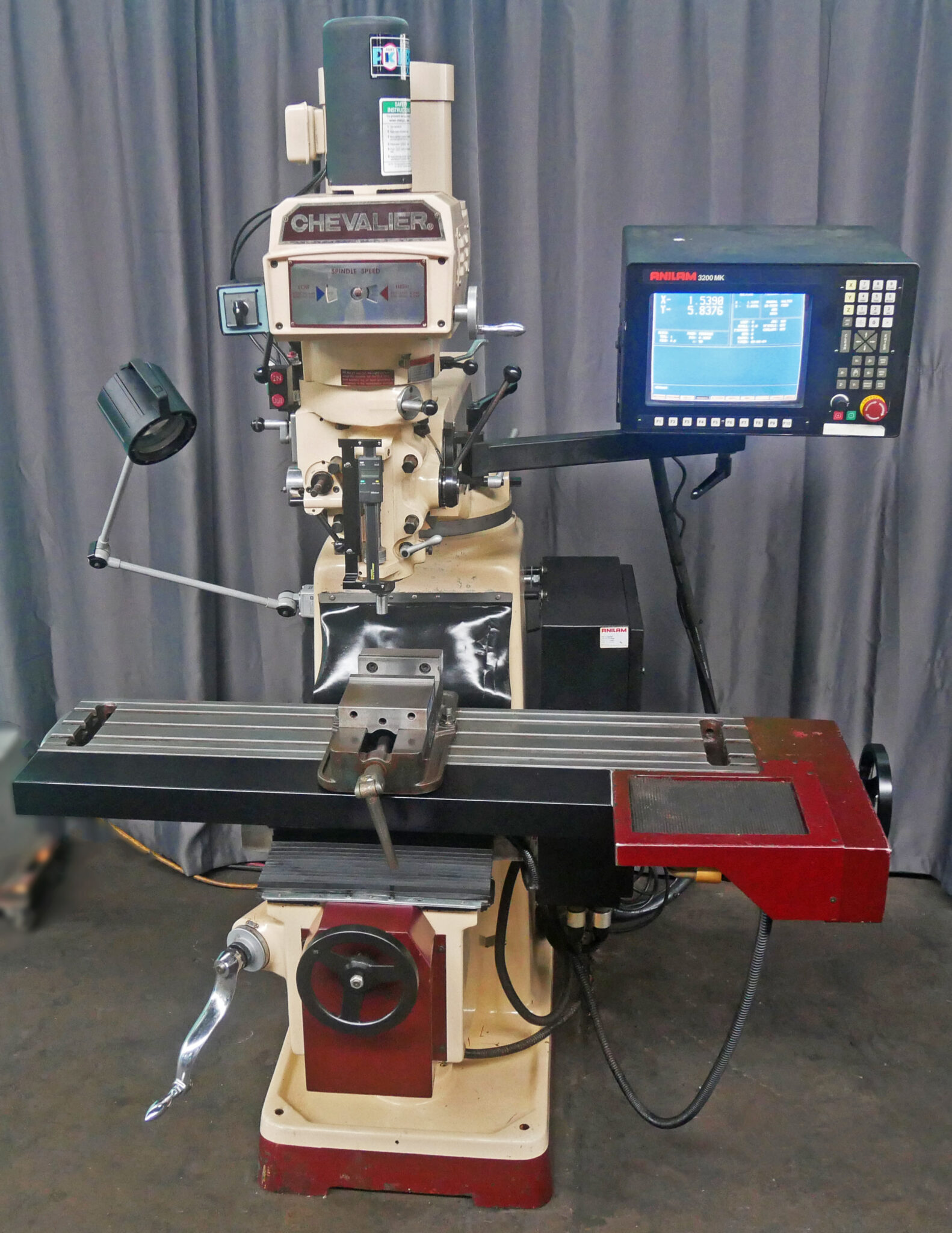

CHEVALIER 2-AXIS CNC VERTICAL MILL
MODEL: FALCON 3A2K, MFG: 2000
 W/ANILAM 3200MK CONTROL

SPECIFICATIONS:

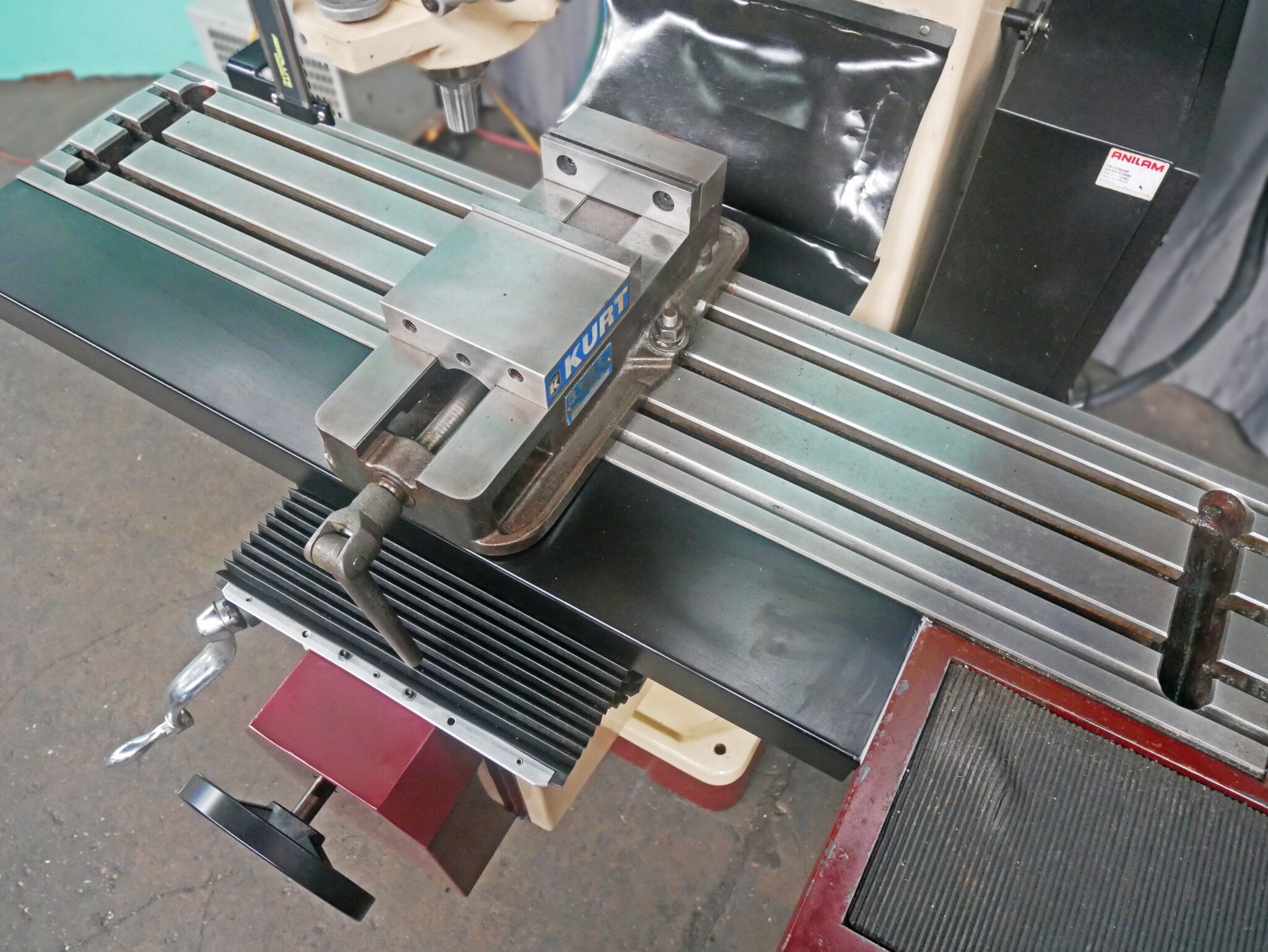

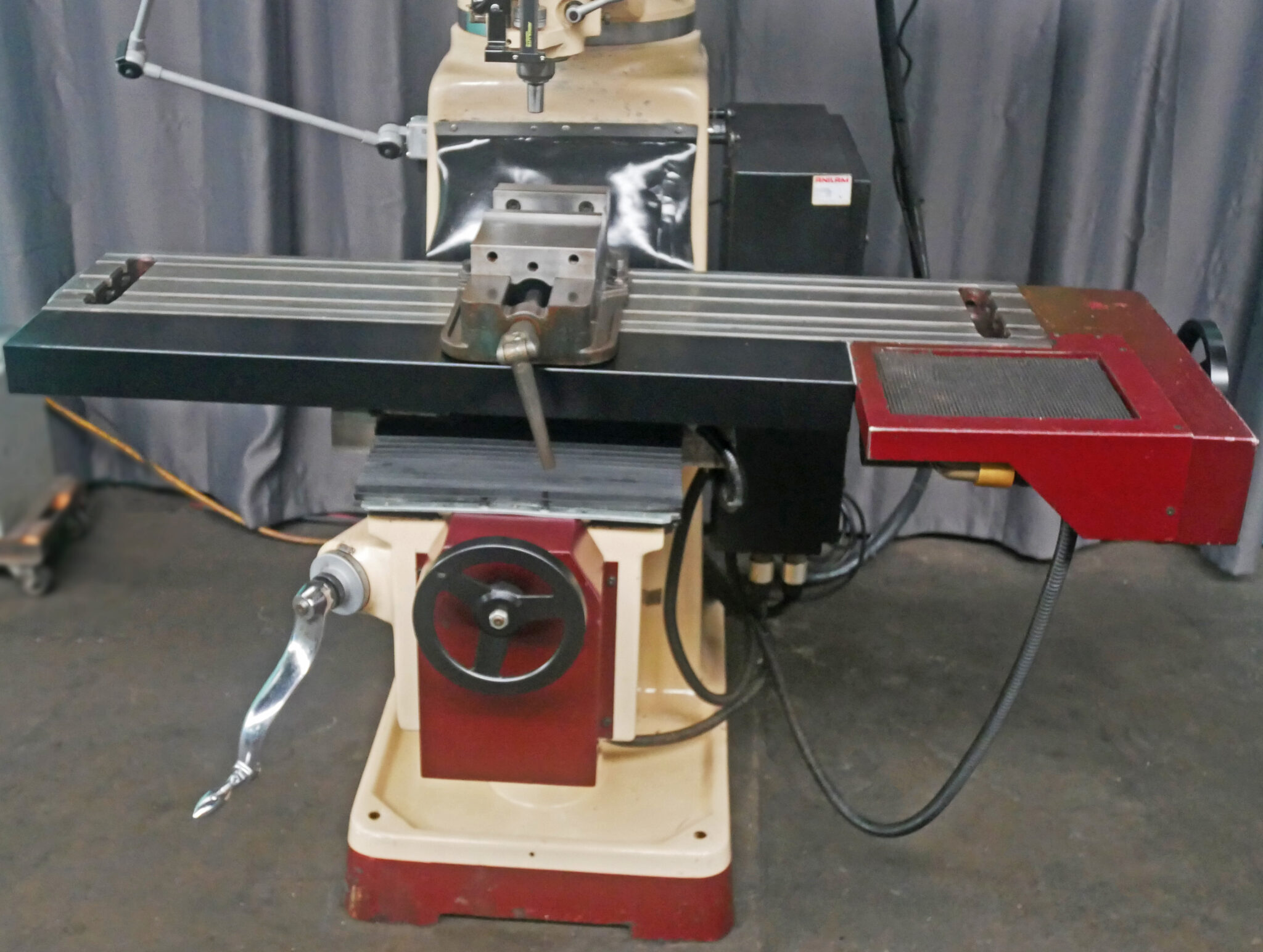

WORKING SURFACE OF TABLE ................. 10" x 50"
LONGITUDINAL TABLE TRAVEL ................ 31"
CROSS TABLE TRAVEL ....................... 14"
QUILL TRAVEL ............................. 5"
KNEE TRAVEL .............................. 15-3/4"
RAM TRAVEL ............................... 24"
OVERARM SWIVEL ........................... +/- 45%
SPINDLE TAPER ............................ R-8

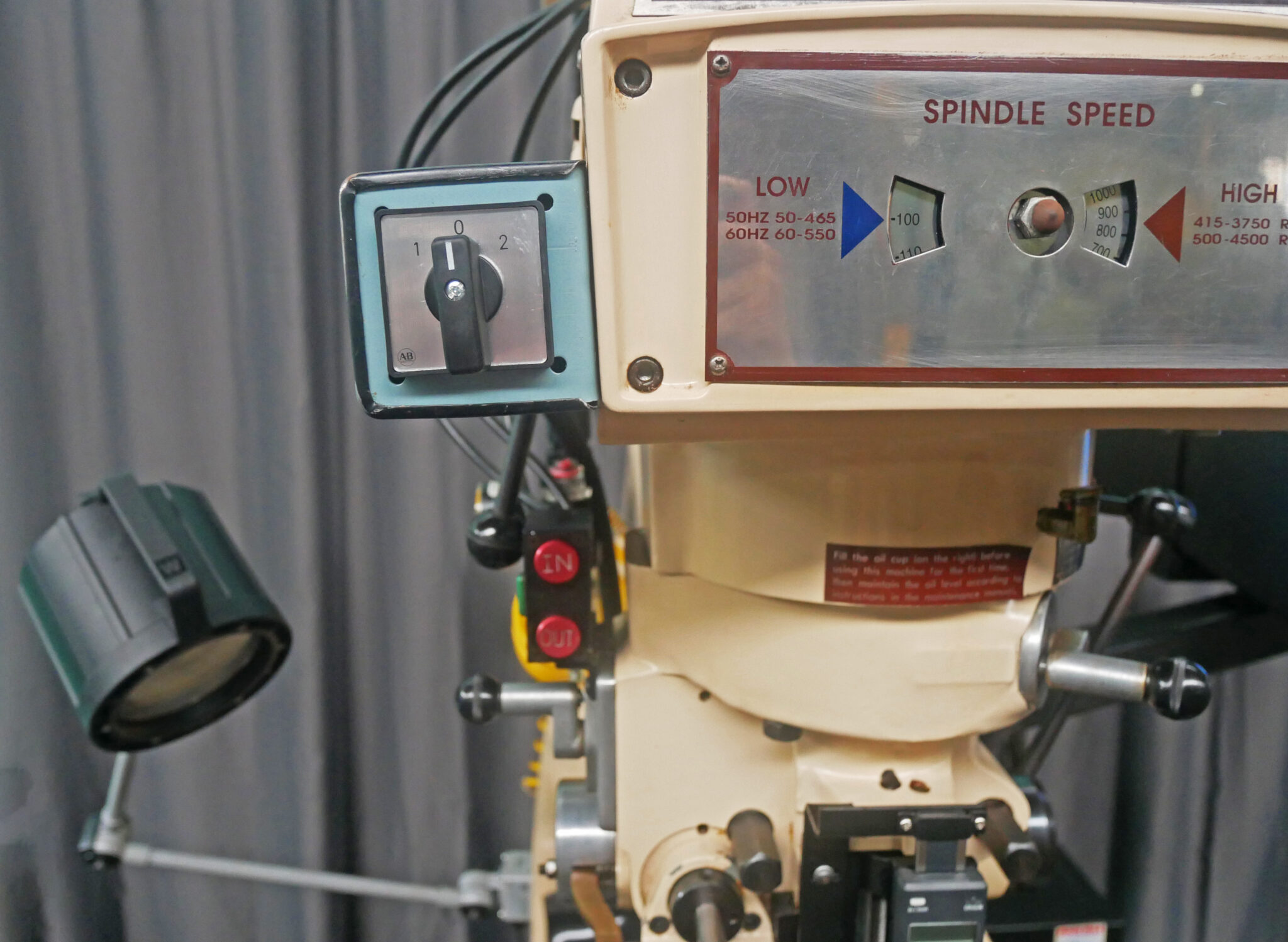

VARIABLE SPINDLE SPEEDS .................. 60 TO 4500 RPM
SPINDLE FEEDS(2) ......................... .0015, .006" IPR
FLOOR SPACE: ......................... 104"W x 79"D x 84"H
WEIGHT APPROXIMATELY: .................... 3,650 LBS.

EQUIPPED WITH:

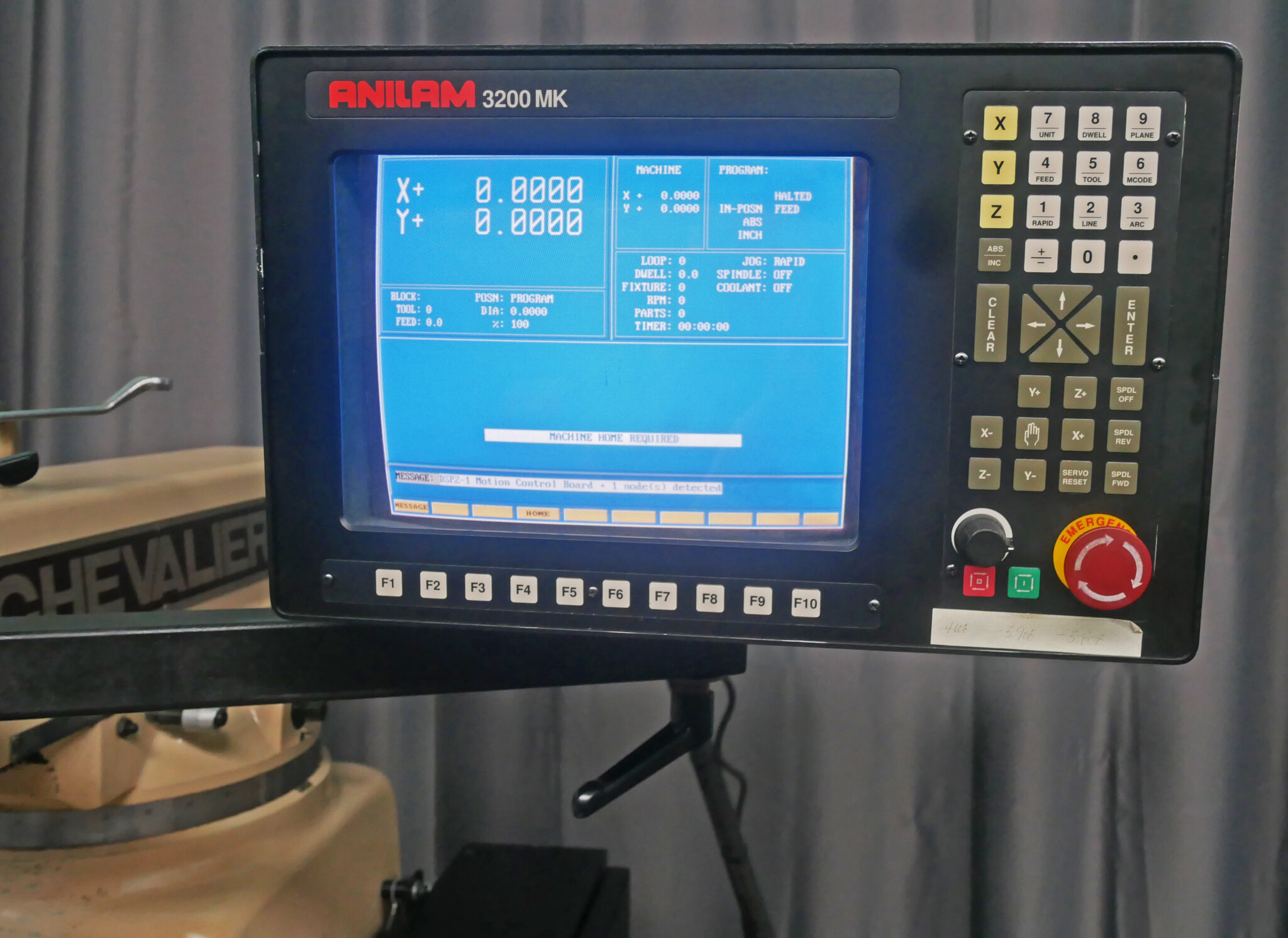

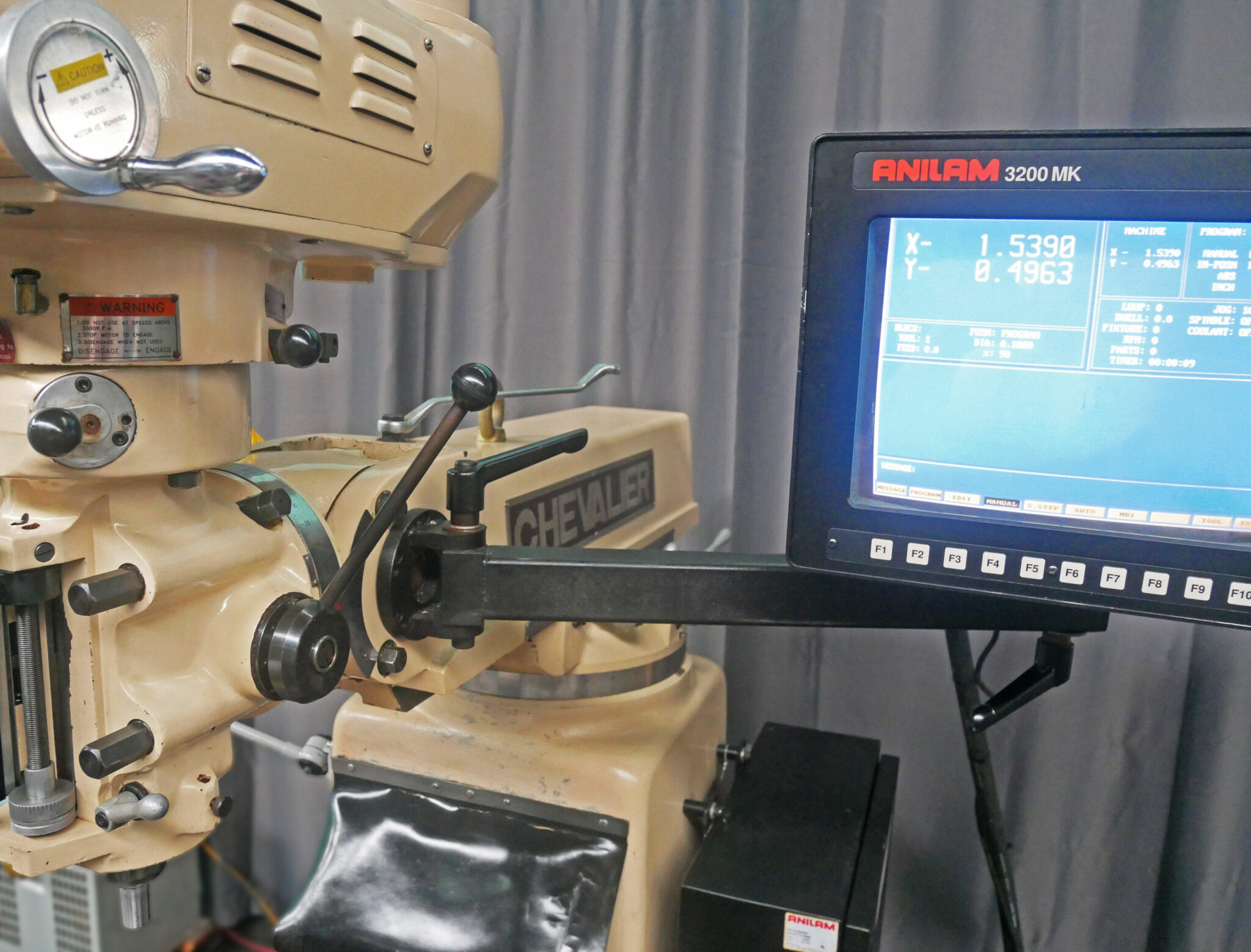

ANILAM MODEL: 3200MK 2-AXIS CNC CONTROL
   CONVERSATIONAL PROGRAMMING, 2-AXIS SIMULTANEOUS
   SCALING, ROTATE, MIRROR, SUB-PROGRAMS
   GRAPHICS, MDI TEACH MODE, RS-232
IN MANUAL OPERATION, CONTROL BECOMES 2 AXIS DIGITAL READOUT

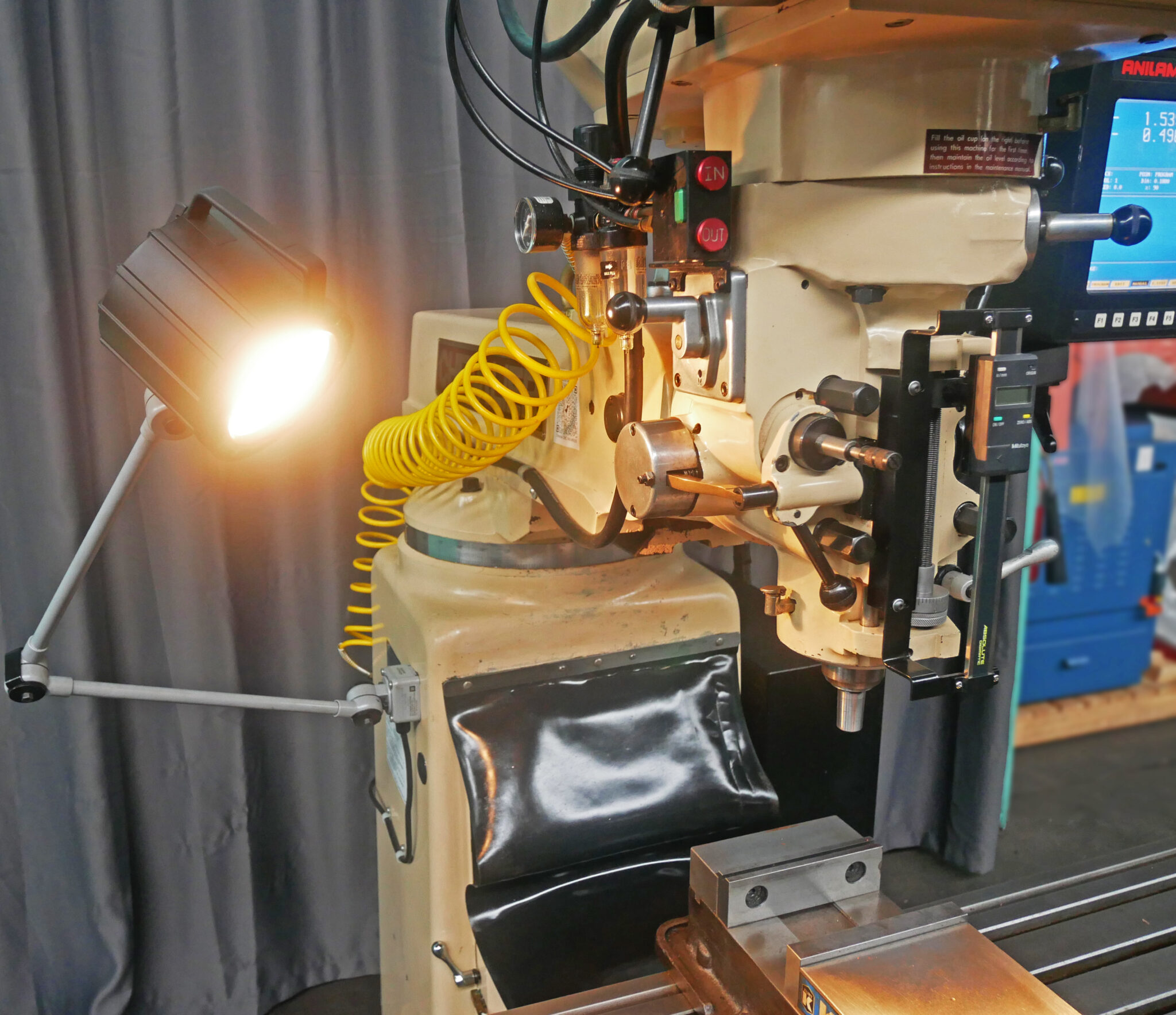

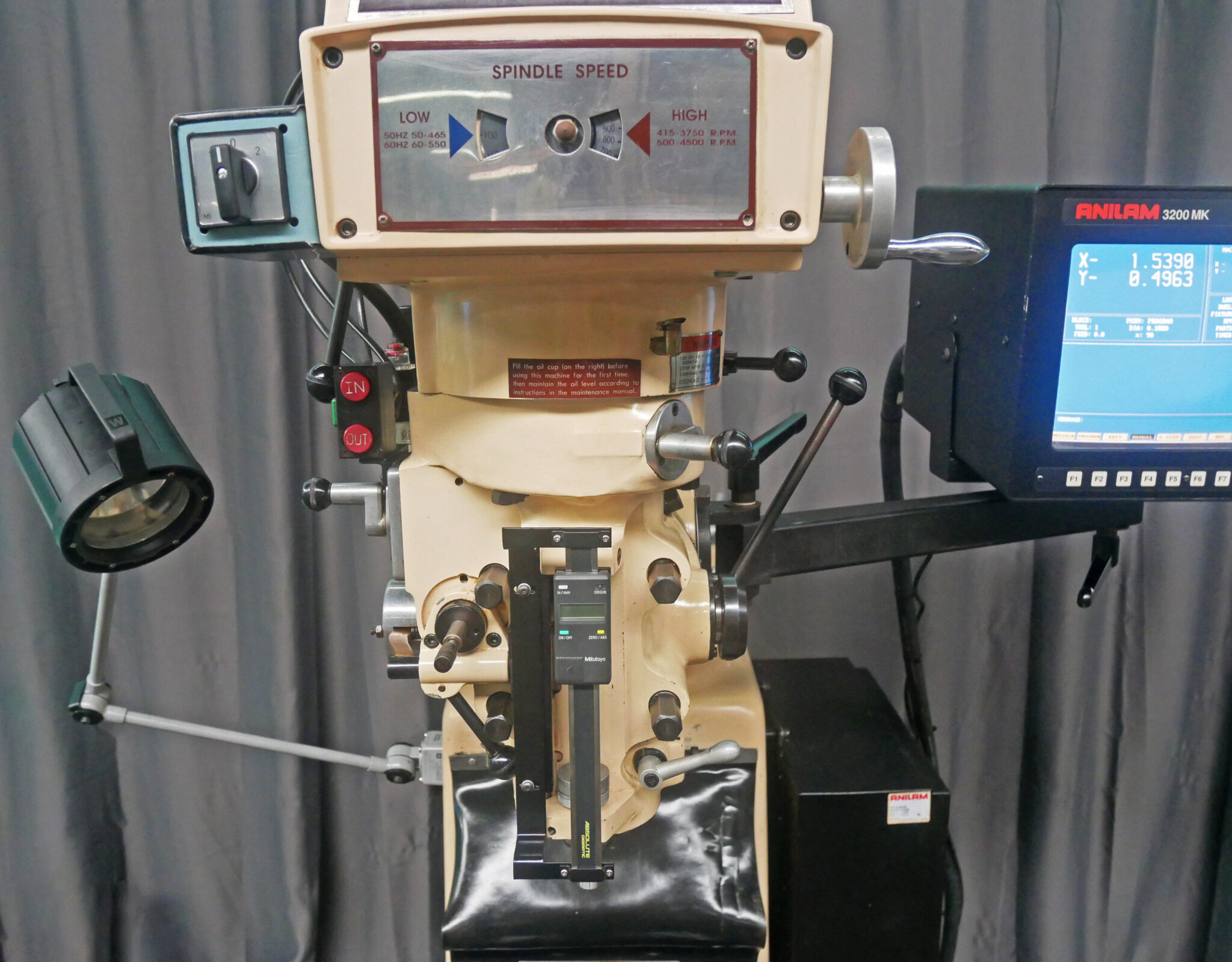

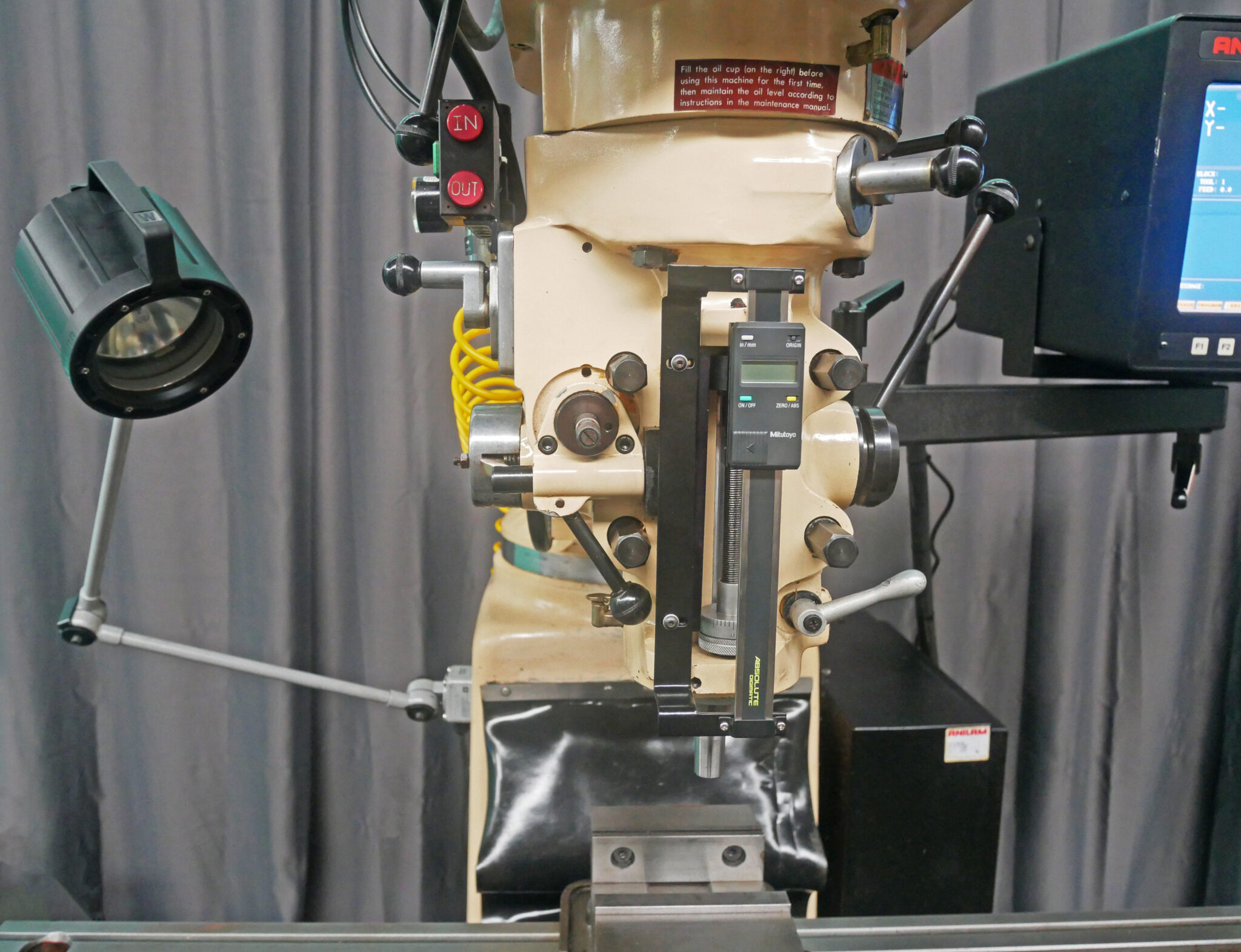

MITUTOYO DIGITAL READOUT FOR QUILL FEED
GROUND BALLSCREWS & SERVO MOTORS ON TABLE & SADDLE
HARDENED & GROUND DOVETAIL SLIDEWAYS

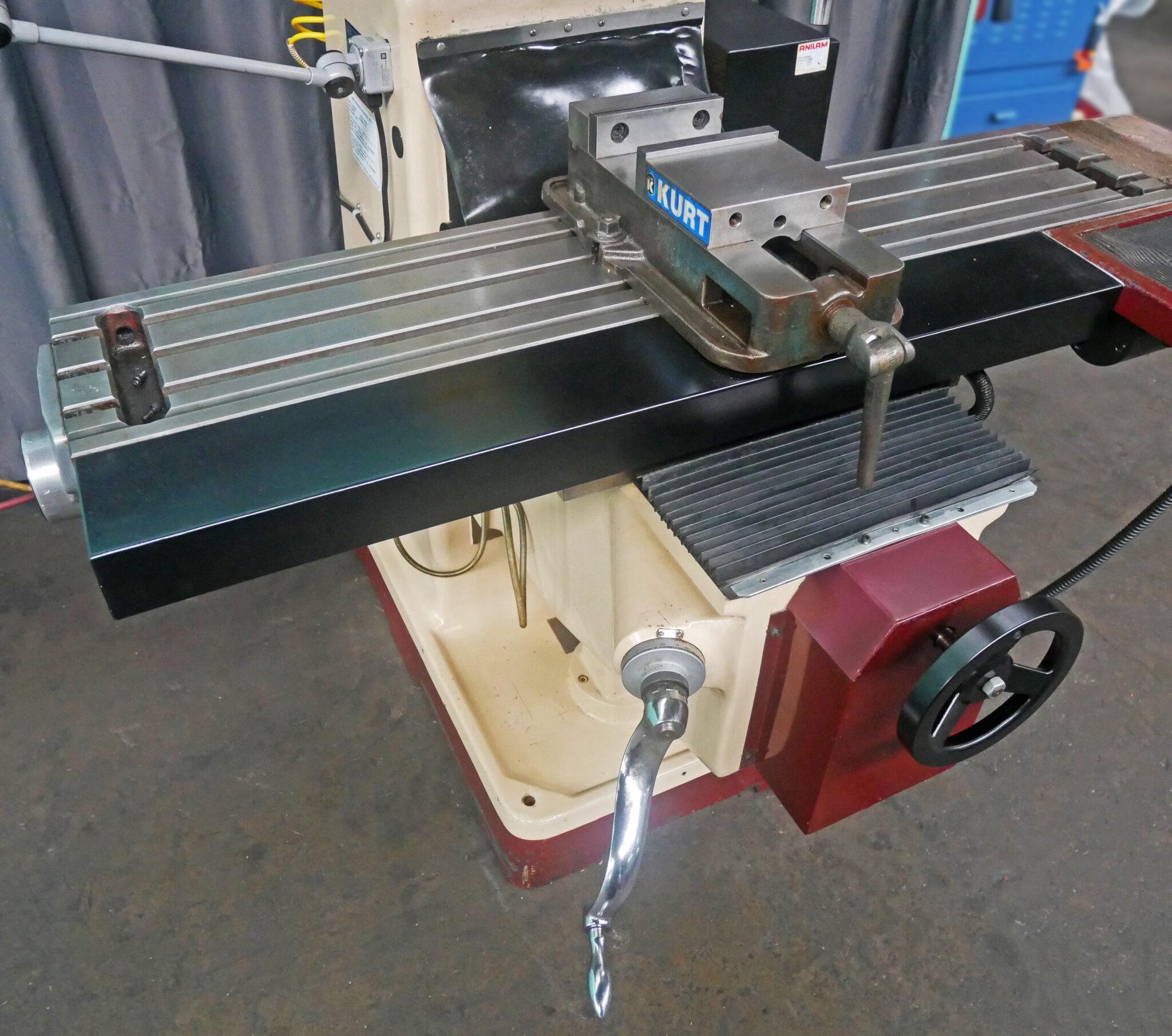

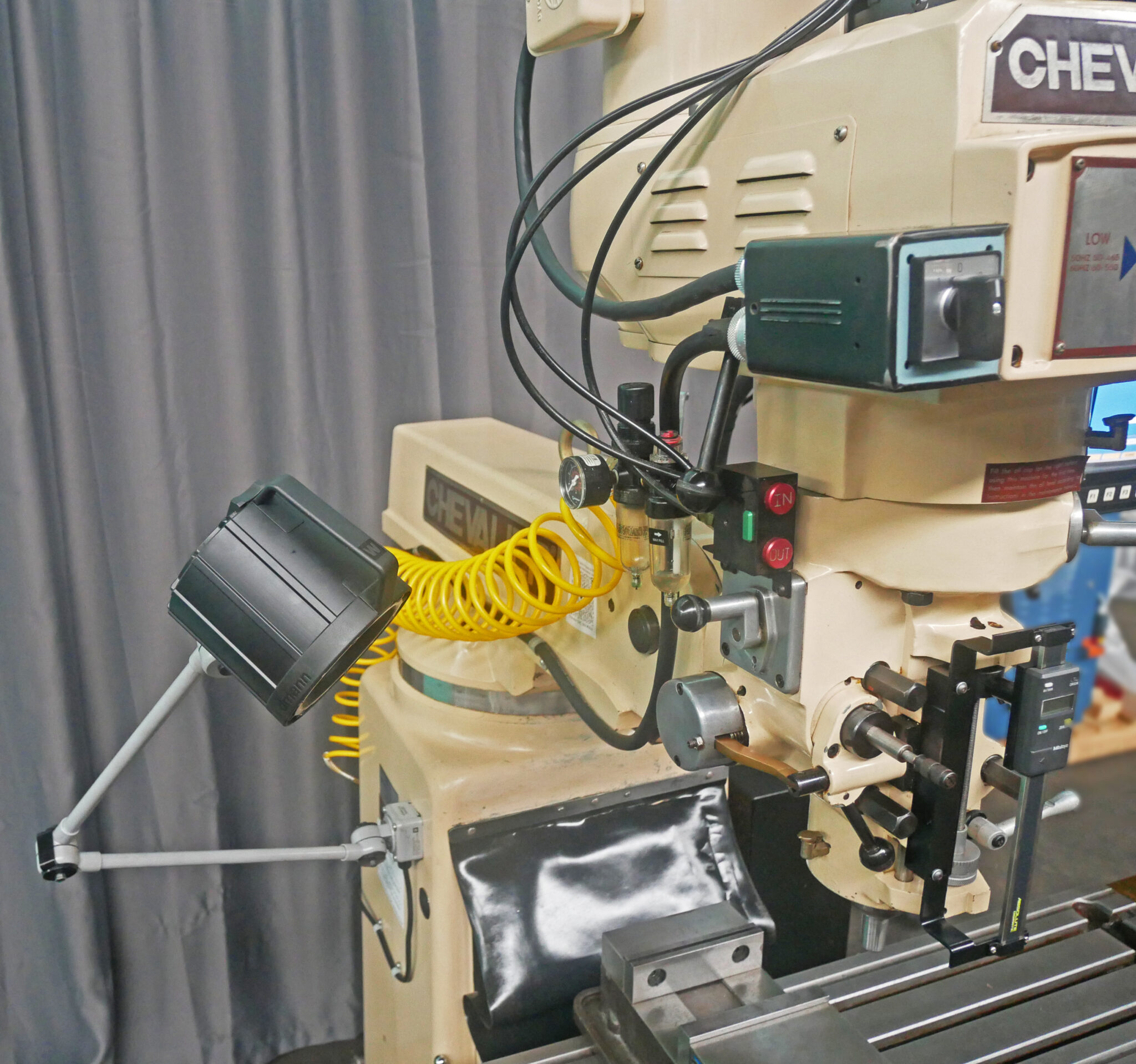

KURT POWER DRAW BAR
LUBRICATION SYSTEM
3 HORSE POWER SPINDLE MOTOR
