Southwest Ind. DPMSX2 CNC VERTICAL MILLING MACHINES

Price on Request

Make:: Southwest Ind.

Model:: DPMSX2

Year:: 2011

Ref #:: 178532

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

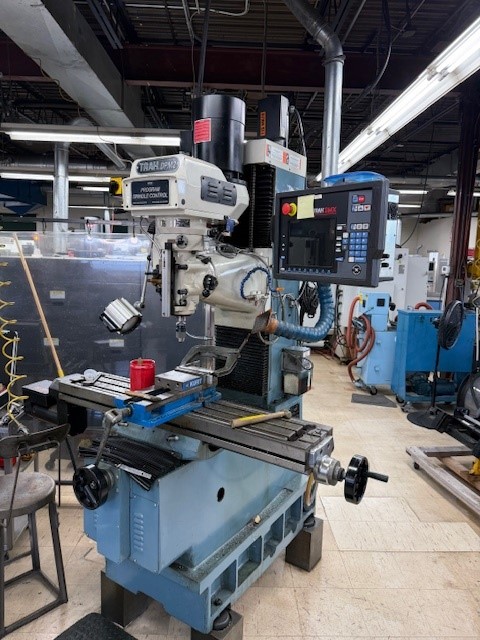

TRAK 3-AXIS CNC BED MILL w/HAND WHEELS

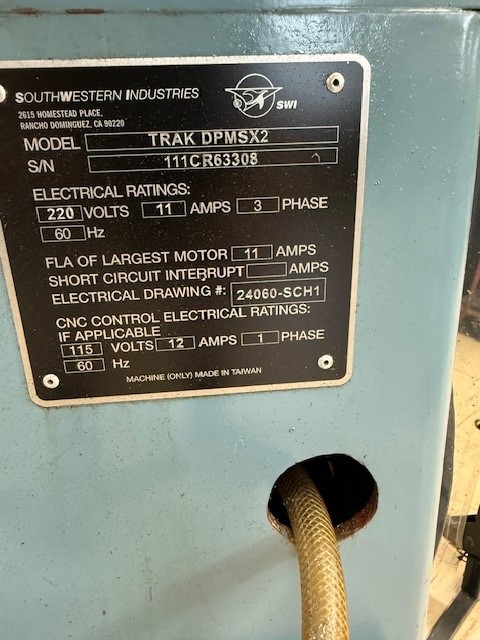

MODEL: DPM-SX2,  S/N: 111CR63308,  NEW: 2011

SPECIFICATIONS:
TABLE SIZE ........................ 9" x 49"
TABLE TRAVEL (X) .................. 31"
SADDLE TRAVEL (Y) ................. 16"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... R-8
SPINDLE NOSE TO TABLE ............. 0 - 27"
SPINDLE CENTER TO COLUMN FACE ..... 18"
HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES
SPINDLE SPEED RANGE ............... 40 - 5000 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 70"W x 64"D x 98"H
MACHINE WEIGHT .................... 3,200 LBS

EQUIPPED WITH:
SOUTHWESTERN INDUSTRIES SMX 3 THREE AXIS CONTROL
  THREE-AXIS, ADVANCED FEATURES, CANNED CYCLES, GRAPHICS
  IN MANUAL MODE 3-AXIS DRO
ELECTRONIC HEAD FOR PROGRAMMING SPINDLE SPEEDS & TAPPING
QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)
WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
AUTOMATIC LUBRICATION SYSTEM
BELOWS WAY COVERS
3 HORSE POWER SPINDLE MOTOR

TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL.
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
