Chevalier FSG-2A618, 1995, 2X DRO, HYD TABLE, AUTO CROSSFEED SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-2A618, 1995, 2X DRO, HYD TABLE, AUTO CROSSFEED

Year:: 1995

Ref #:: 178762

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

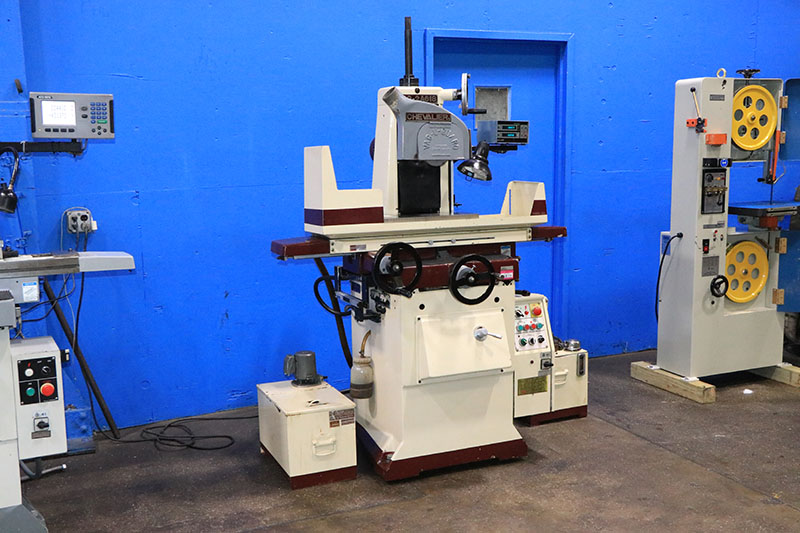

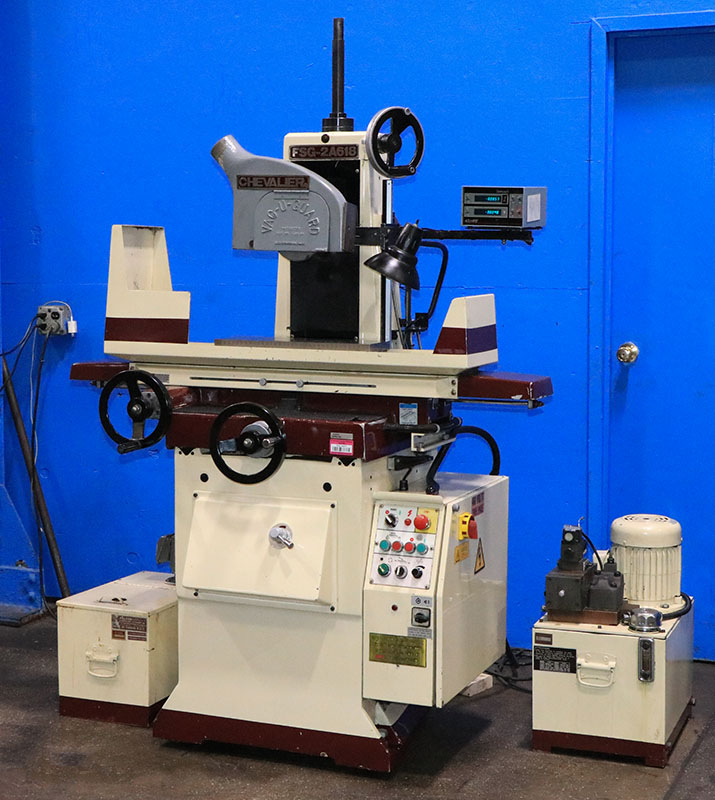

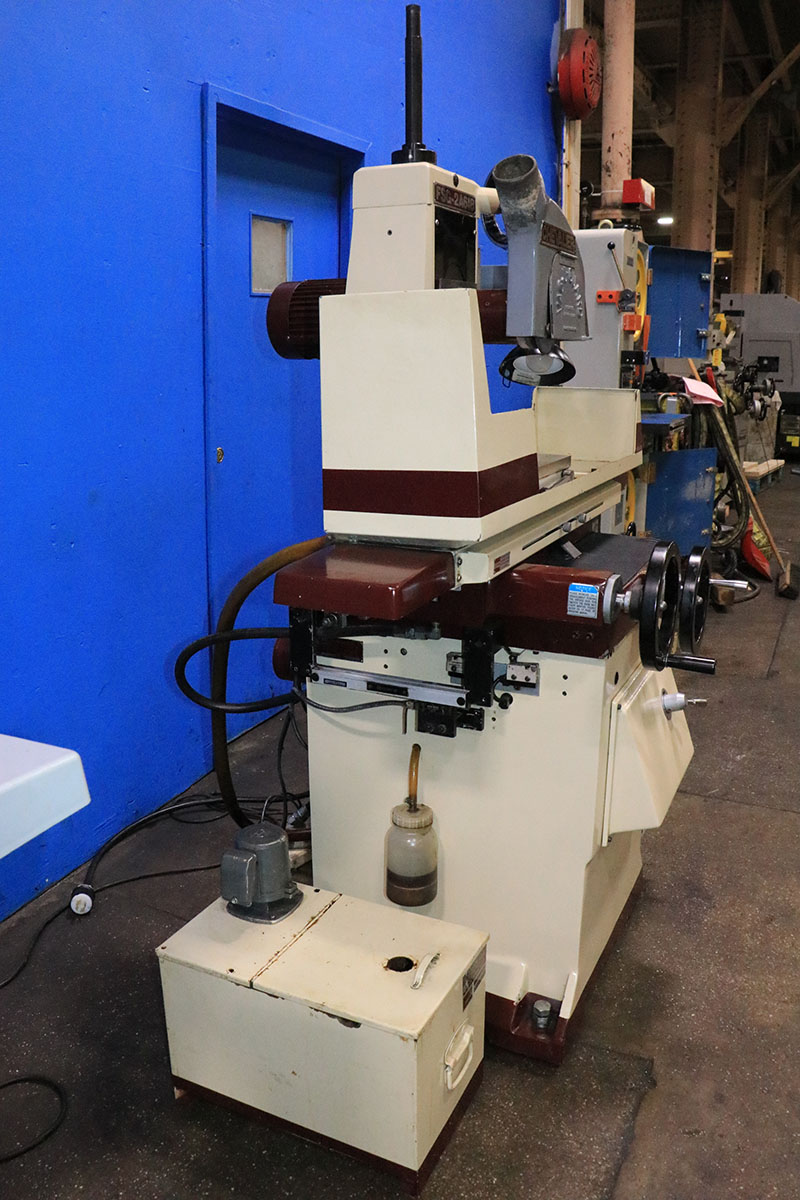

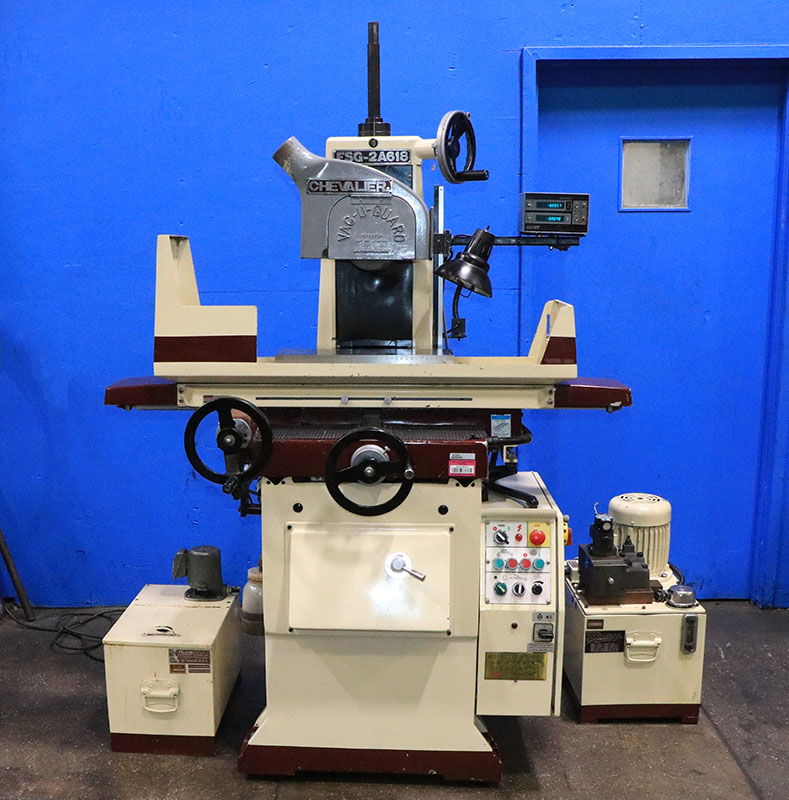

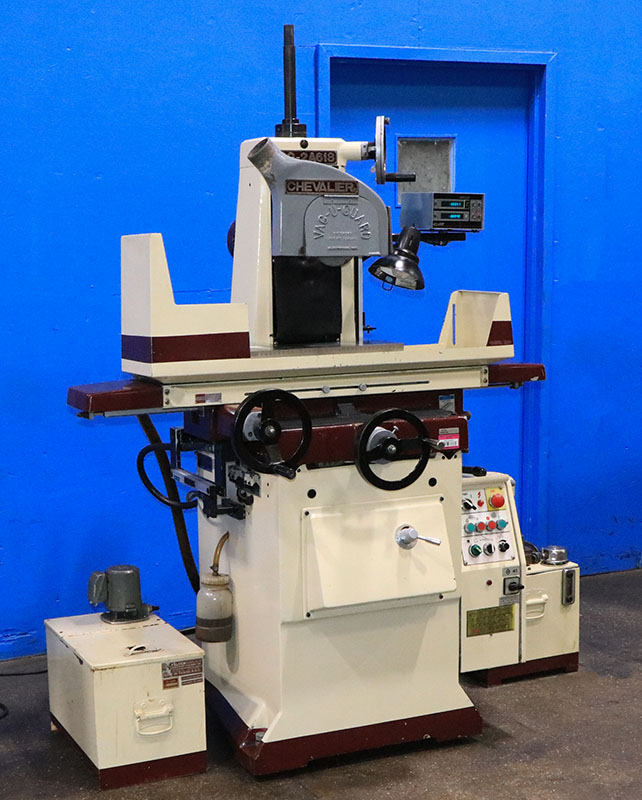

 6" X 18" CHEVALIER "TWO-AXIS" AUTOMATIC SURFACE GRINDER

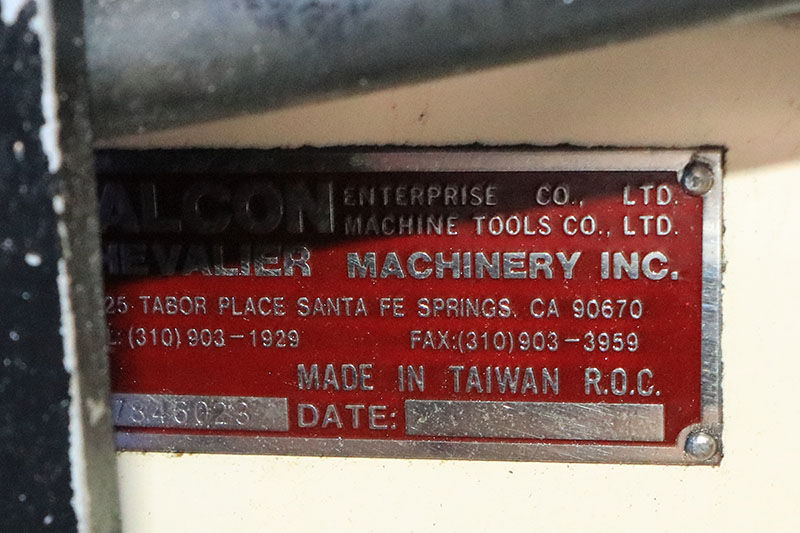

  MODEL: FGS-2A618       S/N: B7846023     NEW: 1995

MAX. SURFACE GROUND ..................... 6" X 18"
DIST. FROM SPINDLE CENTER TO TABLE ...... 18"
VARIABLE TABLE SPEED, HYDRAULIC ......... 0 TO 70' FPM
MAX. TABLE TRAVEL ....................... 19"
AUTOMATIC CROSSFEED INCREMENT ......... 0.006 TO 0.375"
WHEEL DRESS, POWER TRUING .......... 0.63' TO 3.3' FPM
MAX. CROSSFEED TRAVEL ................... 6- 3/4"
DOWNFEED HANDWHEEL PER GRADUATION ....... 0.0001"
PER REVOLUTION .......................... 0.05"
CROSSFEED HANDWHEEL PER GRADUATION ...... 0.0005"
PER REVOLUTION .......................... 0.1"
SPINDLE MOTOR ........................... 1 H.P.
STANDARD GRINDING WHEEL .......... 8"D x 1/2" x 1- 1/4"

APPROX. WEIGHT .......................... 2,000 LBS
APPROX. DIMS. ................... 52"L-R x 44"W x 76"H

MACHINE FEATURES:
HYDRAULICALLY POWERED LONGITUDINAL
POWER AUTOMATIC CROSS FEED
TABLE MOVES ON STEEL PRECISION BALLS FOR
  LOW-FRICTION EASY TABLE MOVEMENTAUTO LUBE SYSTEM

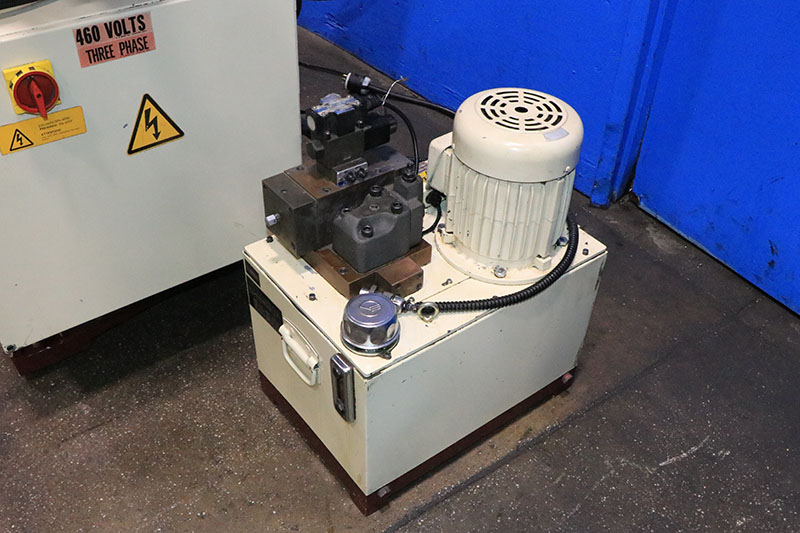

2 HP 3/60/220-440 VOLT HYDRAULIC PUMP MOTOR
1 HP 3/60/220-440 VOLT SPINDLE MOTOR

EQUIPPED WITH:

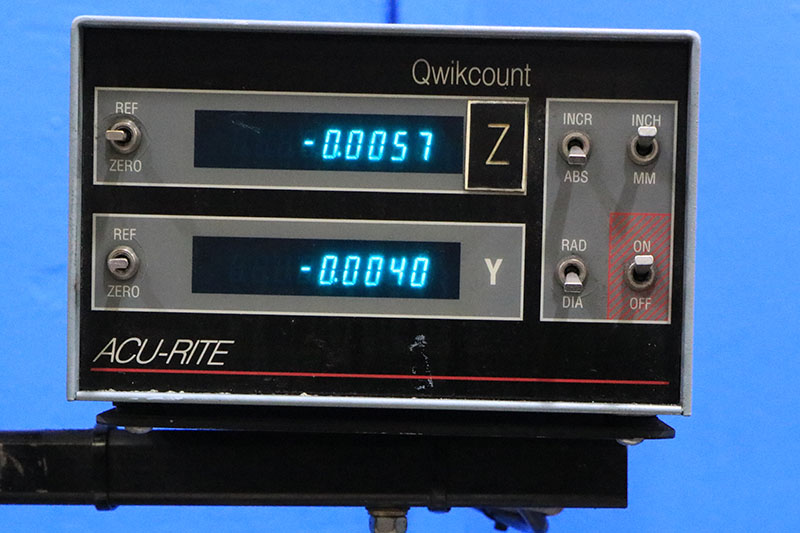

"ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT

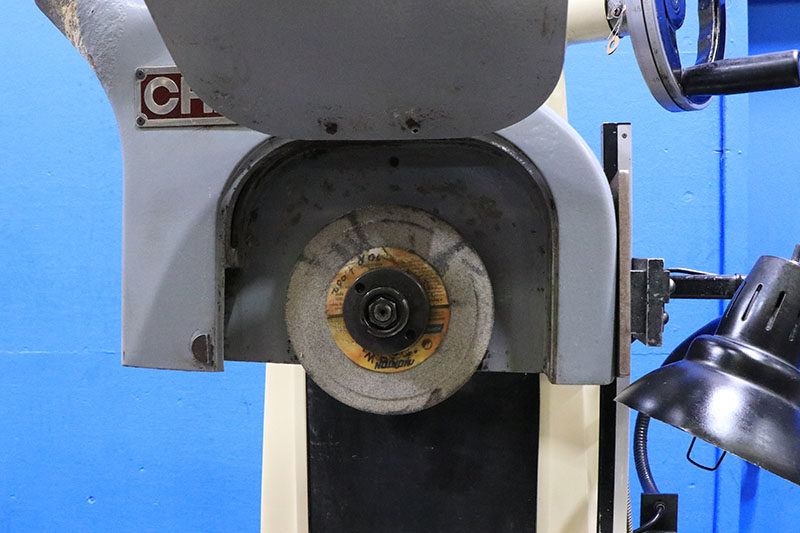

"VAC-U-GUARD" WHEEL COVER, WITH DUST INLET

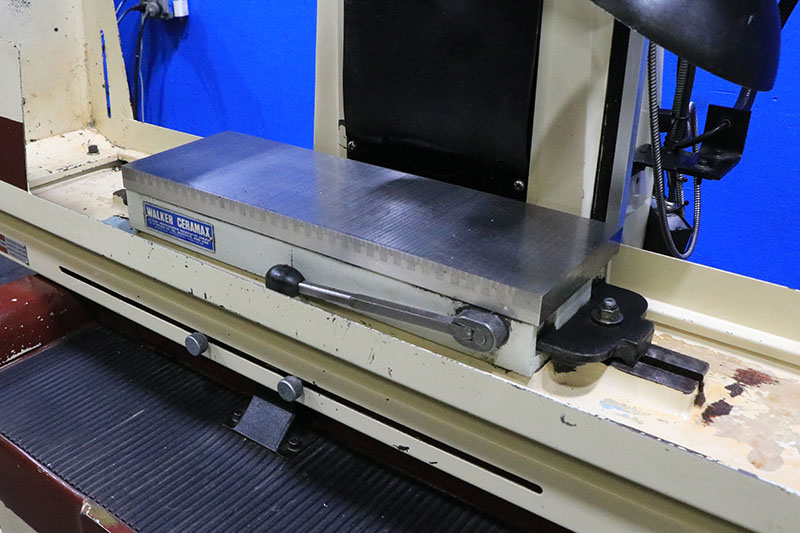

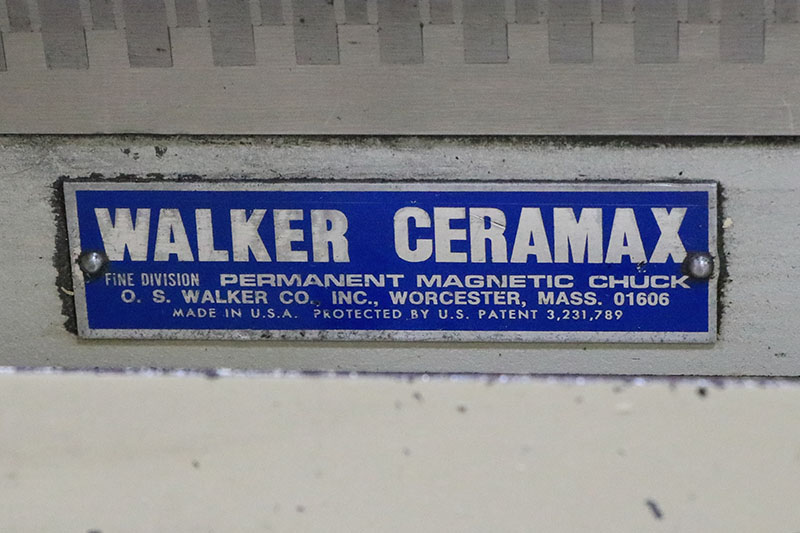

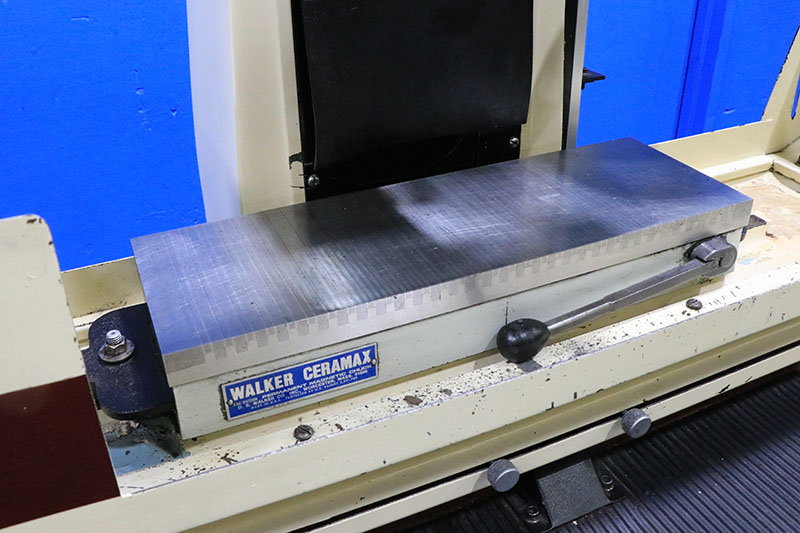

6" x 18" "O.S. WALKER CERAMAX" FINE-DIVISION
  PERMANENT MAGNETIC CHUCK

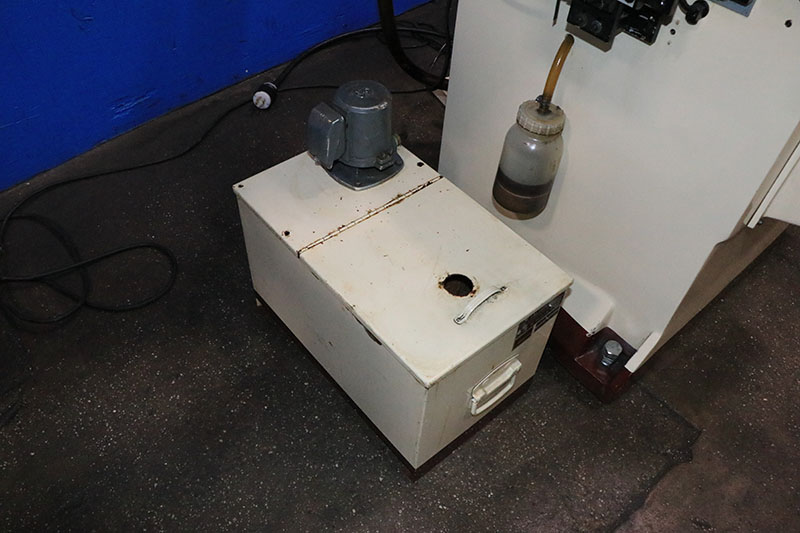

COOLANT SYSTEM
WORK LIGHT

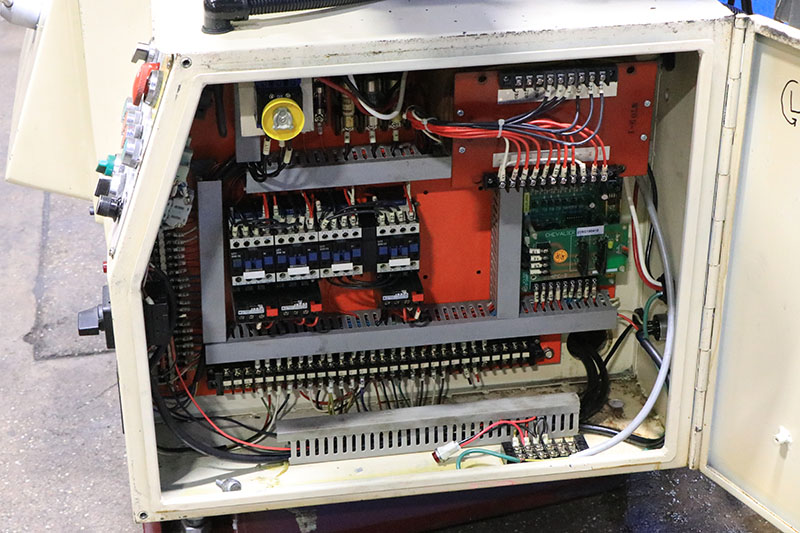

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
