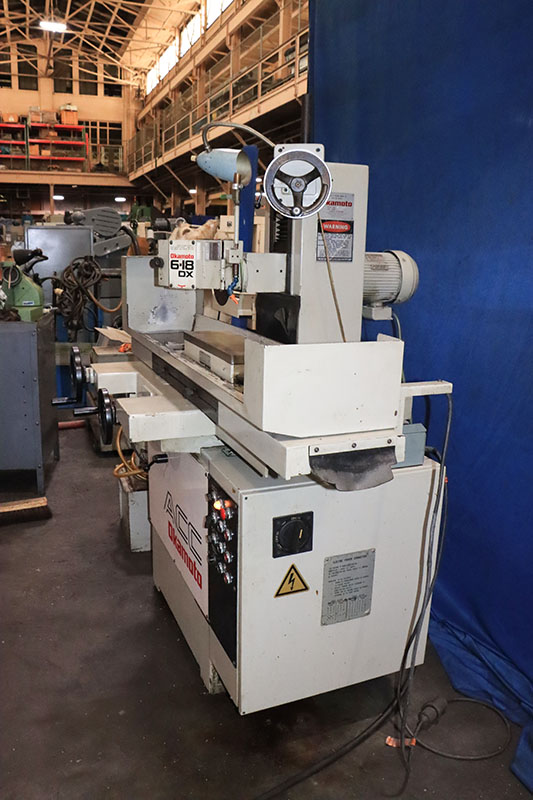

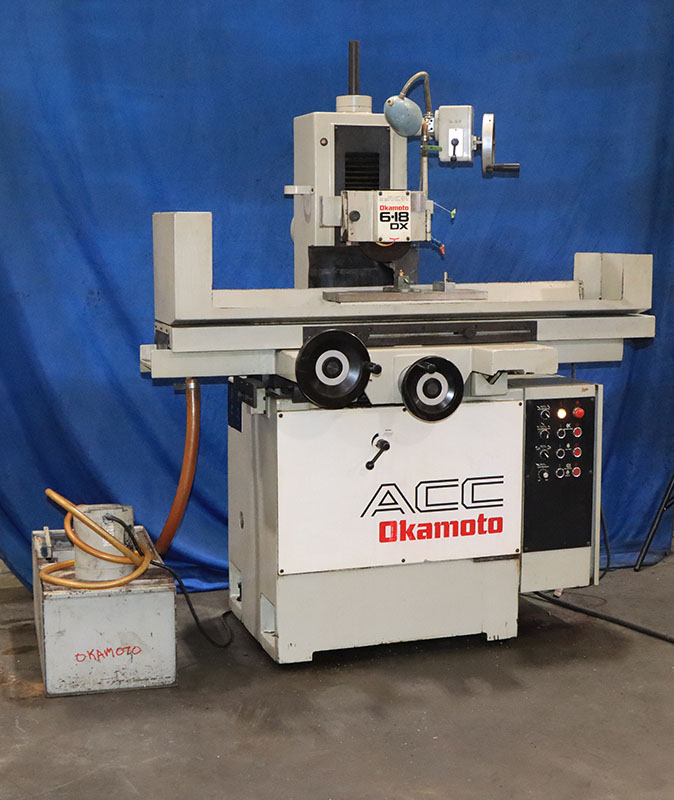

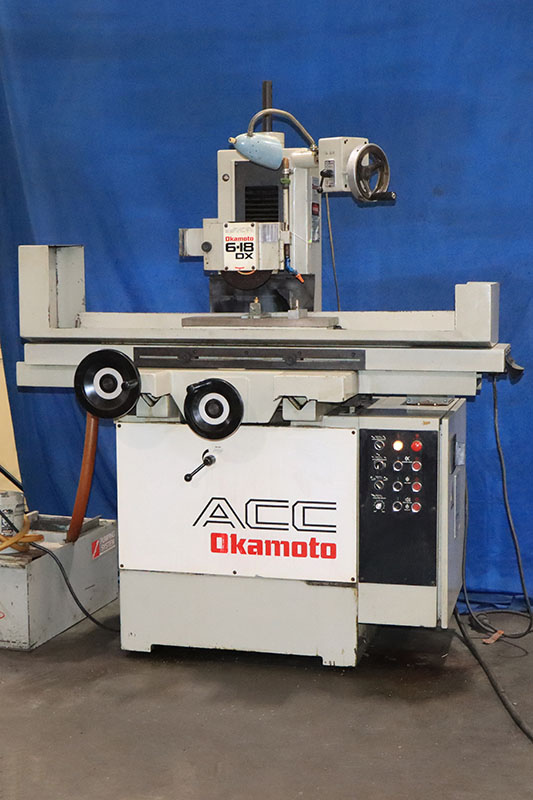

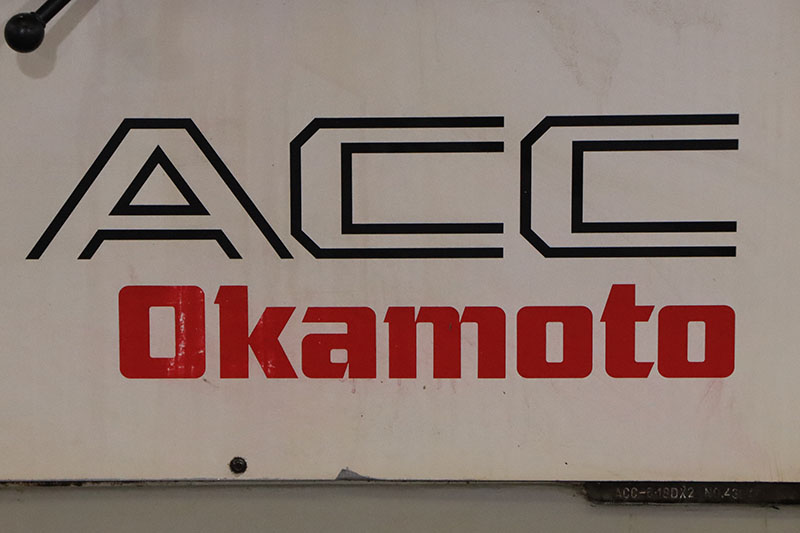

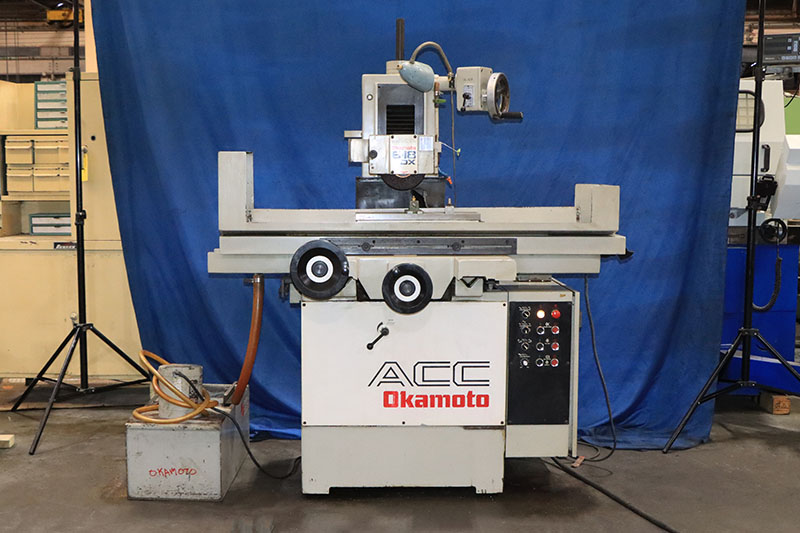

Okamoto ACC-618DX2, 1994, 2X AUTOMATIC FEEDS, MANUAL VERT. SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-618DX2, 1994, 2X AUTOMATIC FEEDS, MANUAL VERT.

Year:: 1994

Ref #:: 179261

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

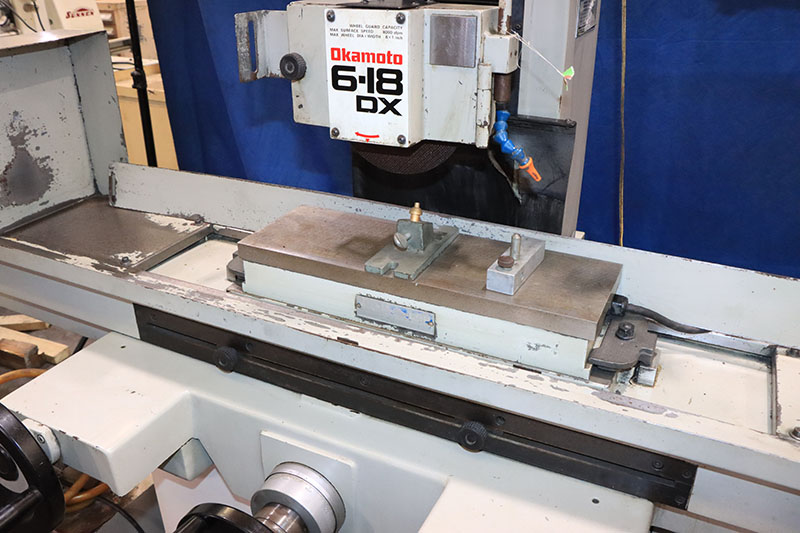

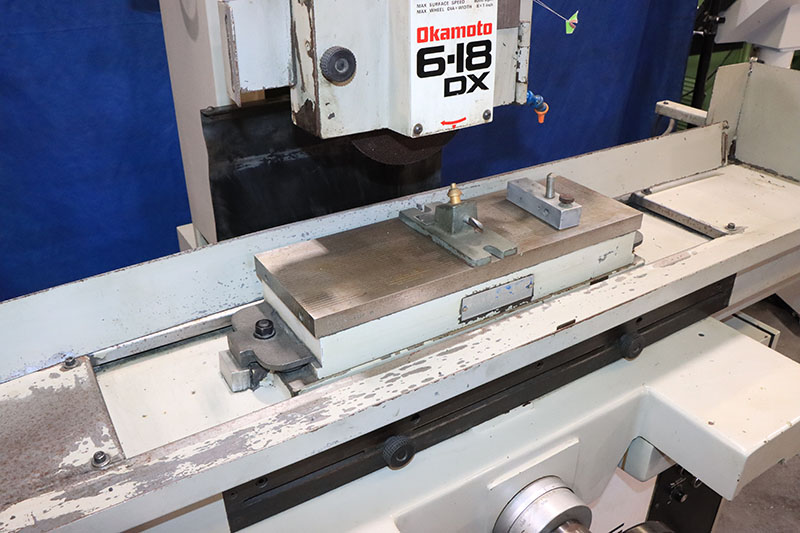

  6" X 18" OKAMOTO "HIGH-PRECISION"
   2-AXIS FEEDS, SEMI-AUTOMATIC
        SURFACE GRINDER

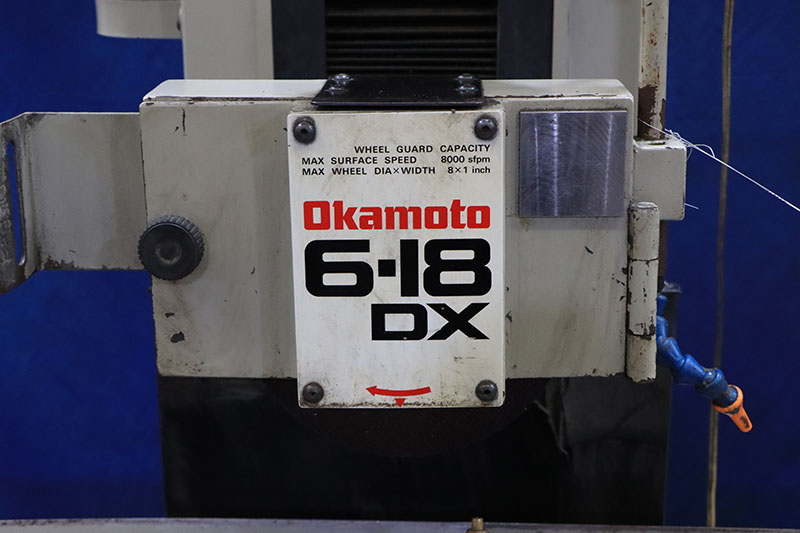

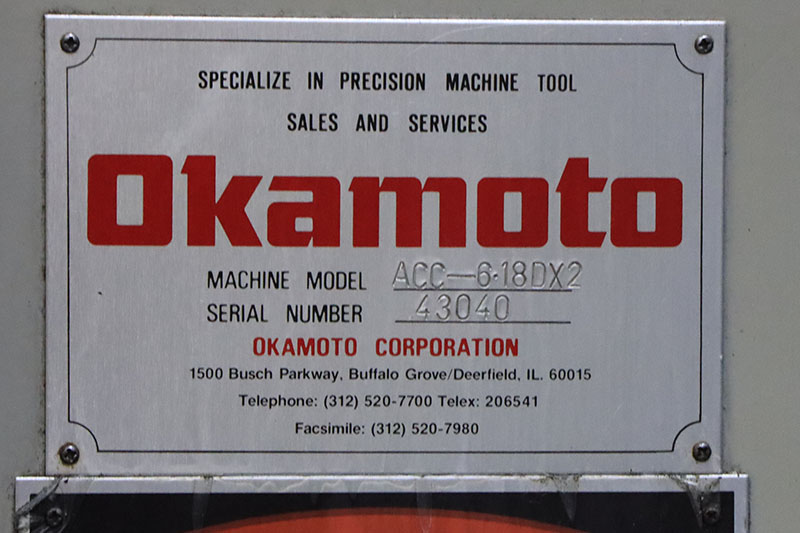

MODEL: ACC-6.18DX2     S/N: 43040      NEW: 1994

NOMINAL GRINDING CAPACITY ............... 6" x 18"
MAXIMUM HEIGHT UNDER 8" WHEEL ........... 11.7"
TABLE SPEED, INFINITELY VARIABLE ........ UP TO 66' FPM
MAX. LONGITUDINAL TABLE MOVEMENT,
 MANUAL ................................. 21"
AUTO CROSS FEED INCREMENT ............... 0.004" TO .2"
AUTO CONINOUS CROSSFEED ................. 0.5' TO 13' FPM
CROSSFEED, MANUAL, HAND FEED PER REV. ... 0.10"
                   GRAD. OF HANDWHEEL ... 0.0004"
MAX. CROSSFEED, MANUAL .................. 7"
CROSS FEED MOTOR ........................ 1 H.P.
SPINDLE MOTOR ........................... 2 H.P.
GRINDING WHEEL SPEED .................... 3450 RPM

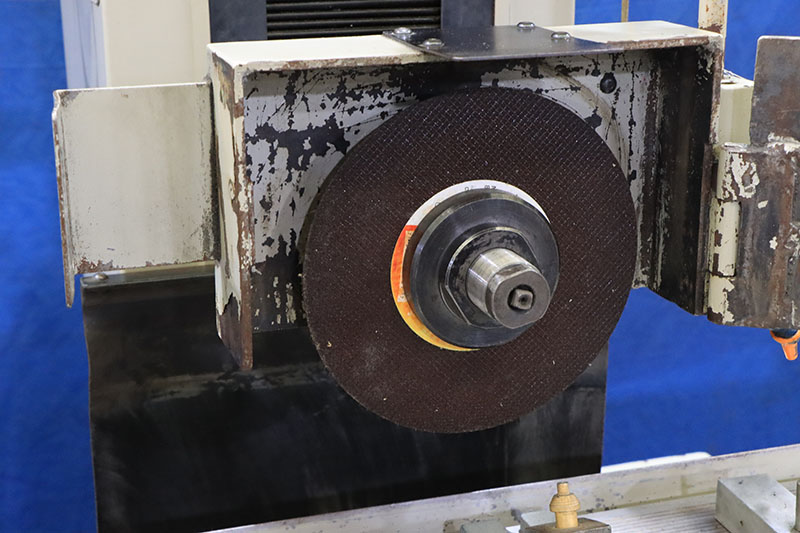

WHEEL SIZE .......................... 8" x 1/2" x 1- 1/4"
DOWNFEED PER HANDWHEEL GRAD. (COARSE) ... 0.0004"
                             (FINE) ..... 0.0001"
DOWNFEED PER HANDWHEEL REV.  (COARSE) ... 0.080"
                             (FINE) ..... 0.020"

APPROX. DIMS. FOR OPERATION ......... 78" x 52"D x 79"H
APPROX. MACHINE WEIGHT .................. 2,420 LBS.

MACHINE FEATURES:
HEAVY DUTY CAST IRON CONSTRUCTION
DOUBLE VEE WAY TABLE DESIGN FOR EXTENDED WAY LIFE
  AND HIGH ACCURACY
HYDRAULIC TABLE TRAVERSE

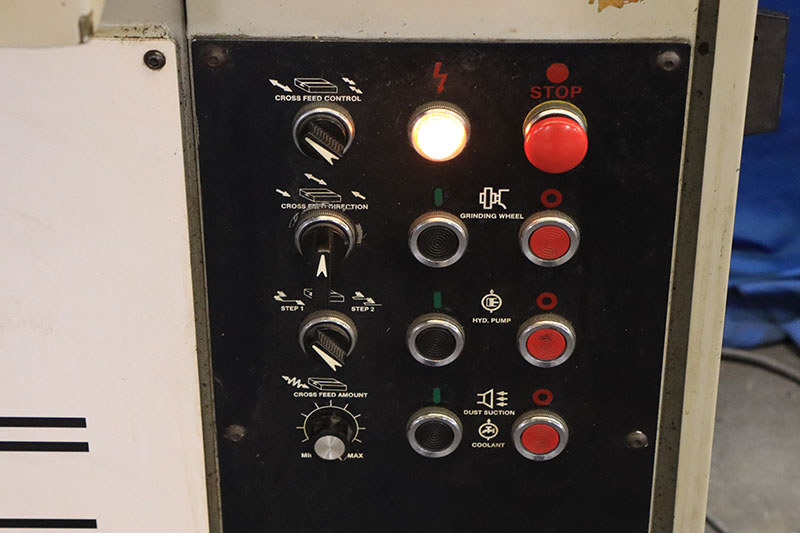

AUTOMATIC CROSSFEED, ELECTRONIC, INFINITELY ADJUSTABLE,
  BY A RHEOSTAT KNOB.

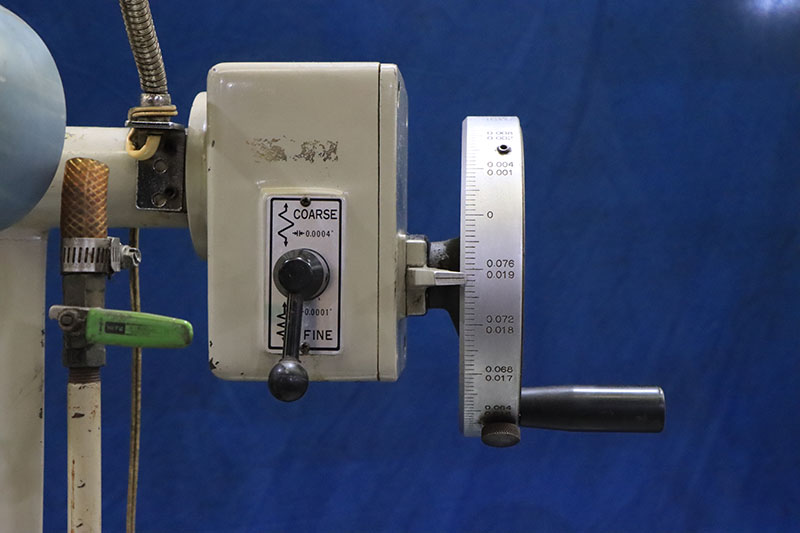

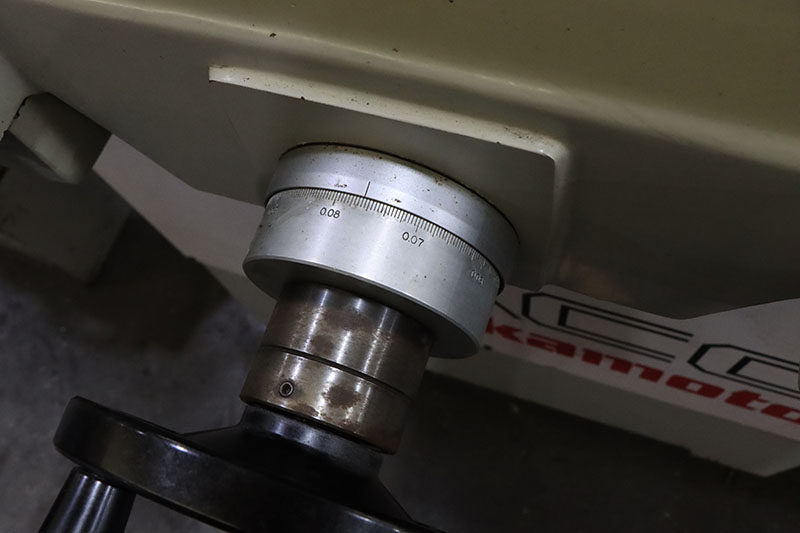

MANUAL DOWNFEED WITH "ROUGH" & "FINE" FEED CHOICES
  USING THE HANDWHEEL SETTING AT THE TOP OF THE
  COLUMN.
GRAVITY FED LUBRICATION SYSTEM

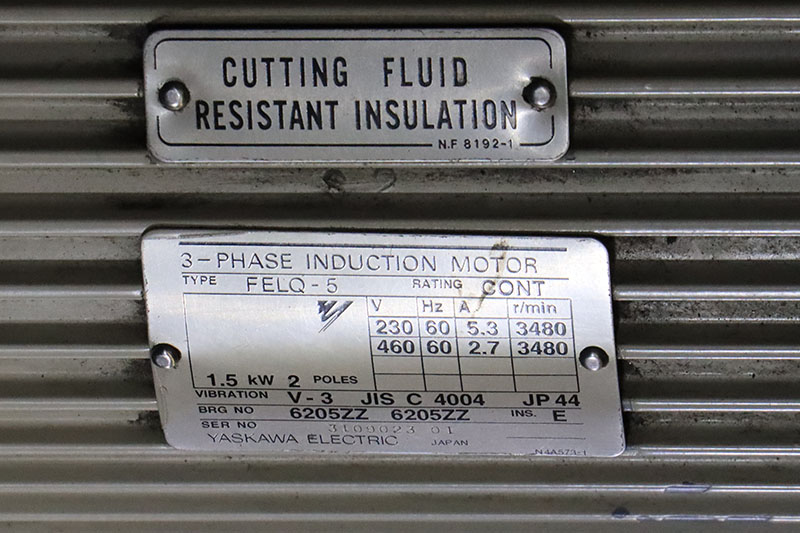

1 H.P. HYDRUALIC PUMP MOTOR

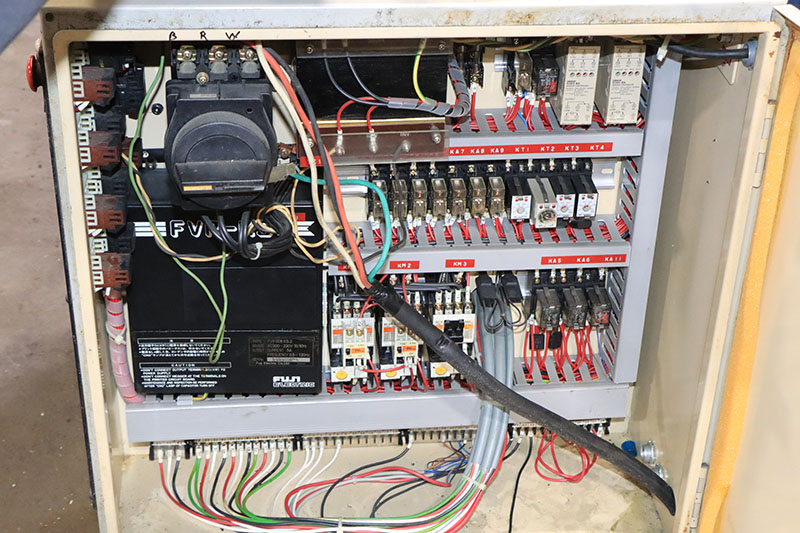

MOTORS ARE 3/60/230-460 VOLT

EQUIPPED WITH:

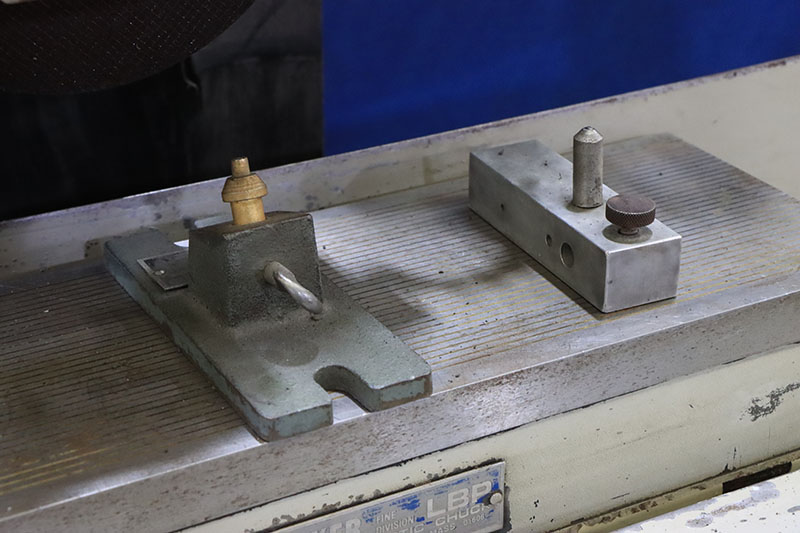

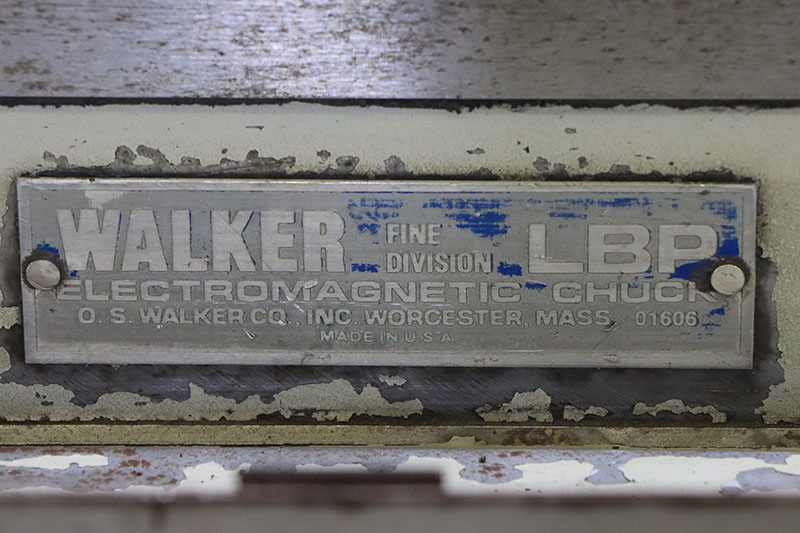

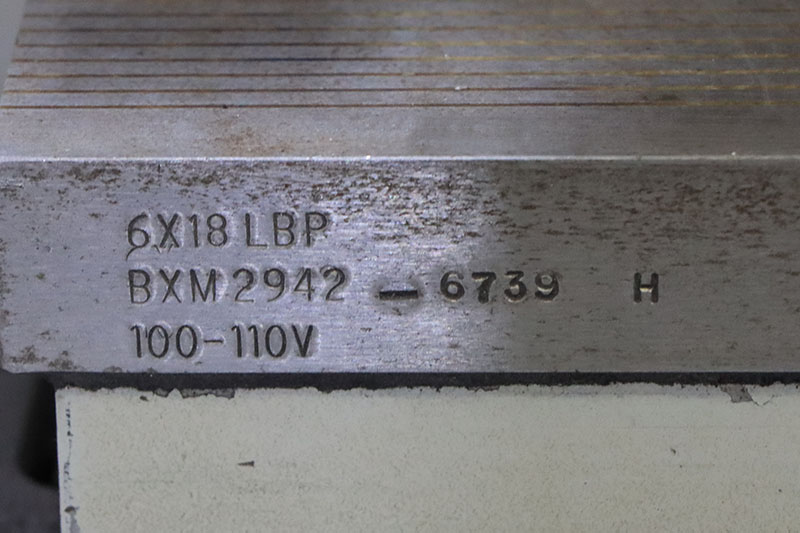

6" x 18" "O.S. WALKER" "LBP" FINE-DIVISION "MADE IN USA"
 ELECTRO-MAGNETIC CHUCK

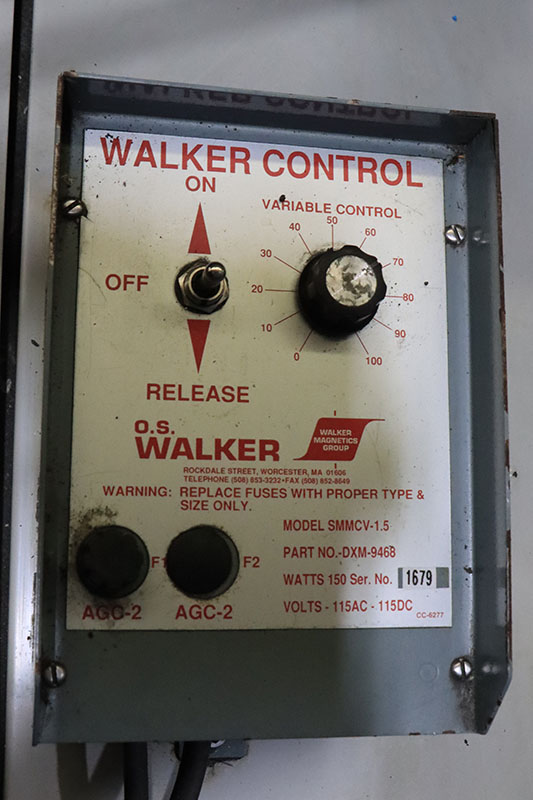

"O.S. WALKER" VARIABLE HOLD NEUTOFIER CONTROL

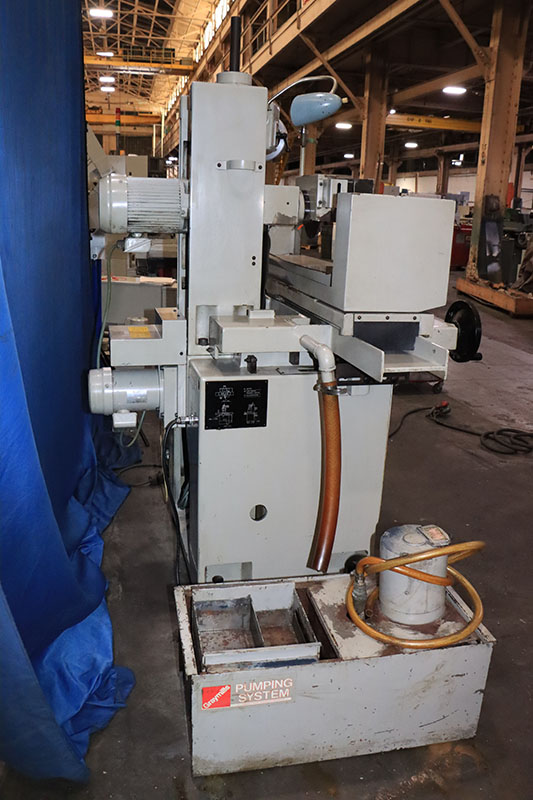

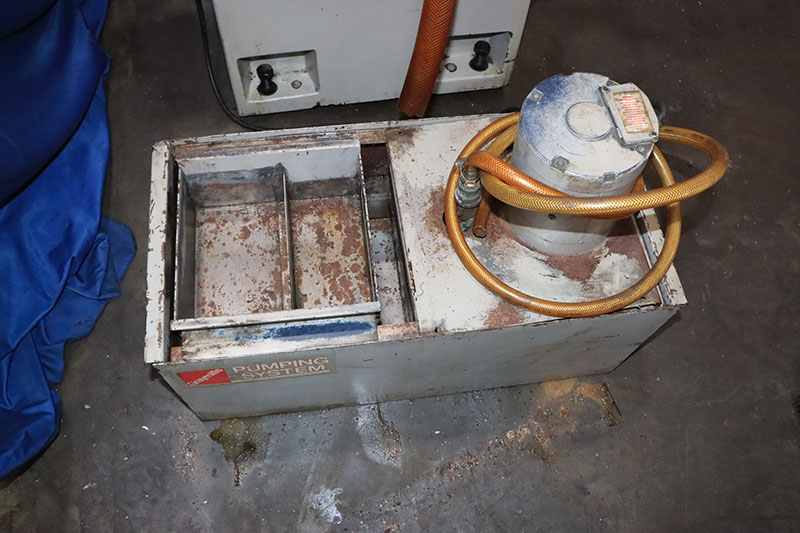

"GRAYMILLS" COOLANT SYSTEM
GUARDING FOR USING COOLANT
EASY INSTALLATION OF HOSE, FOR INSTALLING DUST COLLECTION
WORK LIGHT
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS

** LOW HOURS - ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **
** TOOLROOM MACHINE - BEAUTIFUL - SO QUIET WITH SMOOTH FEEDS **
