Chevalier FSG-618M, 2019, ROLLER BEARING TABLE SURFACE GRINDERS, HAND FEED

Price on Request

Make:: Chevalier

Model:: FSG-618M, 2019, ROLLER BEARING TABLE

Year:: 2019

Ref #:: 178768

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

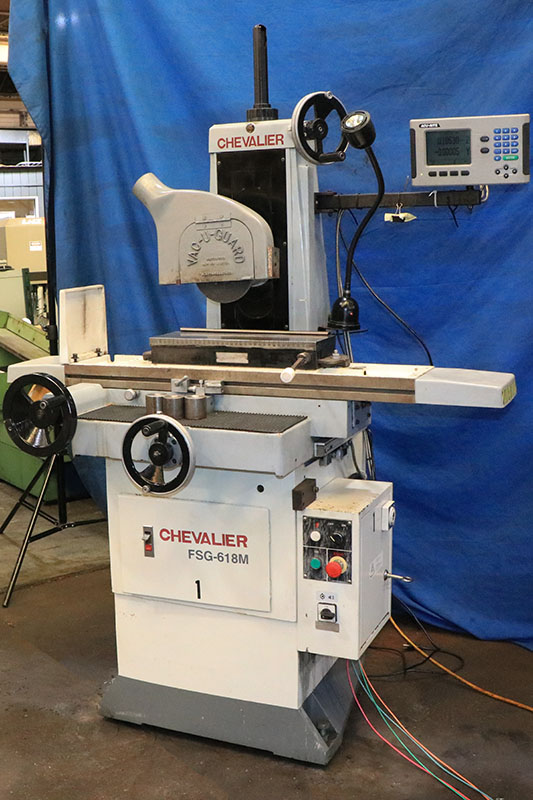

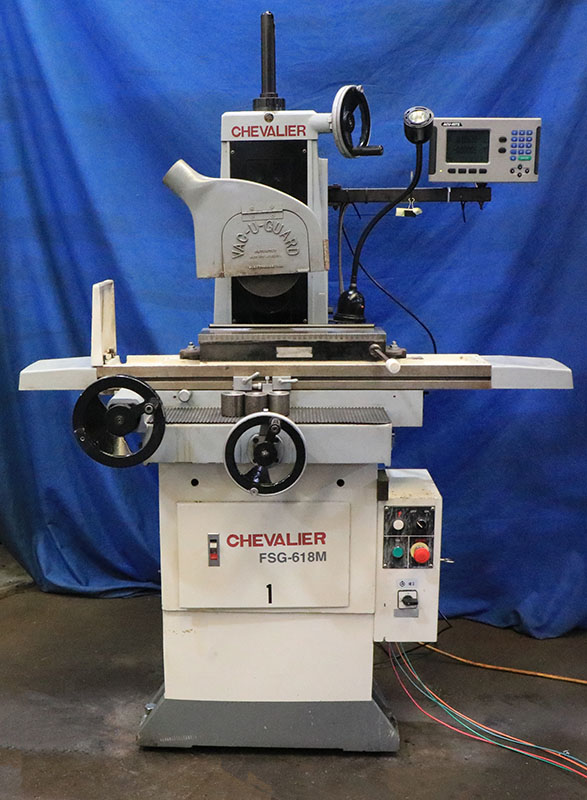

  6" x 18" Chevailer Hand Feed Surface Grinder
        with Roller Bearing Table

** Equipped With "Acu-Rite 2X DRO **

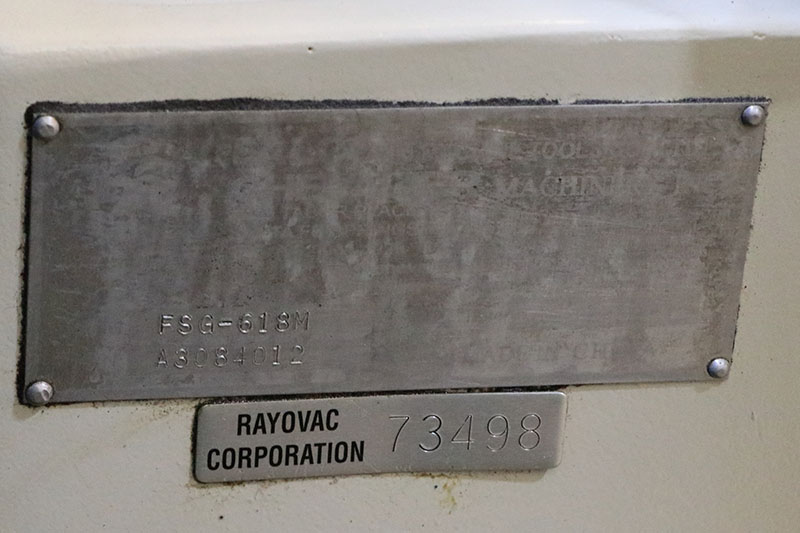

Model: FSG-618M     S/N:A3084012     New: 2019

Specifications:
Maximum grinding length:............... 18"
Maximum grinding width:................ 6"
Maximum table travel,
 longitudinal: ........................ 19"
 cross: ............................... 7"
Maximum distance from table
 working surface to spindle center .... 18"

Cross handwheel graduations: .......... 0.0005"
Cross handwheel per rev. .............. 0.100"
Downfeed handwheel graduations ........ 0.0001"
Vertical handwheel per rev. ........... 0.050"
Spindle speed:......................... 3,450 RPM
Wheel size:...................... 8" x 1/2"W x 1-1/4"B

Approximate weight: ................... 1,500 lbs
Approximate Dimensions: ......... 41"W x 47"D x 76"H


Machine Features:
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V Guideways laminated with Turcite-B for saddle travel
Automatic lubrication of leadscrews and ways

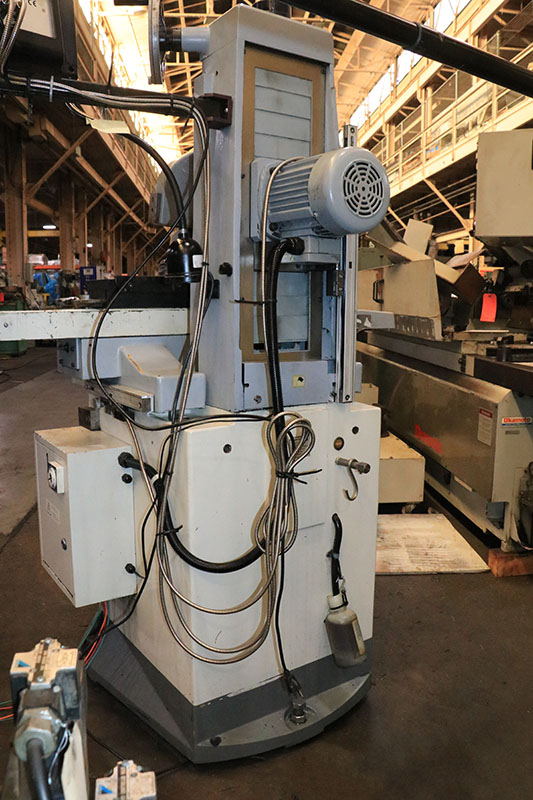

2 HP 3/60/230-460 volt spindle motor


Equipped with:

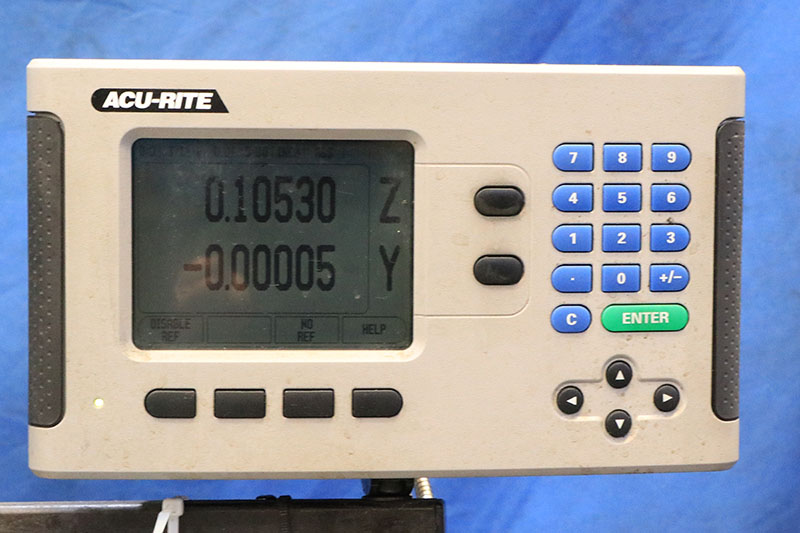

"Acu-Rite" "200S" 2-Axis Digital Readout
"Vac-U-Guard" Wheel Cover, with Dust Inlet

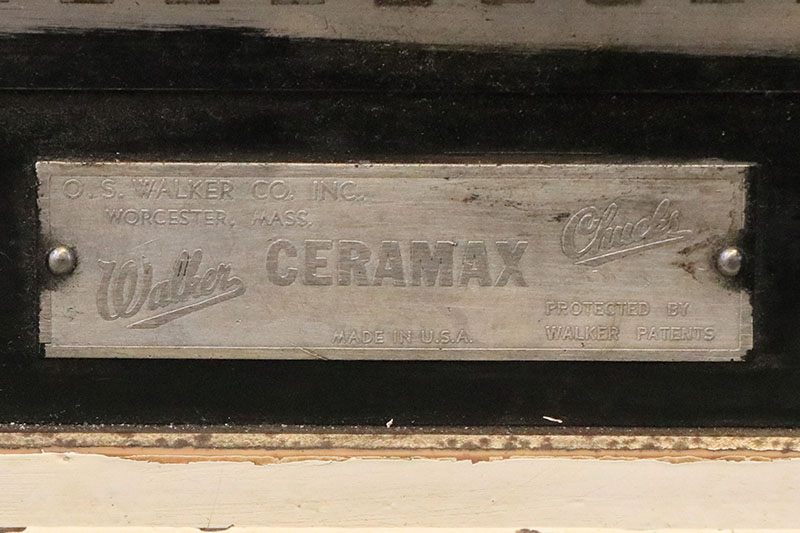

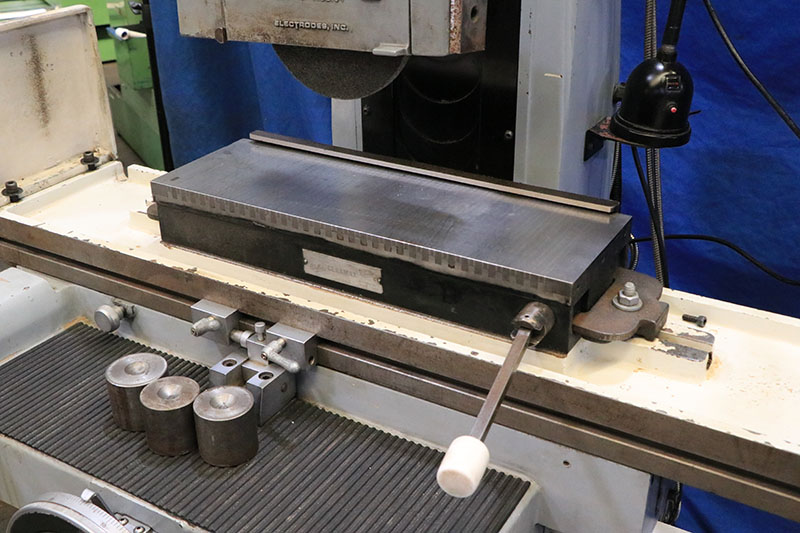

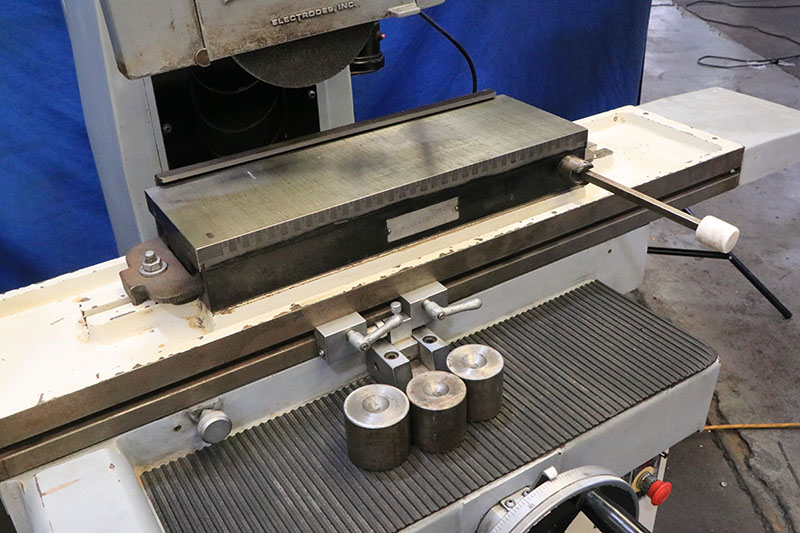

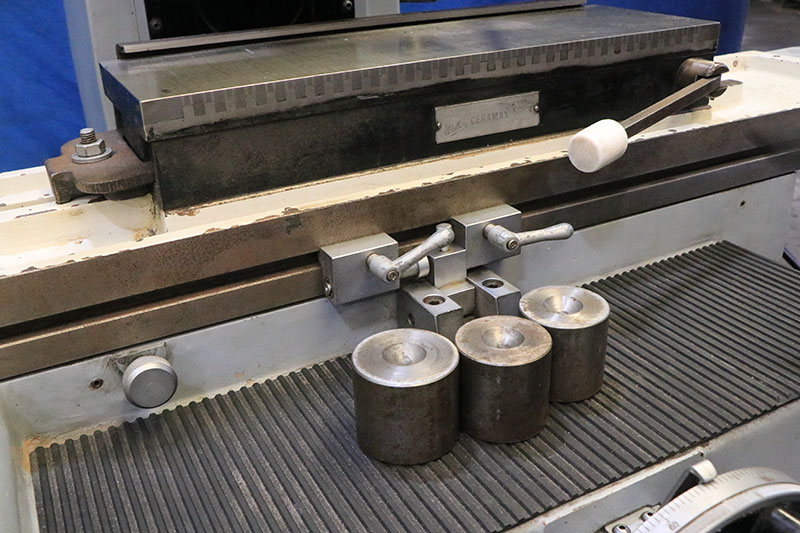

"O.S. Walker" "Ceramax" Fine-Division 6" x 18"
  Permanent Magnetic Chuck
Work light

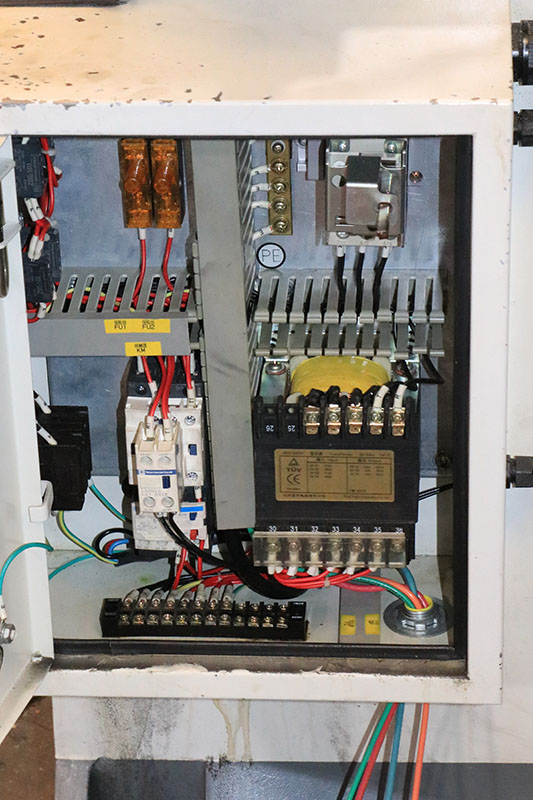

Machine is Presently Wired for 460 Volts



** "Like New" Condition & Appearance (Original Paint) **
** Inspect Under Power in our Harrison, NJ Warehouse **
