MITSUI MSG200MH, NEW 1985, FF OPTION FOR CROSS (.00050") SURFACE GRINDERS, HAND FEED

Price on Request

Make:: MITSUI

Model:: MSG200MH, NEW 1985, FF OPTION FOR CROSS (.00050")

Year:: 1985

Ref #:: 161368

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

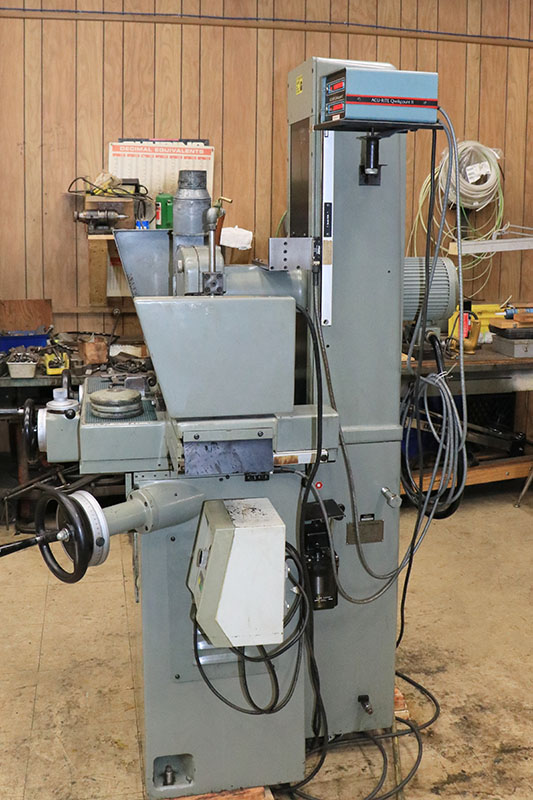

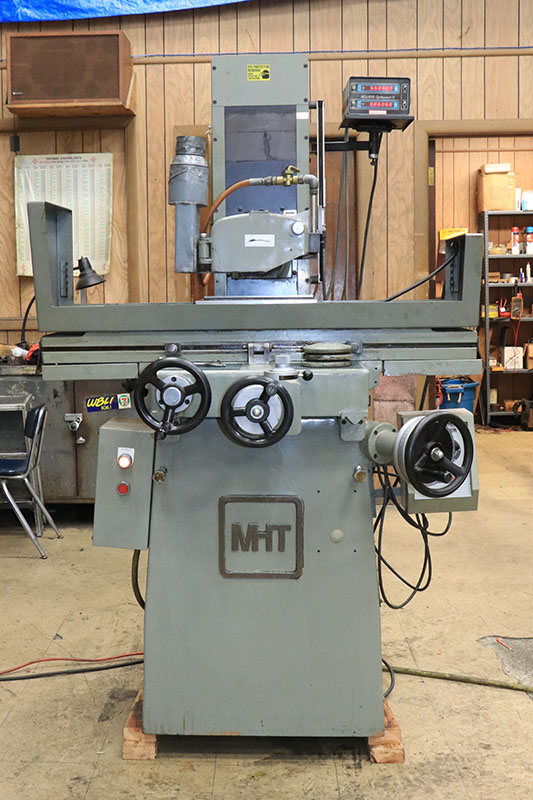

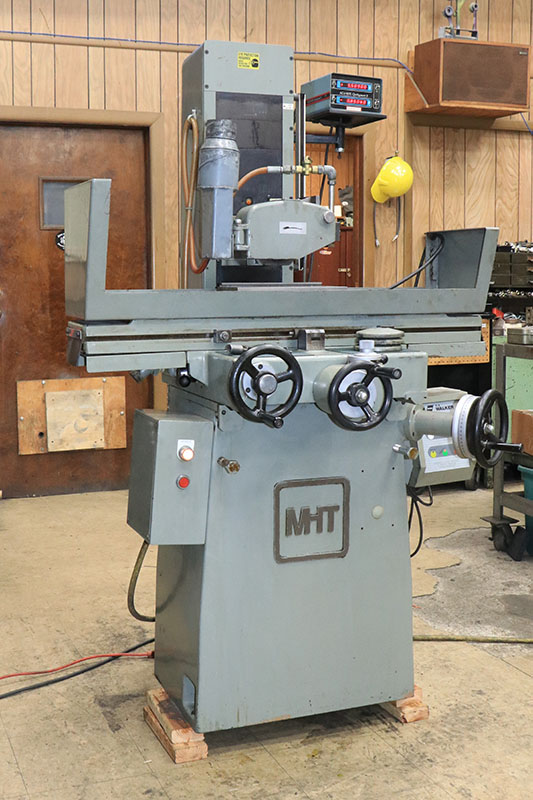

  6" X 12" MITSUI "HIGH-PRECISION" (MADE IN JAPAN)
  HAND FEED SURFACE GRINDER w/ROLLER BEARING TABLE

  ** FINE FEED CROSS AXIS (0.000050" GRAD.)

  **  ACU-RITE 2-AXIS DIGITAL READOUT DISPLAY **

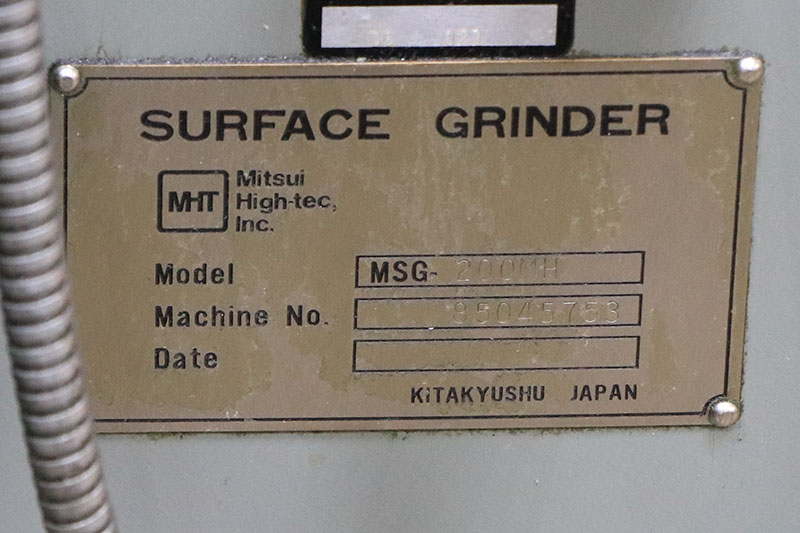

  MODEL: MSG-200MH      S/N: 85045753       NEW: 1985

  WIDTH& LENGTH GROUND ...................... 6" X 12"
  TABLE TO SPINDLE CENTER ................... 18"
  HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .... 11"
  LONGITUDINAL TABLE TRAVEL ................. 15"
  CROSS TRAVEL .............................. 8"
  GRINDING WHEEL CAPACITY ............... 8" x 3/4" x 1-1/4"
  CROSS FEED PER REV. OF HANDWHEEL
  (.001" GRAD.) ............................. 0.100"
  VERTICAL FEED PER REV. OF HANDWHEEL
  (.0001" GRAD.) ............................ 0.0500"
 FINE FEED SYSTEM FOR CROSS FEED, GRAD. TO .. 0.00005"

  APPROX. WEIGHT ............................ 1,500 LBS.
  APPROX. DIMENSIONS ........................ 58" X 46" X 71"H

  EQUIPPED WITH:

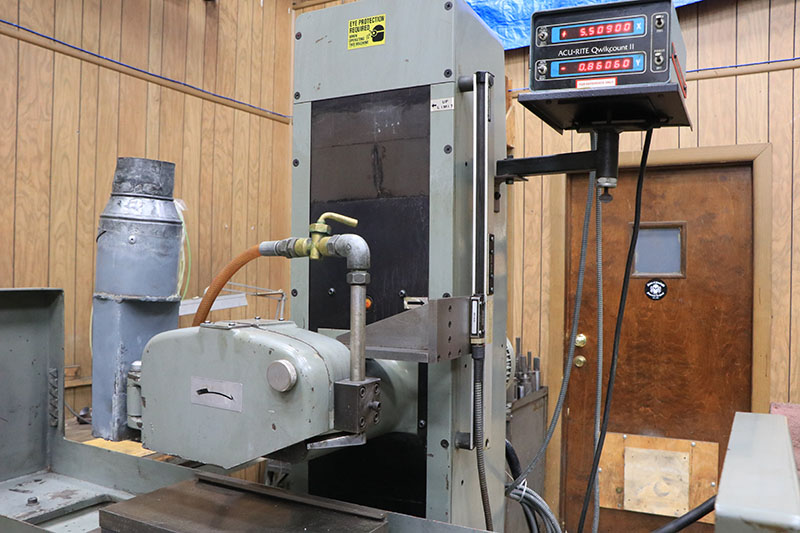

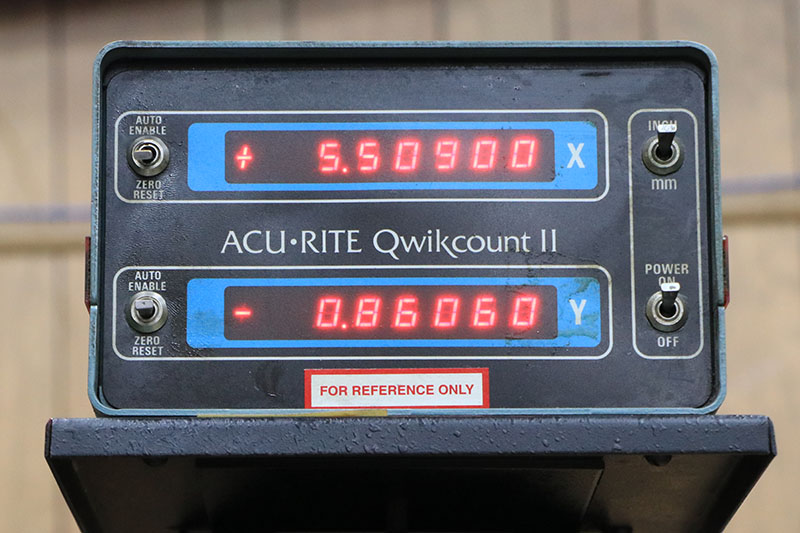

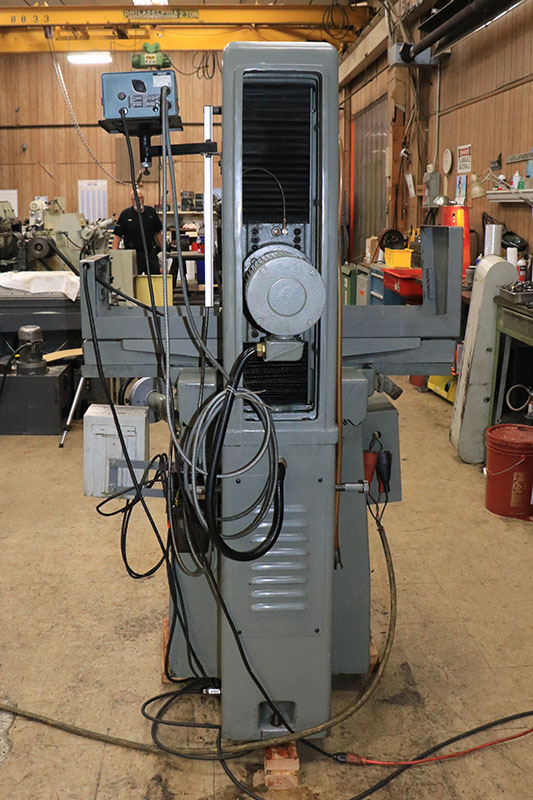

  "ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY

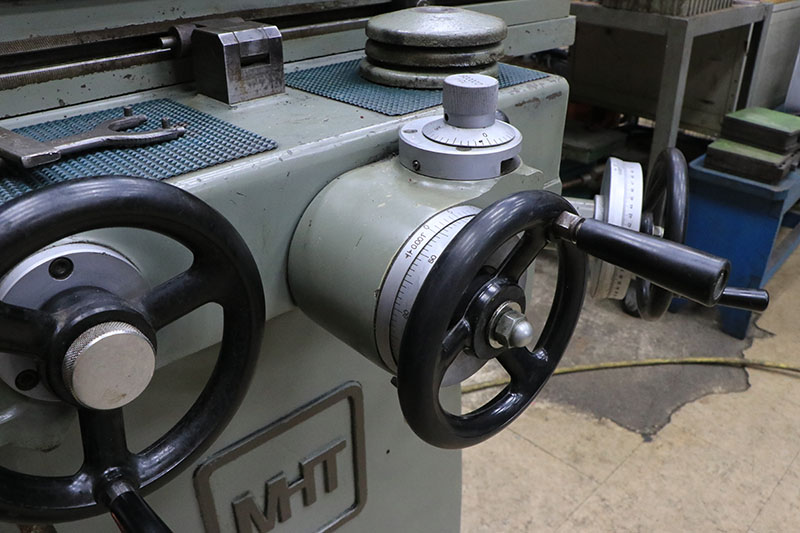

  FINE FEED OPTION FOR CROSS AXIS, 0.000050" GRADUATION ON DIAL

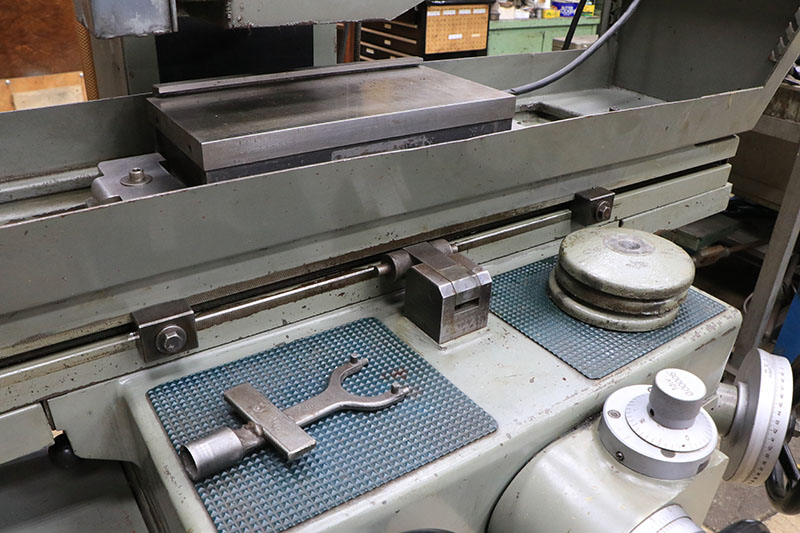

  TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
  MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...
  DRIVEN BY CABLE SYSTEM
  HARDENED & REPLACEABLE STEEL WAYS ON TABLE,
  CARRIAGE/SADDLE & COLUMN
    CROSS FEED HANDWHEEL (.0001" VERNIER)
  PRECISION CARTRIDGE SPINDLE DESIGN

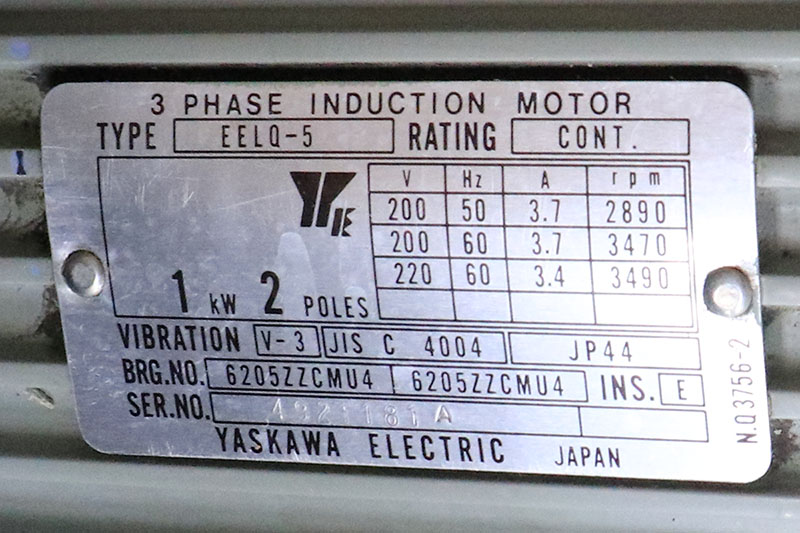

  1-1/3 HP SPINDLE MOTOR

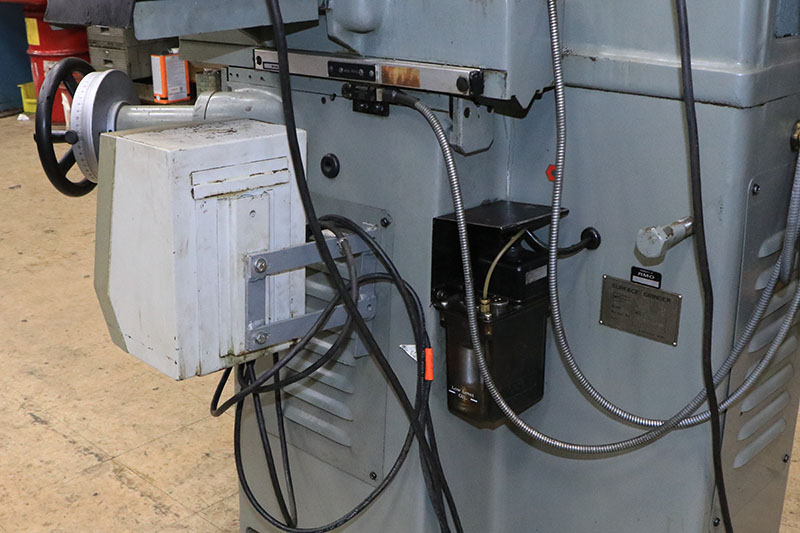

  AUTOMATIC LUBRICATION SYSTEM

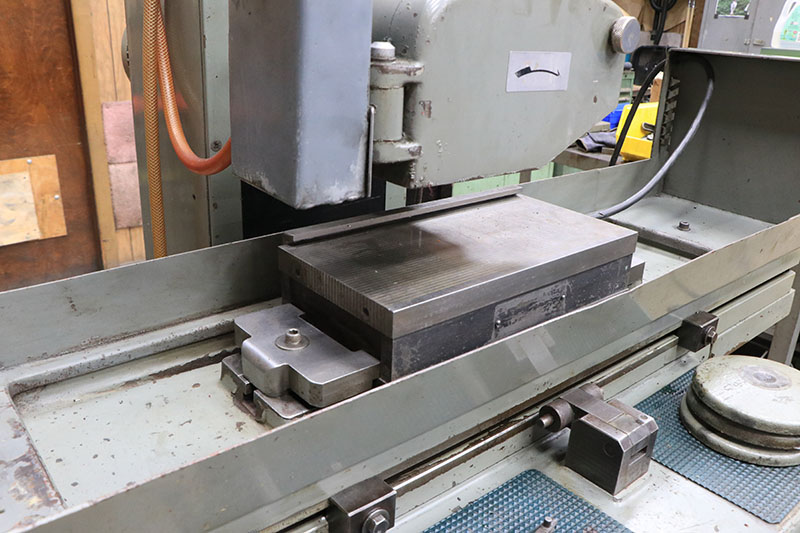

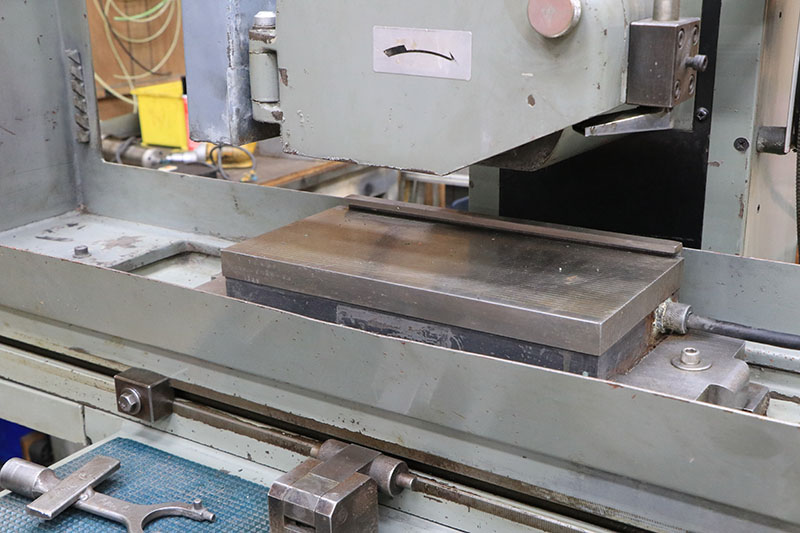

  6" X 12" "O.S. WALKER" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

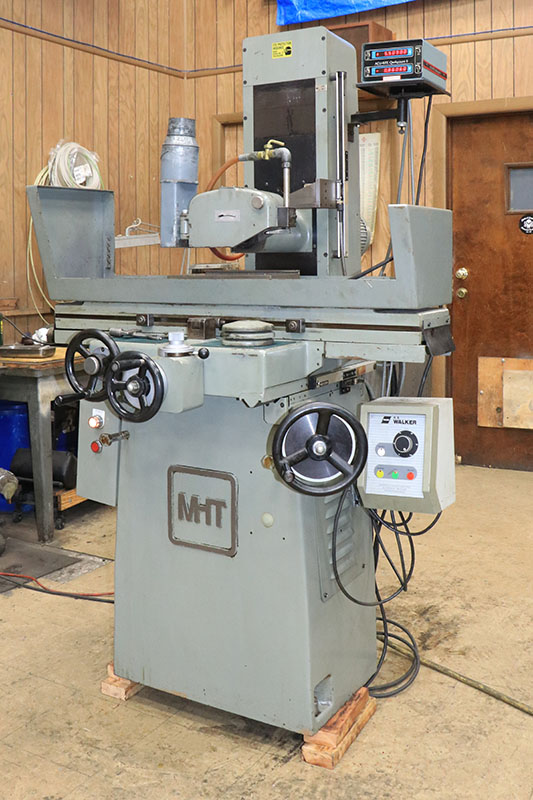

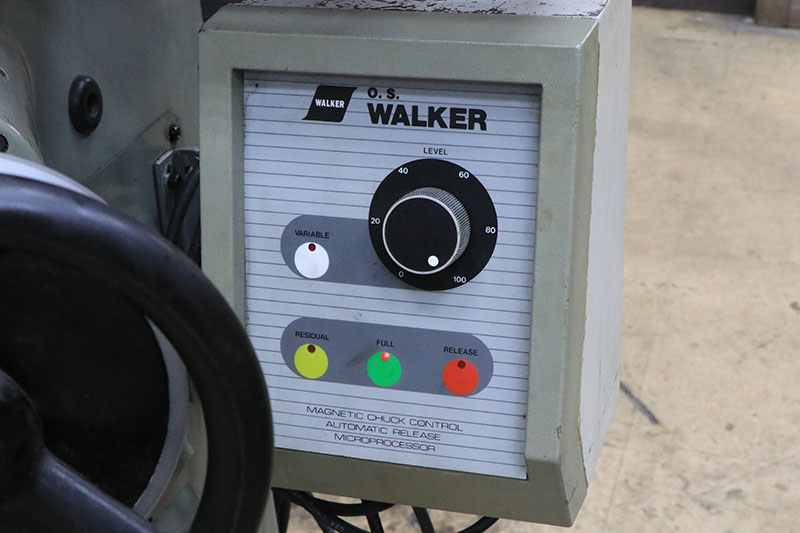

  O.S. WALKER "SMART SERIES" VARIABLE HOLD CHUCK CONTROLLER
  HAS OPTIONAL COOLANT GUARDING, COOLANT PUMP & TANK
    CAN BE PROVIDED FOR ADDITIONAL COST
  MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS

  LINK TO VIDEO:  https://youtu.be/tdrPDSsUQPw

  ** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
  ** EXCLELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
