Okamoto LINEAR 618B, 2015, SONY 2X DRO, NEW OKAMOTO SPINDL SURFACE GRINDERS, HAND FEED

Price on Request

Make:: Okamoto

Model:: LINEAR 618B, 2015, SONY 2X DRO, NEW OKAMOTO SPINDL

Year:: 2015

Ref #:: 178446

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

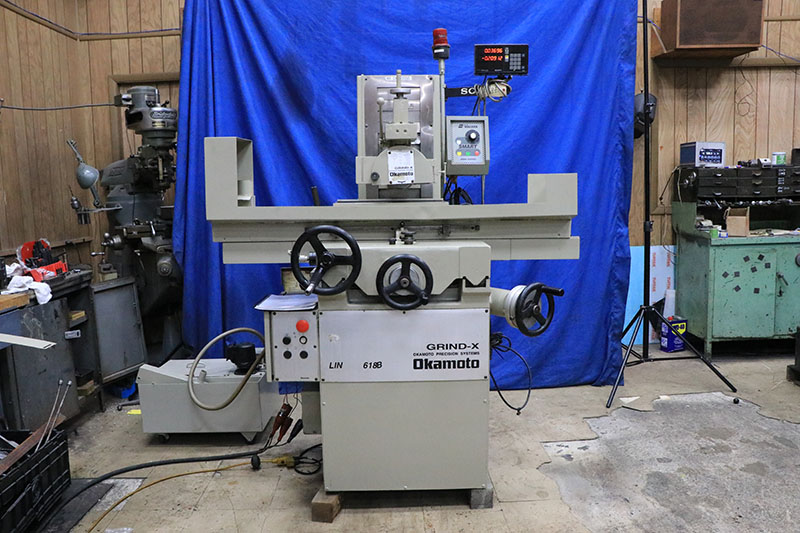

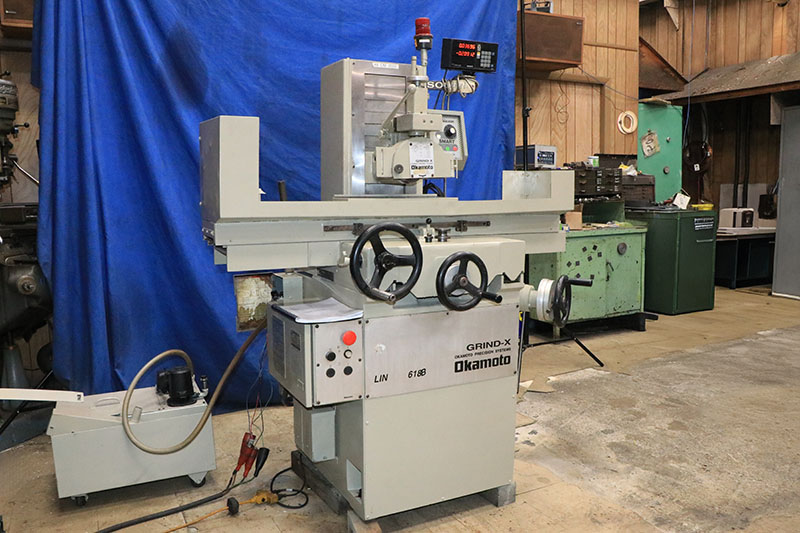

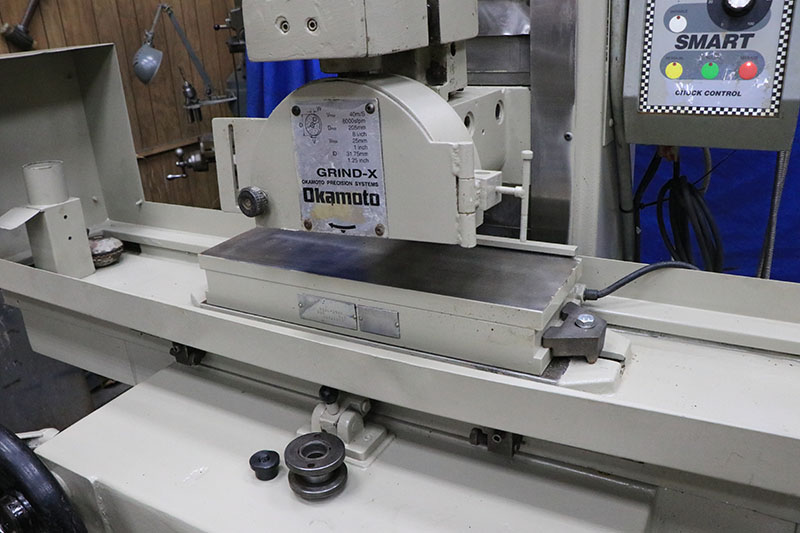

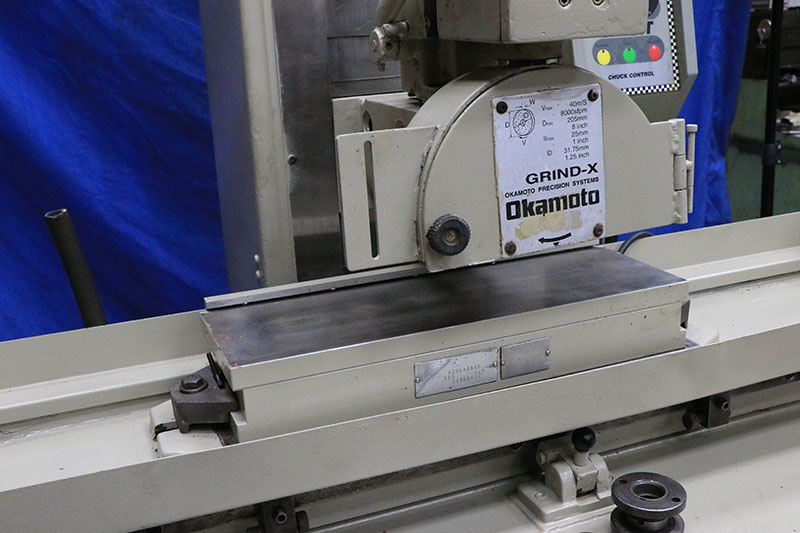

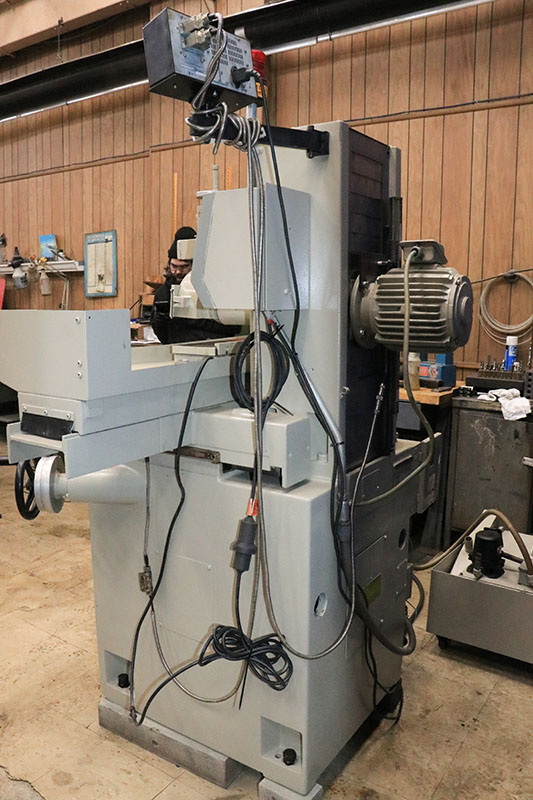

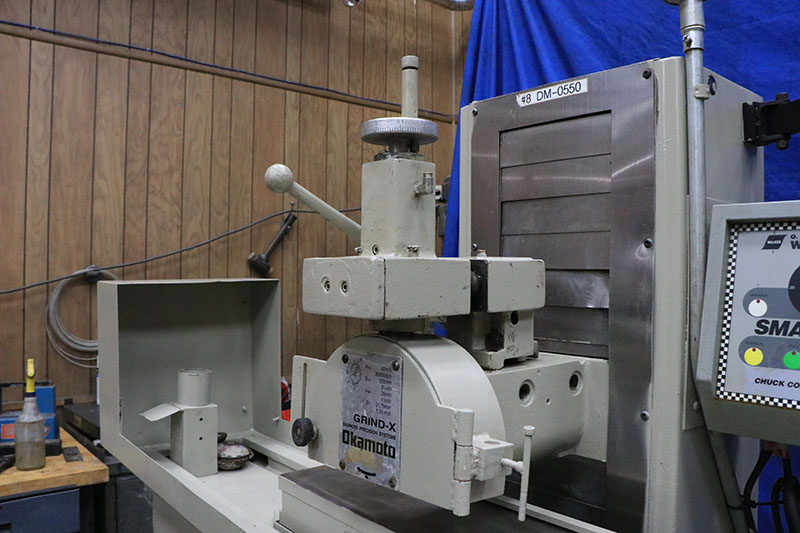

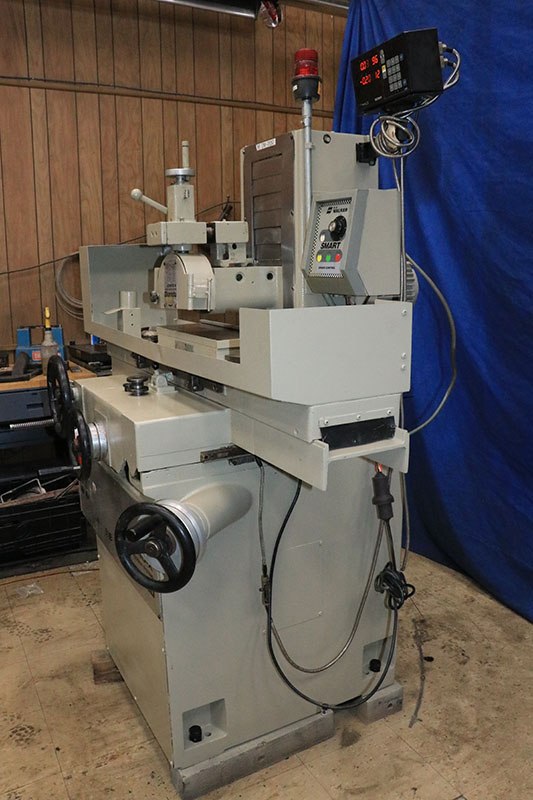

    6" X 18" OKAMOTO "HIGH-PRECISION"
       HANDFEED SURFACE GRINDER
       WITH ROLLER BEARING TABLE,
  FEATURING SONY LG-10 HIGH ACCURACY DRO,
       WITH DISPLAY RES. OF .00002"
       (20 MILLIONTHS OF AN INCH)

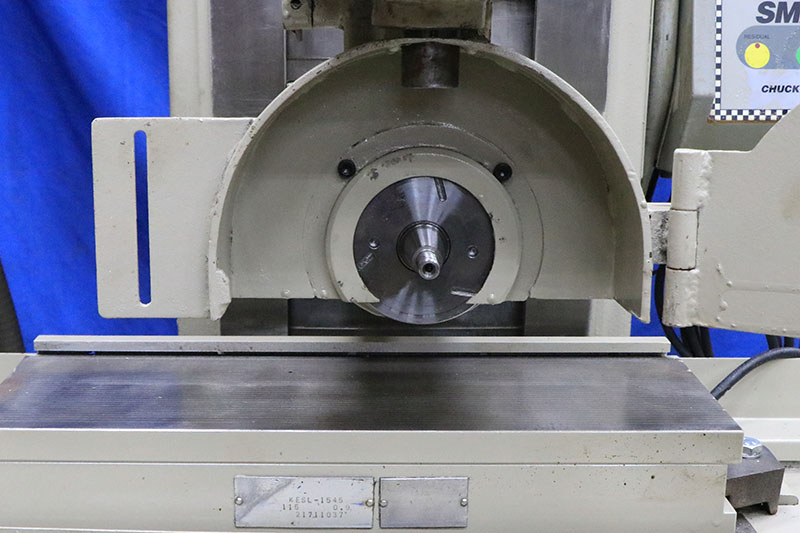

** NEW OKAMOTO SPINDLE, JUST INSTALLED **

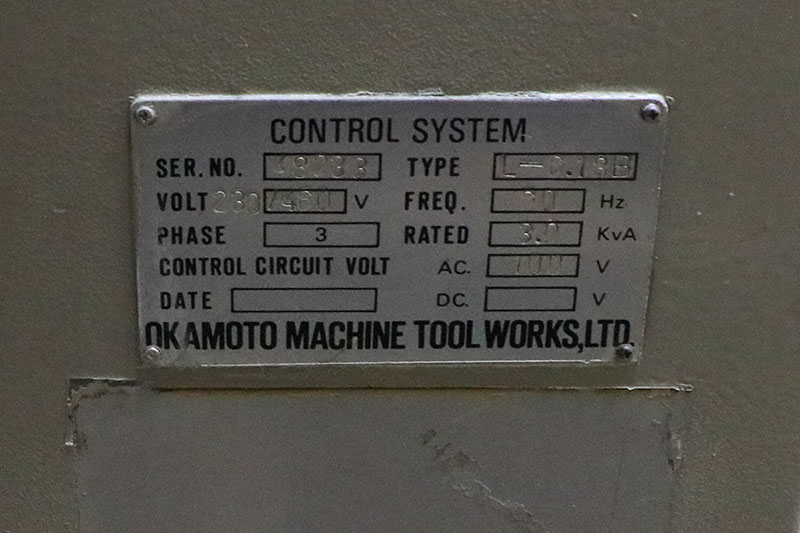

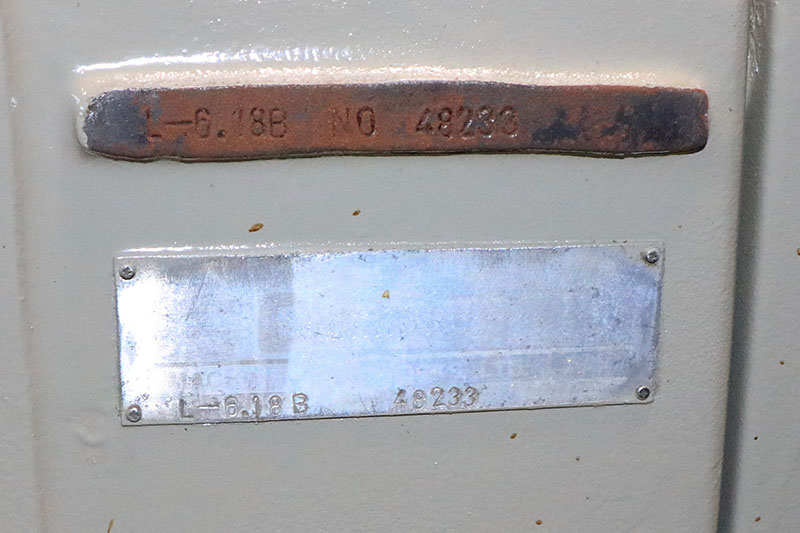

MODEL: L-618B      S/N: 48233       NEW: 2015

NOMINAL GRINDING CAPACITY ........... 6" x 18"
TABLE TO UNDERSIDE,
 OF 8" GRINDING WHEEL ............... 14.27"
MAX. LONGITUNAL TABLE TRAVEL ........ 20.87"
MAX. CROSS TRAVEL ................... 8.27"
MOVEMENT PER HANDWHEEL REVOLUTION:
 TABLE .............................. 5.12"
 SADDLE ............................. 0.1""
SADDLE .............................. 0.05"
HANDWHEEL GRADUATION................. 0.0001"

SPINDLE MOTOR ....................... 2 H.P.
GRINDING WHEEL SPEED ................ 3450 RPM

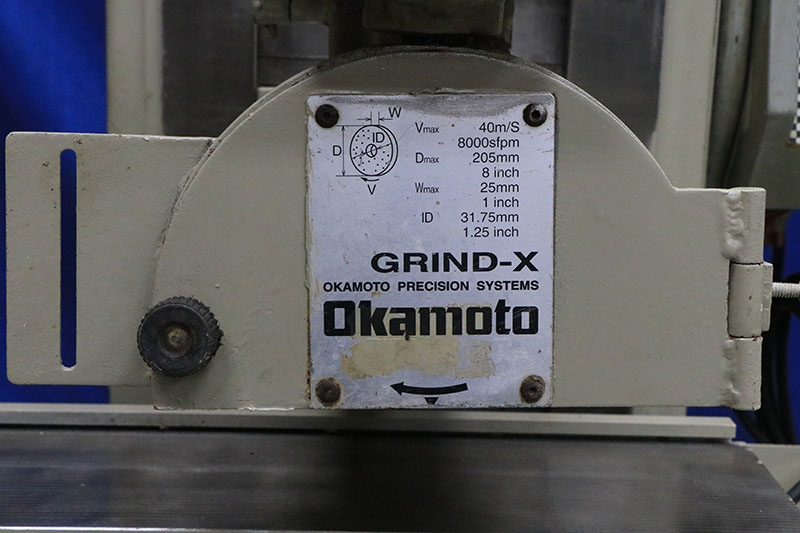

WHEEL SIZE .................... 8" x 1/2" x 1- 1/4"

APPROX. DIMS. FOR OPERATION ... 76.5" x 55.3"D x 68"H
APPROX. MACHINE WEIGHT .............. 2,070 LBS.

EQUIPPED WITH:

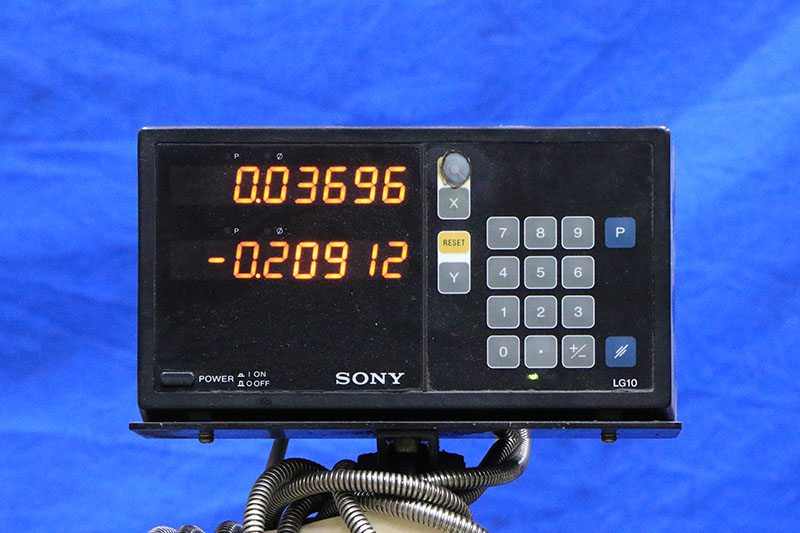

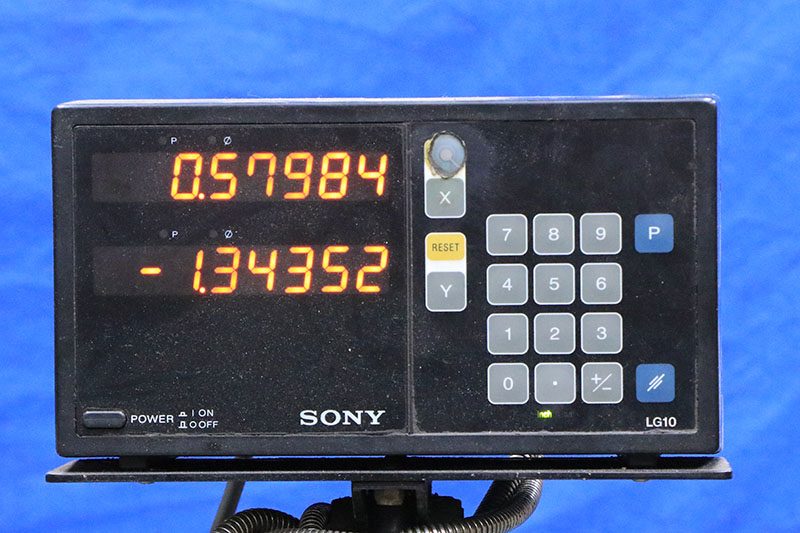

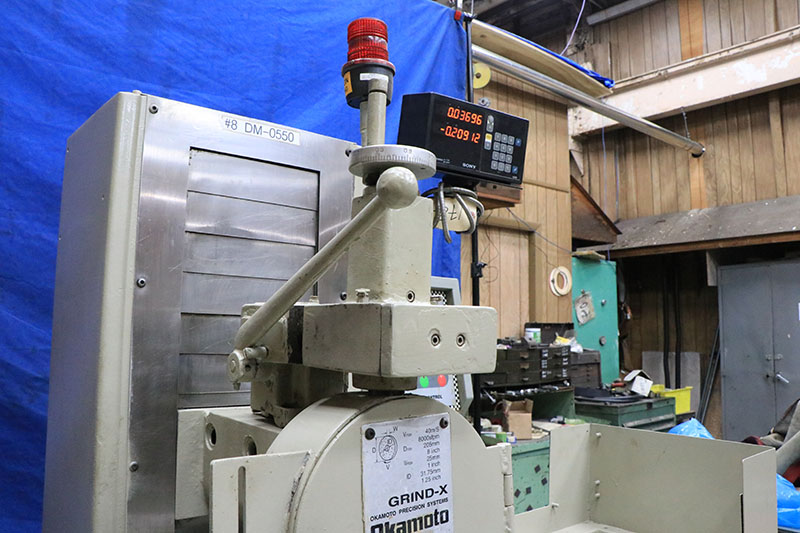

"SONY" "LG-10" 2-AXIS DIGITAL READOUT DISPLAY,
 DISPLAY READS TO 0.00002" (20 MILLIONTHS OF AN INCH)
6" X 18" WALKER "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

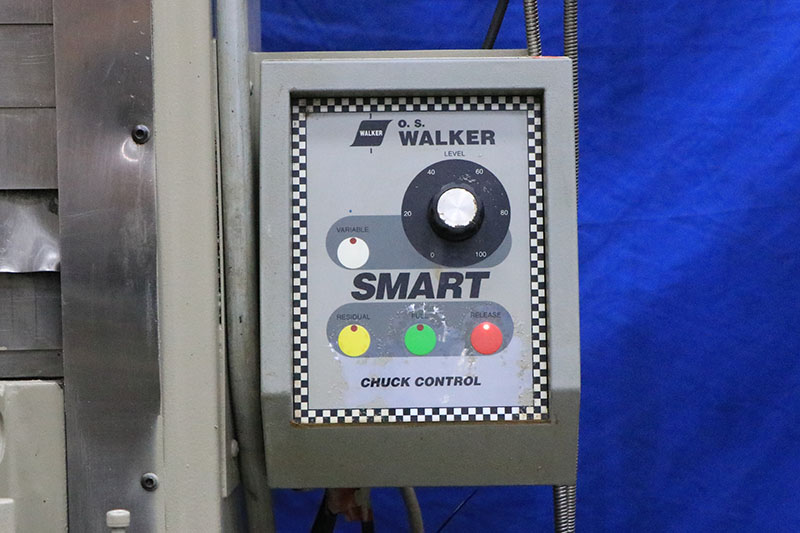

O.S. WALKER "SMART SERIES" VARIABLE HOLD
 NEUTROFIER CHUCK CONTROL

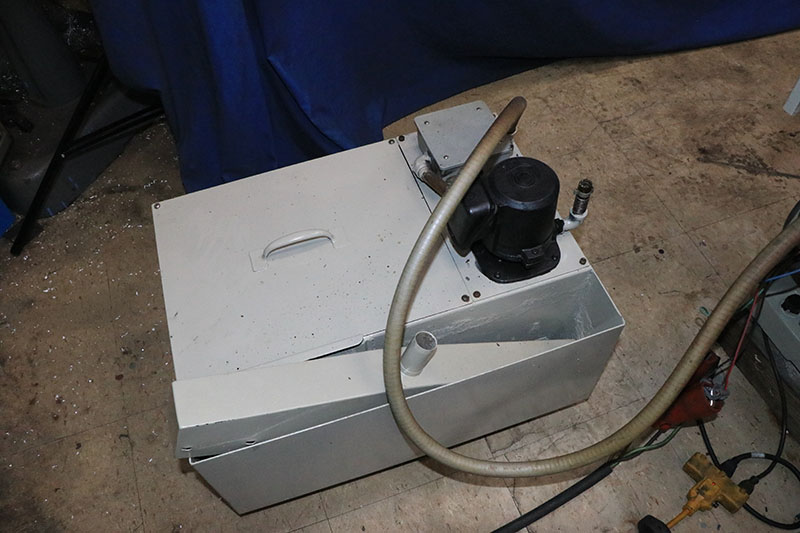

WET GRINDING CAPABLE, WITH COOLANT SYSTEM & GUARDING
RECIRCULATING AUTOMATIC LUBRICATION SYSTEM

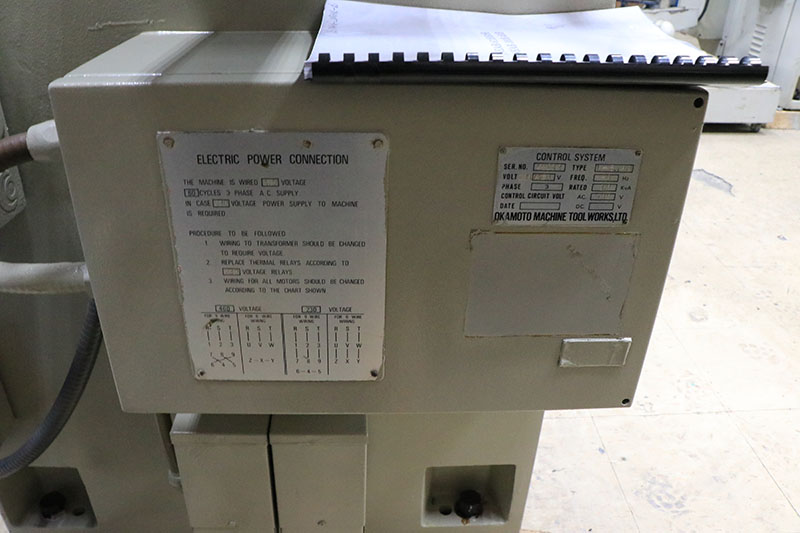

WIRED PRESENTLY FOR 220 VOLTS

MACHINE FEATURES:
MEEHANITE CAST IRON, HEAVY DUTY CONSTRUCTION

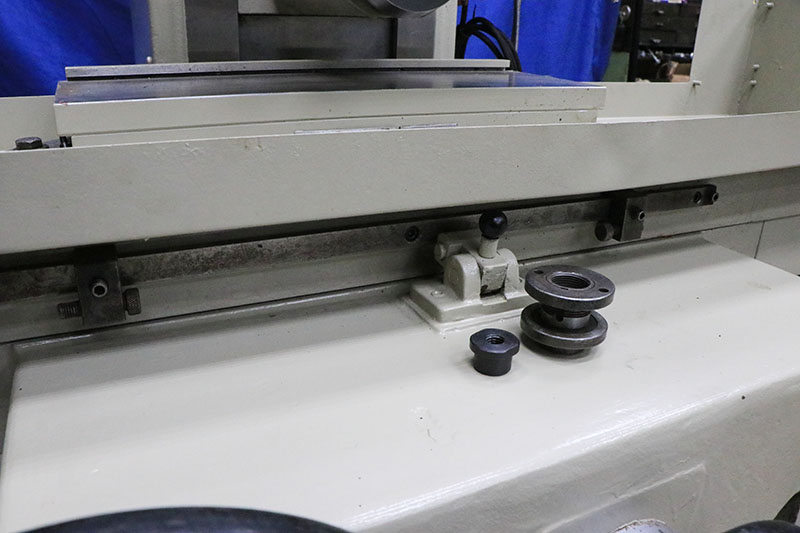

SMOOTH TABLE MOVEMENT THROUGH RELIABLE BELT DRIVE
TABLE GLIDES ON LINEAR BALL BEARINGS
RECIRCULATING LUBRICATION SYSTEM

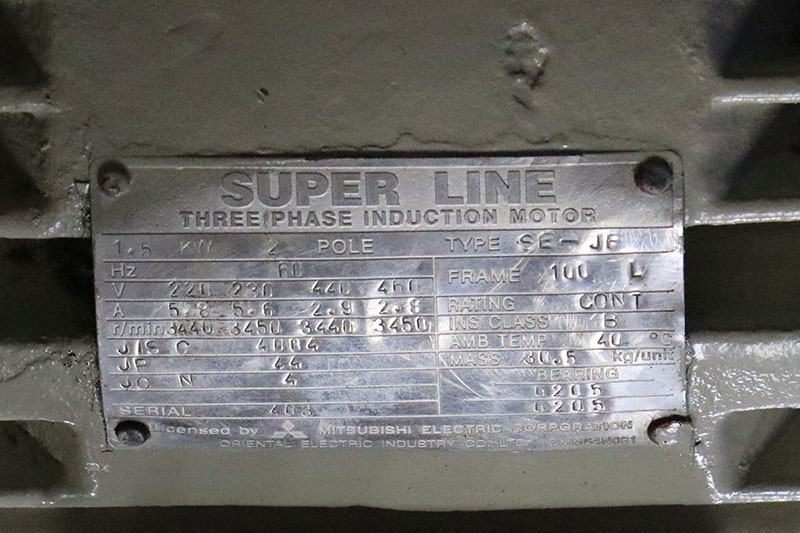

2 H.P. DIRECT DRIVE SPINDLE, 3/60/220-230-440-460 VOLTS


** BEATIFUL - EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR  **
