Cincinnati 90CBIIx8 PRESS BRAKES w/CNC BACK GAUGES

$39,500

Make:: Cincinnati

Model:: 90CBIIx8

Year:: 1998

Ref #:: 163601

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

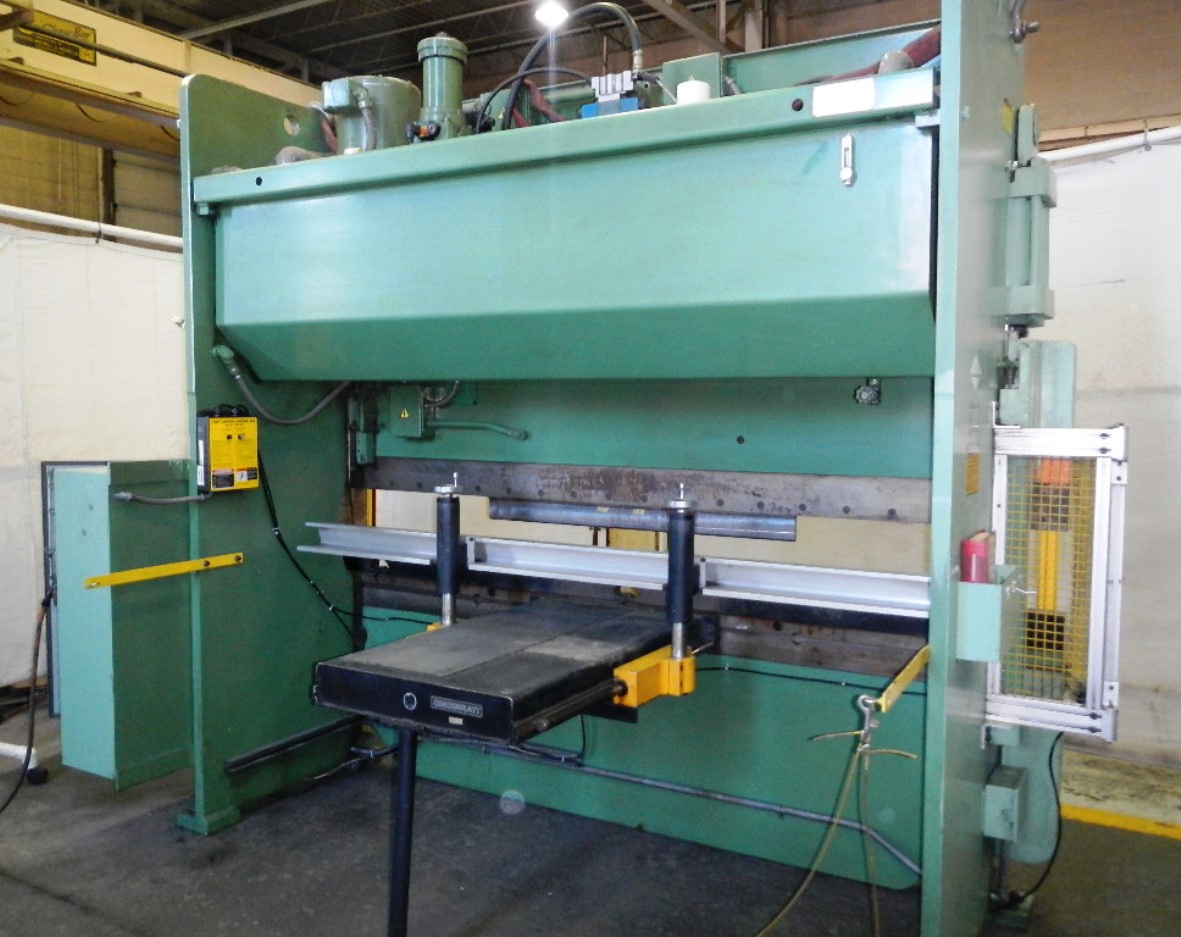

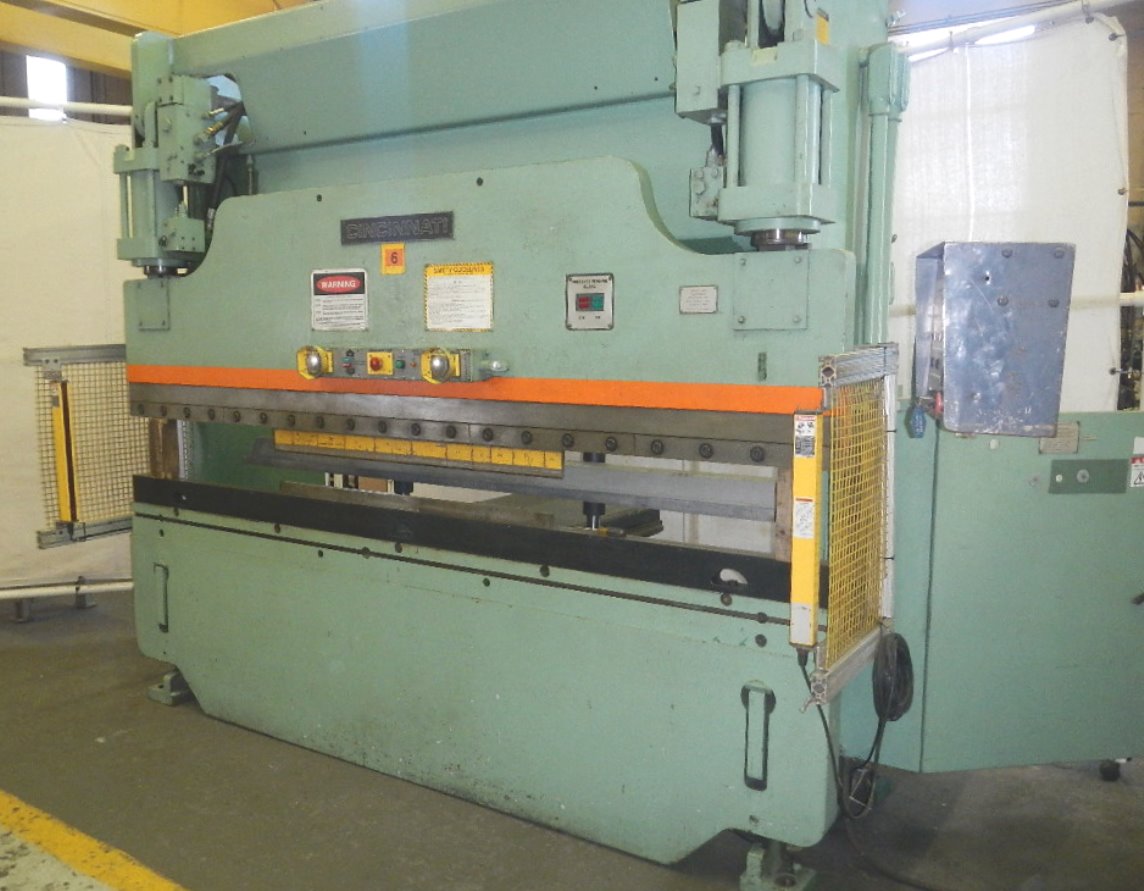

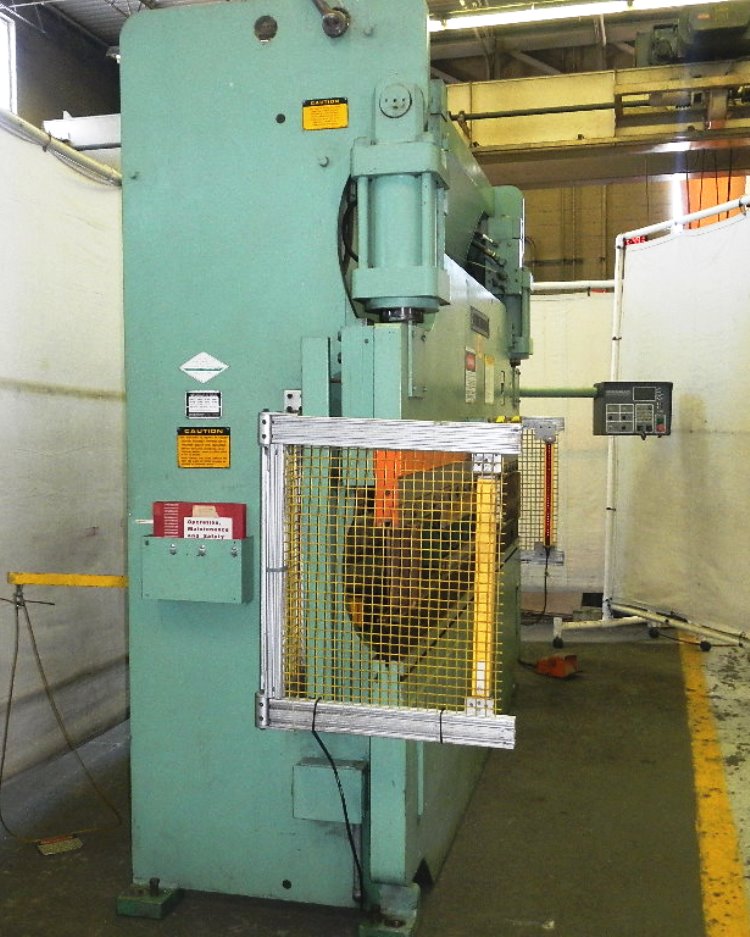

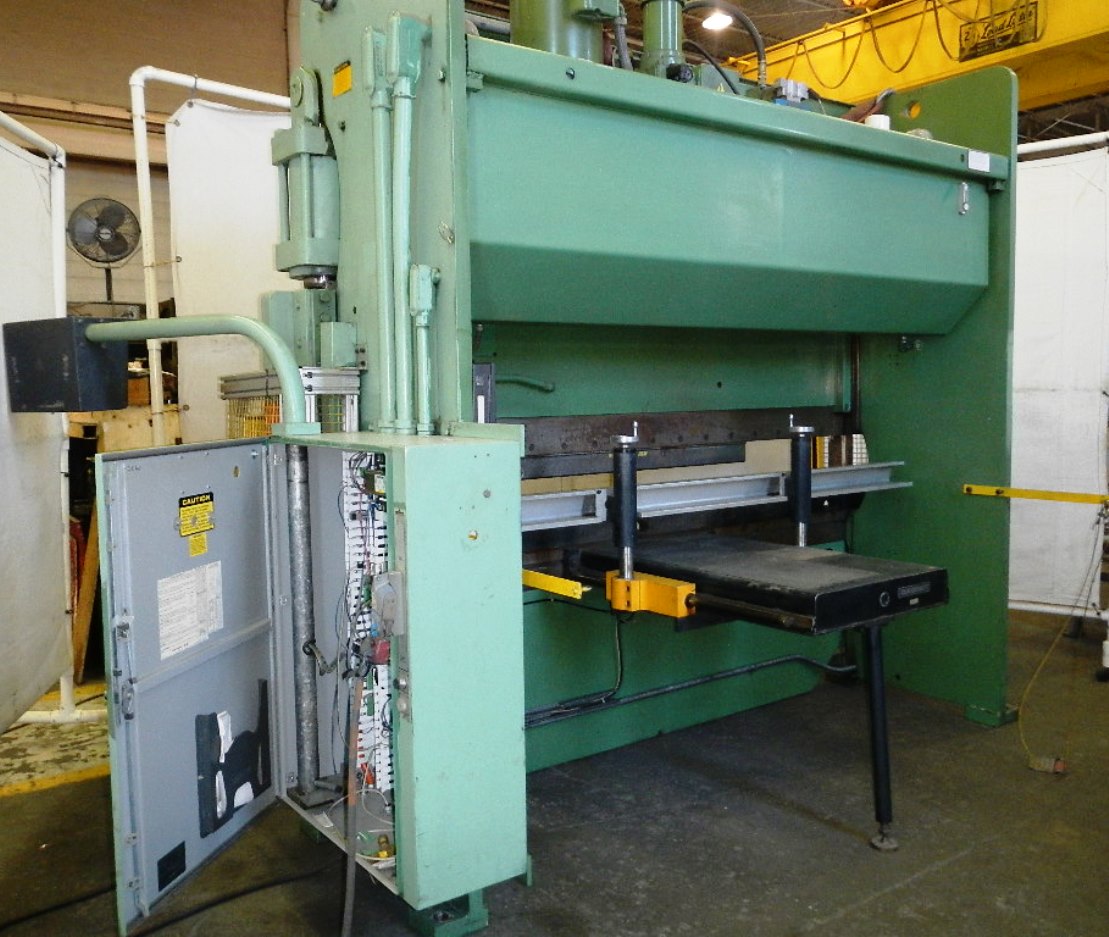

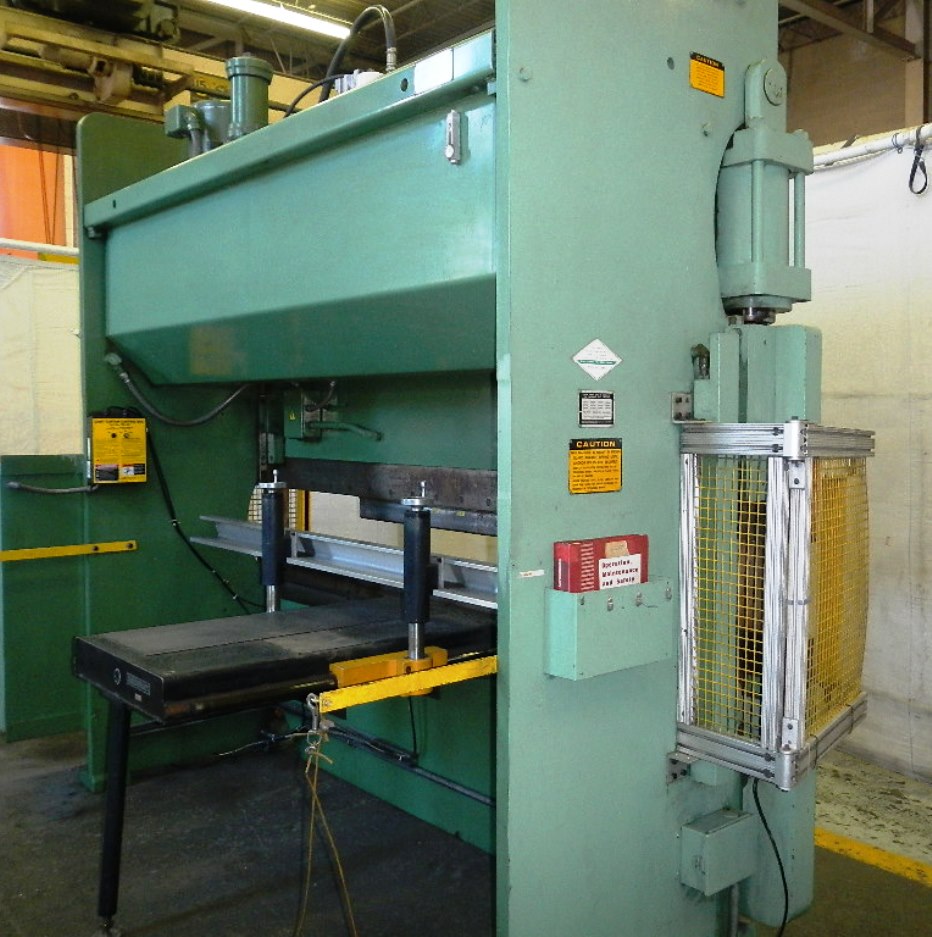

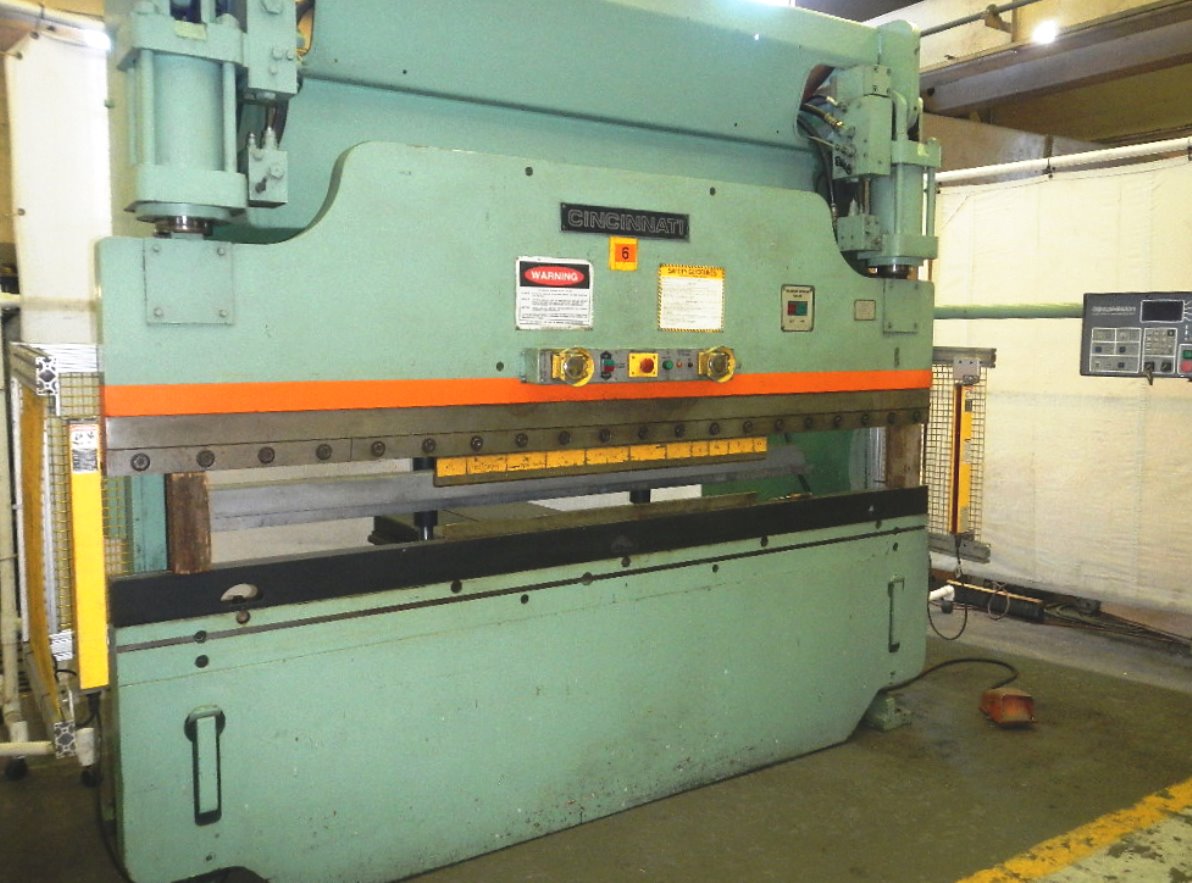

90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE

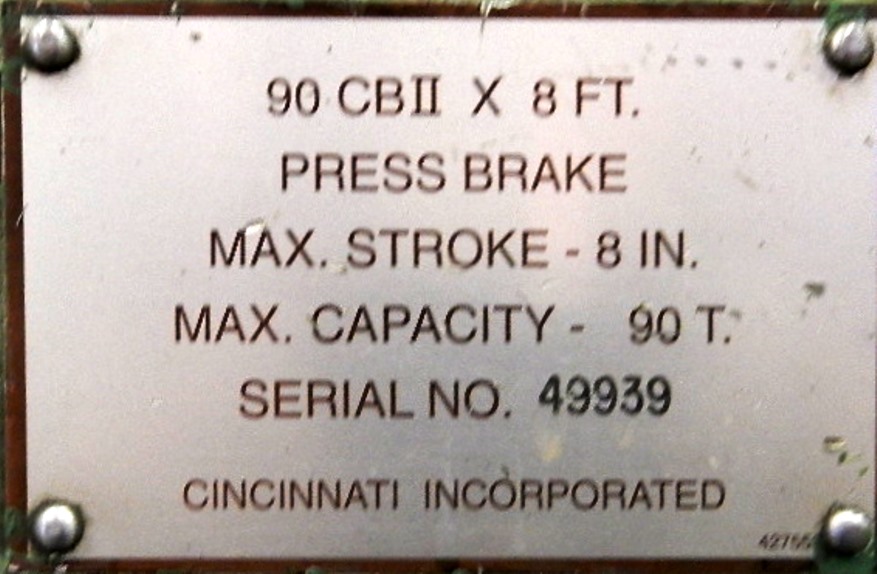

MODEL 90CBIIX8           S/N 49939          NEW 1998

Capacity ............................. 90 tons
Bending capacity ..................... 10' x 12 gauge
                 ..................... 6'8" x 3/16"
                 ..................... 5' x 1/4"
Distance between housings ............ 8' 6"
Stroke ............................... 8"
Throat ............................... 7"
Overall die surface .................. 10"
Die space - open ..................... 15"
Closed ............................... 7"
Ram speed: Approach .................. 260 ipm
           High ...................... 80 ipm
           Medium .................... 20 ipm
           Low ....................... 10 ipm
           Return .................... 280 ipm
Back gauge range ..................... 24"
R-axis adjustment (manual) ........... 2" - 10"
Motor ................................ 15 HP

Approximate overall dimensions ....... 60 D x 120 W x 116 H
Approximate weight ................... 14,000 lbs.

Machine is equipped with:

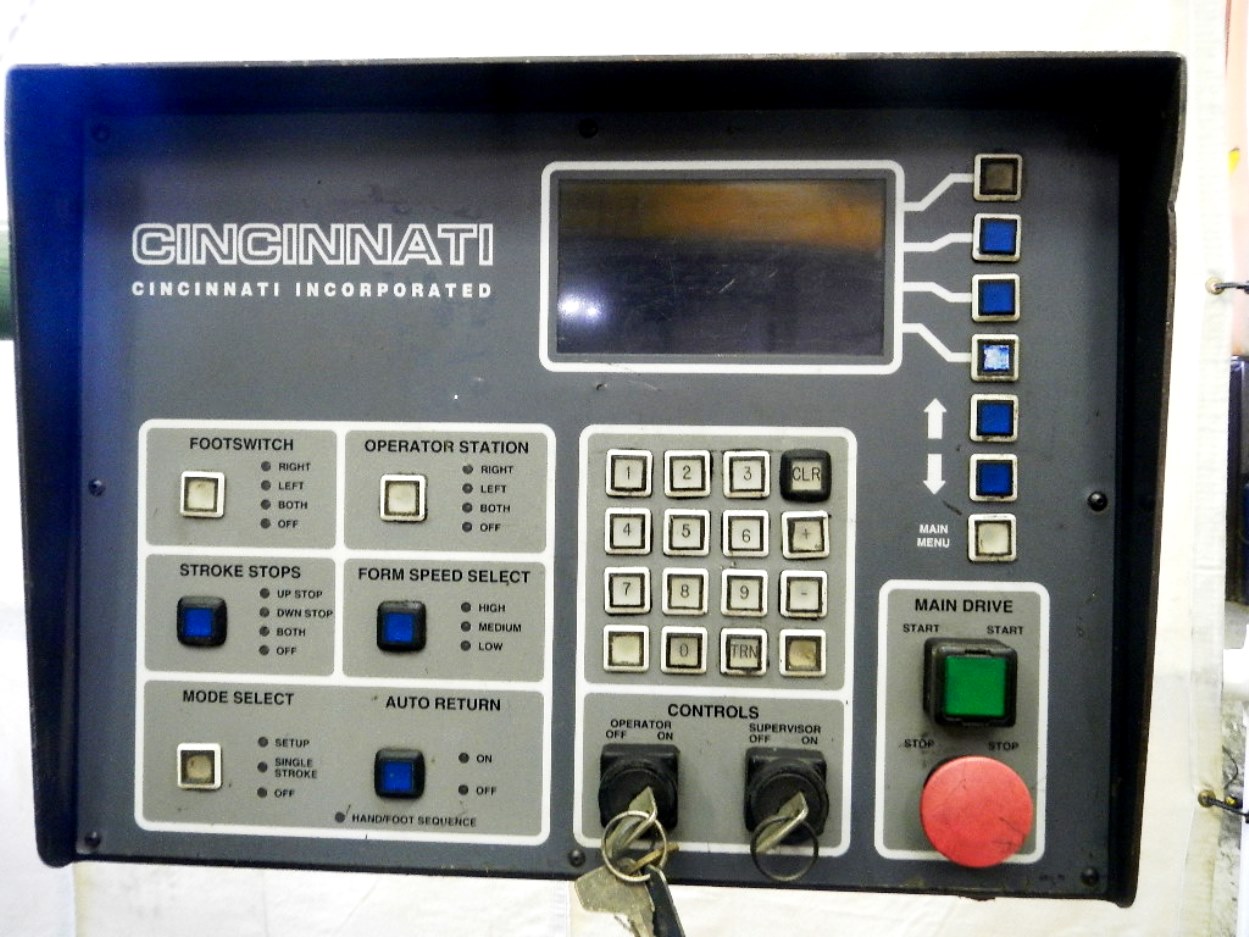

- Cincinnati CNC 2-Axis Back Gauge and Ram Control
- Manual R Axis
- Lower die rail
- 3-speed (low / medium / high)
- Adjustable tonnage control
- Micrometer ram tilt adjustment
- Palm buttons mounted on machine face with E-Stop
- Remote foot pedal
