Niagara HBM-175-10-12 PRESS BRAKES w/CNC BACK GAUGES

Price on Request

Make:: Niagara

Model:: HBM-175-10-12

Year:: 1997

Ref #:: 179696

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

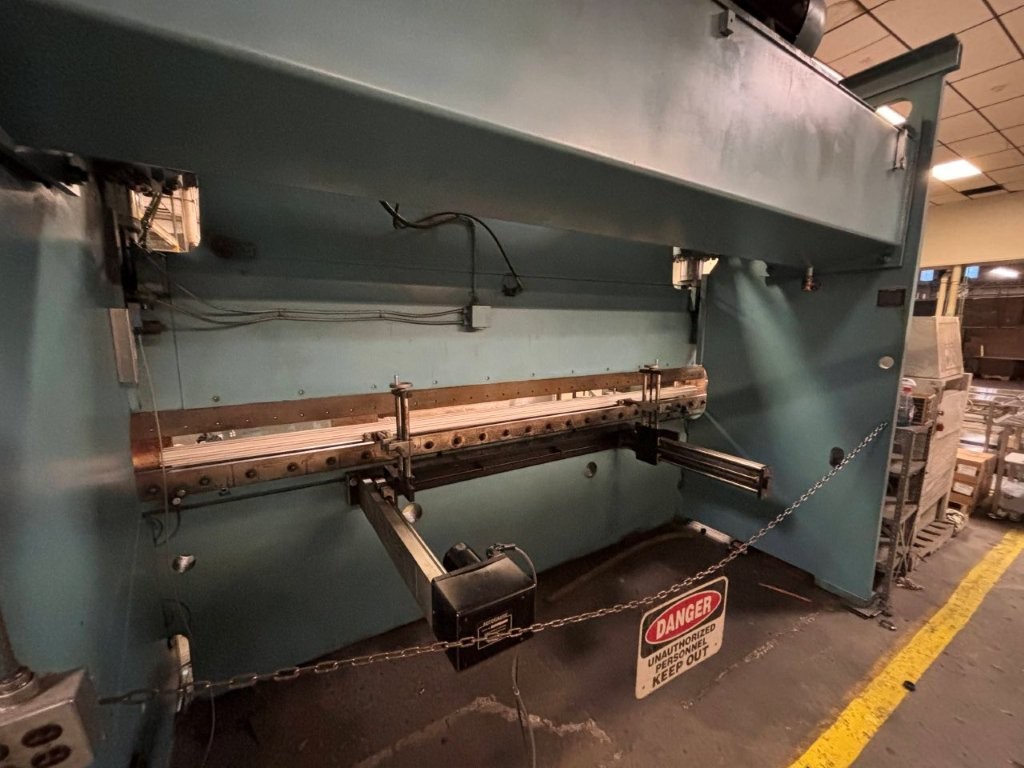

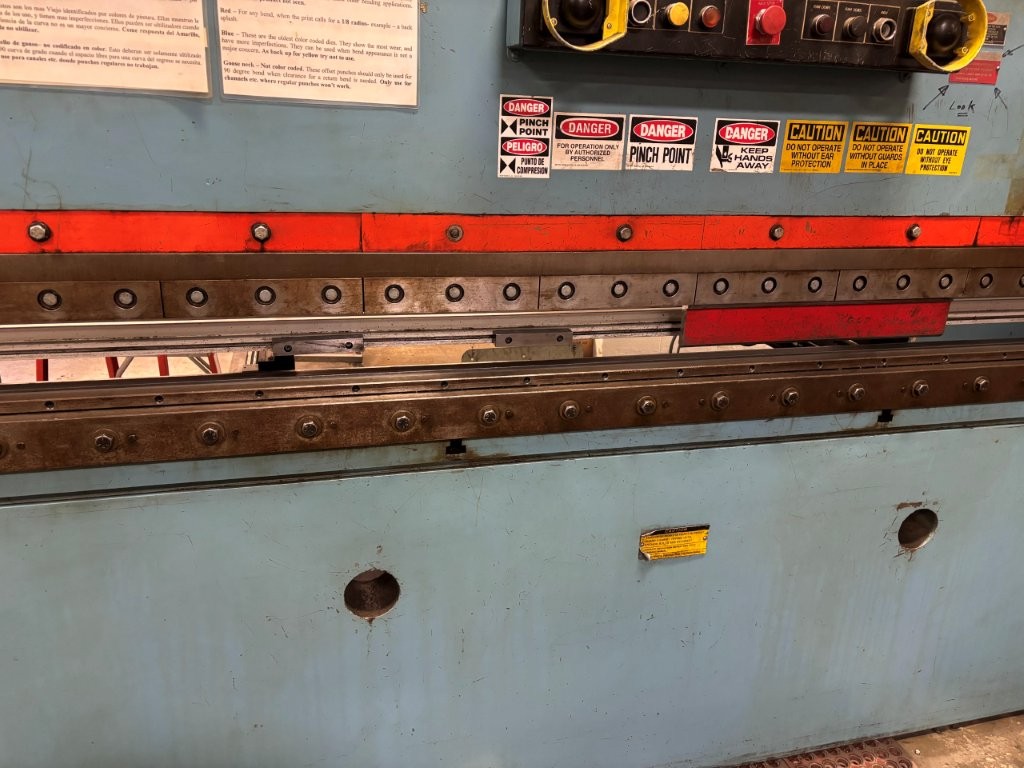

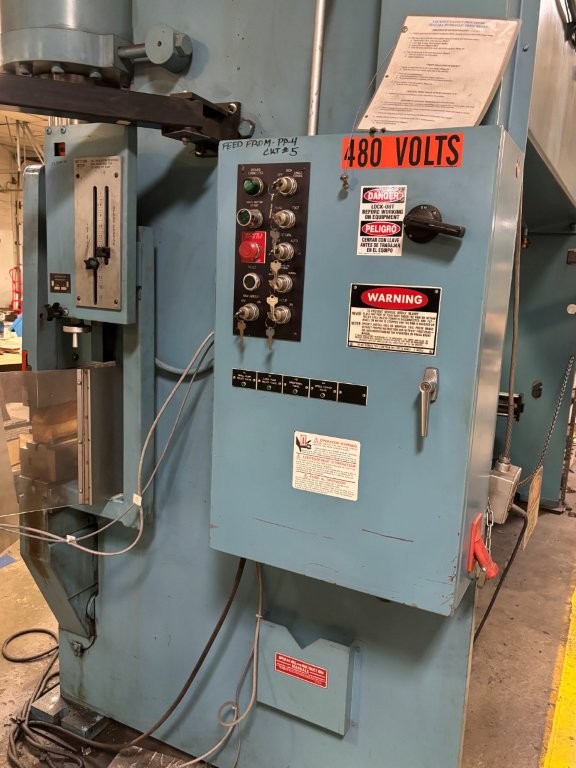

NIAGARA 175 TON x 12' HYDRAULIC BRAKE
MODEL HBM-175-10-12       NEW 1997

TONNAGE ............................................ 175 TONS
LENGTH OF BED & RAM ................................ 144"
DISTANCE BETWEEN HOUSING ........................... 126"
BENDING CAPACITIES ....... 6'6" w/5" V-Opening ..... 1/2"
                   ....... 6'6" w/3" V-Opening ..... 3/8"
                   ....... 8' w/2-1/2" V-Opening ... 5/16"
                   ....... 10' w/2" V-Opening ...... 1/4"
STROKE ............................................. 10"
OPEN HEIGHT ........................................ 17"
CLOSED HEIGHT ...................................... 7"
RAM SPEEDS:
     APPROACH SPEED ................................ 115 IPM
     PRESS ......................................... 58 IPM
     ANTI BACK BEND ................................ 13 IPM
     RETURN SPEED .................................. 115 IPM
THROAT ............................................. 8"
MOTOR  ............................................. 30 HP  230/460 VOLTS
APPROX. WEIGHT...................................... 28,000 LB.

Equipped with:

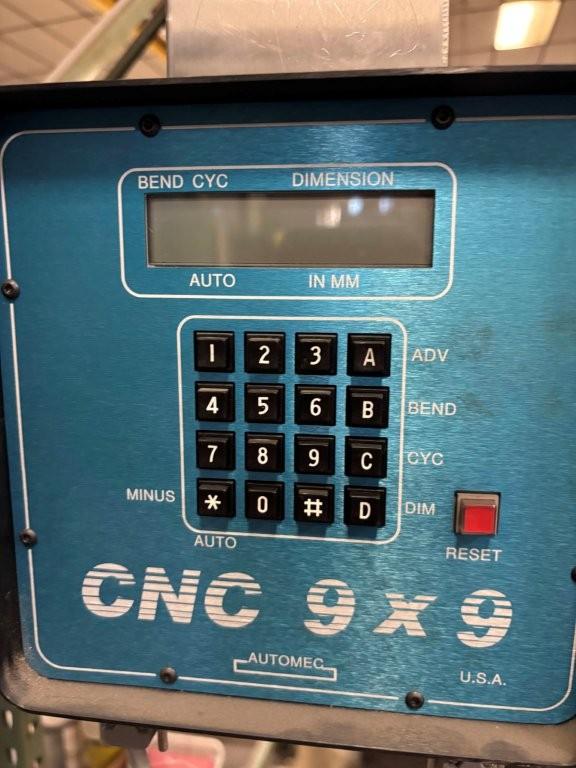

- AUTOMEC CNC 9x9 BACK GAUGE
- FOOT  PEDAL
- PALM BUTTONS
- LOWER DIE RAIL
