Cincinnati 90CBx10 PRESS BRAKES w/CNC BACK GAUGES

$39,500

Make:
Cincinnati
Model:
90CBx10
Year:
1985
Ref #:
163961

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

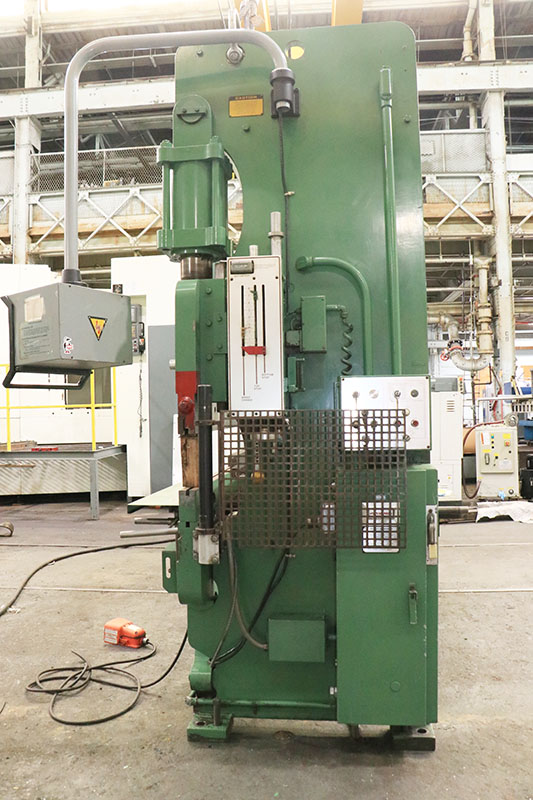

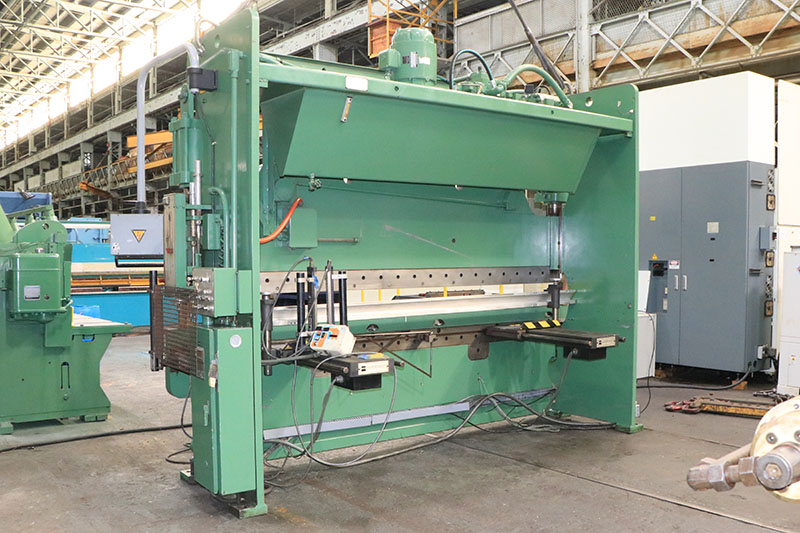

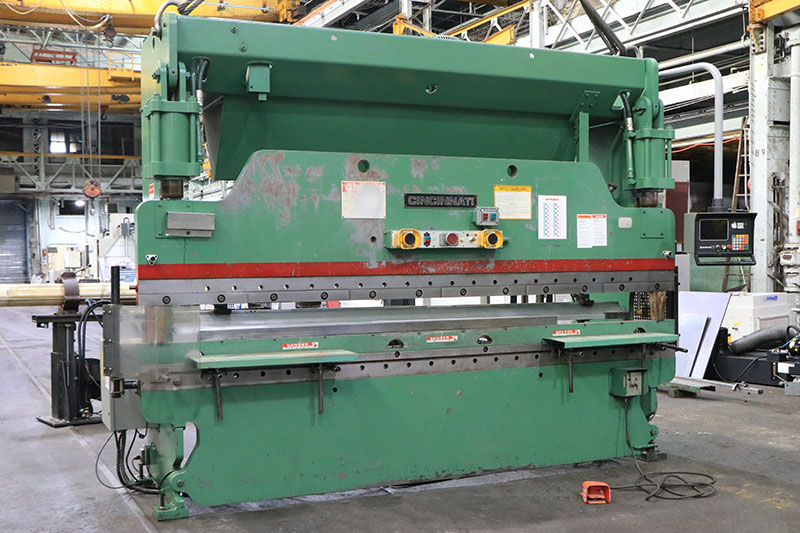

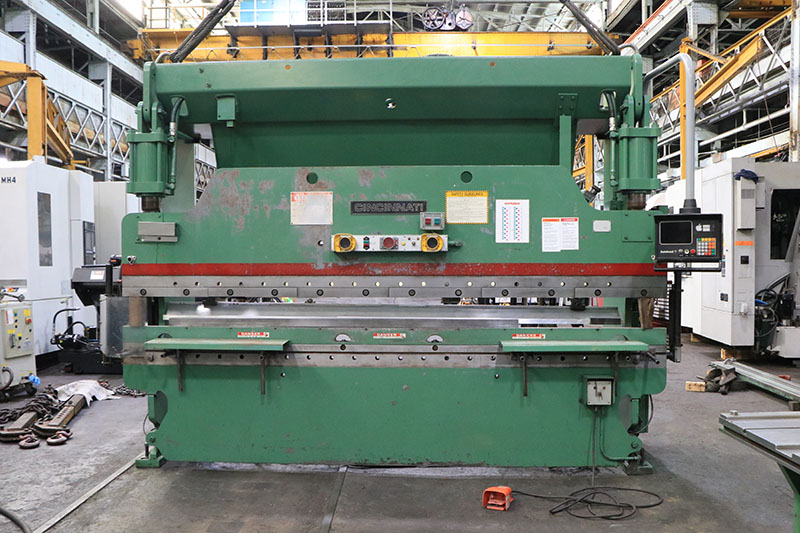

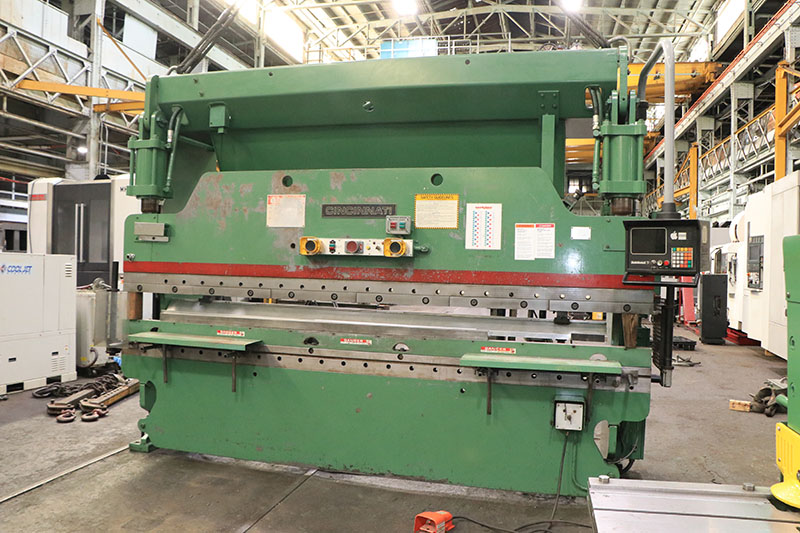

90 TON X 12' CINCINNATI HYDRAULIC PRESS BRAKE

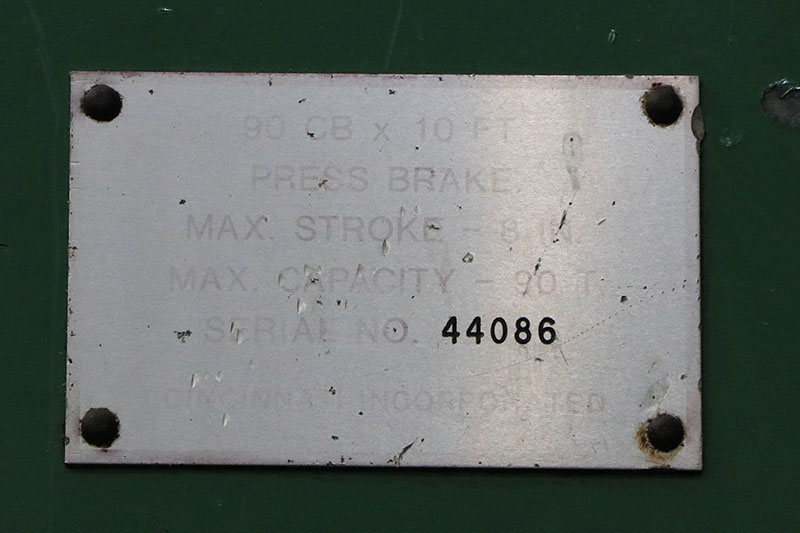

MODEL 90CBX10          S/N 44086          NEW 1985

Capacity ............................. 90 tons
Bed Length ........................... 12'
Bending capacity ..................... 10' x 12 gauge
                 ..................... 5' x 1/4"
Distance between housings ............ 8' 6"
Stroke ............................... 8"
Throat ............................... 7"
Overall die surface .................. 10"
Die space - open ..................... 15"
Closed ............................... 7"
Ram speed: High ...................... 150 ipm
           Medium .................... 71 ipm
           Low ....................... 21 ipm
           Return .................... 136 ipm
Back gauge range ..................... 24"
R-axis adjustment (manual) ........... 2" - 10"
Motor ................................ 15 HP

Approximate overall dimensions ....... 5' D x 13' W x 116" H
Approximate weight ................... 17,000 lbs.

Machine is equipped with:

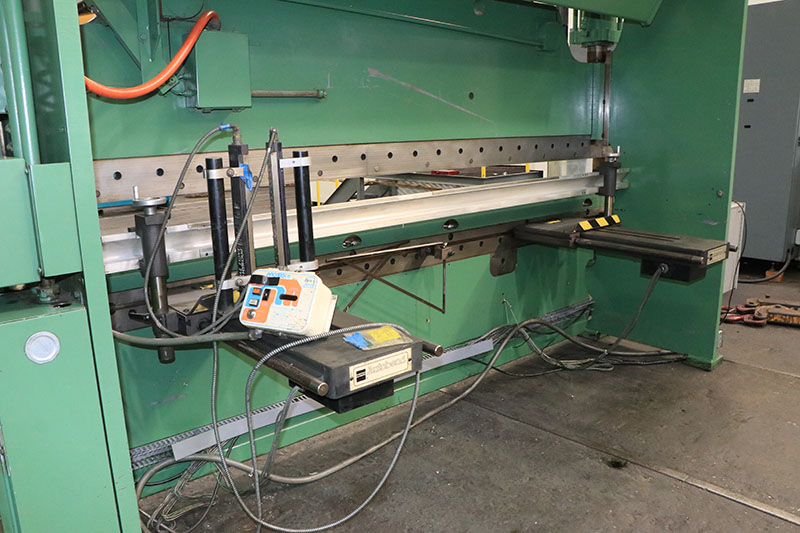

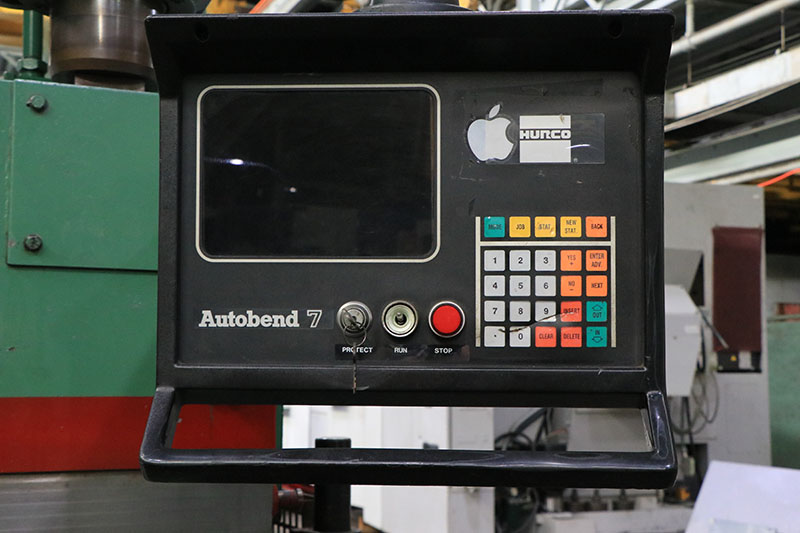

- Hurco AutoBend 7 CNC 2-Axis Back Gauge and Ram Control

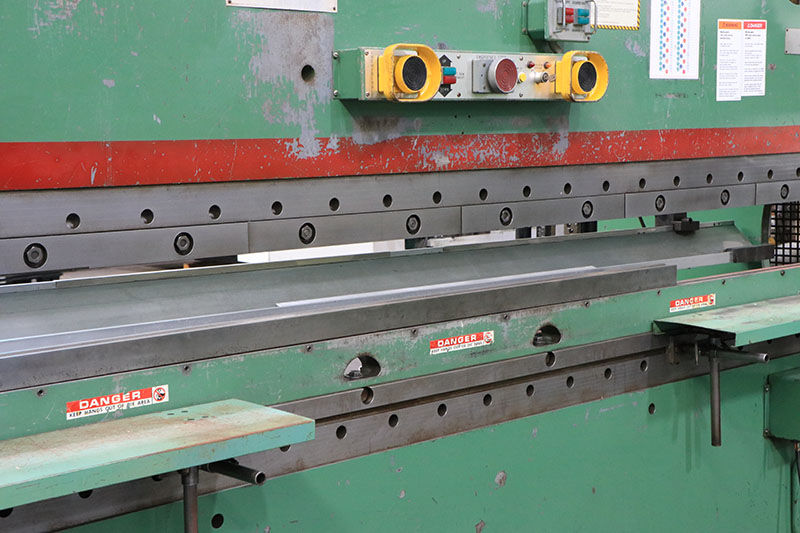

- Lower die rail
- 3-speed (low / medium / high)
- Adjustable tonnage control

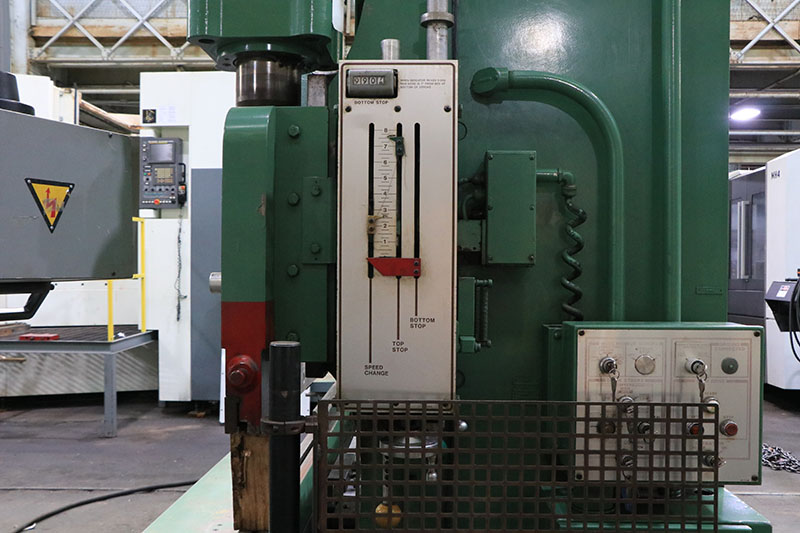

- Adjustable stroke and speed change w/ position indicator
- Micrometer ram tilt adjustment

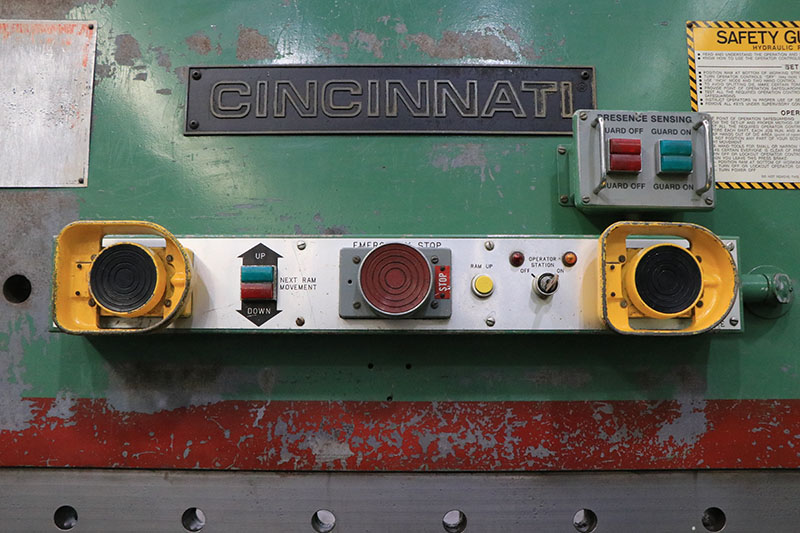

- Palm buttons mounted on machine face with E-Stop

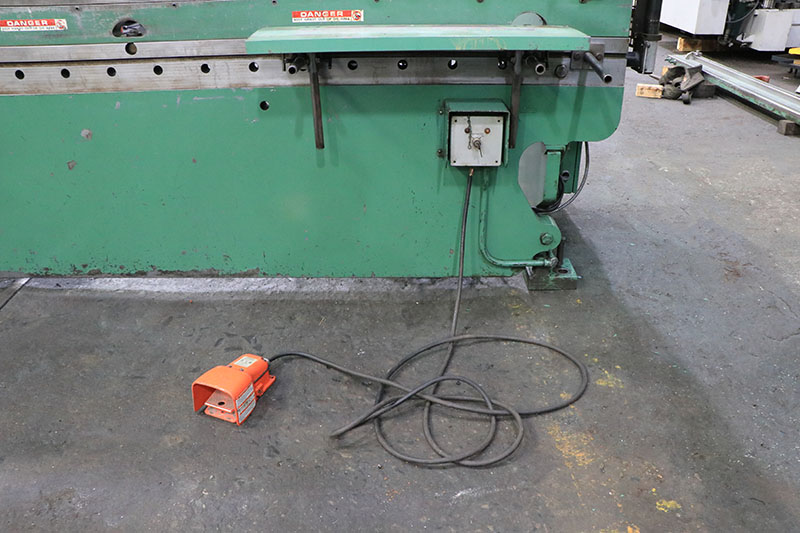

- Remote foot pedal
- Bed & ram machined for angles
- Full Set of manuals
