Clausing-Colchester 21" ENGINE LATHES

$24,500

Make:: Clausing-Colchester

Model:: 21"

Year:: 2000

Ref #:: 178660

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

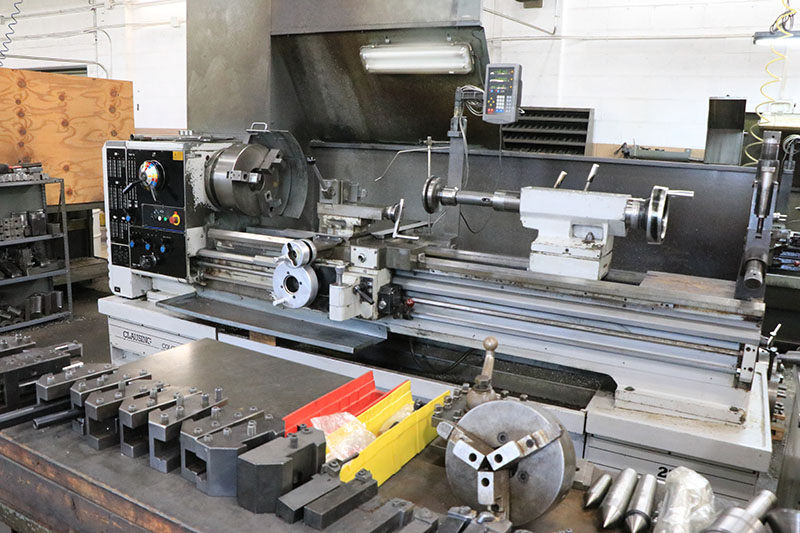

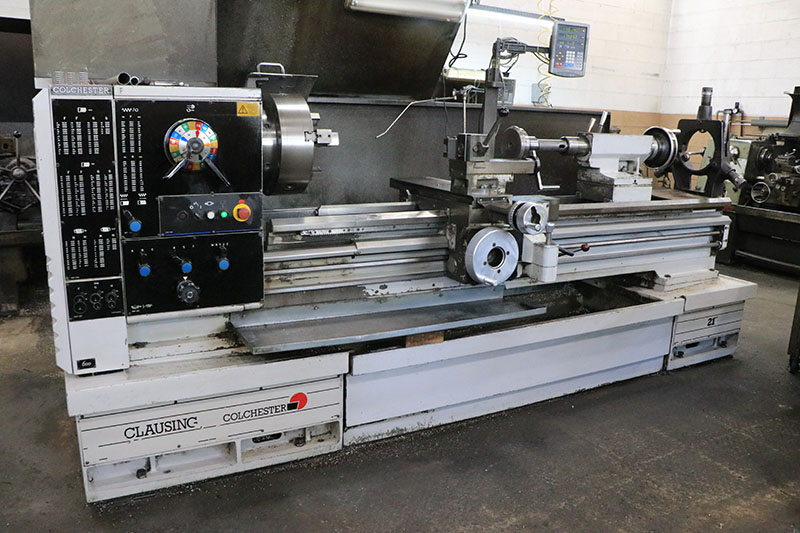

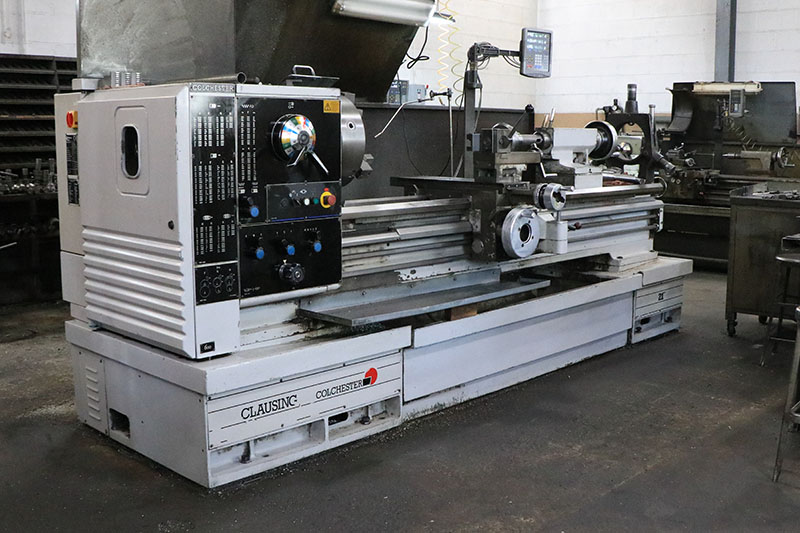

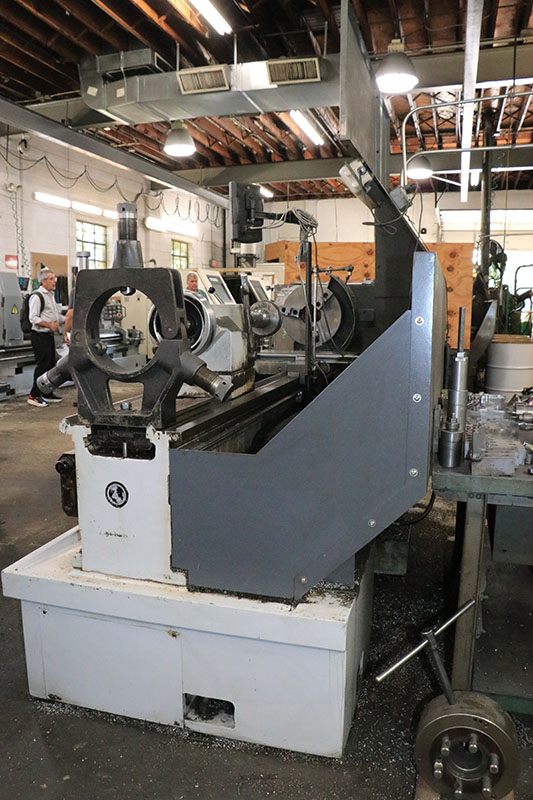

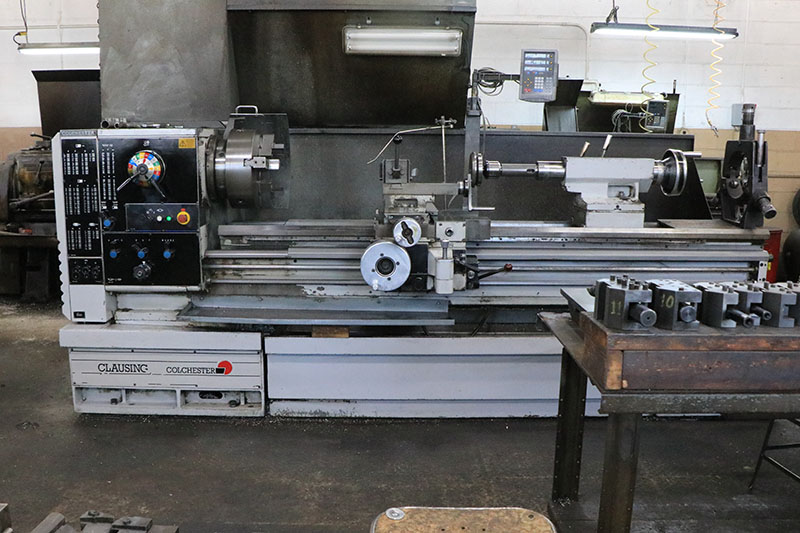

21"/32" x 80" CLAUSING-COLCHESTER GAP BED
  ENGINE LATHE

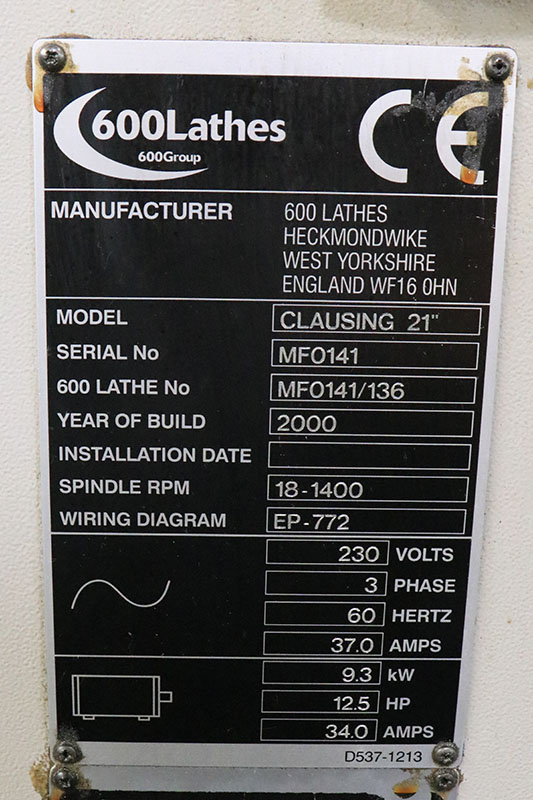

MODEL: 21", S/N: MF-0141, NEW: 2000

SPECIFICATIONS:
SWING OVER BED ...................... 21"
SWING IN REMOVEABLE GAP ............. 32"
SWING OVER CROSS SLIDE .............. 14-1/2"
DISTANCE BETWEEN CENTERS ............ 80"
SPINDLE NOSE CAMLOCK ................ D1-11"
HOLE THRU SPINDLE ................... 3-9/16"

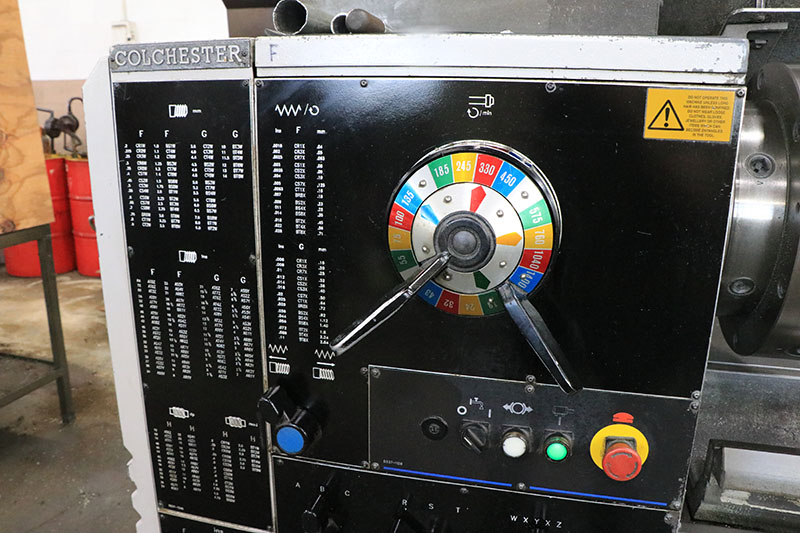

SPINDLE SPEED RANGE (16) ............ 18 - 1,400 RPM
ENGLISH THREADING RANGE (38) ........ 2 - 72 TPI
METRIC THREADING RANGE (40) ......... .4 - 14 MM
LONGITUDINAL FEED RANGE (45) ........ .002" - .032" IPR
CROSS FEED RANGE (45) ............... .001" - .016" IPR
TAILSTOCK SPINDLE TAPER ............. #5 MT
TAILSTOCK SPINDLE TRAVEL ............ 8-1/2"
APPROX DIMENSIONS ................... 138"L x 42"W x 52"H
APPROX WEIGHT ....................... 7,000 LBS

EQUIPPED WITH:
INCH/METRIC THREADING

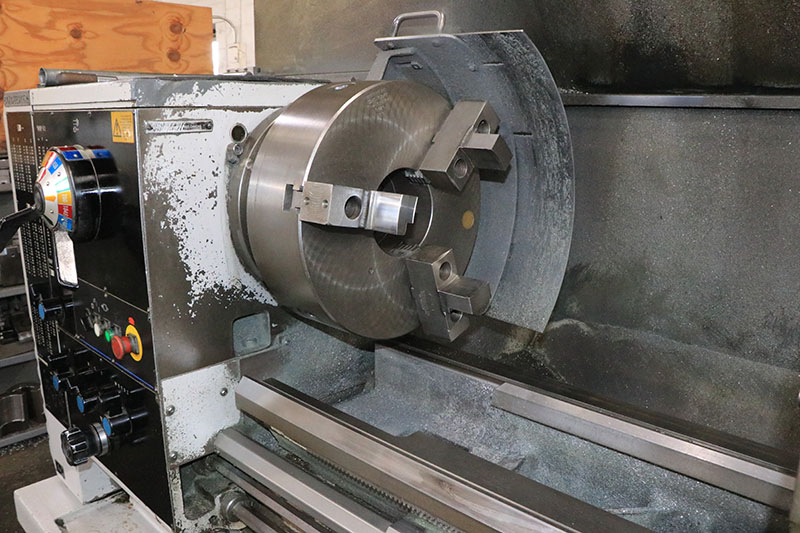

12" 3-JAW CHUCK

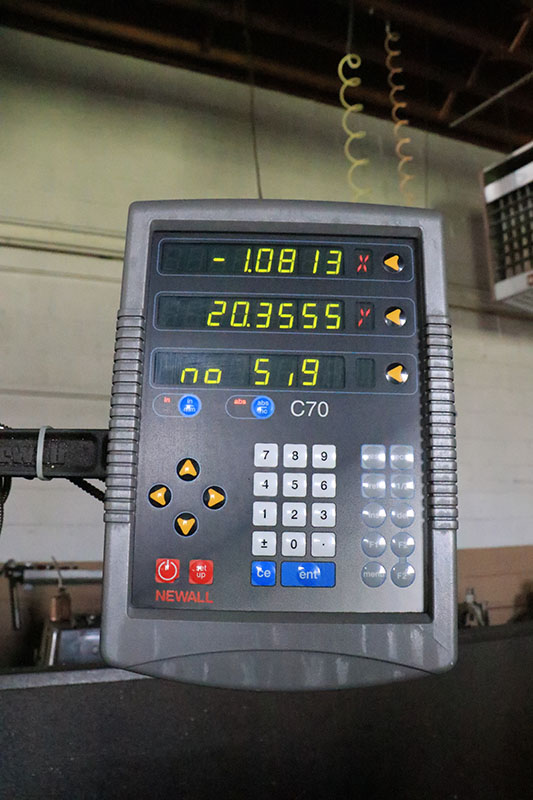

NEWALL DP7 TWO AXIS DIGITAL READOUT

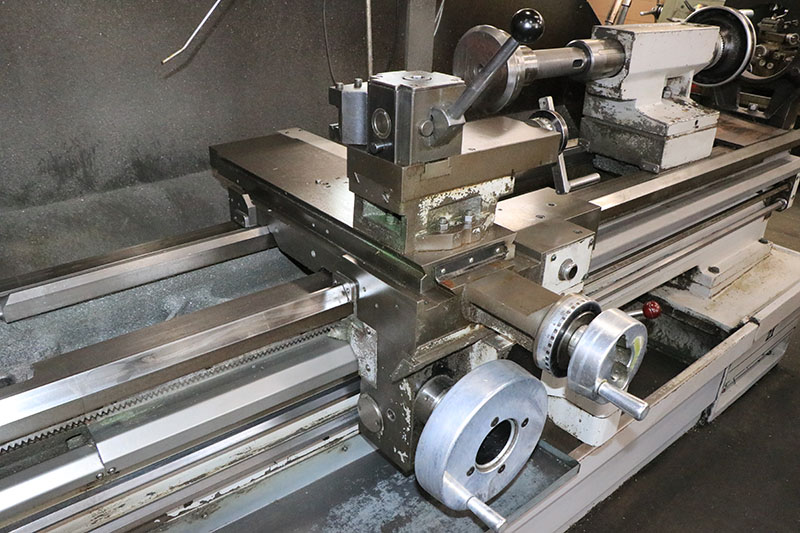

FIMS QUICK CHANGE TOOLPOST W/HOLDERS

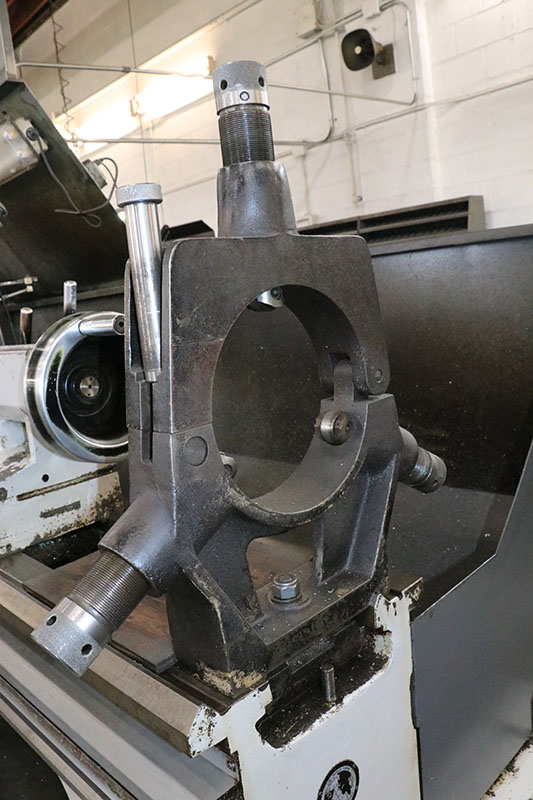

STEADY REST, 12.5 hp
CENTER FOR TAILSTOCK
CENTER SLEEVE FOR HEADSTOCK

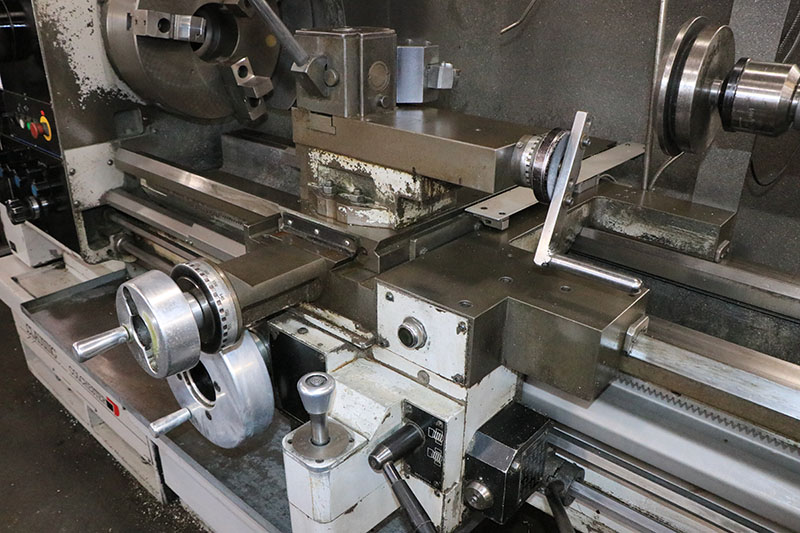

MICROMETER CARRIAGE STOP

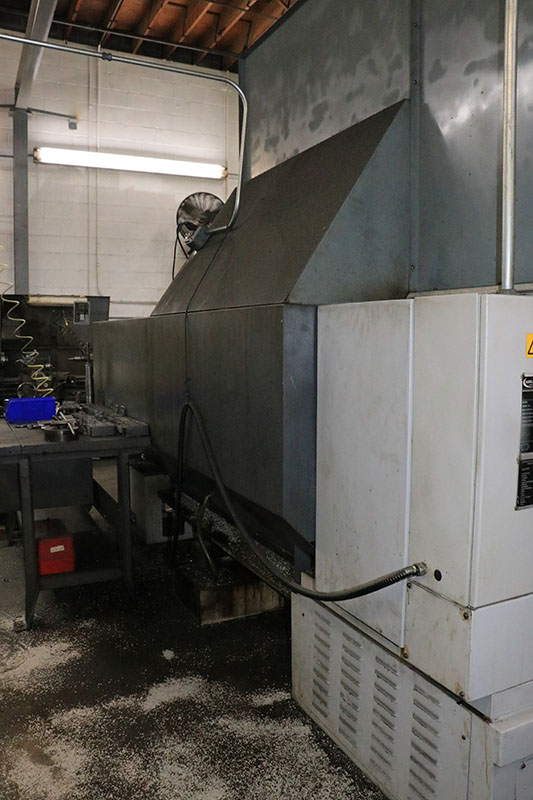

COOLANT SYSTEM w/ REMOVEABLE CHIP PAN

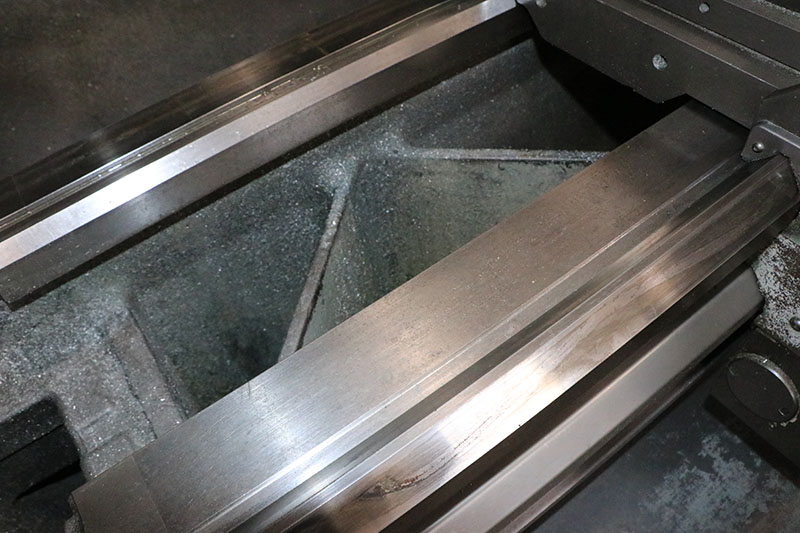

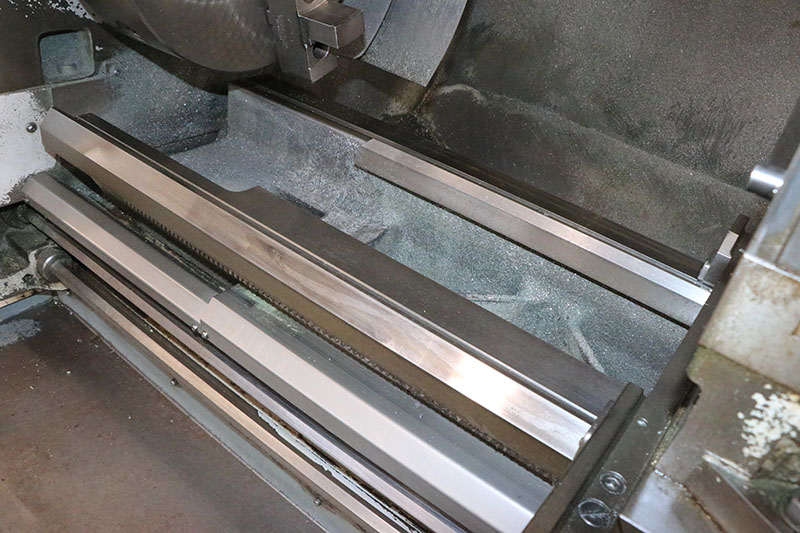

HARDENED BED WAYS
12.5 HORSE POWER MAIN DRIVE MOTOR
