Cosen C-320NC NEW HORIZONTAL BAND SAWS

Price on Request

Make:: Cosen

Model:: C-320NC

Year:: NEW

Ref #:: 168943

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

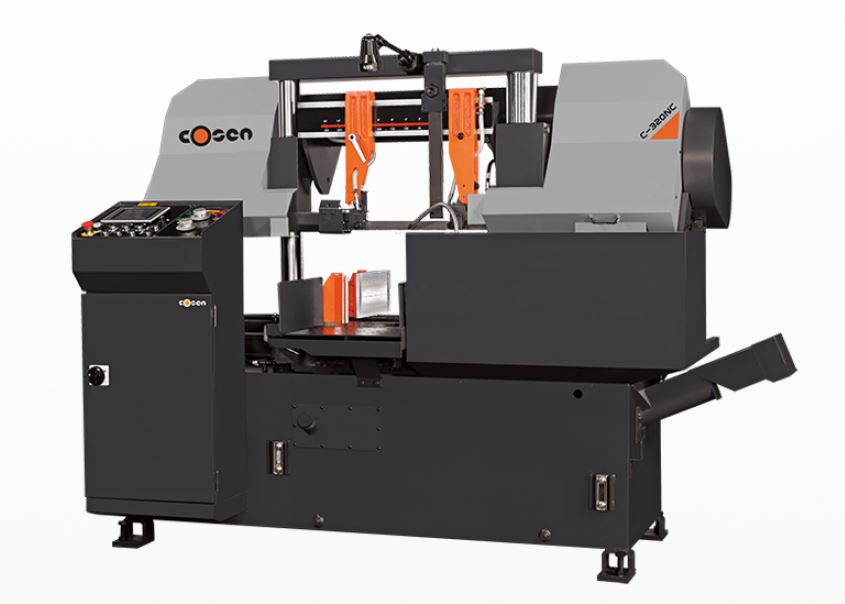

NEW COSEN FULLY AUTOMATIC HORIZONTAL
DUAL COLUMN BAND SAW
MODEL: C-320NC

COSEN'S C-320NC IS A HIGH PRODUCTION MACHINE WHICH INCORPORATES A MASSIVE BASE, STURDY SAW FRAME, WITH AN EXTREMELY HEAVY DUTY GEAR BOX, A 5HP DRIVE MOTOR, AND A USER FRIENDLY PROGRAMMABLE CONTROL FOR EASE OF OPERATION. RUGGED, DEPENDABLE, AND ADVANCED TECHNOLOGY, ARE ALL WORDS THAT DESCRIBE COSEN'S C-320NC PRODUCTION MACHINE, MAKING IT THE PERFECT SAW FOR MASS PRODUCTION SETTINGS.

SPECIFICATIONS:
MAXIMUM CUTTING CAPACITY ROUND ......... 12.6”
SQUARE ................................. 12.6” X 12.6”
RECTANGULAR ............................ 12.6” X 15”
BUNDLE WIDTH: .......................... 7.5” - 11.8”
W/ OPTIONAL TOP CLAMPS HEIGHT: ......... 2.8” - 5.5”
REMNANT PIECE .......................... 2”
BLADE VARIABLE SPEED ................... 66 – 328 FPM
SIZE ................................... 13’ 11” X 1.25” X .042”
MOTOR SAW BLADE ........................ 5 HP
HYDRAULIC .............................. 1 HP
COOLANT ................................ 1/8 HP
AUTO. MATERIAL FEED SYSTEM JOB STORAGE UP TO 100 JOBS
SINGLE INDEX STROKE .................... 0” TO 15.9”
MULTIPLE STROKE INDEXING ............... 0” TO 999”
(AUTOMATIC KERF COMPENSATION)
WEIGHT ................................. 3,758 LBS
POWER 230V, 3 PH, 60 HZ
(460, 3 PH, 60 HZ OPTION)
FLOOR SPACE ............................ 82.7” X 82.8” X 70.1”
WORK BED HEIGHT ........................ 31.1”

INCLUDED ACCESSORIES
BLADE “CLIP” DEVICE EASES BLADE CHANGING WHEN NECESSARY BY HOLDING THE BLADE ON THE BAND
WHEEL DURING INSTALLATION, MAKING IT VERY EASY FOR ONE PERSON TO CHANGE THE BLADE.
ADJUSTABLE FENCE TO SUPPORT BUNDLED CUT-OFF STOCK
ADDITIONAL FLUSHING HOSE FOR CLEANING
BUILT IN WORK LIGHT
BI-METAL SAW BLADE
TOOL BOX WITH TOOLS, LEVELING PADS, AND AN ADDITIONAL WIRE BRUSH
OPERATION & PARTS MANUAL
FULL STROKE VISES
DOUBLE RETRACTING VISES
HYDRAULIC POWERED CHIP AUGER
HEAVY-DUTY 6’ 6" IDLE CONVEYORS W/ VERTICAL ALIGNMENT ROLLERS

OPTIONAL ACCESSORIES*
VARIABLE VISE PRESSURE CONTROL SYSTEM (PART# AHA-10400KIT)
HYDRAULIC TOP CLAMPS (PART# AHC-1900A)
HEAVY-DUTY ROLLER TABLE 5’ LONG (PART# RT-5-19PM)
HEAVY-DUTY ROLLER TABLE 6’ 6" LONG W/VERTICAL ROLLERS (PART# 05RC-4470-2M)
HEAVY-DUTY ROLLER TABLE 10’ LONG (PART# RT-10-19PM)
MICRO DROPLET APPLICATOR
BUCK BOOST TRANSFORMER FOR INCOMING POWER OF 208V OR BELOW
VOLTAGE CHANGE TO 460V, 3 PHASE
QR CODE READER
1 GALLON MISTING OIL
5 GALLON MISTING OIL
*PRICING ON OPTIONAL ACCESSORIES VALID ONLY WHEN PURCHASED WITH MACHINE. PRICING MAY
DIFFER WHEN PURCHASED INDIVIDUALLY WITHOUT MACHINE.
