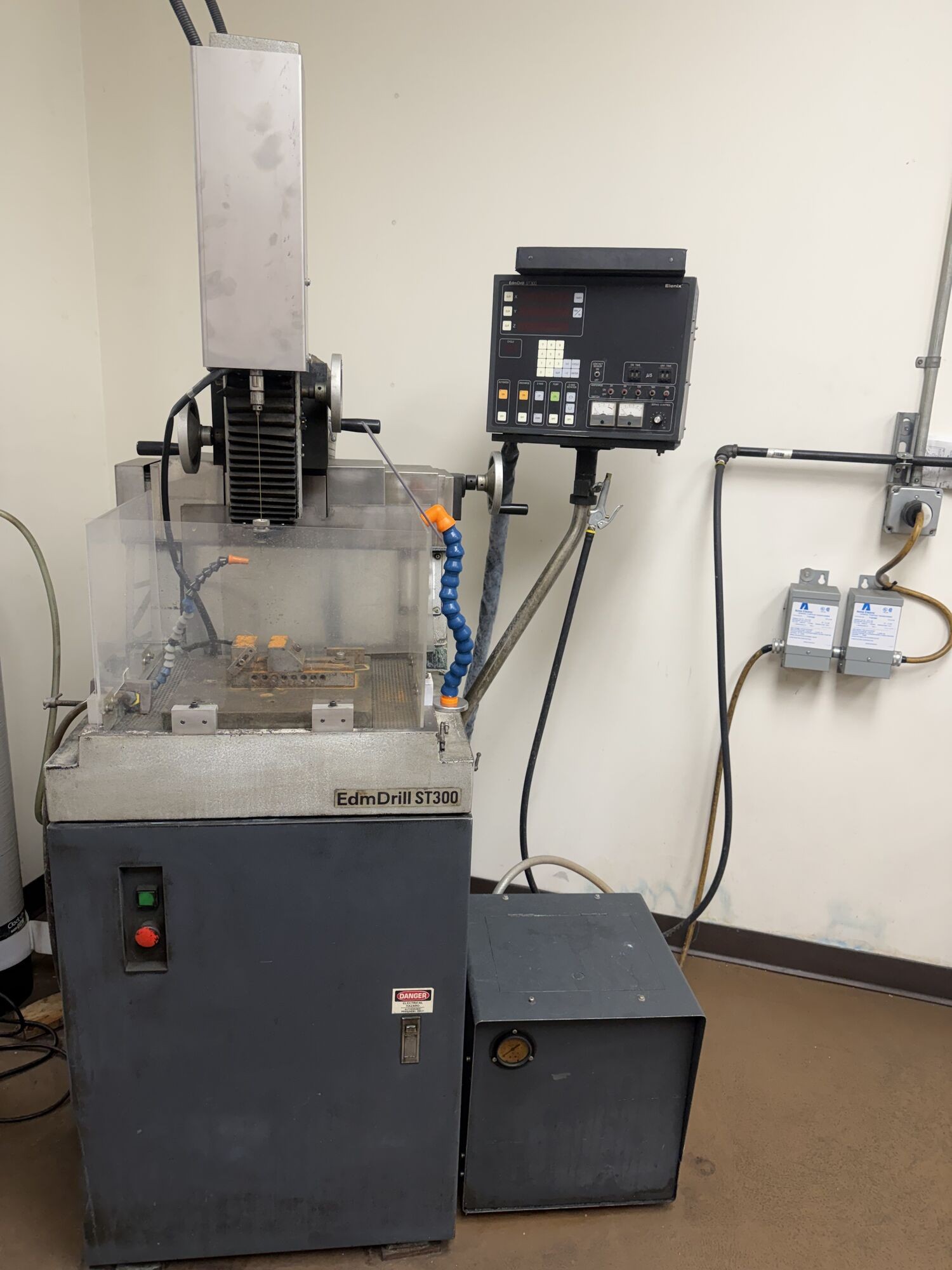

Current EDM ST300, 1995, ELENIX DIGITAL DISPLAY EDM HOLE DRILLER / POPPER

Price on Request

Make:: Current EDM

Model:: ST300, 1995, ELENIX DIGITAL DISPLAY

Year:: 1996

Ref #:: 179360

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

   Current EDM (Made in Japan)
    EDM Hole Drill/Popper,

 S/N: 83049      New:  1995

Specifications:
X Axis Travel:............. 12"
                            (300mm)
Y Axis Travel:............. 8"
                            (200mm)
Z Axis Travel:............. 12"
                            (300mm)
Guide Axis Travel:......... 10.5"
                            (266mm)
Workpiece Weight (Max):.... 682 lbs
                            (310 kg)
Granite Worktable Size:.... 12" x 12"
                            (300 x 300mm)
Worktank Capacity ......... 18" x 16"
                            (450 x 400mm)
Electrode Drill Diameters.. 0.004" - 0.256"
                            (0.1 - 6.5mm)

Machine Weight:............ 700 Lbs.
                            (318kg)
Approx. Dimensions:........ 23.5" x 25" x 78"H

"Current EDM's ST300
 EDM Drill enables
 precision deep-hole drilling of hard
 alloys to depths up to 300 times
 electrode diameter. Installed in hundreds
 of shops around the world, this unique
 system is capable of fast and accurate
 performance: Drilling a 0.040" hole
 through 1-inch tool steel in
 approximately 35 seconds, virtually
 burr-free. The ST300 can drill at all
 angles using electrodes ranging
 from 0.004" to 0.256" in diameter."


Cast bridge Design for EASY operation.
Precision-lapped granite worktable
 for stability and accuracy.

Independent Volt/Amp Meter,
 for the Fine Servo Control
Inch/Metric Conversion
XYZ DRO
Drill Depth Input
Electrode Retract Input
Auto Mode
Automated Initial Zero Set
Discharge on Timer
Voltmeter & Ammeteter
Amps, 30 Amps Mean/57 Amps Peak
220 Volts/3 KVA Power



** Excellent Condition & Appearance  ***
** F.O.B. Our Harrison, NJ Warehouse **
