Dahlih DL-GH2200 HORIZONTAL MILLING MACHINES w/ PLAIN TABLE

$11,500

Make:
Dahlih
Model:
DL-GH2200
Year:
1982
Ref #:
162432a

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

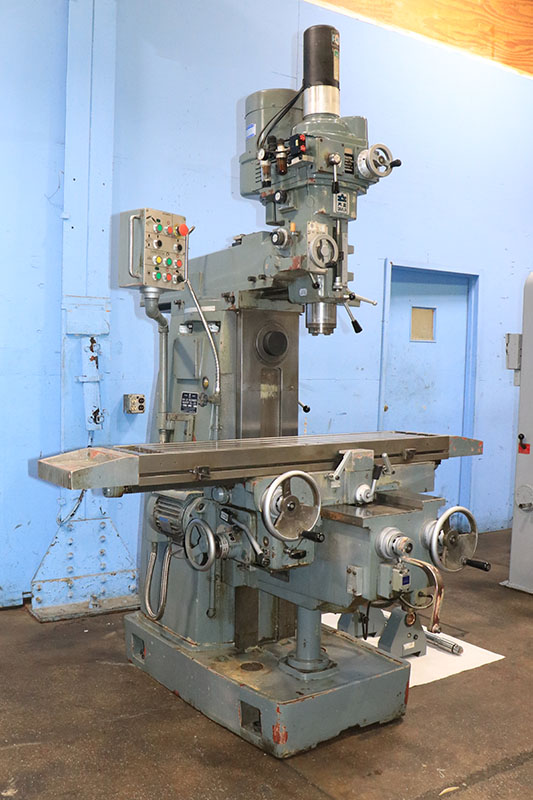

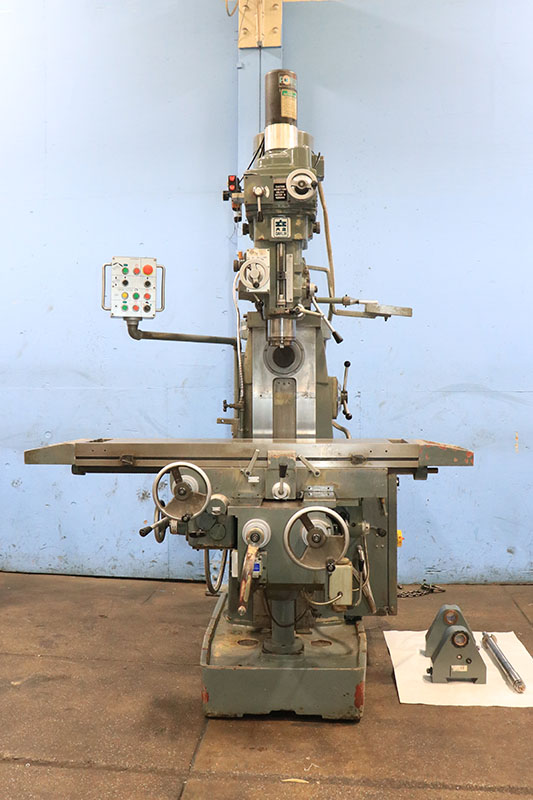

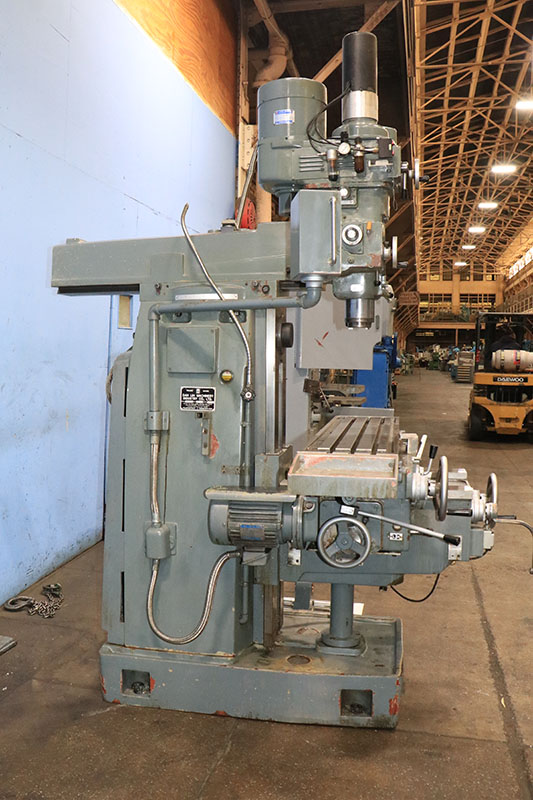

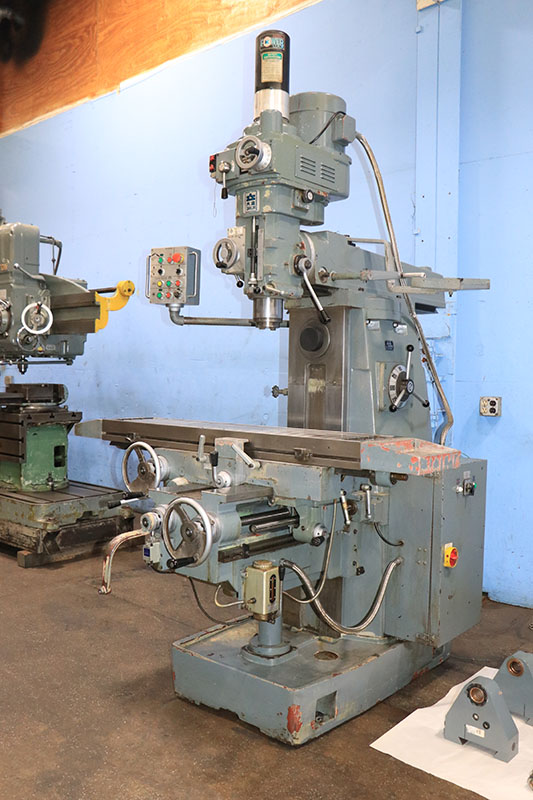

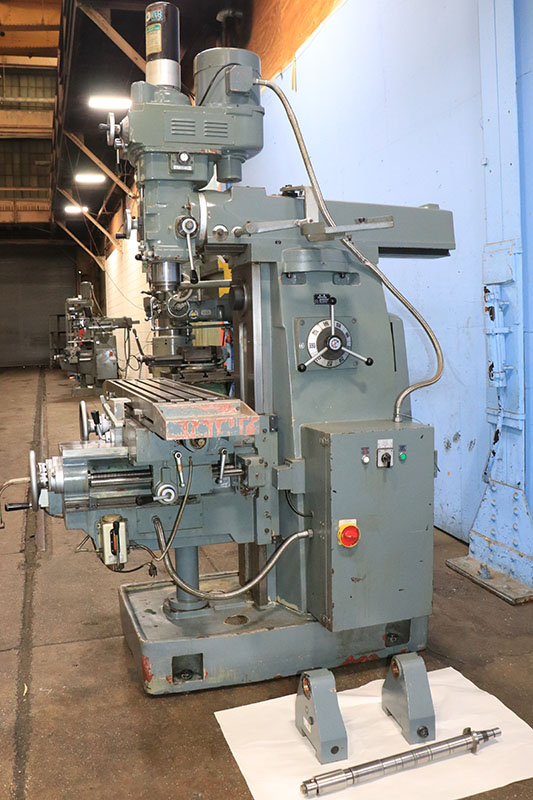

DAHLIH COMBINATION VARIABLE SPEED
TURRET TYPE VERTICAL AND HORIZONTAL MILL

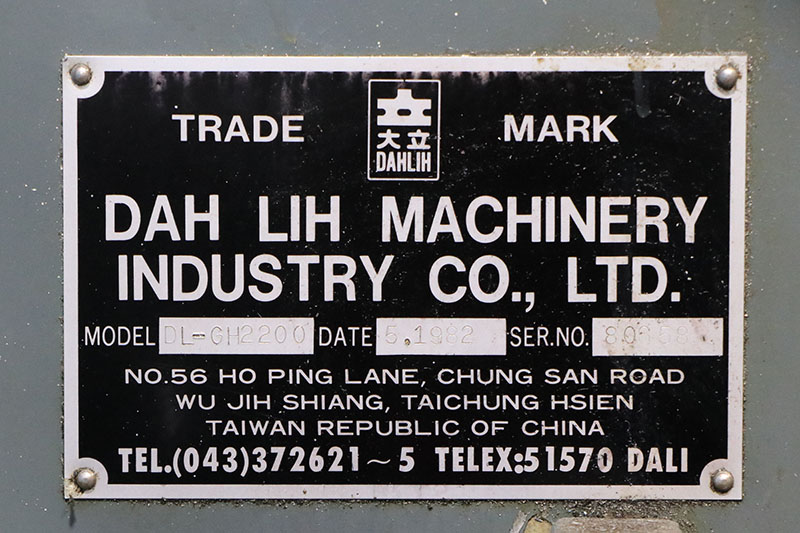

MODEL: DL-GH2200,  S/N: 80658, YEAR: 1982

SPECIFICATIONS:

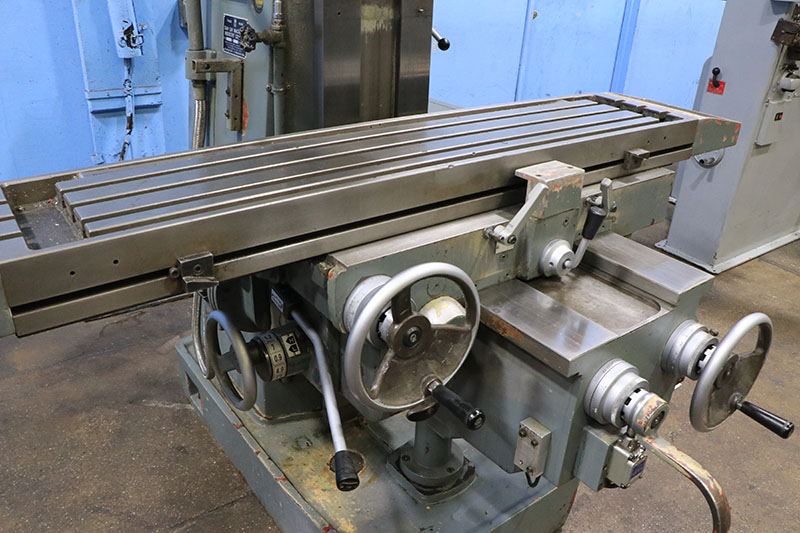

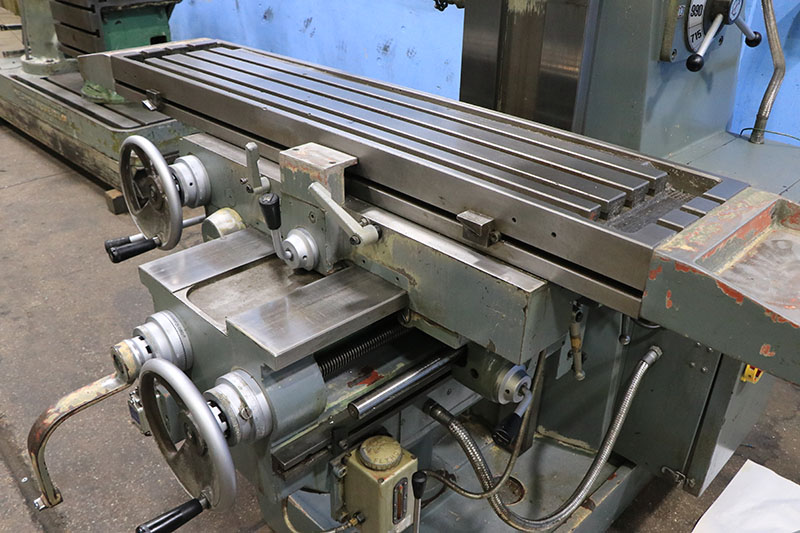

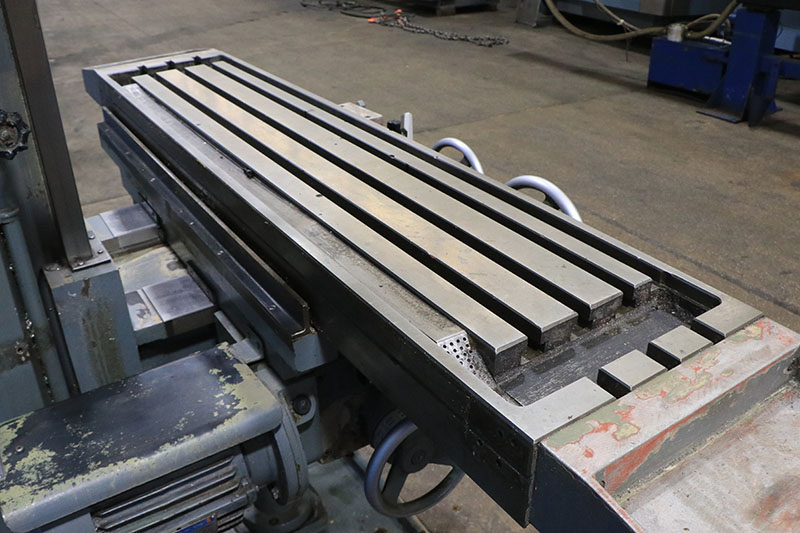

TABLE WORKING SURFACE: ..................... 13-1/4" x 51-1/8"
RANGE: LONGITUDINAL: ....................... 34"
CROSS: ..................................... 12"
VERTICAL (KNEE): ........................... 16"
TAPER IN HORIZONTAL SPINDLE: ............... N.S.T. 40

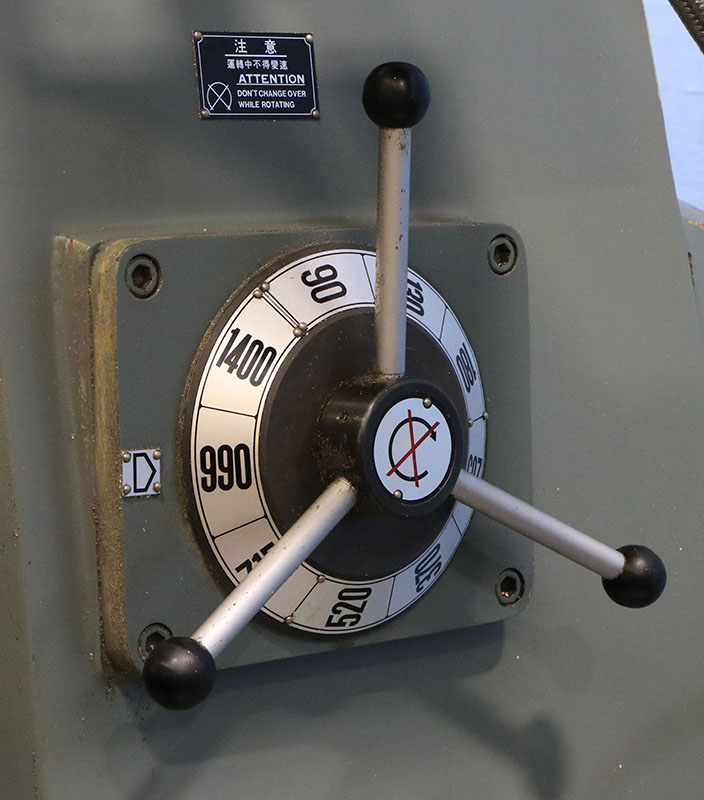

HORIZONTAL SPINDLE SPEEDS: (9) ............. 90 - 1400 RPM
LONGITUDINAL & CROSS FEEDS: (12) ........... .6" - 28 IPM
TAPER IN VERTICAL SPINDLE: ................. N.S.T. 40
QUILL TRAVEL: .............................. 6".
POWER QUILL FEEDS: (3) ........ 0.0014, 0.0028, 0.0056 IPR
HEAD SWIVELS: .............................. ± 45º
INF VAR VERT SPINDLE SPEEDS: ............... 80 - 3800 RPM
HORIZ TRAVEL OF RAM: ....................... 20"
SWIVEL OF RAM: ............................. 360º
APPROX WEIGHT: ............................. 5,500 LBS.
APPROX DIMENSIONS: ......... 75" L-R x 83" F-B x 93-1/2"H

EQUIPPED WITH:

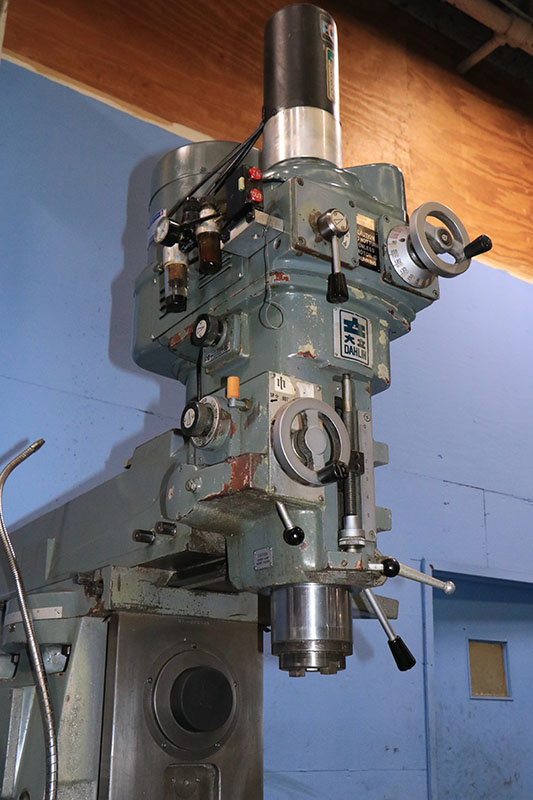

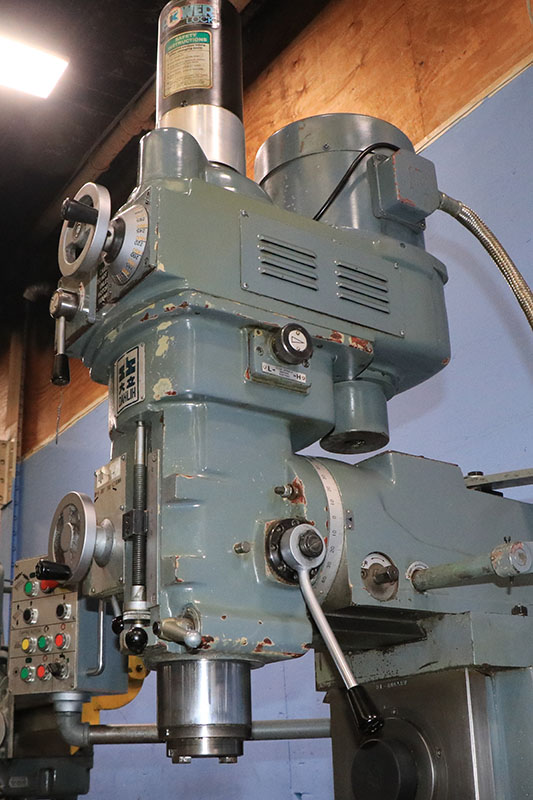

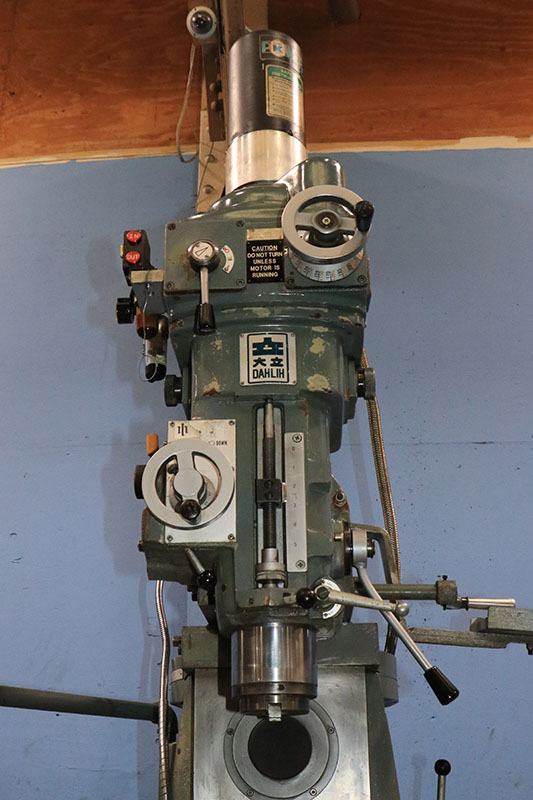

- VARI-SPEED VERTICAL HEAD MOUNTED ON SWIVEL RAM
- PUSH BUTTON, AIR OPERATED POWER DRAW BAR
- HORIZONTAL SPINDLE
- POWER RAPID TRAVERSE
- POWER ELEVATION OF KNEE
- COOLANT

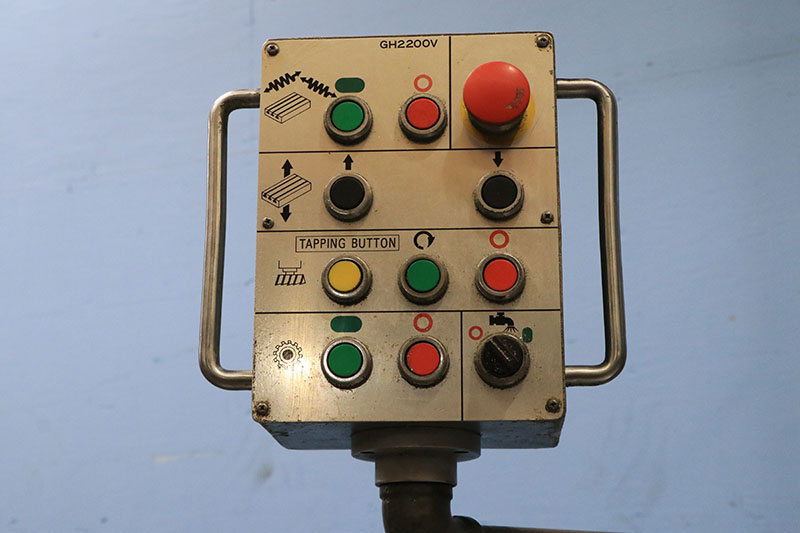

- SWING PENDANT CONTROL

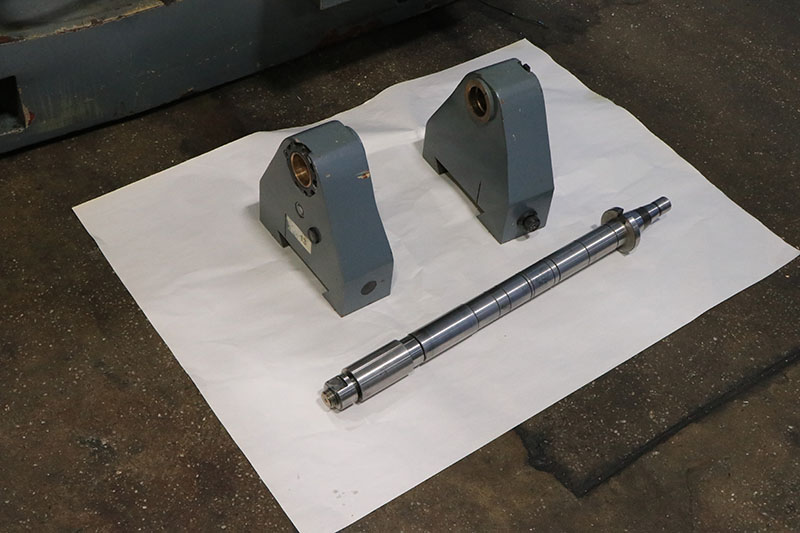

- ARBOR SUPPORT
- 40 TAPER ARBOR
- 5 H.P. VERTICAL SPINDLE DRIVE
- 5 H.P. HORIZONTAL SPINDLE DRIVE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
