Defum KNA-110/135 VERTICAL BORING MILLS & VERTICAL TURRET LATHES

$34,500

Make:
Defum
Model:
KNA-110/135
Year:
1988
Ref #:
163989

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

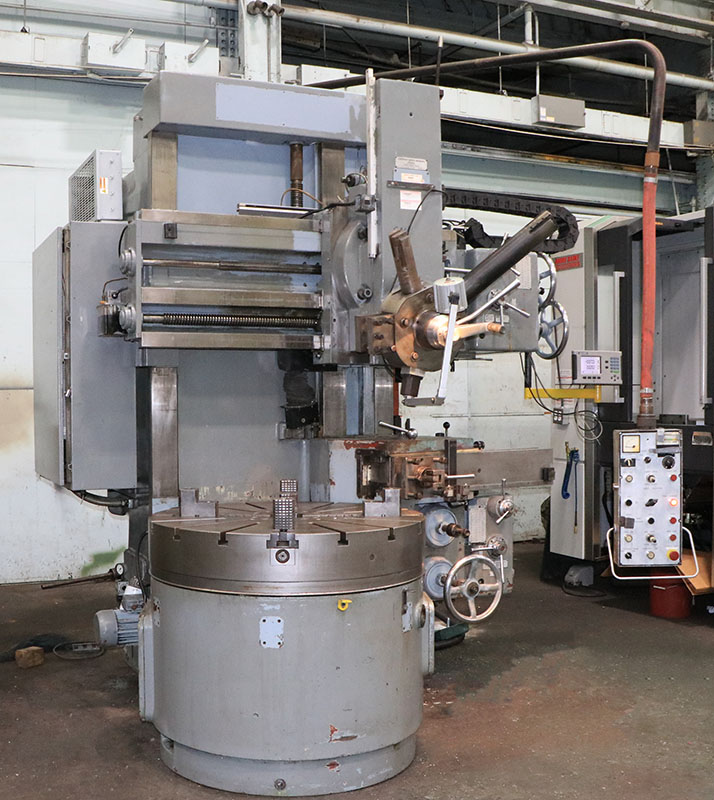

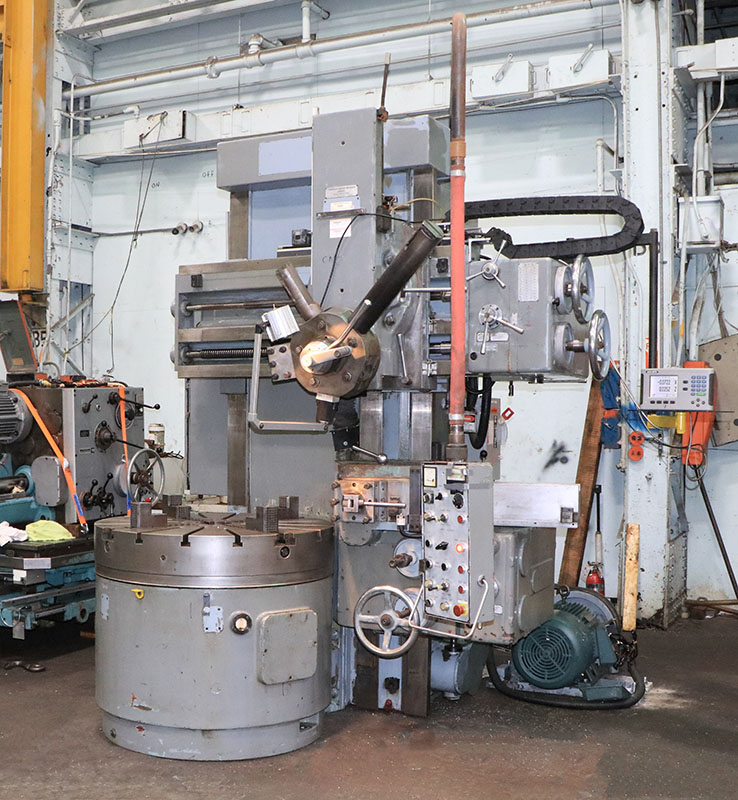

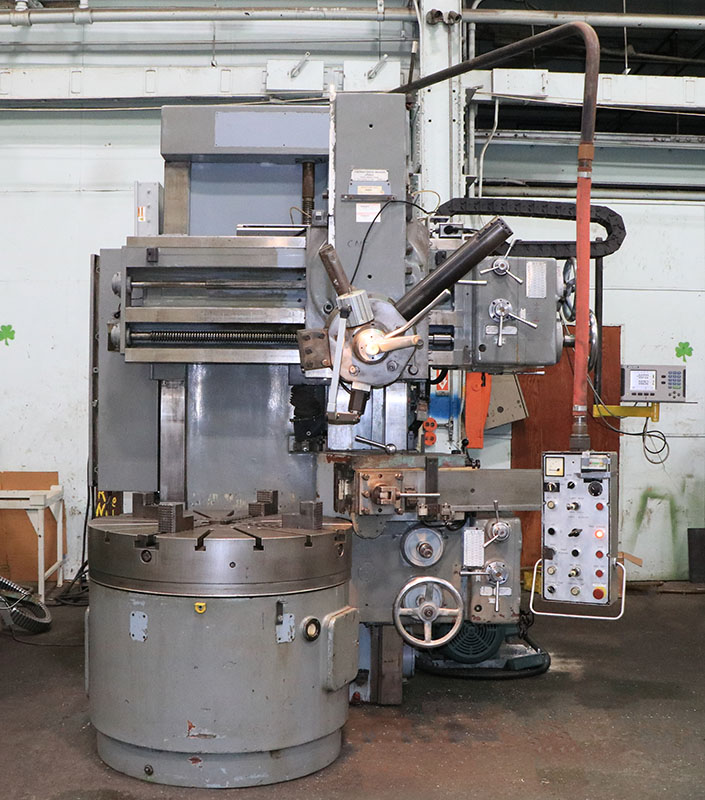

43" DEFUM VERTICAL TURRET LATHE

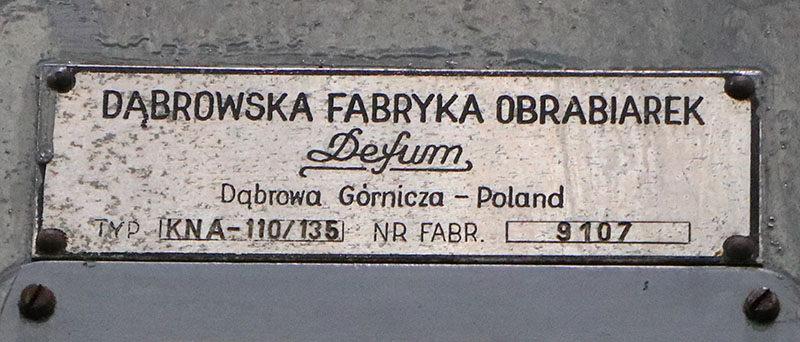

MODEL: KNA 110/135, S/N: 9107, NEW: 1988

SPECIFICATIONS:
TABLE DIAMETER .......................... 43-1/4"
MAX SWING w/ SIDE HEAD IN POSITION ...... 43-1/4"
MAX SWING w/out SIDE HEAD ............... 53"
MAX HEIGHT FACE OF TOOL HOLDER TO TABLE . 37.4"
VERTICAL TURRET SLIDE TRAVEL ............ 23.62"
VERTICAL TRAVEL OF CROSS RAIL ........... 31.5"
WORK PIECE MAX WEIGHT ................... 8,800 lbs
MAXIMUM DISTANCE, SIDE HEAD RAM TO TABLE  22.44"
SWIVEL OF TURRET HEAD ................... +/- 45"
TABLE SPEEDS (16) ....................... 6.3 - 200 RPM

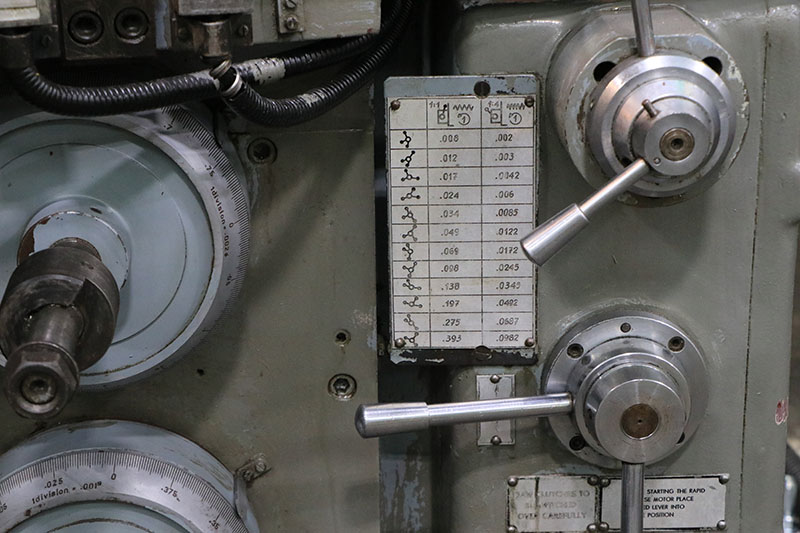

FEEDS (12) .............................. .002 - .393 IPR
RAPID TRAVERSE RATE ..................... 74 IPM
APPROX WEIGHT ........................... 30,000 LBS
DIMENSIONS:
  LENGTH ................................ 100"
  WIDTH ................................. 89"
  HEIGHT (MIN) .......................... 119"
  HEIGHT (MAX) .......................... 141"

EQUIPPED WITH:

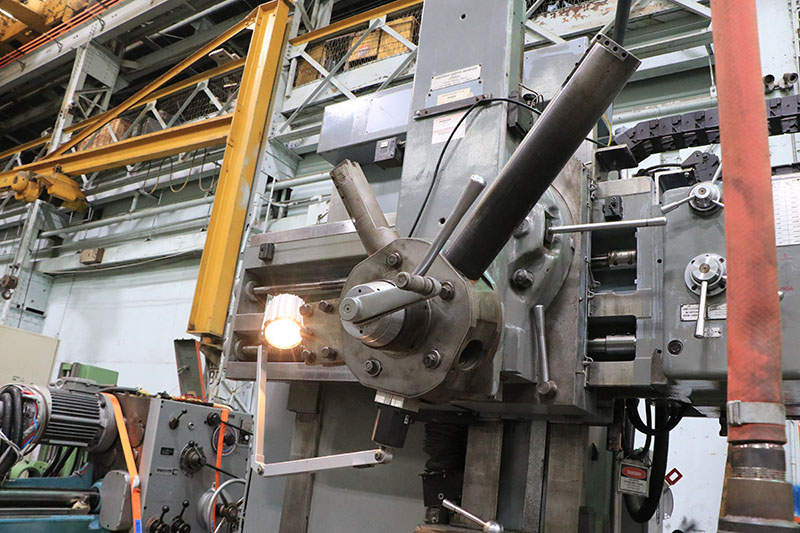

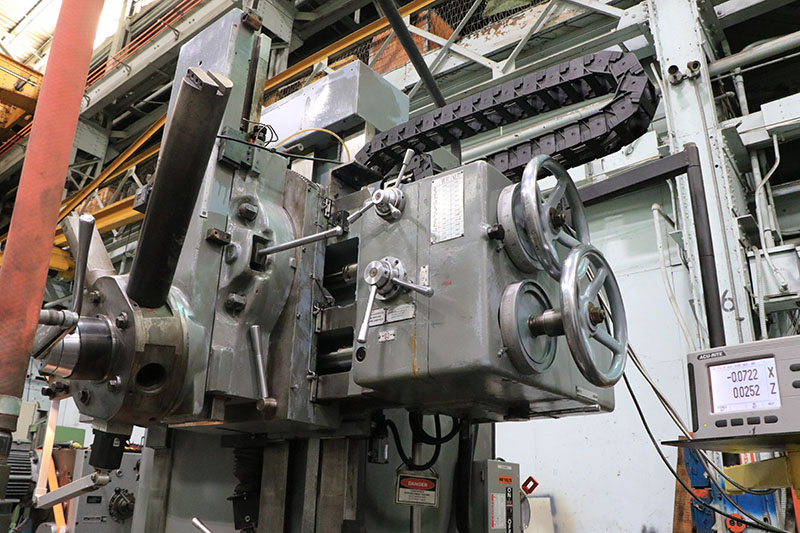

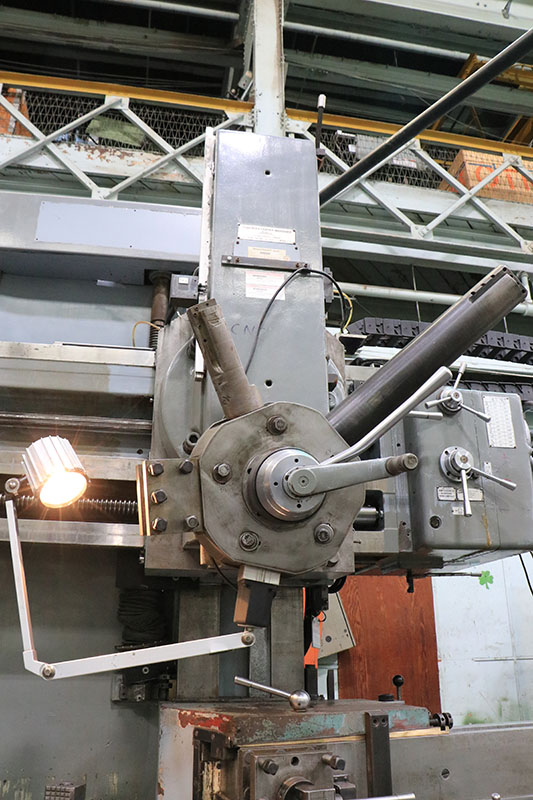

PENTAGON SWIVEL TURRET HEAD ON RAIL

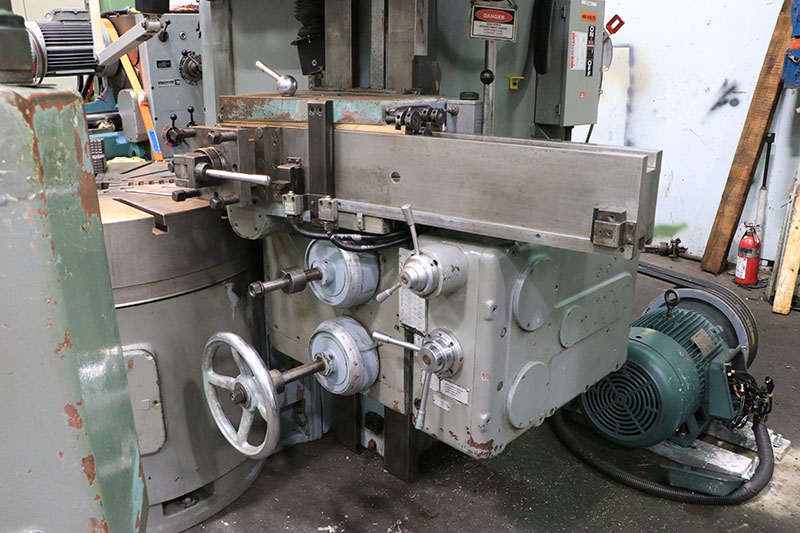

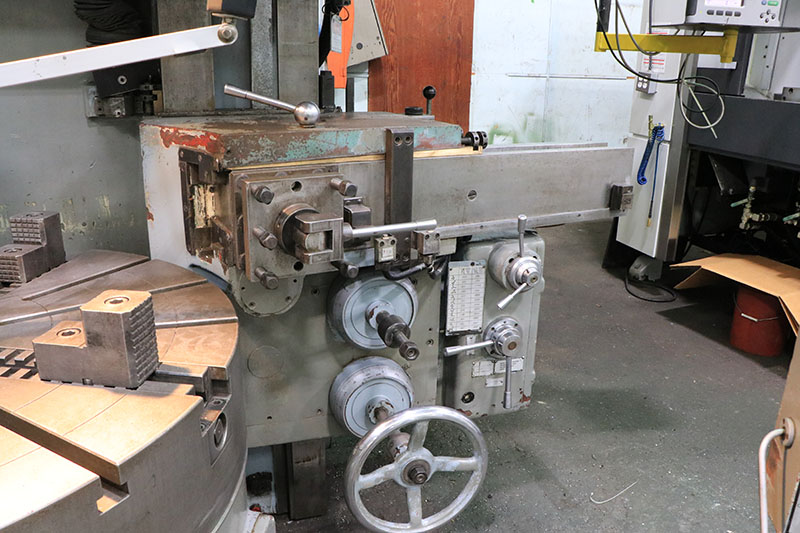

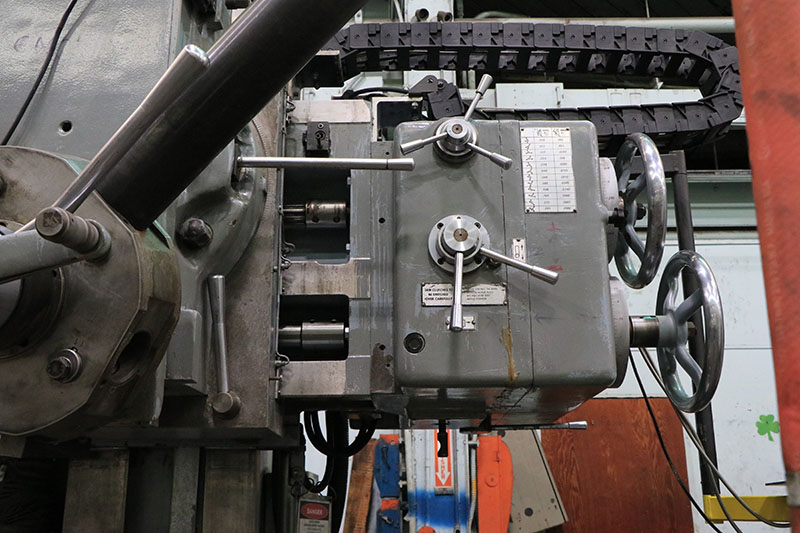

SIDE HEAD

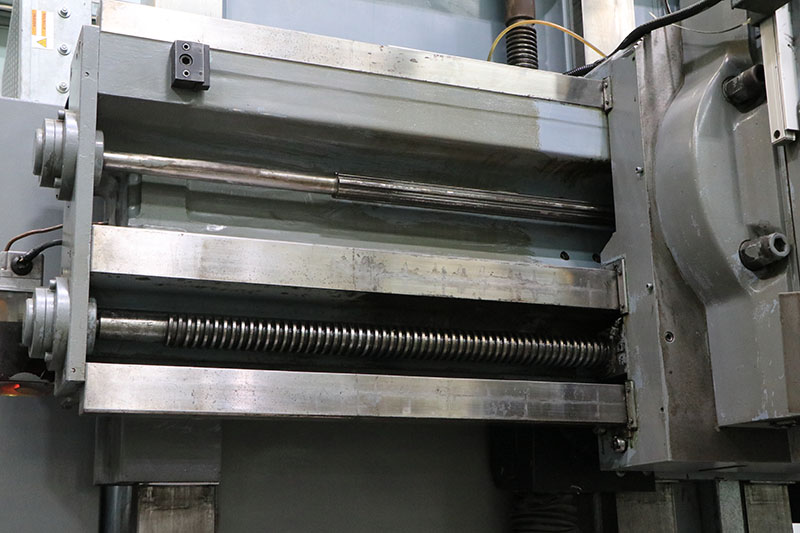

ALL HARDENED WAYS

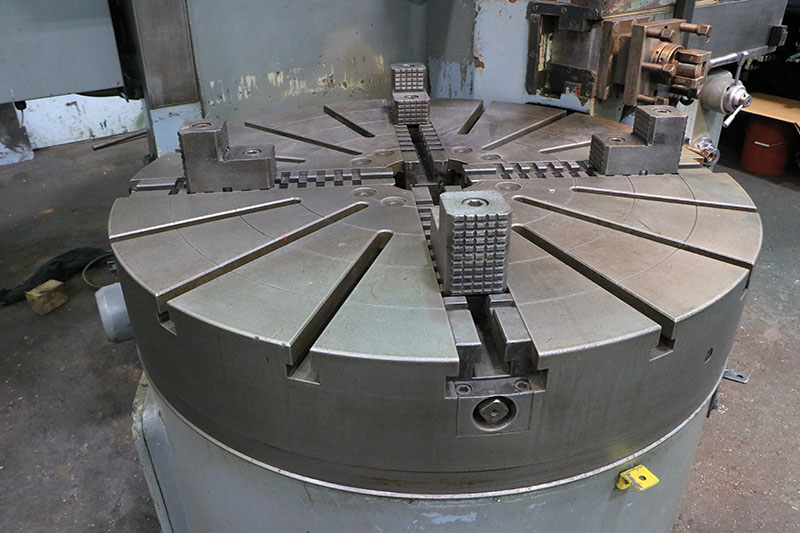

4-JAW CHUCK w/ SET OF (4) HARDENED TOP JAWS

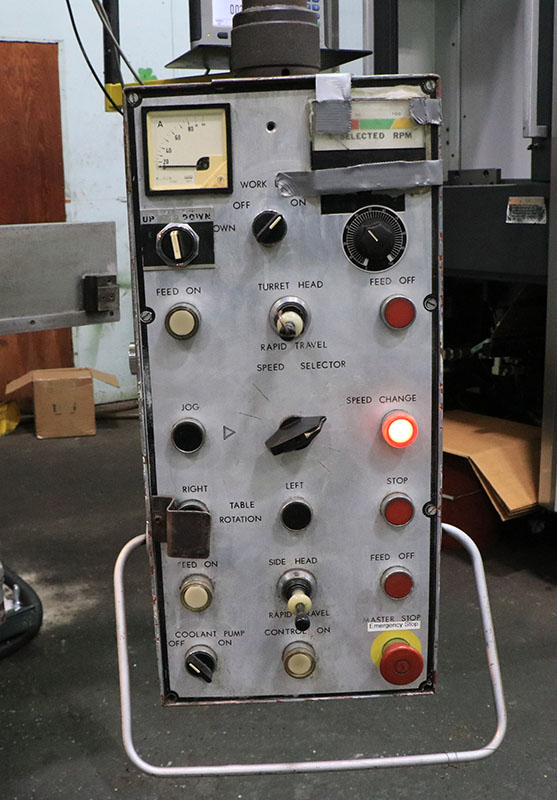

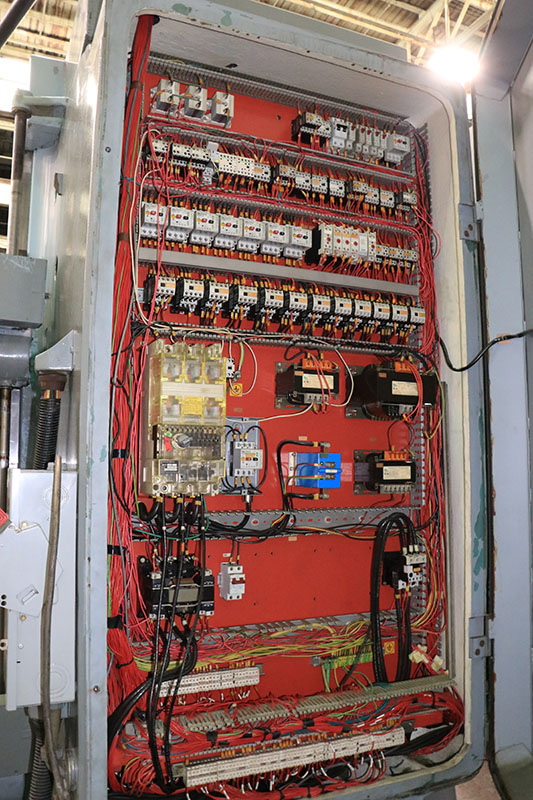

FULL PENDANT CONTROL
ONE-SHOT LUBRICATOR
PUMP & SPLASH GUARDS
.8 HP RAPID TRAVERSE MOTOR
1.5 HP LUBE MOTOR
3 HORSE POWER RAIL ELEVATION MOTOR

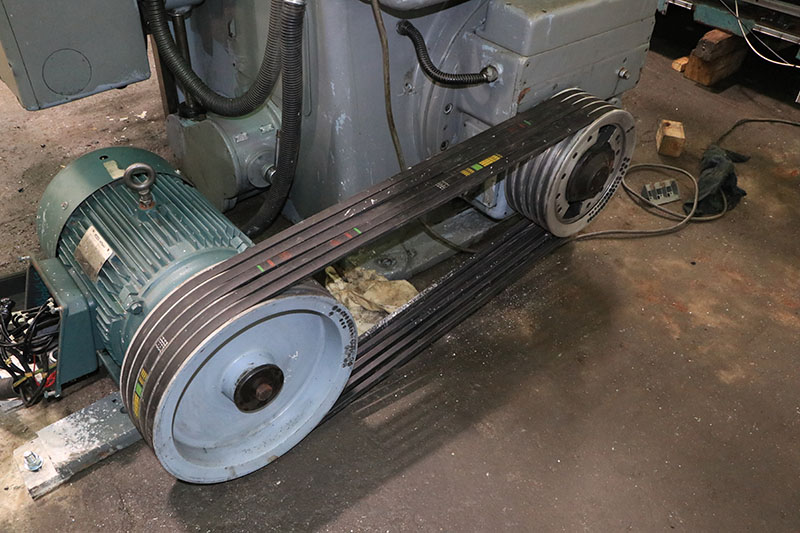

30 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
