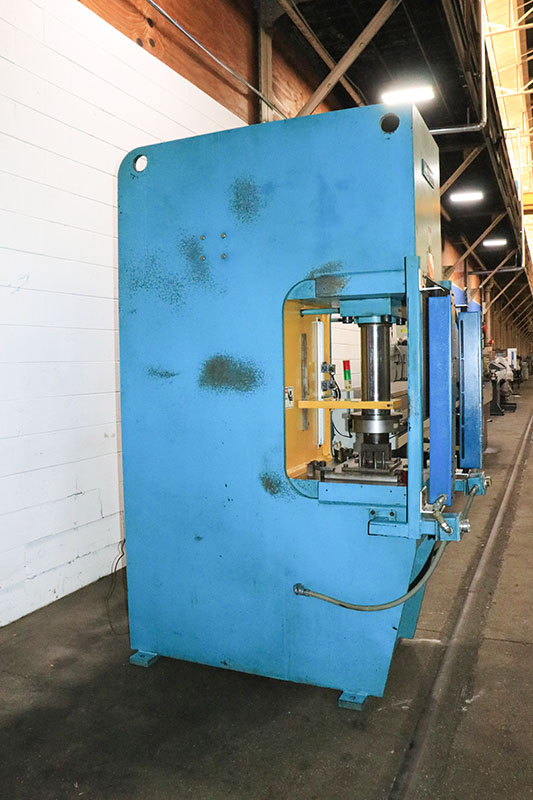

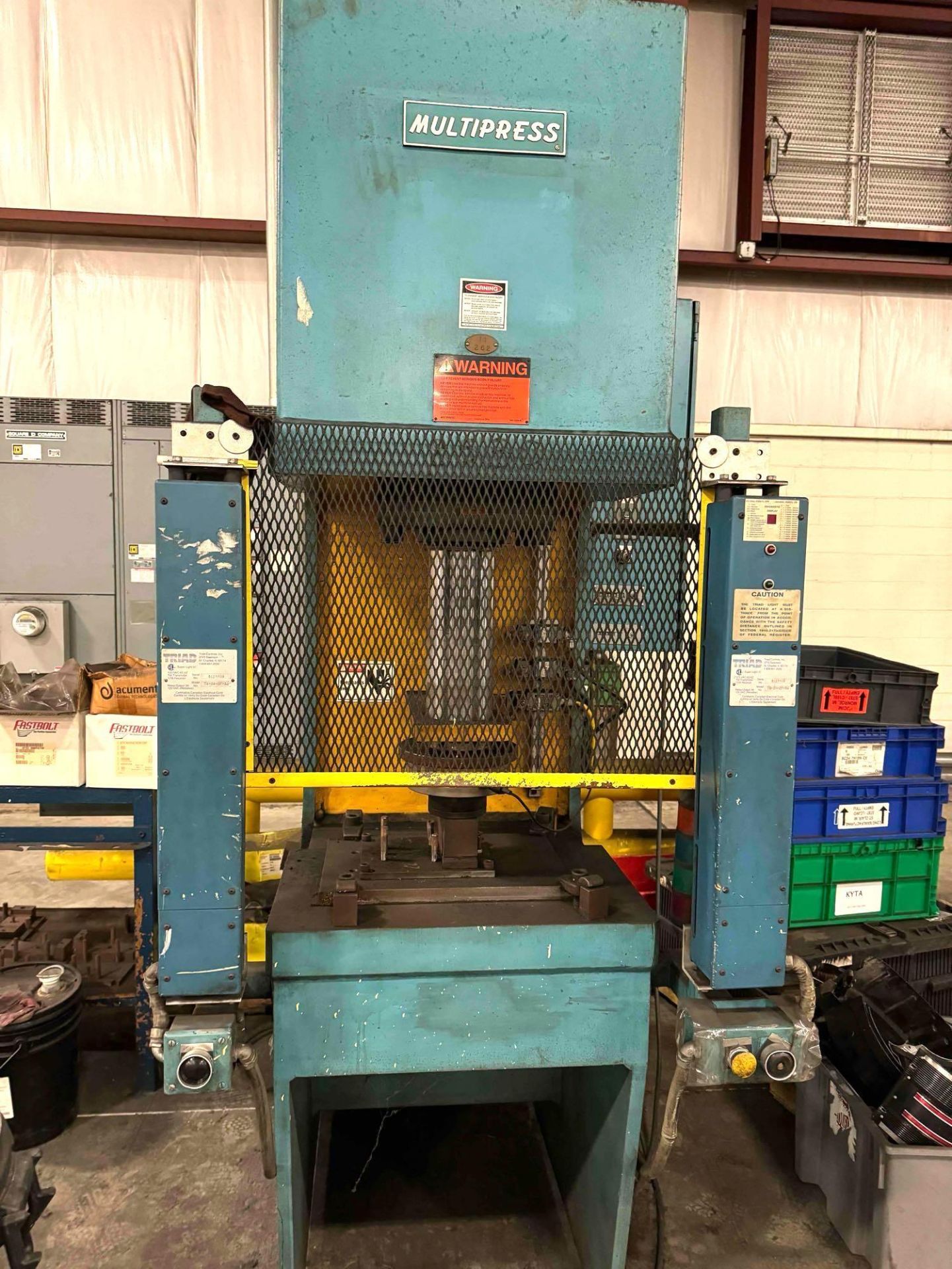

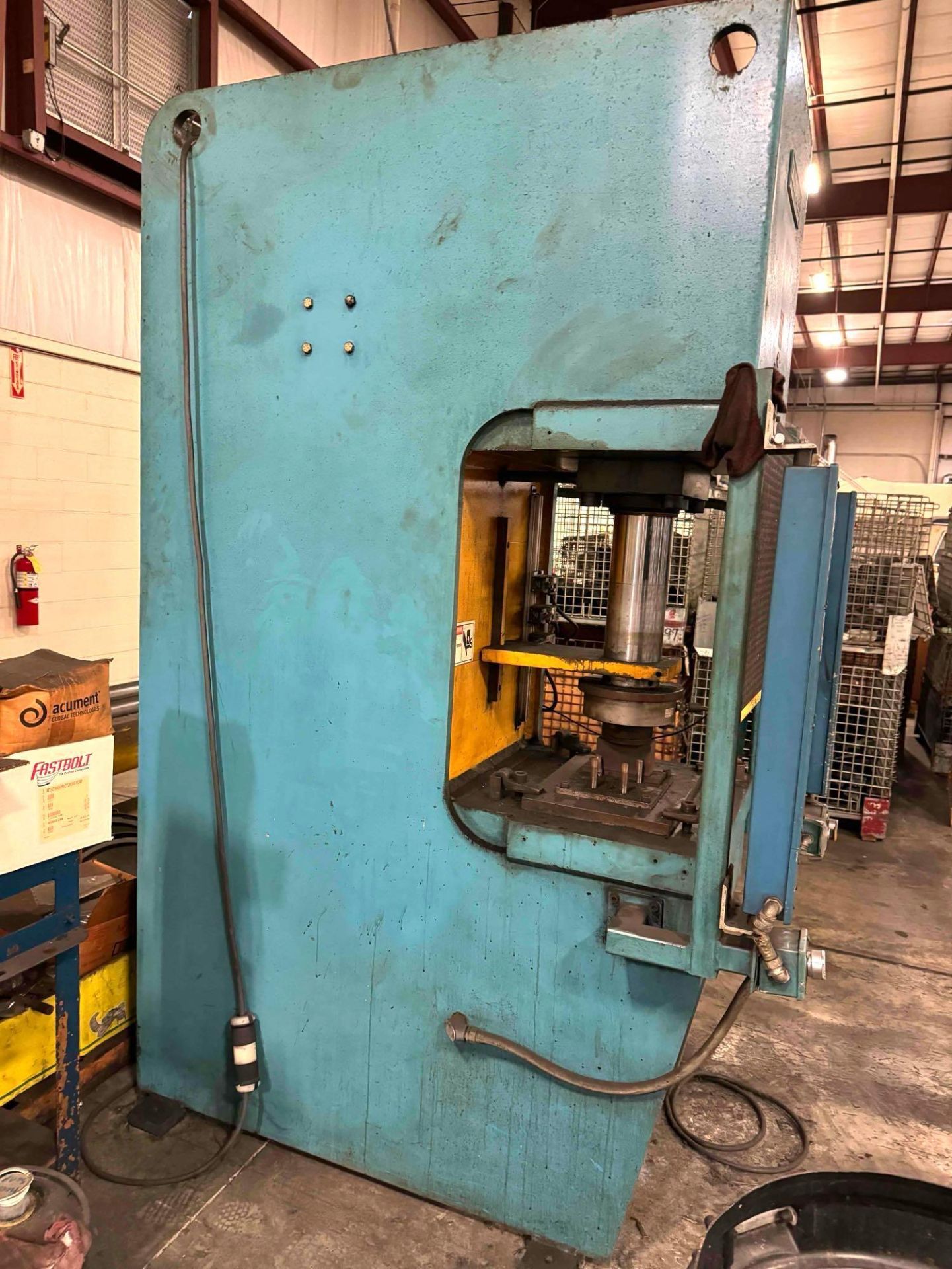

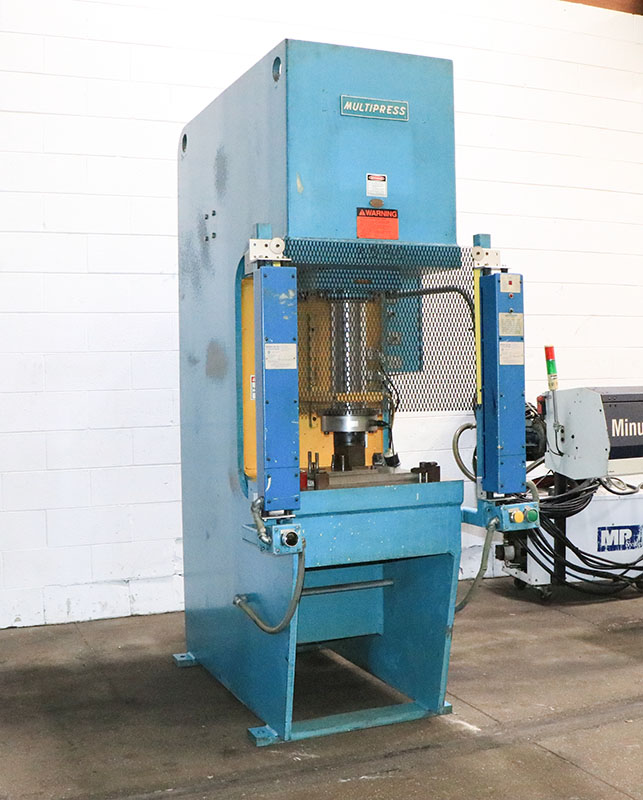

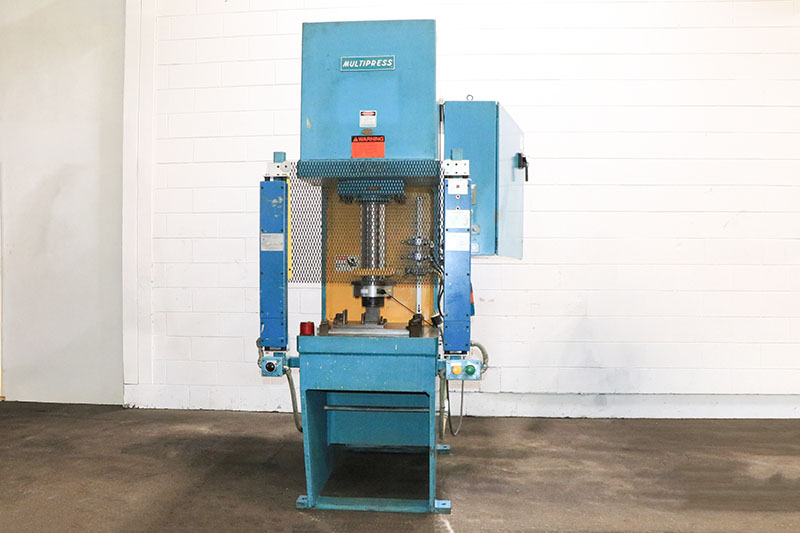

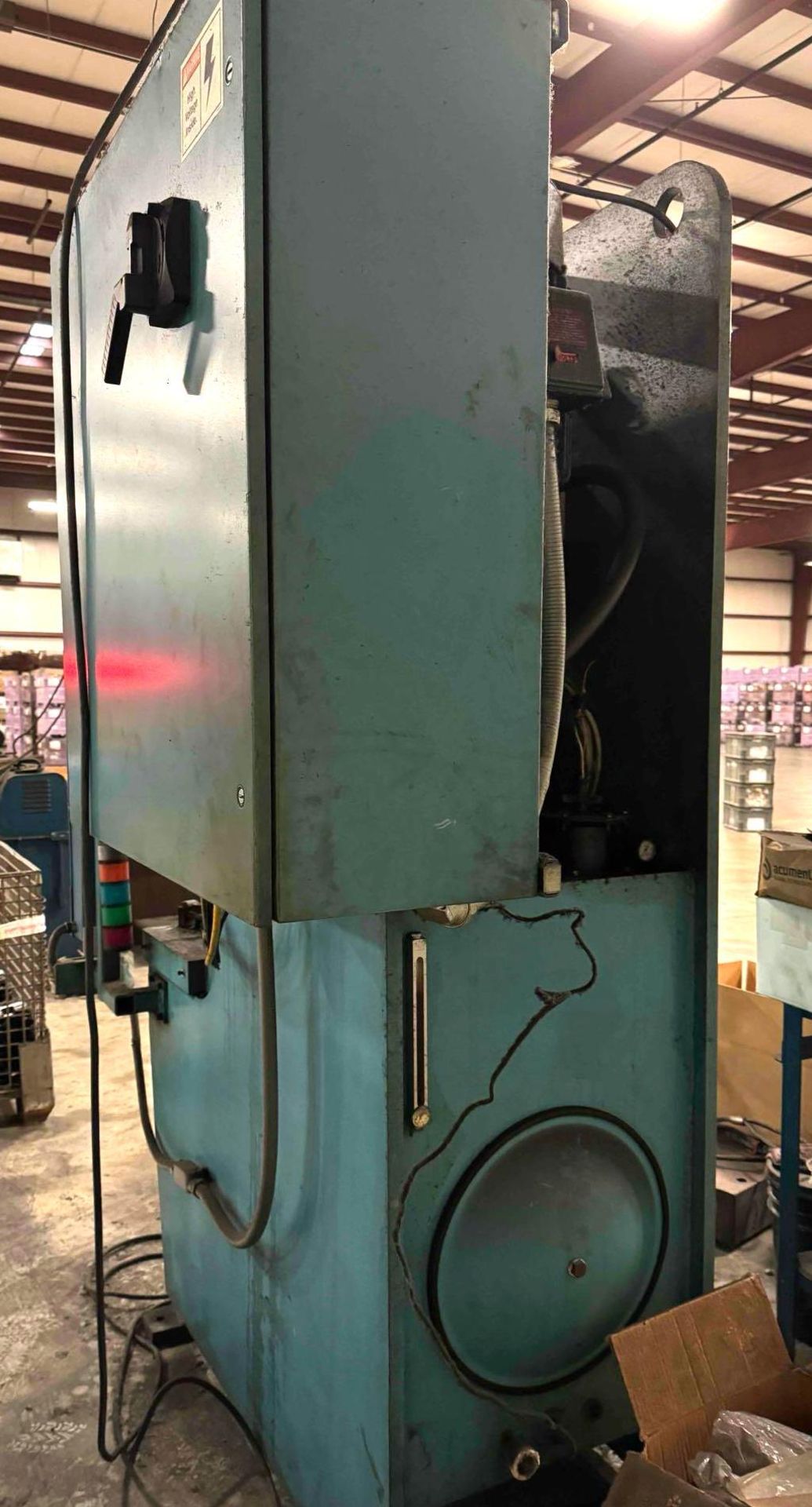

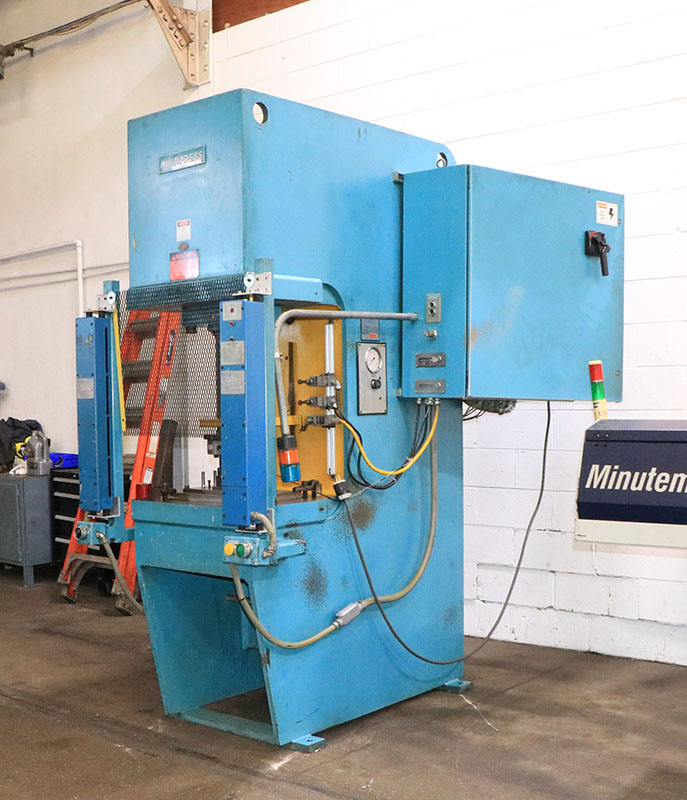

Denison FMS-50 HYDRAULIC C-FRAME PRESSES

$29,500

Make:: Denison

Model:: FMS-50

Year:: 2001

Ref #:: 178932

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

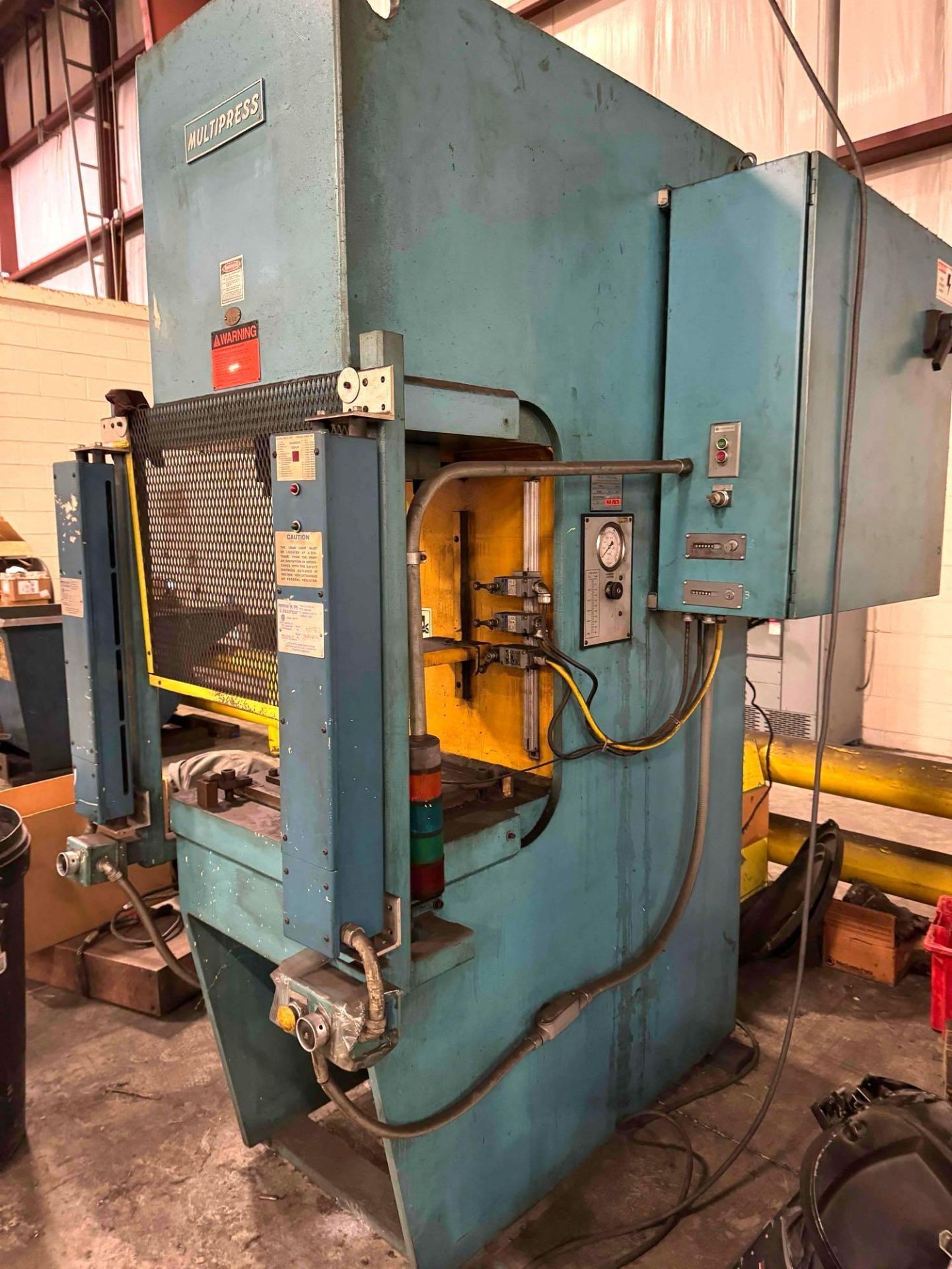

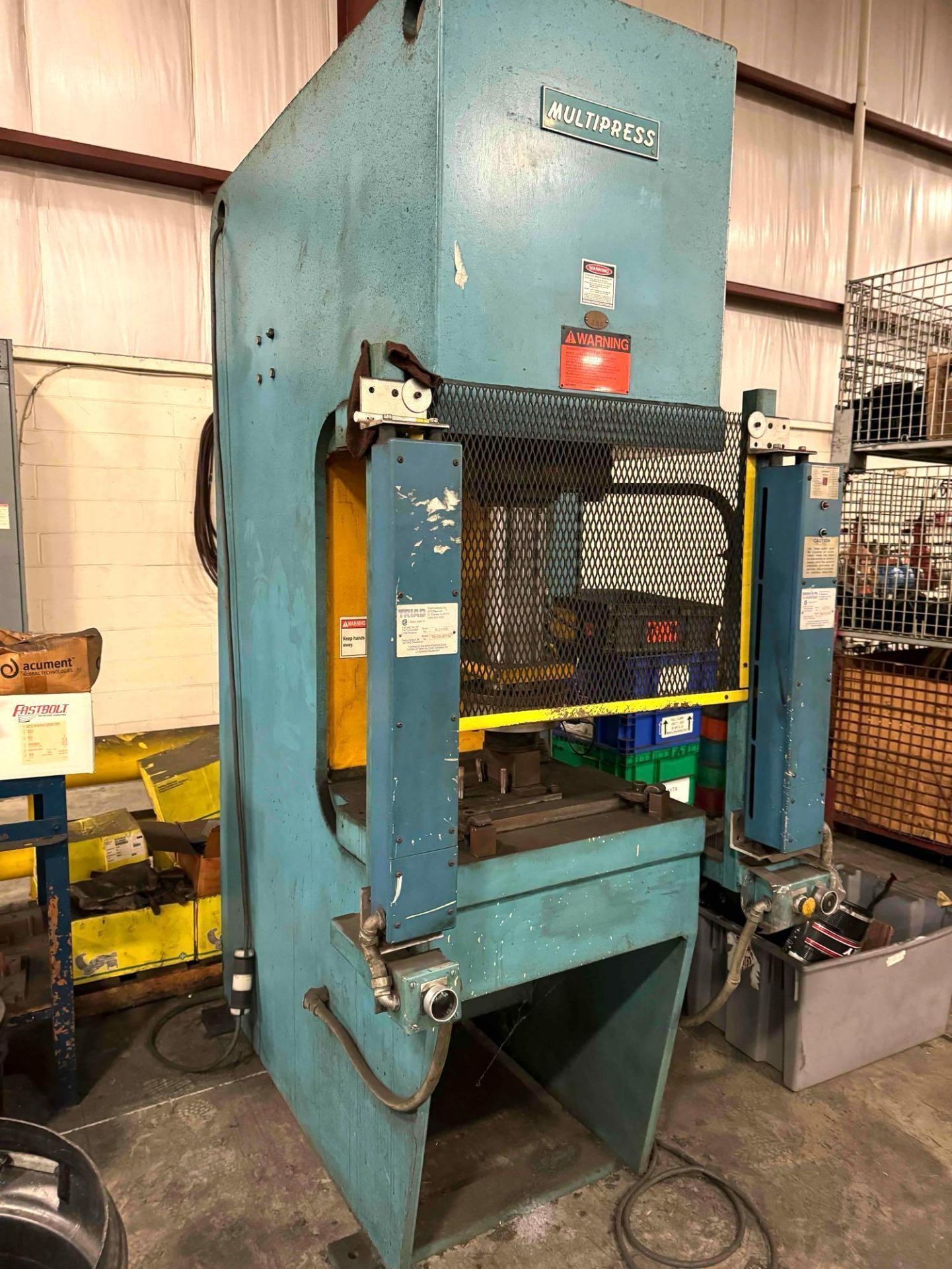

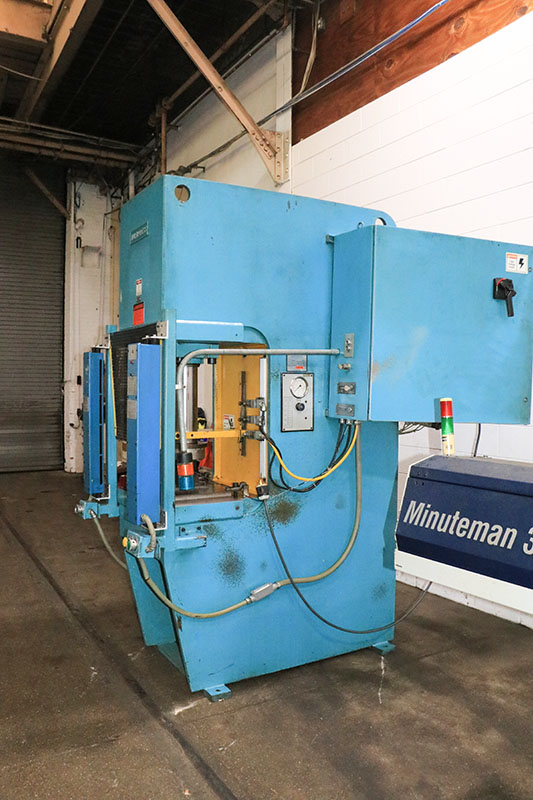

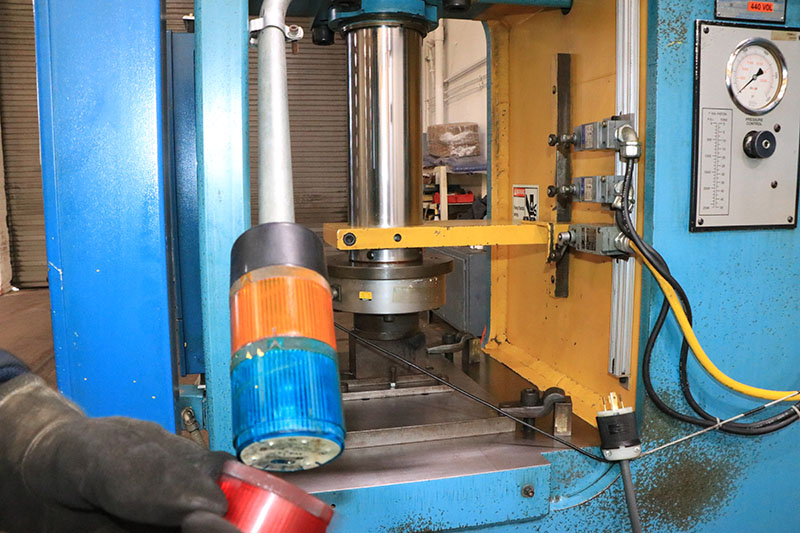

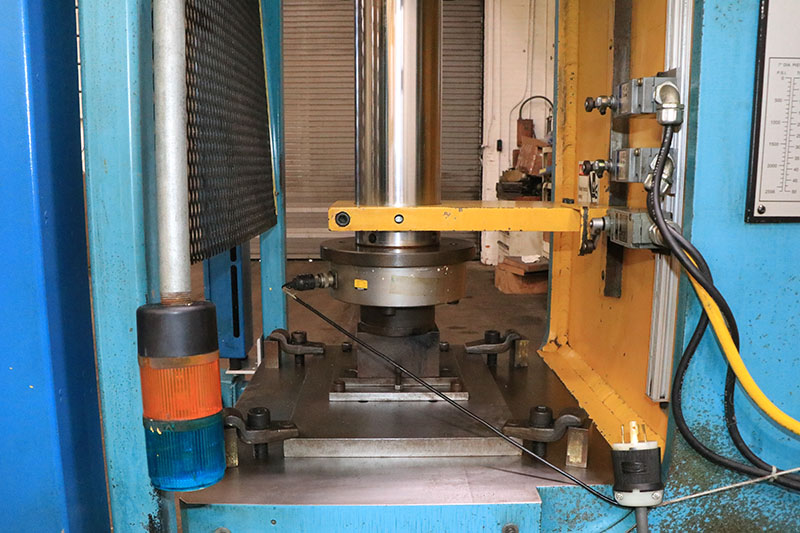

50 TON DENISON HYDRAULIC PRESS*

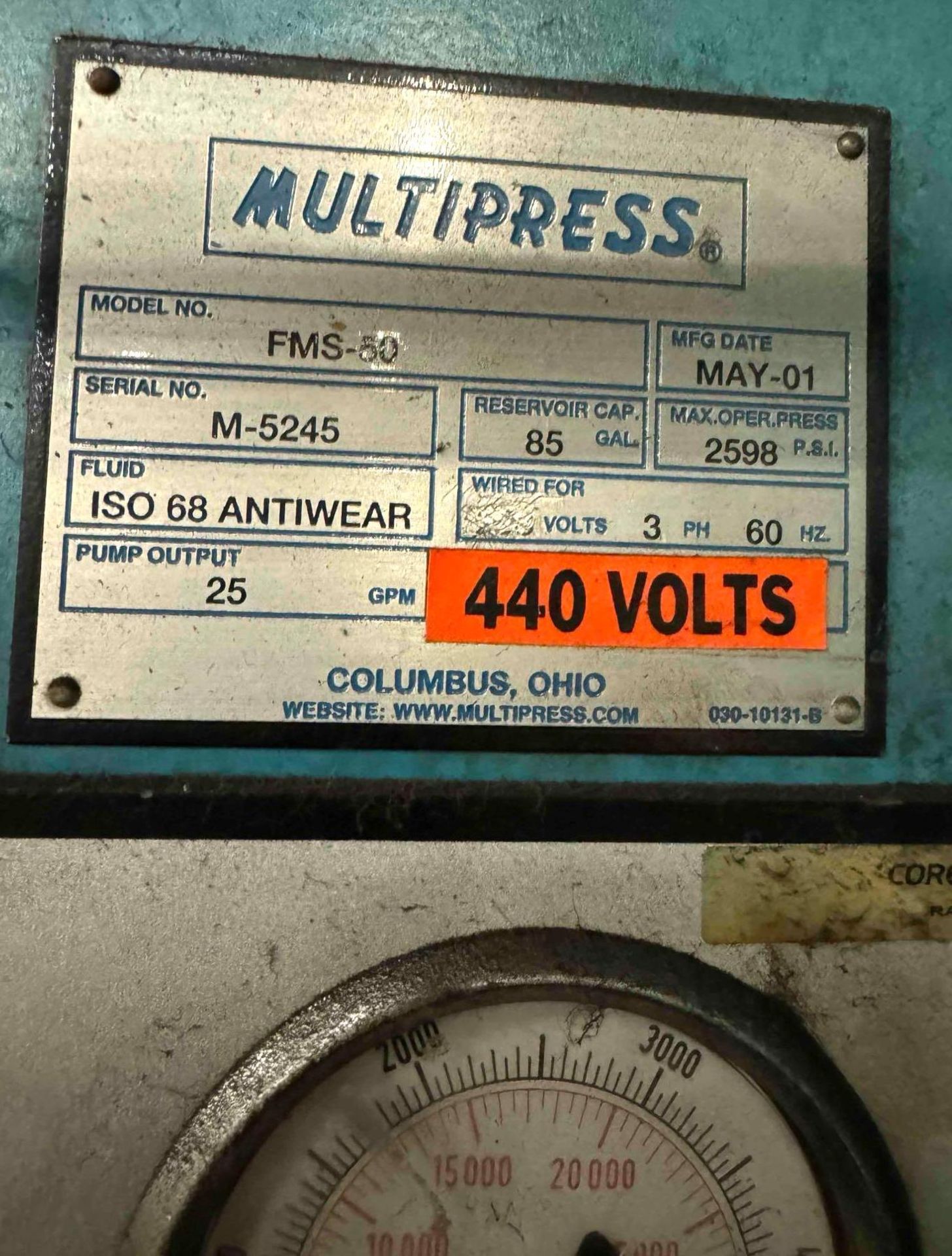

MODEL FMS-50        S/N M-5245       YEAR 2001

Stroke ......................... 18"
Open daylight .................. 26"
Closed daylight ................ 8"
Throat depth ................... 16"

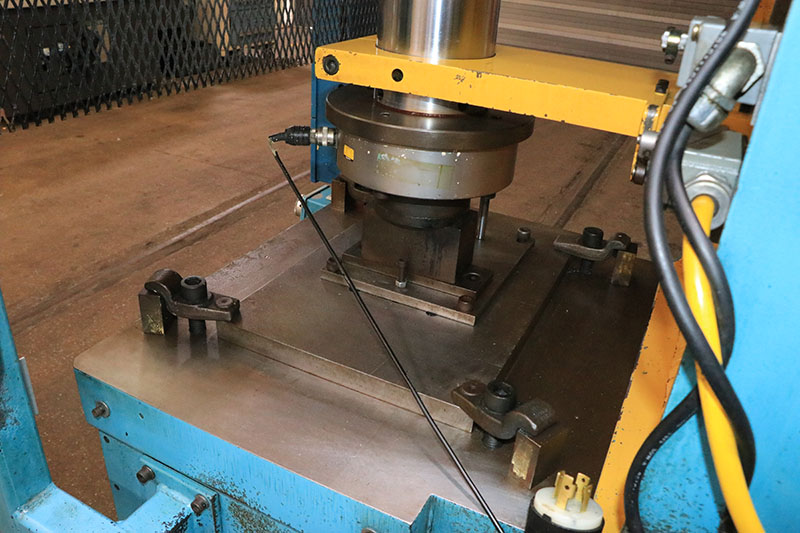

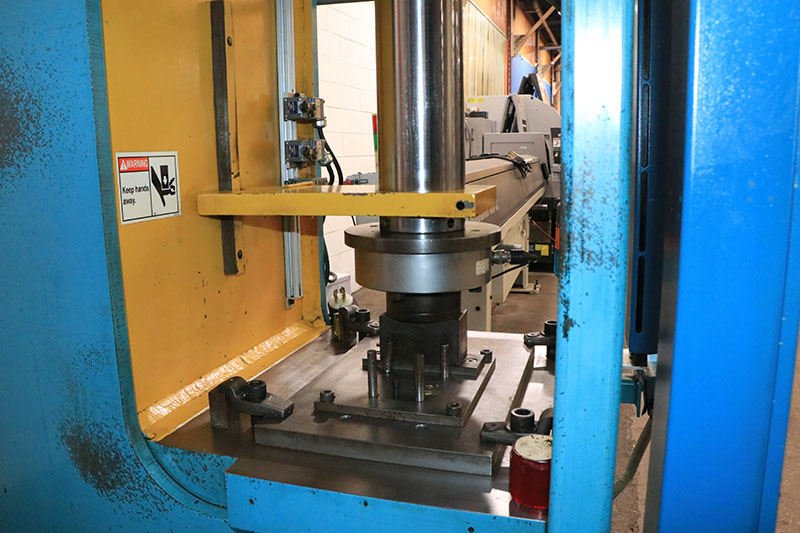

Bed area ....................... 26" LR x 25" FB
Ram mounting plate ............. 11" x 11"
Floor to bed ................... 28 1/2"
Ram diameter ................... 5"
Ram speeds ..................... 320 ipm - rapid adv.
                                 160 ipm - pressing
                                 330 ipm - return

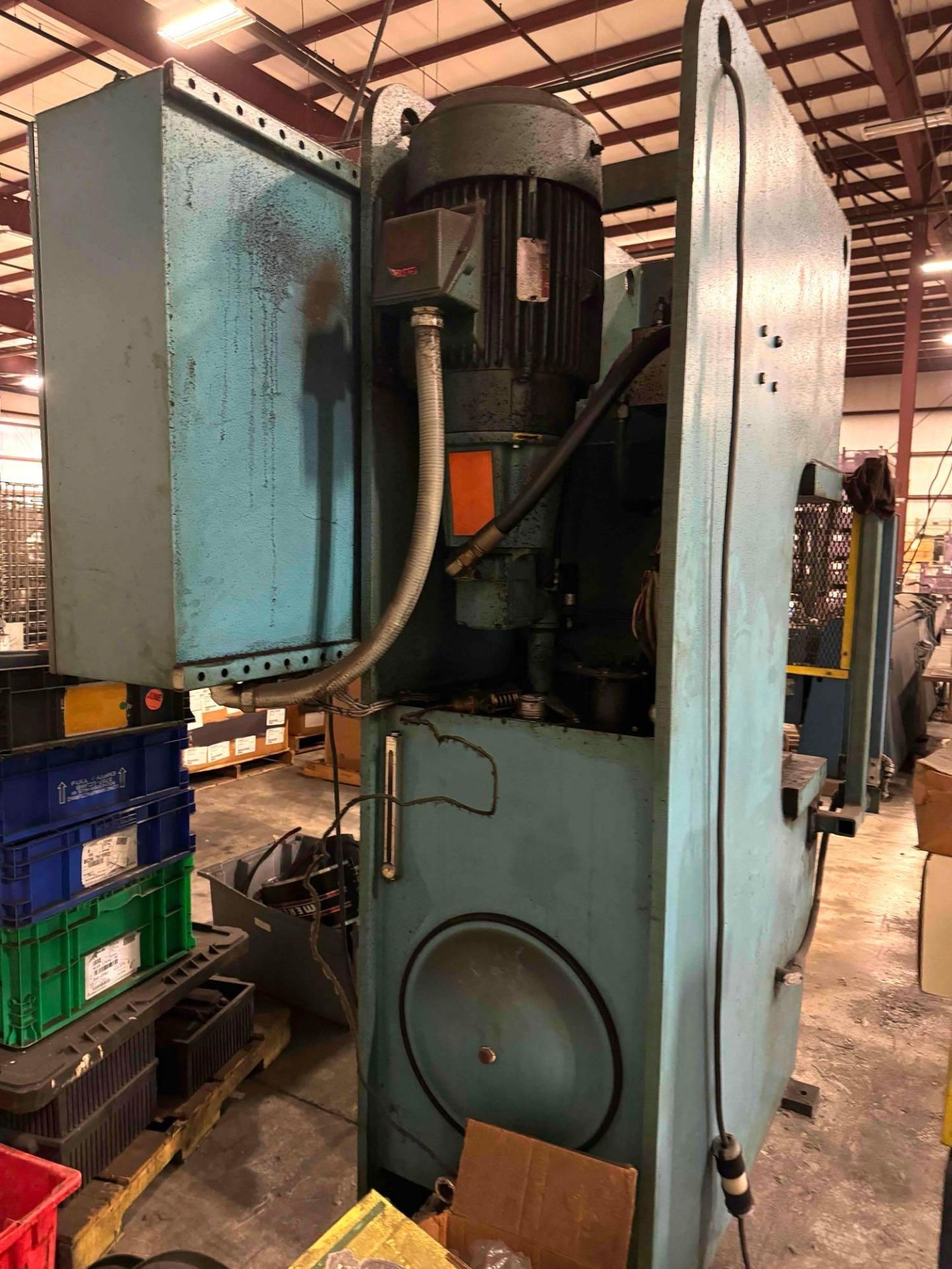

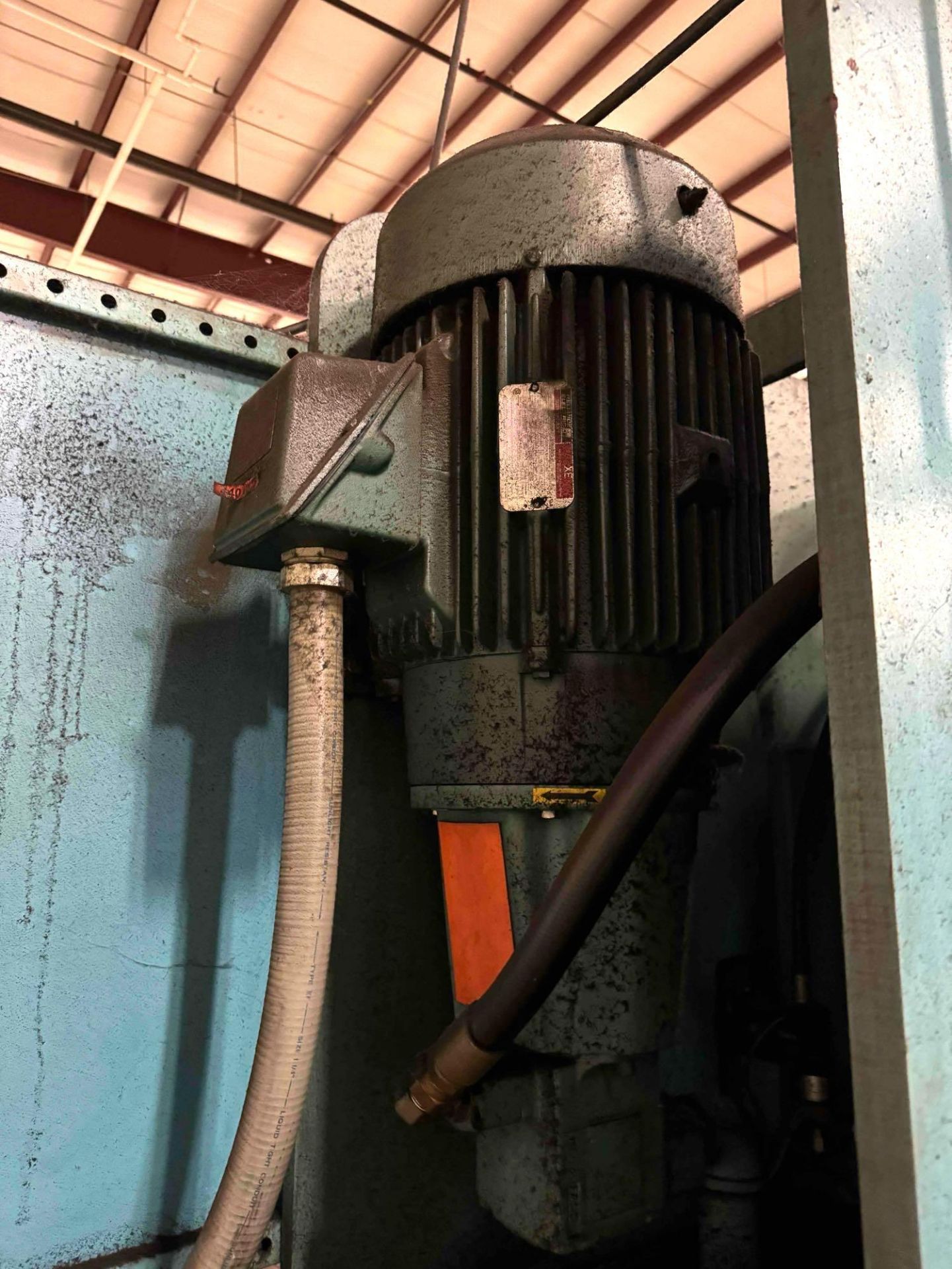

Main motor ..................... 30 hp 230 / 460 V
Pump output .................... 25 GPM
Oil reservoir .................. 85 gallons

Overall dimensions: 44" x 76" x 92" high
Weight: 9,000 lbs.

Currently 440 v / 3 Phase

Machine is equipped with:
- Adjustable stroke limits

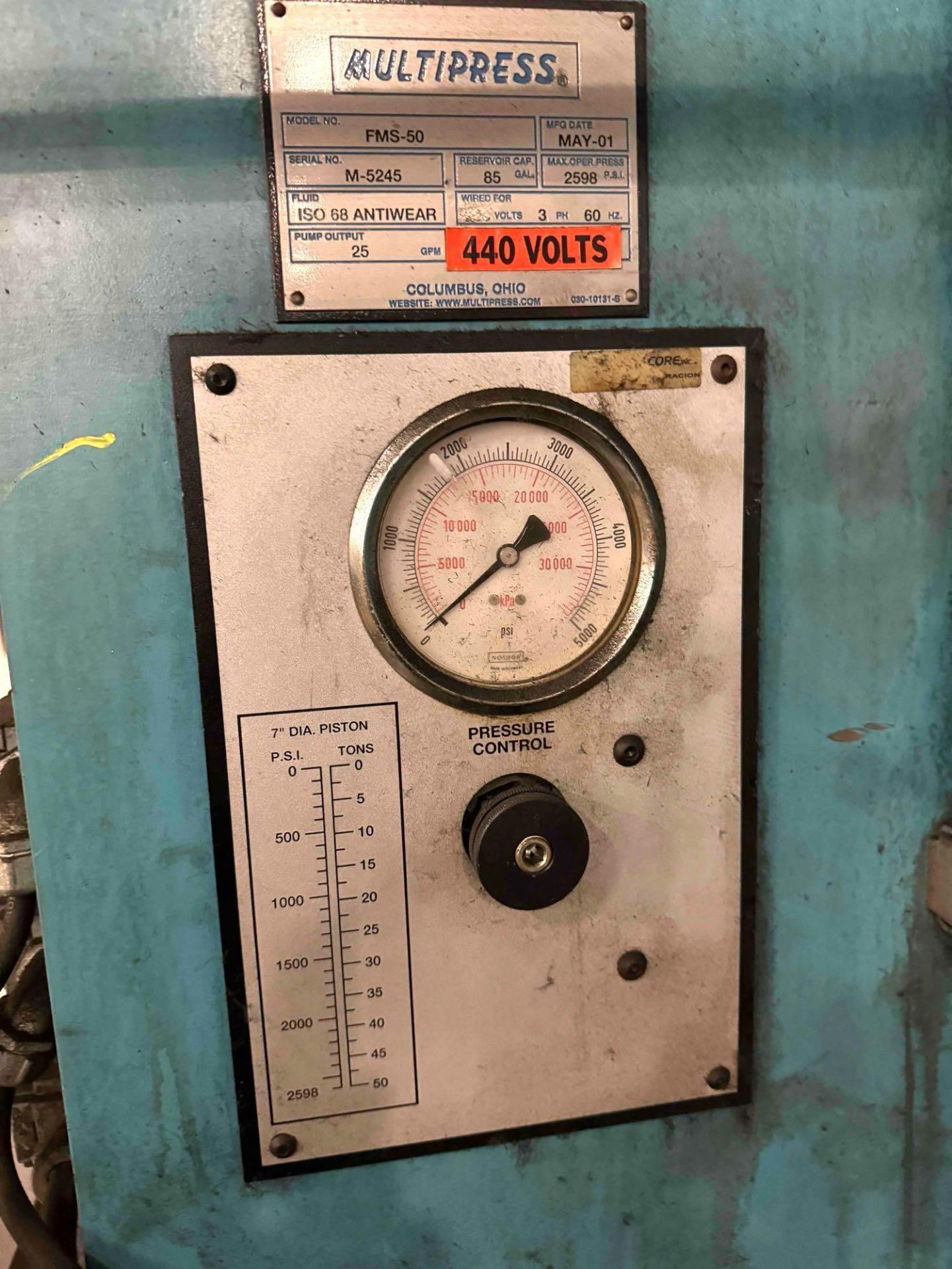

- Adjustable Pressure Control
- Adjustable speed change with limit switch
- Press mounted palm buttons
- Light Curtains

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
