Pressmaster CFP20T HYDRAULIC C-FRAME PRESSES

$32,500

Make:: Pressmaster

Model:: CFP20T

Year:

Ref #:: 158749

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

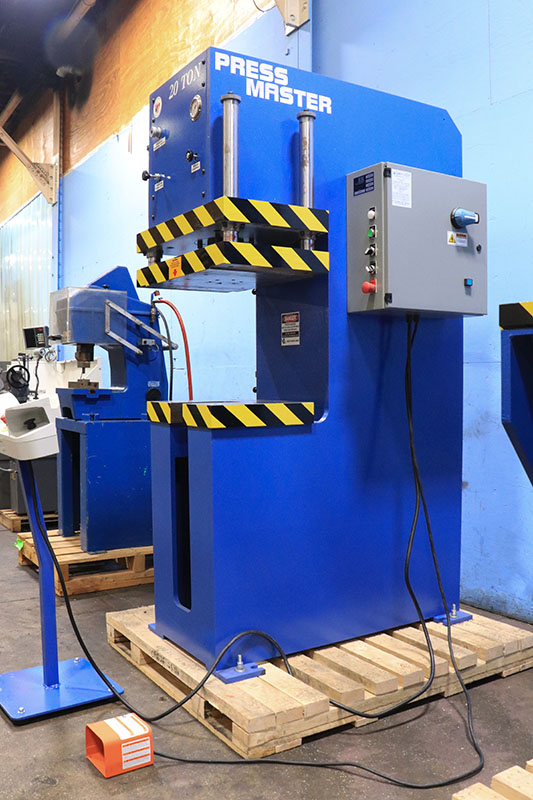

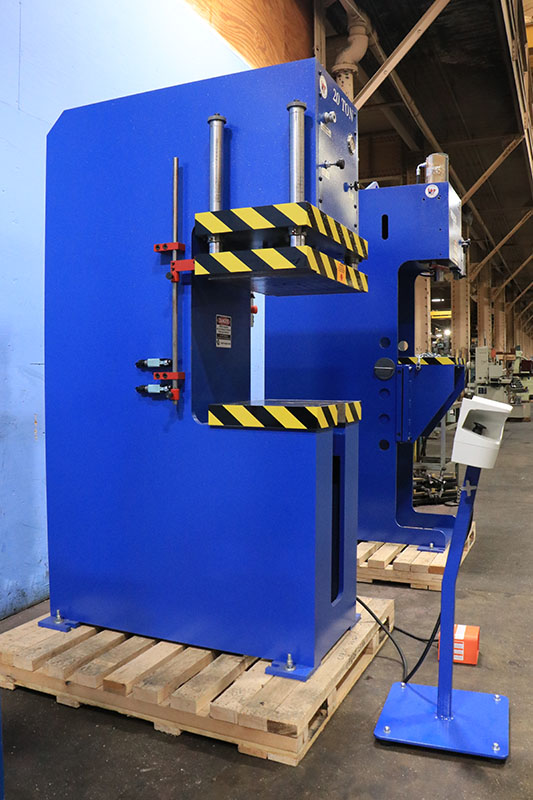

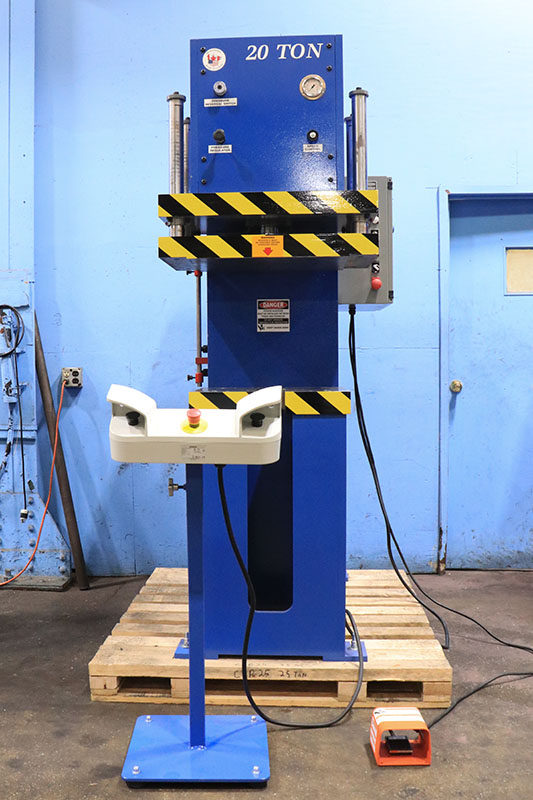

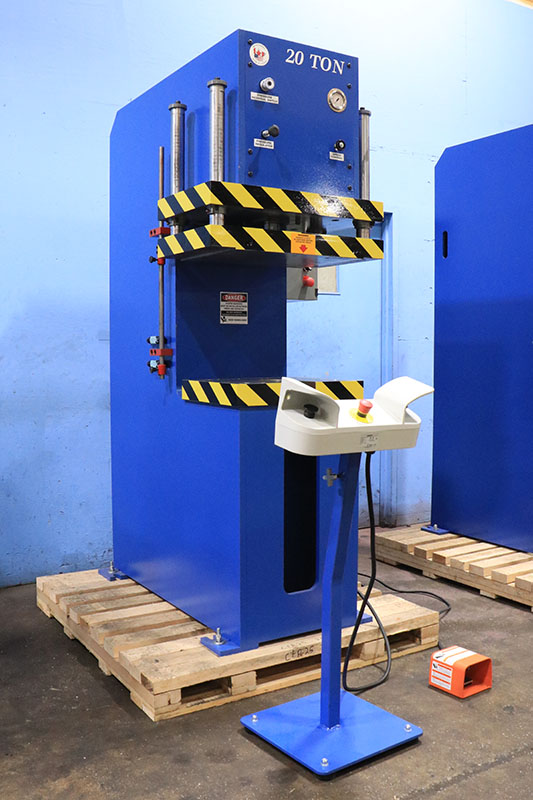

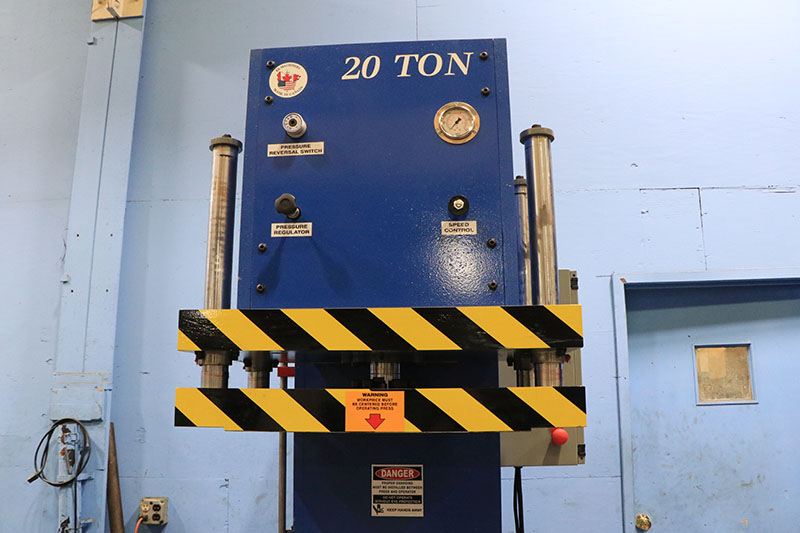

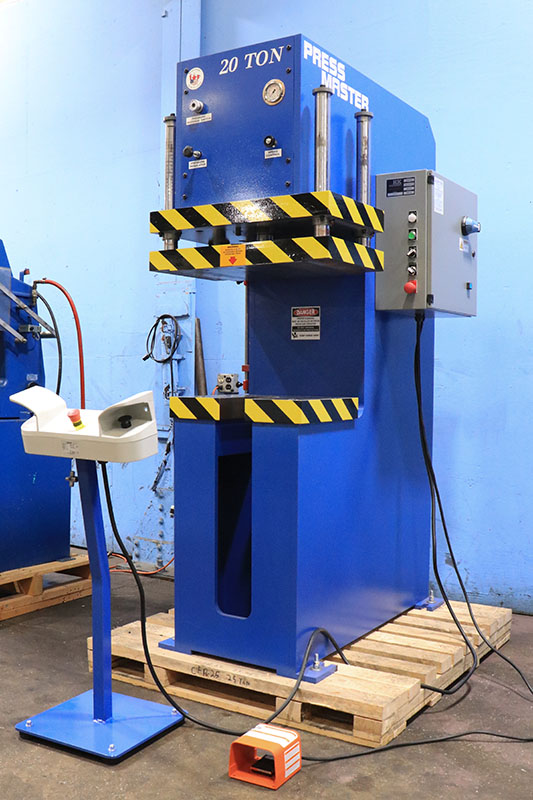

20 TON PRESSMASTER C-FRAME HYDRAULIC PRESS

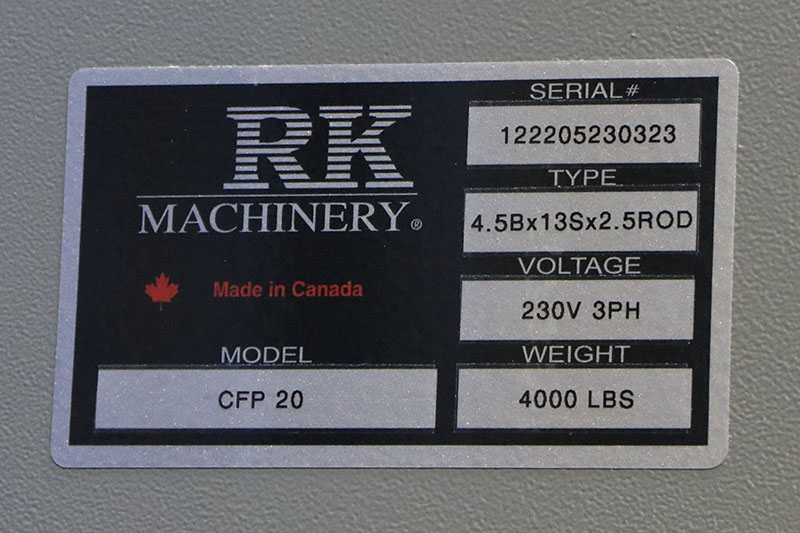

MODEL CFP-20T         S/N 122205230323
COMPLETELY REFURBISHED BY PRESSMASTER
WITH ALMOST ALL INTERNAL COMPONENTS REPLACED

TONS OF FORCE ......(MAX).................... 20 TONS
SPEED (IPM) ........(APPROACH/pressing)...... 172/51
RETURN SPEED ................................ 248

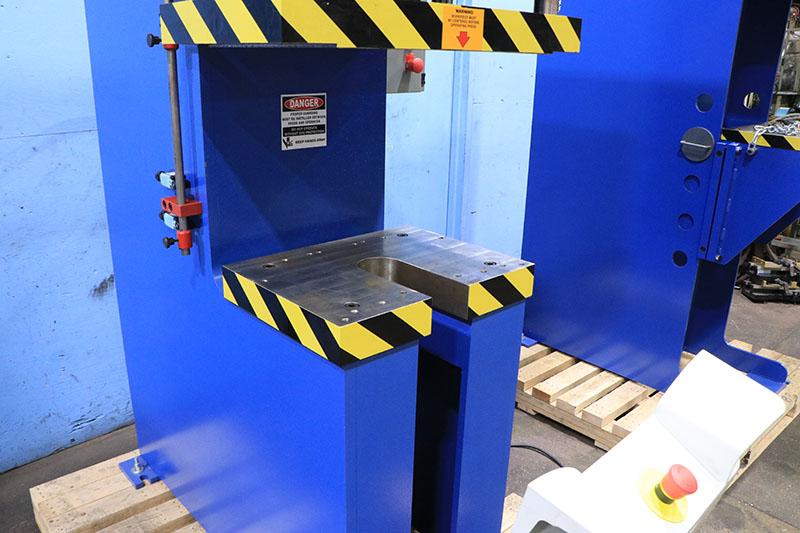

TABLE ..............(LR X FB)................ 20" X 12"
U-SLOT WIDTH ................................ 3"
DAYLIGHT .................................... 18"
STROKE ADJUSTABLE ........................... 12"
THROAT ...................................... 10"
FLOOR TO TABLE .....(FRONT TO BACK).......... 42"
HEIGHT (OVERALL)............................. 86"
CLEARANCE ................................... 7"
WIDTH ....................................... 22.5"
UPPER PLATEN .......(LR X FB)................ 14" X 7"
MOTOR HP @ 1760 RPM ......................... 10 HP
AMPS 230 VOLTS .............................. 28.4 AMP
AMPS 460 VOLTS .............................. 14.2 AMP
AMPS 575 VOLTS .............................. 11.4 AMP
CURRENTLY SET UP AT 160 VOLT, 14 AMPS, 3 PH, 60 CYCLE

STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- DISTANCE REVERSE SWITCH
- RAM TRAVEL IS GUIDED BY PRECISION-GROUND GUIDE RODS
- ADJUSTABLE STROKE CONTROL
- JOG MODE USED FOR SIMPLIFYING SETUPS

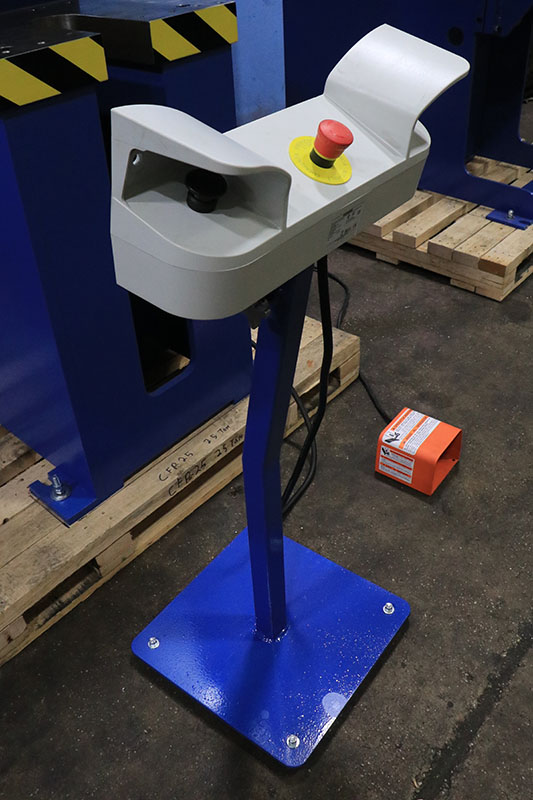

- DUAL PALM BUTTONS
- FOOT PEDAL
- ISOLATION PADS

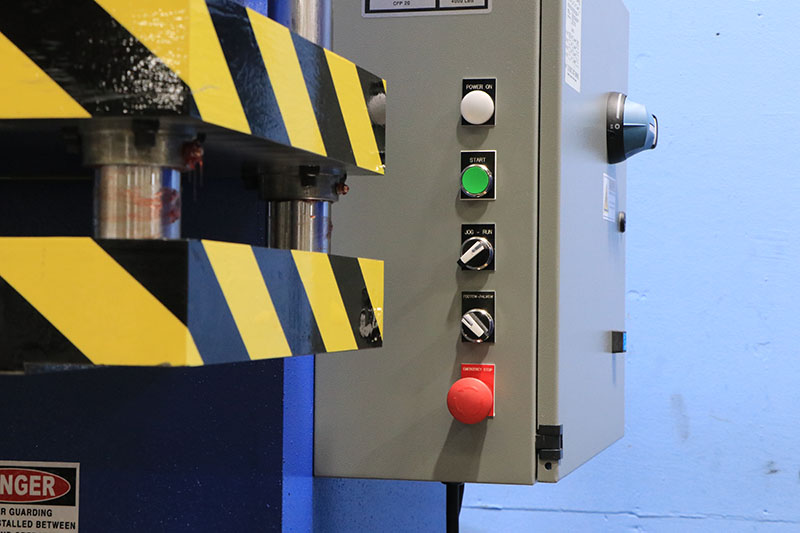

- PROGRAMMABLE CONTROL SYSTEM (PCS)
- LOW SPEED TEFC BALDOR ELECTRIC MOTOR
- MFG. IN NORTH AMERICA
