Magnum HBM-6A HYDRAULIC C-FRAME PRESSES

$7,950

Make:: Magnum

Model:: HBM-6A

Year:: 1999

Ref #:: 179540

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

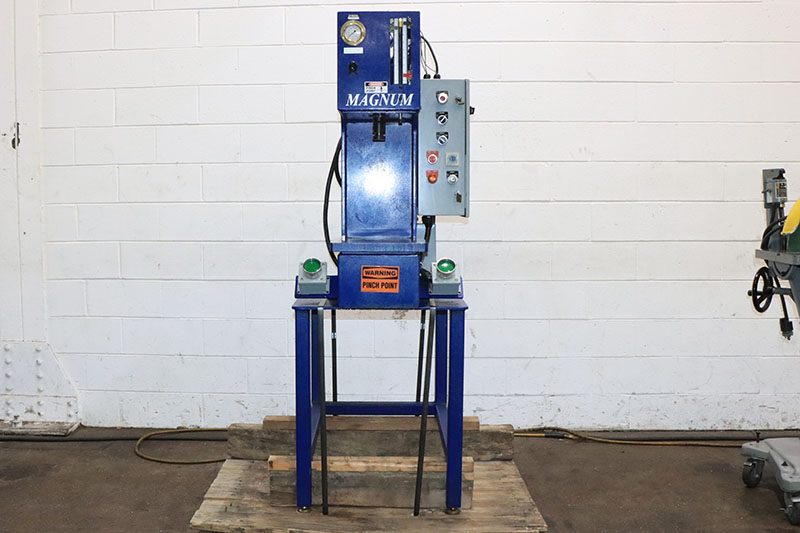

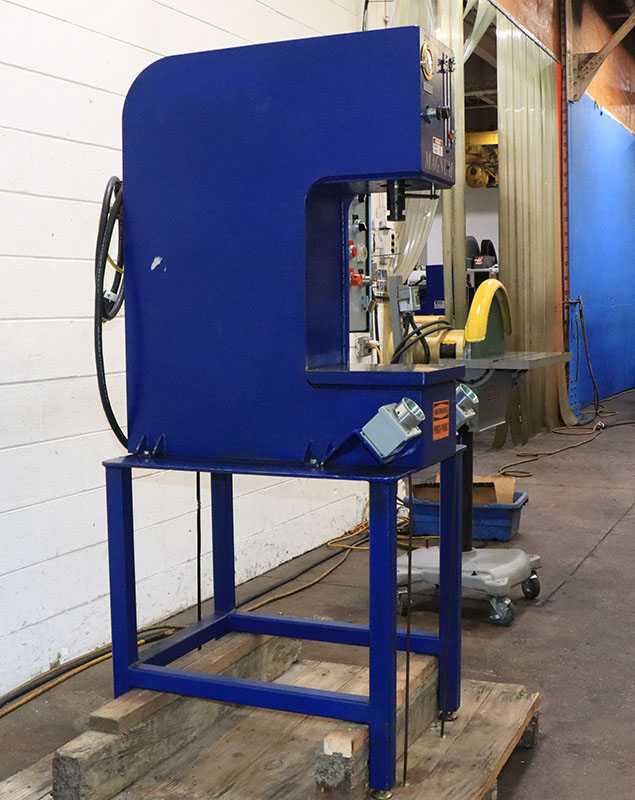

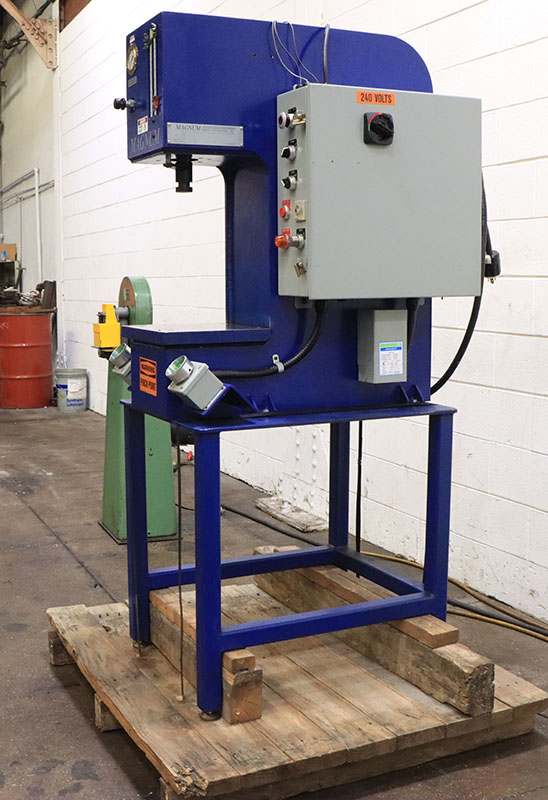

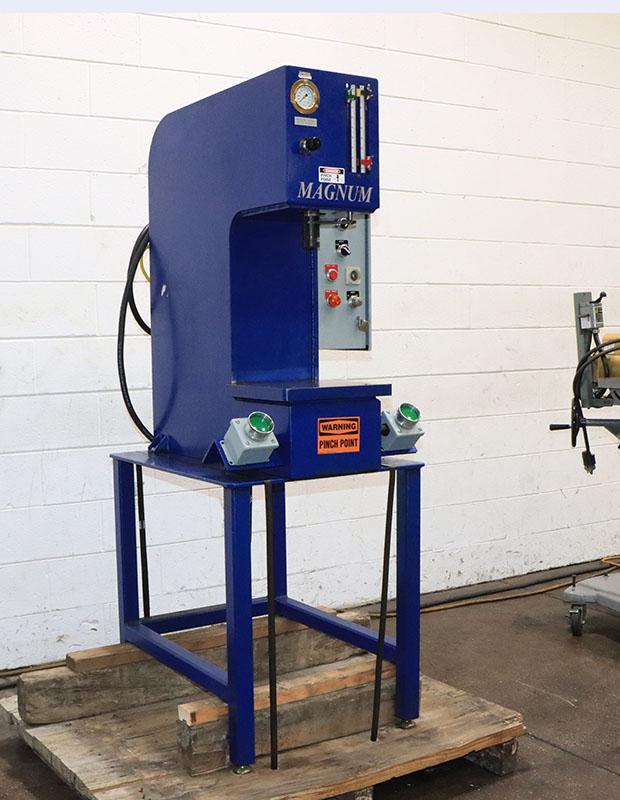

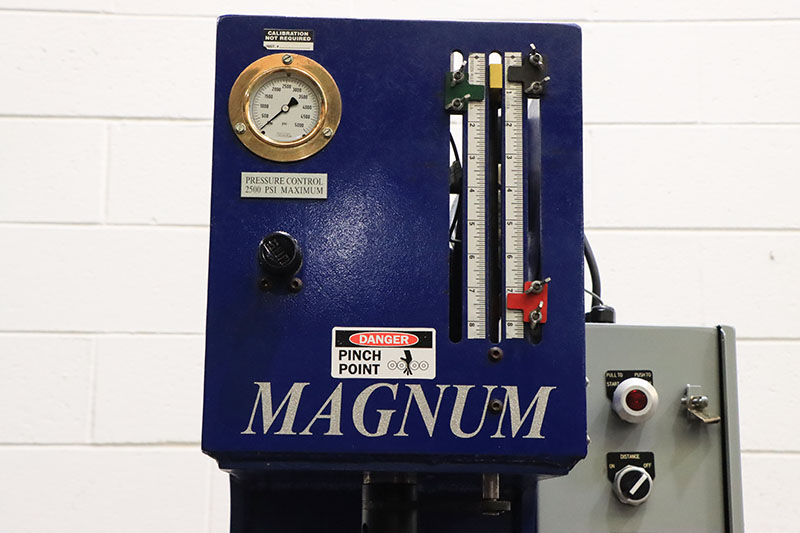

6 TON MAGNUM HYDRAULIC C-FRAME PRESS

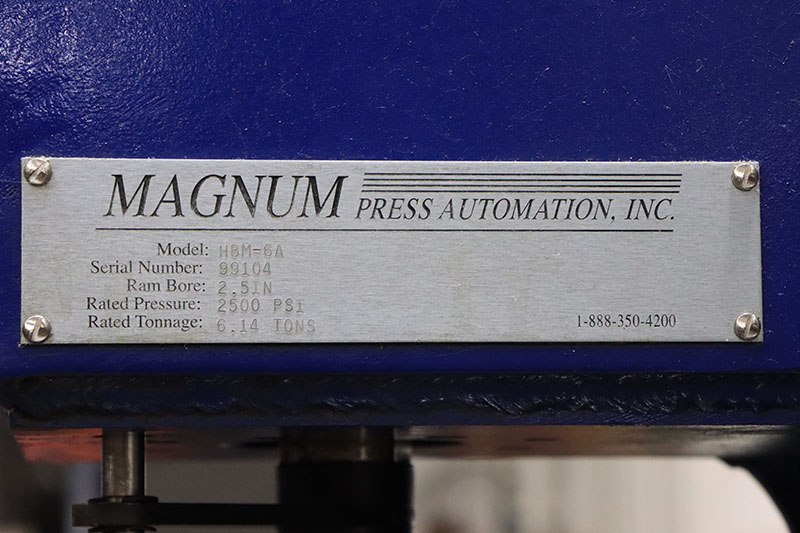

MODEL HBM-6A        S/N 99104        NEW 1999

RATED CAPACITY ....................... 6.14 TONS
STROKE ............................... 7"
THROAT ............................... 10"
DAYLIGHT ............................. 14"
BORE DIAMETER ........................ 2.5"
RAM DIAMETER ......................... 1.75"
CLOSING SPEED ........................ 220 IPM
PRESSING SPEED ....................... 110 IPM
RETURN SPEED ......................... 210 IPM
BED ............(R-L X F-B)........... 24" X 20"
FLOOR RO BED ......................... 41"
MAX. PSI ............................. 2500
MOTOR HP ............................. 3
MOTOR ................................ 480 / 3 PH.

EQUIPPED WITH:

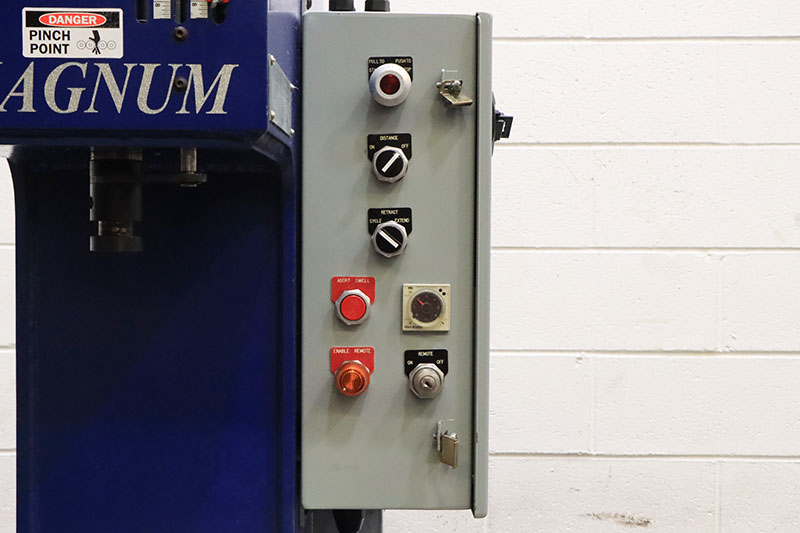

- ADJUSTABLE STROKE, SPEED CONTROL & TRAVEL LIMITS
- PRESSURE REVERSAL SWITCH
- ADJUSTABLE DWELL TIMER

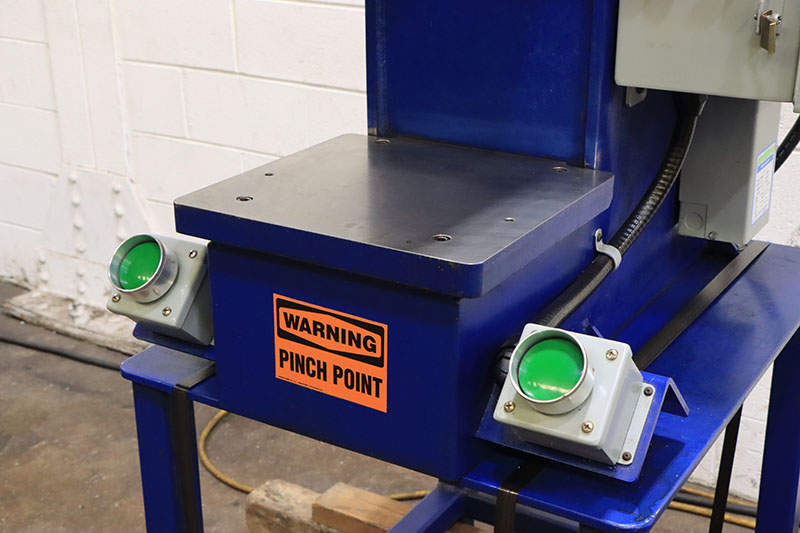

- PALM BUTTONS
- BENCH MOUNTED

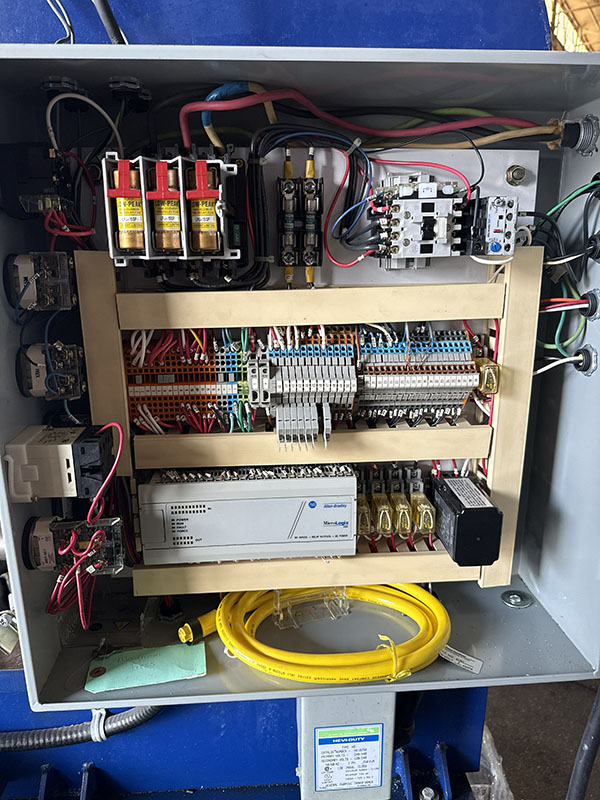

- ALLEN BRADLEY MICRO LOGIX 1000 PLC CONTROL

APPROX. DIMENSIONS: 34" X 46" X 64" H
APPROX. WEIGHT: 1,000 LBS.
