DoAll M300 ENGINE LATHES

$6,500

Make:
DoAll
Model:
M300
Year:
1976
Ref #:
164463

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

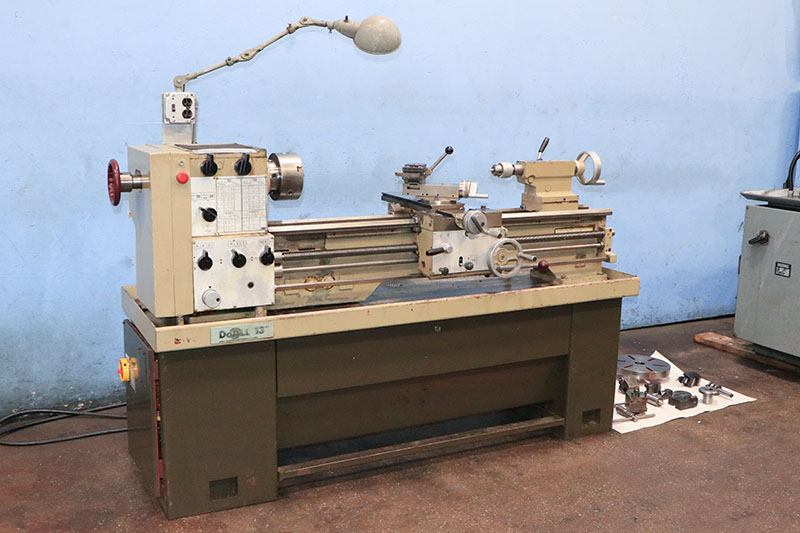

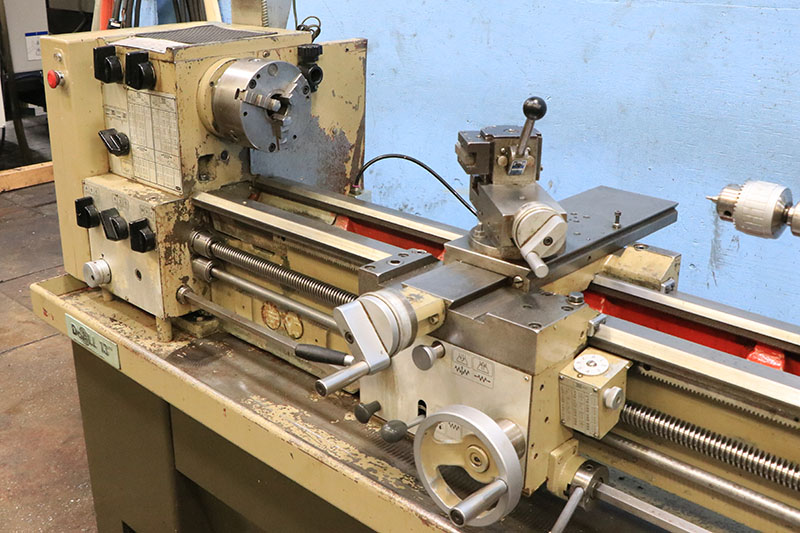

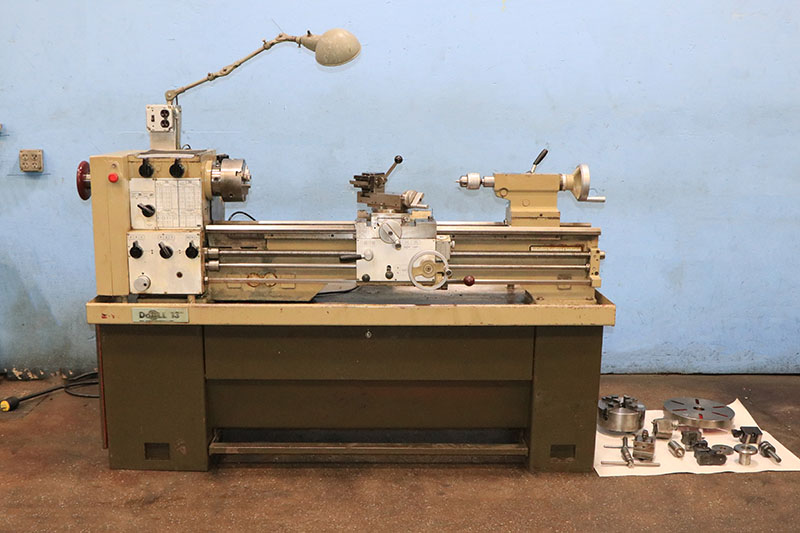

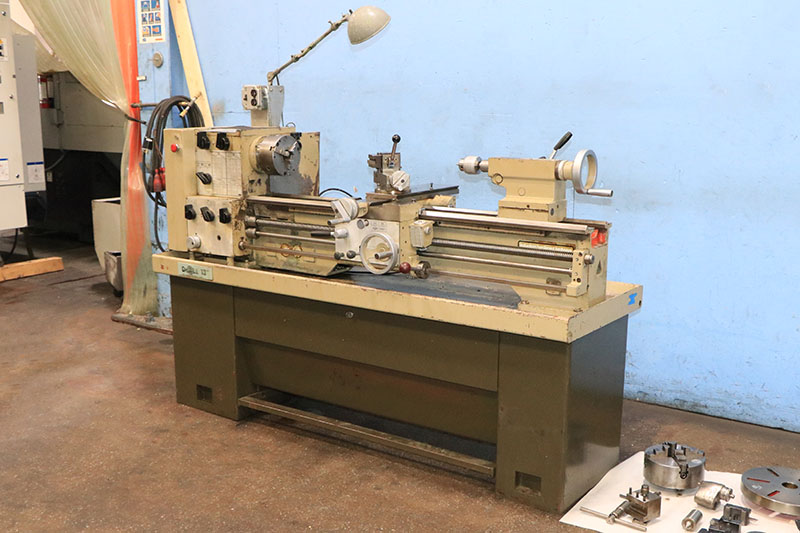

13"/19" X 40" DOALL/HARRISON
REMOVABLE GAP BED ENGINE LATHE,

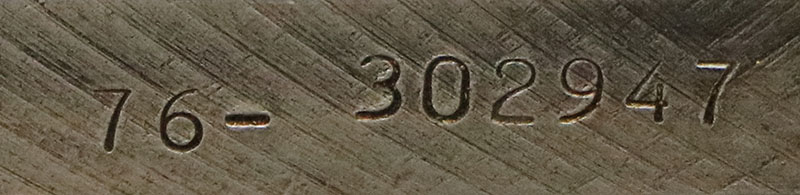

MODEL: M300,  S/N: 76-302947,  NEW: 1976

SPECIFICATIONS:
SWING OVER BED ......................... 13"
SWING OVER SADDLE ...................... 8-1/4"
SWING IN GAP ........................... 19"
DISTANCE BETWEEN CENTERS ............... 40"
HOLE THROUGH SPINDLE ................... 1-1/2"
SPINDLE NOSE, CAMLOCK, SIZE ............ D1-4"
SPINDLE SPEED RANGE(12) ................ 40 - 2,500 R.P.M.
LONGITUDINAL FEED RANGE ................ .001 - .040 IPR
CROSS FEED RANGE ....................... 1/2 OF LONGITUDINAL
THREAD RANGE:
    INCH (36) .......................... 2 TO 56 T.P.I.
    METRIC (39) ........................ .2 TO 14 MM

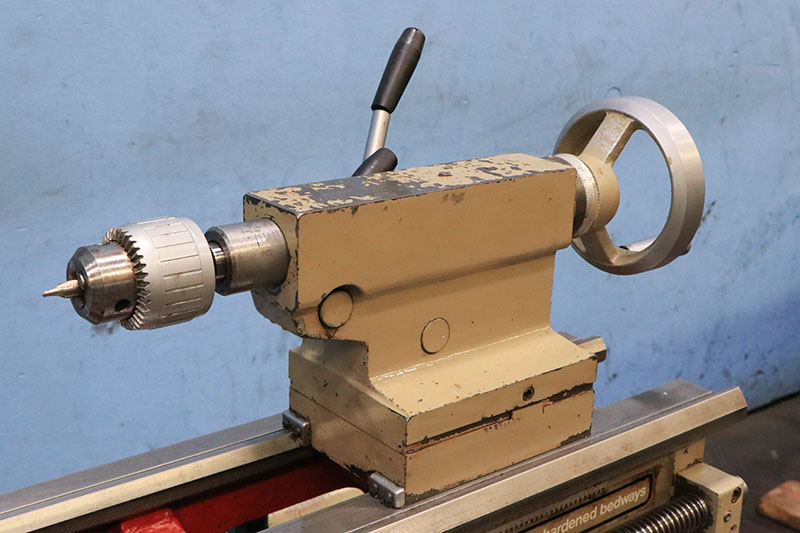

TAILSTOCK SPINDLE DIAMETER ............. 2.2"
TAILSTOCK SPINDLE TAPER ................ #3MT
TAILSTOCK SPINDLE TRAVEL ............... 4-3/8"
APPROXIMATE FLOOR SPACE ................ 84" x 34" x 56"H
APPROXIMATE WEIGHT ..................... 1,850 LBS.

EQUIPPED WITH:
- REMOVABLE GAP BED
- HARDENED BED WAYS

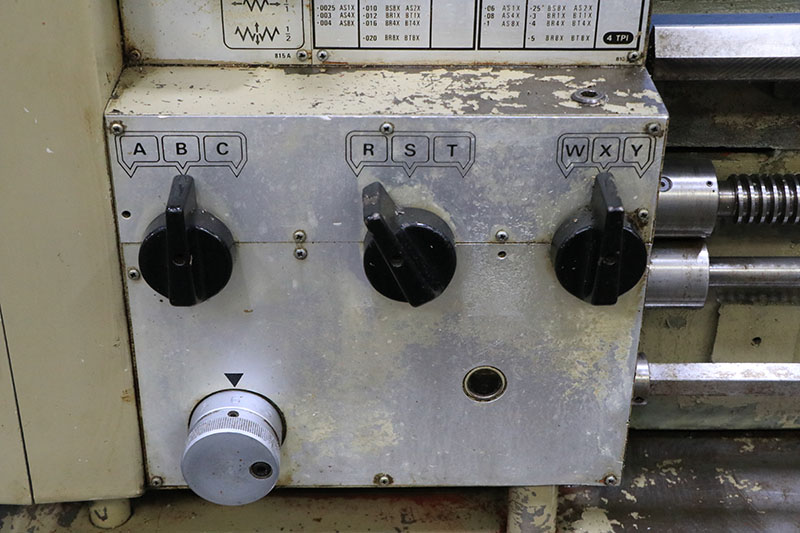

- INCH/METRIC THREADING CAPABILITY

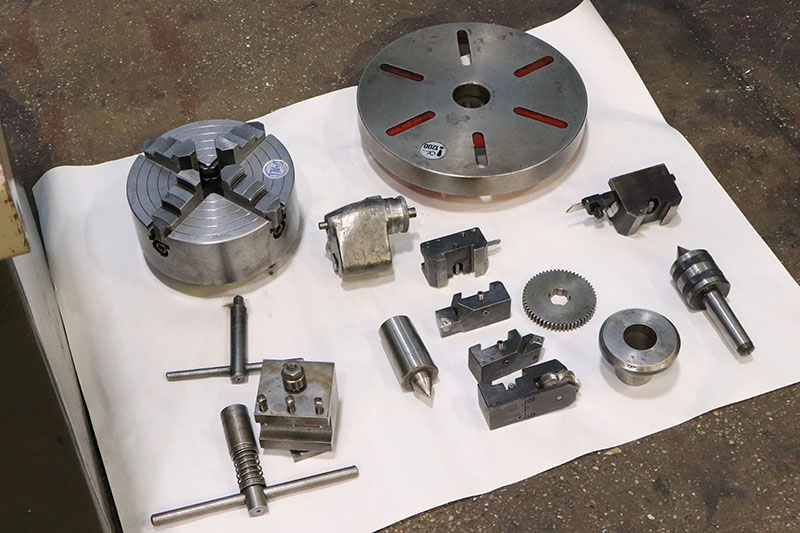

- 5C-COLLET DRAWBAR & NOSE PIECE

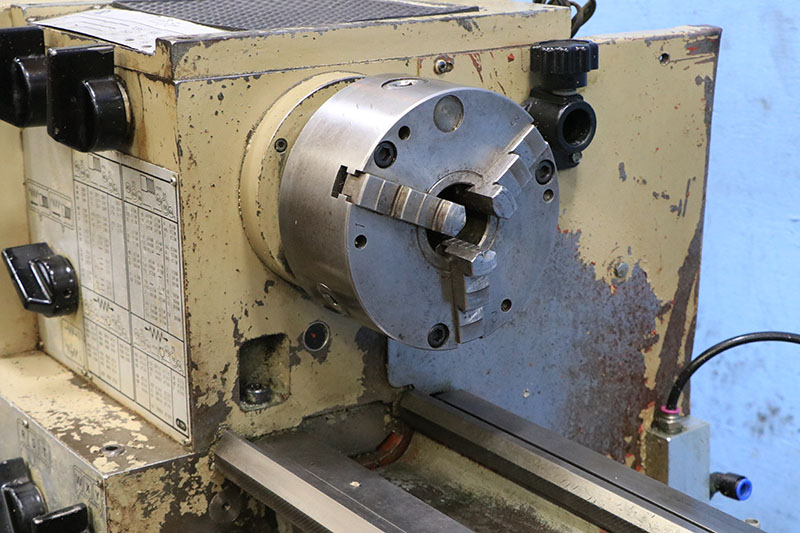

- 6" 3-JAW CHUCK
- 8" 4-JAW CHUCK

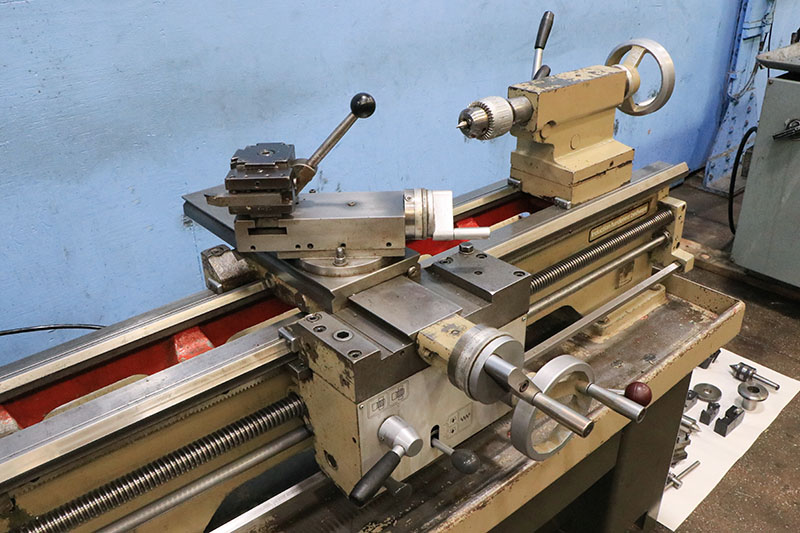

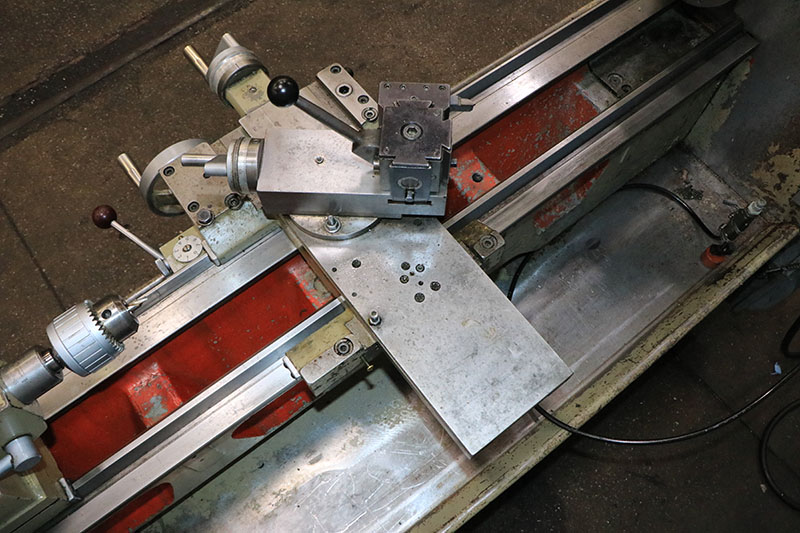

- FIMS QUICK CHANGE TOOLPOST w/HOLDERS
= FACEPLATE
- THREADING DIAL
- HARDENED BED
- SELF-CONTAINED COOLANT SYSTEM

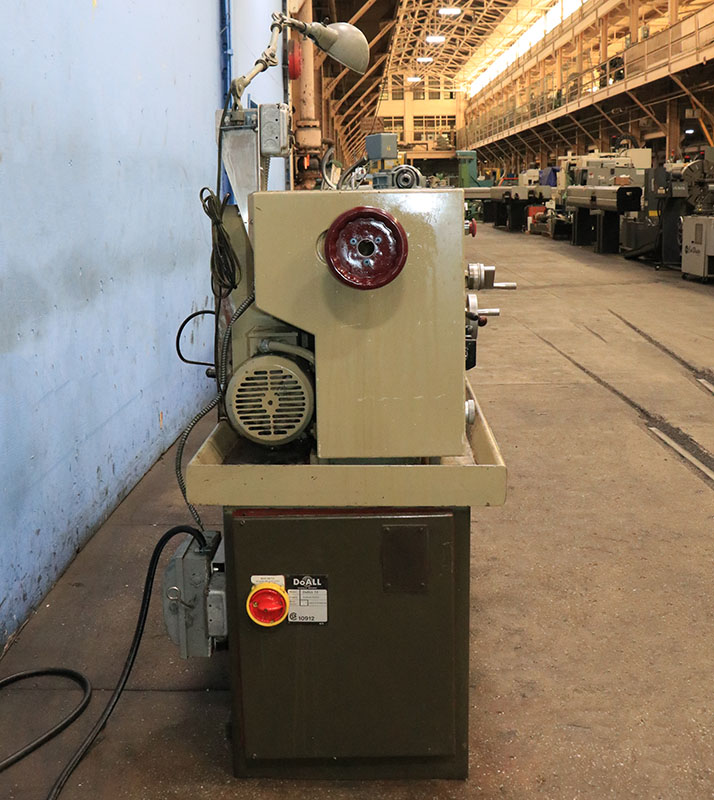

- 3 HP MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
