Doosan DNM 400II VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Doosan

Model:: DNM 400II

Year:: 2015

Ref #:: 179254

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

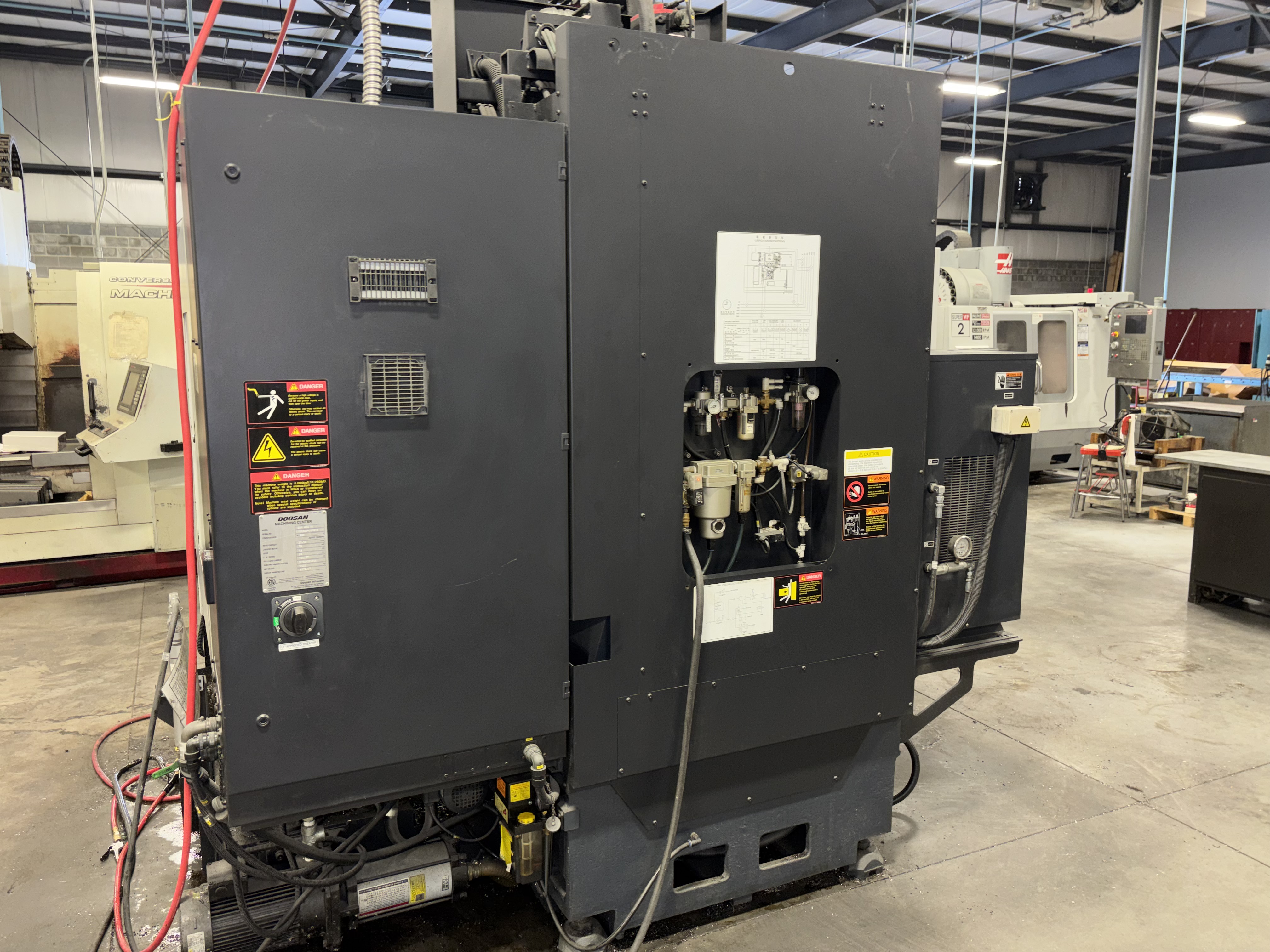

DOOSAN VERTICAL MACHINING CENTER
  MODEL: DNM-400 II, S/N: MV0009-003313, YEAR: 2015

SPECIFICATIONS:

X-AXIS TRAVEL.............. 30"  /  762mm
Y-AXIS TRAVEL.............. 17.1"  /  435mm
Z-AXIS TRAVEL.............. 20.1"  /  510mm

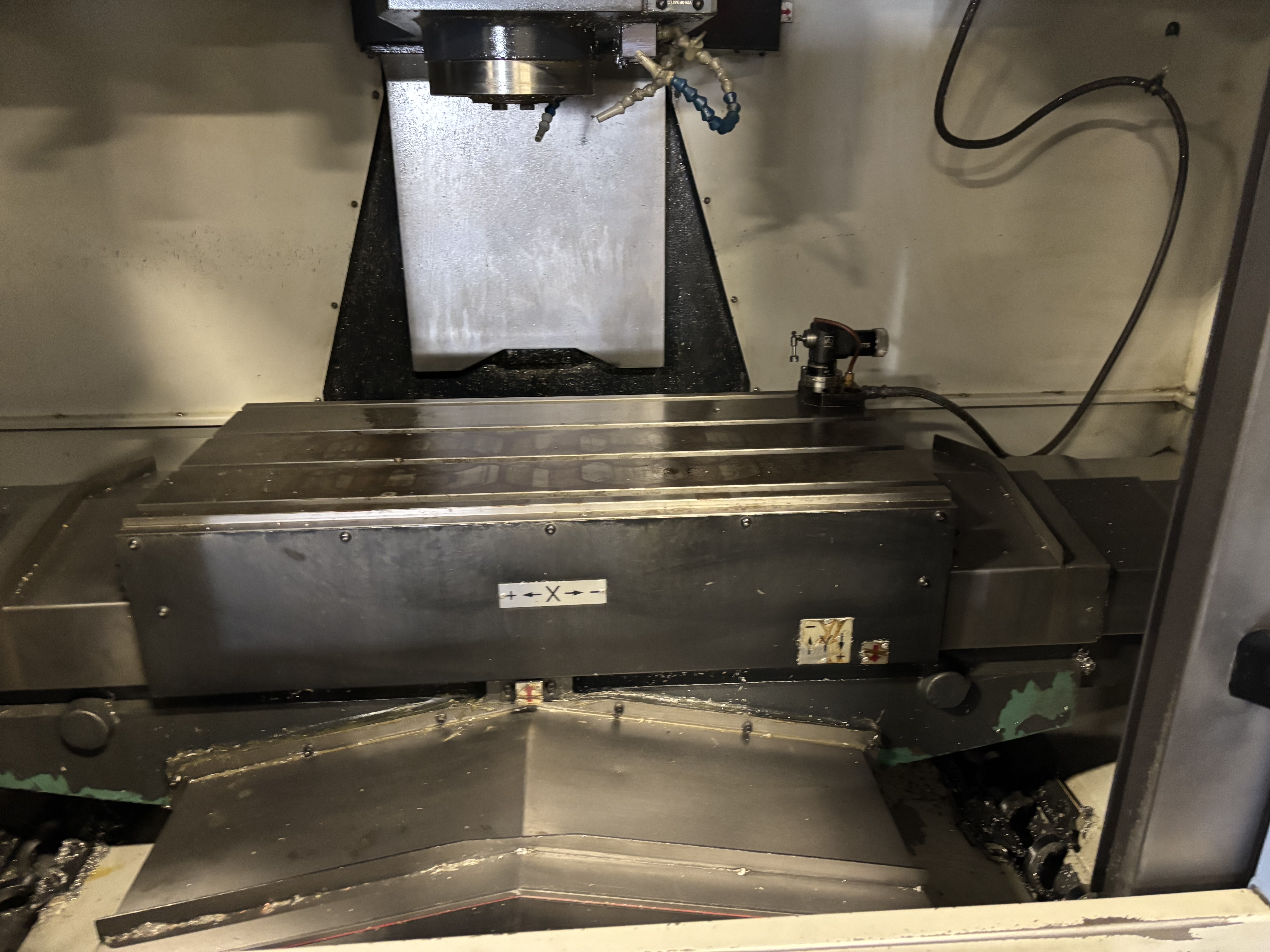

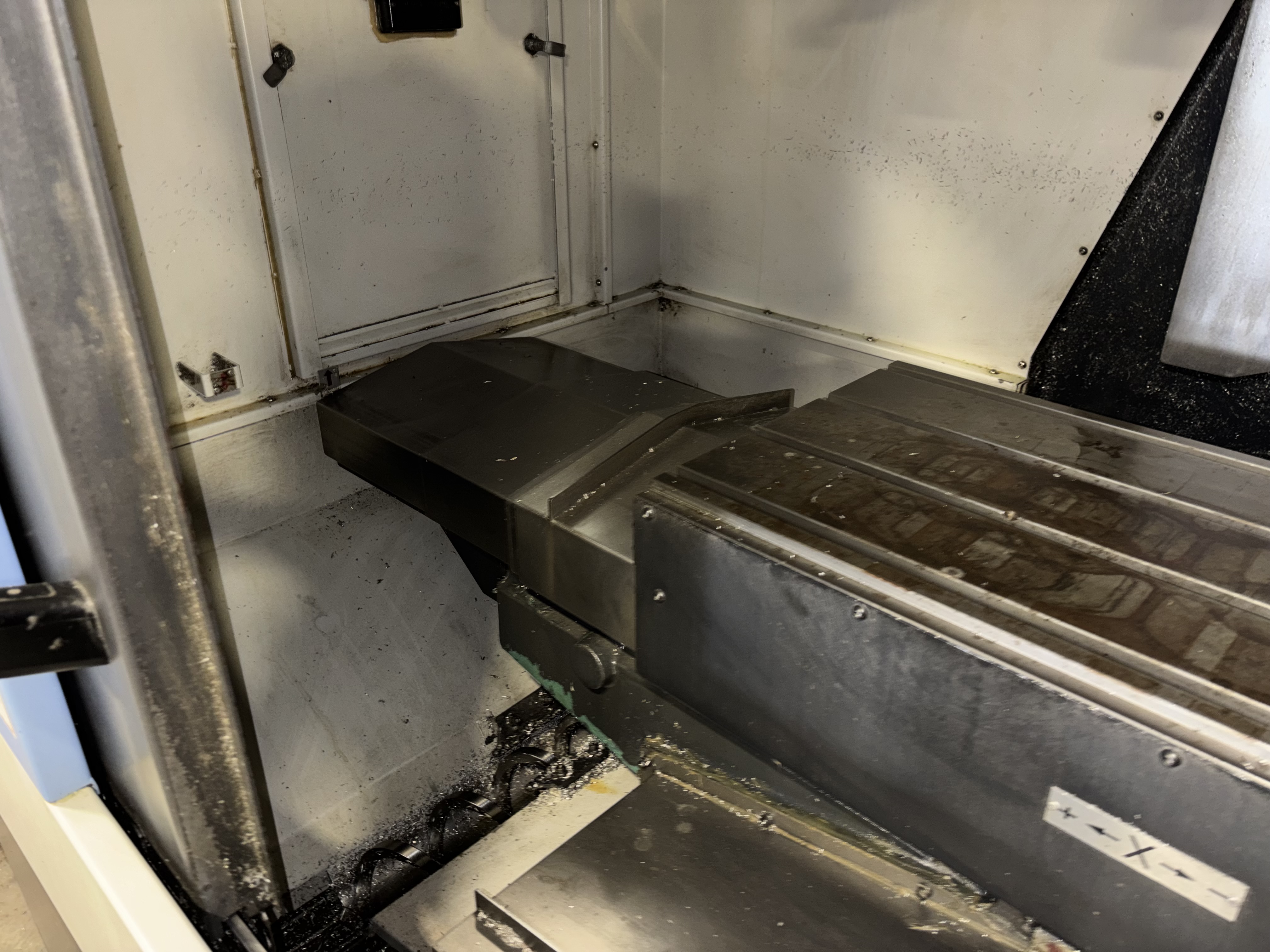

TABLE SIZE................. 36.2" X 17.1" / 1200mm X 540mm
MAXIMUM TABLE LOAD......... 1320 LBS / 600 kg
SPINDLE NOSE TO TABLE TOP.. 5.9" - 26"
SPINDLE MOTOR.............. 24.8 HP
MAX SPINDLE SPEED.......... 12,000 RPM
SPINDLE TAPER.............. CT 40 BIG PLUS
AUTOMATIC TOOL CHANGER..... 30 TOOLS

RAPID TRAVERSE RATES X-Y/Z. 1417/1181 IPM

APPROXIMATE MACHINE DIMS... 82.5" X 114" X 106.5"
APPROXIMATE MACHINE WEIGHT. 12,500 LBS

EQUIPPED WITH:

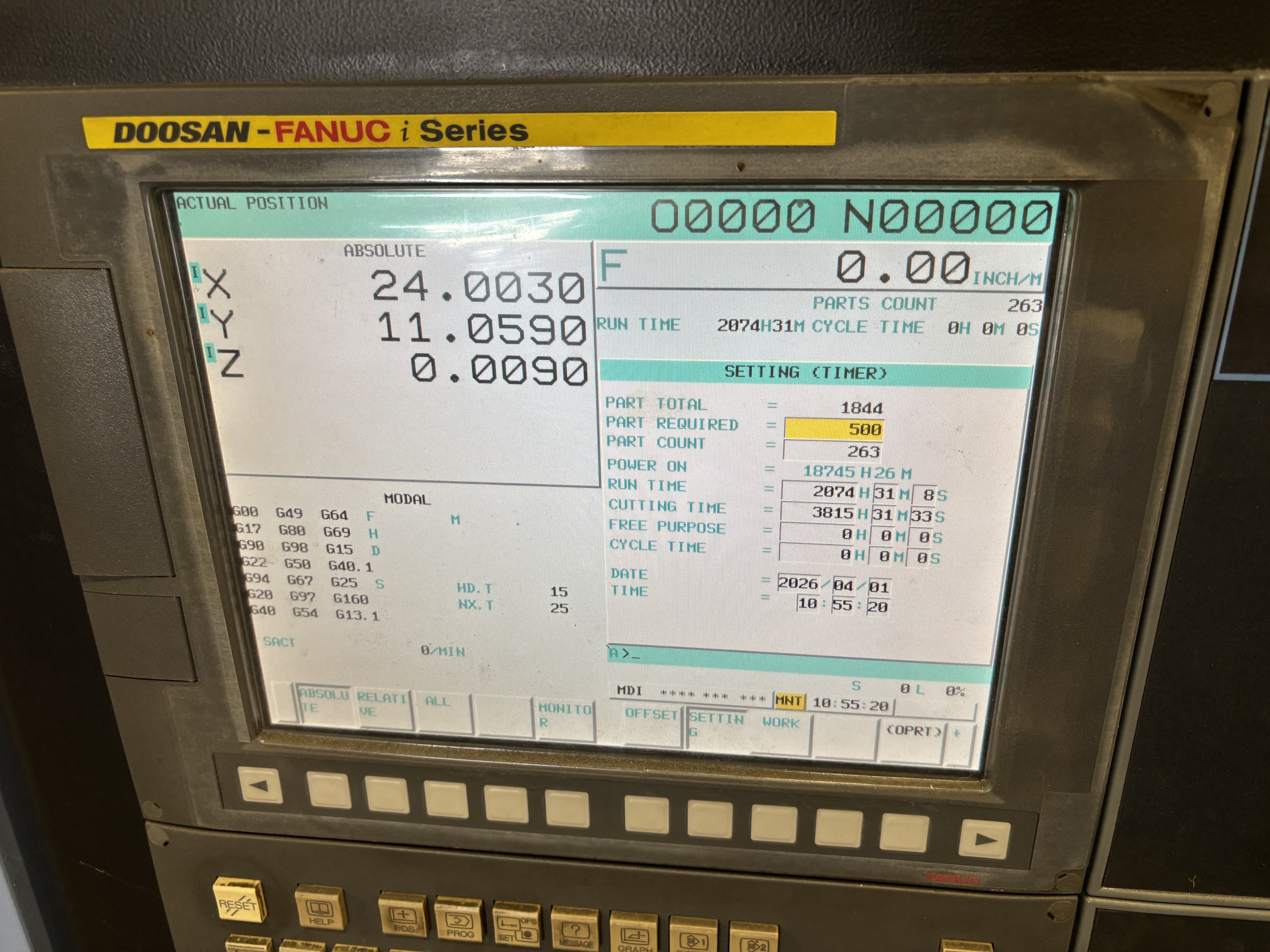

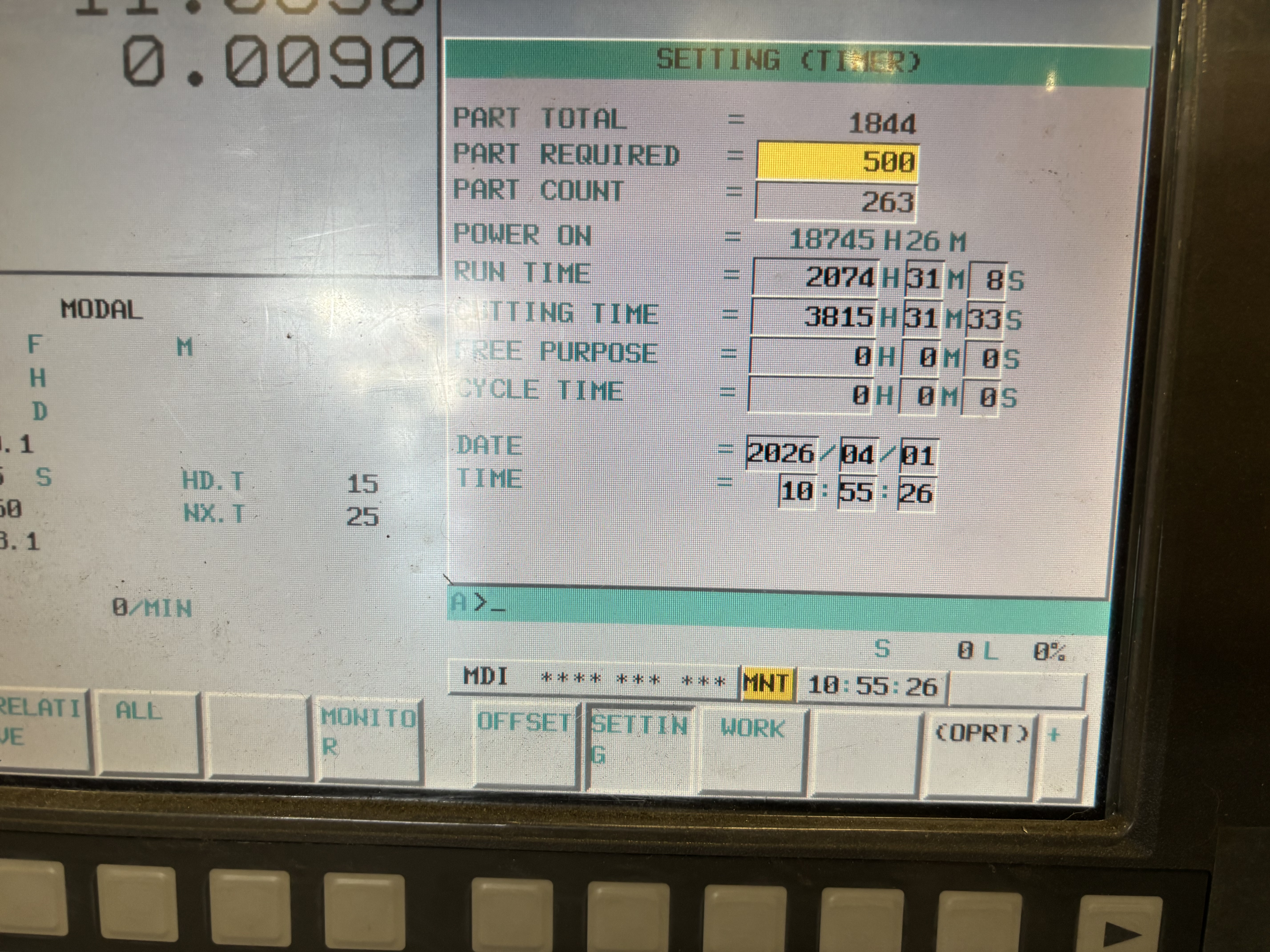

FANUC i SERIES CNC CONTROL
REMOTE JOG HANDLE

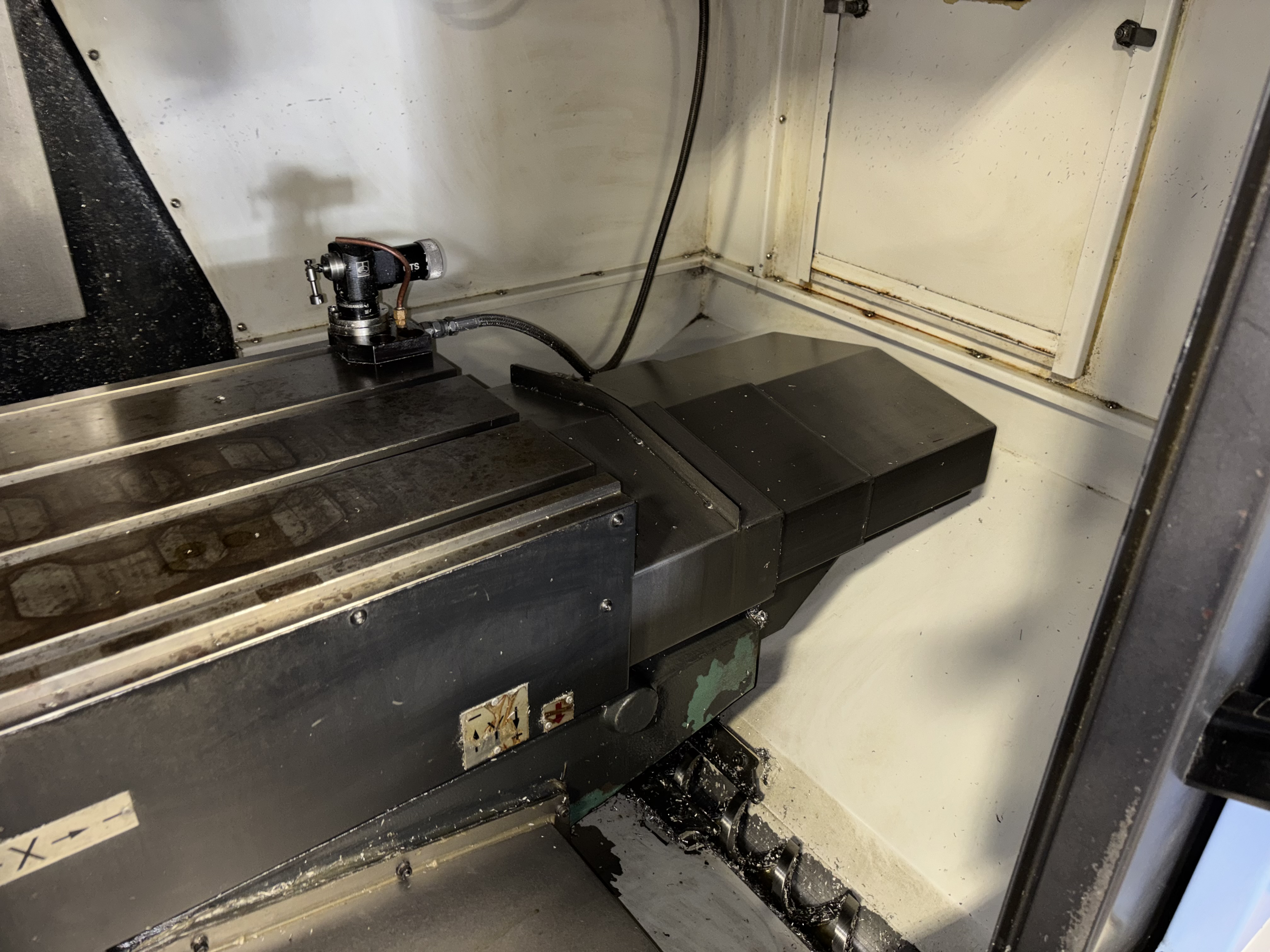

TOOL TOUCH PROBE
COOLANT THRU SPINDLE
SPINDLE CHILLER
TWIN AUGERS
LNS CHIP CONVEYOR

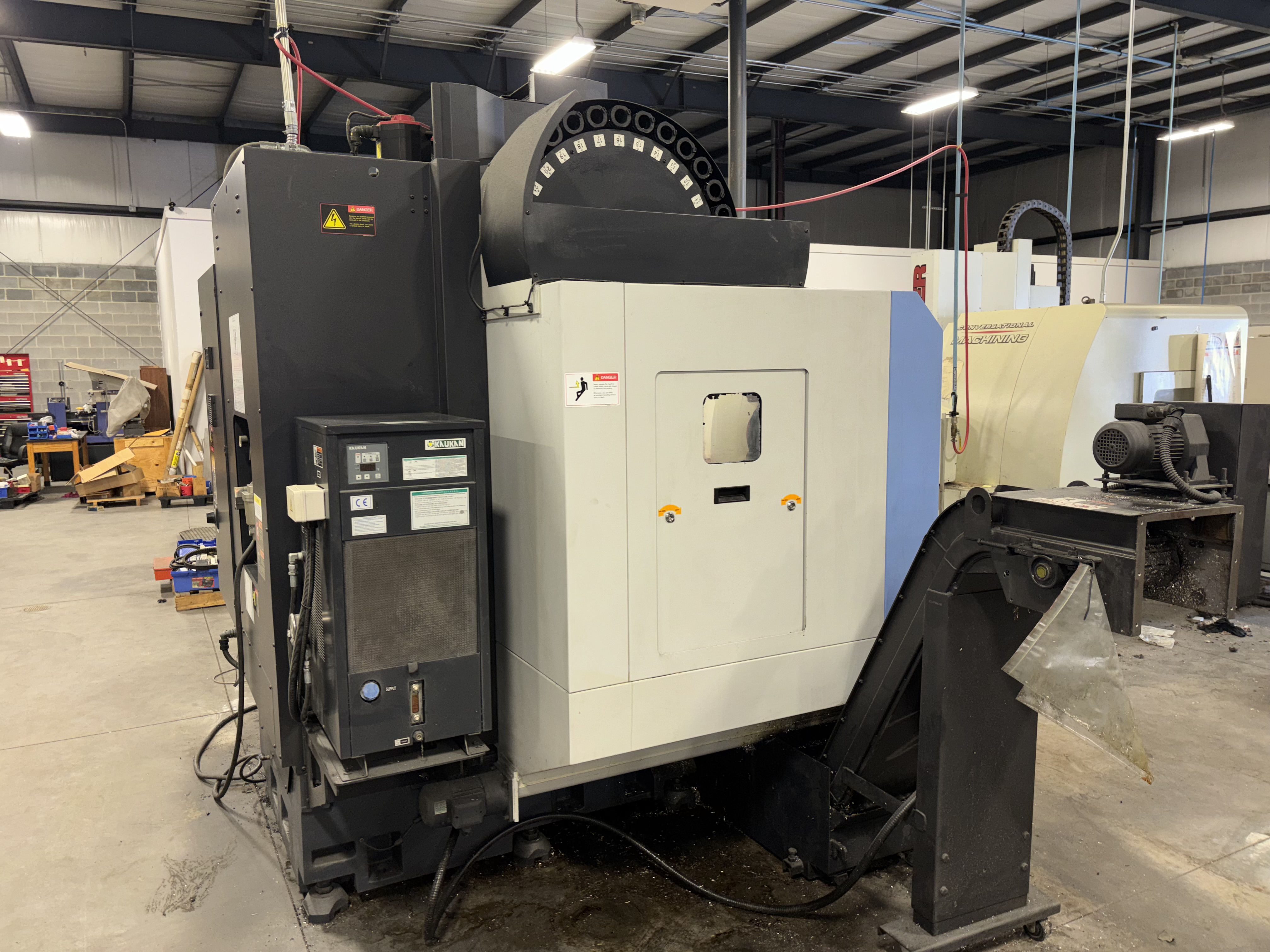

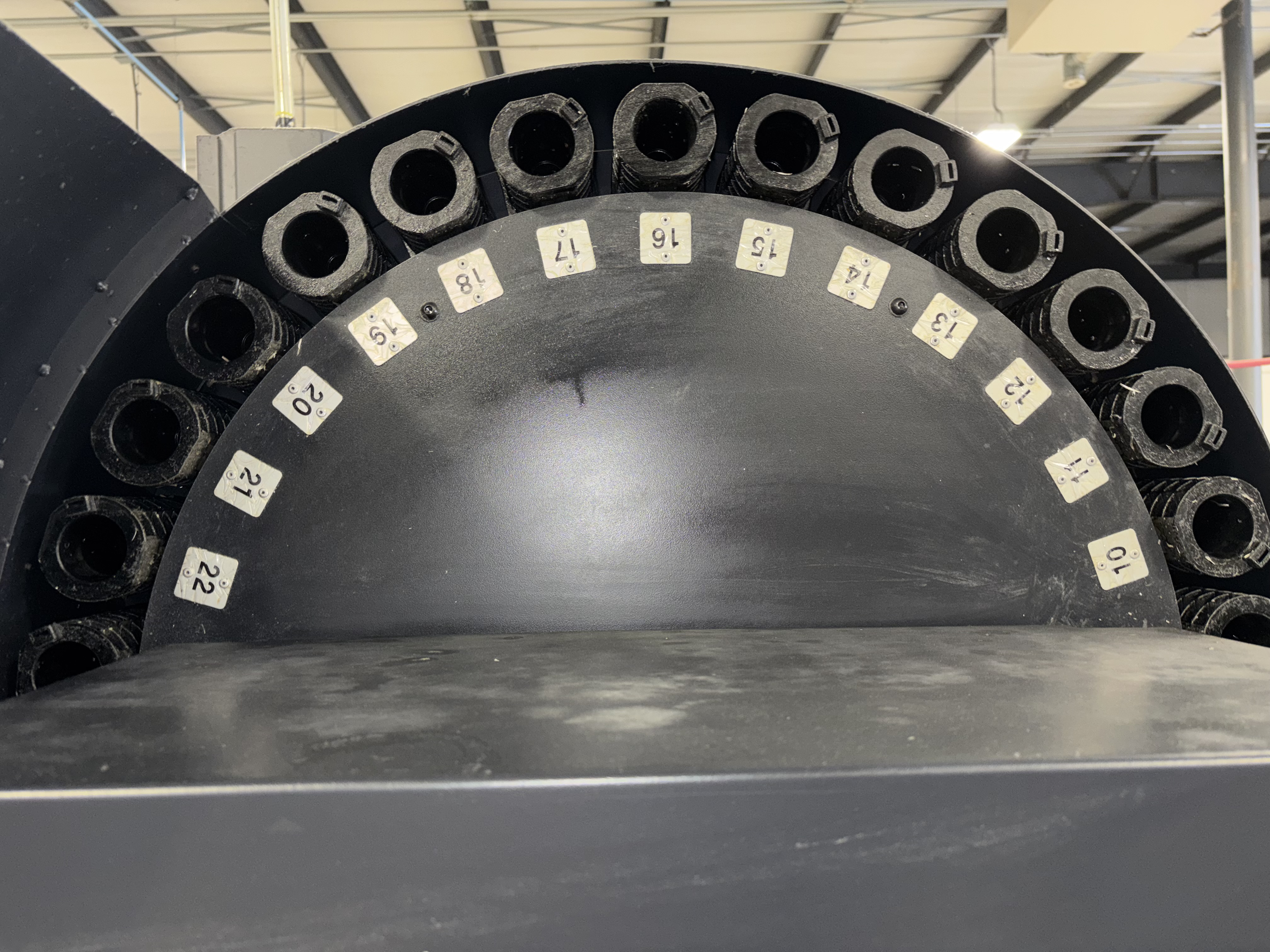

30 STATION SIDE MOUNT ATC
