Watch Video:

Doosan HP-6300 HORIZONTAL MACHINING CENTERS (HMC's)

$145,000

Make:
Doosan
Model:
HP-6300
Year:
2008
Ref #:
162429

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

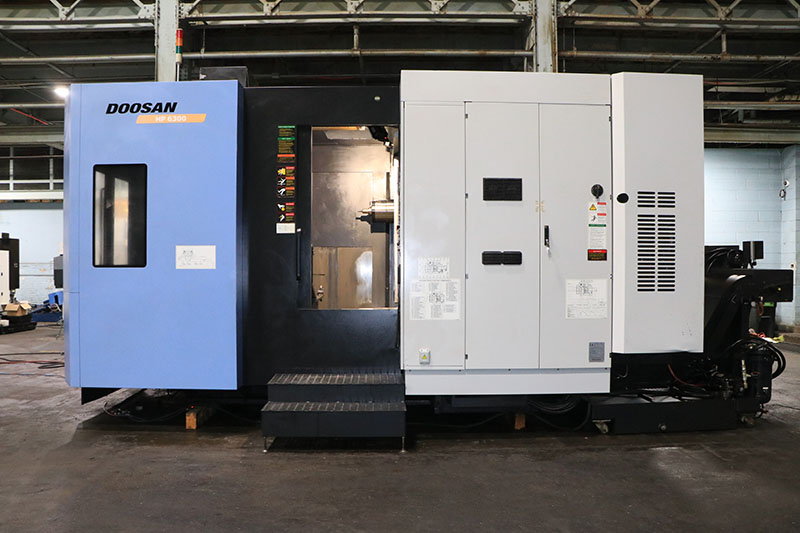

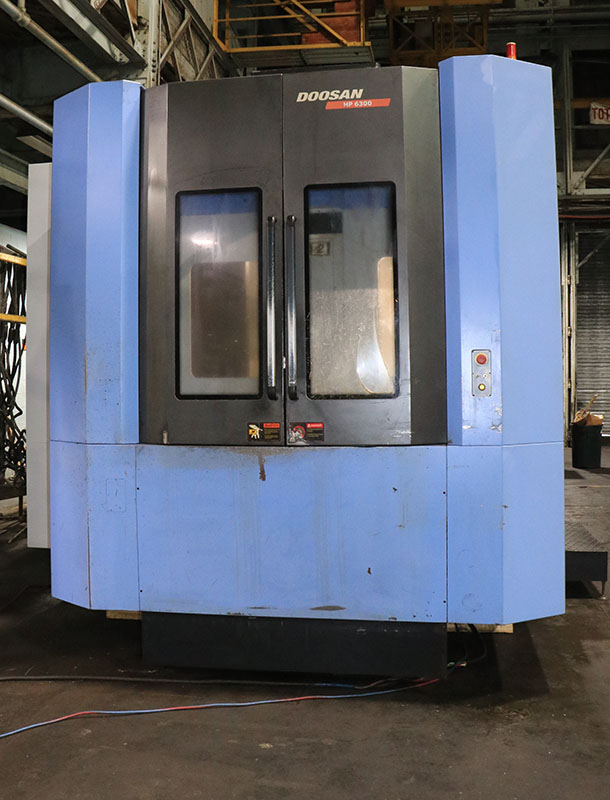

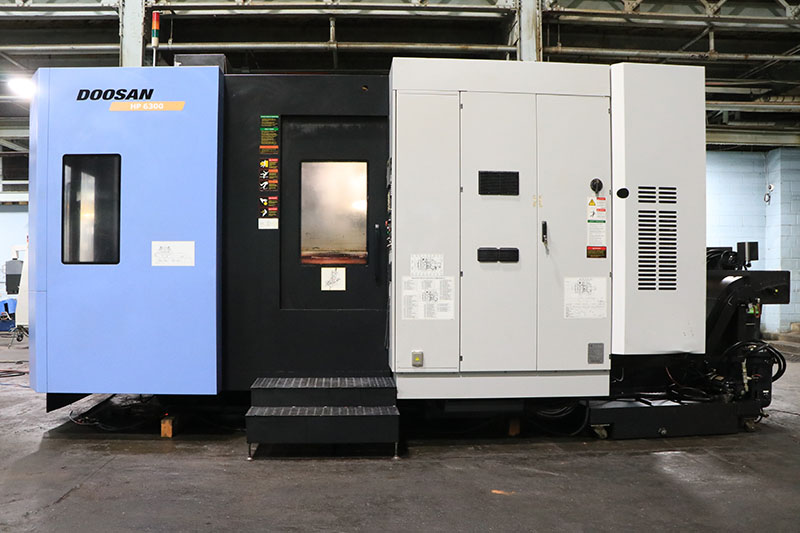

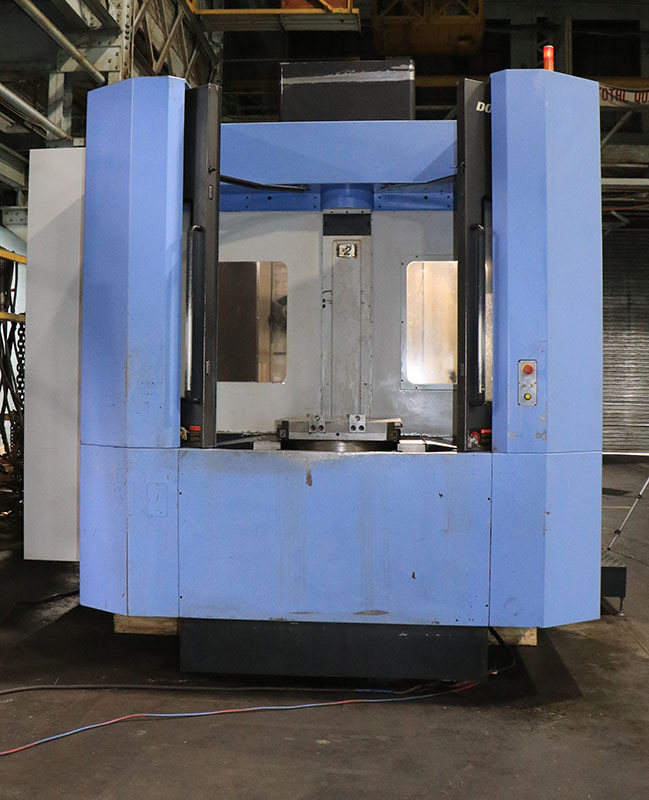

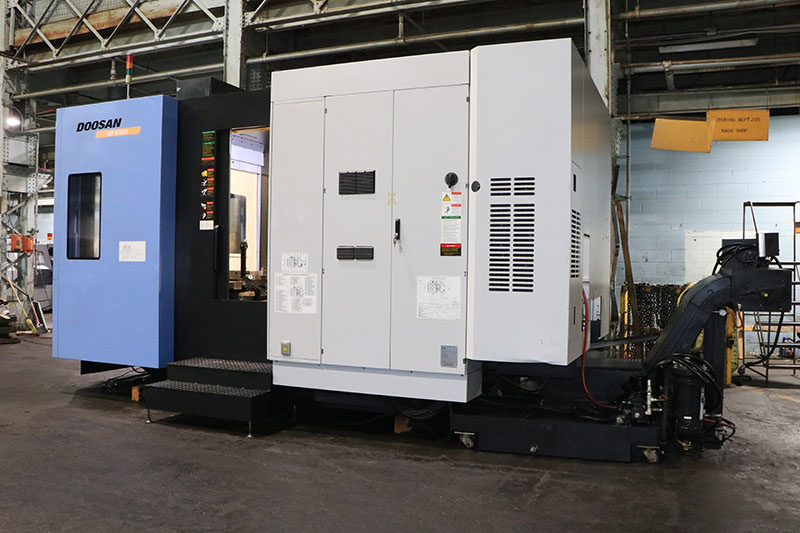

DOOSAN HORIZONTAL MACHINING CENTER

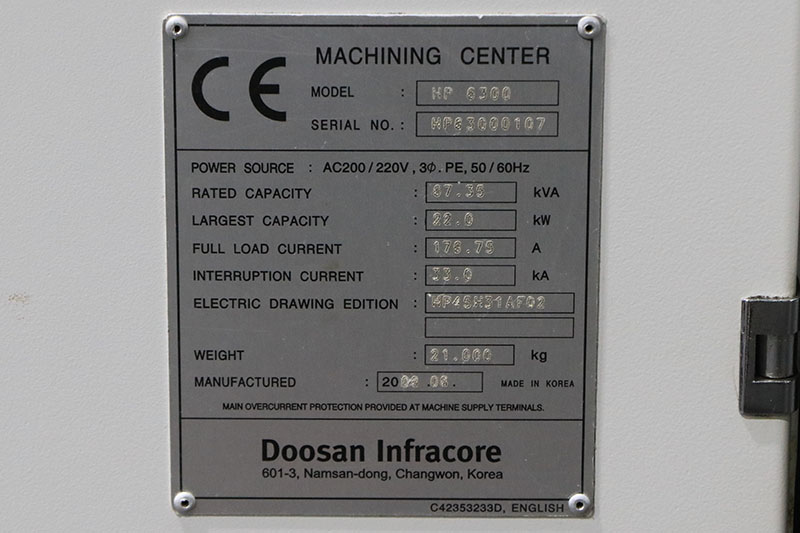

MODEL: HP-6300,  S/N: HP63000107,  MFG: 2008

SPECIFICATIONS:

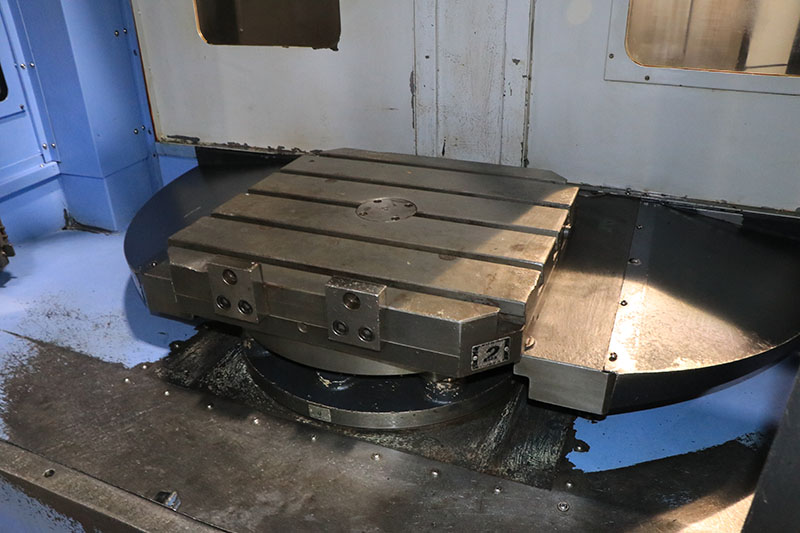

PALLET SIZE .......................... 24.8" X 24.8" (630MM)
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 39.37"
  Y-AXIS TRAVEL ...................... 33.46"
  Z-AXIS TRAVEL ...................... 33.46"
SPINDLE NOSE TO PALLET CENTER  ....... 2.952" - 36.41"
SPINDLE CENTER TO PALLET TOP ......... 5.90" - 39.37"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING ...................... 0.001 DEGREE
MAXIMUM WORKPIECE WEIGHT ............. 2650 LBS
RAPID TRAVERSE RATE (X/Y/Z) .......... 1,889 IPM
MAX CUTTING FEED RATE ................ 944 IPM

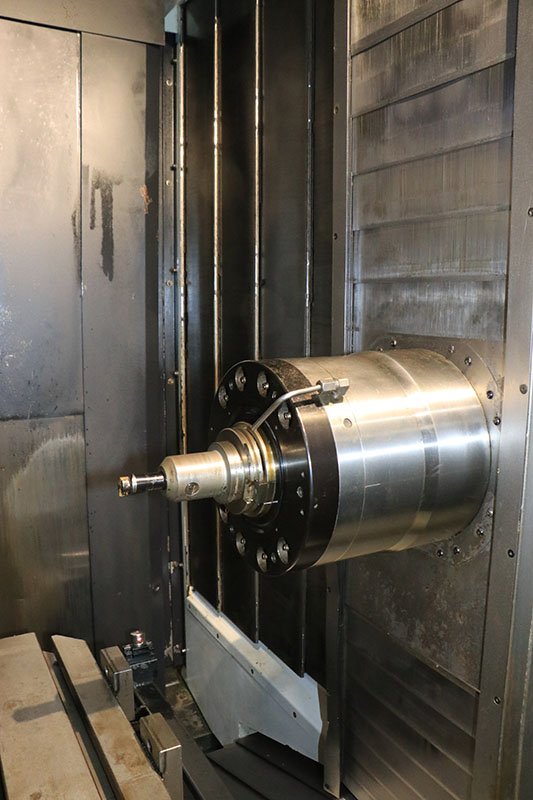

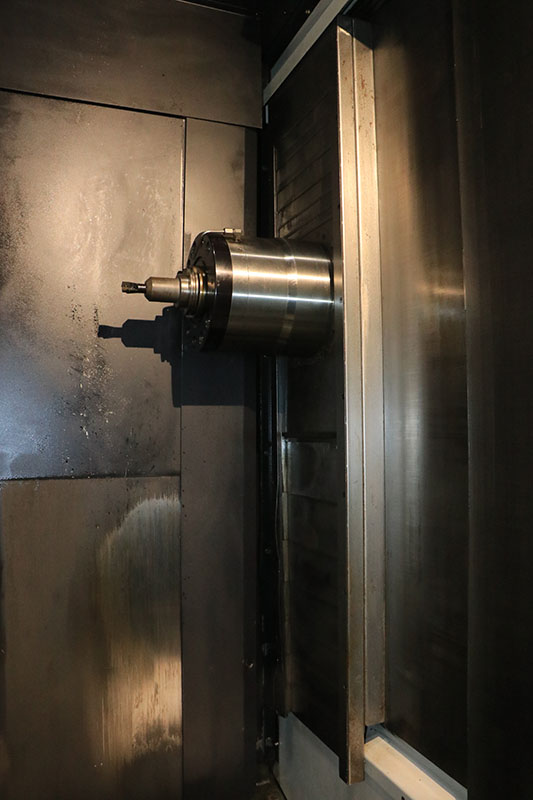

SPINDLE TAPER ........................ CAT-50
MAXIMUM SPINDLE SPEEDS ............... 10,000 RPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
MAXIMUM TOOL DIAMETER ................ 4.9"
MAX. TOOL DIA. WITHOUT ADJACENT TOOLS. 9.8"
MAXIMUM TOOL WEIGHT .................. 44 LBS
SPINDLE DRIVE ........................ 30 HP
APPROXIMATE DIMENSIONS ............... 230" x 140" x 132"
APPROXIMATE WEIGHT ................... 46,300 LBS.

EQUIPPED WITH:

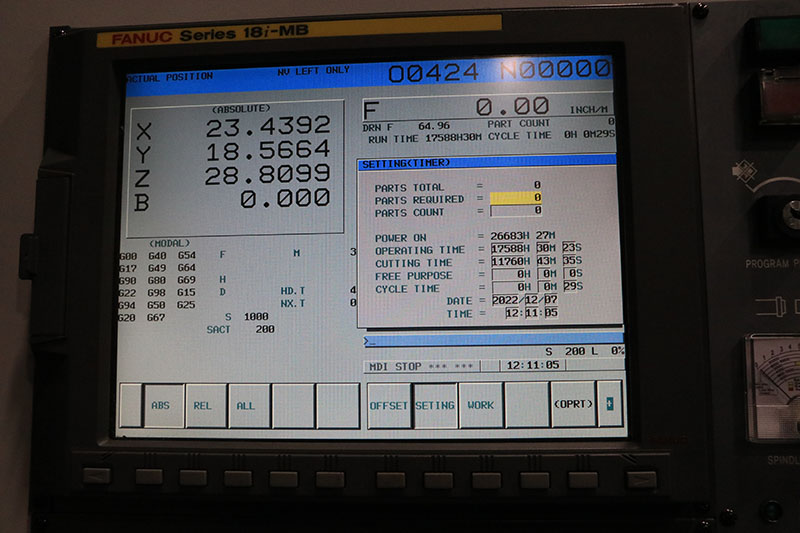

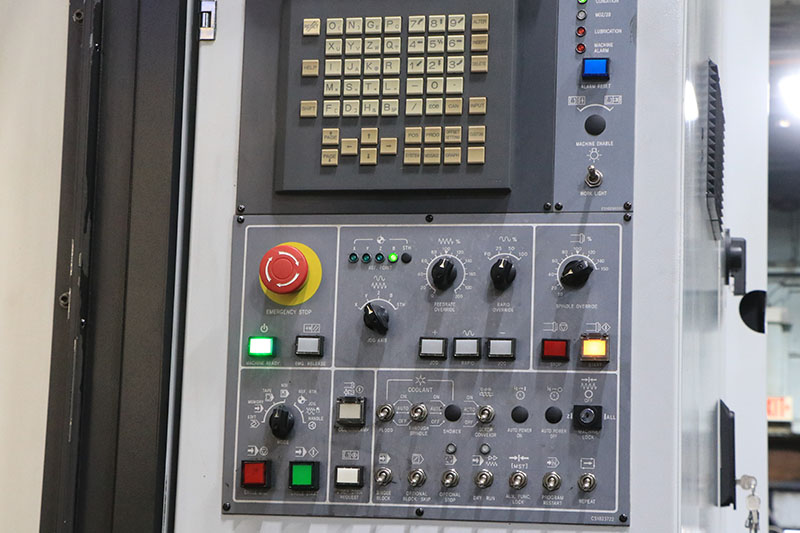

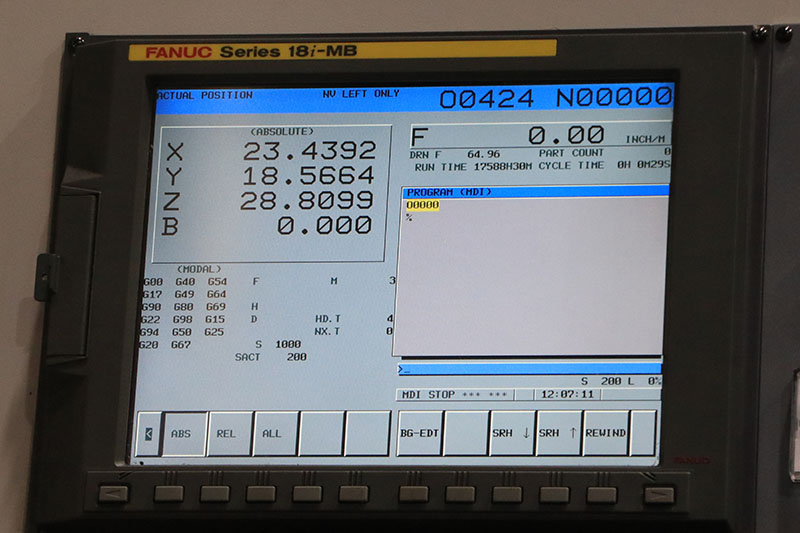

- FANUC MODEL: 18iMB 4 AXIS CONTROL

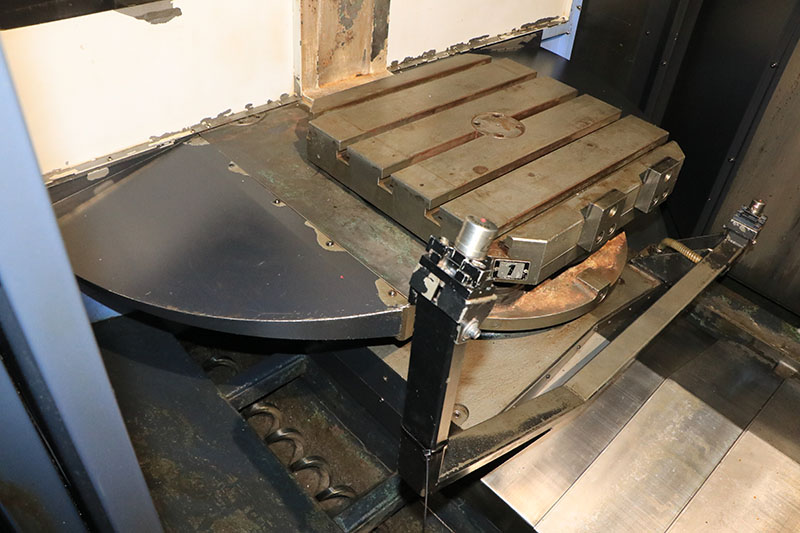

- FULL FOURTH AXIS PALLET .001" INDEX
- THRU-SPINDLE COOLANT
- 2 PALLETS

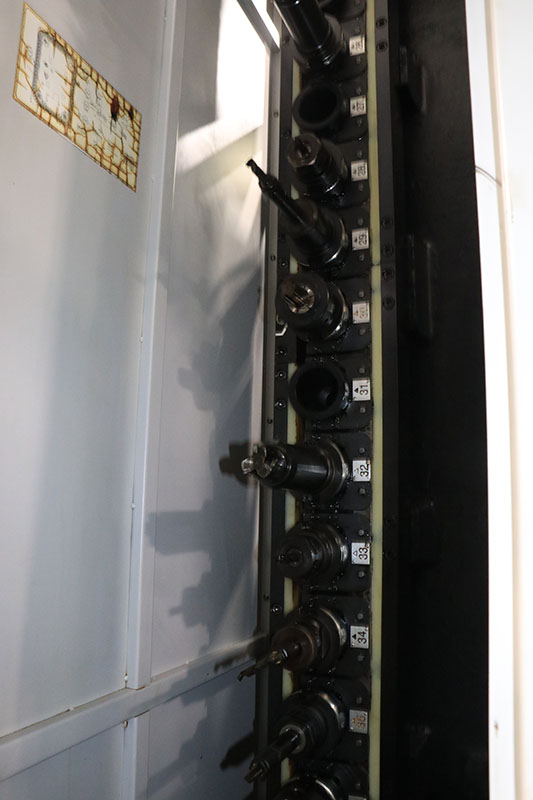

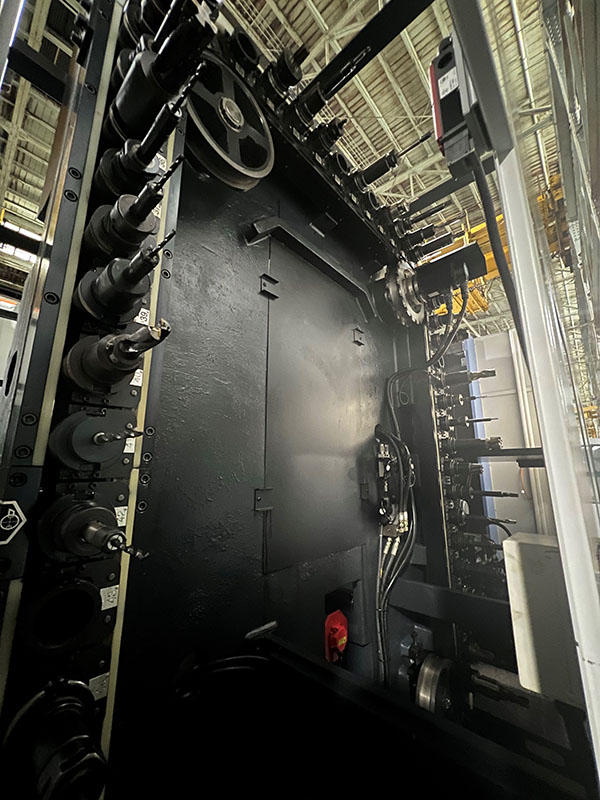

- 60 STATION TOOL CHANGER

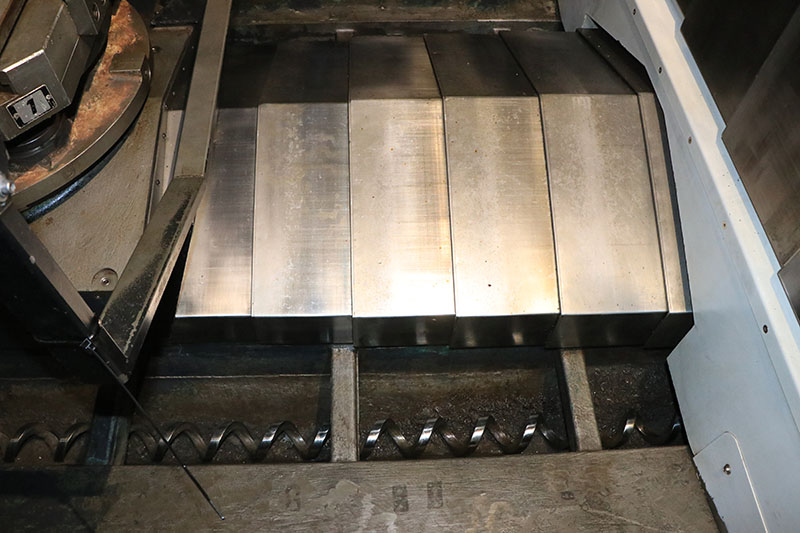

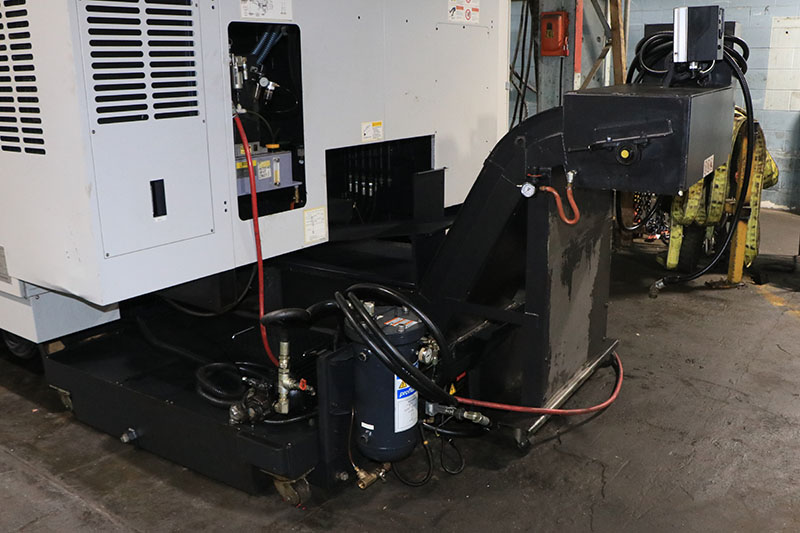

- LNS CHIP CONVEYOR
- RENISHAW PART PROBE
- RENISHAW TOOL SETTER
- EXTRA PALLETS & ASSORTMENT OF CAT-50 TOOLING

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
