Dorsey Gage Co. 24PHD-M2-E, 2018, METLOGIX M2-E DRO, COMPARATORS

Price on Request

Make:: Dorsey Gage Co.

Model:: 24PHD-M2-E, 2018, METLOGIX M2-E DRO,

Year:: 2018

Ref #:: 177886

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

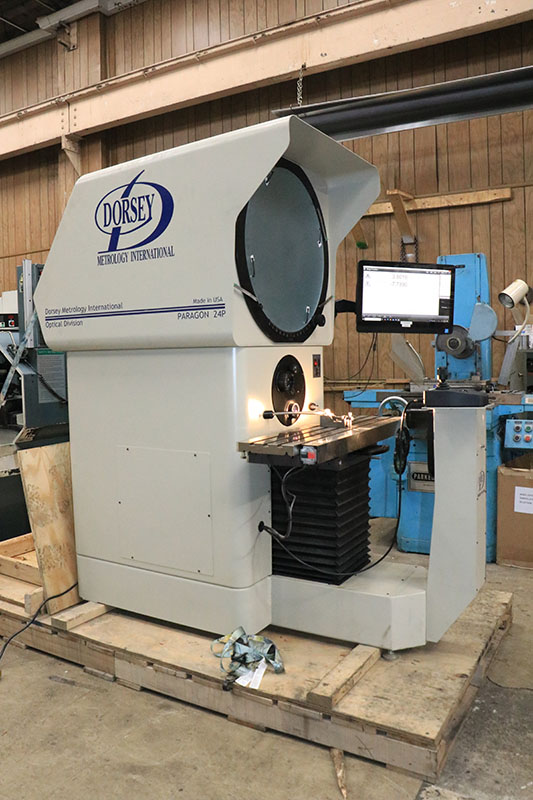

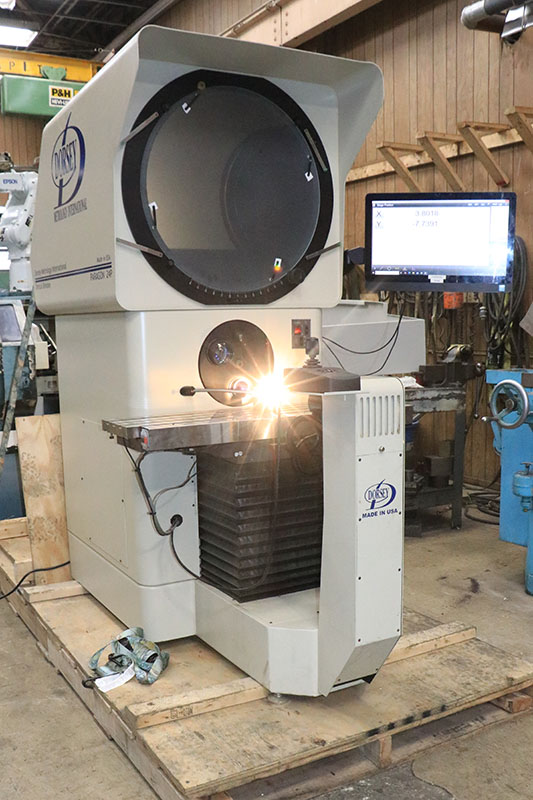

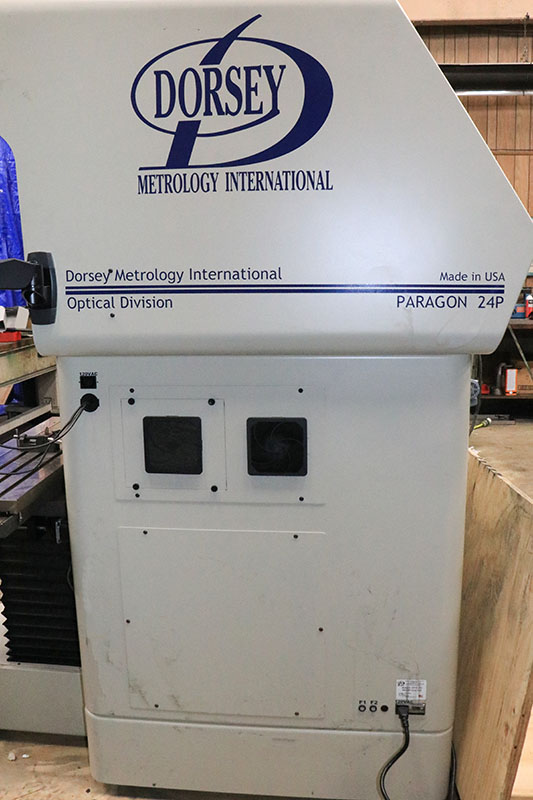

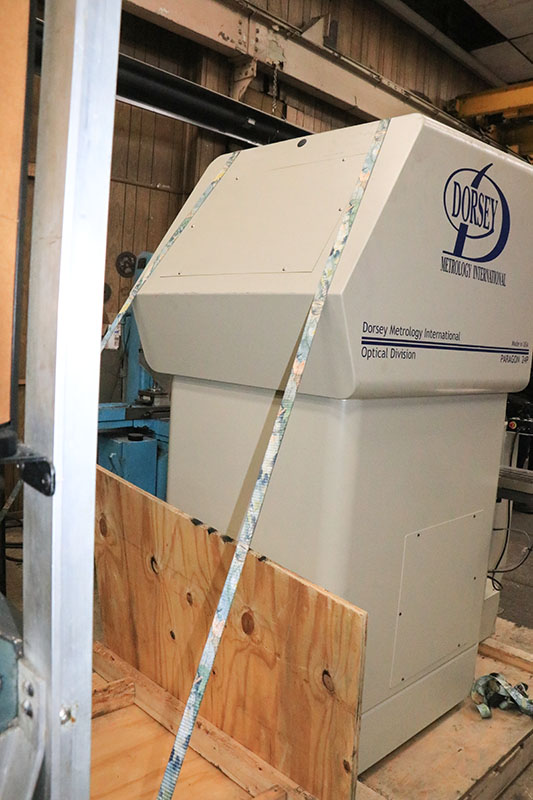

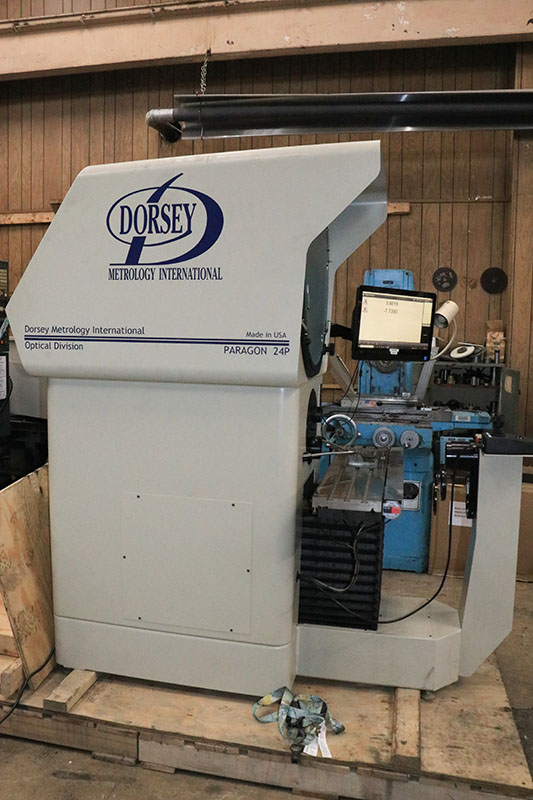

Dorsey Metrology International

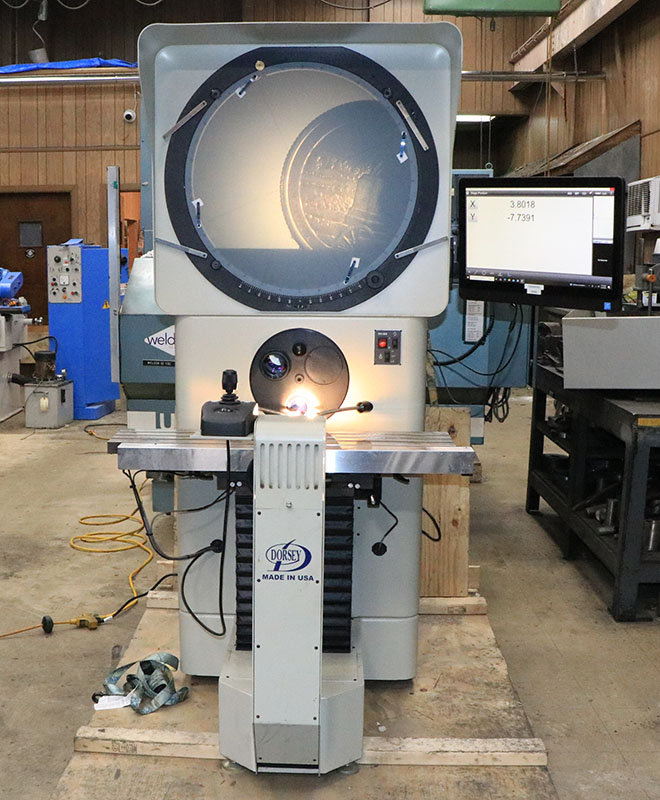

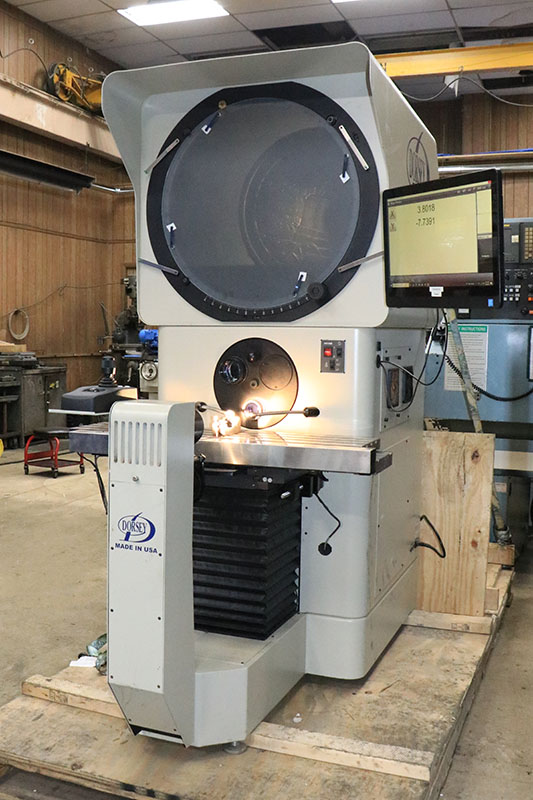

Horizontal Beam
Optical Comparator
"Made in USA"

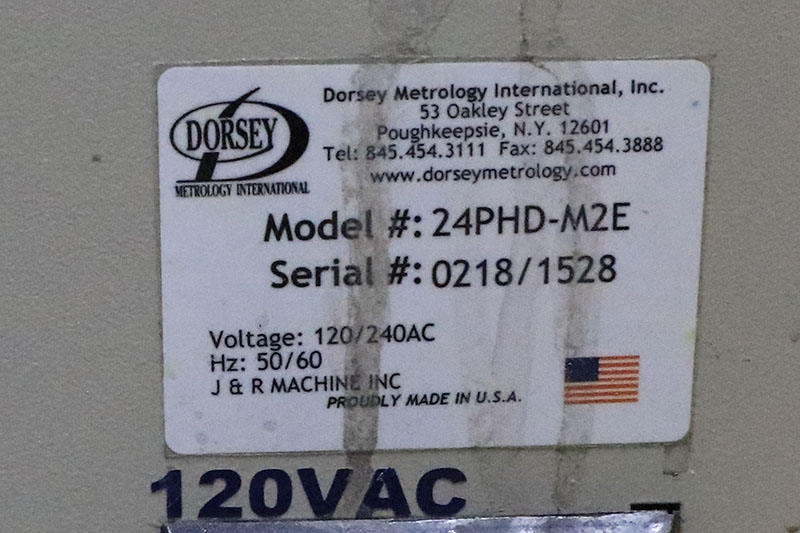

Model No. 24PHD-M2E
S/N: 0218/1528
(New 2018)


"Standard Features with Metlogix M2 Software
 with AIO Touch Screen Computer, X, Y, and
 Q with Geometric Functions and Part View."

The 24P is designed to be an all purpose
measurement/inspection instrument capable
of performing both light and heavy duty tasks.

FEATURES:

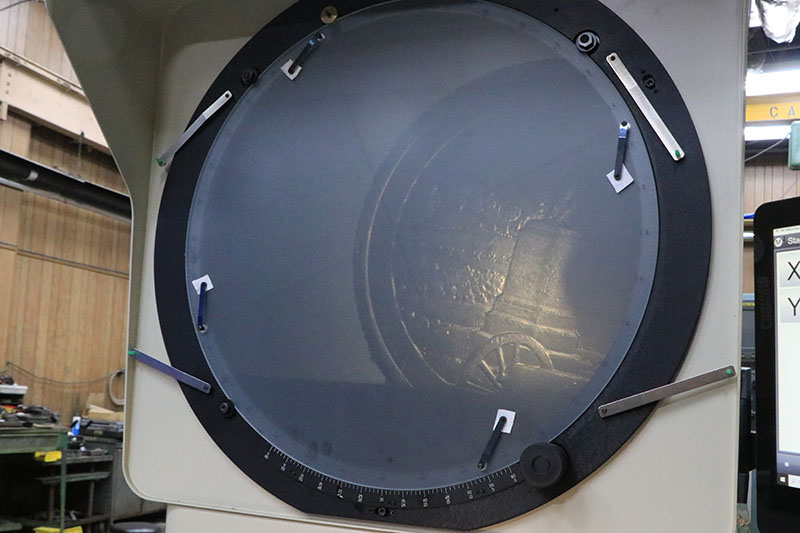

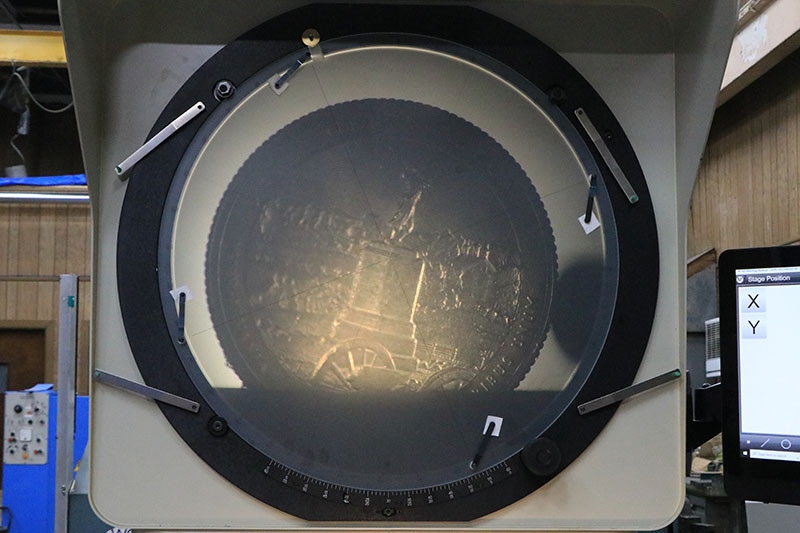

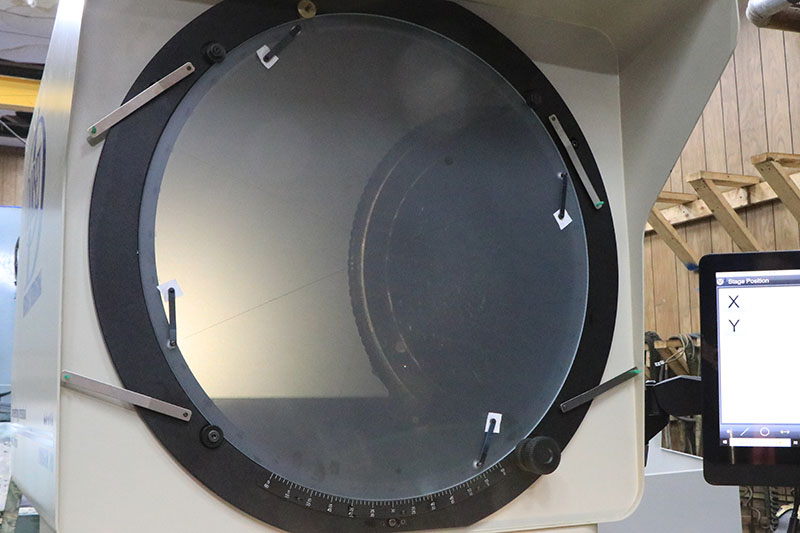

24″ (600mm) Vertical screen for optimum viewing
Erect and reversed profile image
High resolution ground glass screen with calibration
 reticle, 90° cross lines
Machined chart ring with vernier protractor,
  1 minute graduation, and chart clips
Coated telecentric parfocal optics

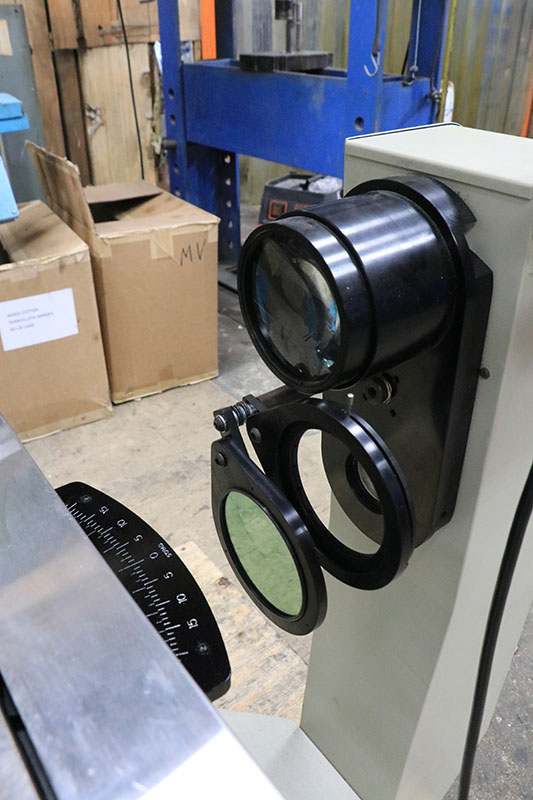

3 position rotary lens & condenser turret
  (4 position optional)
Quartz halogen profile light source 24V, 150W
Bright 250W fiber optic surface illumination

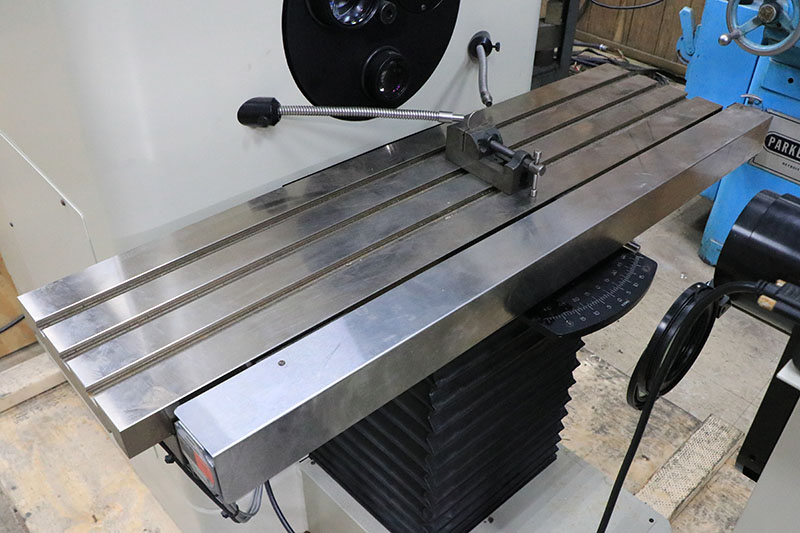

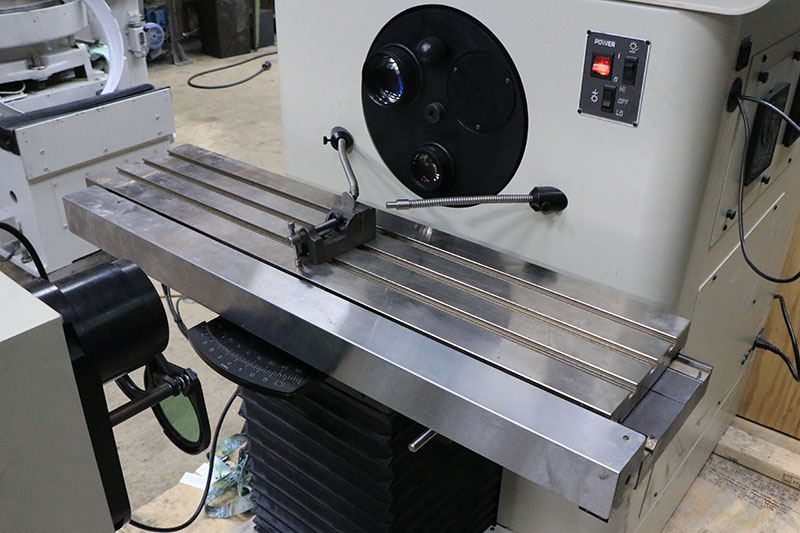

Solid cast iron, nickel plated stage
Triple universal dovetails accomodate wide range
  of fixtures
36″ x 8″ (914x200mm) overall size
Crossed roller bearings for superior performance
500 lbs capacity
24″(610mm) X-axis motorized travel
10″ (250mm)Y-axis motorized travel
3″ Motorized focus travel
Linear scale resolution 0.00025mm/.00001″

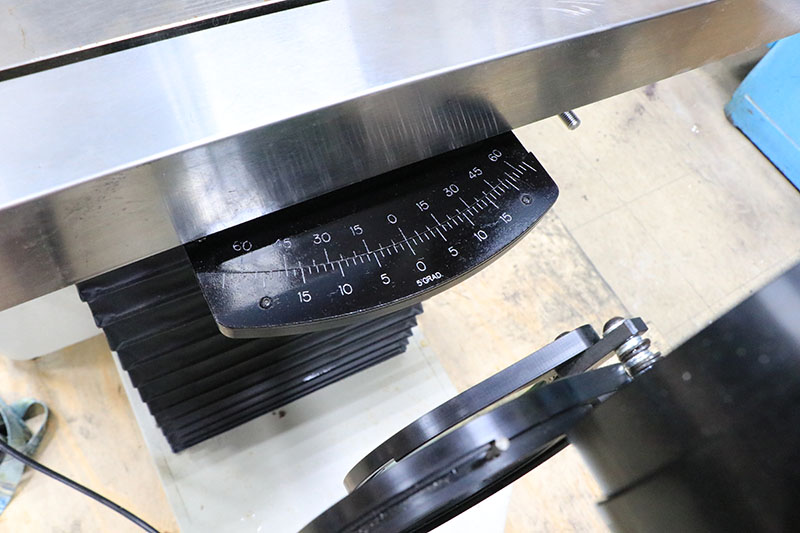

±15° true parfocal helix stage adjustment,
  with 5 minute vernier

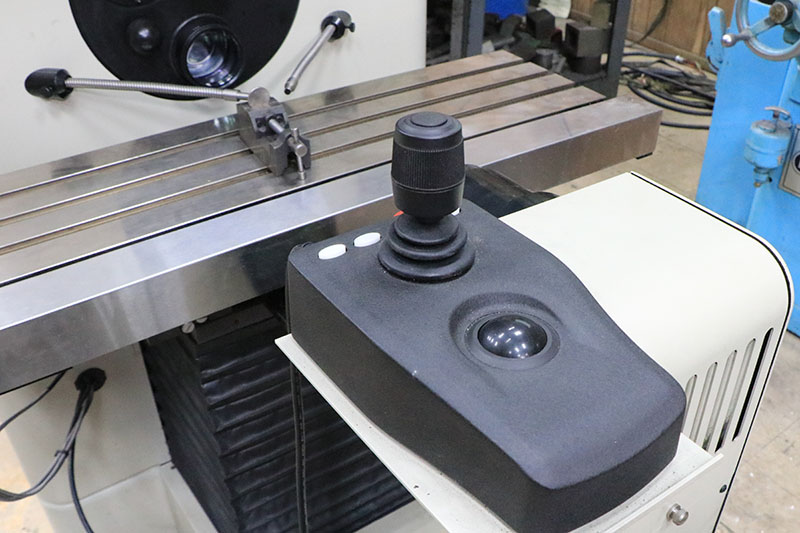

Joystick control, computerized microstep motor
  controller with X and Y axes & focus


Technical Specification

Illumination
 Profile: Built-in 24V/150W direct collimated halogen
 Surface: Built-in 24V/250W via fiber optics
 Screen Size 24” (600mm) Ground glass with cross-lines
 Stage Cast iron, nickel plated, 36” x 8”, triple dovetails
 Stage Travel
   X = 24” (610mm), Motorized
   Y = 10” (250mm), Motorized
   Focus = 3” (75mm), Motorized
 Stage Accuracy Within +/- 0.004mm +[(L/20).001]
 Linear Scale Resolution Standard: 0.00025mm/.000010”
 Repeatability of Scales +/- 1 Scale count (0.0005mm/.00002”)
 Coated Telecentric Lenses
   5x, 10x, 20x, 31.25x, 25x, 50x, 62.5x, 100x, 200x
 Optical Accuracy Within +/- .10% Profile, +/- .15% Surface
 Power Requirements 120V or 240V AC, 50/60 Hz, 10 Amp


 Weight: 2,450 Lbs.
 Dimensions: 69"L x 28"W x 73"H


Equipped With:

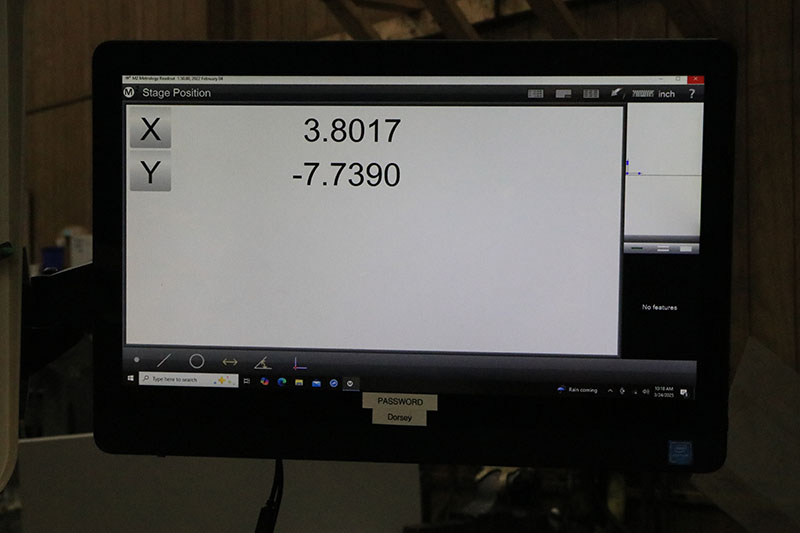

Metlogix M2 Software
 with AIO Touch Screen Computer, X, Y, and
 Q with Geometric Functions and Part View."
Output for electronic rotary screen protractor
  (Q-axis) with selectable 1 minute
  or 1/100 of a degree resolution

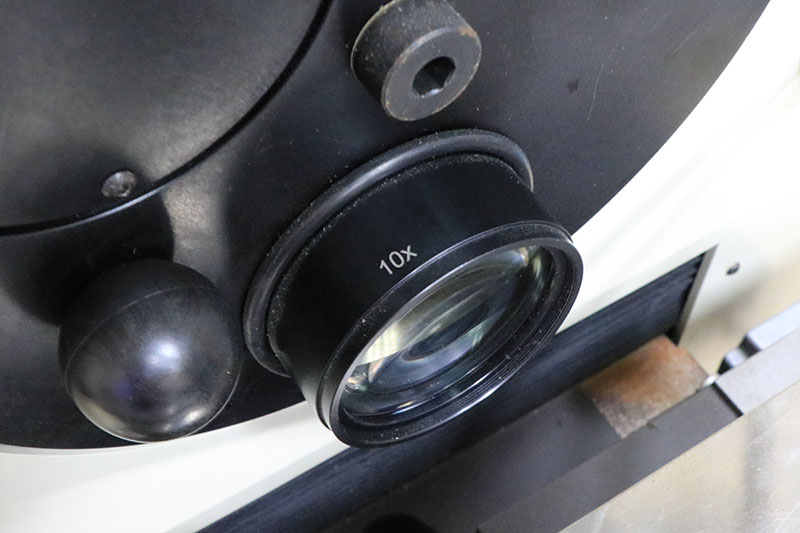

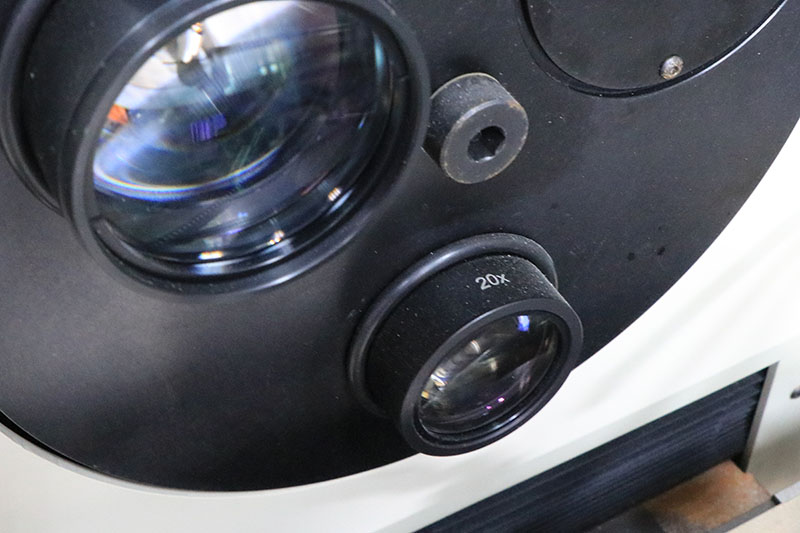

10X & 20X Lenses
4-Position Lens Turret


Link to video: https://youtu.be/MWuasnTLuvI?si=7tJCt84pH3KEa5Zc
