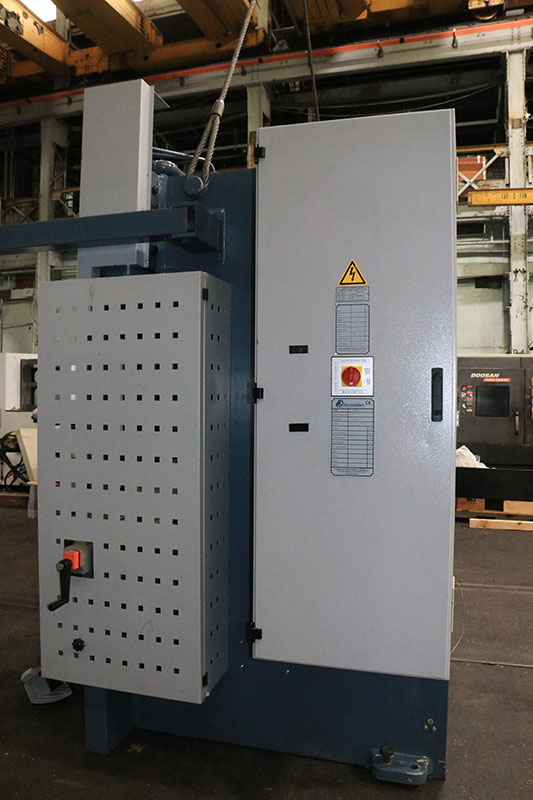

Durma E37160 PRESS BRAKES w/CNC BACK GAUGES

$42,500

Make:: Durma

Model:: E37160

Year:: 2006

Ref #:: 177887

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

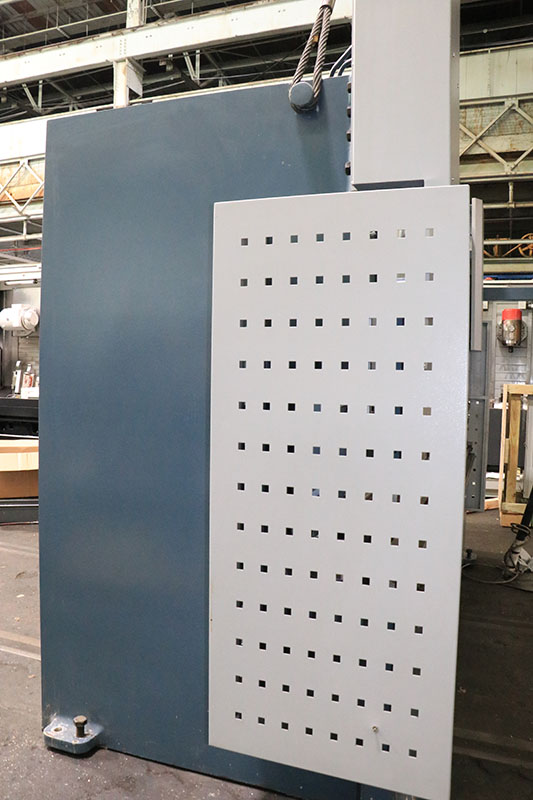

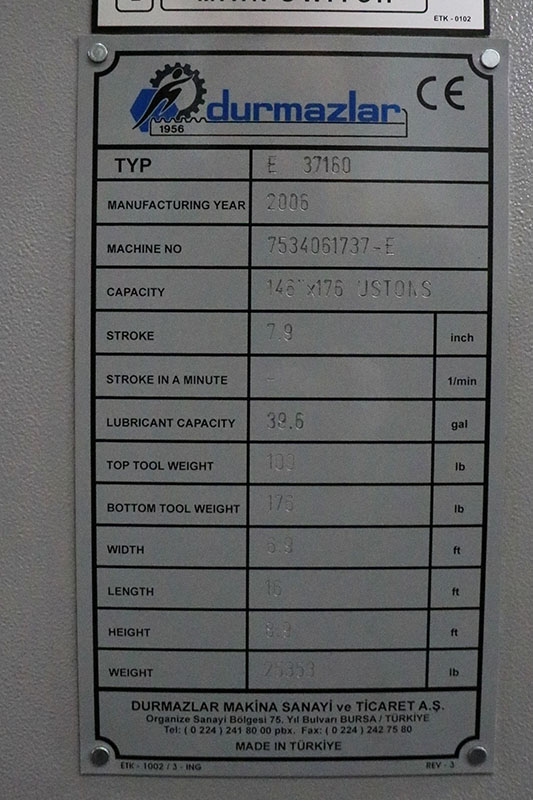

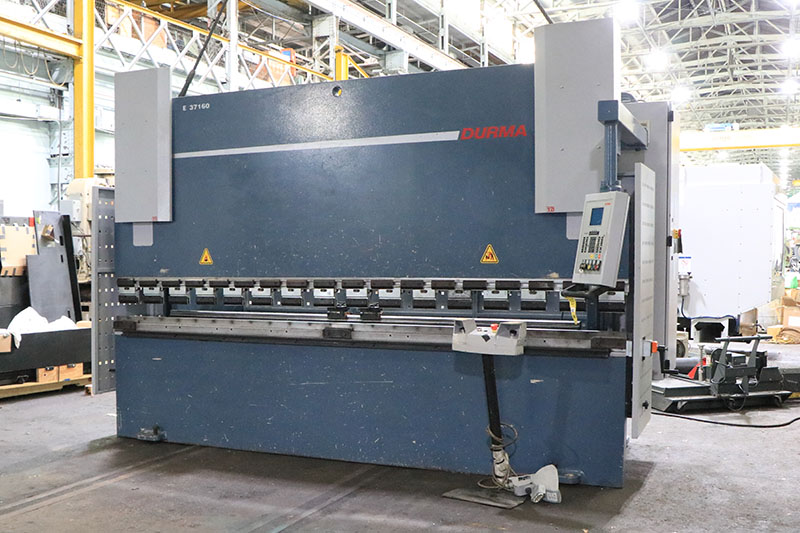

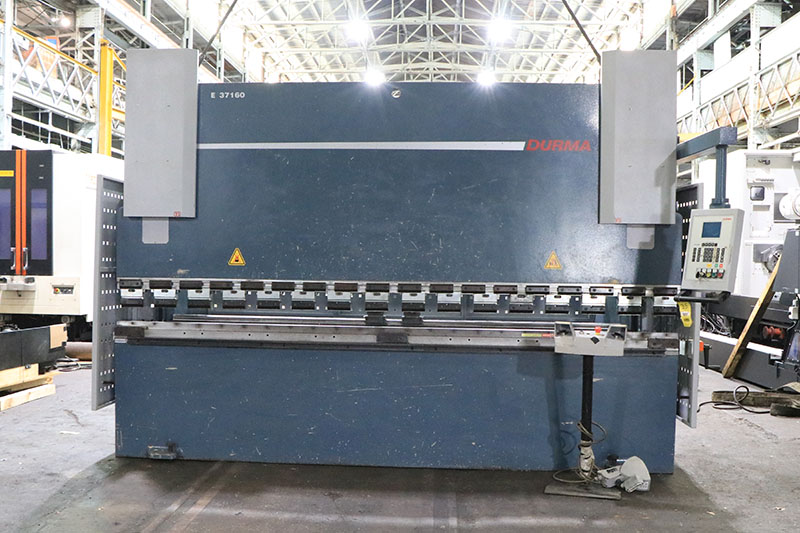

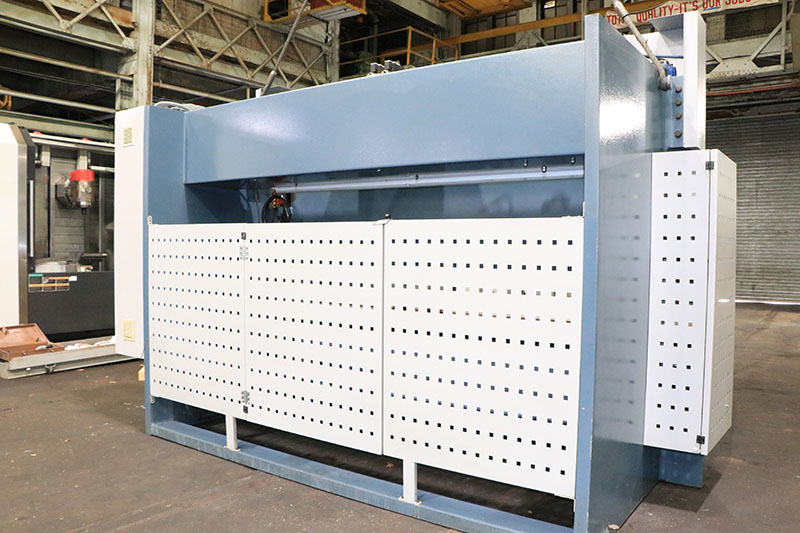

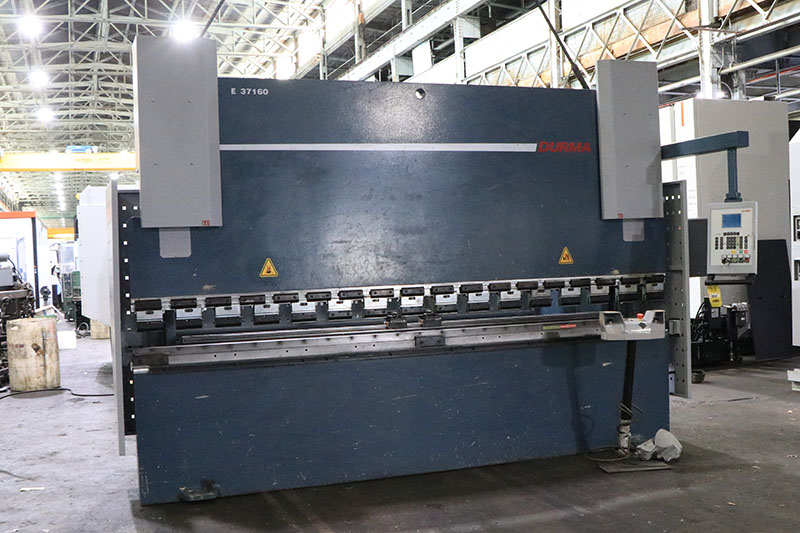

12' x 176 TON DURMA SYNCHRO-HYDRAULIC PRESS BRAKE
MODEL E37160       S/N 7534061737-E       NEW 2006

Capacity ........................ 176 Ton
Overall Length of Bed & Ram ..... 146"
Distance Between Housings ....... 122"
Stroke (Adjustable) ............. 7.9"
Open Height ..................... 16.9"
Throat Depth .................... 13.8"
Speeds .......................... 3.93 I/Sec - Approach
                                  0.35 I/Sec - Bending
                                  3.38 I/Sec - Return
Table Width ..................... 4"
Table Height .................... 33.77"
Back Gauge Range ................ 24"

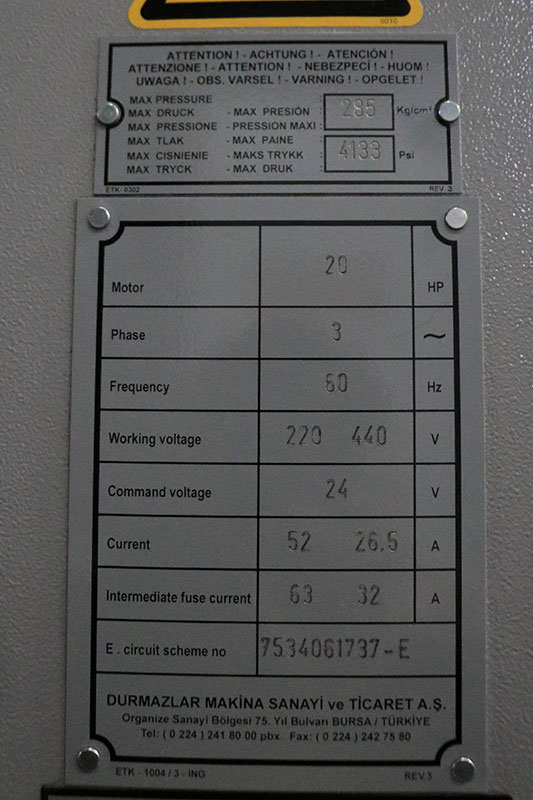

Voltage ......................... 230 / 460 / 3 Ph

EQUIPPED WITH:

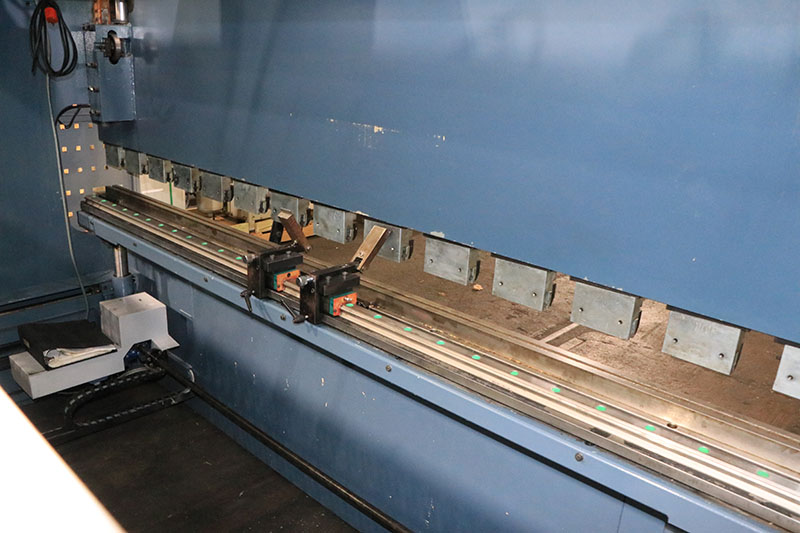

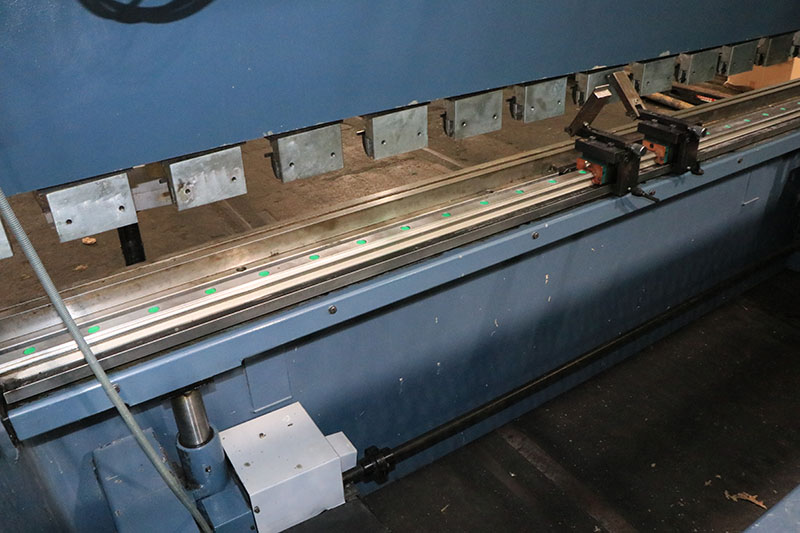

- 3-Axis Synchro CNC Back Gauge (Y1, Y2 & X)

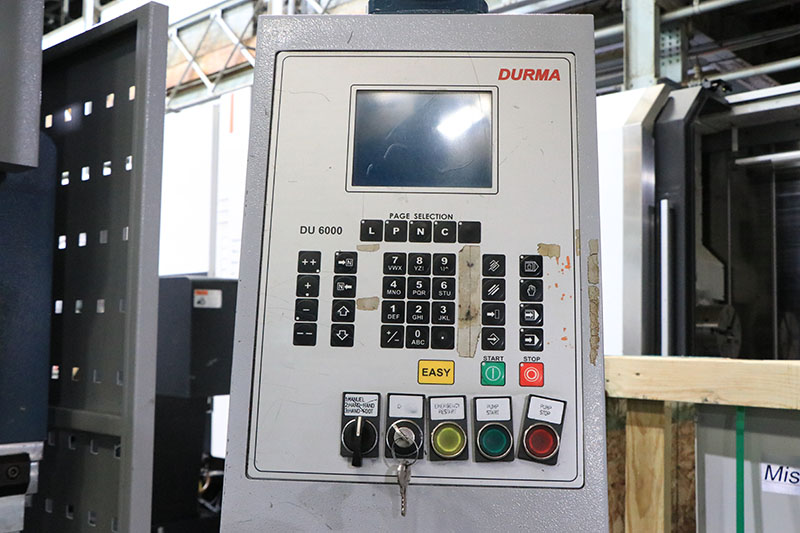

- Numerical Control Cybelec DU6000
- Lower Die Rail
- European Clamping System

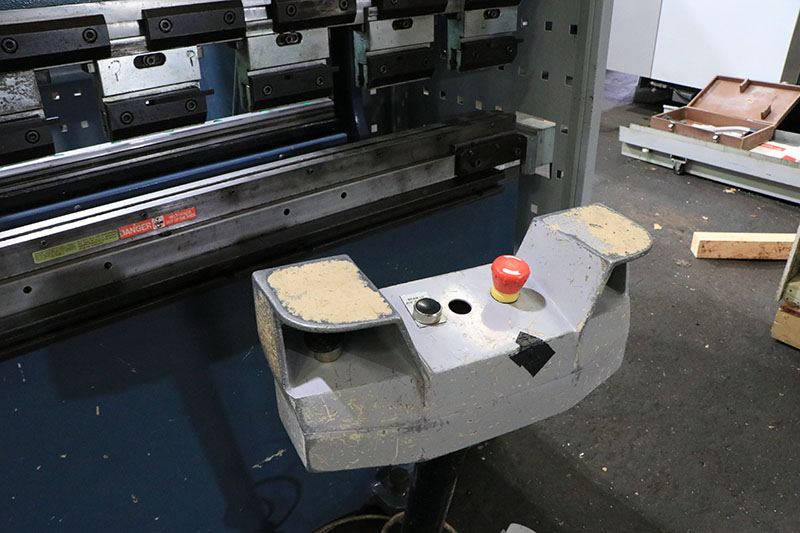

- Dual Palm Button or Electric Foot Switch Operation

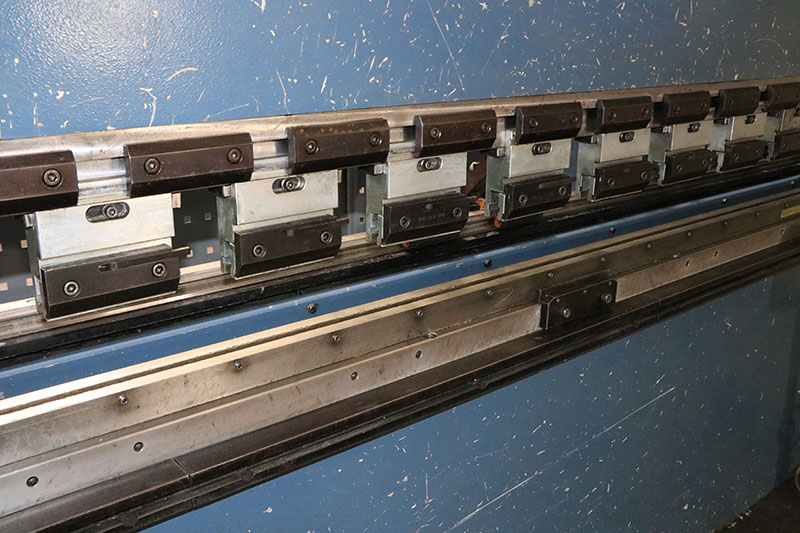

- Back Gauge Fingers with Adjustable Height
- Manual Crowning

Weight: 24,030 Lbs.
Dimensions: 193" L-R x 59" F-B x 106" H
