Ecotech MB1432B/1500, NEW 2000, SWING DOWN I.D., UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Ecotech

Model:: MB1432B/1500, NEW 2000, SWING DOWN I.D.,

Year:: 2000

Ref #:: 162196

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

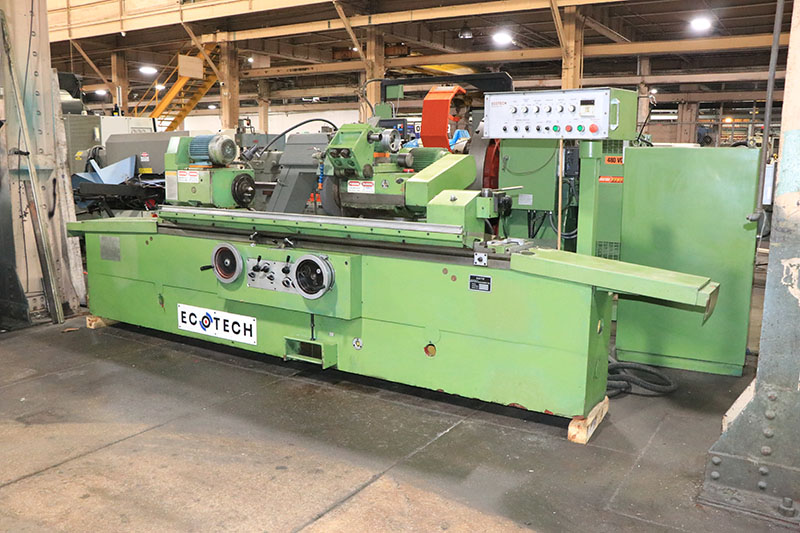

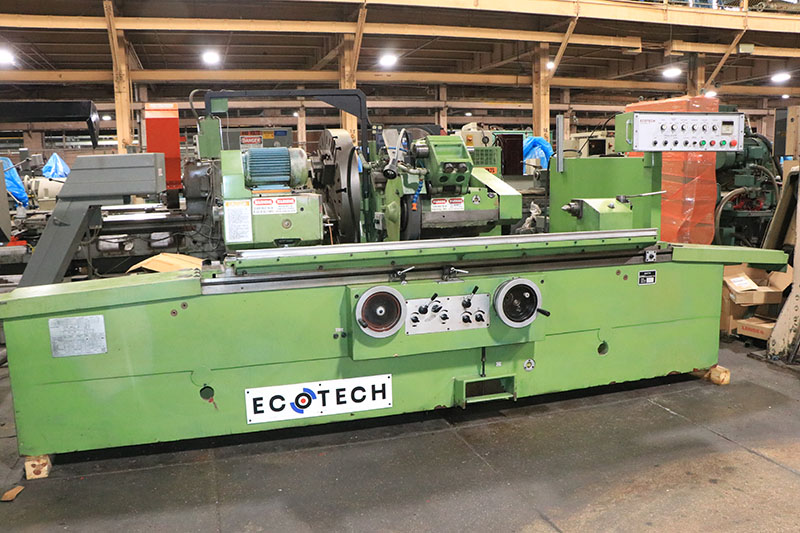

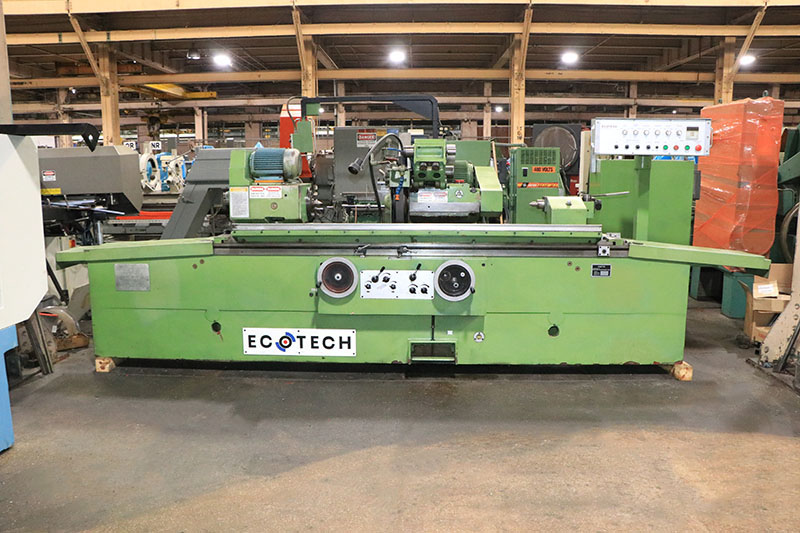

  14.2" X 59" ECOTECH (SMTW) UNIVERSAL
  I.D./O.D. CYLINDRICAL GRINDER

MODEL: MB1332Bx1500      S/N: 11      NEW: 2000

CAPACITY:
MAXIMUM SWING OVER TABLE ............... 14.2"
DISTANCE BETWEEN CENTERS ............... 60"
MAX. WORKLOAD BETWEEN CENTERS .......... 500 LBS.

WORK CARRIAGE:
TRAVERSE SPEED......................... 4" TO 157" IPM
TABLE SWIVELS, CLOCKWISE/CCW .......... 3°/7° DEG.

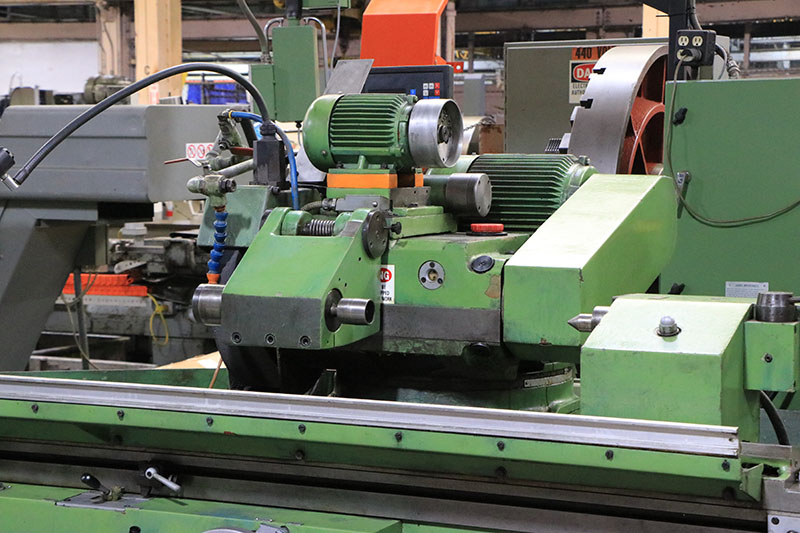

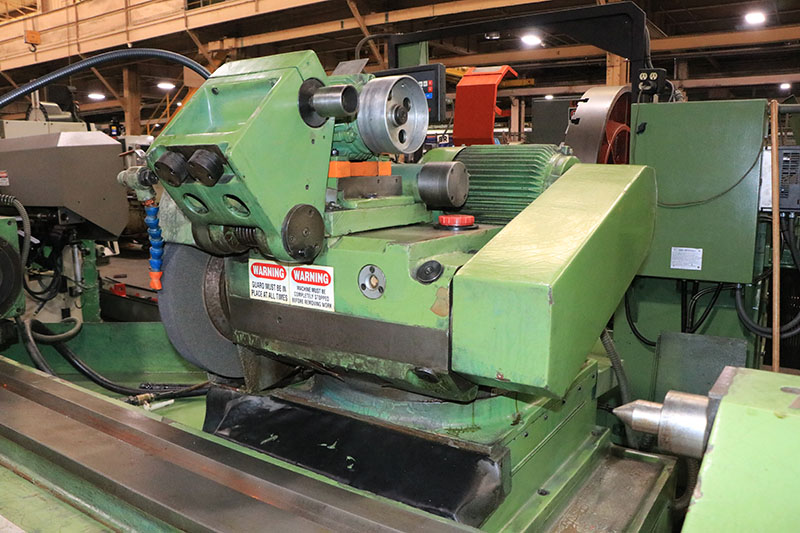

WHEELHEAD & WHEEL FEED:
STANDARD GRINDING WHEEL SIZE........... 16" O.D. x 2"W
                                         x 8" HOLE
GRINDING WHEEL SPINDLE SPEED .......... 1,670 RPM
AUTOMATIC INFEED PER TABLE REVERSAL ... YES
MINIMUM AUTO INFEED INCREMENT ......... 0.0002"
AUTO PLUNGE INFEED .................... YES
PLUNGE INFEED SPEED ................... 2" TO 60" IPM
RAPID HYDRAULIC INFEED STROKE.......... 2"
MAX. TRAVEL OF LEADSCREW .............. 7.7"
TRAVEL PER REV. OF HANDWHEEL .......... 0.04"
TRAVEL PER DIV. OF HANDWHEEL .......... 0.0002"
WHHELHEAD SWIVELS ..................... +/- 30°

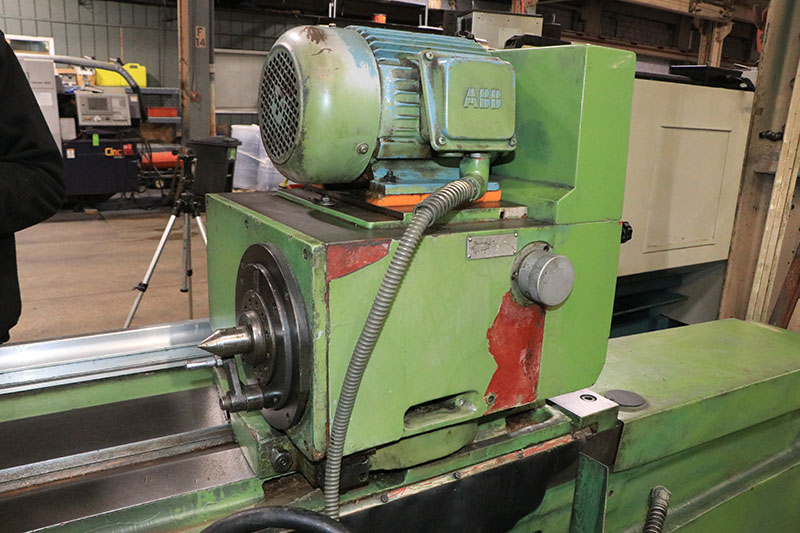

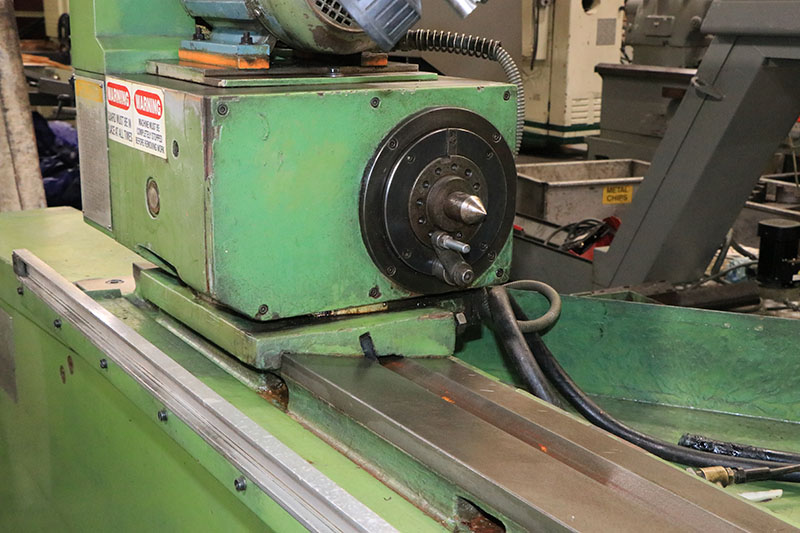

MOTORIZED WORKHEAD AND TAILSTOCK:
WORKHEAD SPINDLE SPEEDS ...... ELECTRONIC INFINITELY VARIABLE
WORKHEAD TAPER......................... #4 MT
WKHD SPINDLE NOSE TAPER ............... A2-4 STD.
WKHD THRU HOLE ........................ 0.512" DIA.
WORKHEAD SWIVELS ...................... +/- 90°
TAILSTOCK TAPER........................ #4 MT
TAILSTOCK SPINDLE TRAVEL .............. 1.2"


APPROX. MACHINE WEIGHT ............... 9,490 LBS.
APPROX. DIMS. ................ 182" L-R, 72" DEEP, 60" HIGH



MACHINE FEATURES:
HYDRO-DYNAMIC WHEELHEAD SPINDLE BEARINGS

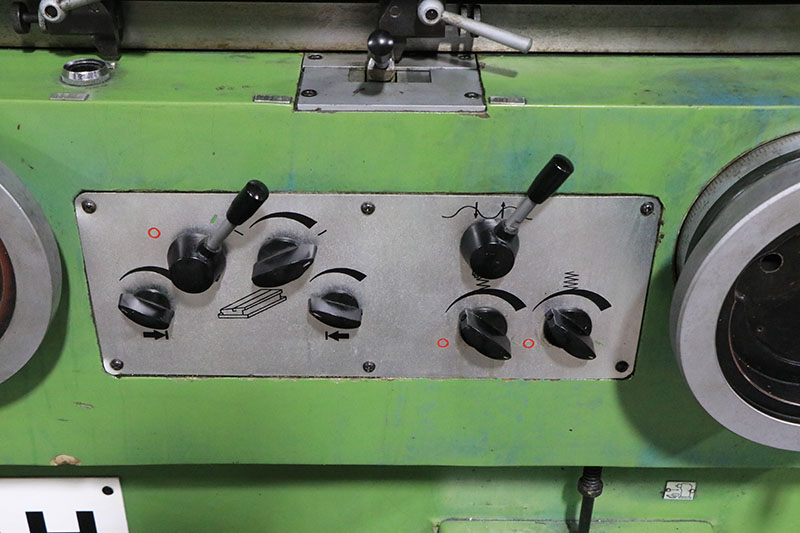

HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED @ TABLE REVERSAL
AUTO PLUNGE INFEED
HYDRAULIC RAPID WHEELHEAD ADVANCE/RETRACTION

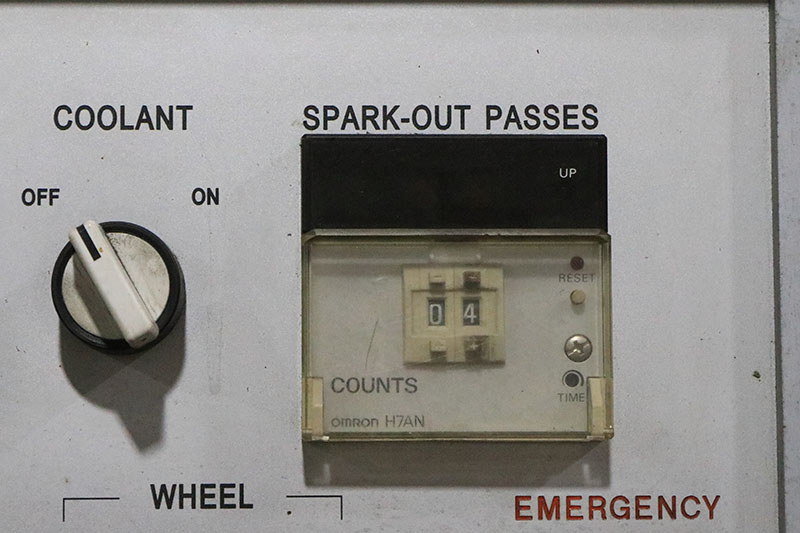

SPARKOUT TIMER
SELF-CONTAINED HYDRAULIC RESEVOIR, 40 GALS.
UNIVERSAL WORKHEAD
UNIVERSAL WHEELHEAD
LIVE & DEAD WORKHEAD SPINDLE

EQUIPPED WITH:

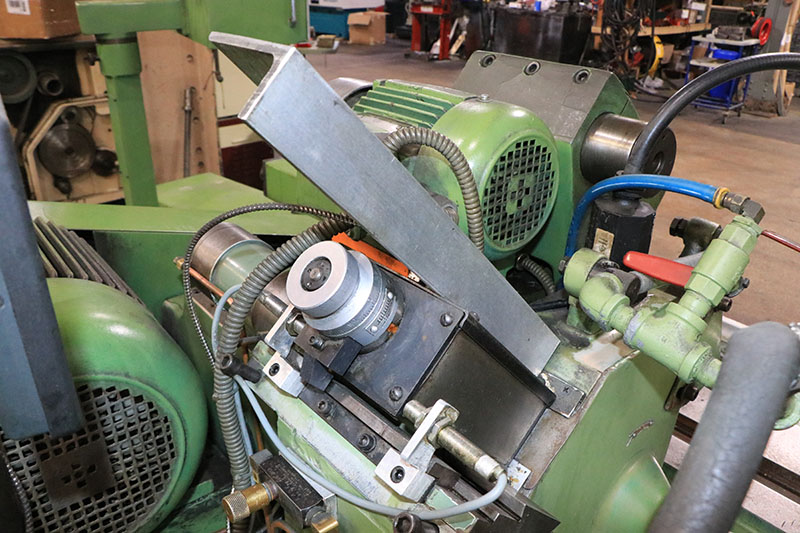

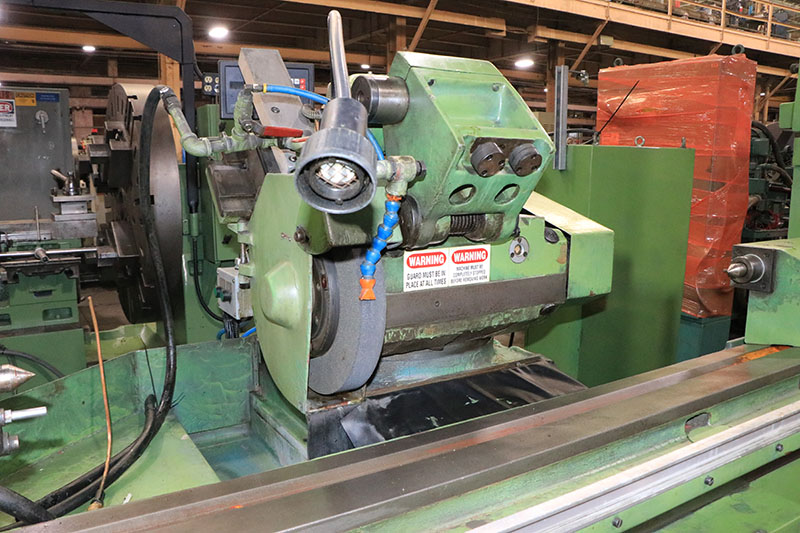

SWING DOWN I.D. GRINING ATTACHMENT
I.D. GRINDING SPINDLE

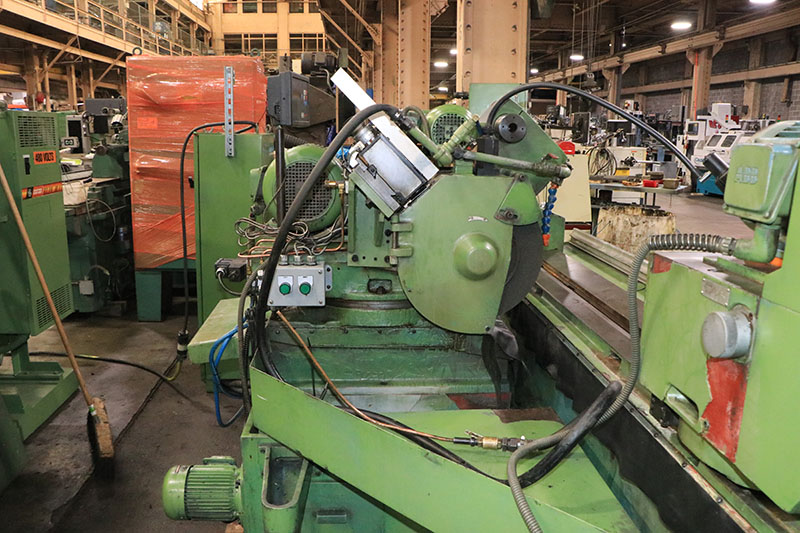

POWER BEHIND-THE-WHEEL DRESSER

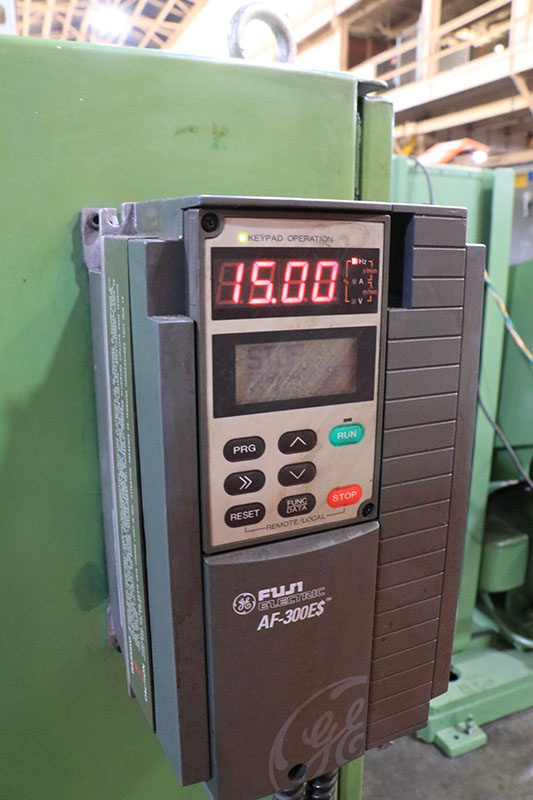

ELECTRONIC VARIABLE SPEED DRIVE FOR THE WORKHEAD

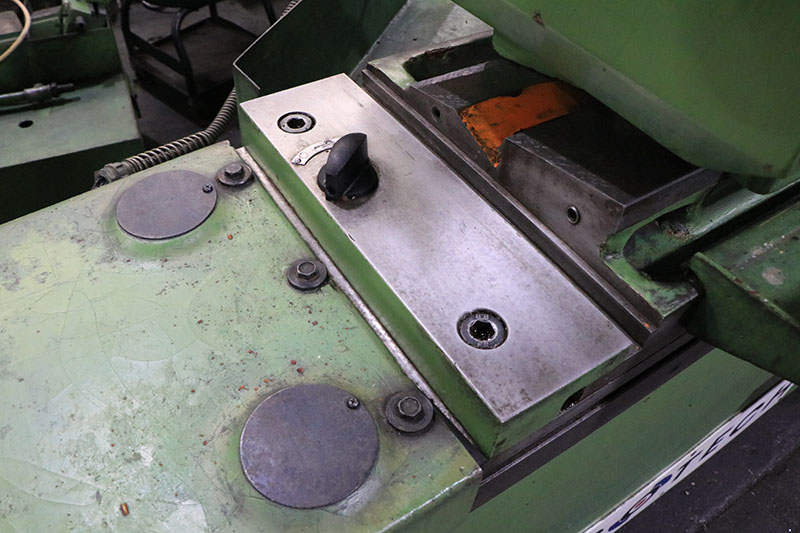

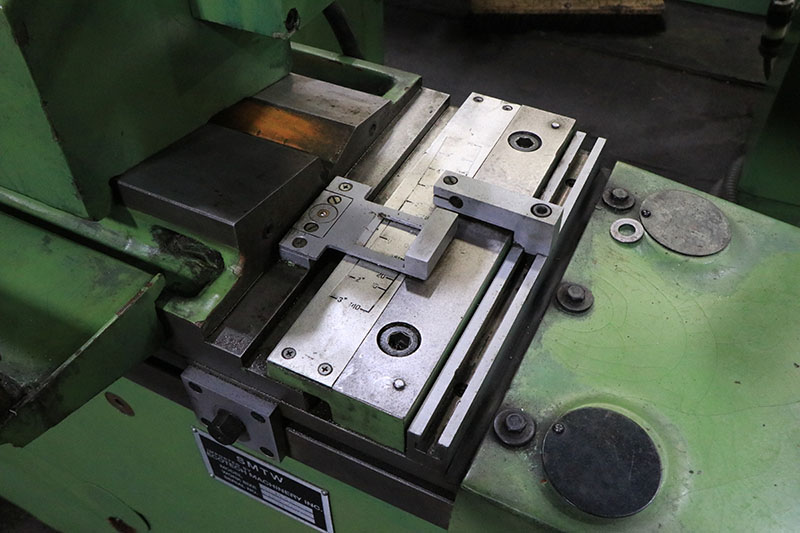

TABLE MOUNTED WHEEL DRESSER
CENTER IN WORKHEAD

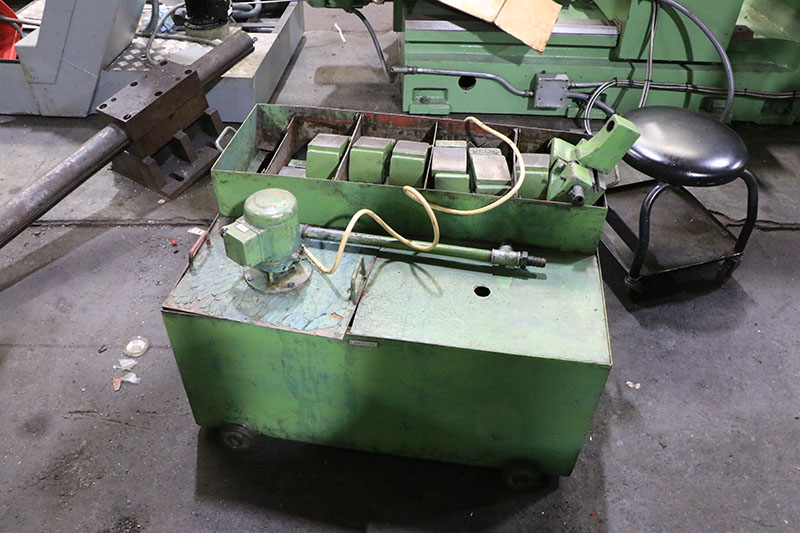

EXTERNAL COOLANT TANK & PUMP

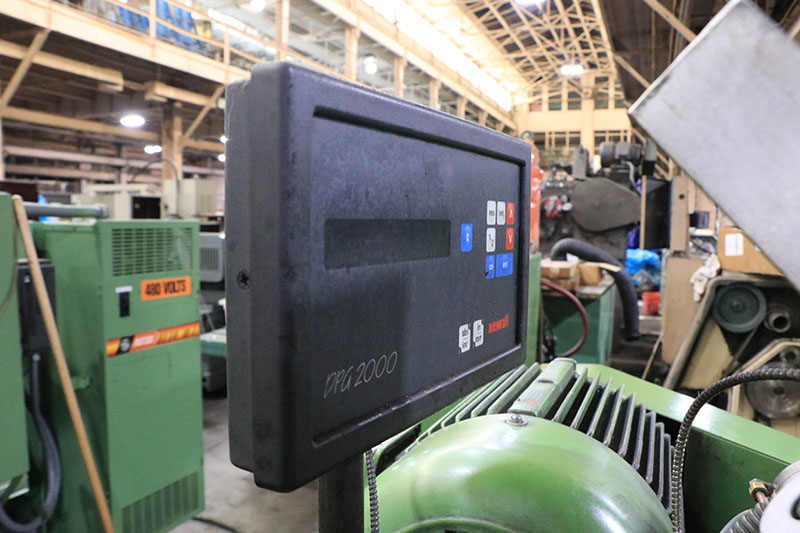

"NEWALL" MODEL DPG-2000 DIGITAL READOUT DISPLAY
7.5 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR

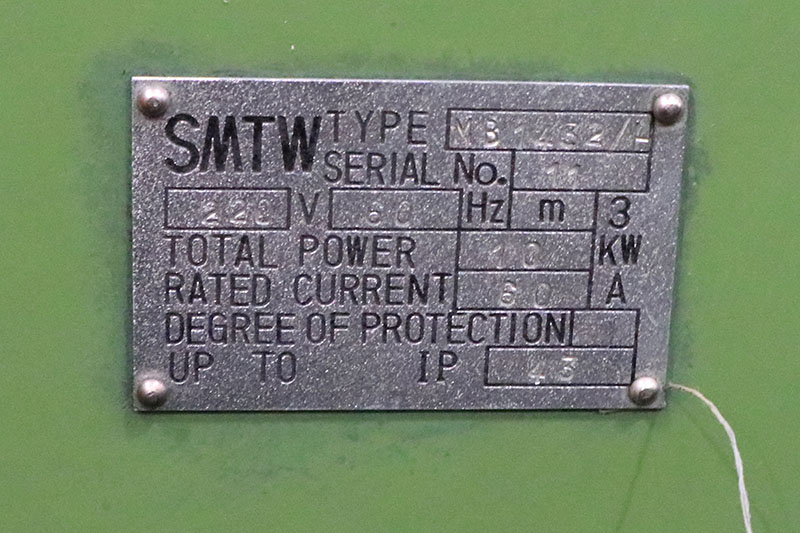

MACHINE IS WIRED PRESENTLY FOR 3/60/220 VOLTS, 10 KW TOTAL POWER


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** UNUSUAL, BARELY USED - WOW! **
** ORIGINAL PAINT - EXCEPTIONAL APPEARANCE & CONDITION **
