Fortune S20120, 3" Hole, Taper, 3&4 Jaw, 2 Steady Rests ENGINE LATHES

Price on Request

Make:: Fortune

Model:: S20120, 3" Hole, Taper, 3&4 Jaw, 2 Steady Rests

Year:: 1995

Ref #:: 178492

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

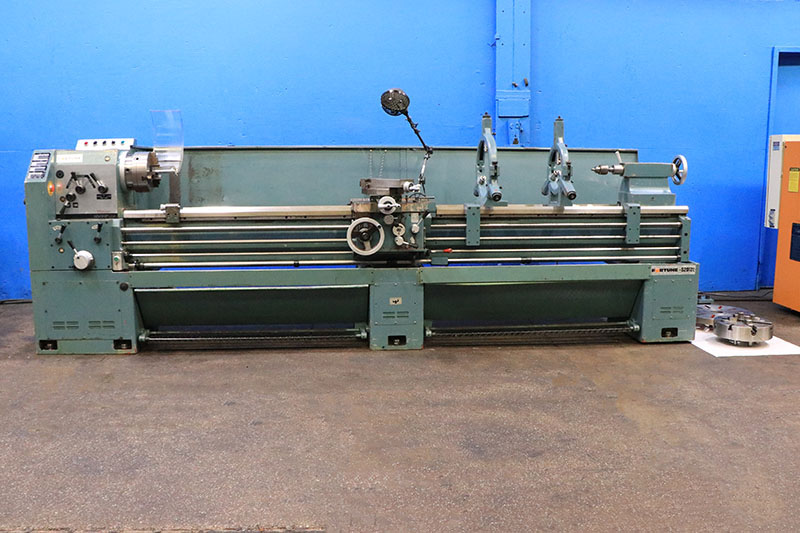

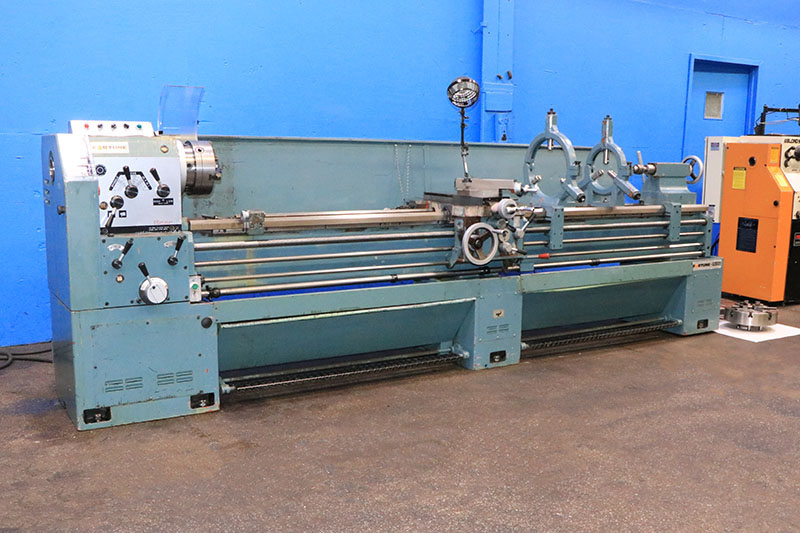

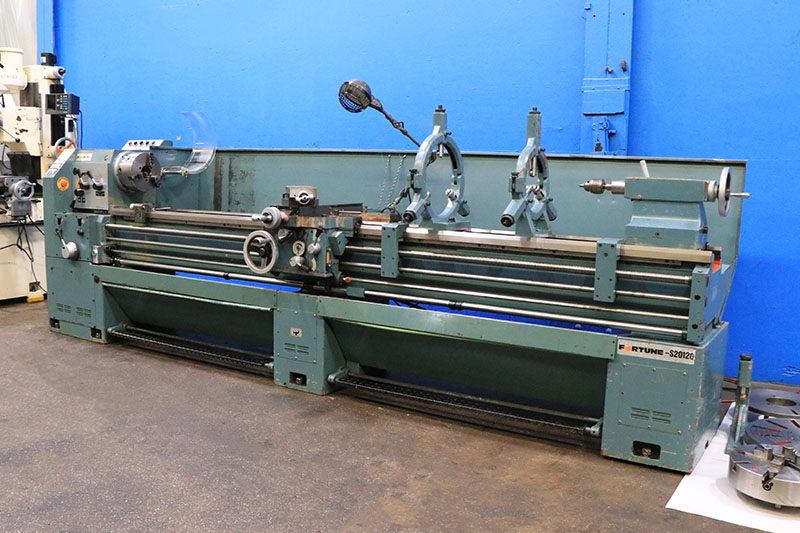

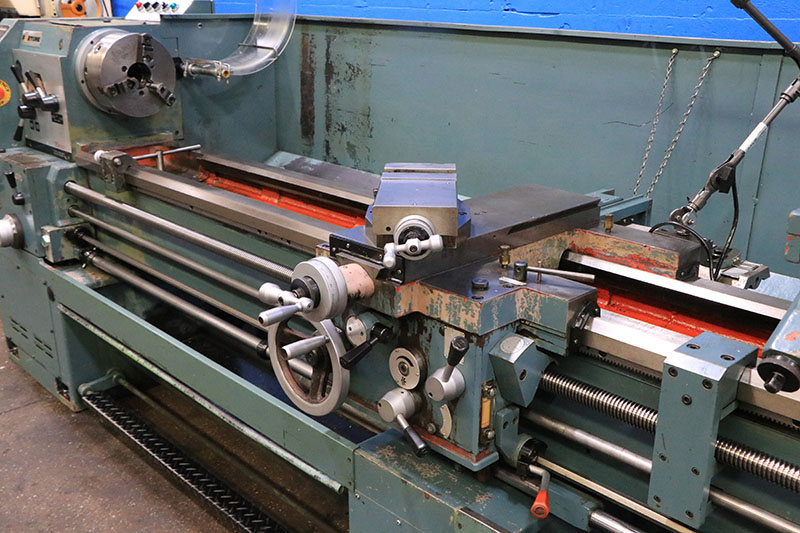

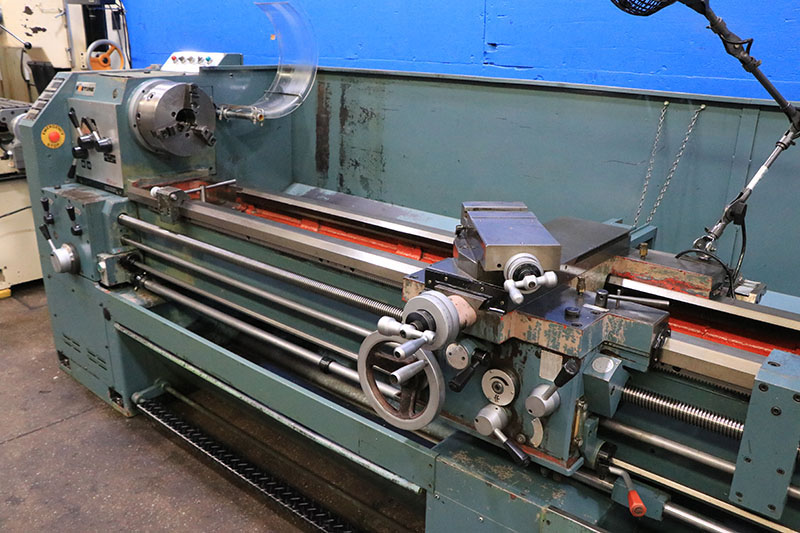

20"/27" x 120" FORTUNE GAP BED LATHE

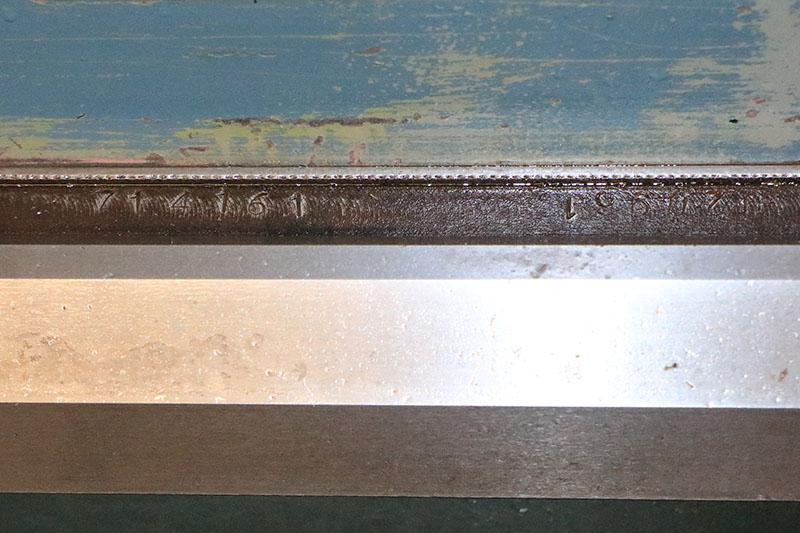

MODEL: S20120, S/N: 714161, NEW: 1995

SPECIFICATIONS:
SWING OVER BED WAYS ................. 20"
SWING IN REMOVABLE GAP .............. 27"
SWING OVER CROSS SLIDE .............. 11-1/4"
DISTANCE BETWEEN CENTERS ............ 120"
WIDTH OF BED ........................ 14-1/8"

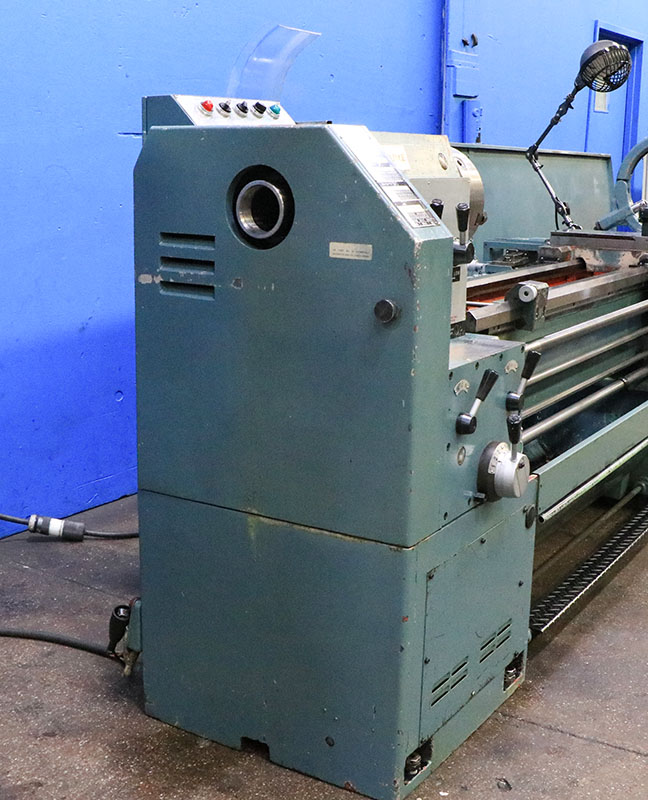

HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK

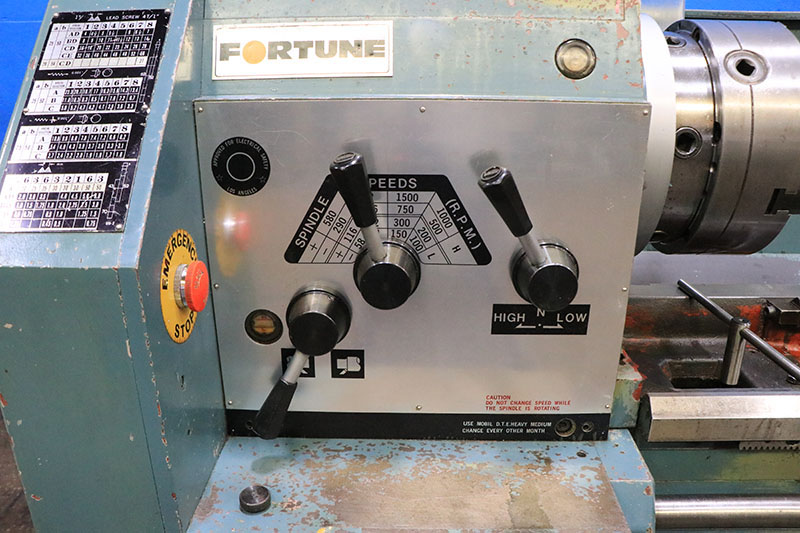

SPINDLE SPEED RANGE (16) ............ 31 - 1500 RPM
LONGITUDINAL FEED RANGE ............. .0033" - .0233"
CROSS FEED RANGE .................... .0016" - .0108"

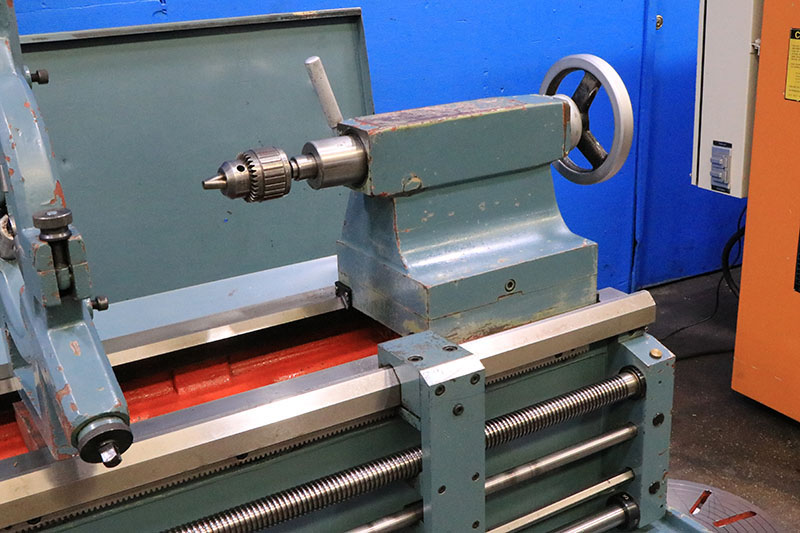

TAILSTOCK SPINDLE TRAVEL ............ 6"
TAILSTOCK SPINDLE TAPER ............. #4MT
APPROXIMATE FLOOR SPACE ............. 165"L x 36"W x 50"H
APPROX WEIGHT ....................... 6,500 LBS

EQUIPPED WITH:

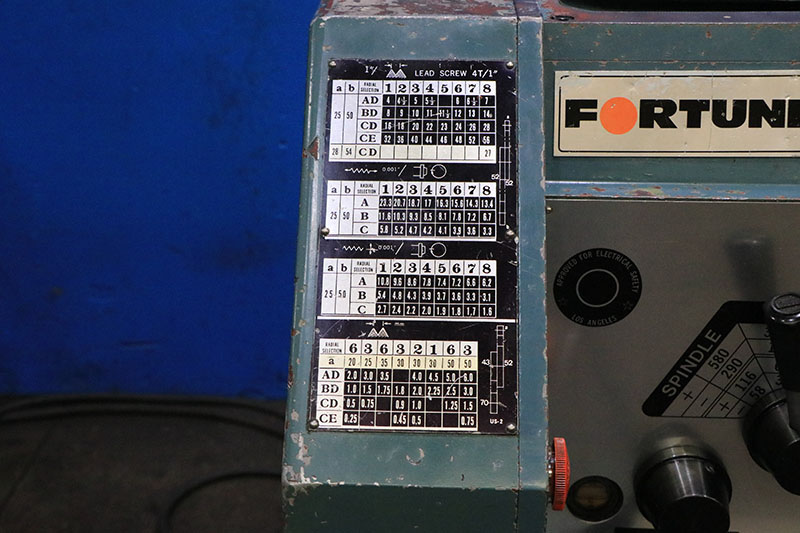

INCH & METRIC THREADING CAPABILITY
REMOVEABLE GAP

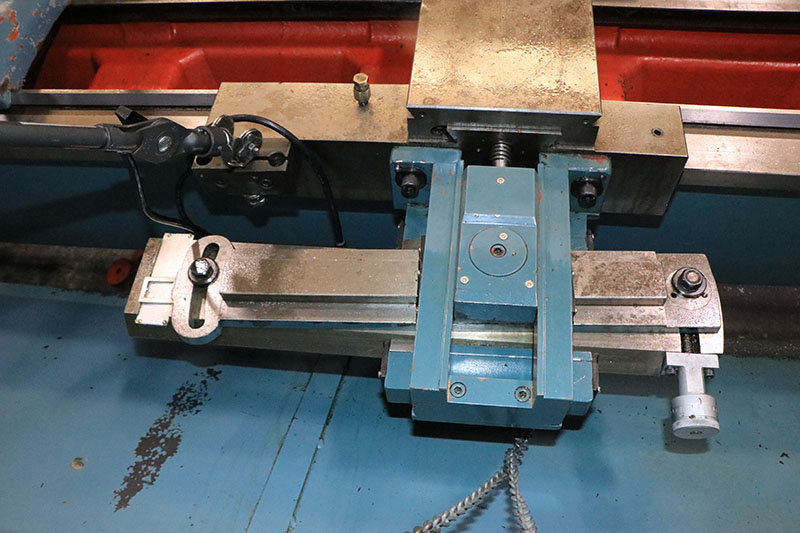

TAPER TURNING ATTACHMENT

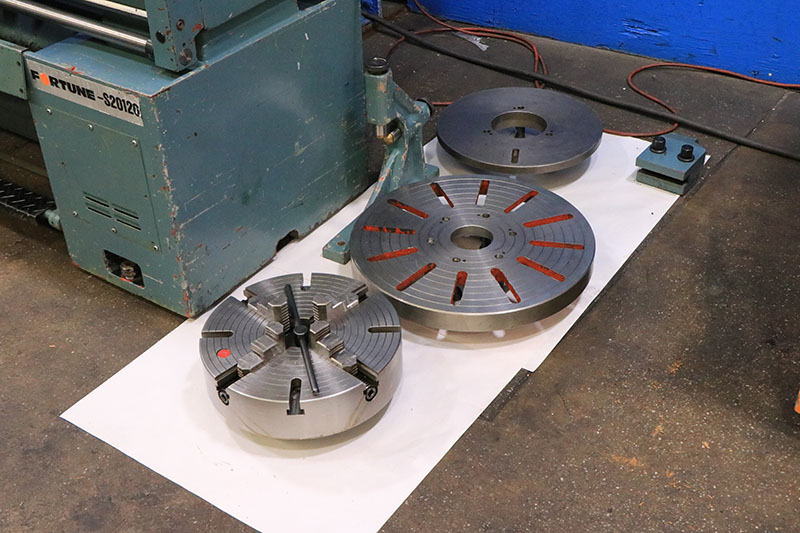

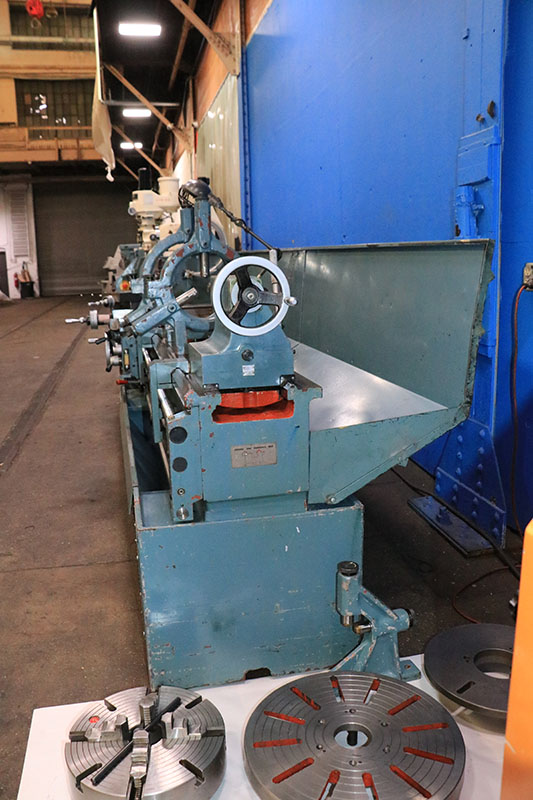

4-JAW CHUCK

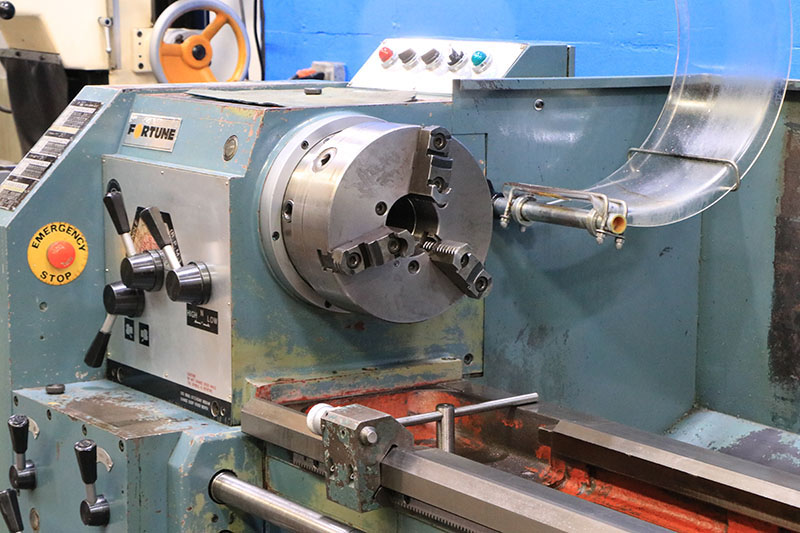

3-JAW CHUCK
FACEPLATE

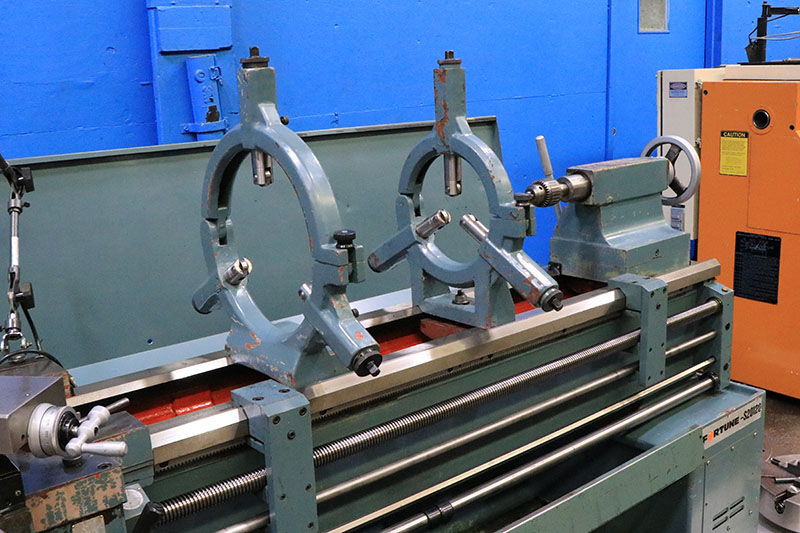

12-1/2" CAPACITY ROLLER TYPE REST
8" CAPACITY STEADY REST
FOLLOW REST
THREAD DIAL INDICATOR
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
HEADSTOCK CENTER SLEEVE
FOOT BRAKE
COOLANT SYSTEM WITH REMOVABLE CHIP PANS

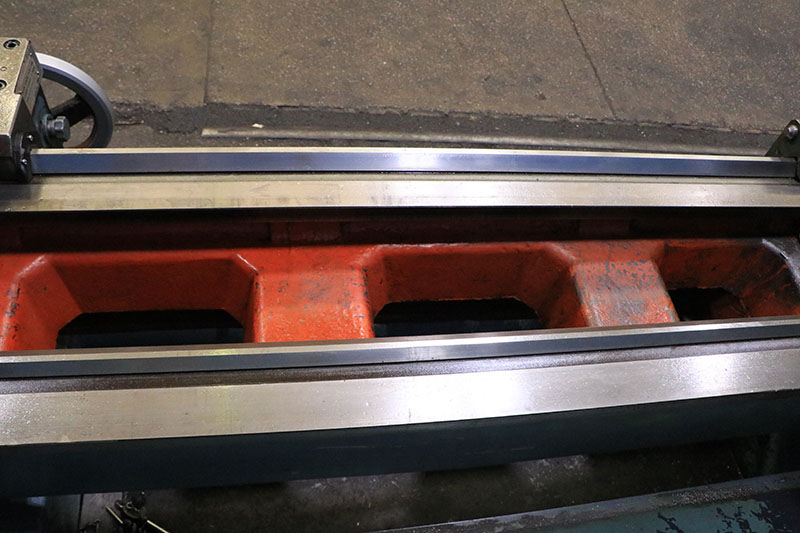

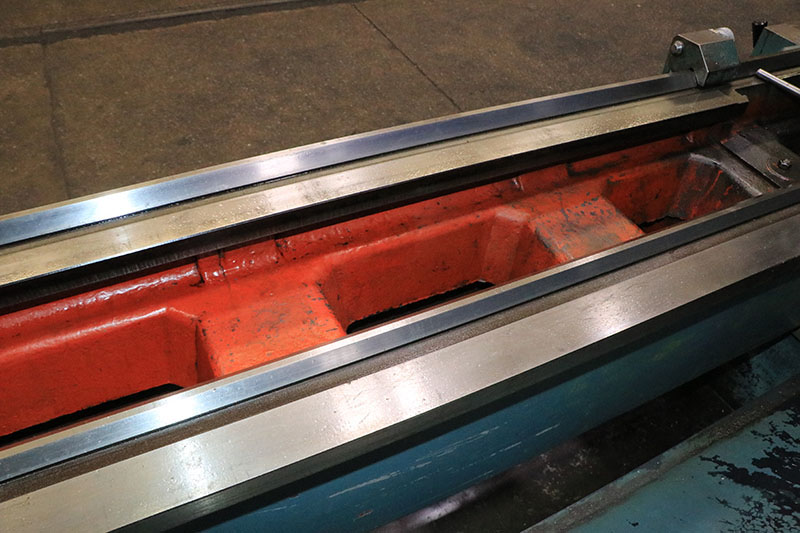

HARDENED & GROUND BED WAYS

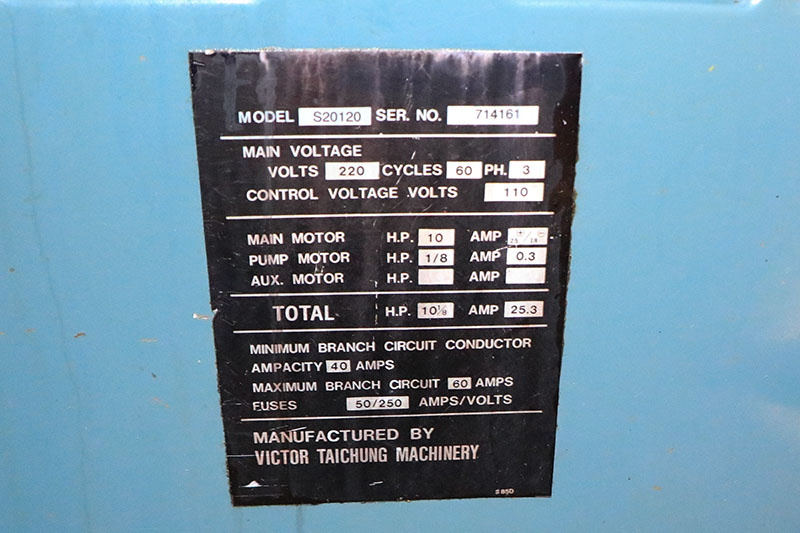

10 HP MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
