Watch Video:

Haas EC-400 HORIZONTAL MACHINING CENTERS (HMC's)

$109,500

Make:: Haas

Model:: EC-400

Year:: 2013

Ref #:: 162423

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

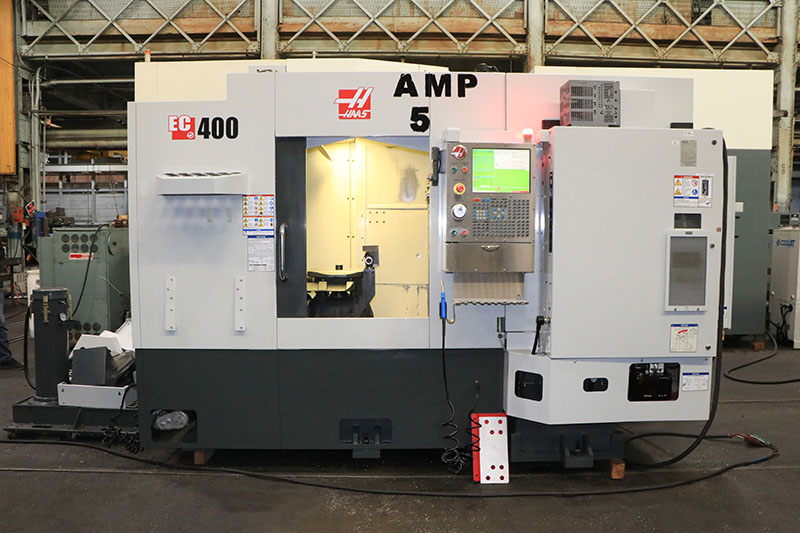

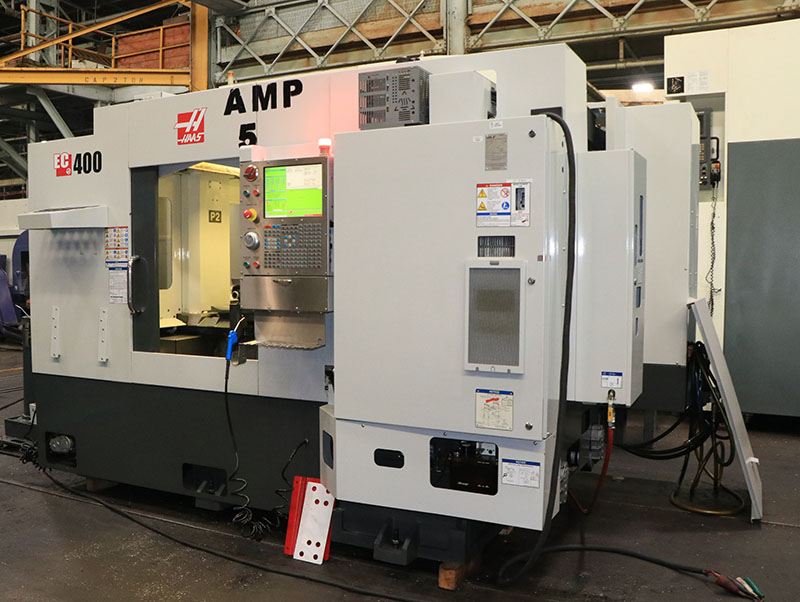

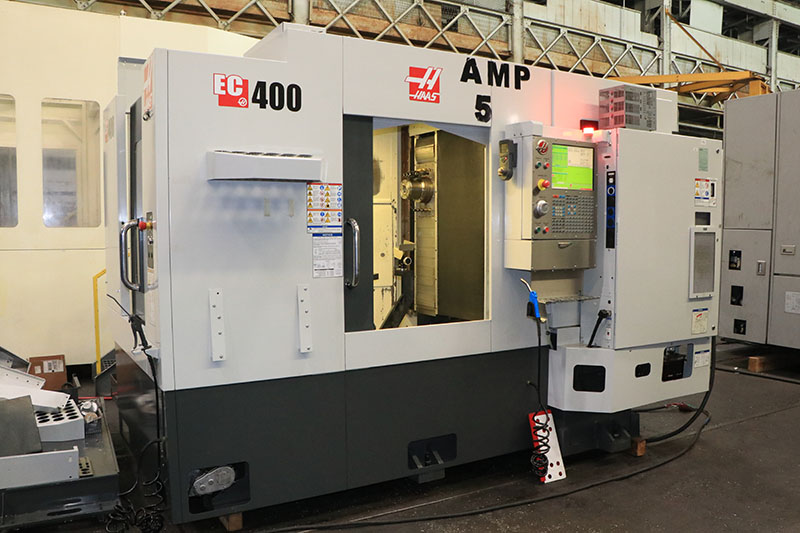

HAAS HORIZONTAL MACHINING CENTER
 MODEL: EC-400, S/N: 2054258, YEAR: 2013

SPECIFICATIONS:
X-AXIS TRAVEL .................. 20" 508mm
Y-AXIS TRAVEL .................. 20" 508mm
Z-AXIS TRAVEL .................. 20" 508mm
SPINDLE SPEED .................. 12,000 RPM
SPINDLE MOTOR .................. 30 HP
SPINDLE TAPER .................. CAT 40
TOOL POSITIONS ................. 70 ATC
PALLET INDEXING ................ 1 DEGREE
PALLET DIMENSIONS .............. 15.75" X 15.75" 400mm
NUMBER OF PALLETS .............. (2)
MAXIMUM WORKPIECE WEIGHT ....... 660 LBS.
APPROXIMATE MACHINE WEIGHT ..... 22,000 LBS

EQUIPPED WITH:

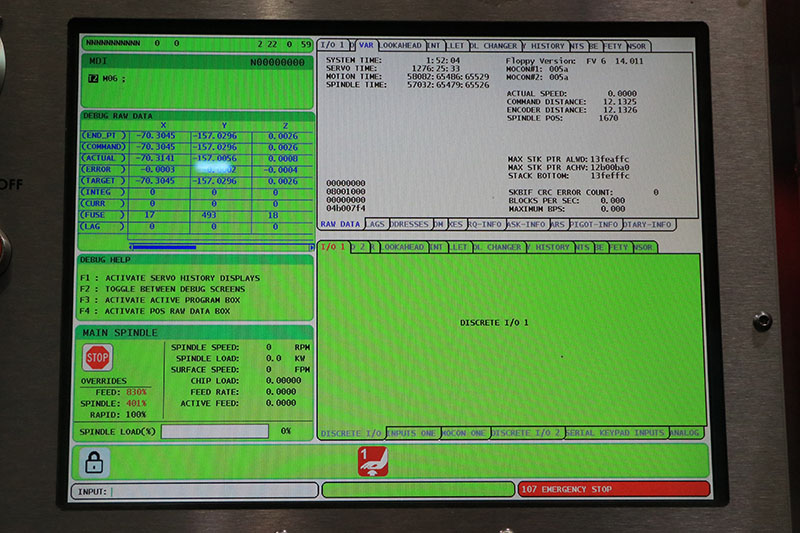

HAAS CONTROL
EXPANDED MEMORY, HIGH SPEED MACHINING, RIGID TAPPING,
QUICK CODE, MACROS, M19 SPINDLE ORIENT, ROTATION & SCALING
ETHERNET
RENISHAW / WIPS WIRELESS INTUITIVE PROBING SYSTEM
RIGID TAPPING
1 DEGREE ROTARY
THRU SPINDLE COOLANT
CHIP AUGERS
JORGENSON CHIP CONVEYOR
70 POCKET AUTOMATIC TOOL CHANGER

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
