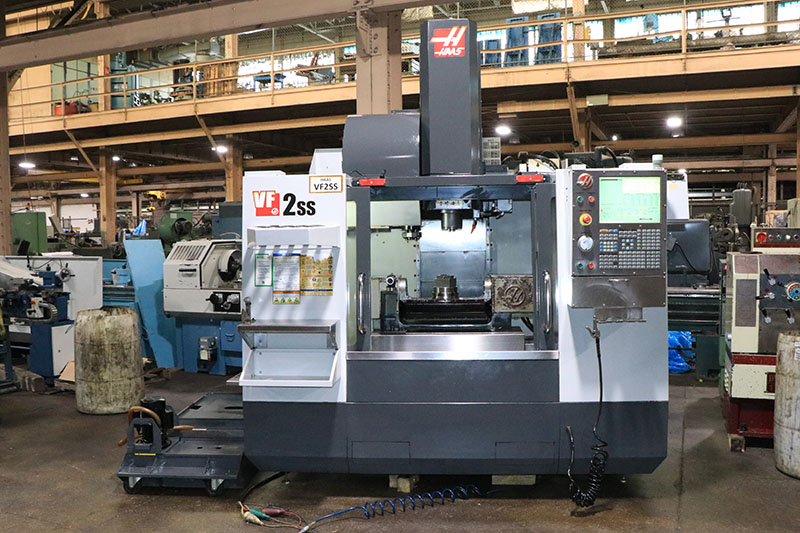

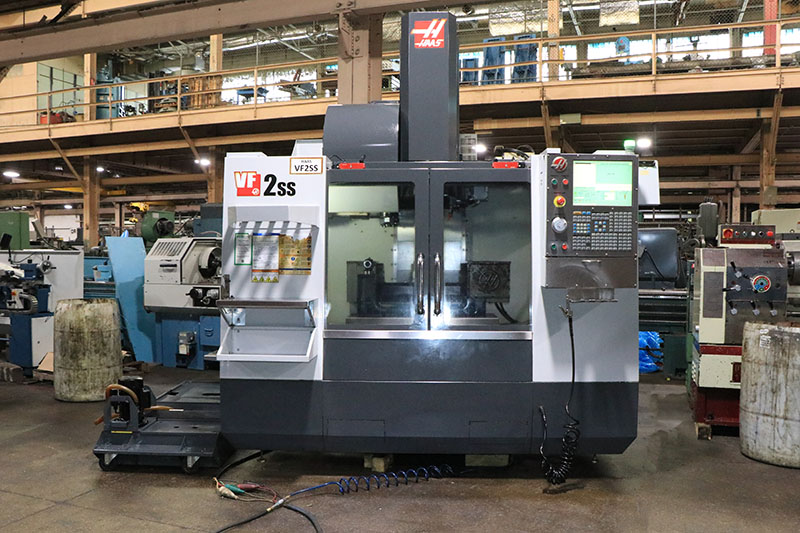

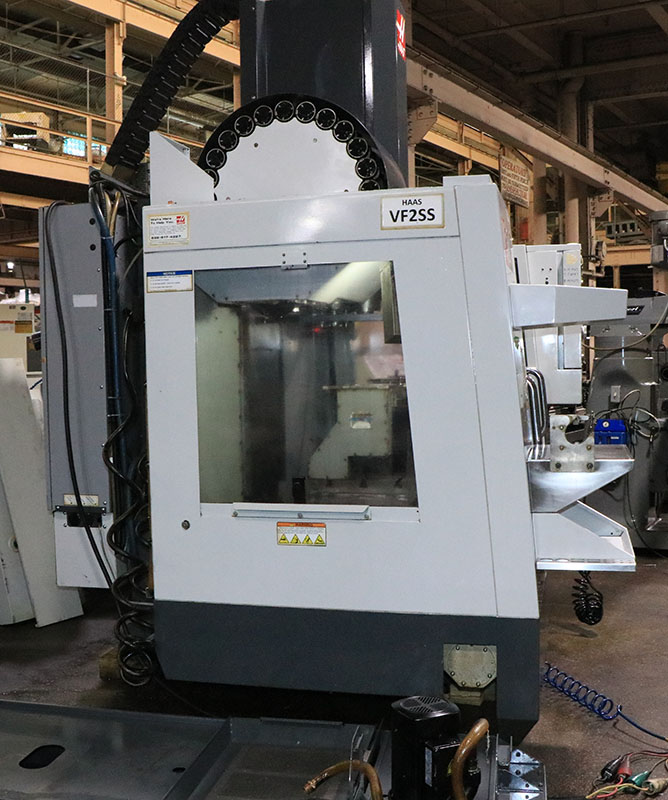

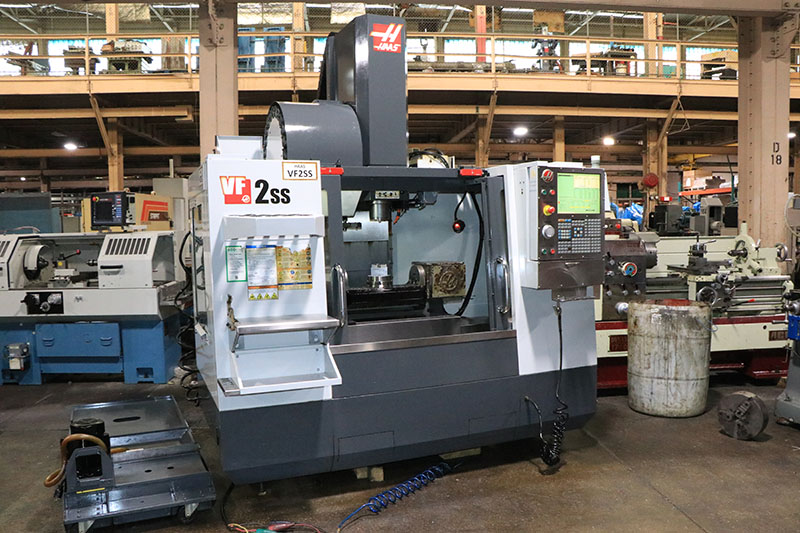

Haas VF-2SS UNIVERSAL 5-AXIS MACHINING CENTER

$49,500

Make:: Haas

Model:: VF-2SS

Year:: 2011

Ref #:: 178769A

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

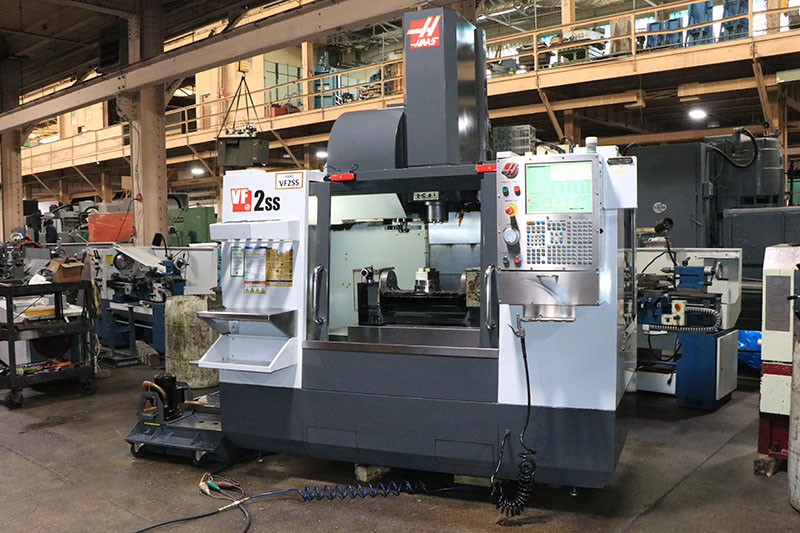

HAAS 5-AXIS VERTICAL MACHINING CENTER
MODEL: VF2SS, S/N: 903854,  MFG: 2011

SPECIFICATIONS:
X-AXIS TRAVEL .................... 30"  762mm
Y-AXIS TRAVEL .................... 16"  406mm
Z-AXIS TRAVEL .................... 20"  508mm

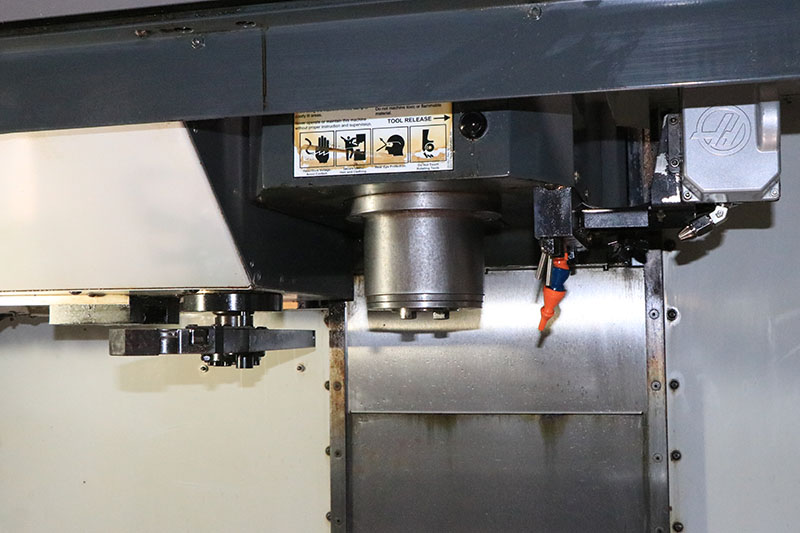

SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM
TABLE SIZE ....................... 36" X 14"
TABLE LOAD CAPACITY .............. 1500 LBS

MACHINE DIMENSIONS: .............. 89" x 92" x 104"H
MACHINE WEIGHT: .................. 8,000 LBS

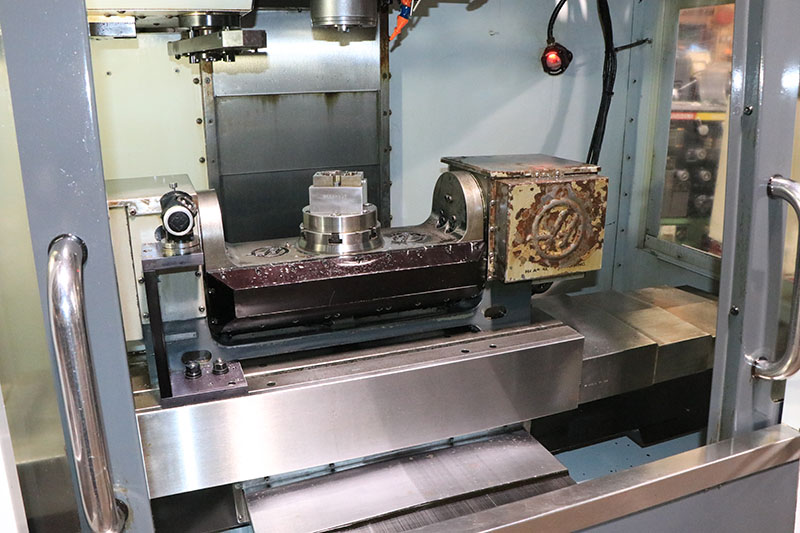

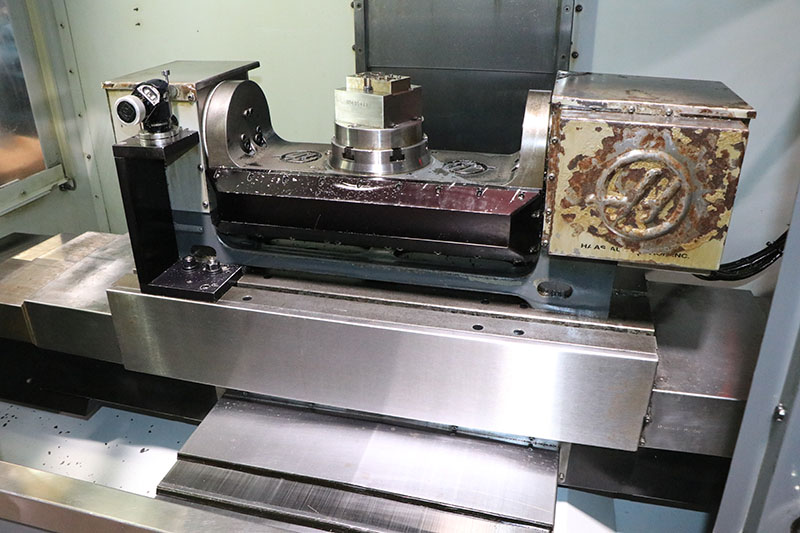

TRUNNION SPECIFICATIONS – HAAS TR160

 PLATTER DIAMETER: 6.3" (160 mm)
A-AXIS (TILT): ±120°
B-AXIS (ROTATION): 360° CONTINUOUS
MAX WORKPIECE WEIGHT: 80 lb (36 kg) INCLUDING FIXTURE
MAX PART SWING: 10.5" (267 mm)
T-SLOTS: (6) 8 mm SLOTS ON THE PLATTER


EQUIPED WITH:

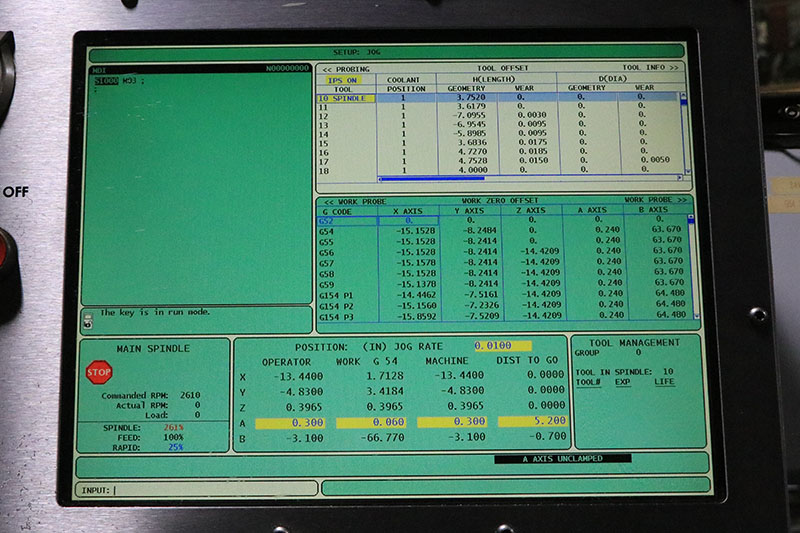

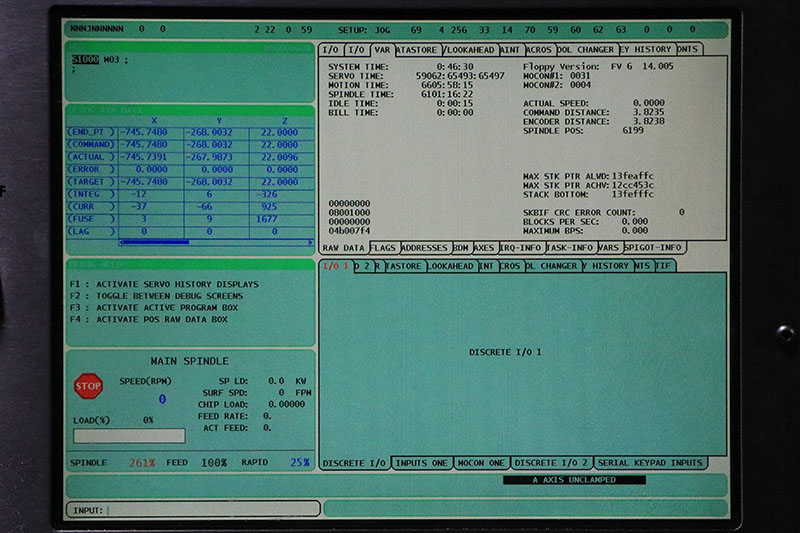

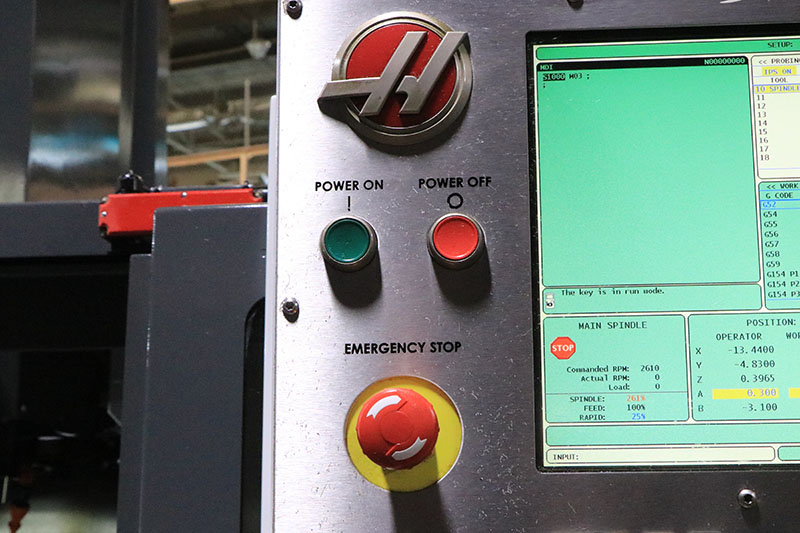

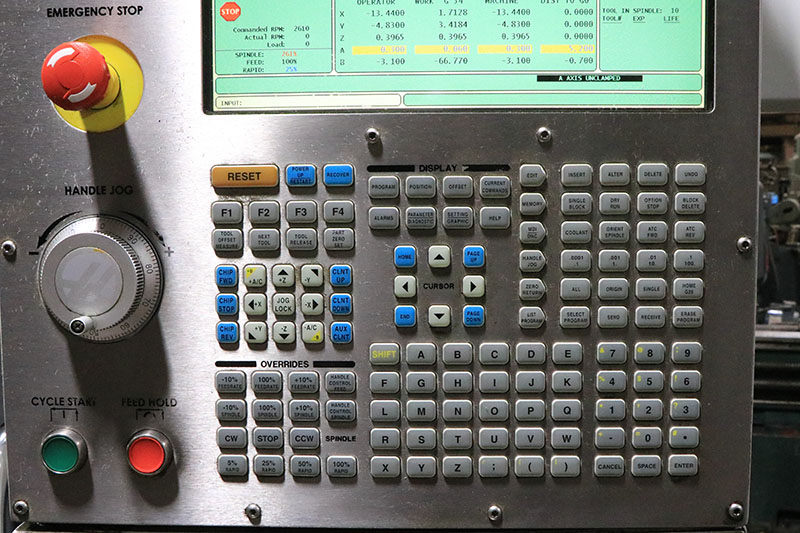

- HAAS CONTROL
- RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
- SPINDLE ORIENTATION, EXTENDED MEMORY,
- USER-DEFINABLE MACROS, DNC ENABLED
- ADV TOOL MGMT, INTUITIVE PART PROGRAMMING

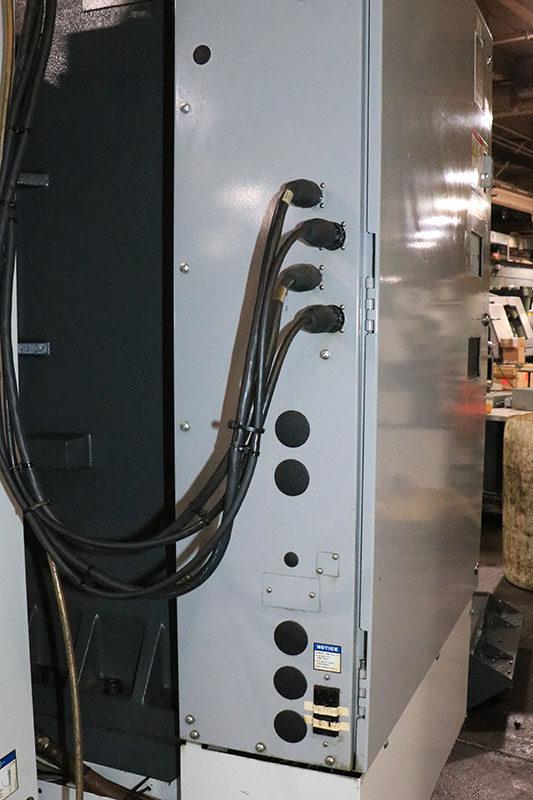

- HAAS 5-AXIS DRIVES AND WIRING
- HAAS MODEL: TR160 CNC TRUNNION TABLE

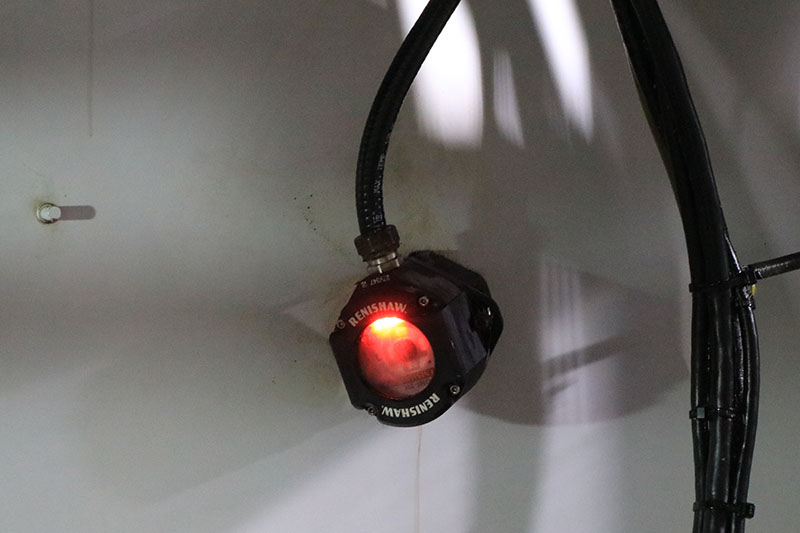

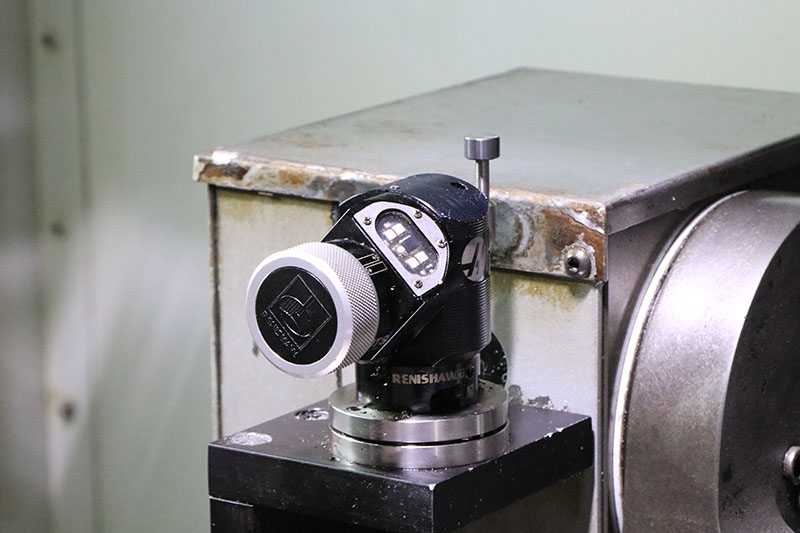

- RENISHAW WIRELESS INTUITIVE TOOL & PART PROBE (WIPS)

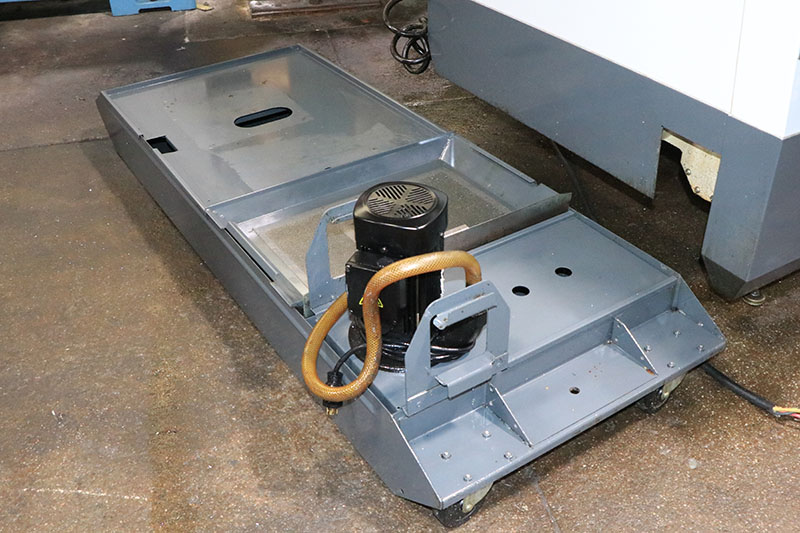

- COOLANT SYSTEM

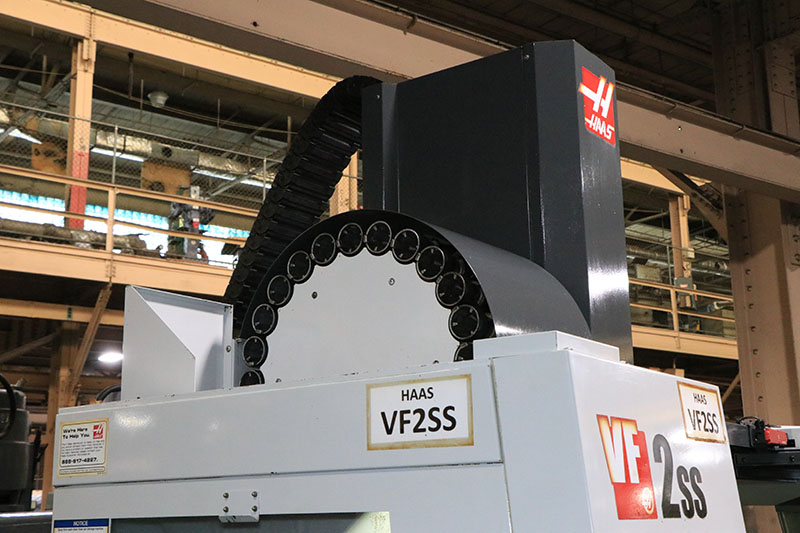

- 24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
