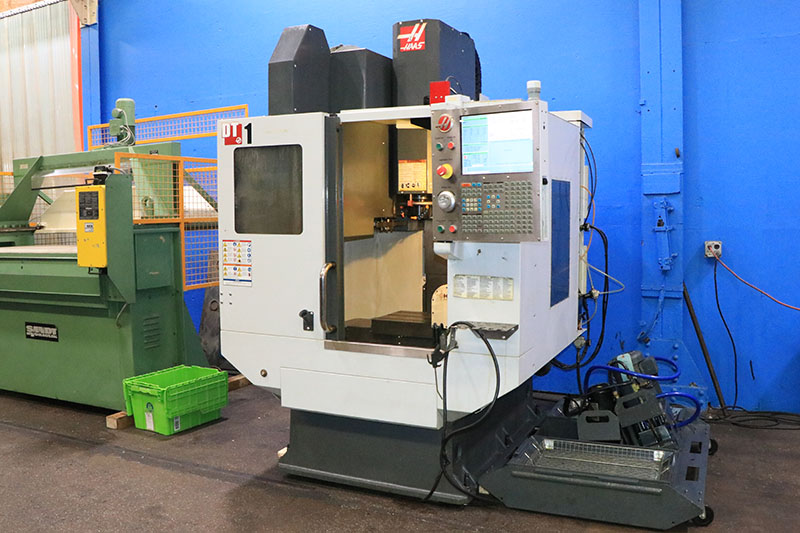

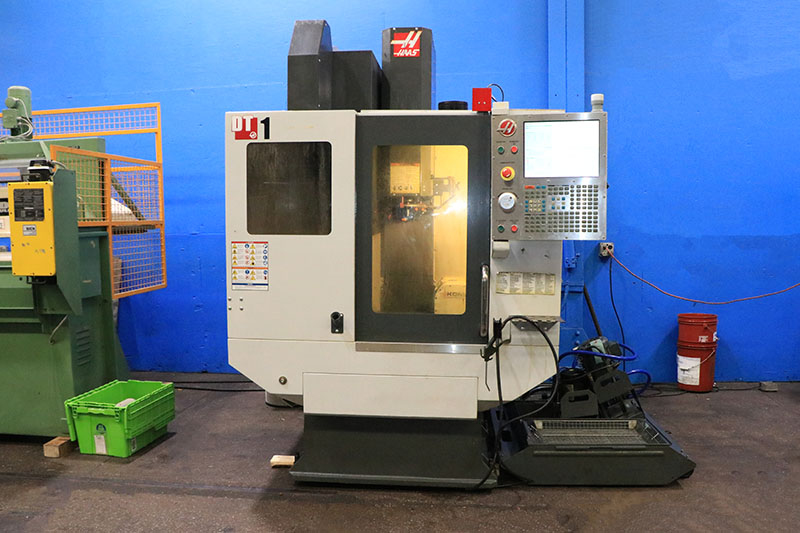

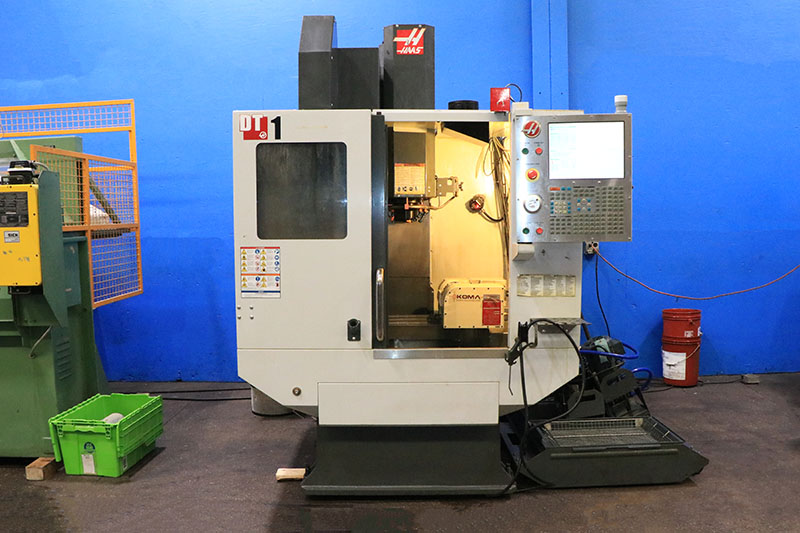

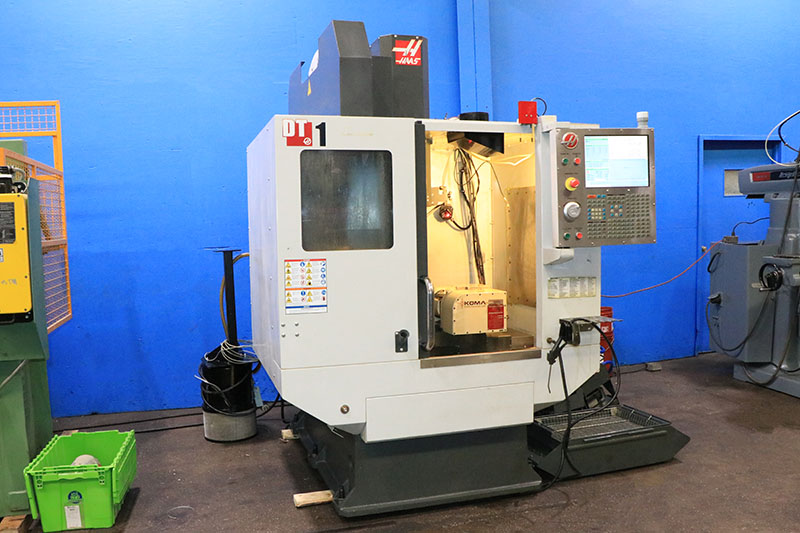

Haas DT-1 UNIVERSAL 5-AXIS MACHINING CENTER

$34,500

Make:: Haas

Model:: DT-1

Year:: 2015

Ref #:: 178910a

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

HAAS 5-AXIS CNC DRILL TAP/MILL CENTER

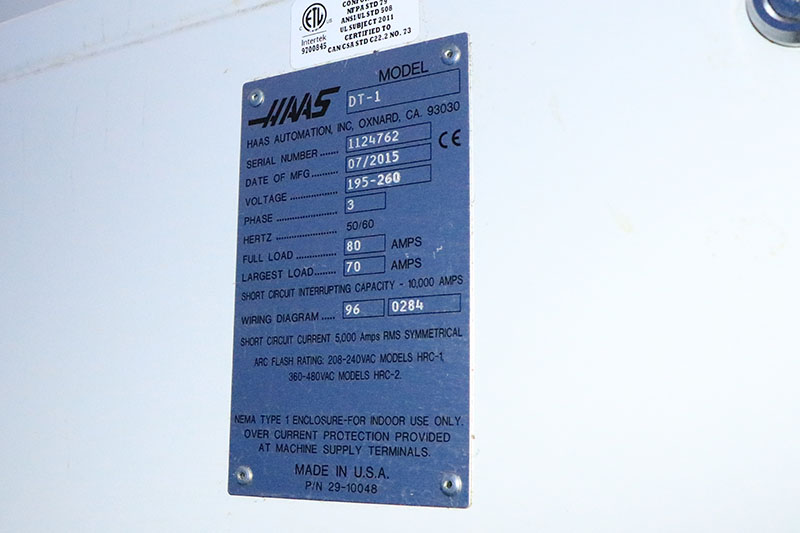

MODEL: DT-1,  S/N: 1124762, NEW: 2015

SPECIFICATIONS:
X-AXIS TRAVEL.......................... 20" / 508mm
Y-AXIS TRAVEL.......................... 16" / 406mm
Z-AXIS TRAVEL.......................... 15.5" / 394mm
TABLE SIZE............................. 26" X 15"
MAX WEIGHT ON TABLE.................... 250 LBS
SPINDLE SPEED.......................... 15,000 RPM
SPINDLE MOTOR.......................... 15 HP
MAX TAPPING SPEED...................... 5,000 RPM
MAX RAPIDS............................. 2,400 IPM
MAX CUTTING............................ 1,200 IPM
TOOL CHANGER CAPACITY.................. 20 + 1
SPINDLE TAPER.......................... BT-30
MACHINE SIZE: 68" W, 124" L WITH COOLANT TANK, 103" TALL

EQUIPPED WITH:

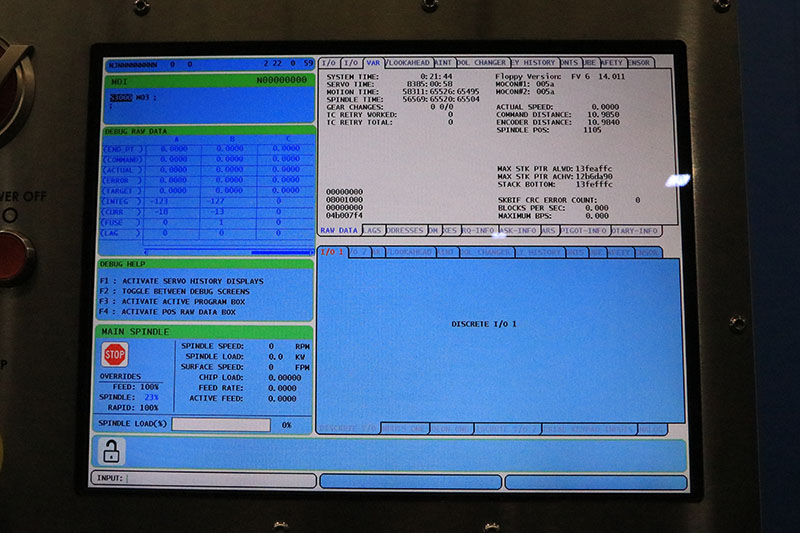

* HAAS 5 AXIS CNC CONTROL w/4TH & 5TH AXIS DRIVES
   ROTATION & SCALING, DNC, QUICK CODE, M19 SPINDLE ORIENT,
   MACROS, INTUITIVE PROGRAMMING, ADVANCED TOOL MGMT,
   SPINDLE LOAD METER
* RIGID TAPPING
* USB PORT
* (WIPS) WIRELESS INTUITIVE PROGRAMMING SYSTEM
      PROBE TOOL & TOUCH SETTER REQUIRED

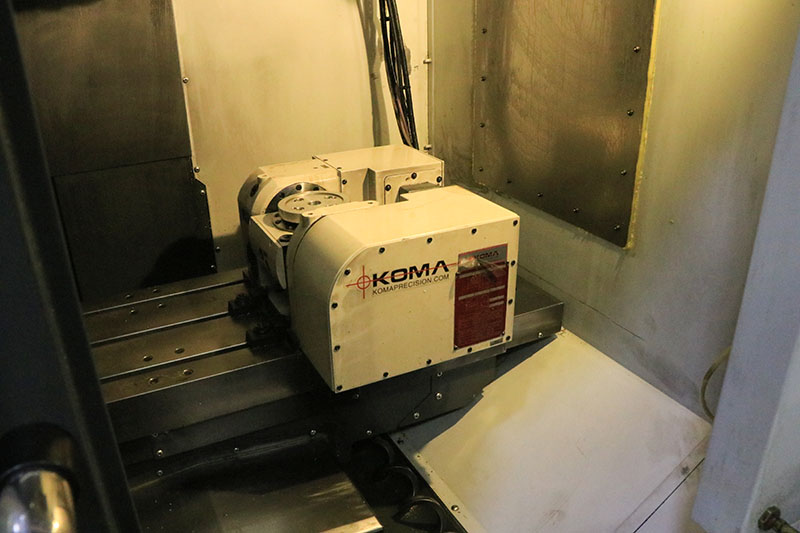

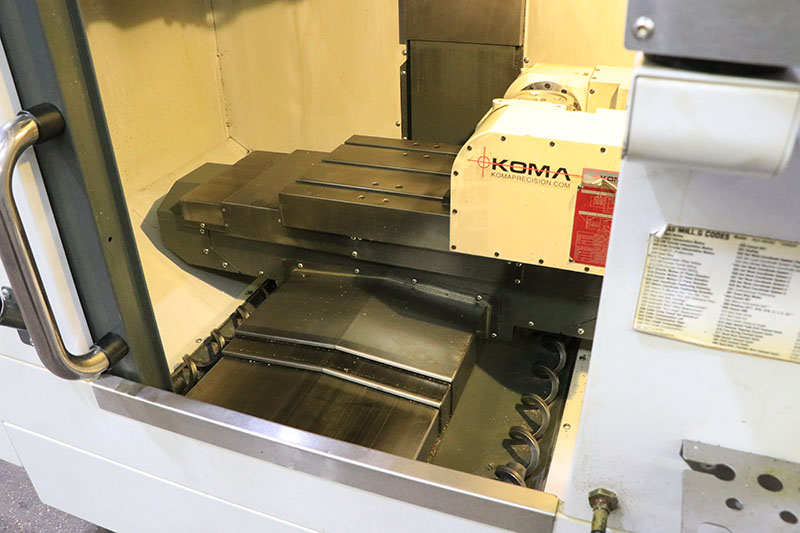

* KOMA MODEL: TN101 5-AXIS TRUNNION TABLE

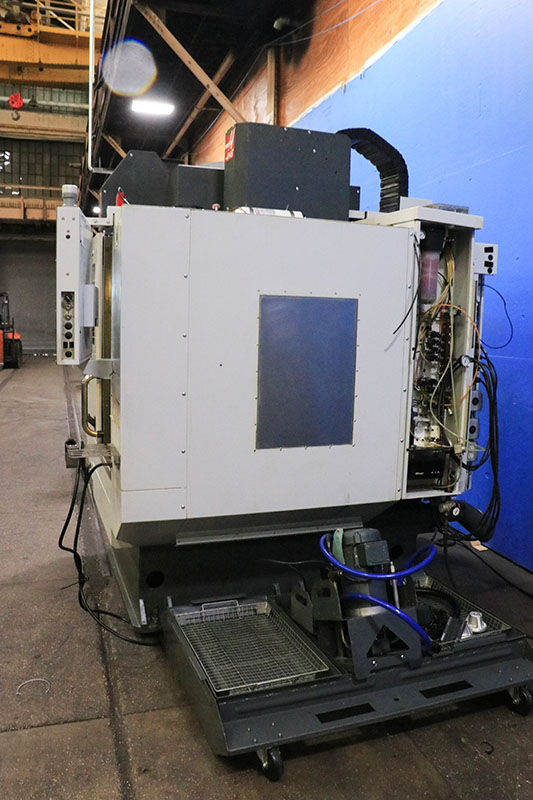

* DUAL CHIP AUGERS

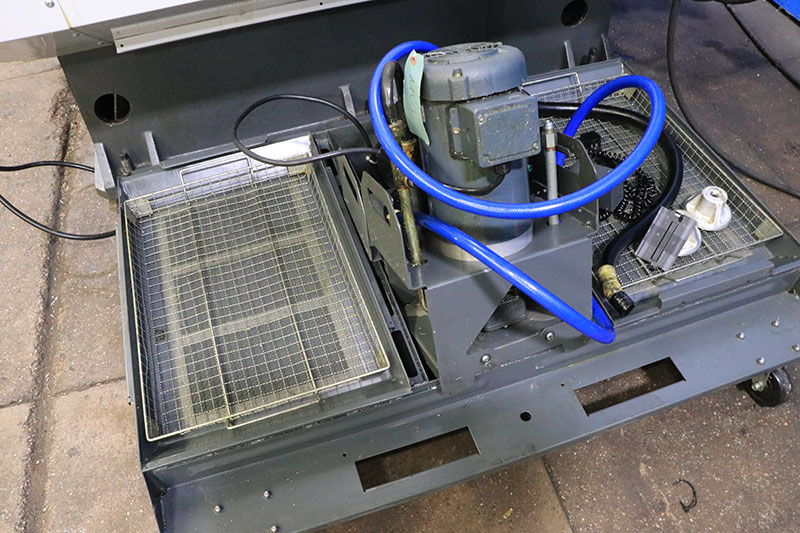

* COOLANT THROUGH SPINDLE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
