Kitamura MedCenter 5AX, Trunnion, 15,000 RPM, 40 ATC, UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:: Kitamura

Model:: MedCenter 5AX, Trunnion, 15,000 RPM, 40 ATC,

Year:: 2025

Ref #:: 179297

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

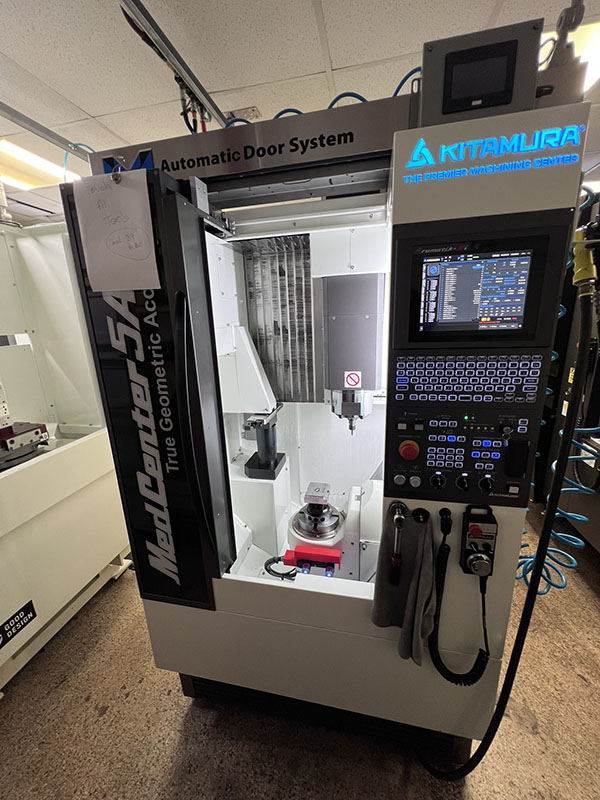

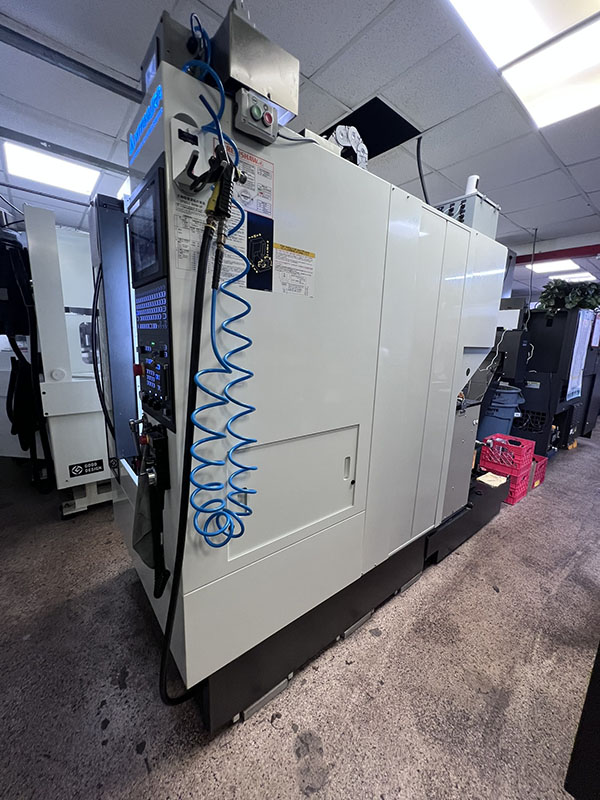

KITAMURA 5-AXIS CNC MACHINING CENTER

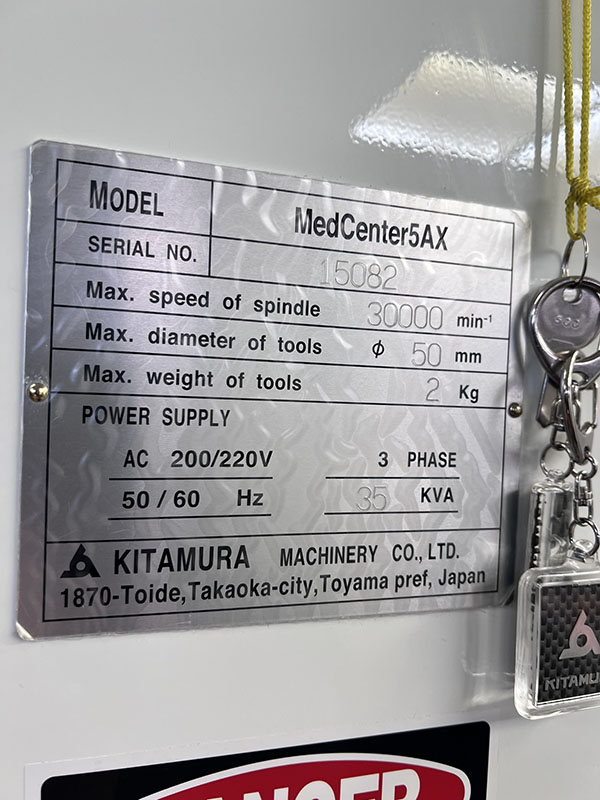

MODEL: MedCENTER 5AX,  NEW: 2025

SPECIFICATIONS:
TABLE SIZE ............................ 6.7" / 170mm
MAXIMUM WORK DIAMETER ................. 7.1" / 180mm
MAXIMUM WORKPIECE HEIGHT .............. 6.9" / 175mm
WEIGHT ON TABLE ....................... 44 LBS. / 20KG
SPINDLE NOSE TO TABLE ................. 2" - 15"
MAIN SPINDLE SPEEDS ................... 30,000 RPM

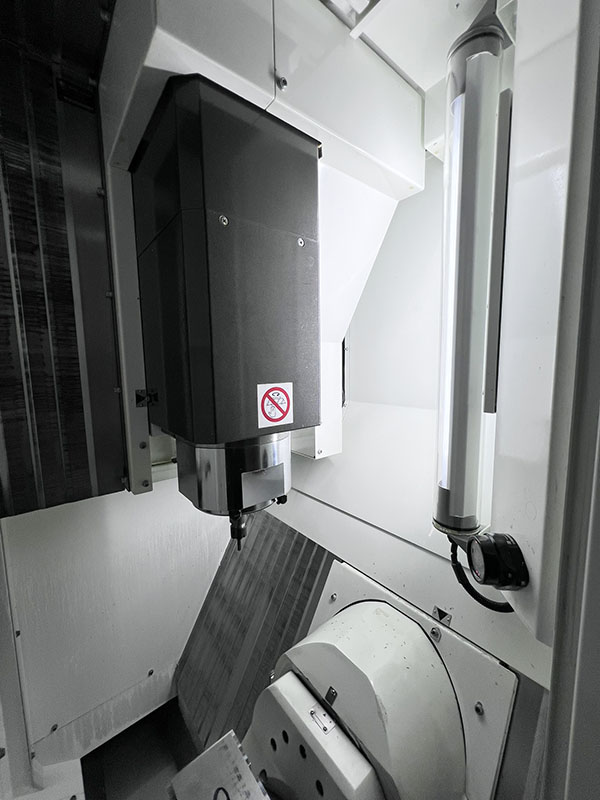

MAIN SPINDLE TAPER .................... HSK-E40
MAIN SPINDLE HORSE POWER .............. 24.5 HP
X - AXIS TRAVEL ....................... 12" / 254mm
Y - AXIS TRAVEL ....................... 13" / 330mm
Z - AXIS TRAVEL ....................... 13" / 330mm
A - AXIS TRAVEL 240° .................. +120° OR -120°
C - AXIS TRAVEL ....................... 360 DEGREES

RAPID TRAVERSE: X, Y, Z ............... 2362, 2362, 1969 IPM
RAPID TRAVERSE: A, C: ................. 36000, 72000 DEG/MIN
CUTTING FEED RATE ..................... 1969 IPM
AUTOMATIC TOOL CHANGER ................ 40 ATC
MAXIMUM TOOL DIAMETER ................. 2"
MAXIMUM TOOL LENGTH ................... 7.9"
APPROXIMATE FLOOR SPACE ............... 47.2"W x 80"D x 88"H
APPROXIMATE MACHINE WEIGHT ............ 9,260 LBS.

EQUIPPED WITH:

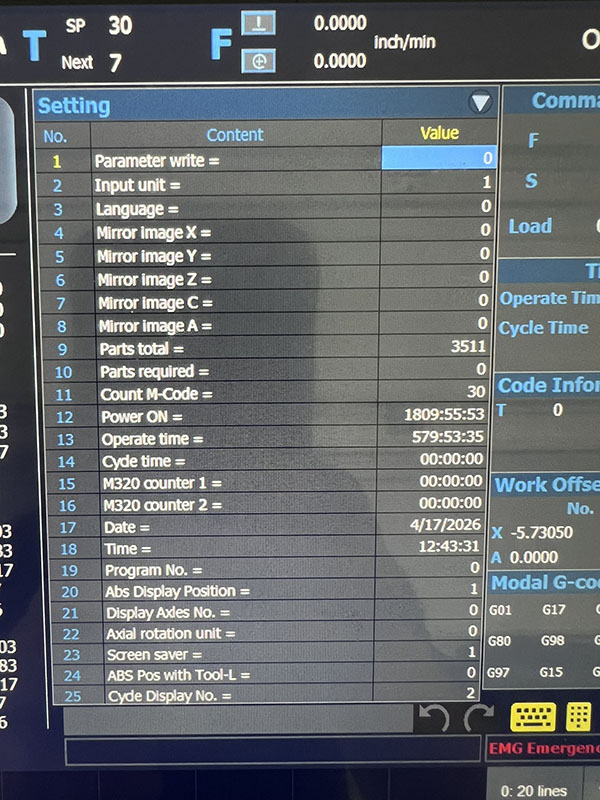

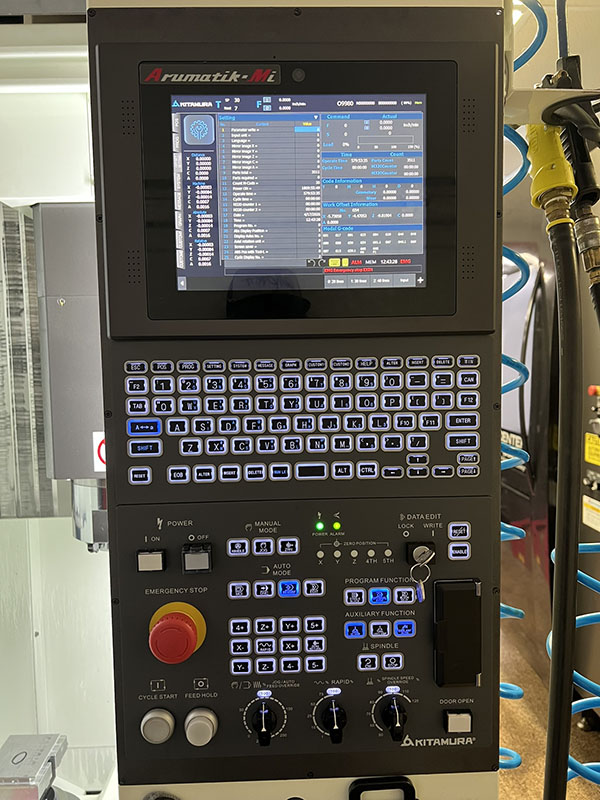

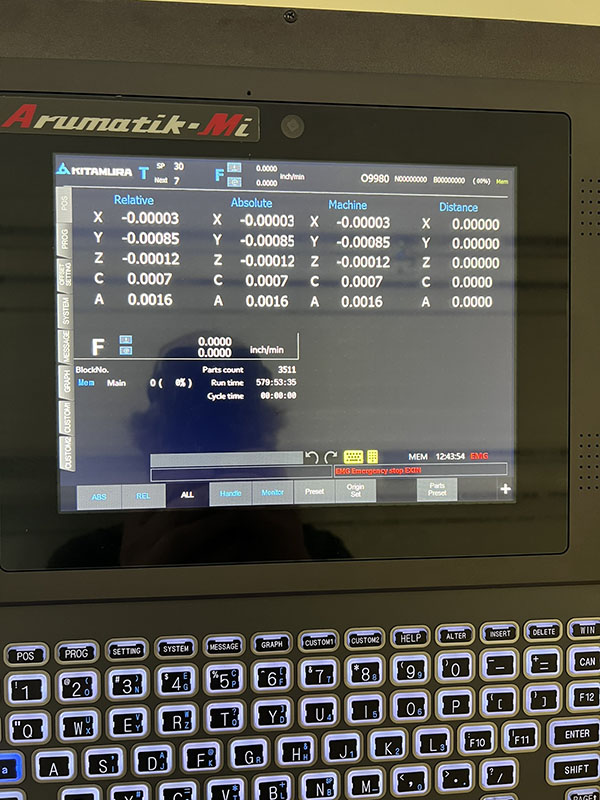

ARUMATIC MODEL: Mi 5-AXIS SIMULTANEOUS CONTROL:
   SSS (SUPER SMOOTH SURFACE)
   COMPLEX CONTOURING & MOLD APPLICATIONS
   HIGH SPEED MACHINING, TOOL CENTER POINT CONTROL
   1680 BLOCK LOOK AHEAD & 2,800 BLOCKS/SEC PROCESSING SPEED
   1280 METERS OF MEMORY, 8GB DATA SERVER
   MACROS, RIGID TAPPING, MIRROR, 3-D COORIDANTE CONVERSION
   USB MEMORY INTERFACE & MUCH MUCH MORE
ANYWHERE REMOTE-(EMAIL STATUS UPDATES)

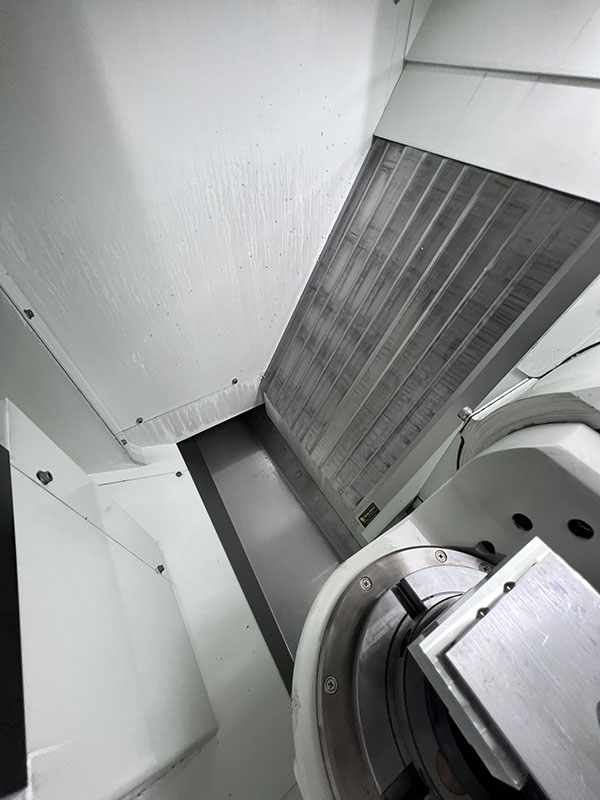

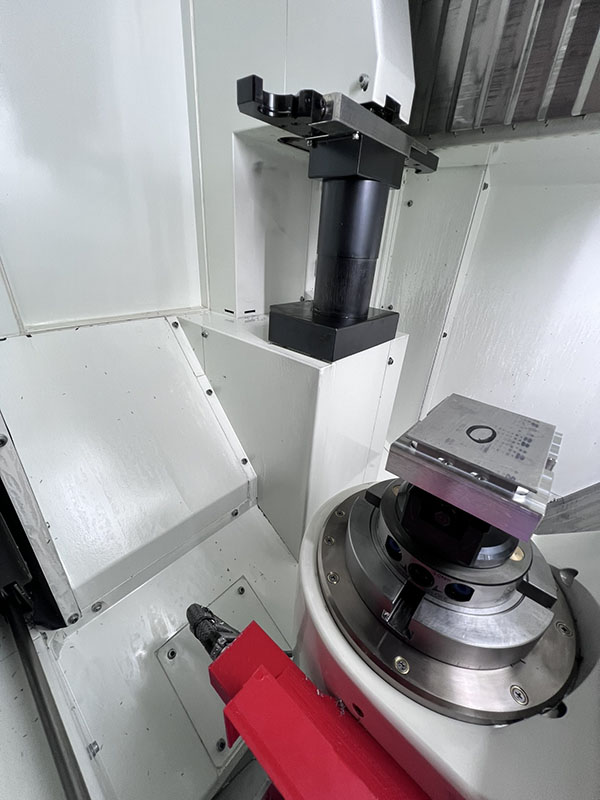

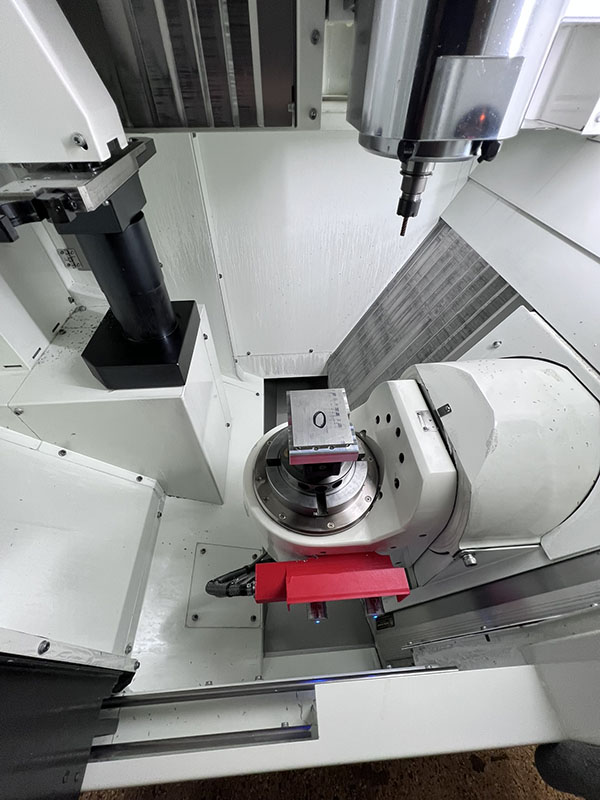

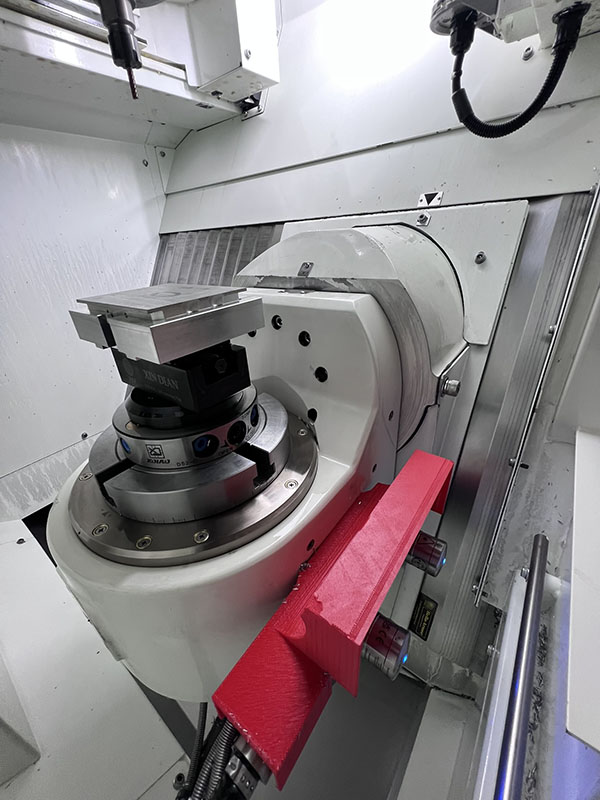

TRUNNION TABLE
LINEAR & ROTARY SCALE FEEDBACKS
4TH & 5TH AXIS CLAMPING MECHANISM
COOLANT THROUGH SPINDLE

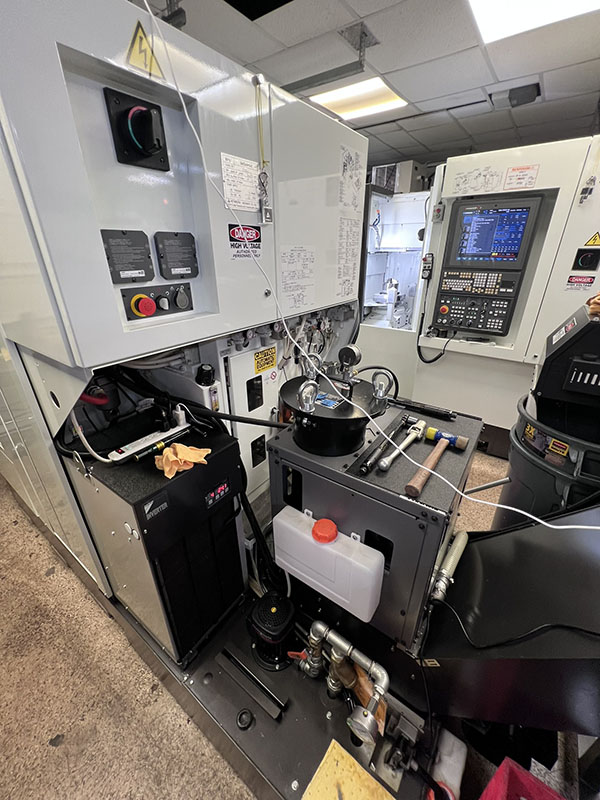

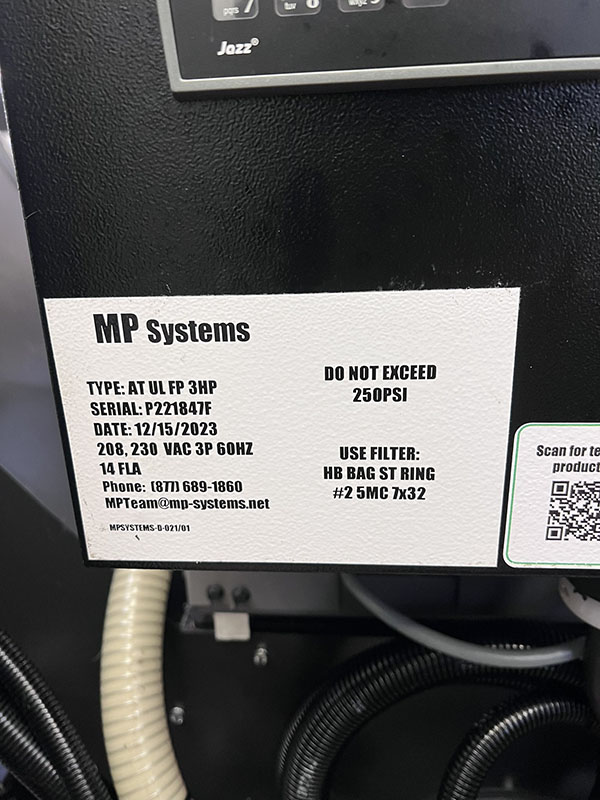

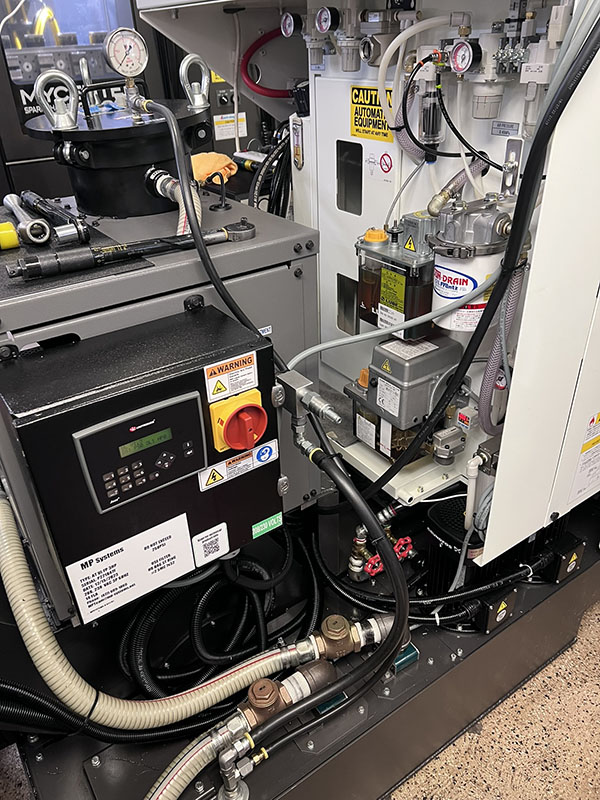

HIGH PRESSURE COOLANT THRU SPINDLE
RENISHAW PART PROBE MODEL: RMP40 & OMP40

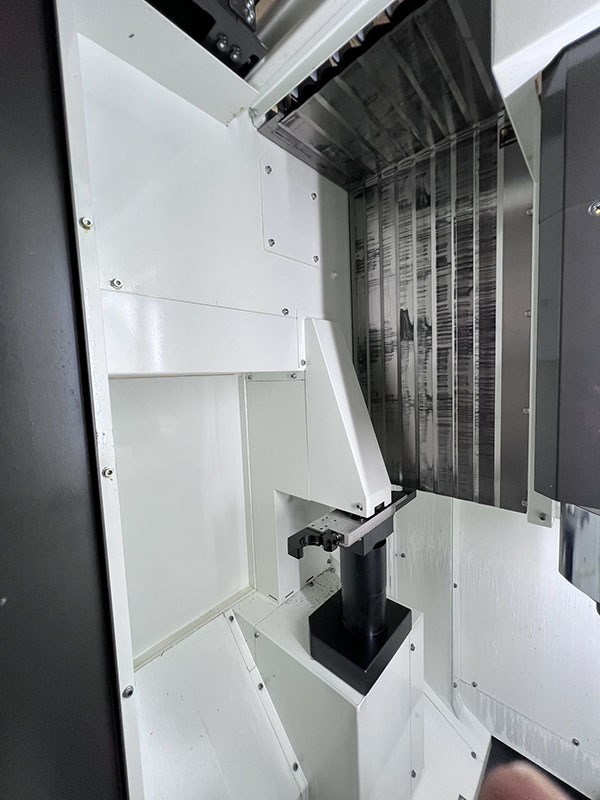

RENISHAW TOOL PRESETTER MODEL: NC4-1
SPINDLE AIR BLOW
SPINDLE OIL CHILLER

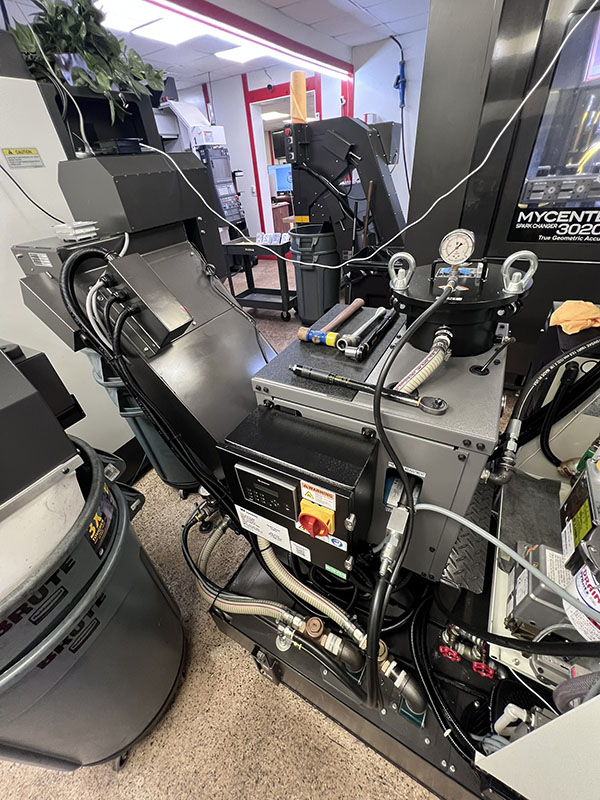

HIGH DISCHARGE CHIP CONVEYOR

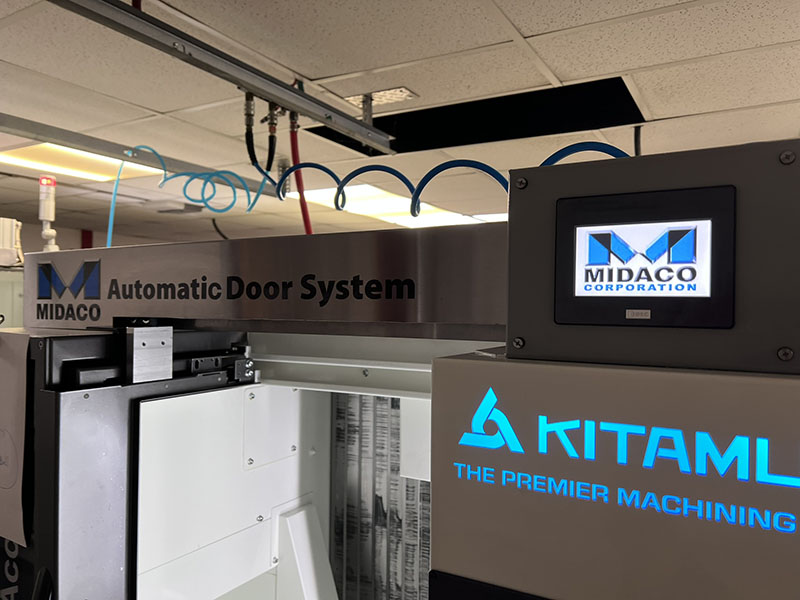

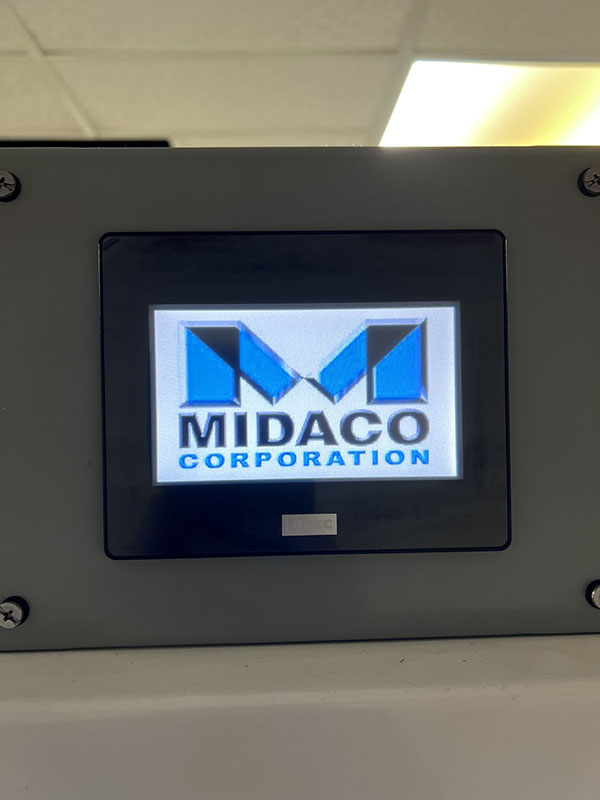

MIDACO AUTO-DOOR
40 TOOL AUTOMATIC TOOL CHANGER
CONTACT SURFACES ARE EXTENSIVELY HAND SCRAPED

MACHINE HAS 500 HOURS OF RUN TIME
INSPECT UNDER POWER IN PLANT
