Doosan DVF 6500 UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:: Doosan

Model:: DVF 6500

Year:: 2024

Ref #:: 179221

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

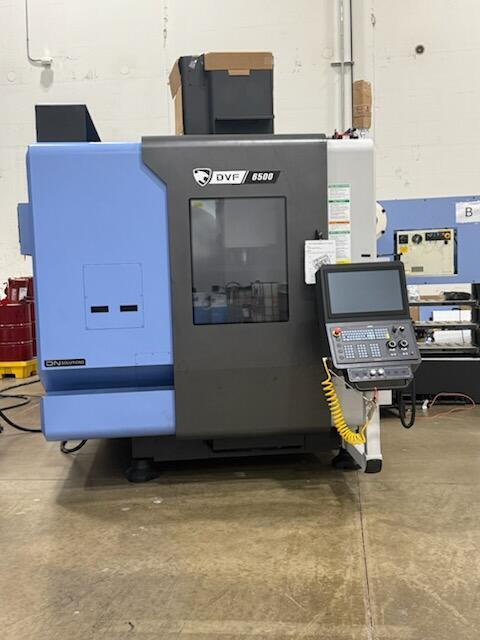

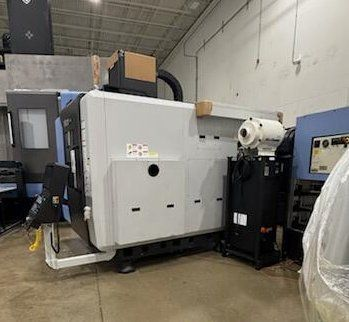

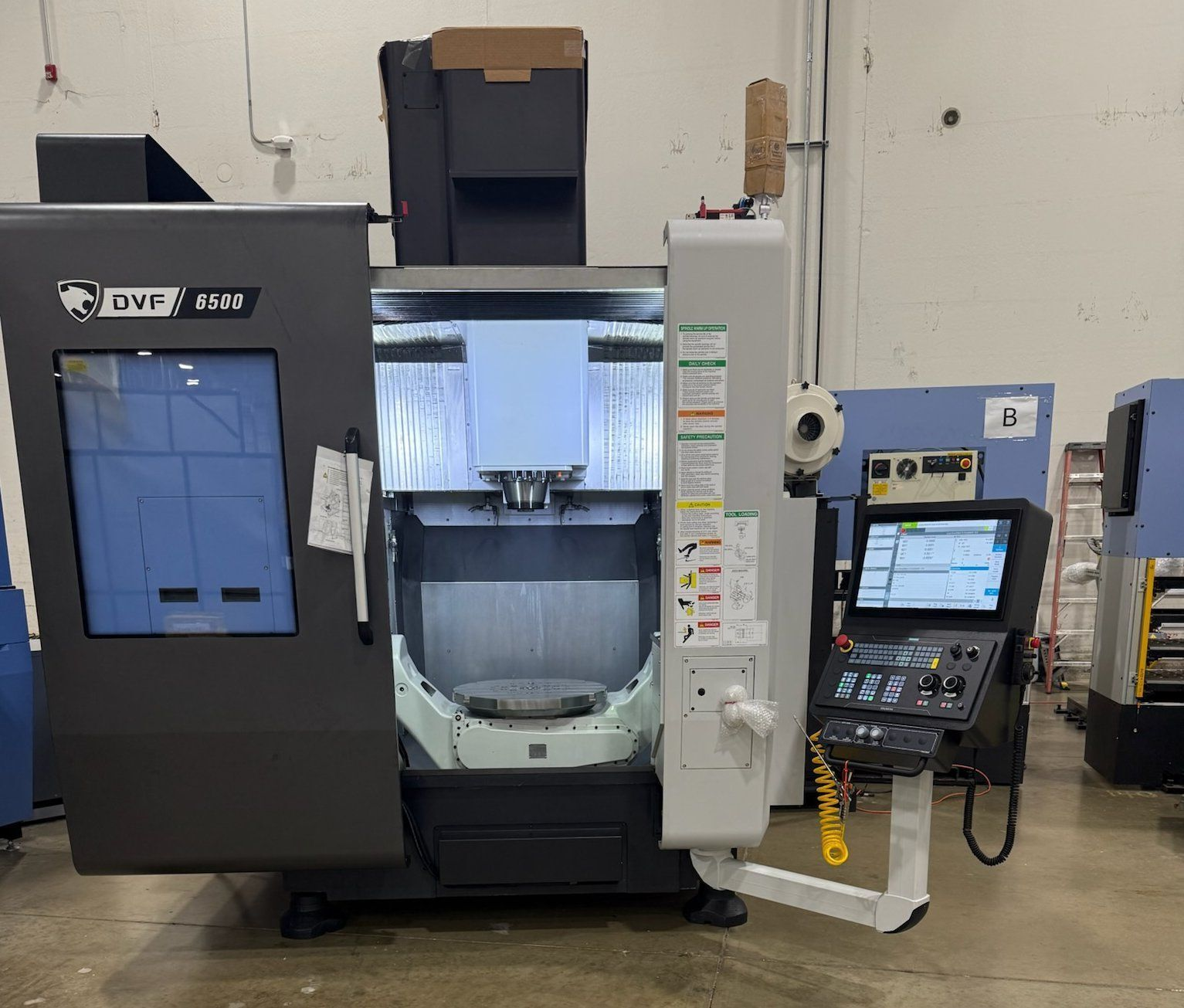

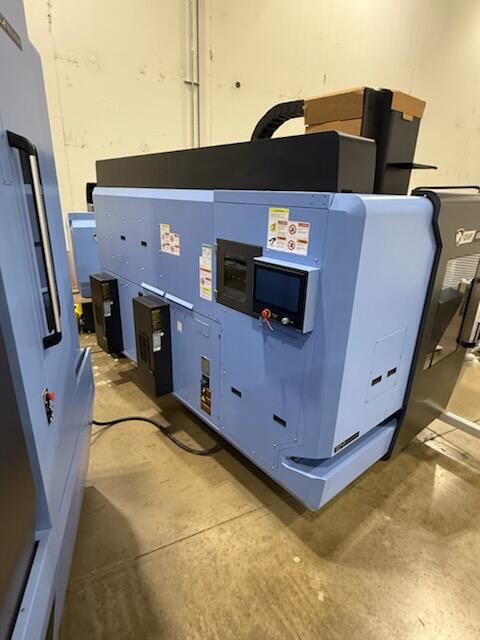

DOOSAN DVF 6500 5-AXIS MACHINING CENTER
INSTALLED IN 2024

SPECIFICATIONS:
DN SOLUTIONS DVF 6500 - NEW 2024 WITH UNDER 1,000 CUTTING HOURS

PREMIUM SIMULTANEOUS 5-AXIS VERTICAL MACHINING CENTER
THE DVF SERIES OF PREMIUM 5 AXIS VERTICAL MACHINING CENTERS ARE BUILT FOR HIGH
PRECISION MACHINING OF COMPLEX PARTS

MACHINE WAS DN SOLUTUONS LOANER DEMO MACHINE AND CAN BE INSPECTED UNDER POWER.

COMES WITH A 6 MONTH PARTS WARRANTY FROM DN SOLUTIONS.

CAPACITY
X AXIS TRAVEL .................. 750 MM (29.52")
Y AXIS TRAVEL .................. 785 MM (30.90")
Z AXIS TRAVEL .................. 600 MM (23.62")
A AXIS TRAVEL .................. +120 DEG \ -120 DEG
C AXIS TRAVEL .................. 360 DEG
TABLE SIZE ..................... 650MM DIA. X 600MM (25.6" DIA. X 23.6")
MAX WORK PIECE DIAMETER ........ 840 MM (33.07")
MAX WORK PIECE HEIGHT .......... 500 MM (19.685")
MAX TABLE LOAD ................. 1,000 KG (2,204 LBS)

SPINDLE:
SPINDLE NOSE TO TABLE TOP ...... 110 MM TO 710 MM (4.33" TO 27.95")
SPINDLE SPEED .................. 18,000 RPM
AC SPINDLE MOTOR (S6) .......... 24 / 30 KW (32.2 / 40.2 HP)
SPINDLE TORQUE (S6) ............ 155 NM (114.4 FT-LBS)

AUTOMATIC TOOL CHANGER:
NUMBER OF TOOLS ................ 60
TOOL SHANK ..................... HSK63A

MACHINE DIMENSIONS:
HEIGHT ......................... 122",
FLOOR SPACE REQUIRED ........... 146" X 97"
MACHINE WEIGHT ................. 32,000 LBS

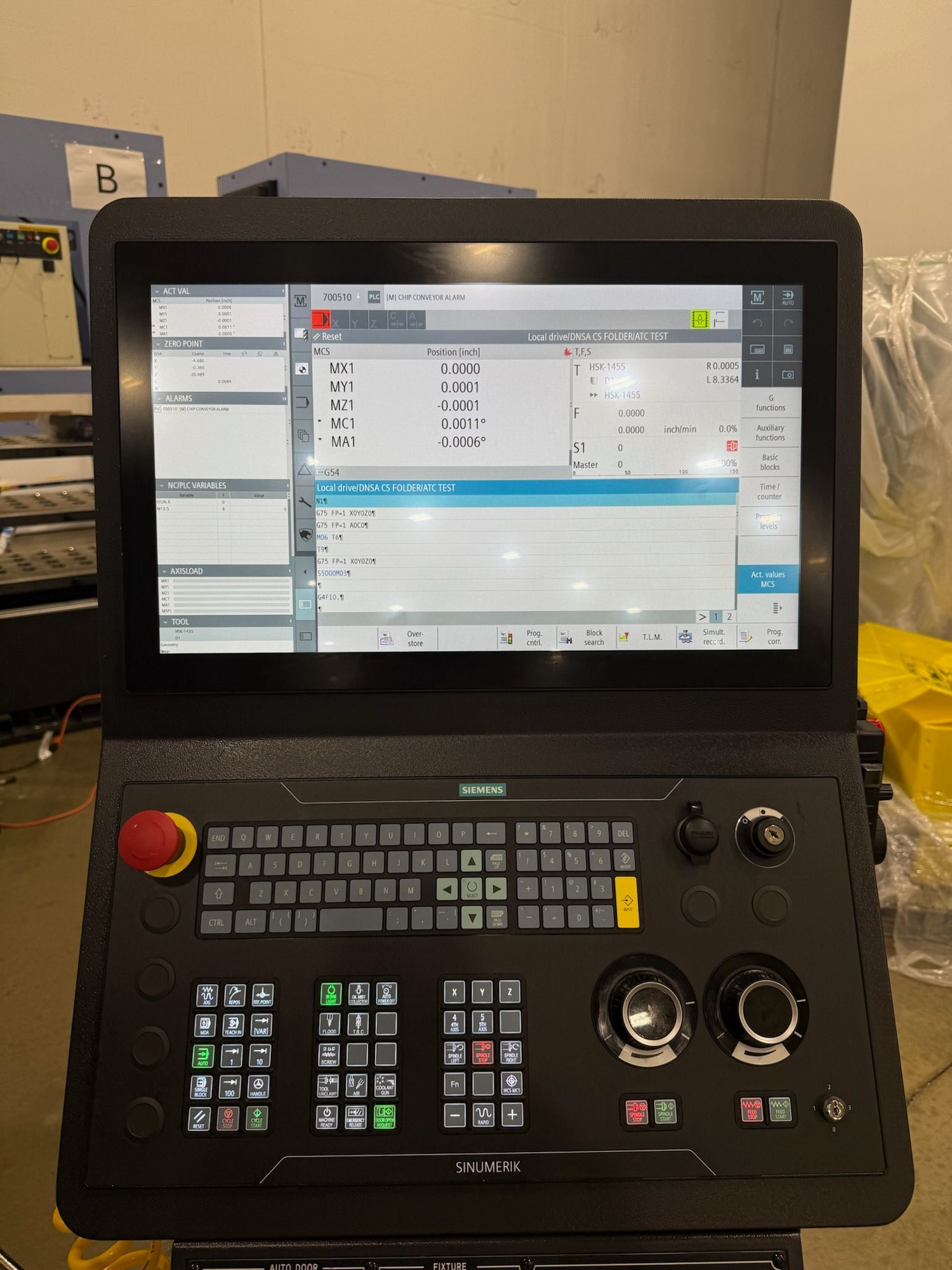

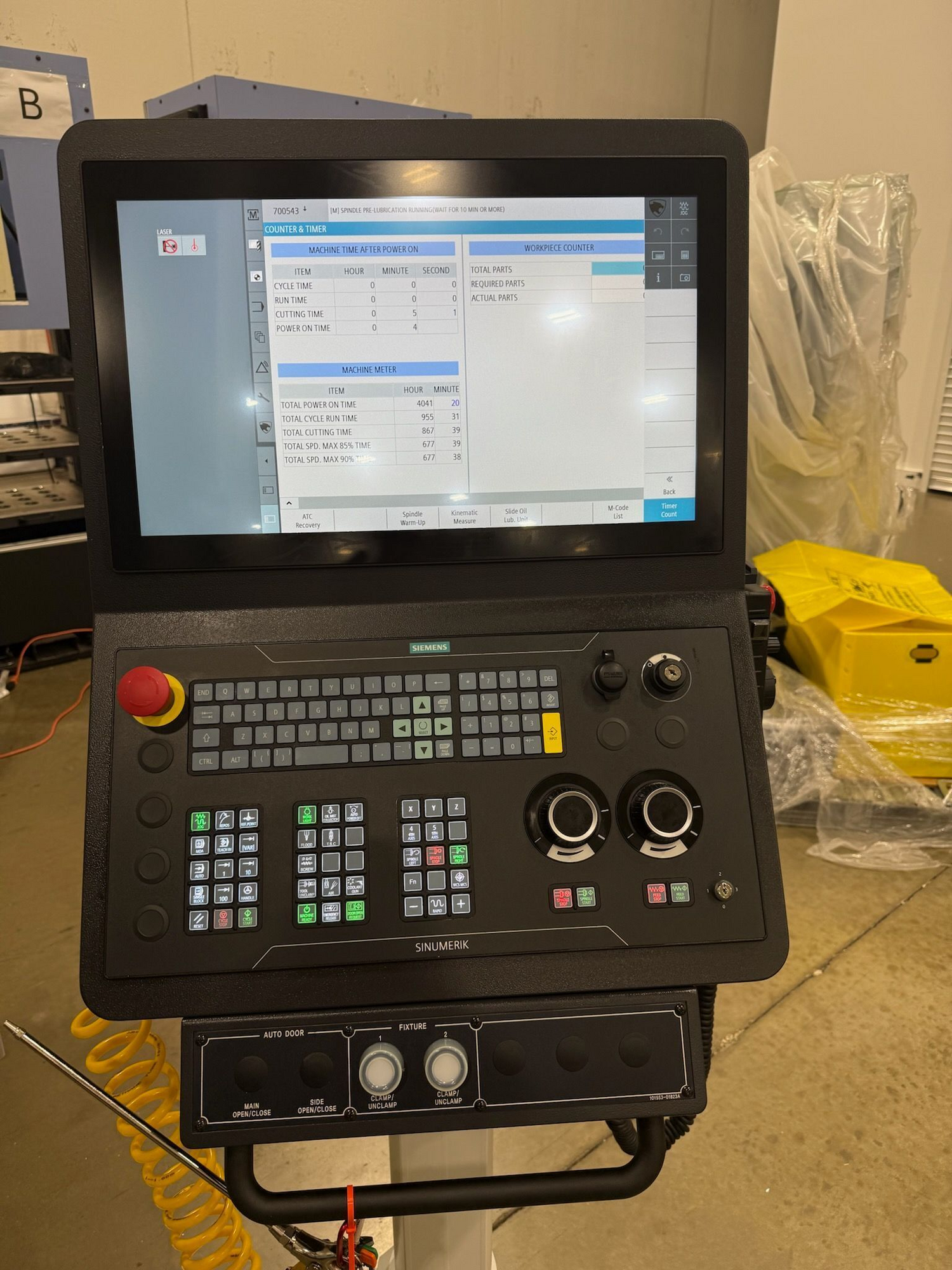

SIEMENS SINUMERIK ONE CONTROL
SIMULTANEOUS 5-AXIS VERTICAL MACHINING CENTER
  w/HIGH PRECISION, ABSOLUTE ENCODERS ON
  A & C AXES & ABSOLUTE GLSS SCALES ON X, Y, & Z AXES

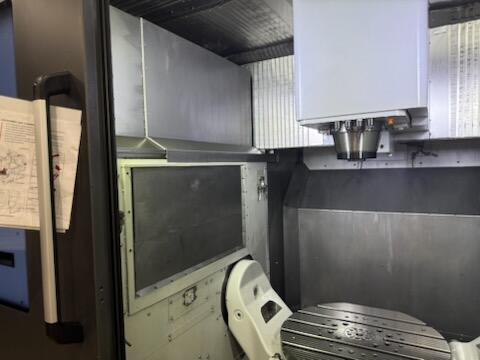

18,000 RPM SPINDLE (HSK-A)

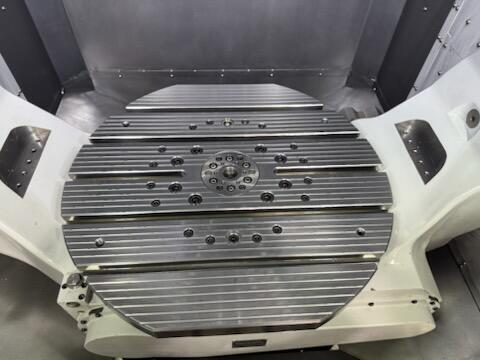

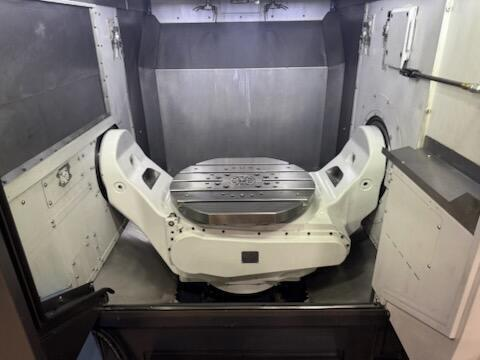

31.5” (800MM) ROTARY TABLE
SERVO DRIVEN, DOUBLE ARM (60 TOOLS)
RENISHAW PROBE-READY
THROUGH-SPINDLE COOLANT
CHIP CONVEYOR (REAR DISCHARGE)
SPINDLE CHILLER
COOLANT CHILLER
BALL SCREW SHAFT COOLING FOR INCREASED ACCURACY DURING
    LONG CYCLE TIMES
5 GIGABYTE PROGRAM STORAGE ON CF CARD
SPINDLE ORIENTATION, RIGID TAPPING, LOAD METER & OVERRIDE
USB PORT
