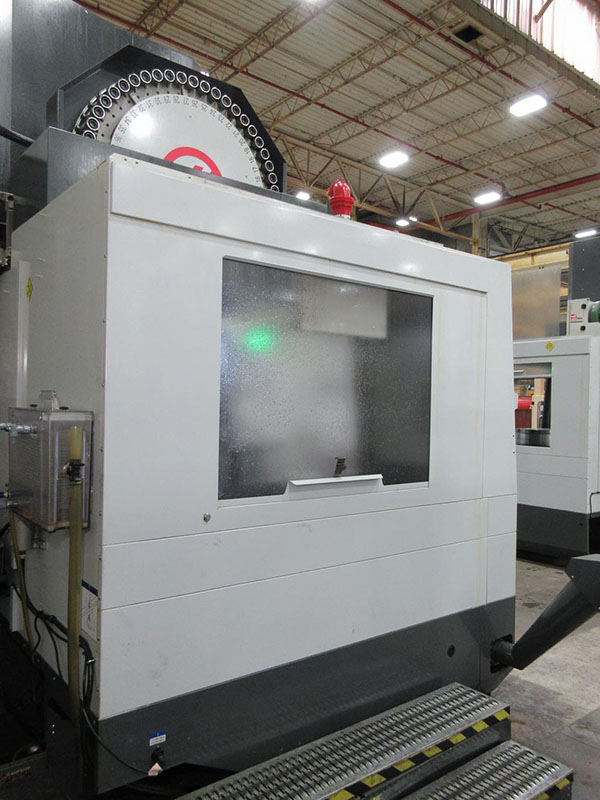

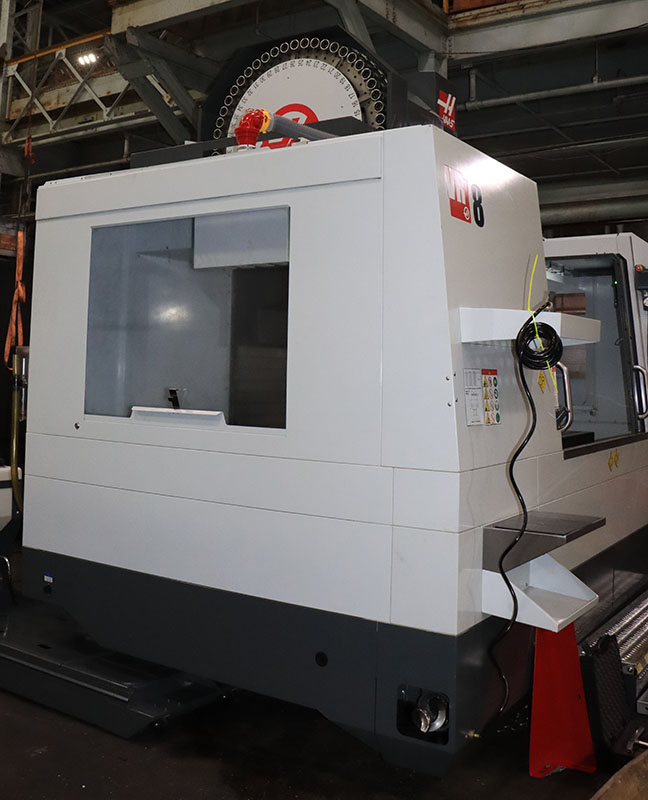

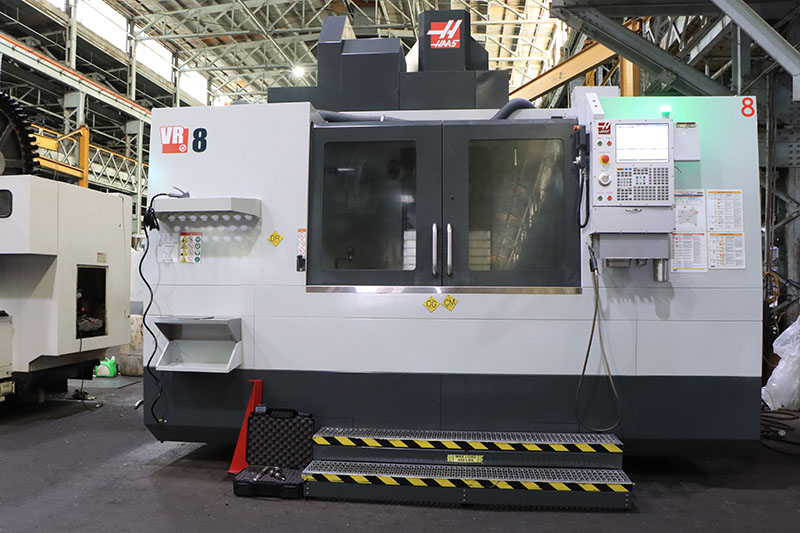

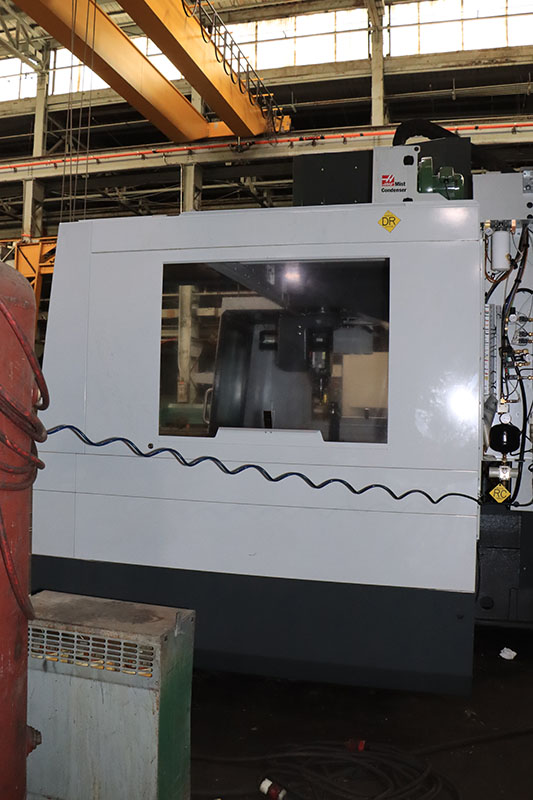

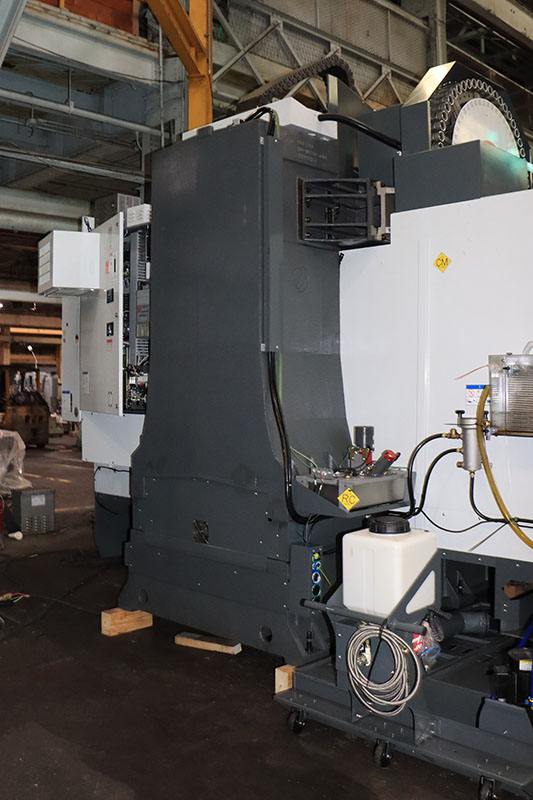

Haas VR-8 5-Axis Machine UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:: Haas

Model:: VR-8 5-Axis Machine

Year:: 2022

Ref #:: 179634

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

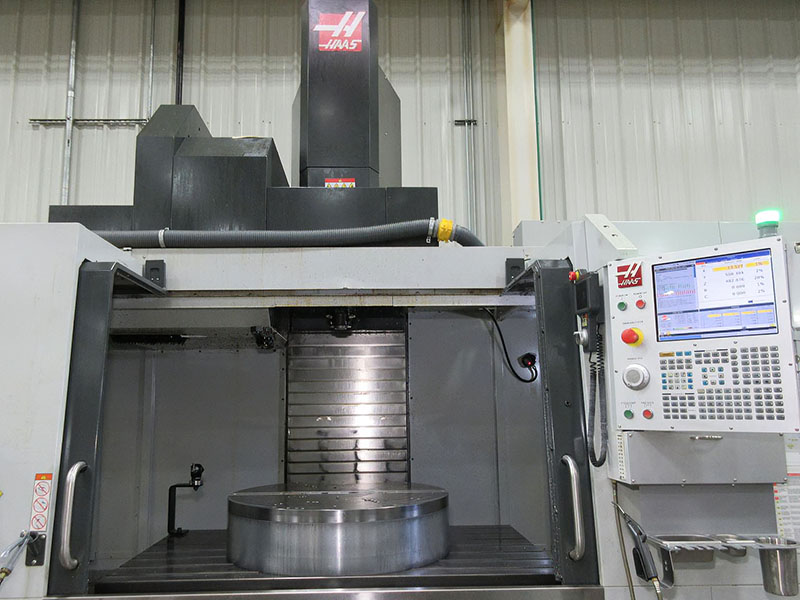

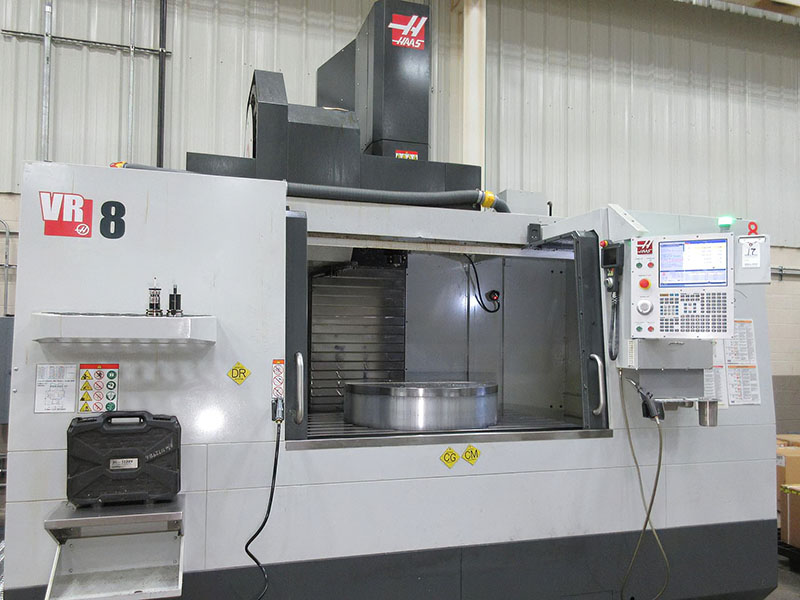

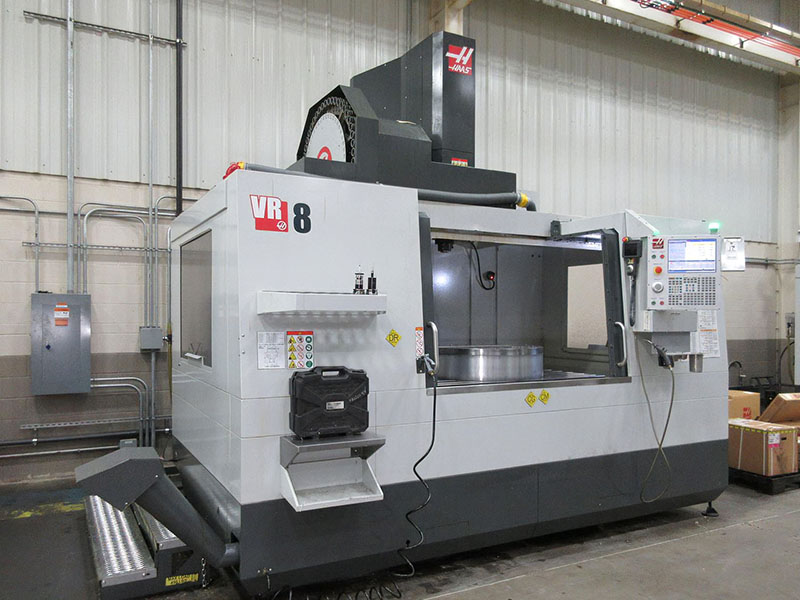

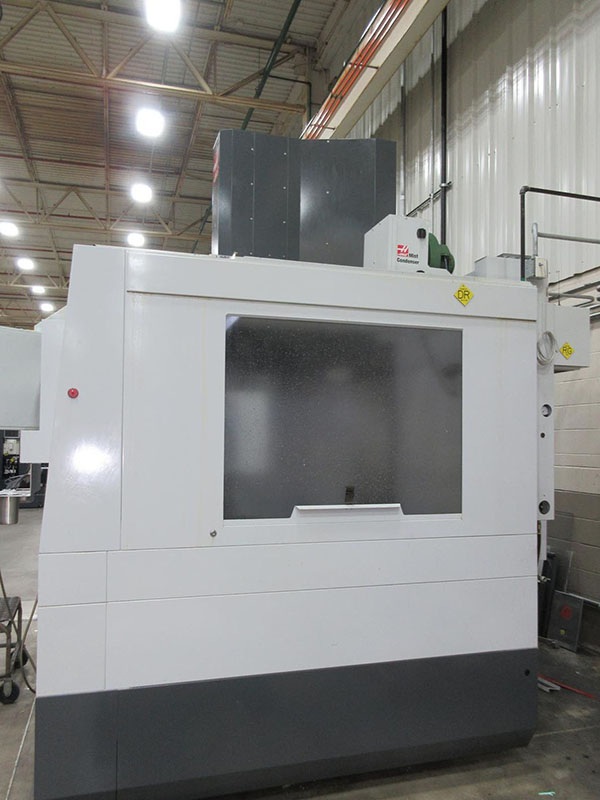

HAAS 5-AXIS VERTICAL MACHINING CENTER

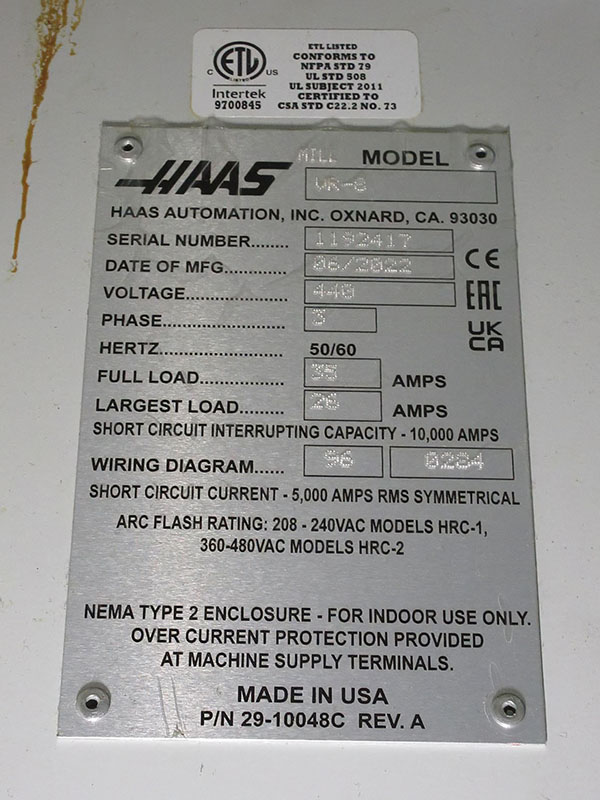

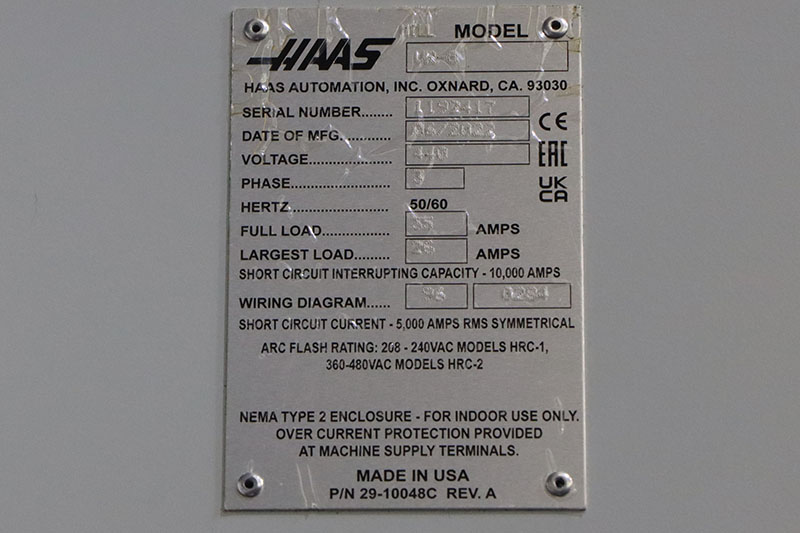

MODEL: VR-8, S/N: 1192417, NEW: 2022

SPECIFICATIONS:
X-AXIS TRAVEL ........................... 64"
Y-AXIS TRAVEL ........................... 40"
Z-AXIS TRAVEL ........................... 42"
B-AXIS HEAD TILT ........................ 120° TO 120°-
C-AXIS HEAD ROTATION .................... 245° TO 245°-
SPINDLE NOSE TO TABLE ................... 4" TO 34"

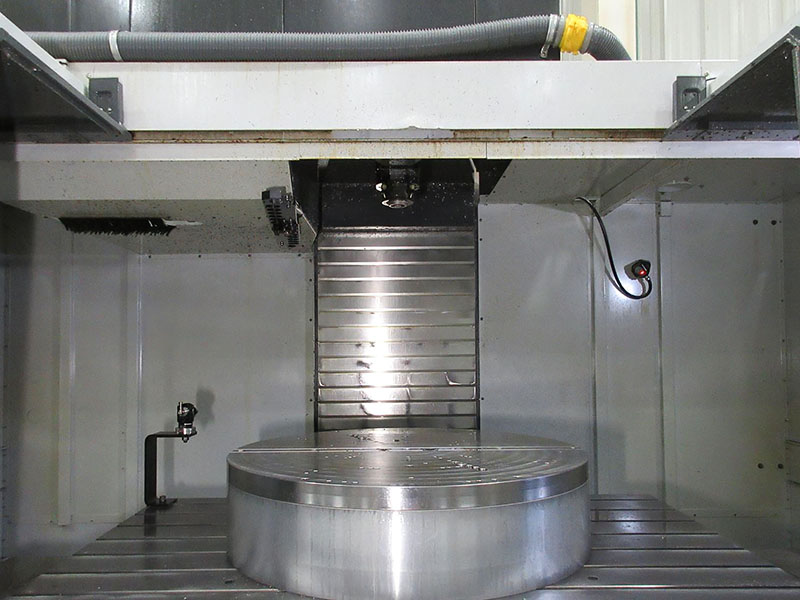

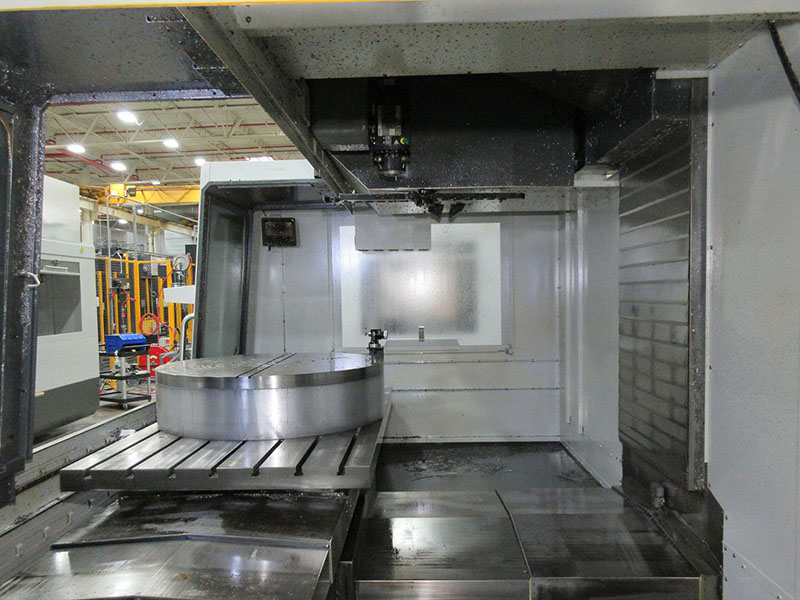

TABLE SIZE .............................. 64" X 36"
MAXIMUM WEIGHT ON TABLE ................. 4,000 LBS
SPINDLE SPEEDS UP TO .................... 20,000 RPM
SPINDLE MOTOR ........................... 29 HP
SIDE MOUNT TOOL CHANGER ................. 50 POSITIONS
SPINDLE TAPER ........................... HSK63A
APPROXIMATE MACHINE WEIGHT .............. 25,000 LBS

EQUIPPED WITH:

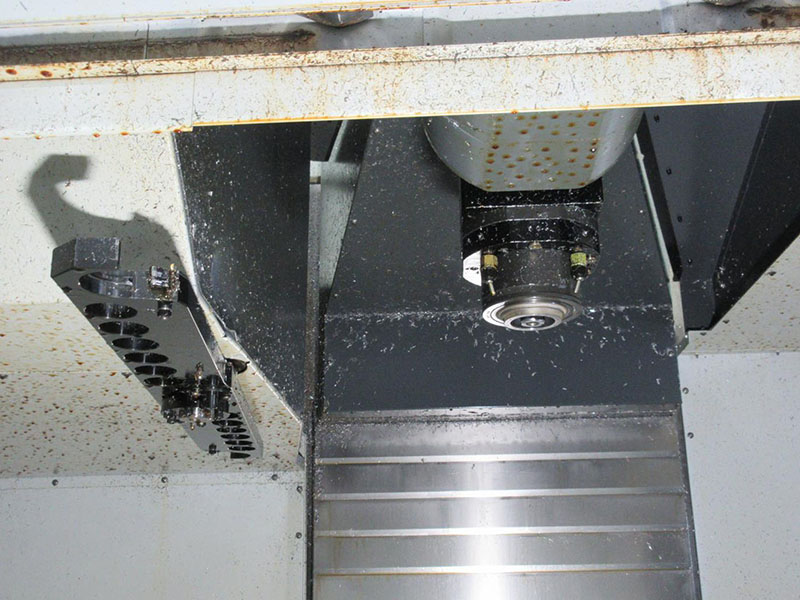

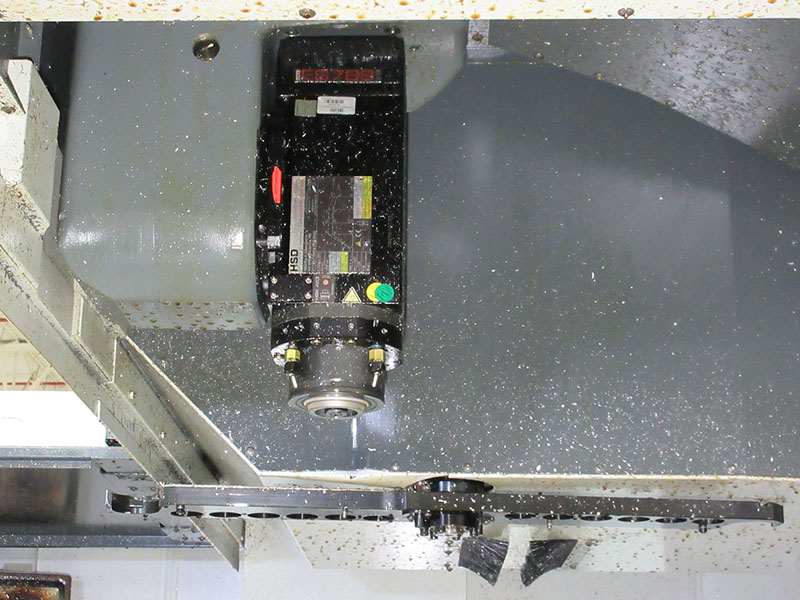

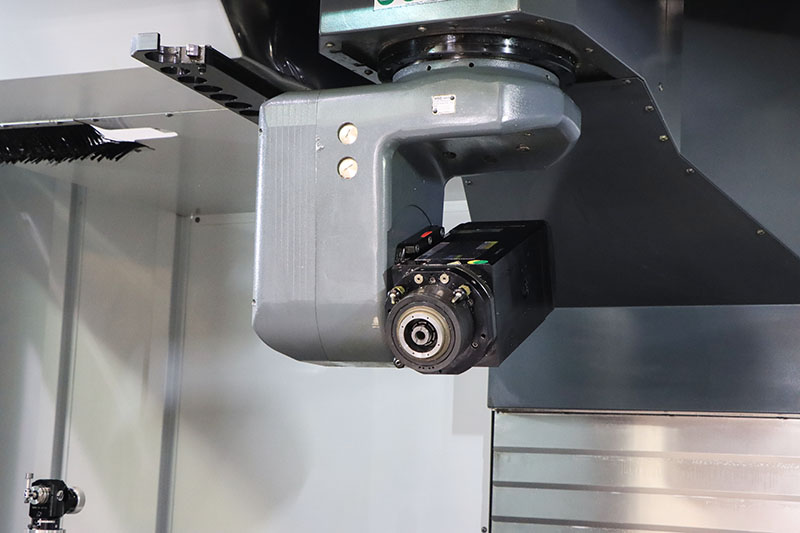

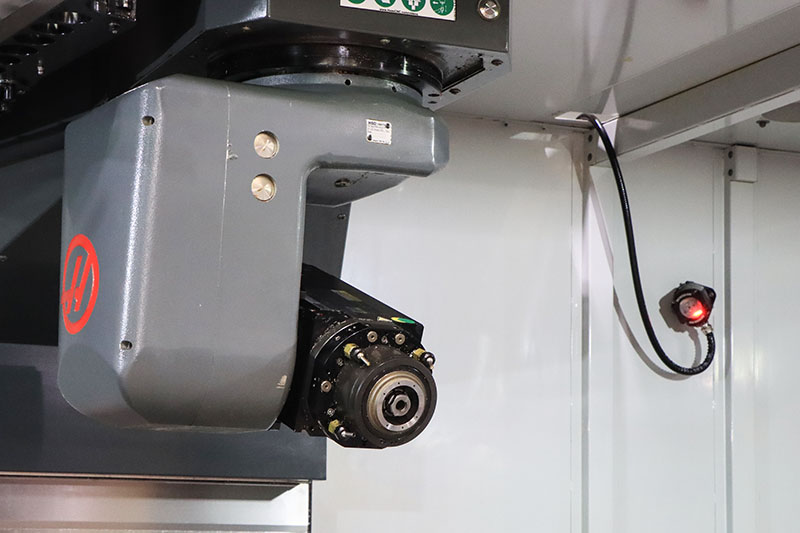

 * TILTING & ROTATING HEAD

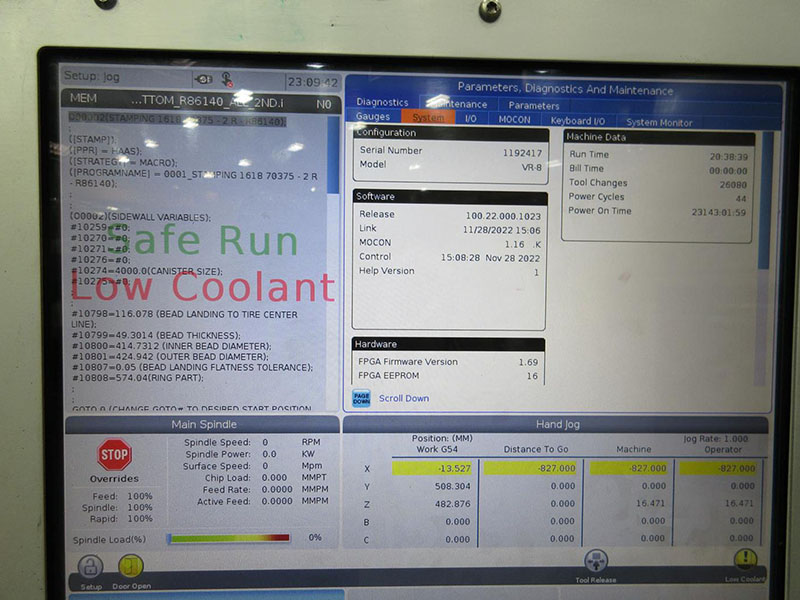

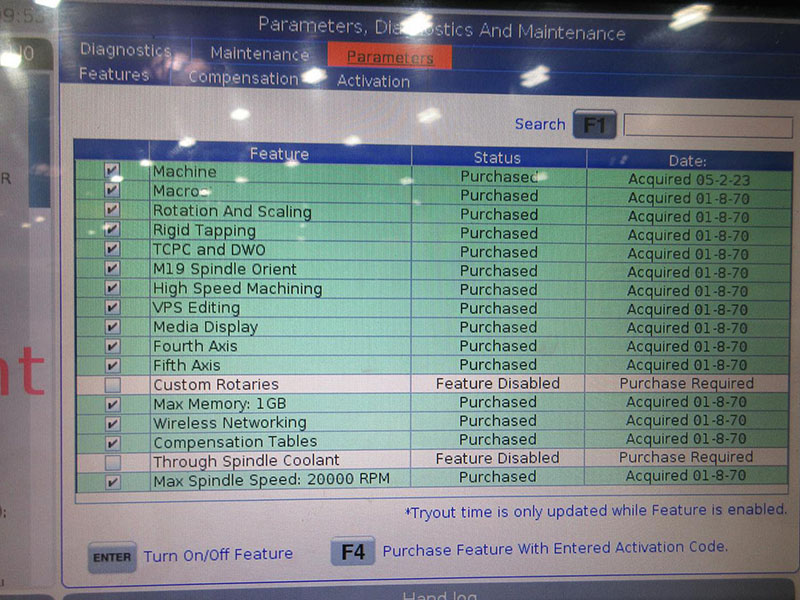

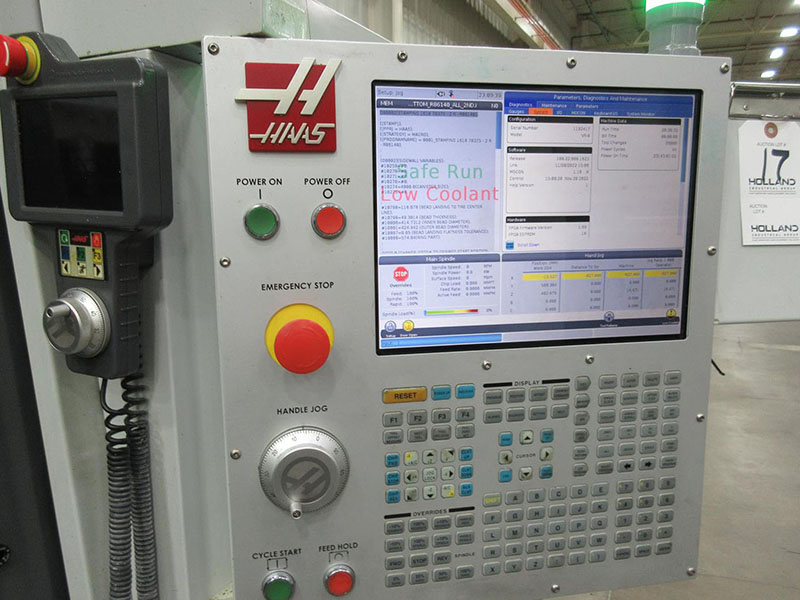

 * HAAS NEXTGEN 5-AXIS CNC CONTROL
     ADV TOOL MGMT, MEDIA DISPLAY M-CODE, RIGID TAPPING
     DYNAMIC WORK OFFSETS & TOOL CENTER CONTROL
     SECOND HOME POSITION, ETHERNET

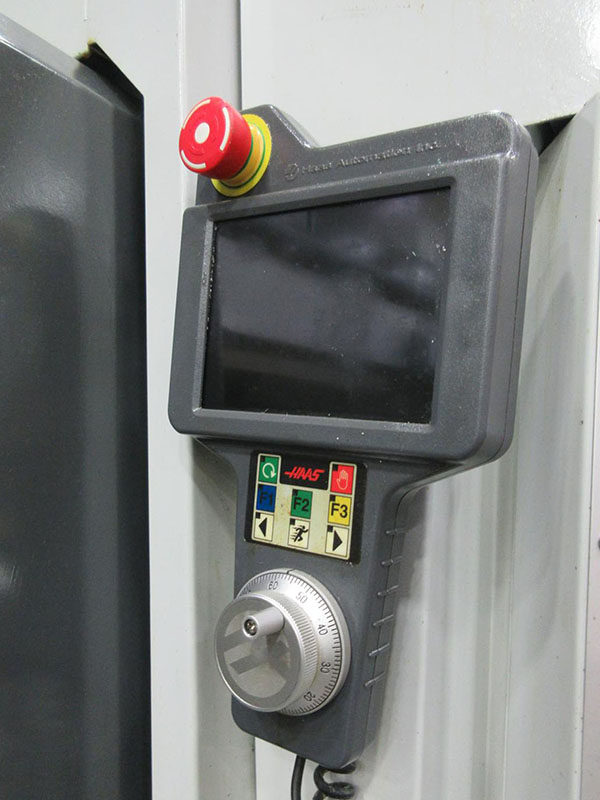

 * REMOTE JOG HANDLE w/TOUCHSCREEN DISPLAY

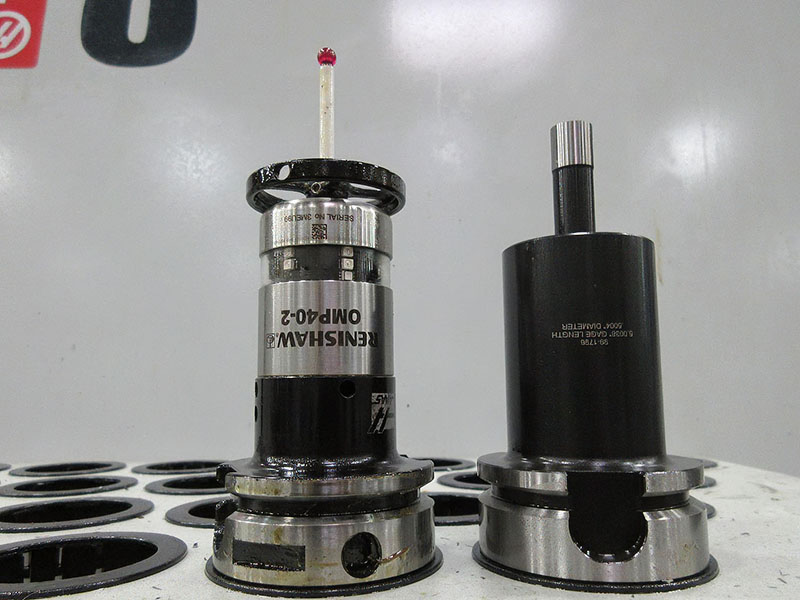

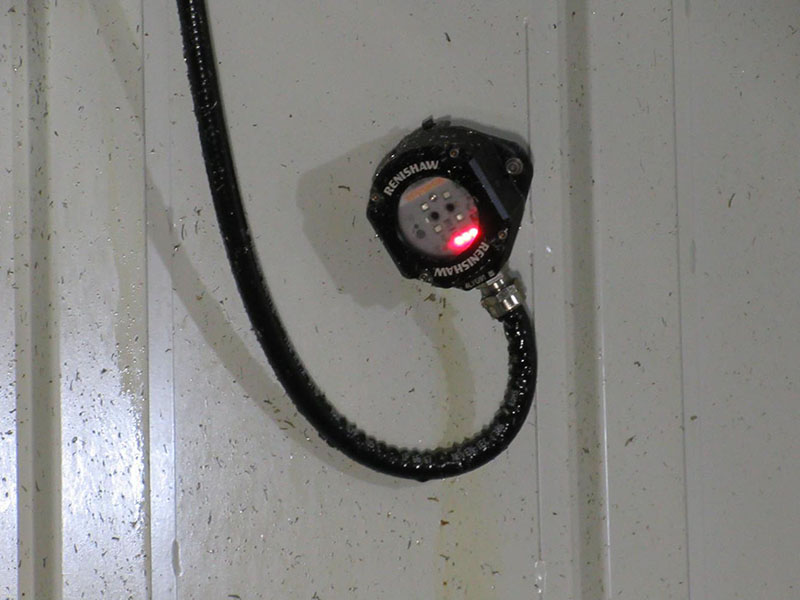

 * RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

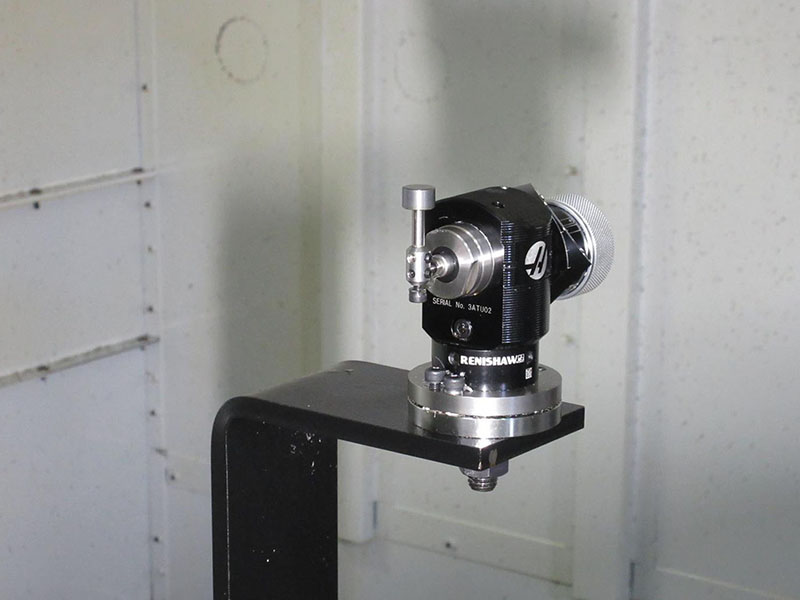

   RENISHAW PART AND TOOL PROBES

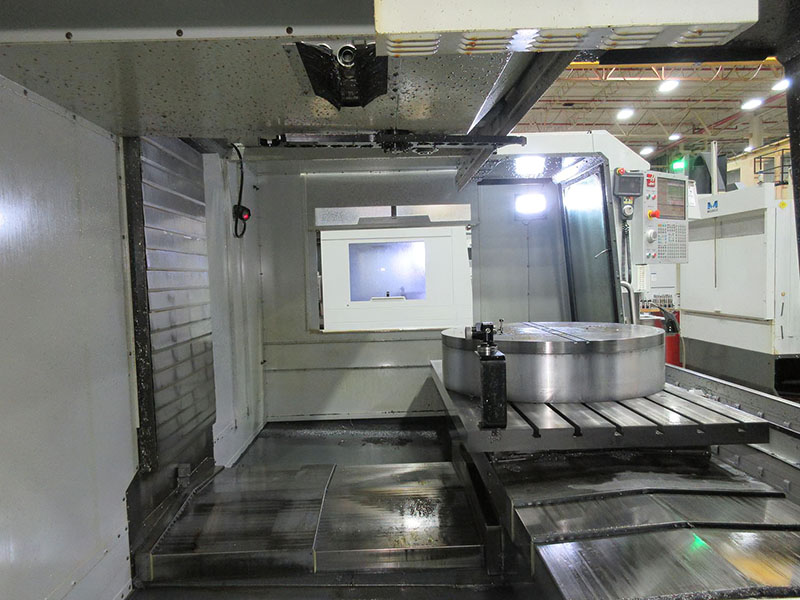

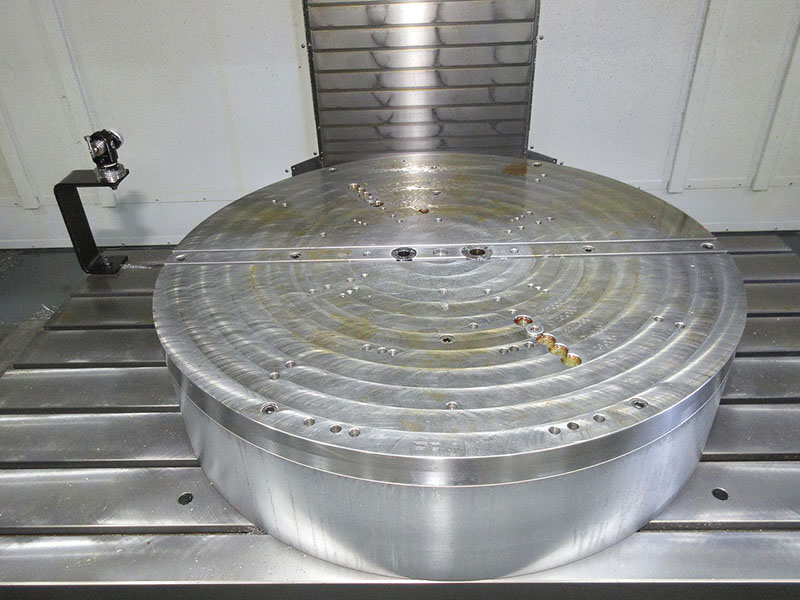

 * 8" HIGH FIXTURE PLATE

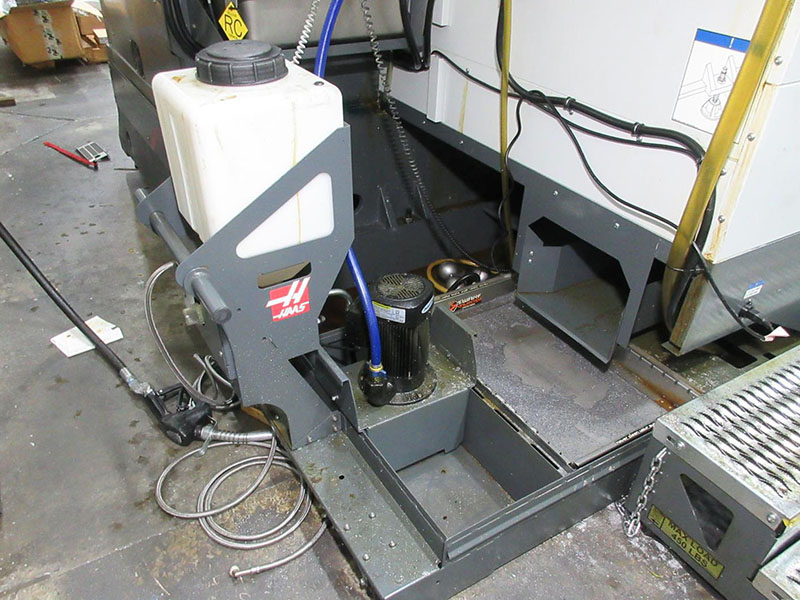

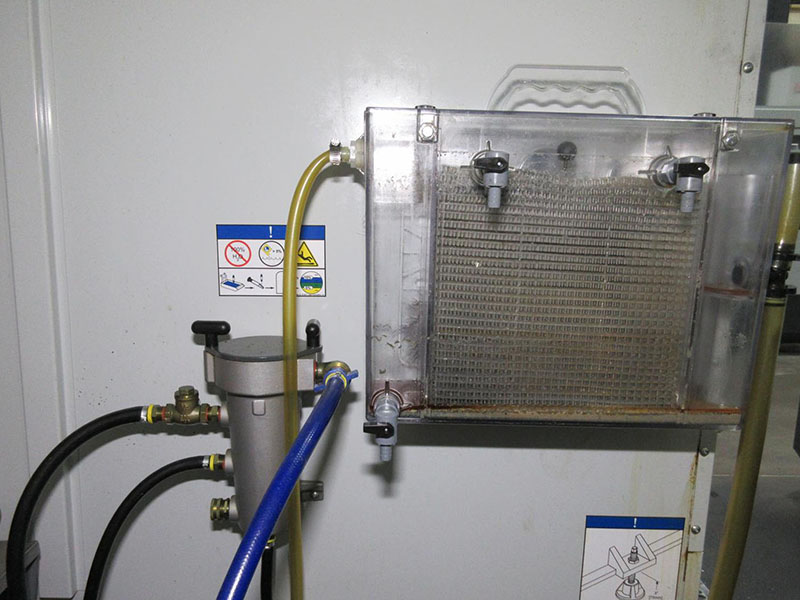

 * COOLANT SYSTEM

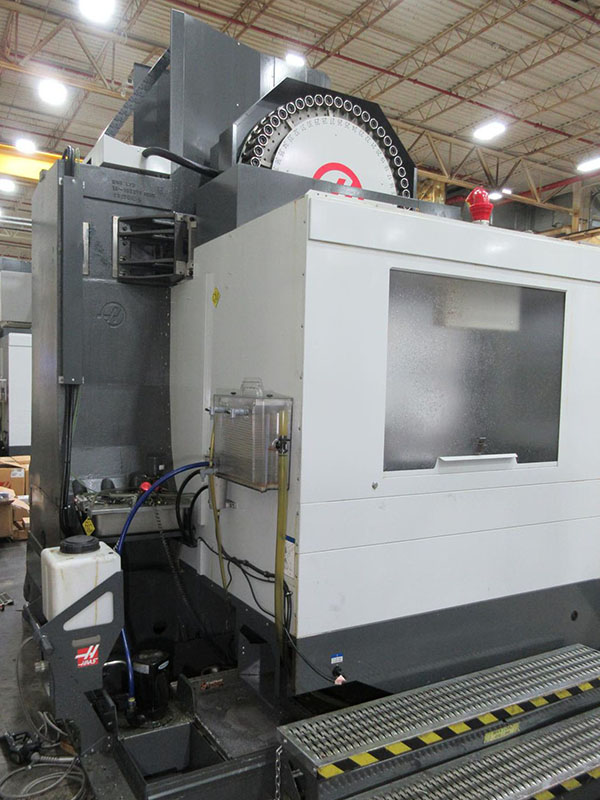

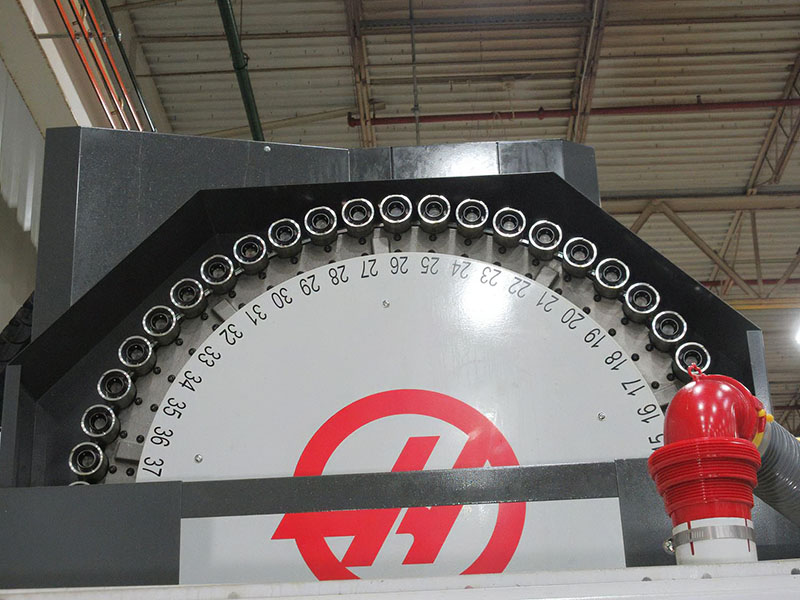

 * 50 POSITION SIDE-MOUNTED TOOL CHANGER

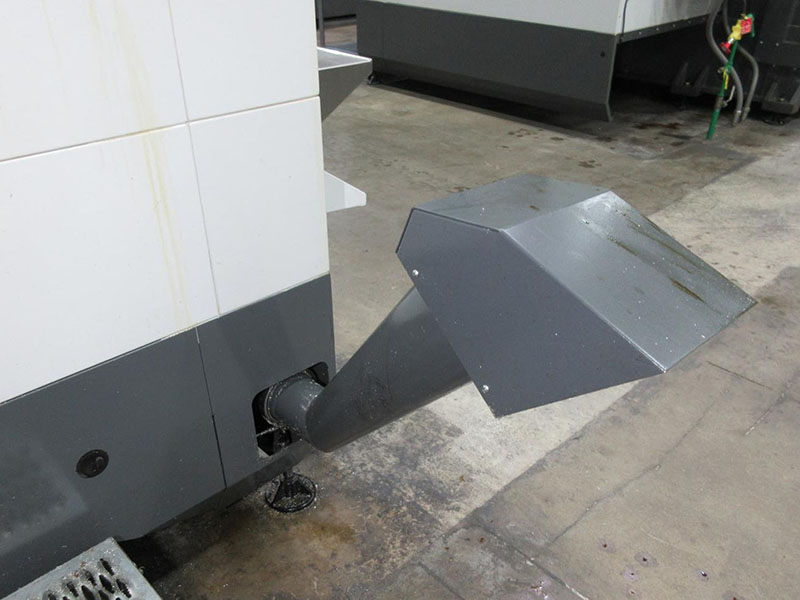

 * CHIP AUGER
 * 29 HORSE POWER GREASE PACKED
