Haas VF-3B VERTICAL MACHINING CENTERS. VMC's

$34,500

Make:: Haas

Model:: VF-3B

Year:: 2005

Ref #:: 178121

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

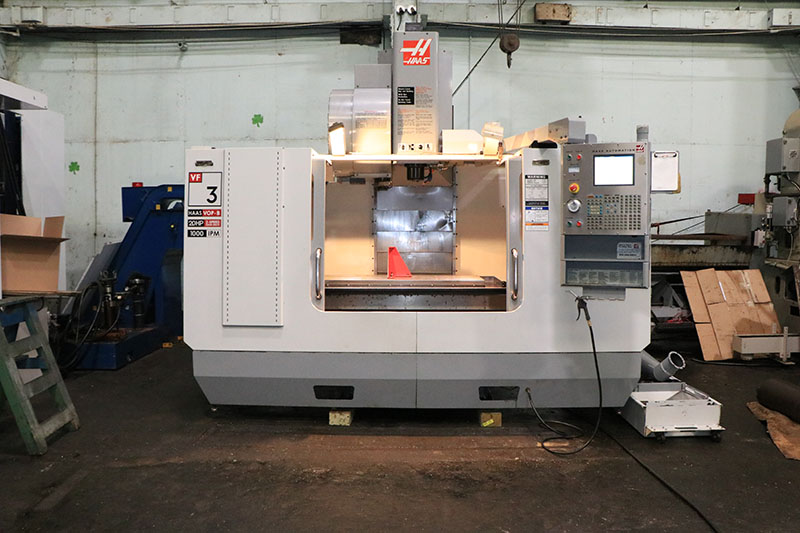

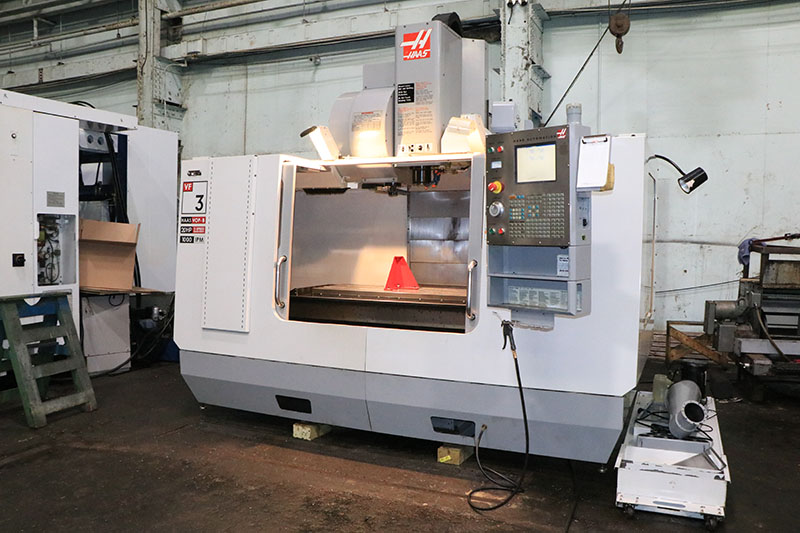

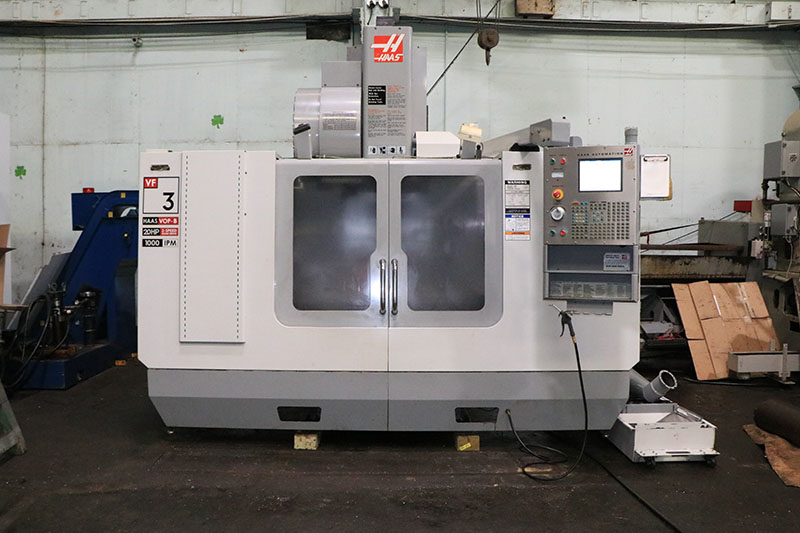

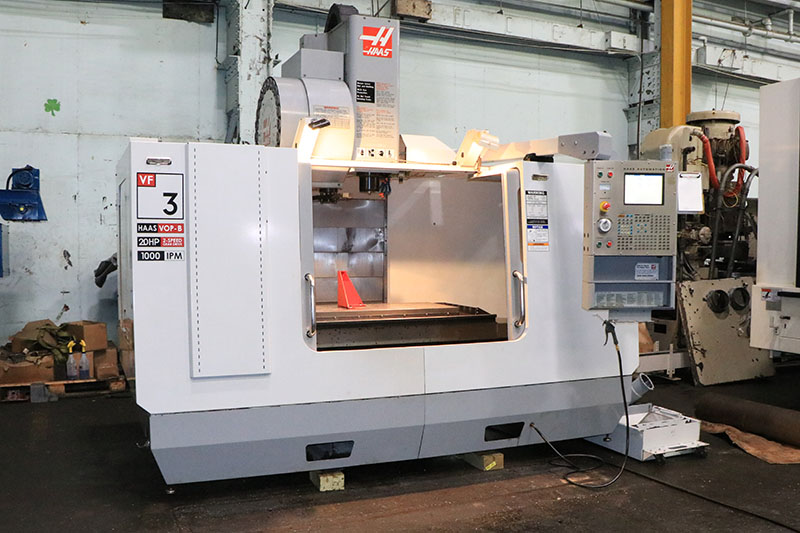

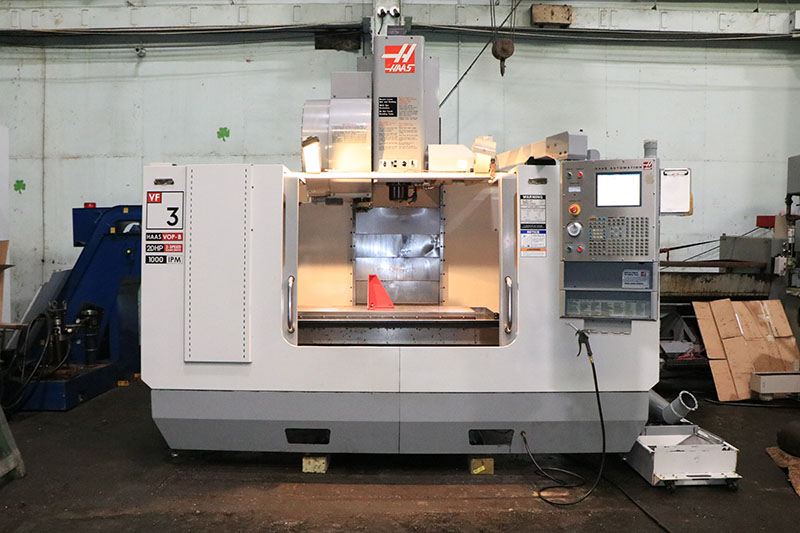

HAAS VERTICAL MACHINING CENTER

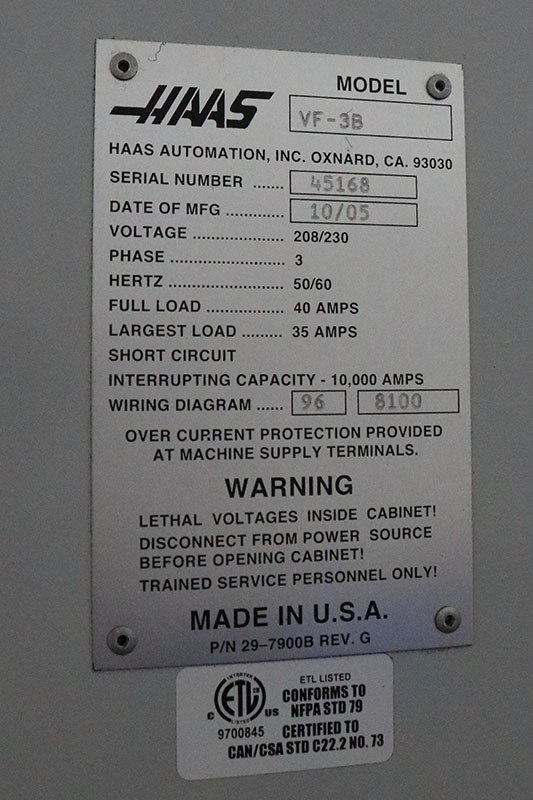

MODEL VF-3B, S/N: 45168, NEW: 2005

SPECIFICATIONS:
TRAVELS:
X-AXIS TRAVEL ................. 40"  1016mm
Y-AXIS TRAVEL ................. 20"  508mm
Z-AXIS TRAVEL ................. 25"  635mm

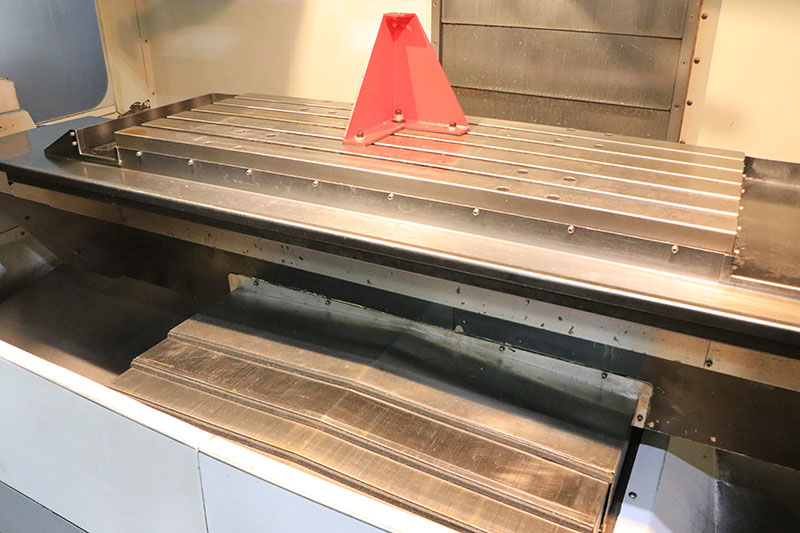

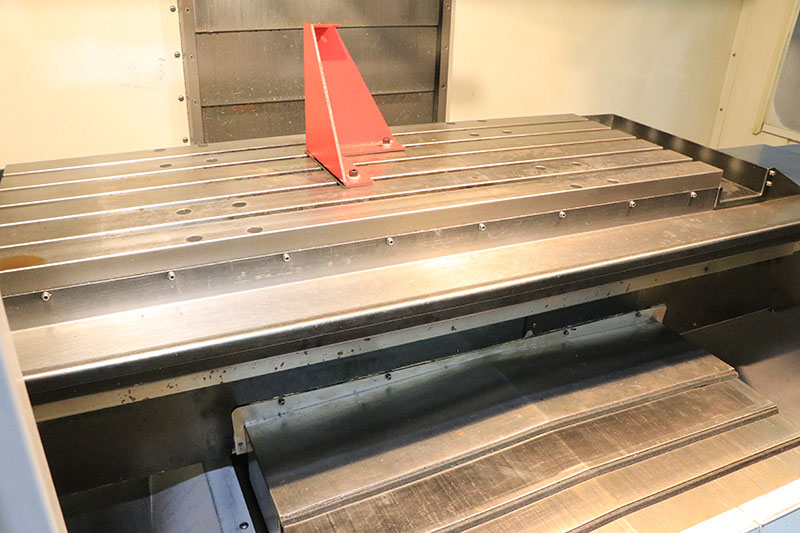

TABLE SIZE .................... 48" X 18"
SPINDLE NOSE TO TABLE ......... 4 - 29"
TABLE DIMENSIONS .............. 48" x 18"
MAX WEIGHT ON TABLE ........... 3,500 LBS
SPINDLE TAPER SIZE ............ #40 TAPER (CAT)
SPINDLE SPEED RANGE ........... 0 - 7,500 RPM
TRANSMISSION .................. 2-SPEED GEARED HEAD

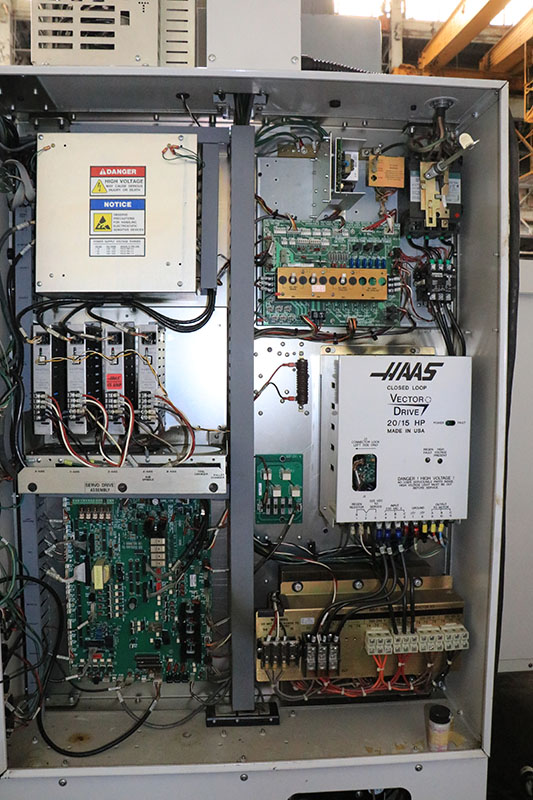

SPINDLE MOTOR ................. 20 HP VECTOR DRIVE
SPINDLE TAPER ................. CAT#40
RAPID TRAVERSE ................ 1000 IPM
TOOL CHANGER .................. 24 POSITION
APPROXIMATE MACHINE WEIGHT..... 12,500 LBS
FLOOR SPACE REQUIRED .......... 110"F-B, 118" L-R
MAXIMUM MACHINE HEIGHT ........ 117.5"

EQUIPPED WITH:

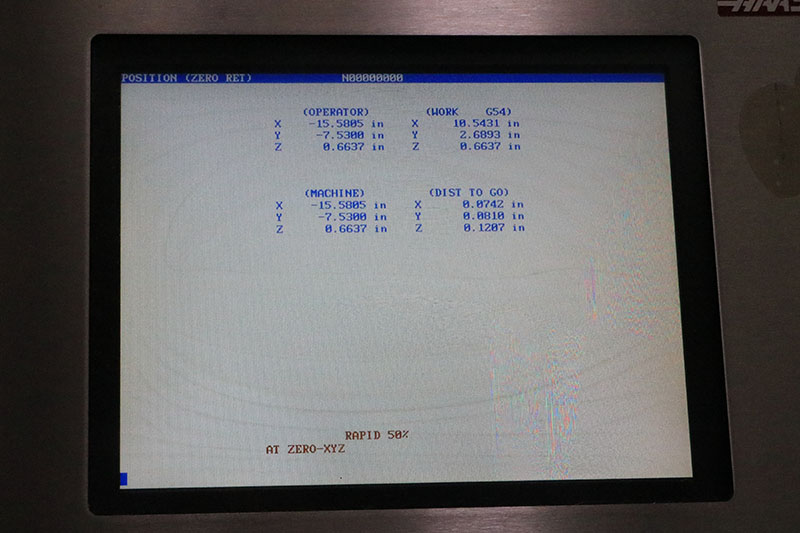

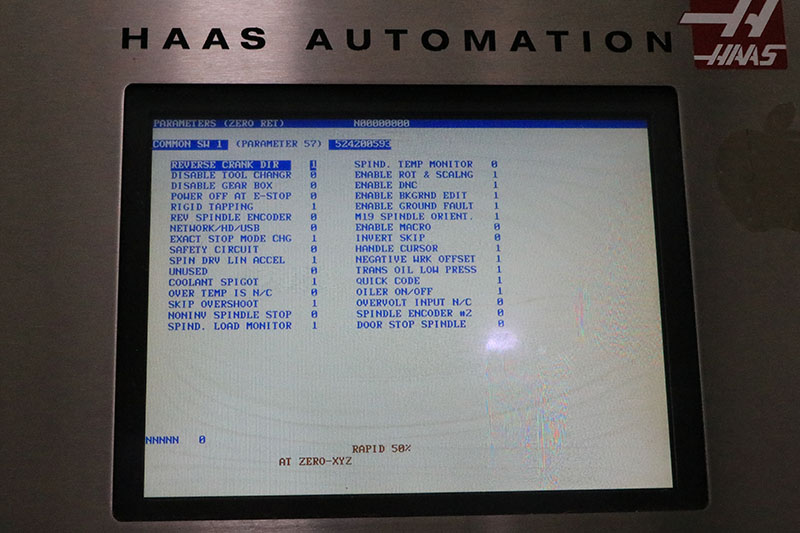

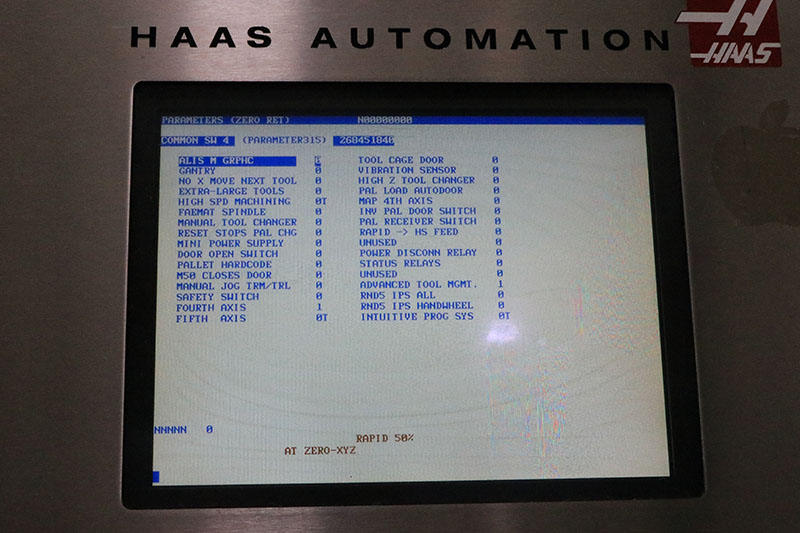

- HAAS 4-AXIS CONTROL
- 4TH AXIS DRIVE & WIRING
- 2-SPEED GEAR BOX

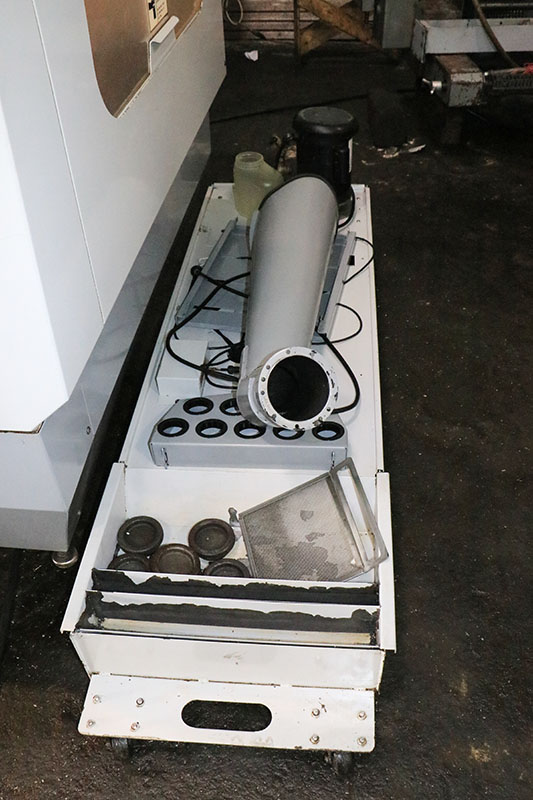

- CHIP AUGER

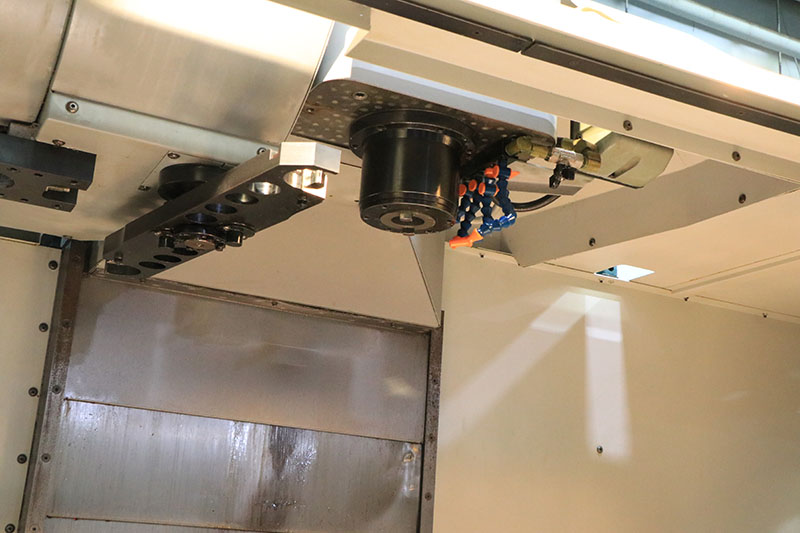

- PROGRAMMABLE COOLANT
- SIDE MOUNTED TOOL CHANGER
- HIGH INTENSITY LIGHTING
- 20 HORSE POWER SPINDLE DRIVE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
