Haas VF-6/50 VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:
Haas
Model:
VF-6/50
Year:
2005
Ref #:
167501

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

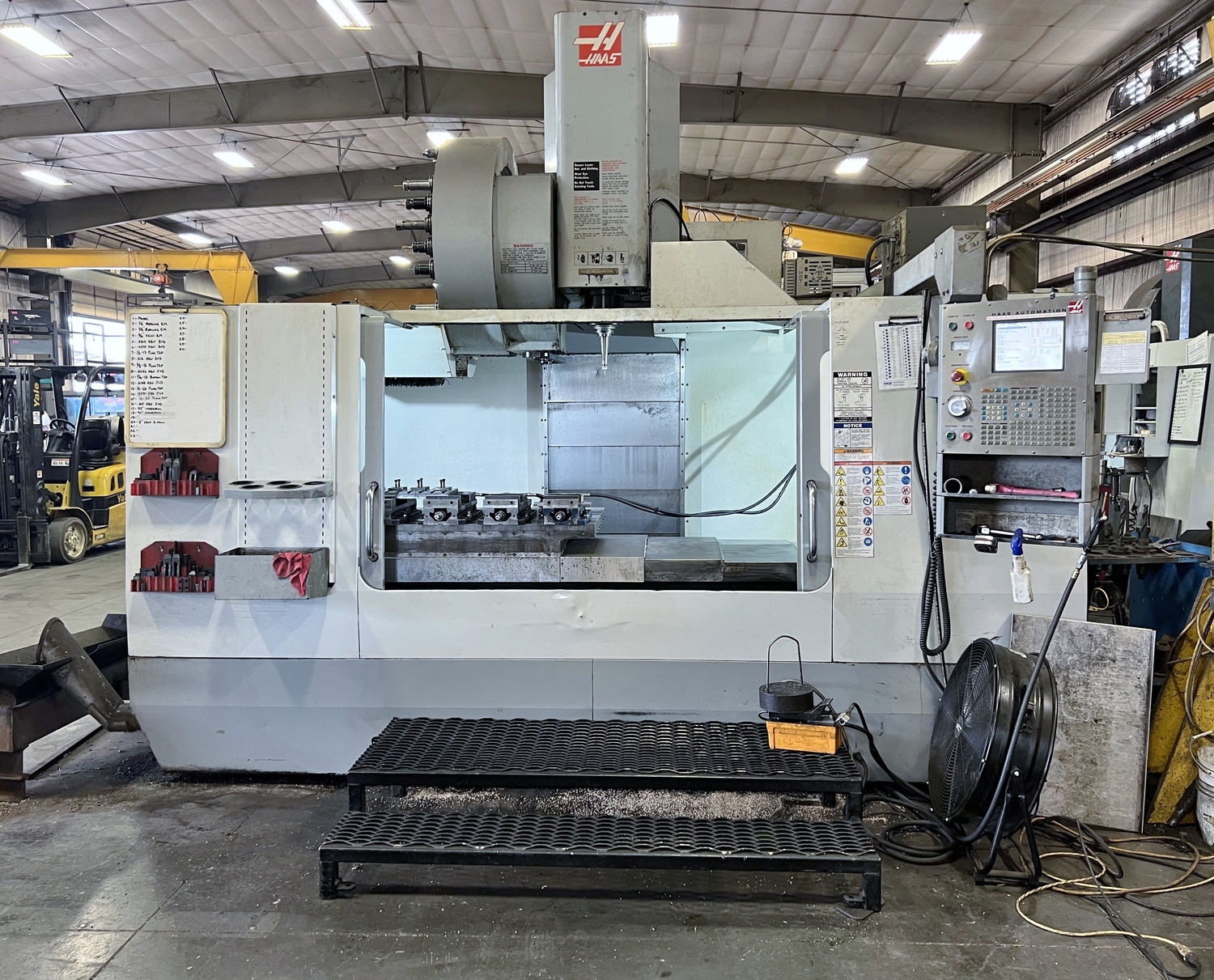

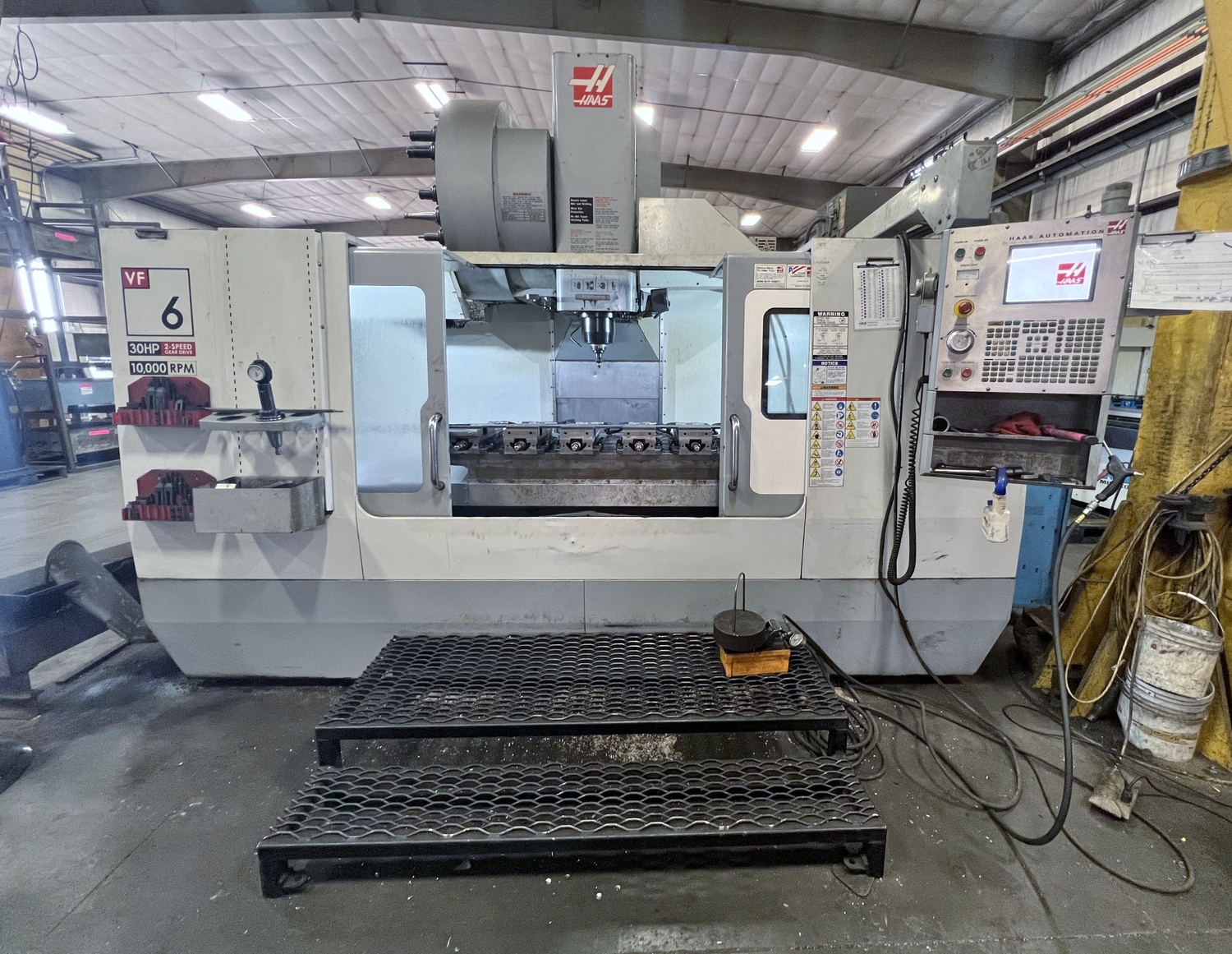

HAAS VERTICAL MACHINING CENTER
MODEL: VF-6/50, NEW: 2005

SPECIFICATIONS:
TABLE LENGTH ......................... 64"
TABLE WIDTH .......................... 28"
X-AXIS TRAVEL ........................ 64"
Y-AXIS TRAVEL ........................ 32"
Z-AXIS TRAVEL ........................ 30"
SPINDLE SPEED ........................ 10,000 RPM
SPINDLE MOTOR ........................ 40 hp
SPINDLE TAPER ........................ CAT 50
TOOL CAPACITY (ATC) .................. 30

EQUIPPED WITH:
2-SPEED GEARBOX
10,000 RPM SPINDLE
4TH AXIS DRIVE & WIRING

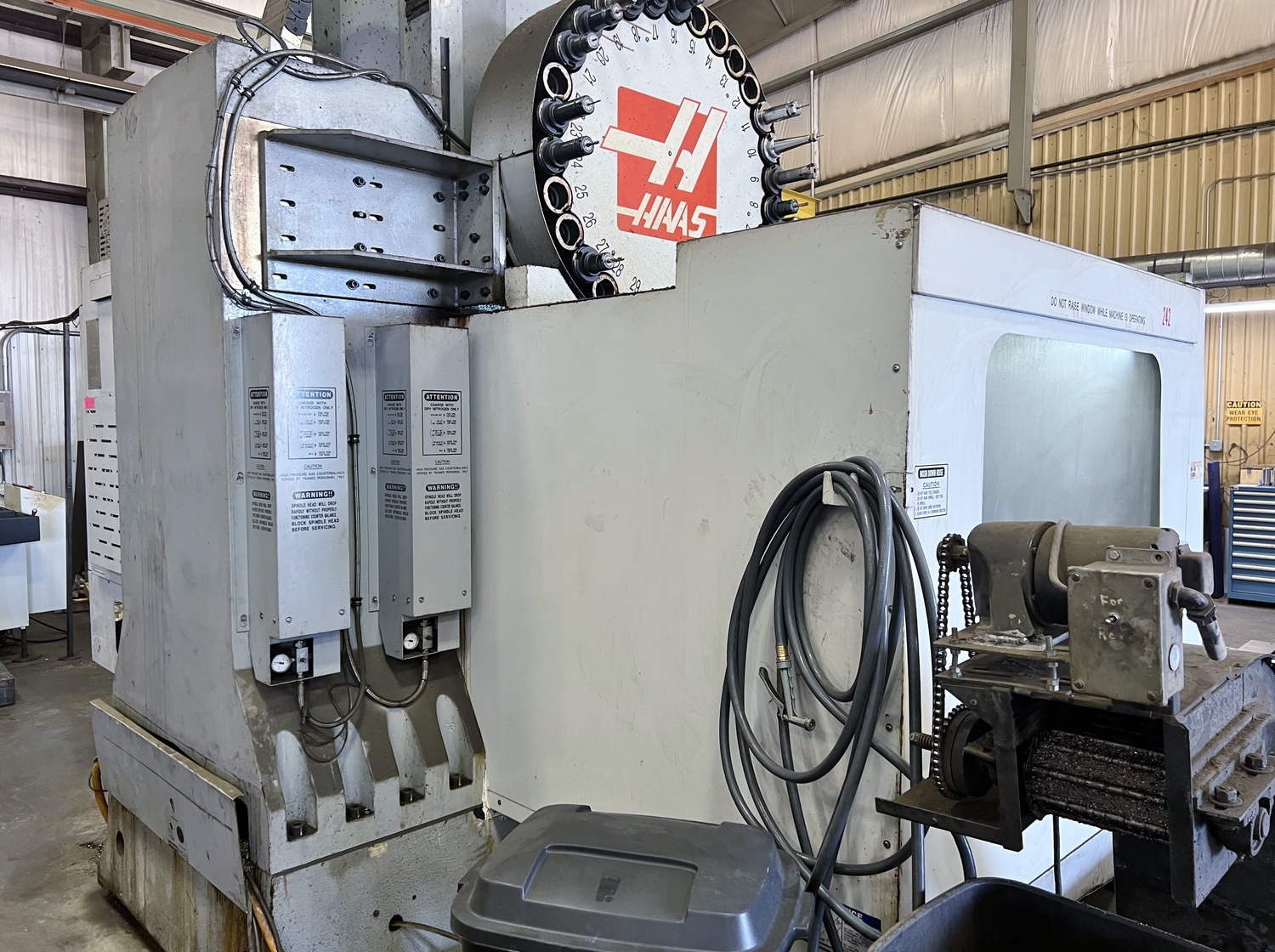

SIDE-MOUNT TOOL CHANGER (30 ATC)
REMOTE JOG HANDLE
CHIP AUGER
COORDINATE ROTATION & SCALING
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
16MB MEMORY
ETHERNET
USB PORT

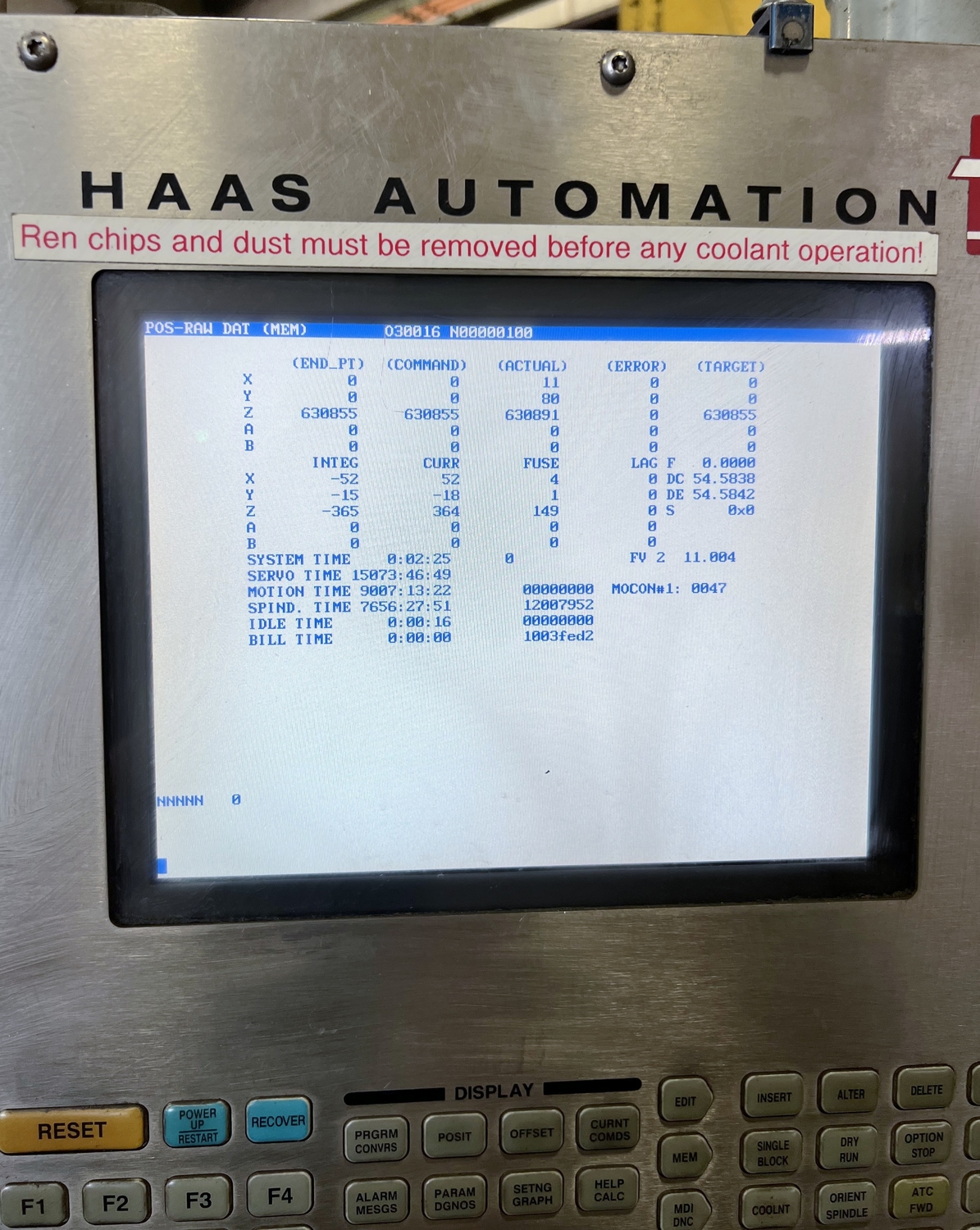

** AS OF JULY 2023, SPINDLE TIME – 7,656 HOURS
** MACHINE CUT PRIMARILY MILD STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $210,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

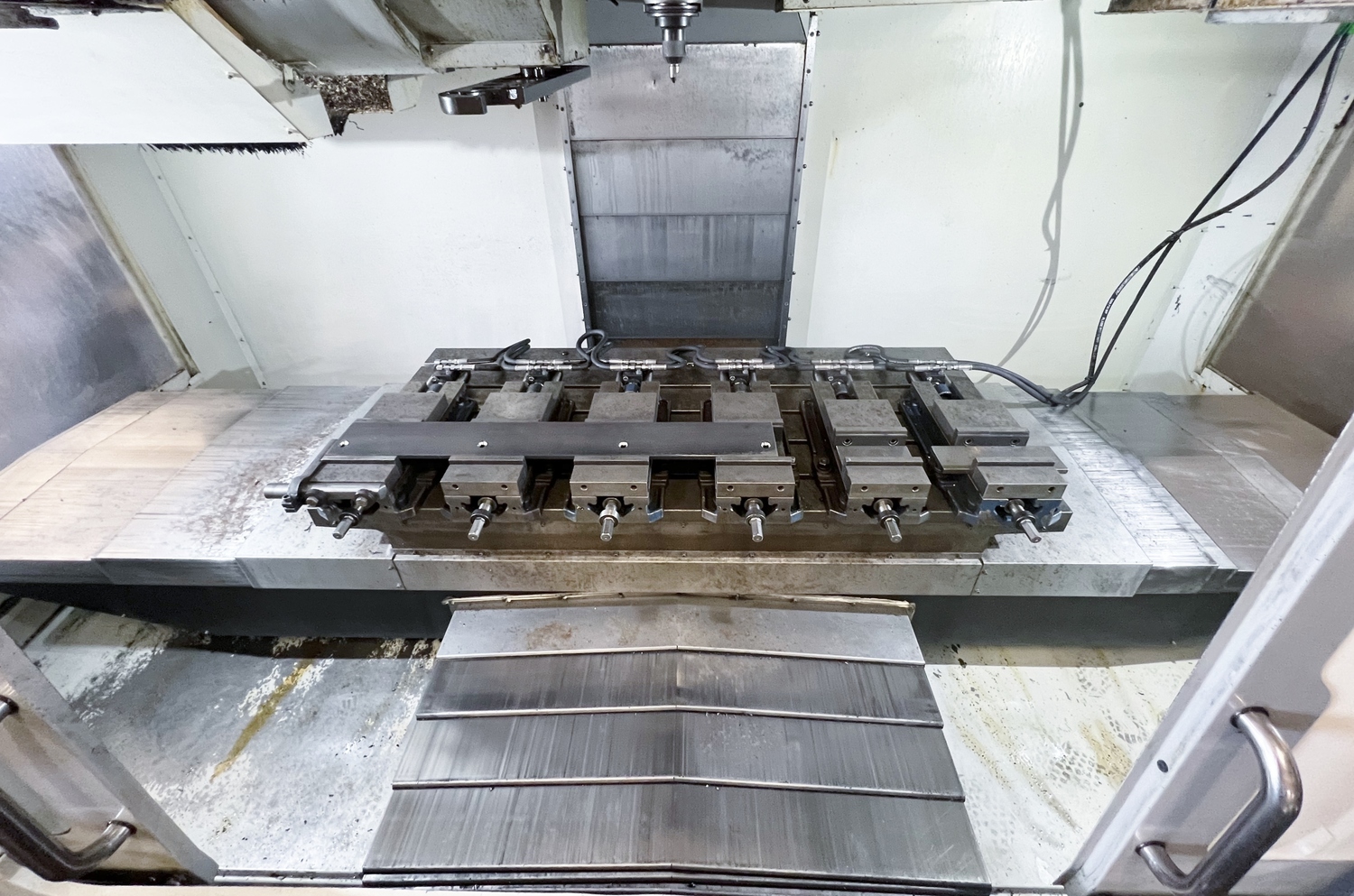

** VICES SHOWN ON TABLE ARE NOT INCLUDED WITH THE MACHINE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
