Harig EZ SURF, 1996, CNC BY PC OR MANUAL OPS CNC SURFACE GRINDERS

Price on Request

Make:
Harig
Model:
EZ SURF, 1996, CNC BY PC OR MANUAL OPS
Year:
1996
Ref #:
167811

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

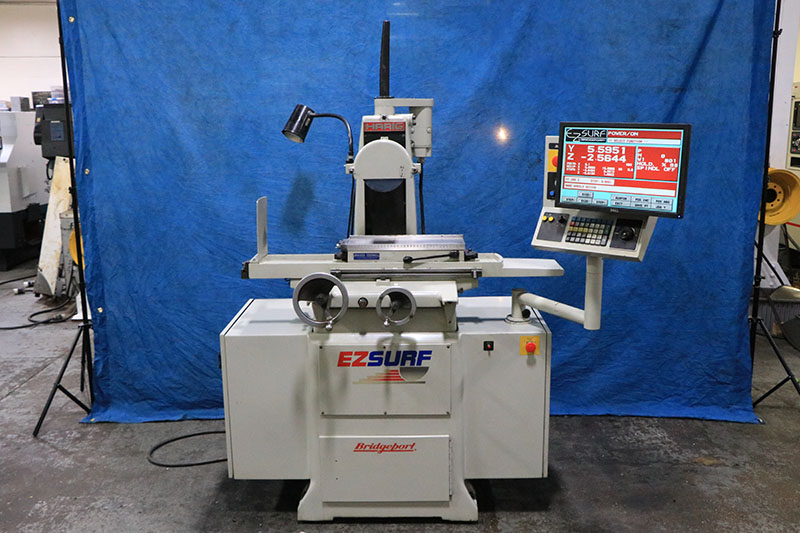

  6" X 18" HARIG "E-Z SURF" CNC SURFACE GRINDER

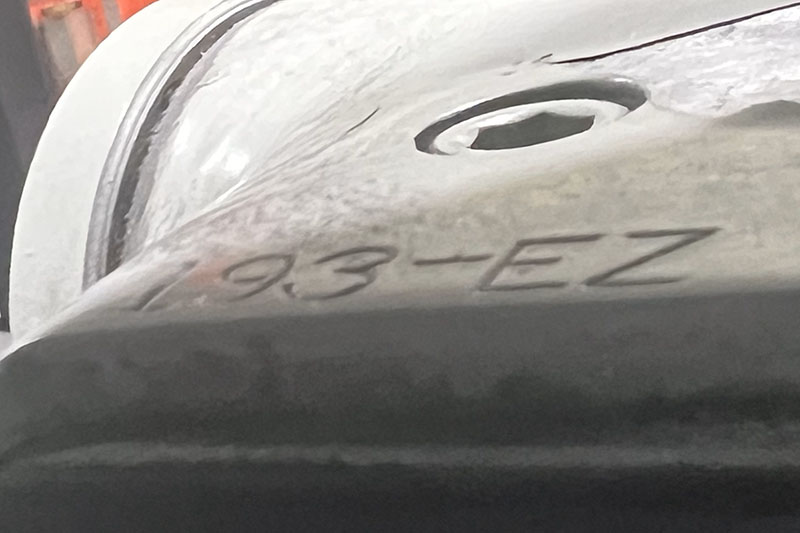

MODEL: EZ-SURF    S/N: 193-EZ     NEW: 1996

SPECIFICATIONS:
MAX. GRINDING CAPACITY ................ 6" X 18"
MAX. LONGITUDINAL TABLE TRAVEL ........ 20"
MAX. CROSSFEED TRAVEL, AUTOMATIC ...... 6.75"
DIST. FROM SPINDLE CENTER TO TABLE .... 12"
VARIABLE TABLE SPEED, HYDRAULIC ....... 36" IPM TO 70' FPM
MINIMUM FEED INCREMENT ................ 0.0001"
RAPID TRAVERSE RATE ................... 100" IPM
MINIMUM FEED INCREMENT ................ 0.0001"

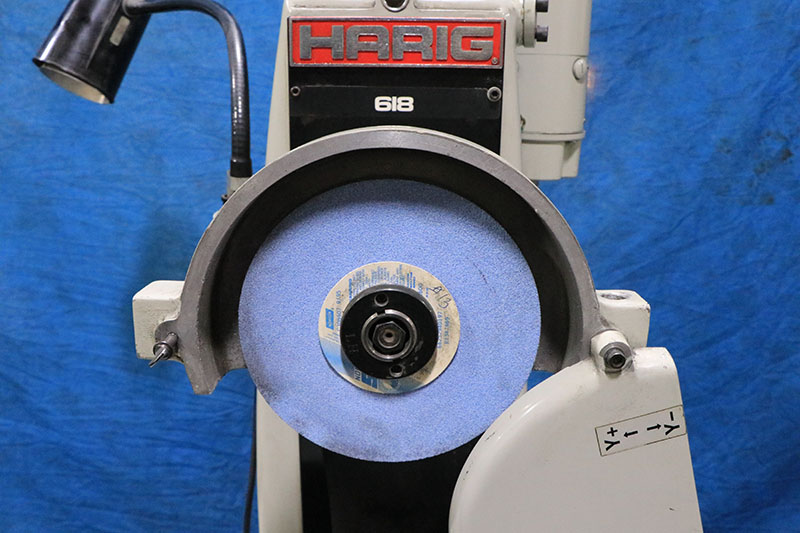

STANDARD GRINDING WHEEL ...... 8"DIA. x 1- 1/4" x 1- 1/4"B

APPROX. WEIGHT ........................ 2,250 LBS


FEATURES:
3-AXIS AUTOMATIC OPERATION

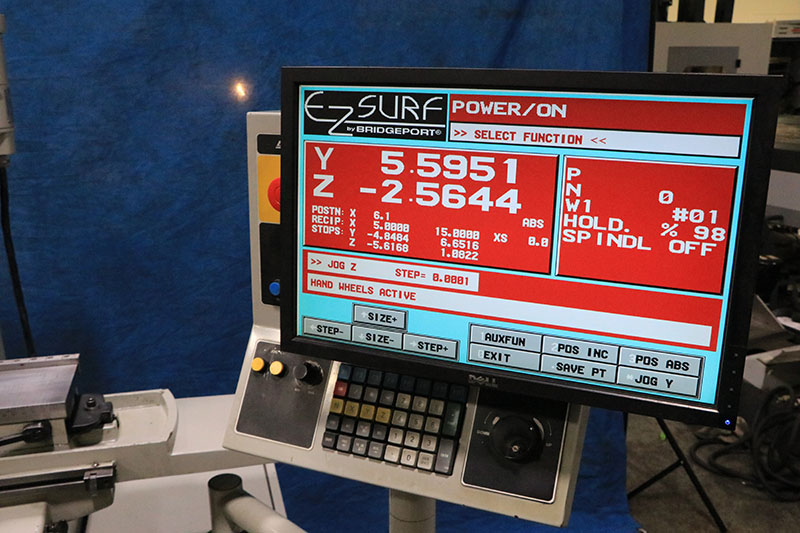

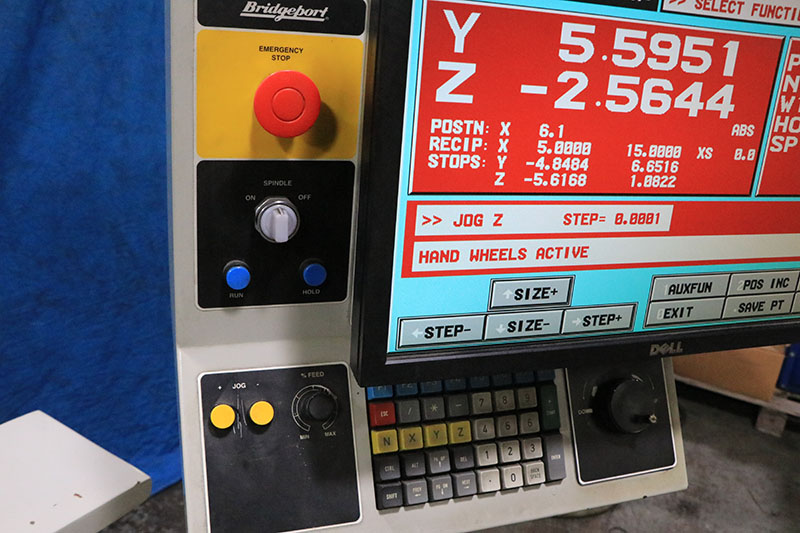

"EZ-SURF" TWO-AXIS PC BASED PROGRAMMABLE CONTROL
  (CROSS & VERTICAL AXES, Y/Z AXES).
  2-AXES LINEAR & CIRCULAR INTERPOLATION.
MDI- SETUP-TEACH-PROGRAM & EDIT.
PROFILE GRIND & PROFILE DRESS MODES
  (CREATE YOUR OWN RADIUS& TAPER FORMS FOR
  GRINDING AS WELL AS FORMING YOUR WHEEL).
ON-SCREEN GRAPHIC DISPLAY OF WHEEL PATH PRIOR TO CUTTING.
CONVERSATIONAL MDI FOR FORM & STEP GRINDING.
SLOT & FORM CREEP FEED GRINDING, SIMULTANEOUS
  TWO-AXIS LINEAR& CIRCULAR INTERPOLATION.
ABSOLUTE & INCREMENTAL OPERATION.
DWELL IN MDI OR END OF STROKE.
JOG.
WHEEL LIBRARY DISPLAY.
TAPER & RADIUS CAPABILITIES
RS-232 PORT & DISK DRIVE.

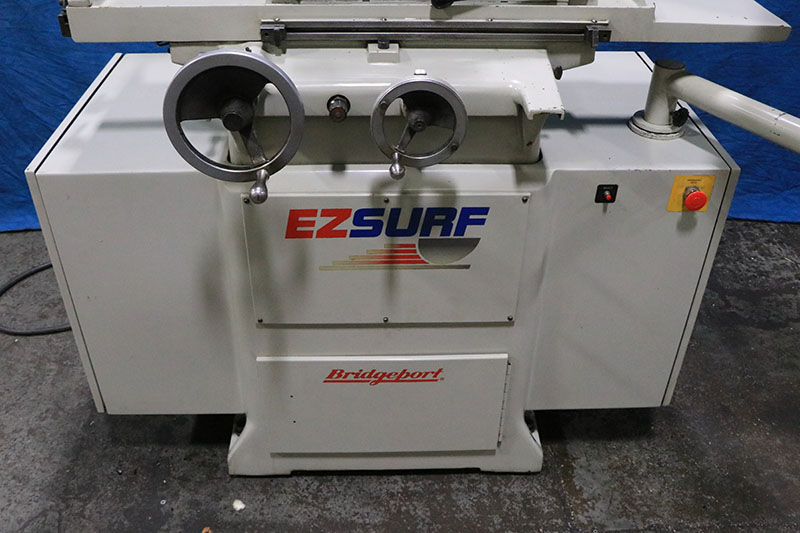

ELECTRONIC HANDWEELS ON Y & Z AXES ...
BALLSCREWS ON Y & Z AXES
MANUAL, SEMI-AUTOMATIC OR FULLY AUTOMATIC
HYDRAULIC TABLE TRAVERSE
CAST IRON CONSTRUCTION INCLUDING BASE

EQUIPPED WITH:

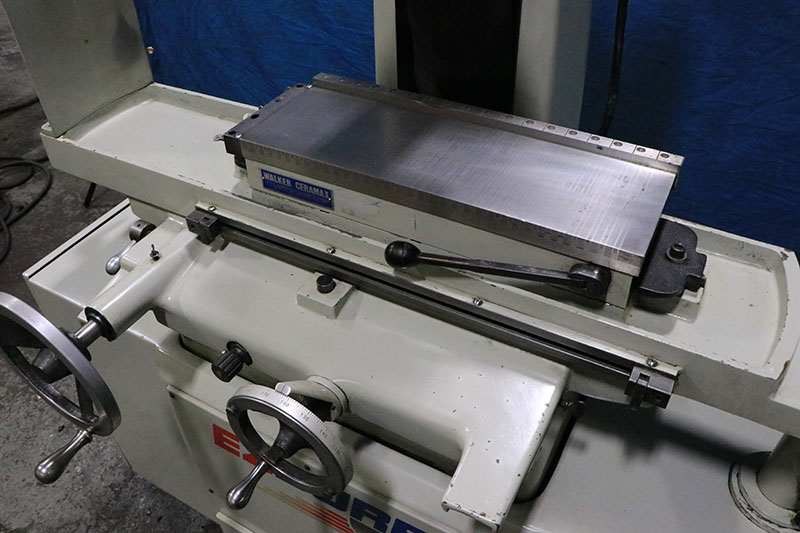

6" X 18" "O.S. WALKER" FINE-DIVISION PERMANENT MAGNETIC CHUCK
UPDATED WITH DELL COLOR MONITOR
1.5 H.P./3/60/208-230-460 VOLT SPINDLE MOTOR

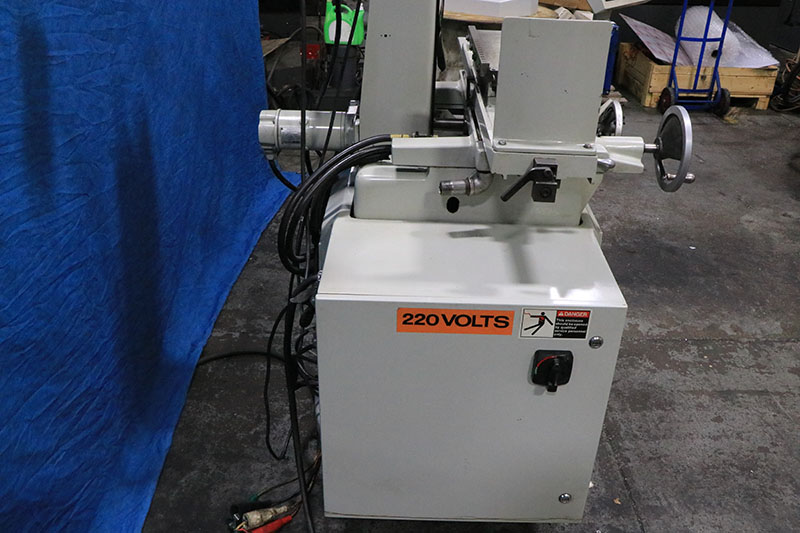

MACHINE IS PRESENTLY WIRED FOR 220 VOLTS


** SPINDLE IS SUPER QUIET **
** CNC AXES ARE NICE & SMOOTH **
** BEAUTIFUL CONDITION & ORIGINAL APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
