Harig EZ SURF II, 2008, TRU-TECH CNC, ENCLOSURE CNC SURFACE GRINDERS

Price on Request

Make:: Harig

Model:: EZ SURF II, 2008, TRU-TECH CNC, ENCLOSURE

Year:: 2008

Ref #:: 179439

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

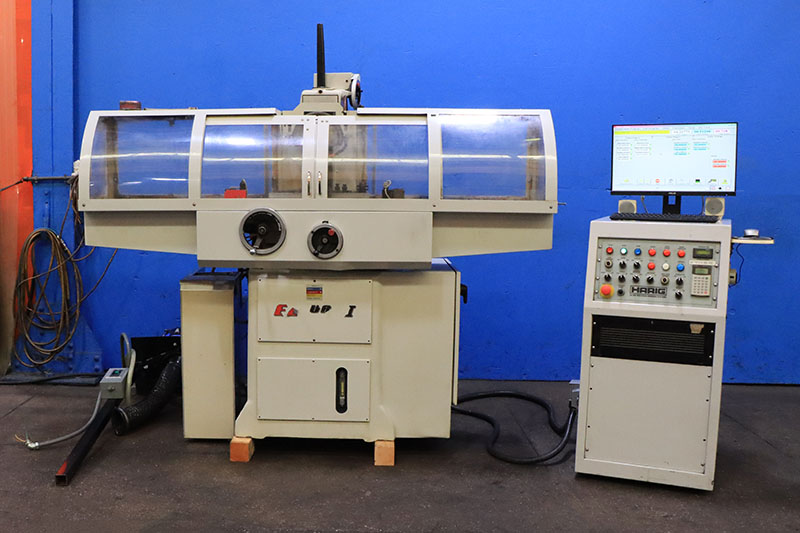

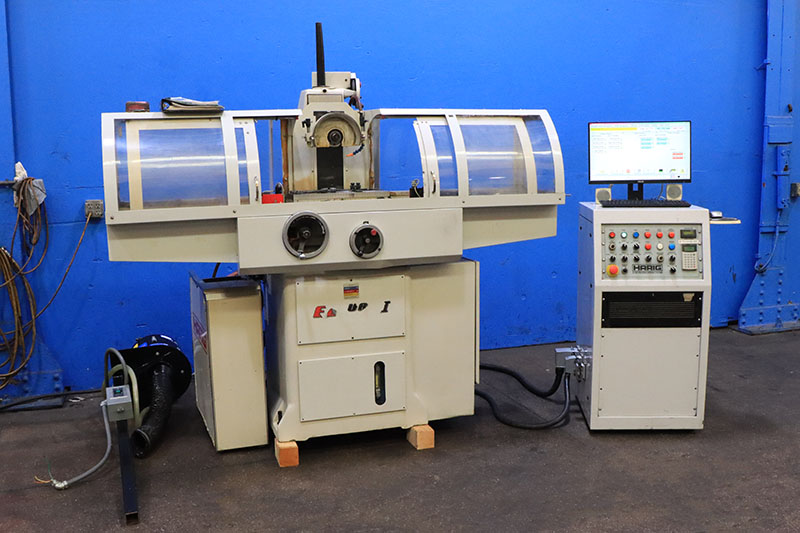

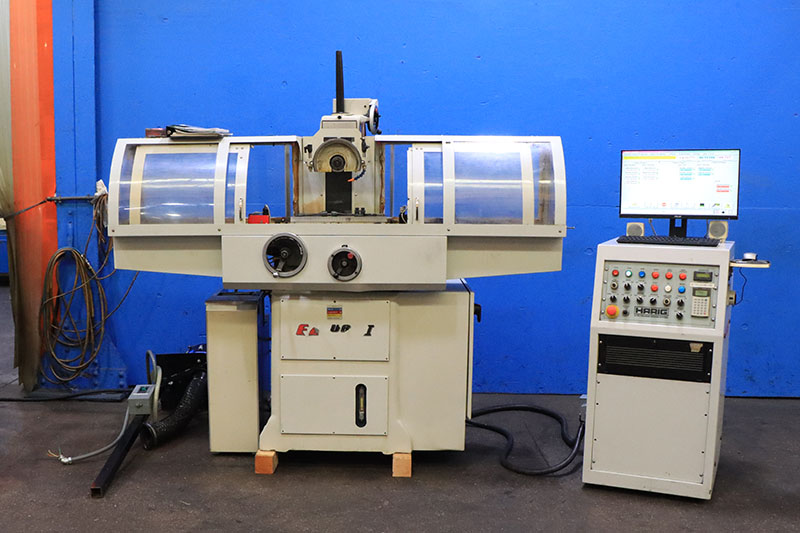

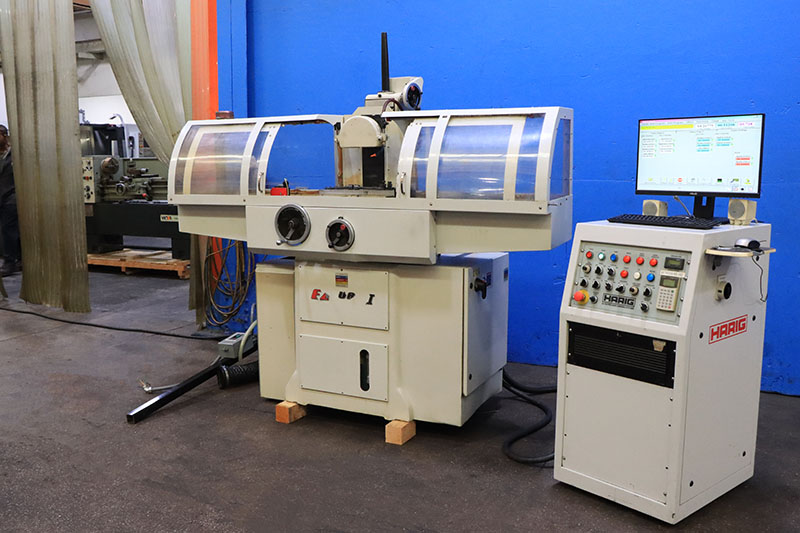

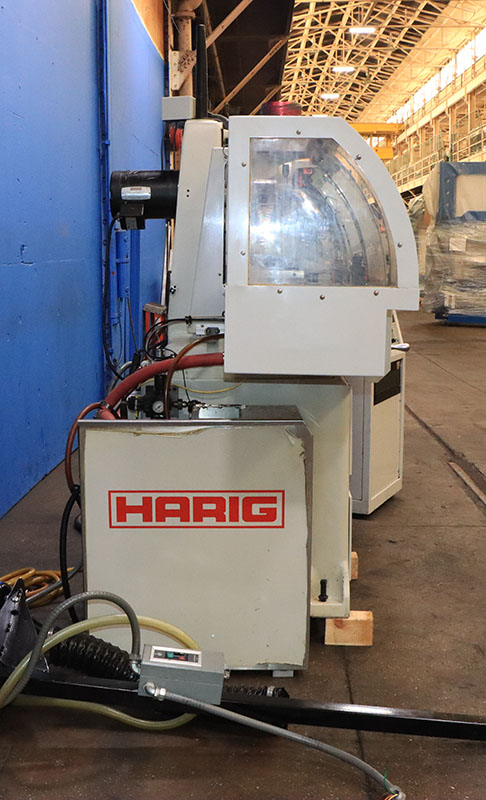

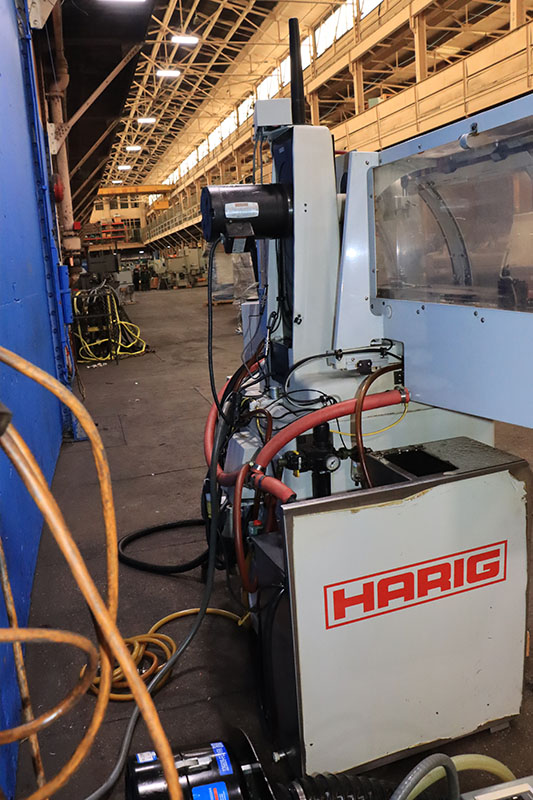

HARIG "EZ SURF II" CNC SURFACE GRINDER
      WITH FACTORY ENCLOSURE

  S/N: EZ-1046      New - 2008


SPECIFICATIONS:
Table Working Surface, Max. ..... 6" x 18"

Travels:
Longitudinal - X-Axis ........... 20"
Cross - Z-Axis .................. 6-3/4"

Grinding Spindle:
Speed - Variable ................ 2000 - 5000 RPM
Center to table, max. height: ... 12"

Grinding Wheel, Std. Size .... 8" x 1/2" x 1- 1/4"
Grinding wheel, max. width ...... 1"
Motor............................ 2 HP

Feed Rates:
Longitudinal .................... 1/4" - 70 FPM
Wheelhead increments, minimum ... 0.00001


Machine Dims., approx. ...... 72" L-R x 48" F-B x 84" H
Machine Weight, approx. .......... 2,250 Lbs.


EQUIPPED WITH:

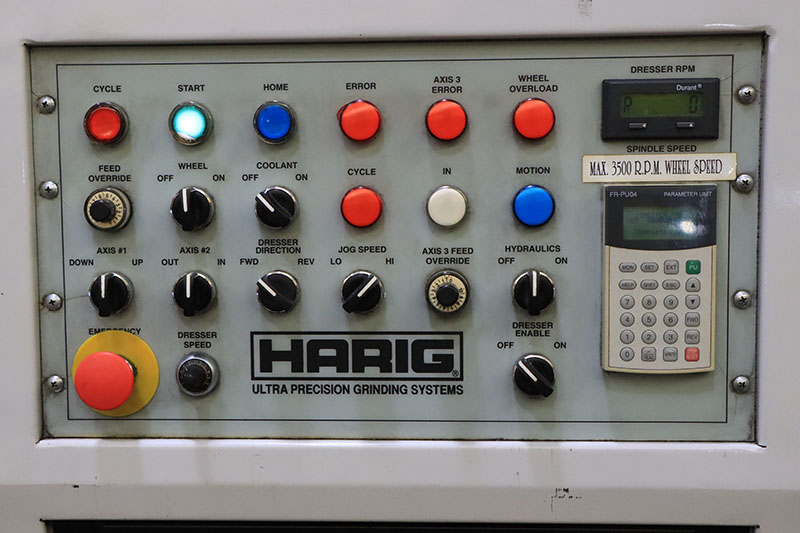

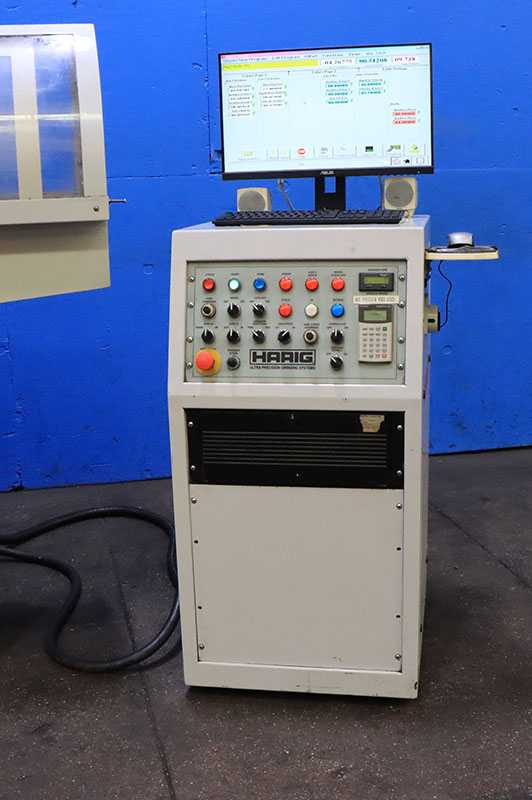

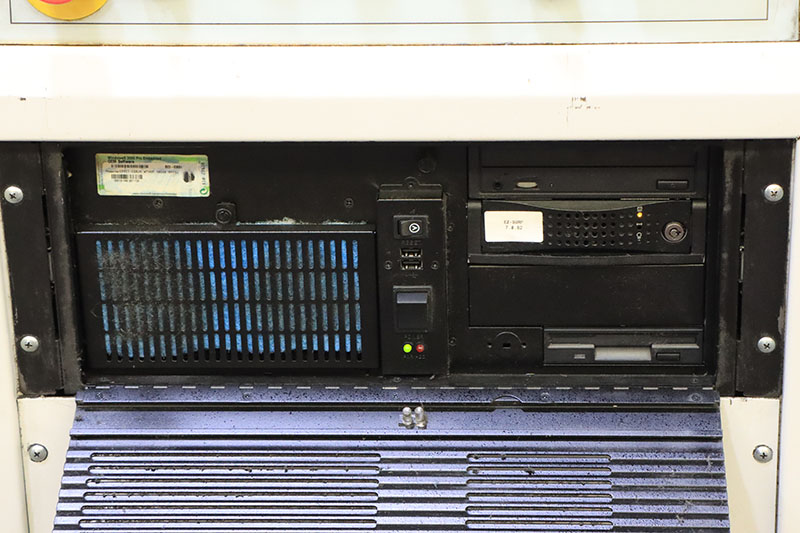

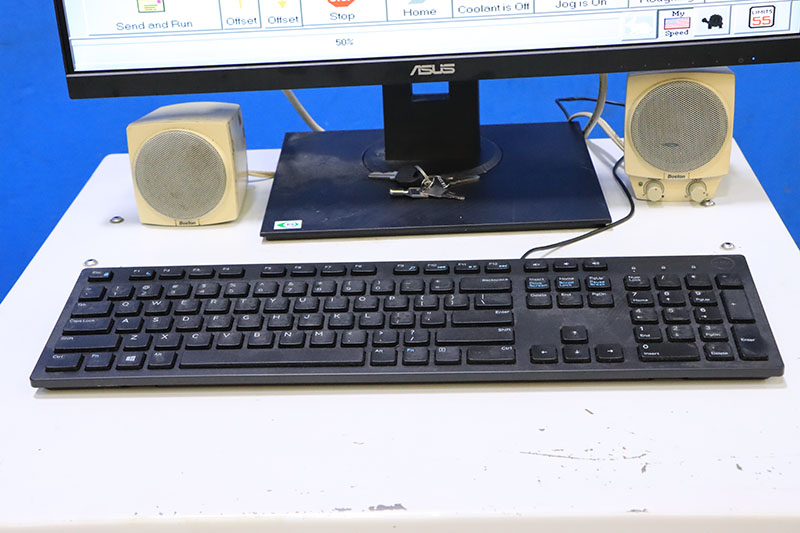

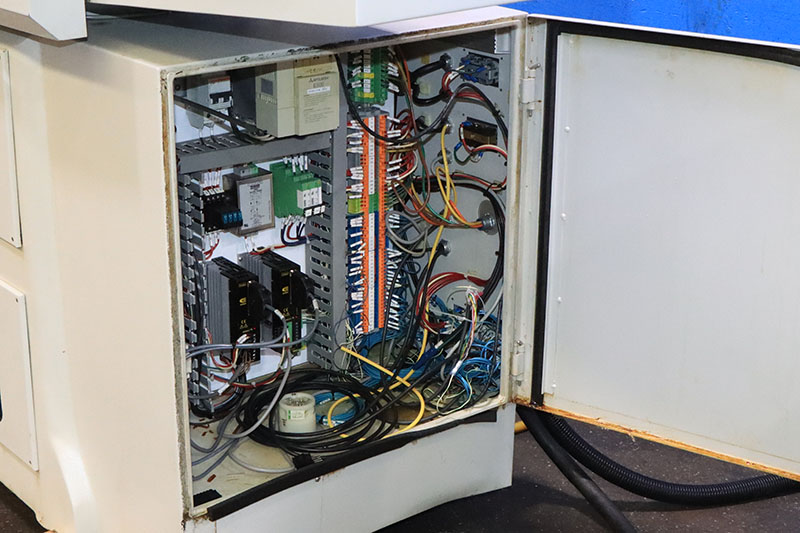

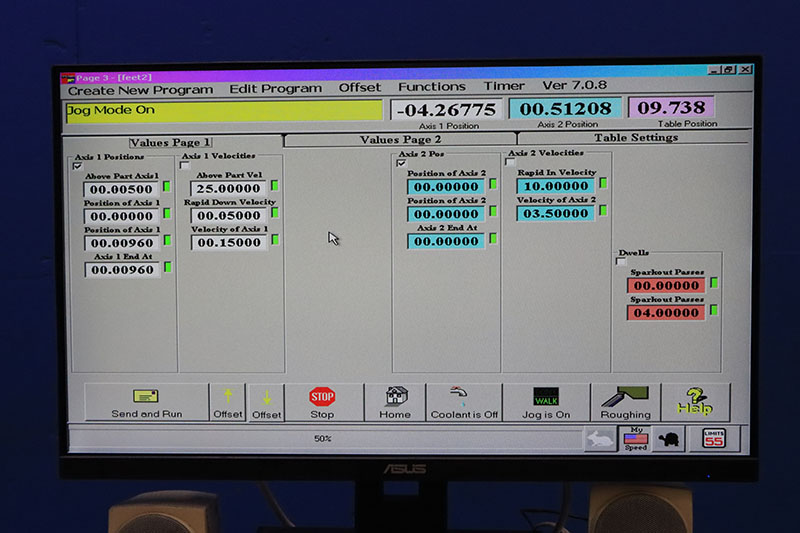

EZ-Surf PC Based 3-Axis CNC Programmable Control
(Table (Hydraulic Servo Controlled), Cross & Vertical
 Axes by Ball Screws, with Servo Motors/Drives)
3-Axis Automatic Operation, and 3-Axis Hand

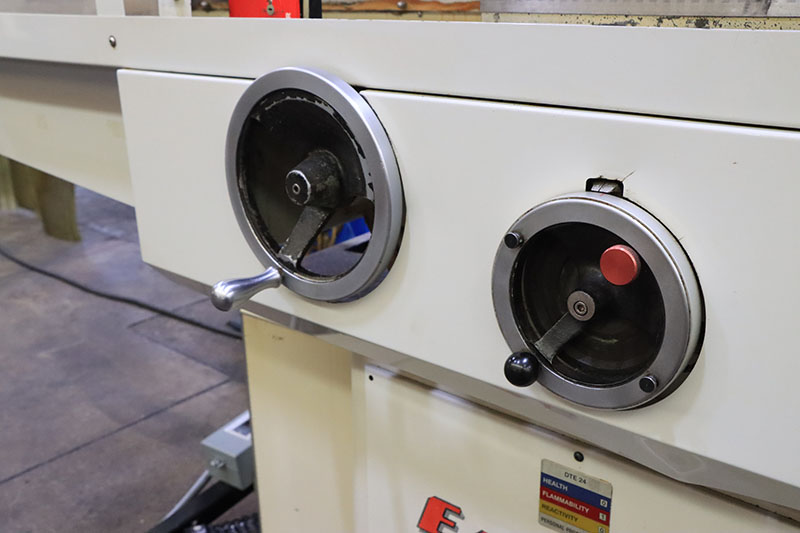

 Feed Operation with Handwheels.
MDI-Setup-Teach-Program & Edit
3-Axis Linear & Circular Interpolation
Absolute & Incremental Operation
Dwell in MDI or End of Stroke
RS-232 Port

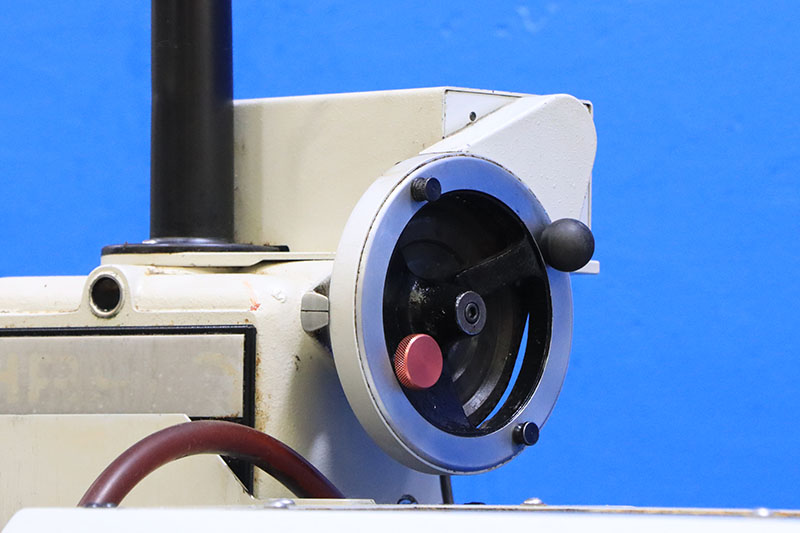

Electronic Handwheels on Y & Z Axes
Ballscrews on Y & Z Axes

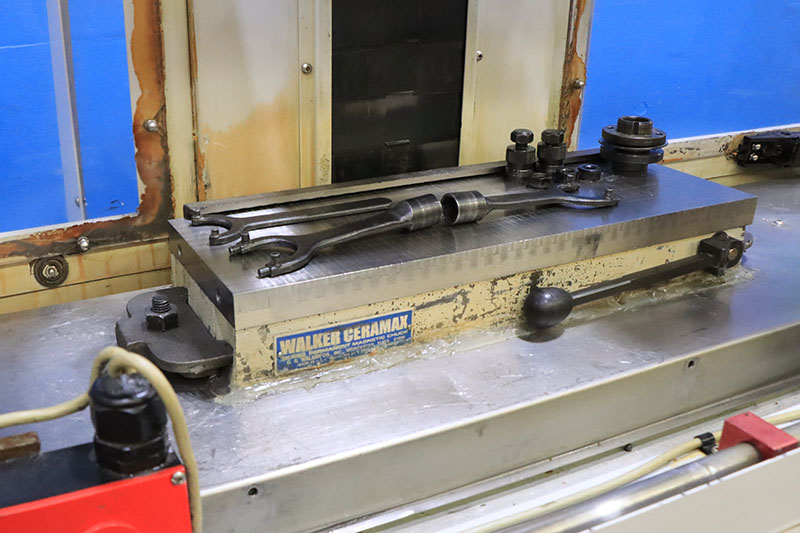

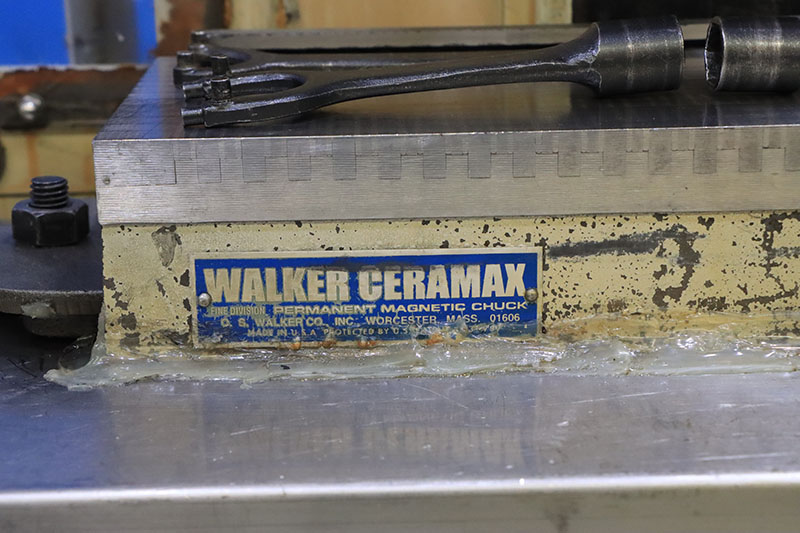

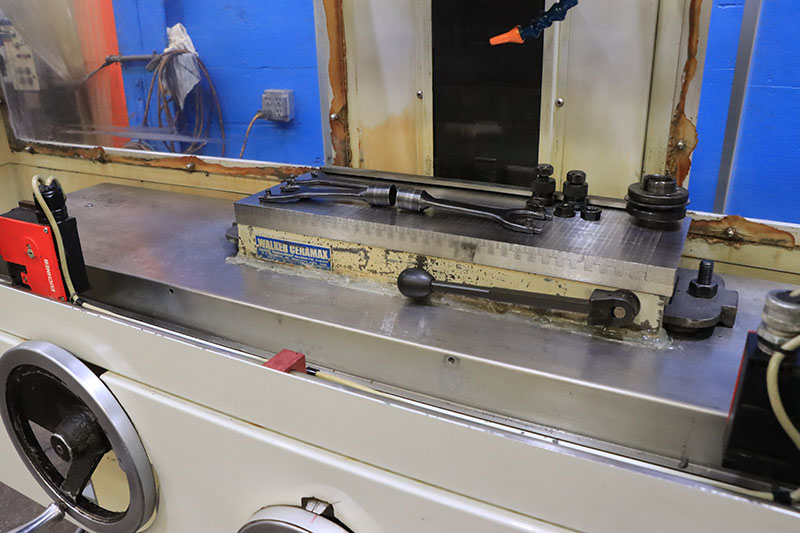

Walker Ceramax "Fine-Division" Permanent Magnetic Chuck

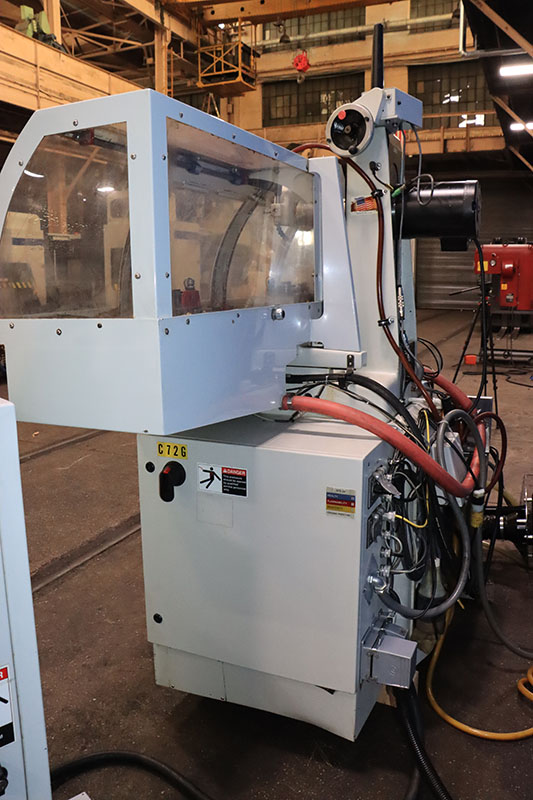

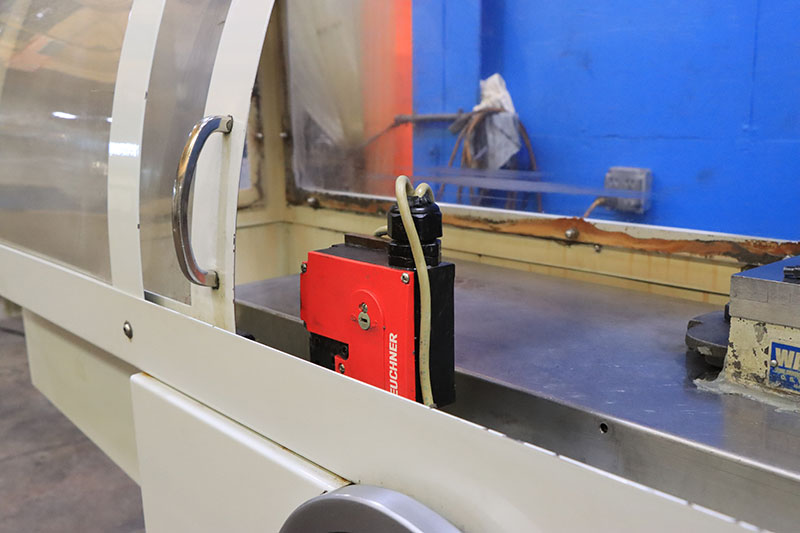

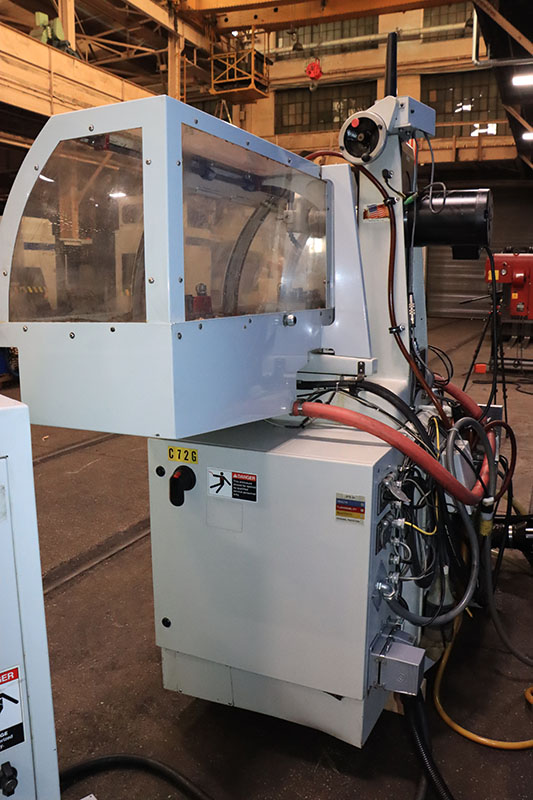

Full Enclosure
Work Light

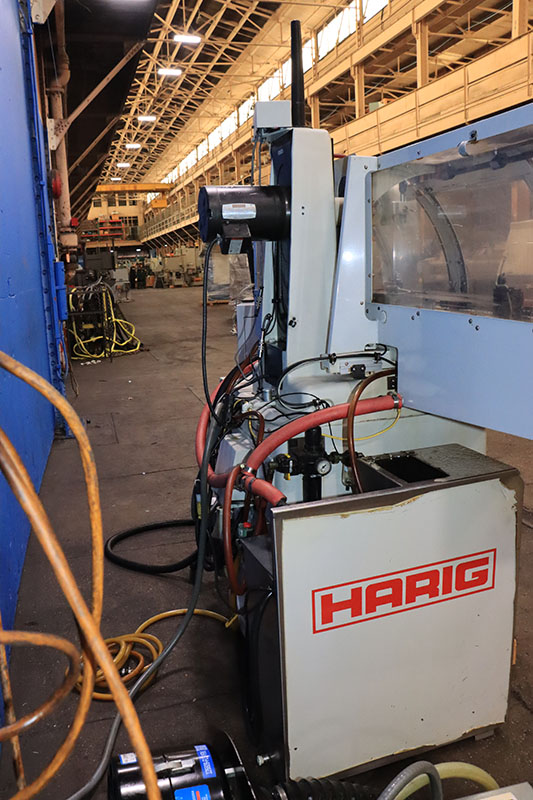

Coolant System Comes with Our Machine

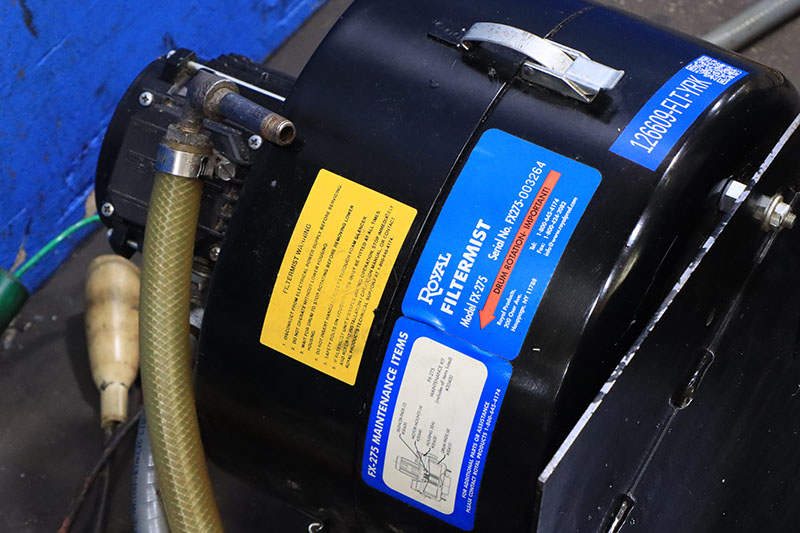

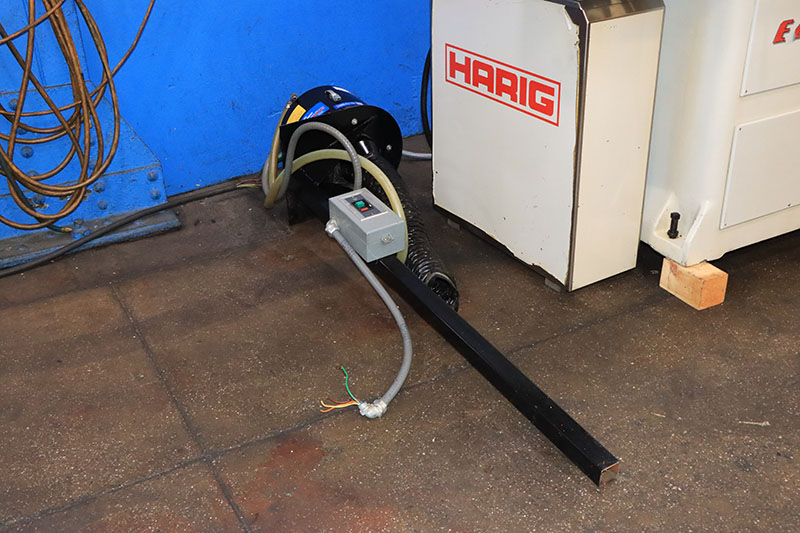

"Royal Mist" Mist Collection Unit

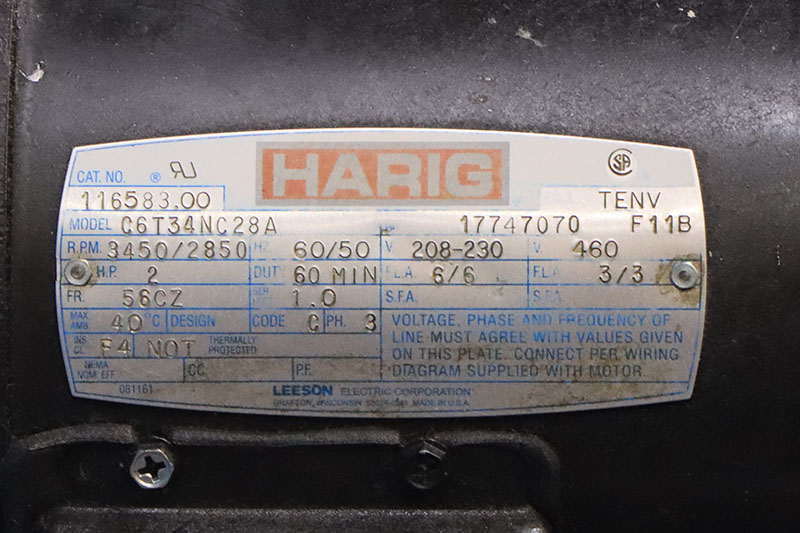

2 H.p./3/60/208-230-460 Volt Spindle Motor
Machine is Presently Wired for 3/60/220 Volts

** Spindle is "Whisper Quiet, as are the
     Ball Screw Driven Axes"  **
** Excellent Condition - Original Paint **
** Runs Superbly, See the Video Below! **
