Harrison M300 ENGINE LATHES

$4,500

Make:

Harrison

Model:

M300

Year:

1970's

Ref #:

164387

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

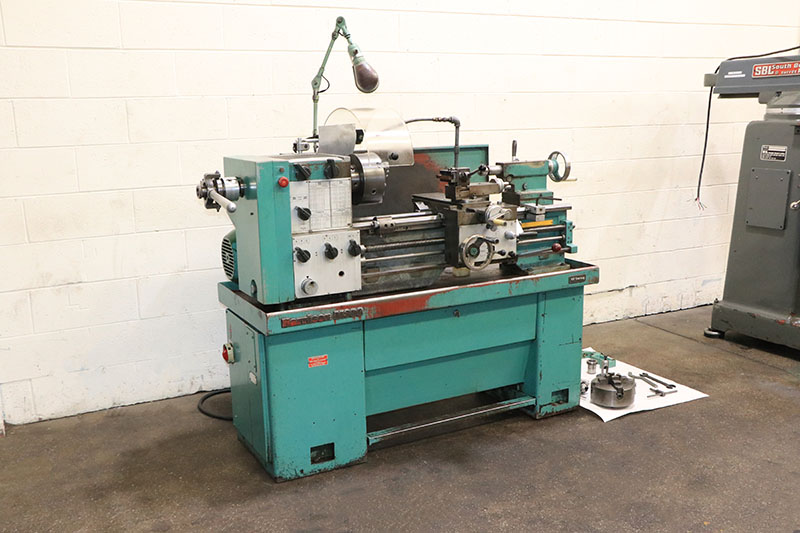

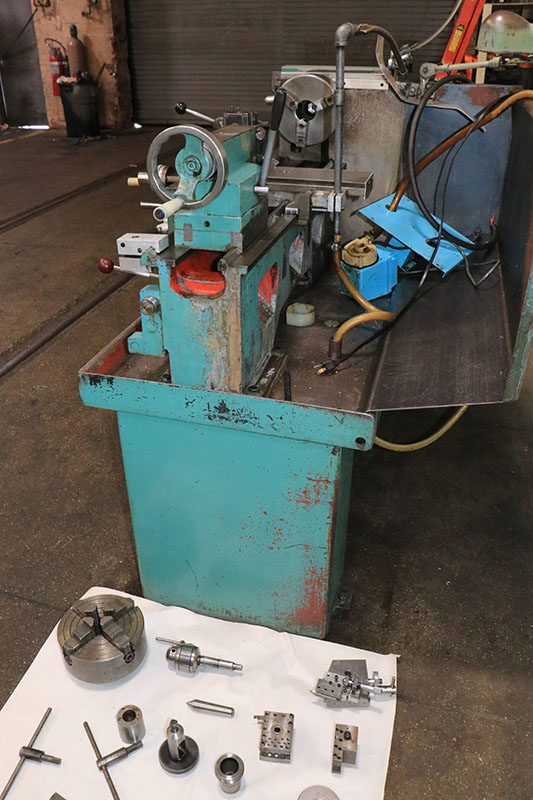

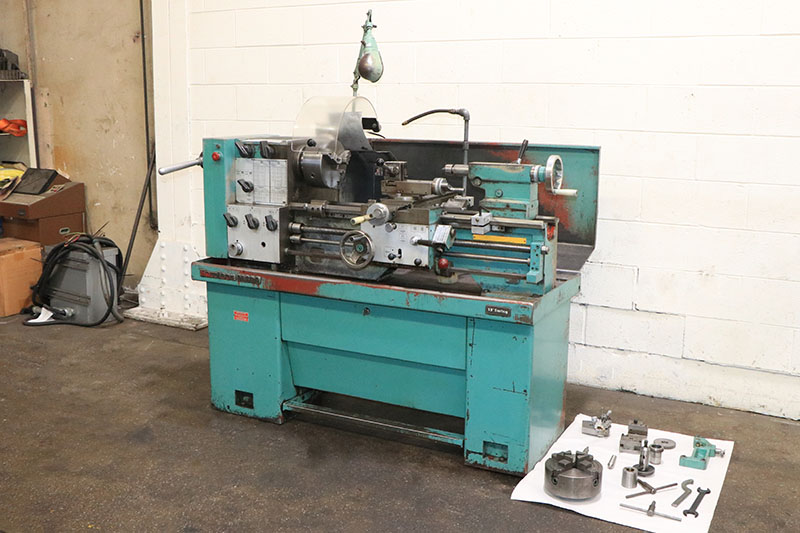

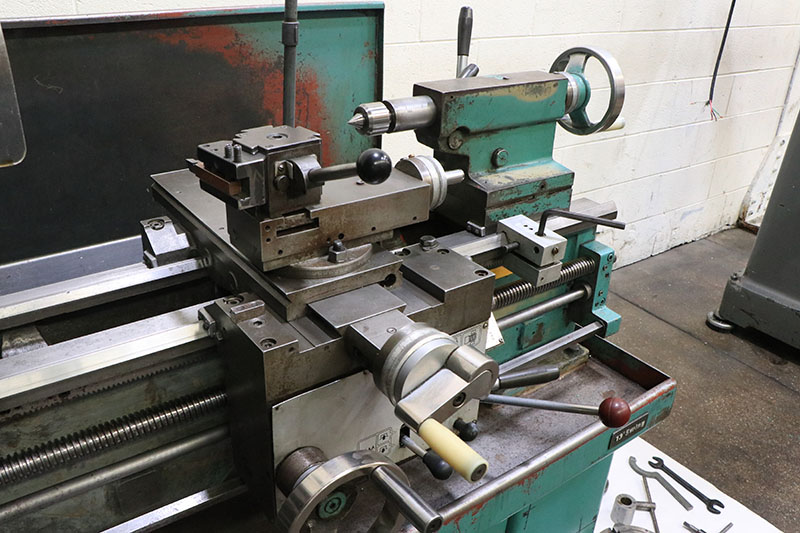

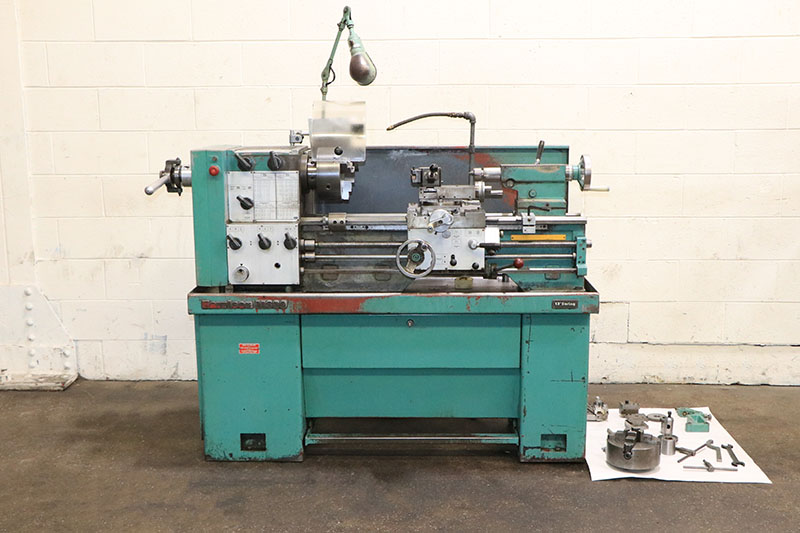

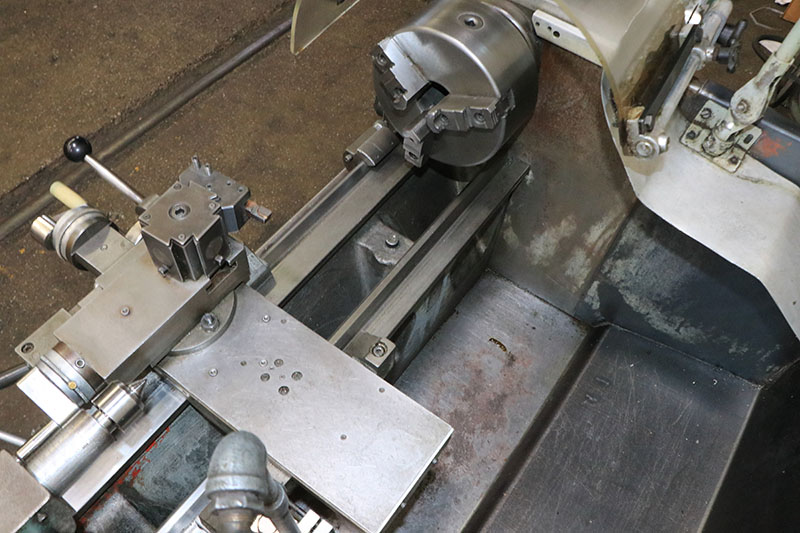

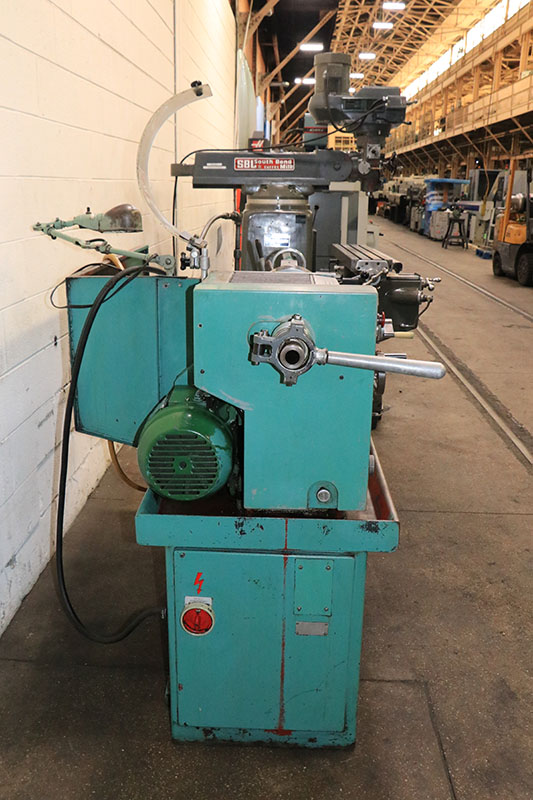

13" X 25" HARRISON ENGINE LATHE,

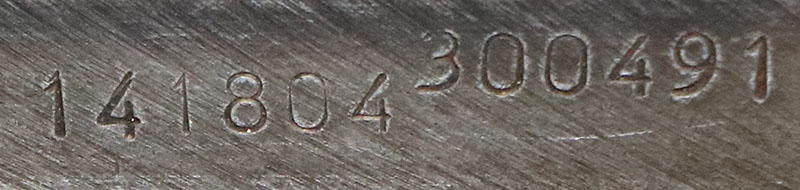

MODEL: M300, S/N: 300491, NEW: 1970's



SPECIFICATIONS:

SWING OVER BED ......................... 13"

SWING OVER SADDLE ...................... 8-1/4"

DISTANCE BETWEEN CENTERS ............... 25"

HOLE THROUGH SPINDLE ................... 1-1/2"

SPINDLE NOSE, CAMLOCK, SIZE ............ D1-4"

SPINDLE SPEED RANGE(12) ................ 40 - 2,500 R.P.M.

LONGITUDINAL FEED RANGE ................ .001 - .040 IPR

CROSS FEED RANGE ....................... 1/2 OF LONGITUDINAL

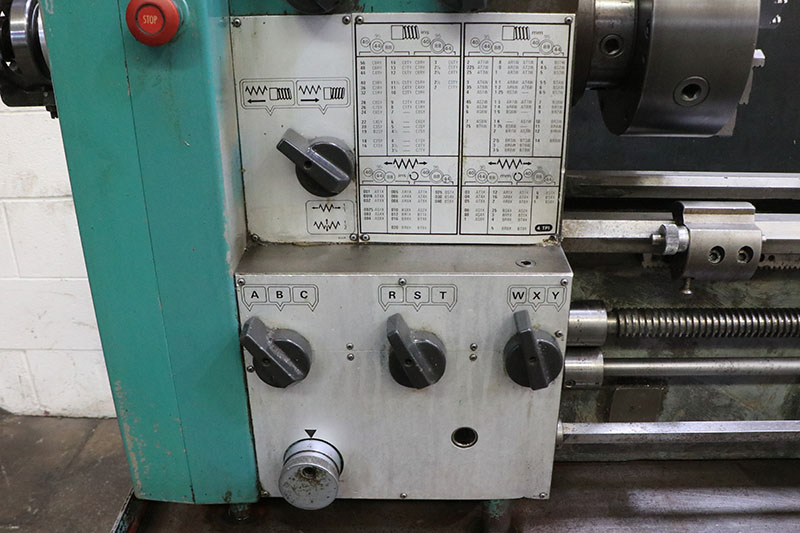

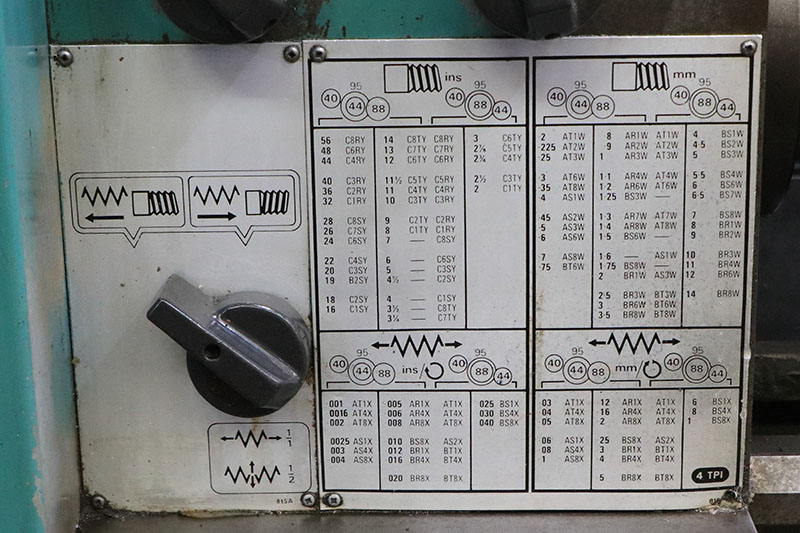

THREAD RANGE:

INCH ................................... 2 TO 56 T.P.I.

METRIC ................................. .2 TO 14 MM

TAILSTOCK SPINDLE DIAMETER ............. 2.2"

TAILSTOCK SPINDLE TAPER ................ #3MT

TAILSTOCK SPINDLE TRAVEL ............... 4-3/8"

APPROXIMATE FLOOR SPACE ................ 70" X 24" X 56"H

APPROXIMATE WEIGHT ..................... 2,000 LBS.

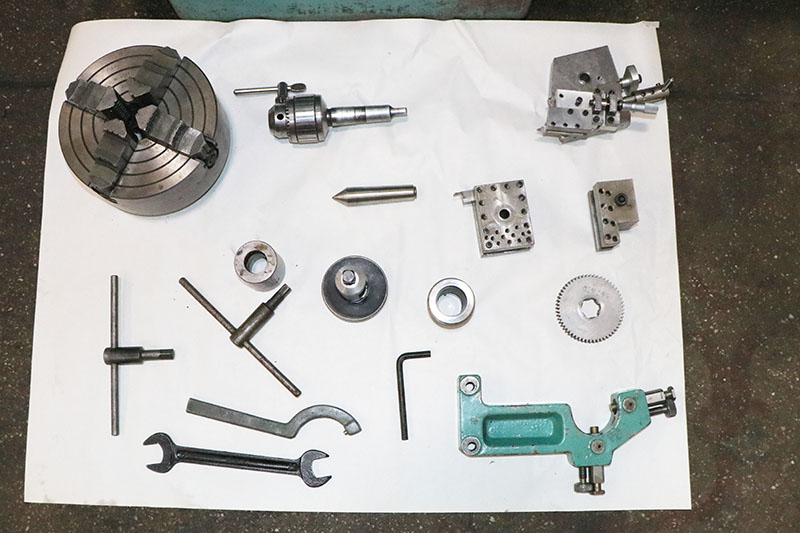

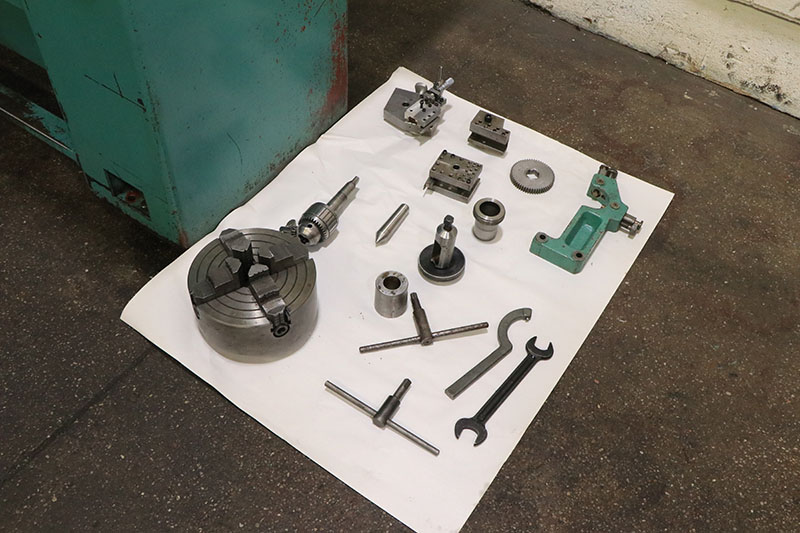

EQUIPPED WITH:

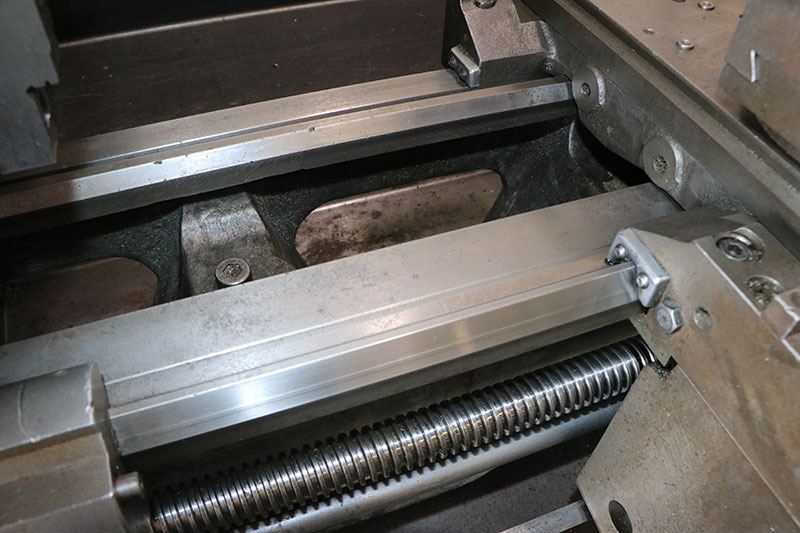

- HARDENED BED WAYS

- INCH/METRIC THREADING CAPABILITY

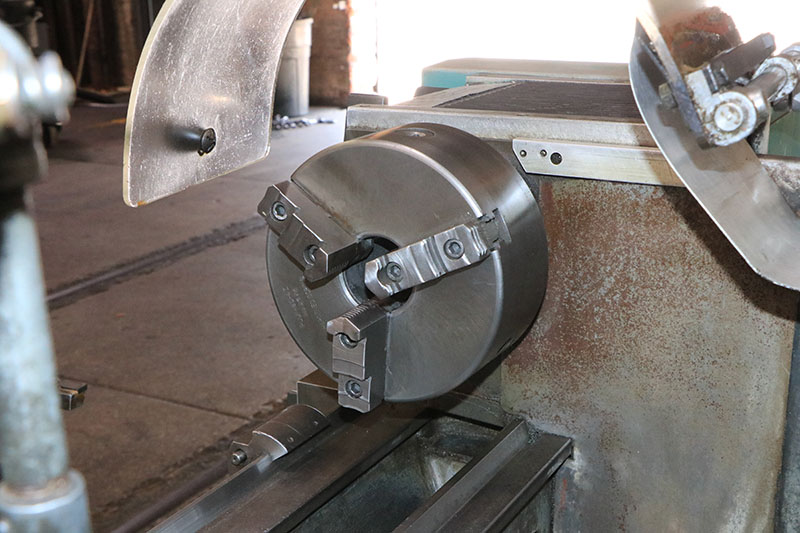

- 7-1/2" 3-JAW CHUCK

- 7-1/2" 4-JAW CHUCK

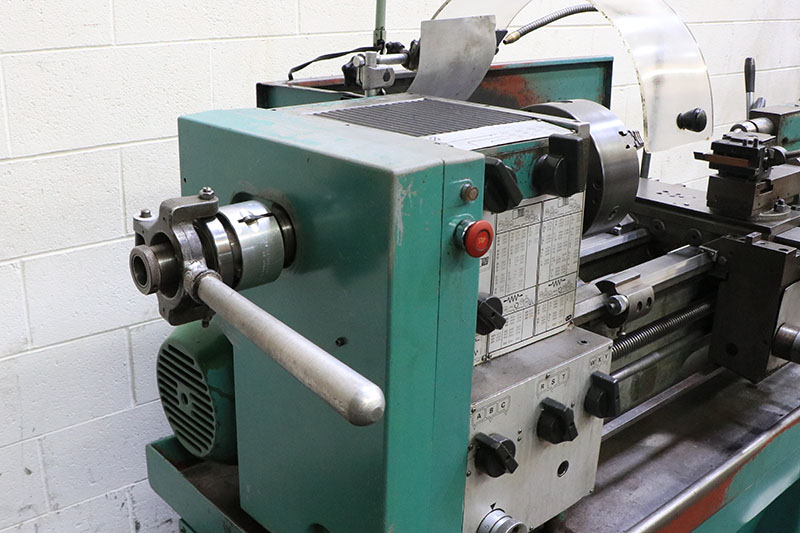

- LEVER TYPE 5C COLLET CLOSER & NOSE PIECE

- FOLLOW REST

- FIMS QUICK CHANGE TOOLPOST MISCELLENEOUS HOLDERS

- JACOBS DRILL CHUCK FOR TAILSTOCK

- MICROMETER STOP

- THREADING DIAL

- FOOT BRAKE

- REAR CHIP GUARD

- 3 HORSE POWER MAIN DRIVE MOTOR



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
