Ikeda RM-1575 RADIAL ARM DRILLS

$10,500

Make:
Ikeda
Model:
RM-1575
Year:
1980
Ref #:
164070

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

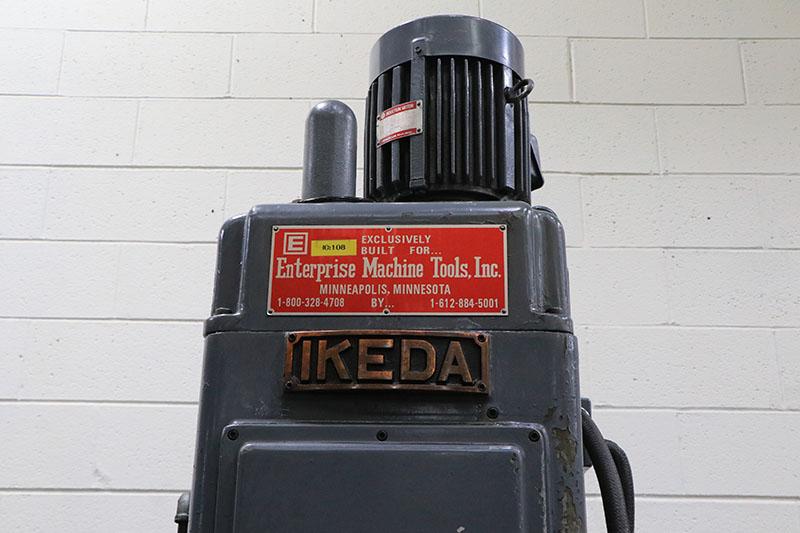

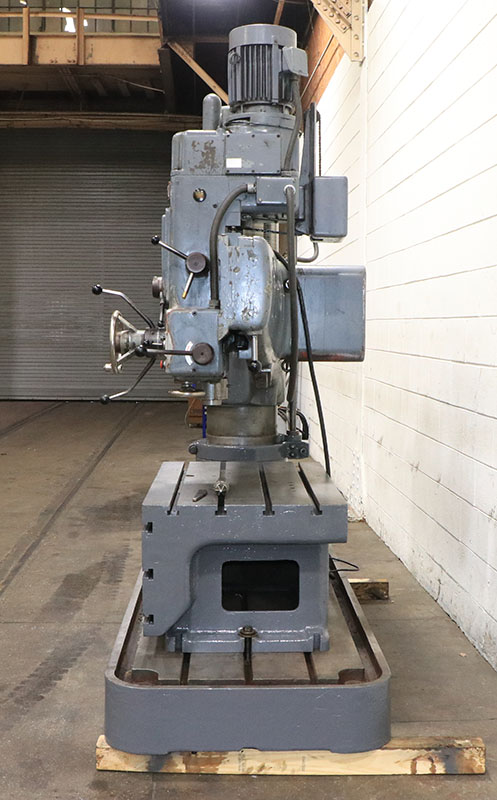

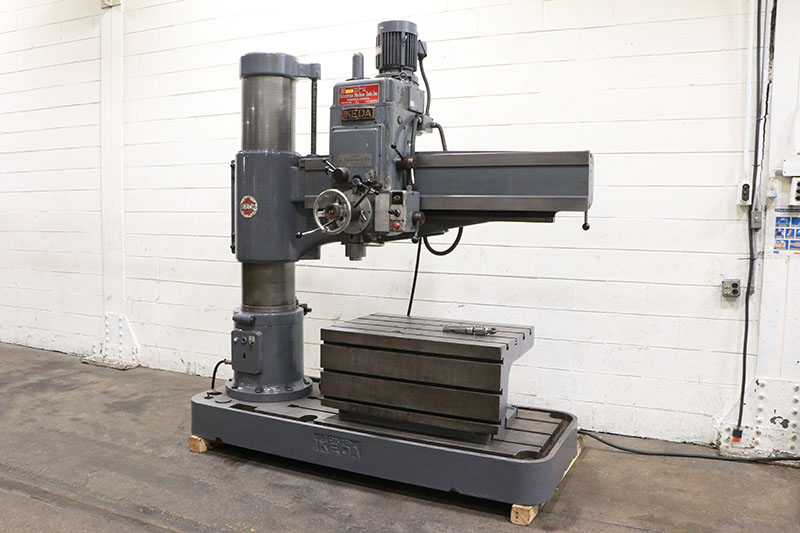

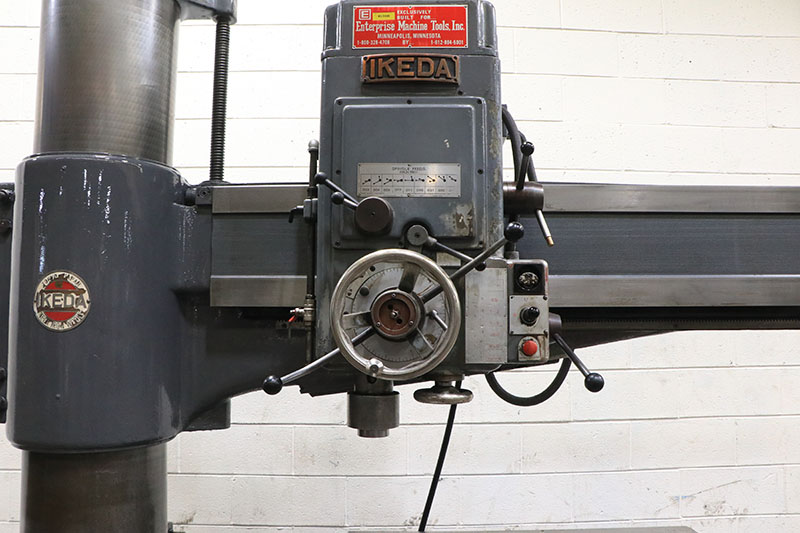

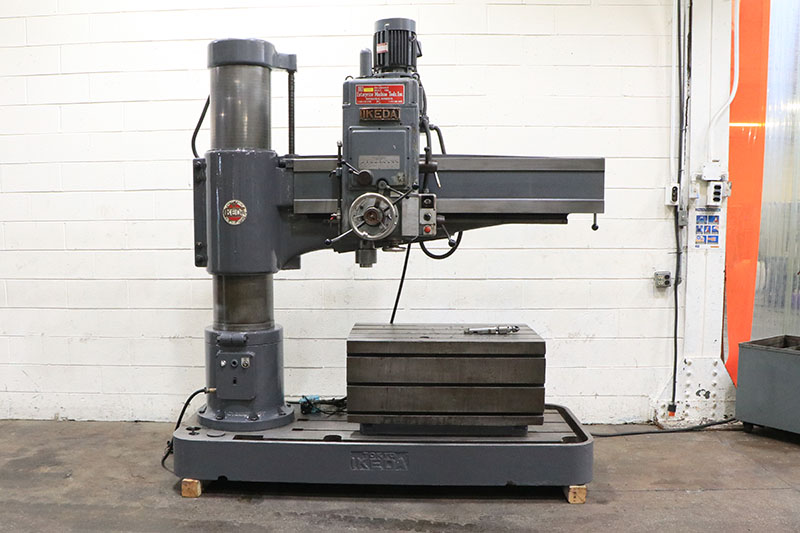

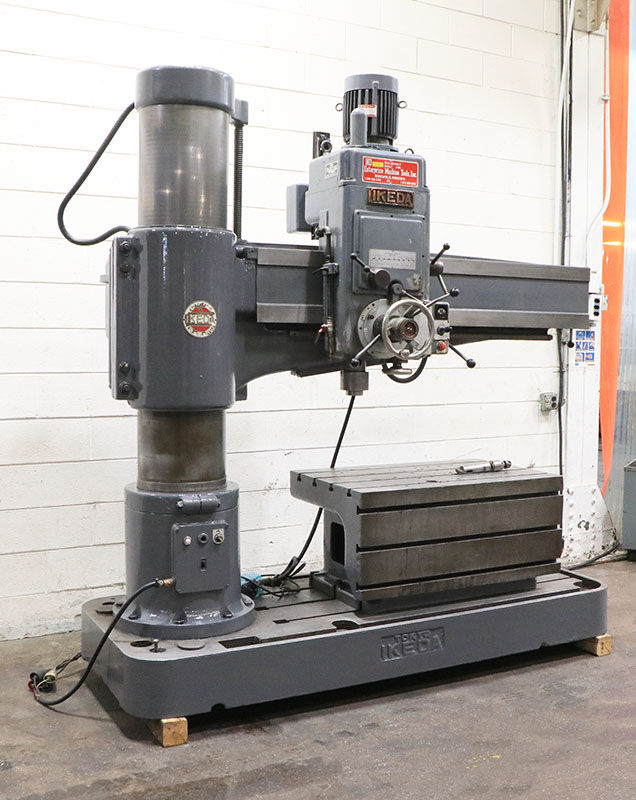

5' X 13" IKEDA RADIAL DRILL

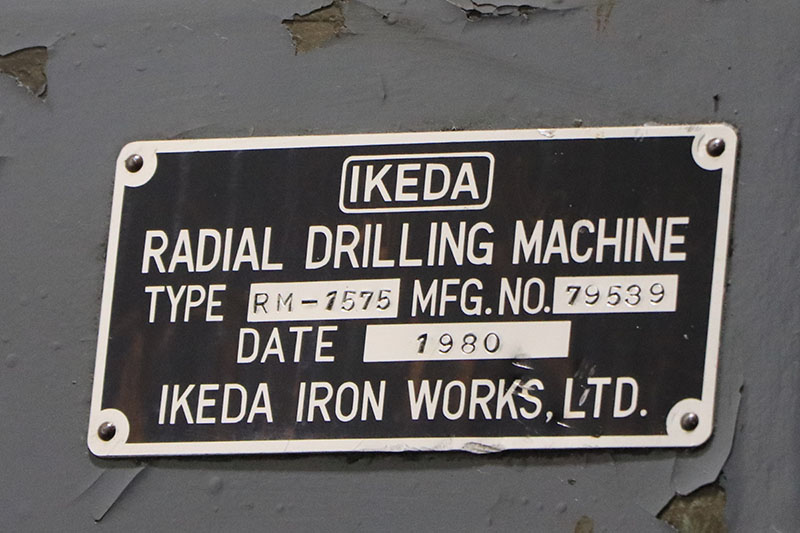

MODEL: RM-1575, S/N: 79539,  NEW: 1980

SPECIFICATIONS:

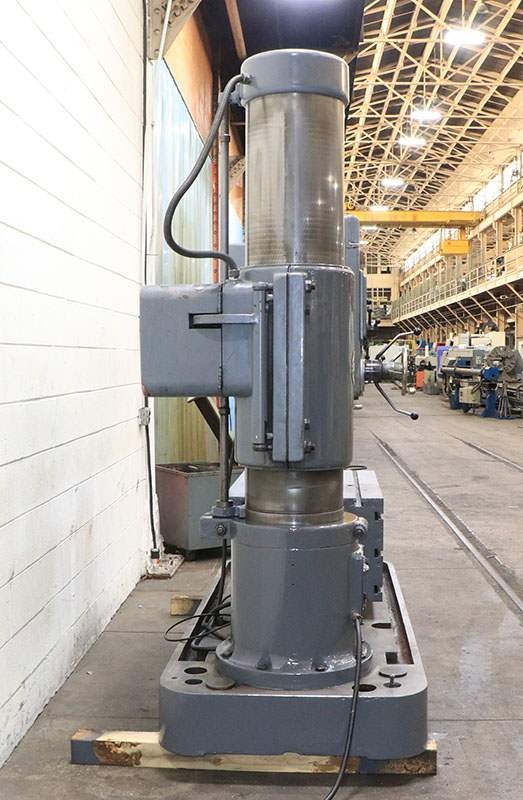

COLUMN DIAMETER ....................... 13-5/8"
CENTER OF SPINDLE TO COLUMN ........... 60-1/2"
MINIMUM COLUMN TO SPINDLE ............. 10"
MAXIMUM DISTANCE SPINDLE TO BASE ...... 54-1/2"
MINIMUM DISTANCE SPINDLE TO BASE ...... 12-1/2"
STROKE OF SPINDLE ..................... 14-1/2"
SPINDLE SPEED RANGE(12) ............... 30 - 1500 RPM

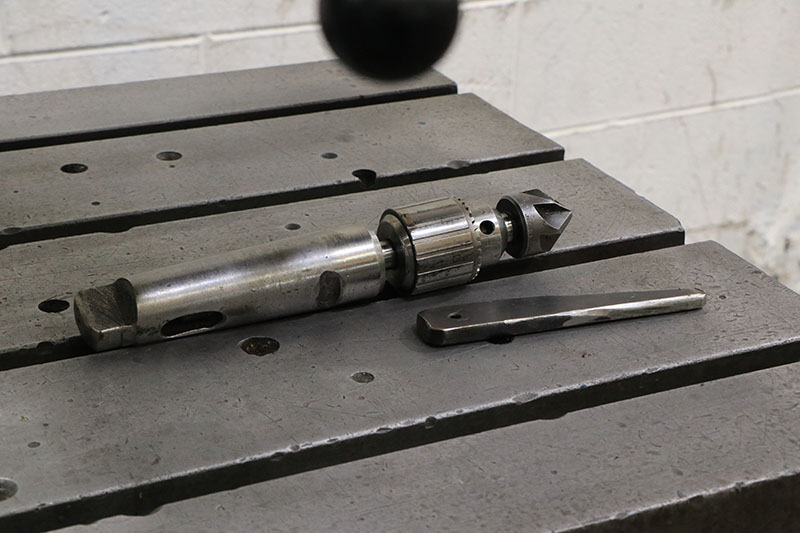

SPINDLE TAPER ......................... NO. 5 MORSE
SPINDLE FEEDS (9) ..................... .003 - .040 IPR
DRILLING CAPACITY:
    IN STEEL .......................... 2-1/2"
    IN CAST IRON ...................... 2-3/4"
TAPPING CAPACITY:
    IN STEEL .......................... 2"
    IN CAST IRON ...................... 2-3/8"
BORING CAPACITY:
    IN STEEL .......................... 4"
    IN CAST IRON ...................... 6"
WORKING SURFACE OF BASE ............... 36" X 65-1/4"
APPROXIMATE MACHINE WEIGHT ............ 8800 LBS
APPROXIMATE DIMENSIONS ................ 36"W x 89"L x 96"H

EQUIPPED WITH:
POWER ELEVATION
POWER CLAMPING
T-SLOTTED BASE

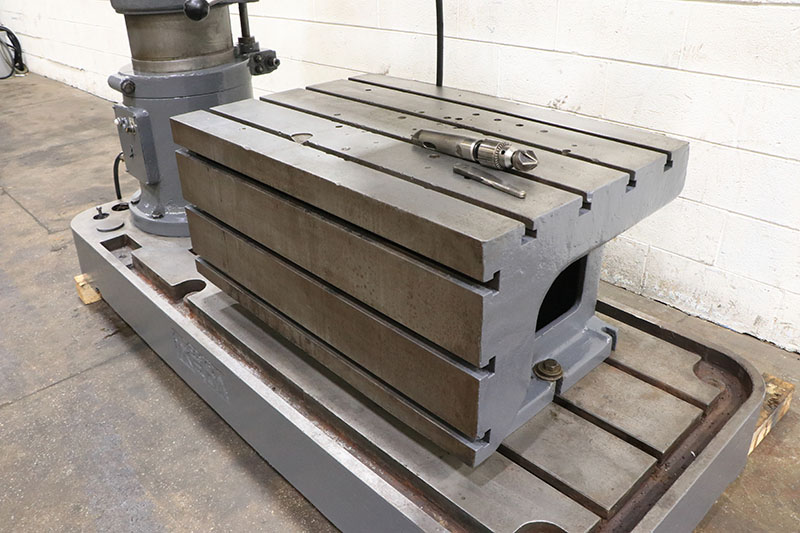

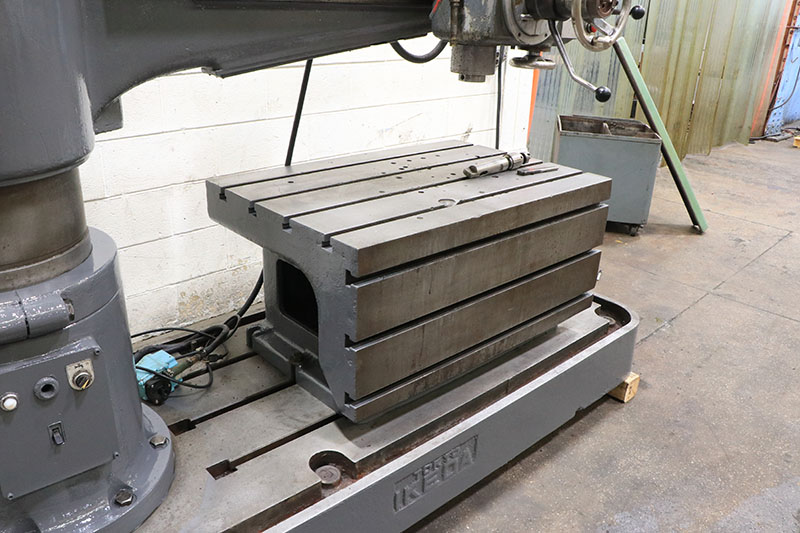

T-SLOTTED BOX TABLE AND PARALLELS
COOLANT SYSTEM
7-1/2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
