J & L FC-14 COMPARATORS

Price on Request

Make:: J & L

Model:: FC-14

Year:: 1965

Ref #:: 142626

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

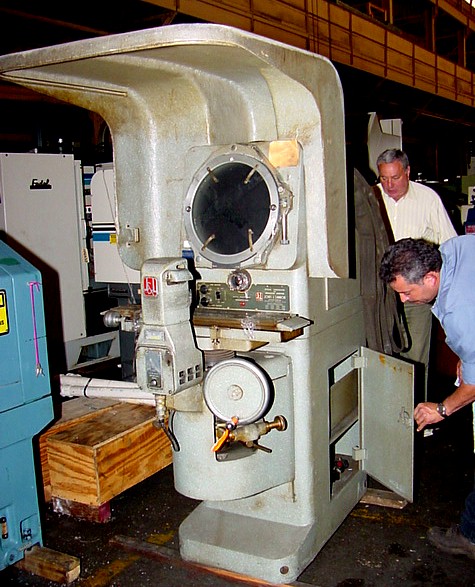

14" JONES & LAMSON FLOOR MODEL HORIZONTAL PROJECTION
  OPTICAL COMPARATOR

MODEL: FC-14     S/N: E-25056     NEW: 1965

  SCREEN DIAMETER ................................... 14"
TABLE SIZE ................................... 6" X 30"
MEASURING CAPACITY (TABLE TRAVEL):
LONGITUDINAL ....................................... 8"
VERTICAL ........................................... 5"
ANGULAR MEASURING CAPACITY .... 360 DEG. CHART ROTATION
CROSS TRAVEL FOR FOCUSING ...................... 1.375"
HELIX ADJ. - TABLE SWIVELS, LEFT OR RIGHT ..... 15 DEG.

FLOOR SPACE ................... 33"LR X 56"FB X 78"HIGH
APPROXIMATE WEIGHT .......................... 1,300 LBS

  EQUIPPED WITH:
HORIZONTAL PROJECTION
MERCURY ARC NOVALITE HIGH INTENSITY LIGHTING
ERECT IMAGES & FIXED FOCAL PLANE @ ALL MAGNIFICATIONS
J & L REFLECTION ATTACHMENT (SURFACE ILLUMINATION)
MACHINE PRESENTLY IS EQUIPPED WITH (3) LENSES, THEY ARE 10X, 20X, & 50X MAGNIFICATIONS
6-POSITION POWER LENS TURRET
MANUAL TABLE TRAVERSE
MANUAL TABLE ELEVATION
LARGE VISOR W/CURTAIN
J&L ROTARY STAGE
MATCHING PAIR OF J & L TAILSTOCKS WITH 5- 1/2" SWING CAP.
J & L BLOCK, 6" LONG x 2- 1/4"W x 1- 5/8"H
J & L BLOCK, 4" LONG x 2- 1/4"W x 1- 5/8"H

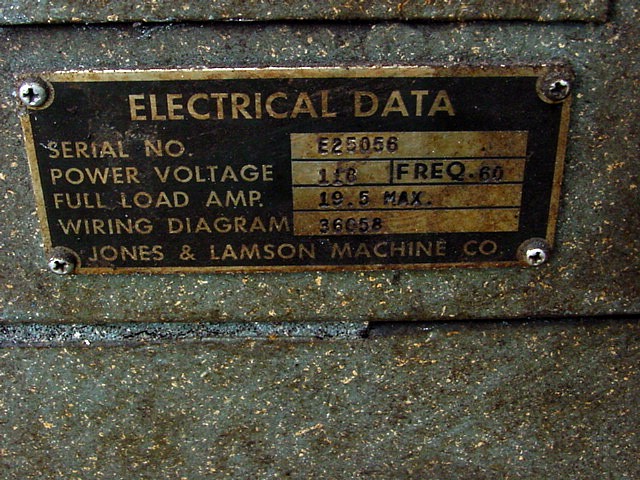

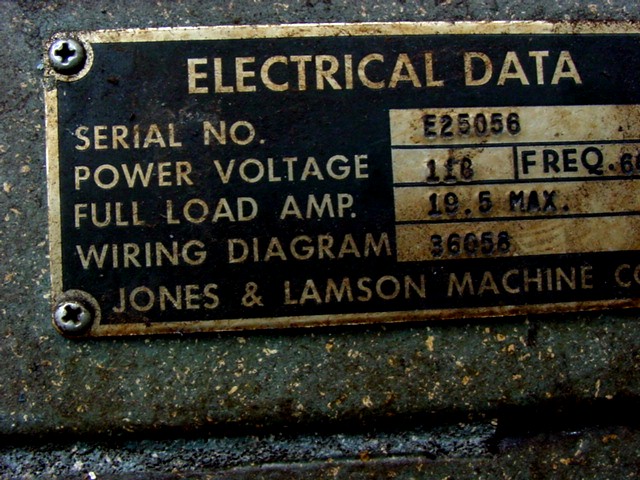

SINGLE PHASE/60 CYCLE/118 VOLT ELECTRICS

  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** EXCELLENT CONDITION & APPEARANCE ***
