Jones & Lamson FC-30, 5X LENS, QUADRA-CHEK 2000 DRO COMPARATORS

Price on Request

Make:: Jones & Lamson

Model:: FC-30, 5X LENS, QUADRA-CHEK 2000 DRO

Year:

Ref #:: 161889

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

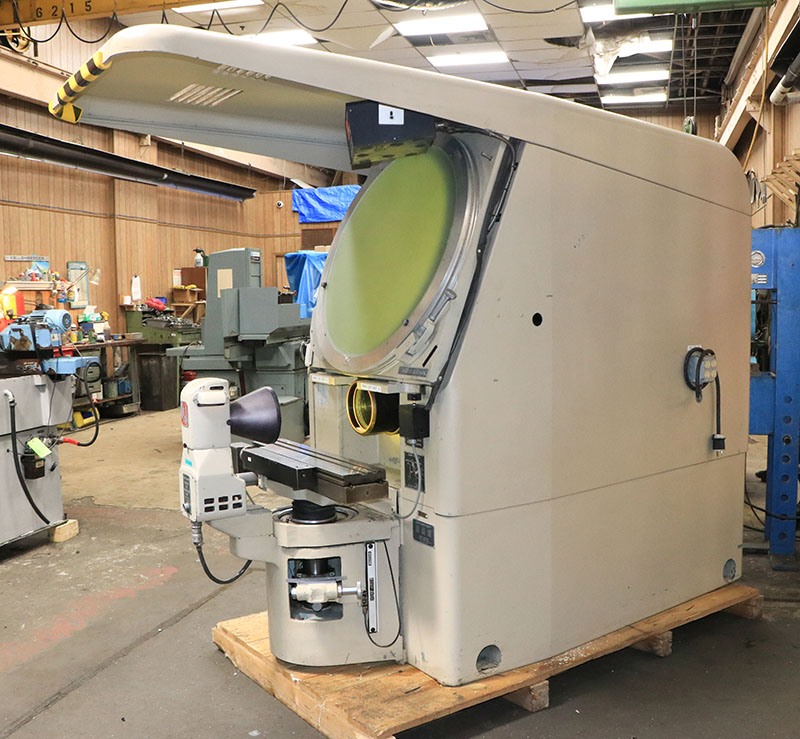

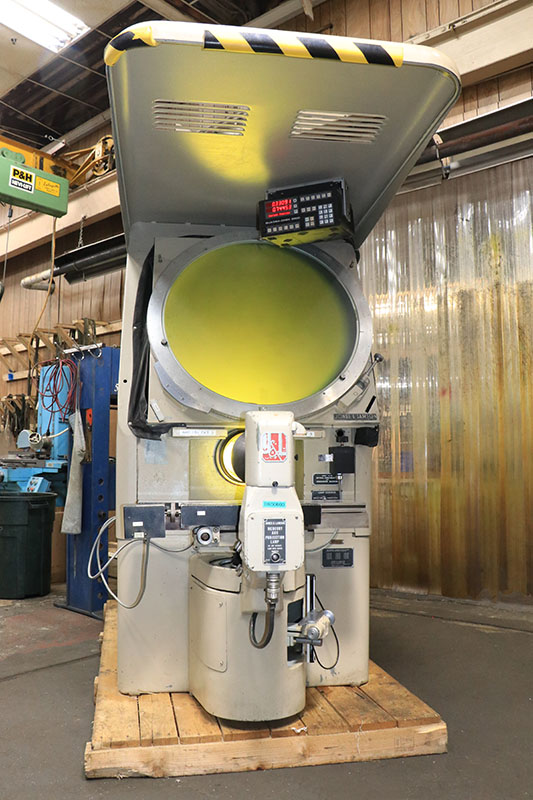

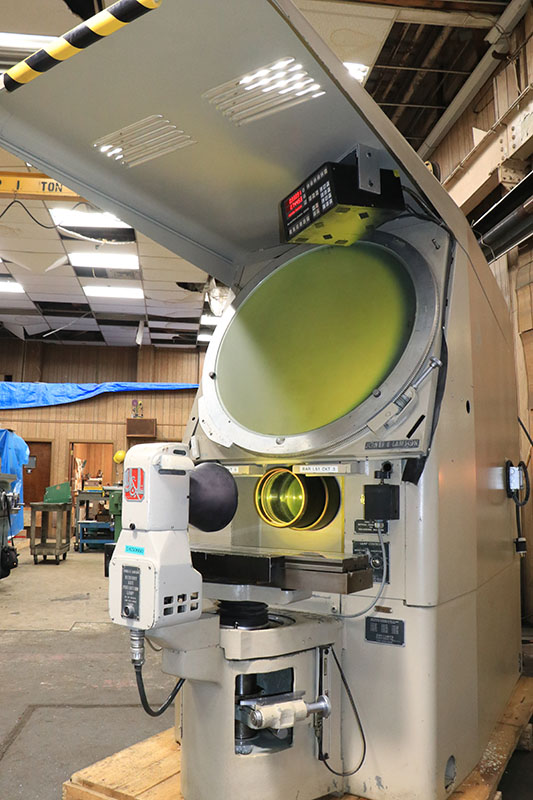

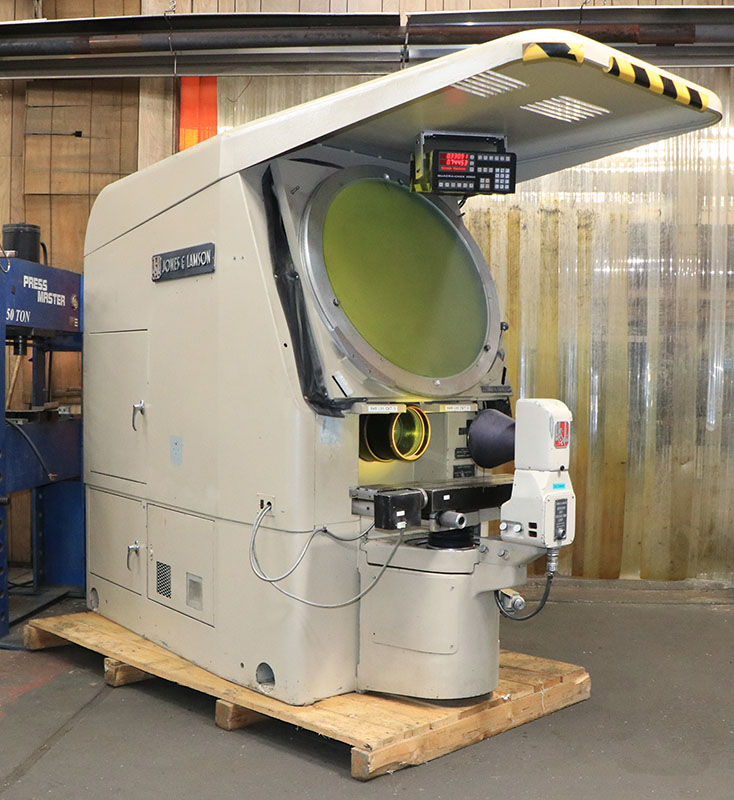

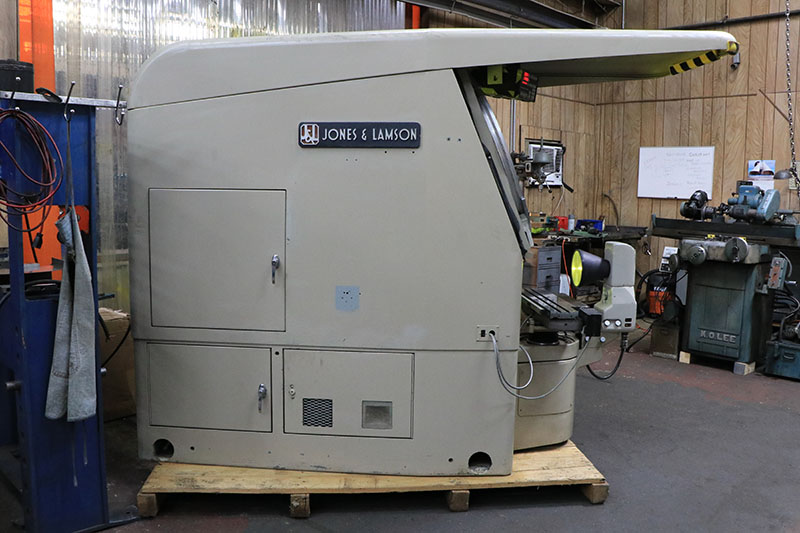

30" JONES & LAMSON MODEL: FC-30  OPTICAL COMPARATOR WITH QC 2000 DRO

******  5X LENS ******


S/N: E-23094

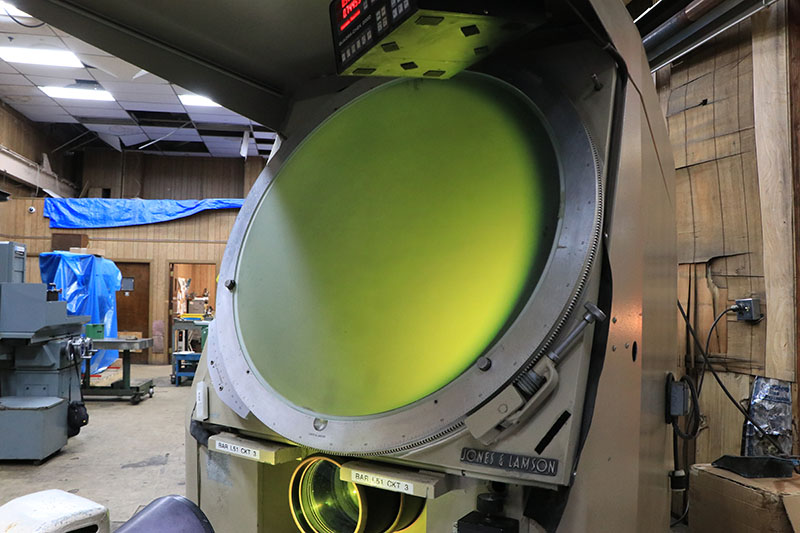

SCREEN DIAMETER ................ 30"

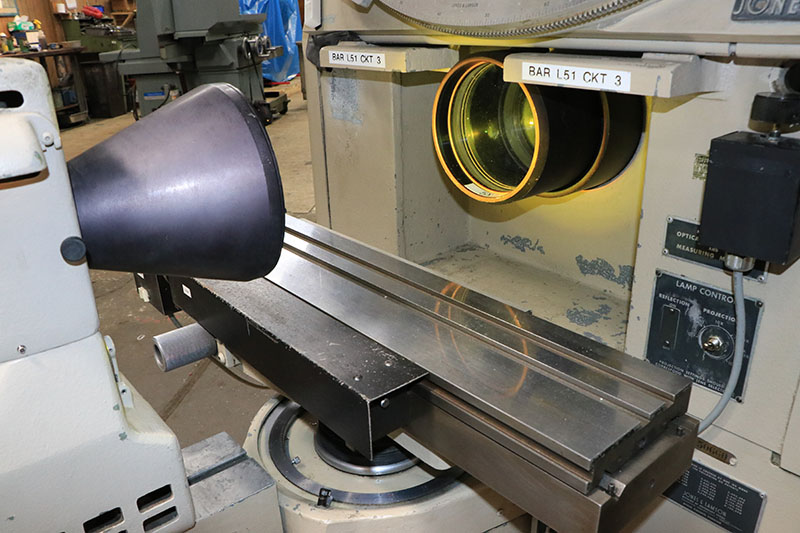

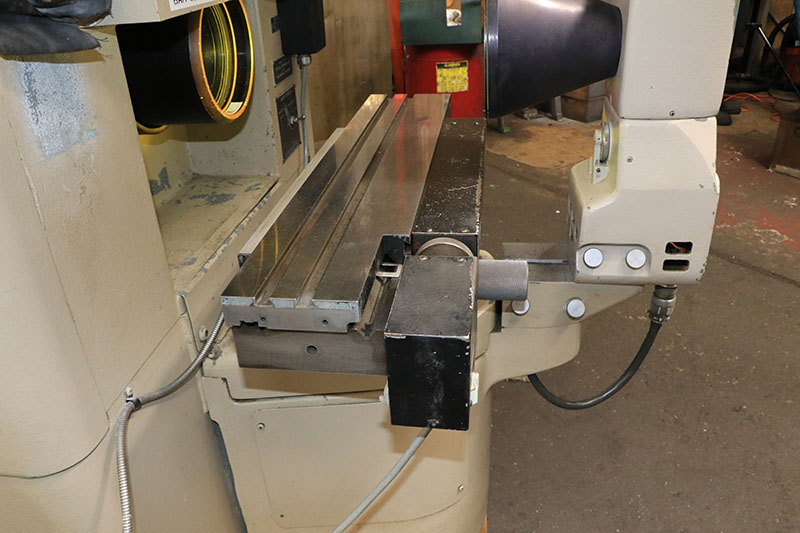

SIZE OF WORKTABLE .............. 6" X 30"

TRAVEL OF WORK TABLE:
  LONGITUDINAL ................. 8"
  VERTICAL ..................... 5"

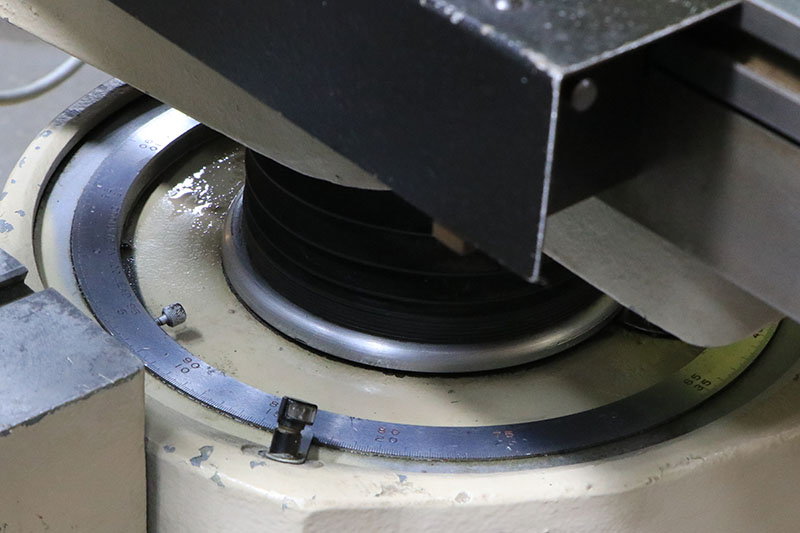

ANGULAR MEASURING CAPACITY ..... 360 DEG. CHART ROTATION

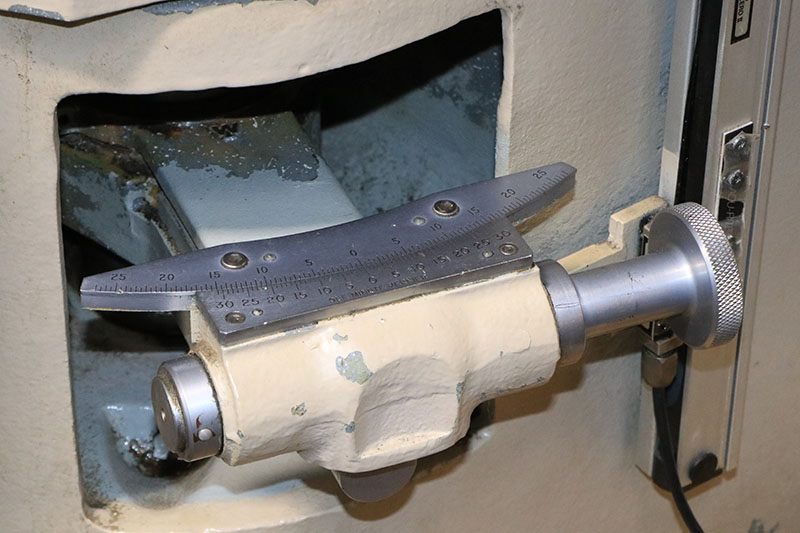

HELIX ANGLE ADJUSTMENT
 (TABLE SWIVELS, L&R)  ......... 15 DEG
CROSS TRAVEL FOR FOCUSING ...... 1- 3/8"
DISTANCE, LENS C/L TO TABLE:
  MAXIMUM ...................... 8- 1/4"
  MINIMUM ...................... 3- 1/4"

FLOOR SPACE (SMALL FOOTPRINT) .. 39"LR X 91"FB X 79"H
MACHINE WEIGHT ................. 2,500 LBS

EQUIPPED WITH:

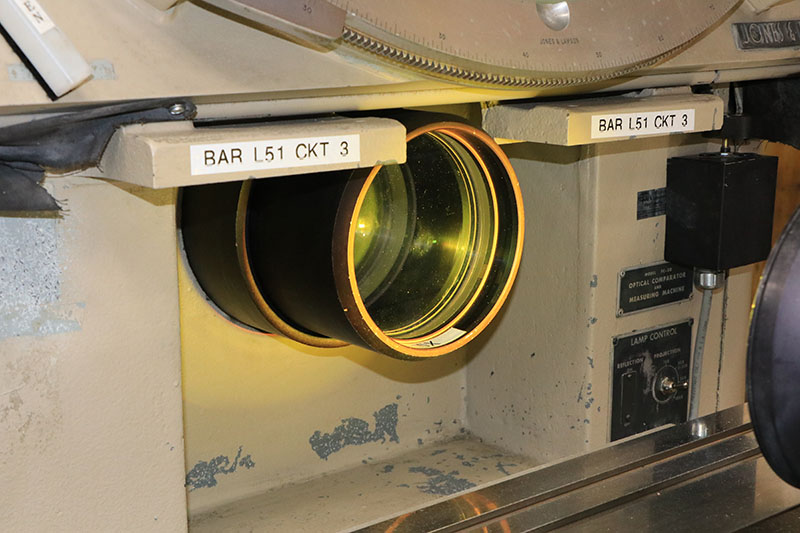

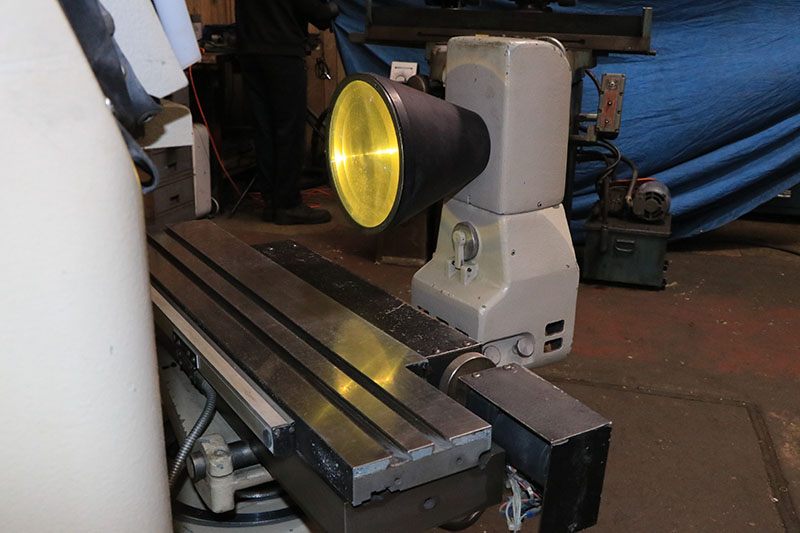

 - JONES & LAMSON 5X LENS & CONDENSOR LENS
 - POWER TABLE, LEFT TO RIGHT
 - POWER TABLE UP & DOWN

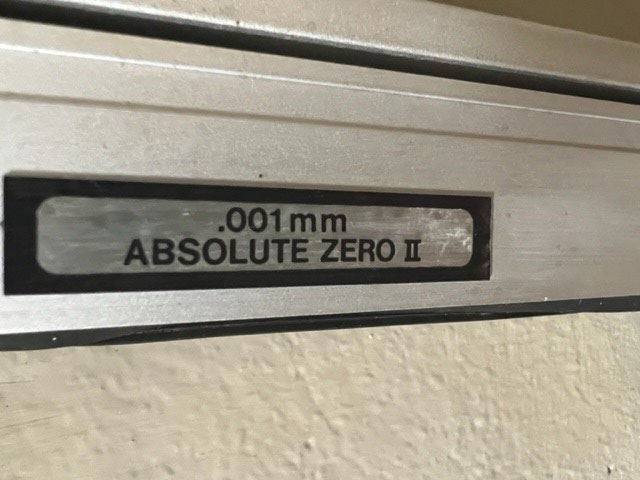

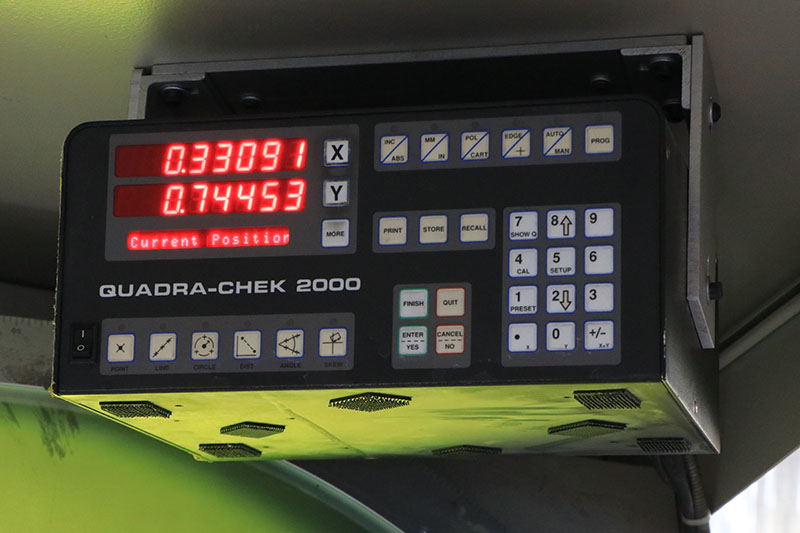

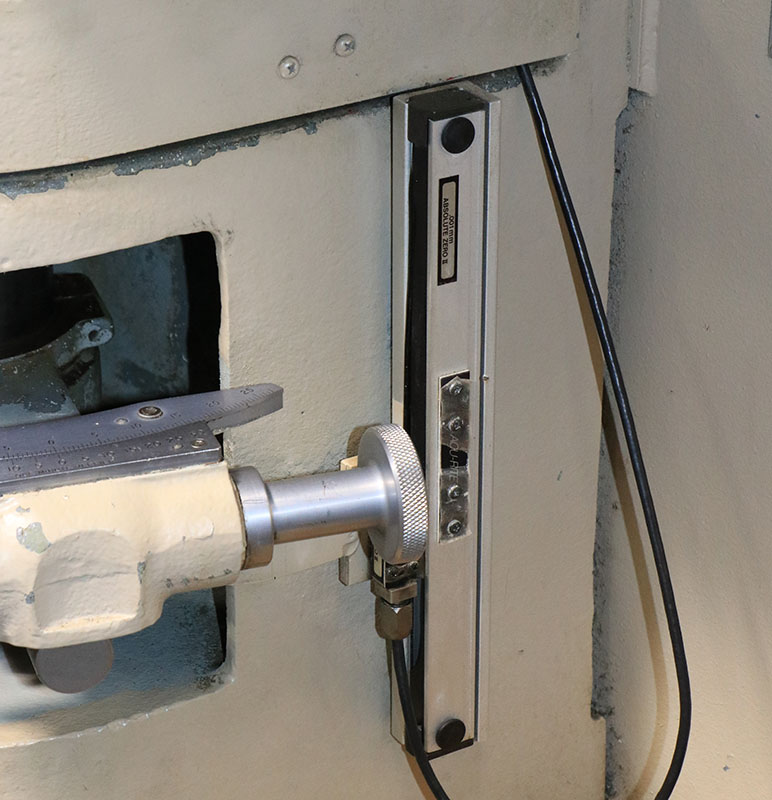

 - "QUADRA-CHEK 2000" DIGITAL READOUT & "ACU-RITE" GLASS
     SCALES

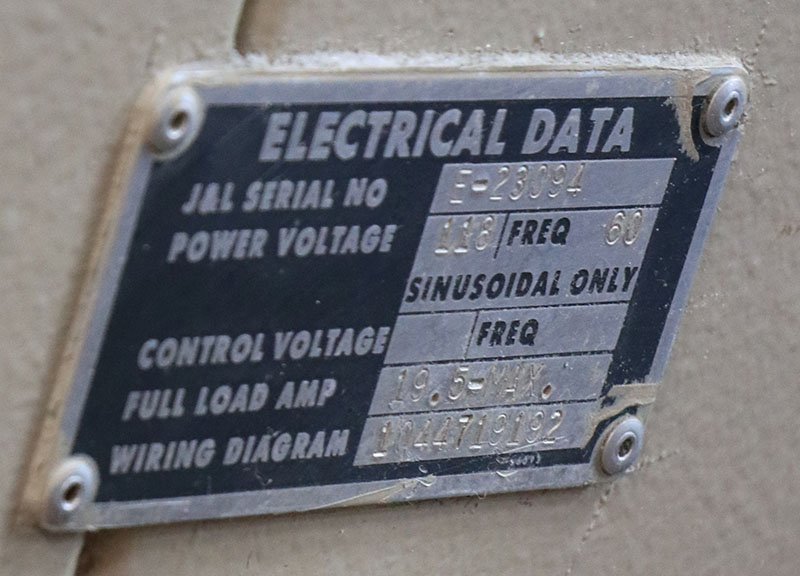

SINGLE PHASE/115 VOLT ELECTRICS/35 AMPS

LAST CALIBRATED 06/04/2019 BY:
WILLRICH PRECISION INSTRUMENT CO., INC.
80 BROADWAY, CRESSKILL NJ 07626
(201) 567-1411
info@willrich.com

WILLRICH SERIAL NUMBER:  290627-1/DKJ0023
PASSED CALIBRATION:  "YES"



** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE **
