Jones & Lamson PC-14A, NEW 1978, QC II DRO, COMPARATORS

Price on Request

Make:

Jones & Lamson

Model:

PC-14A, NEW 1978, QC II DRO,

Year:

1978

Ref #:

162162

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

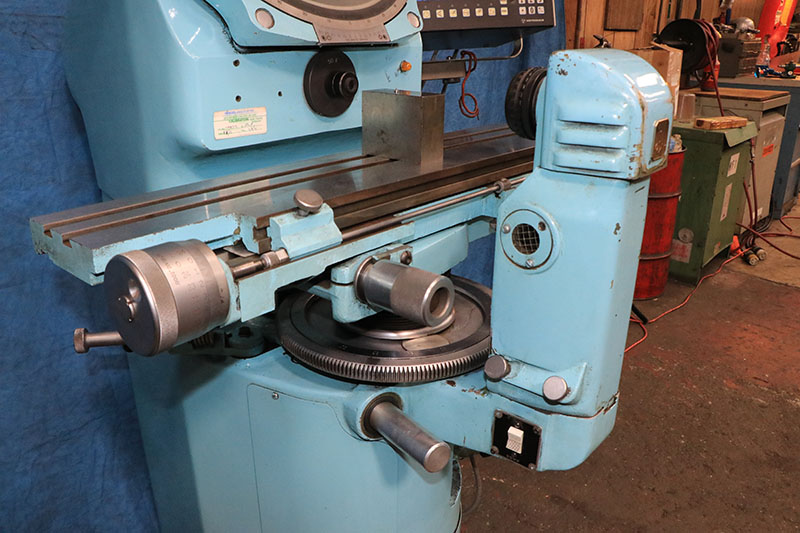

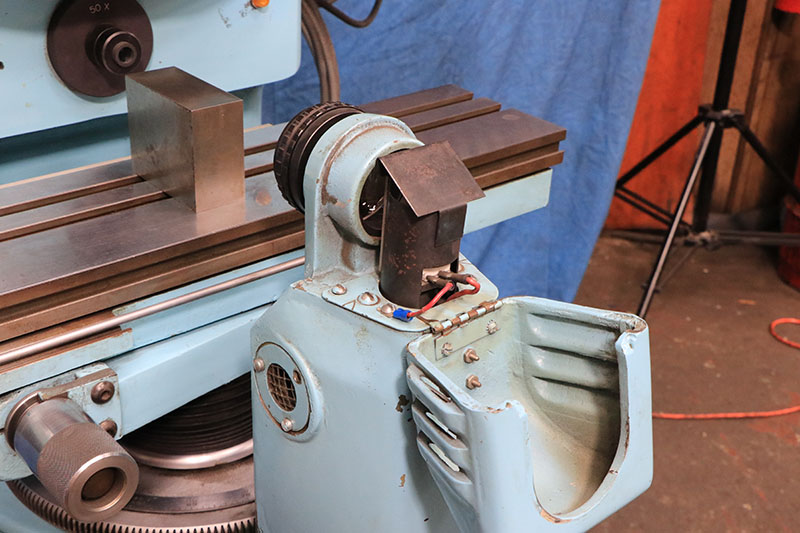

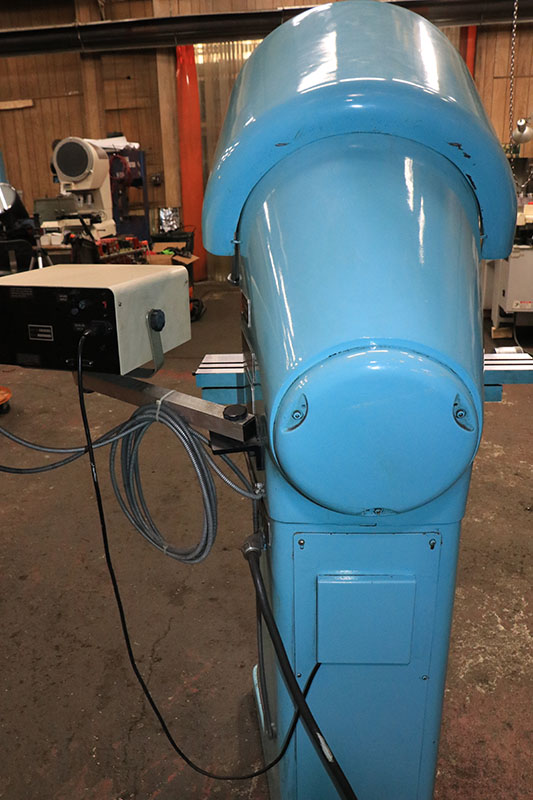

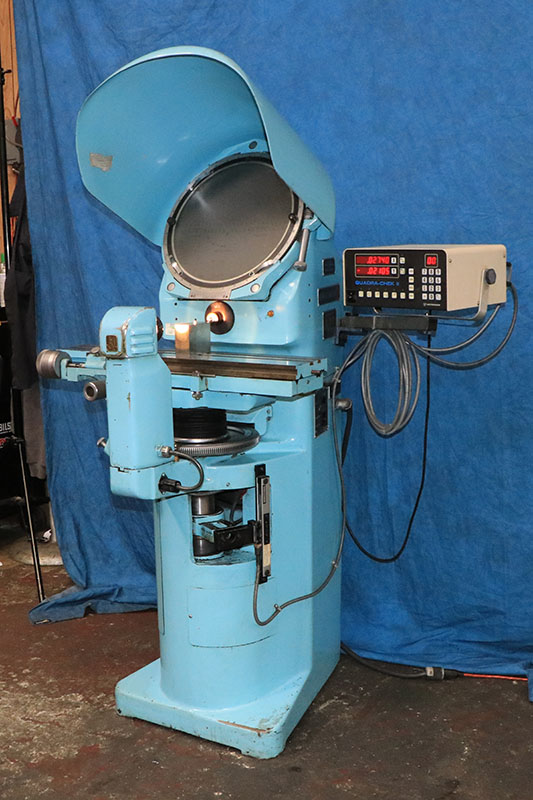

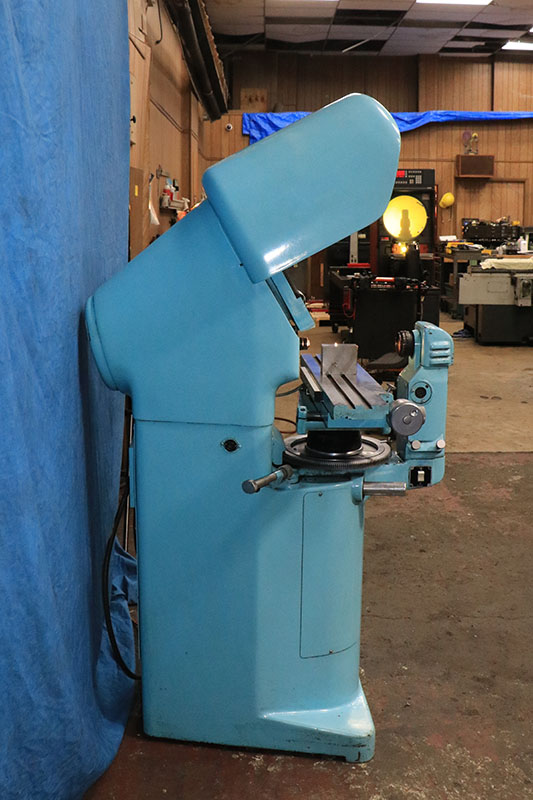

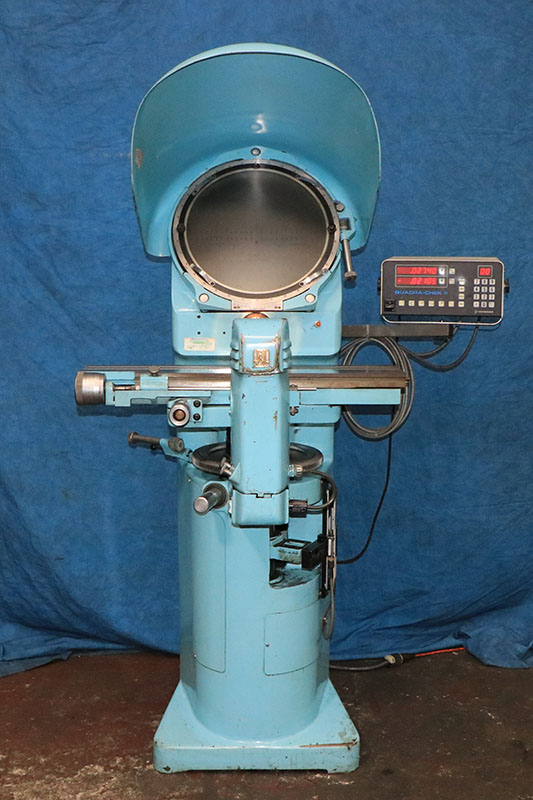

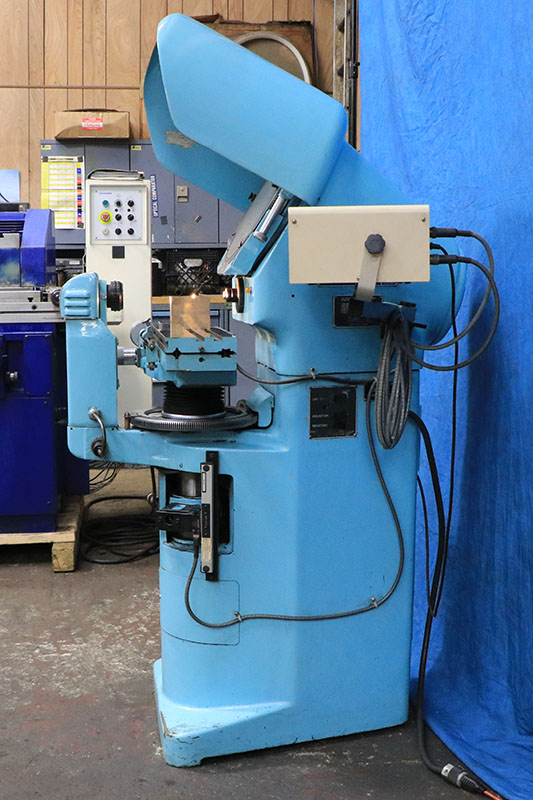

   14" JONES & LAMSON OPTICAL COMPARATOR & MEASURING MACHINE



    ** QUADRA-CHEK II 2-AXIS DIGITAL READOUT

       WITH PROGRAMMABLE GEOMETRIC FUNCTIONS **



MODEL: PC-14A     S/N: E-46030     NEW: 1977

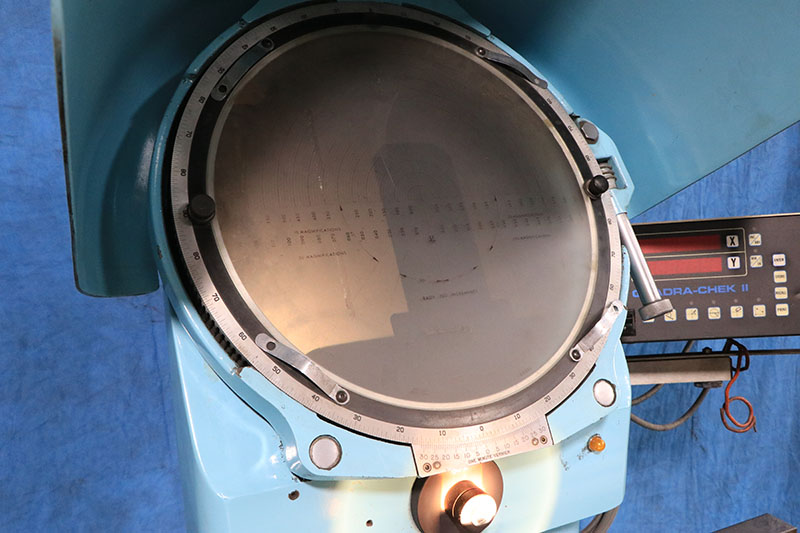

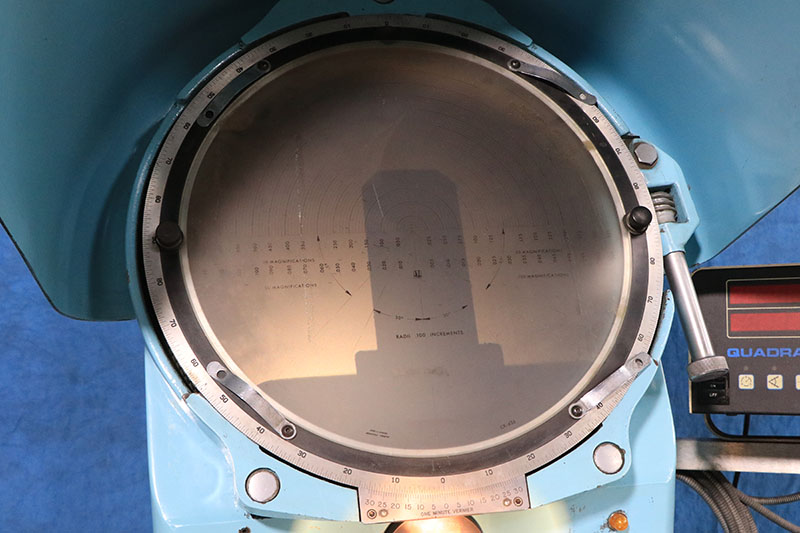

SCREEN DIAMETER ....................... 14"

TABLE SIZE ............................ 6" X 30"

MEASURING CAPACITY (TABLE TRAVEL):

LONGITUDINAL .......................... 8"

VERTICAL .............................. 4"

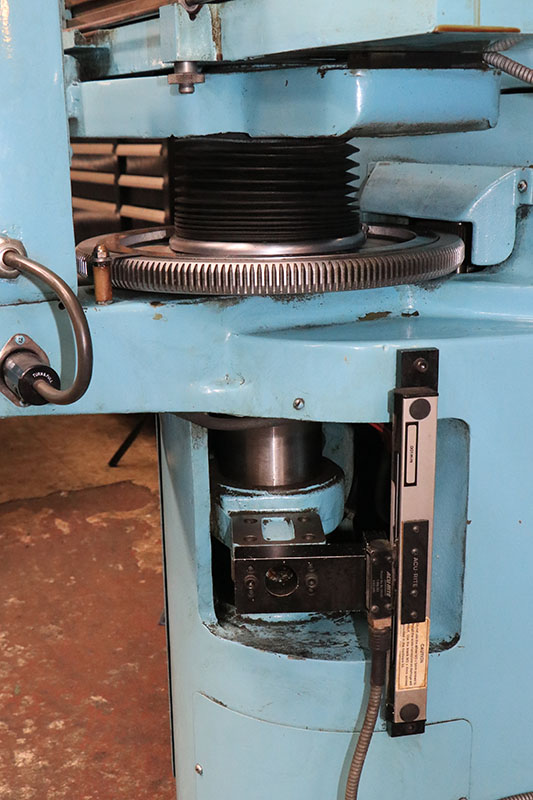

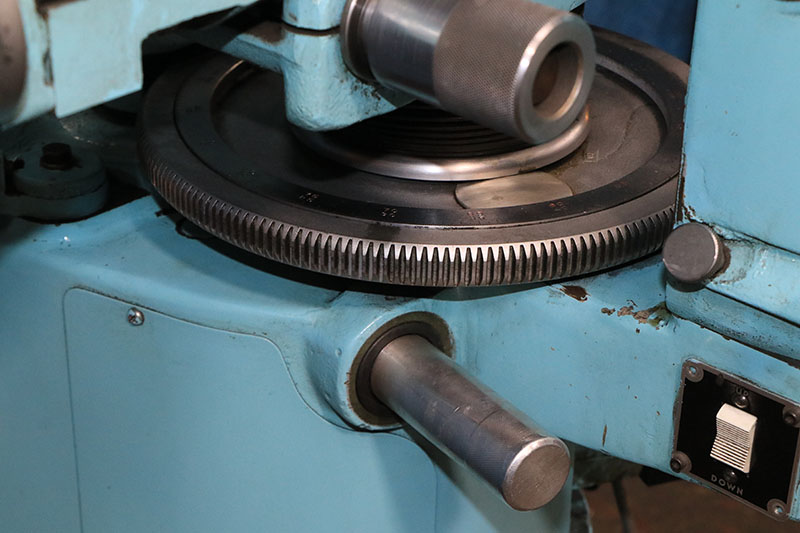

ANGULAR MEASURING CAPACITY .... 360 DEG. CHART ROTATION

CROSS TRAVEL FOR FOCUSING ............. 1.375"

HELIX ADJ. - TABLE SWIVELS,

  LEFT OR RIGHT ....................... 15 DEG.



FLOOR SPACE ................... 33"LR x 40"FB x 70"H

APPROXIMATE WEIGHT .................... 900 LBS



EQUIPPED WITH:

6" X 30" HARD CHROMIUM PLATED ROLL TYPE TABLE

POWER ELEVATION OF TABLE

HORIZONTAL PROJECTION, TUNGSTEN BULB (NOT MERCURY ARC)

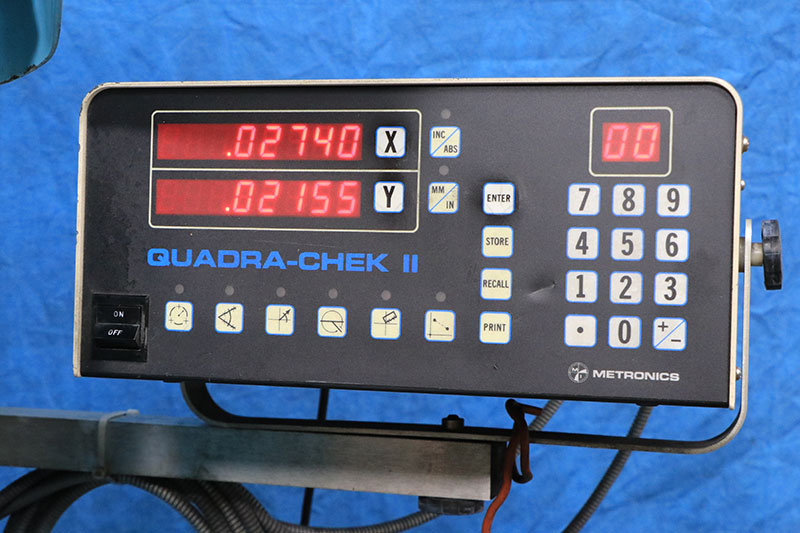

QUADRA-CHEK II 2-AXIS DIGITAL READOUT DISPLAY,

  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

LIGHT VISOR

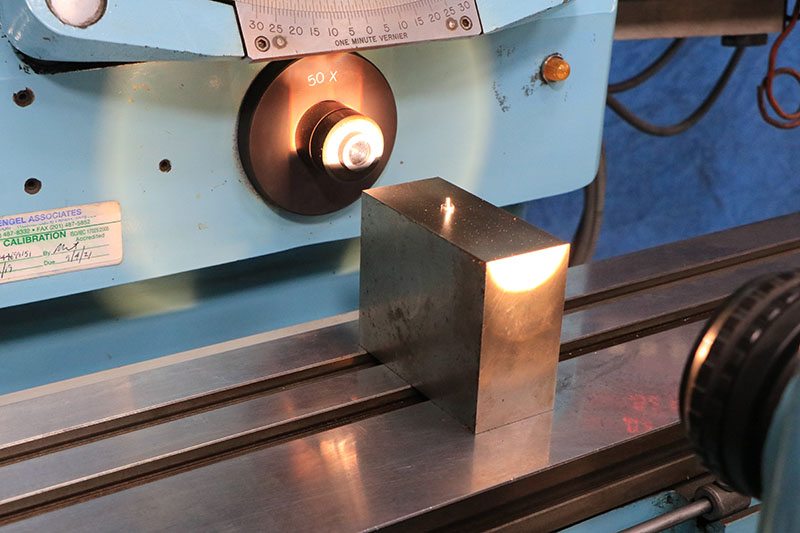

50X LENS, OTHER MAGNIFICATIONS AVAILABLE TO PURCHASE

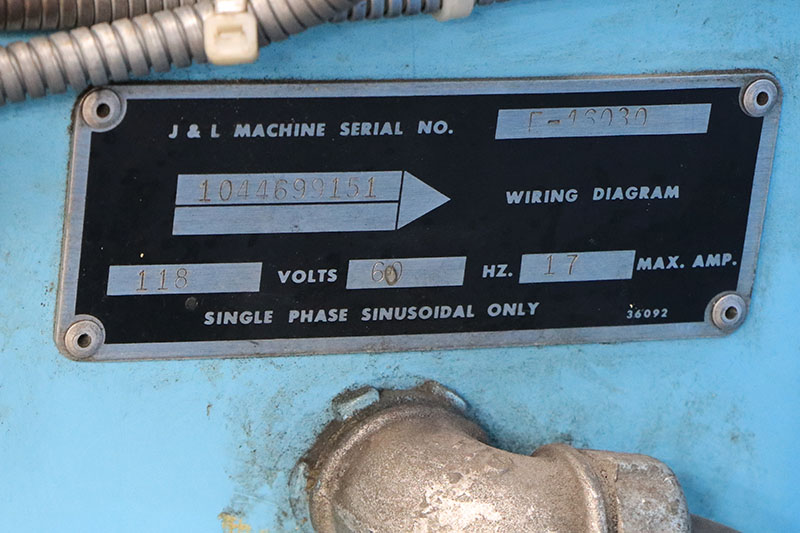

SINGLE PHASE/115 VOLT ELECTRICS, 17 MAX. AMPS

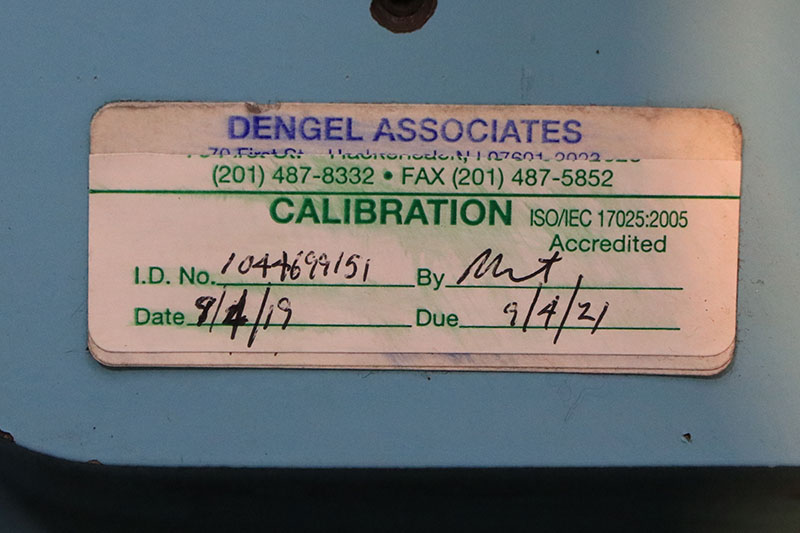

CALIBRATED LAST IN 2019 BY DENGEL ASSOCIATES

DUE 9/4/2021



LINK TO VIDEO: https://www.youtube.com/watch?v=2OKOVrt9vCs



** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE. **

*** SUPERB CONDITION & APPEARANCE ***
