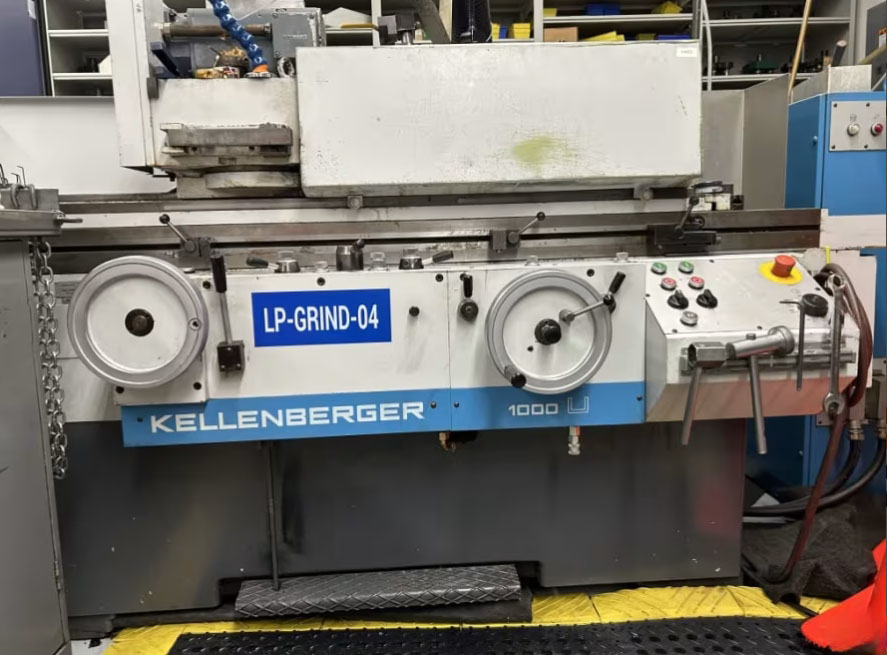

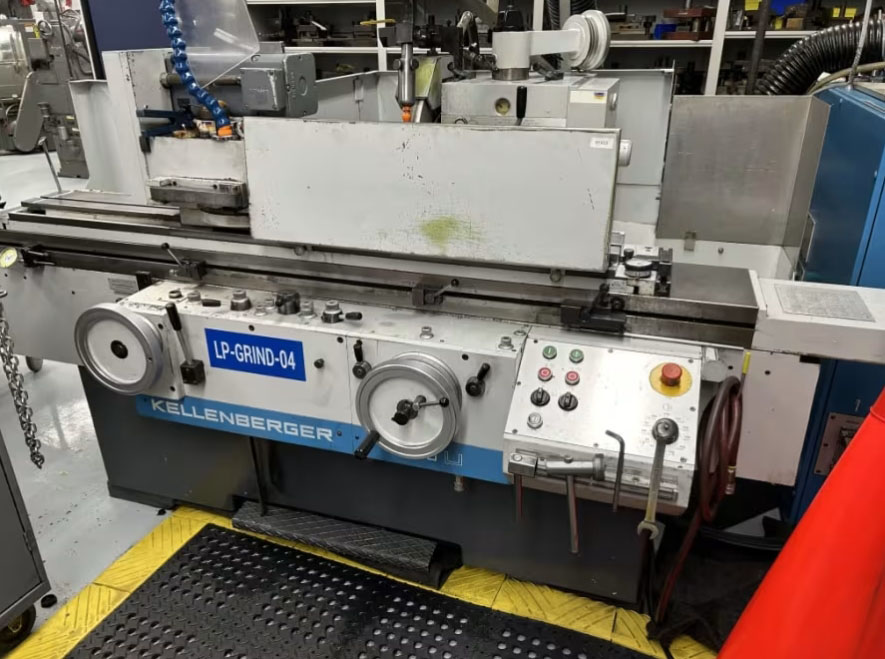

Kellenberger 1000U, 1994, SWING AROUND I.D., FULL AUTO CYCLE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 1000U, 1994, SWING AROUND I.D., FULL AUTO CYCLE

Year:: 1994

Ref #:: 179022

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

           13.8"/19 -5/8" x 40"
  KELLENBERGER "SWISS" "HIGH-PRECISION"
  UNIVERSAL I.D./O.D CYLINDRICAL GRINDER

** MACHINE CAN BE SET-UP WITH FACTORY RISERS
       PROVIDING FOR 19- 5/8" SWING **

** MACHINE CAN GRIND O.D., I.D & FACE
           GRINDING TASKS **

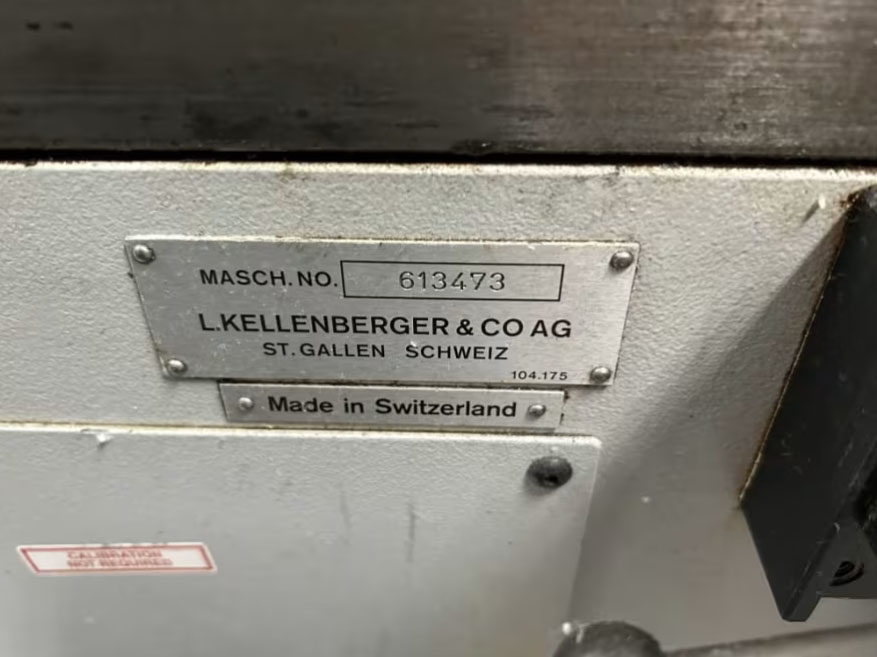

MODEL:  1000U     S/N: 613473      NEW:  1994


CAPACITY:
PRESENT SWING ......................... 13.8"
MAX. SWING WITH RISER BLOCKS .......... 19- 5/8"

DISTANCE BETWEEN CENTERS .............. 39- 3/8"
DISTANCE BETWEEN CENTERS WITH
 TAILSTOCK ............................ 47- 1/4"

TABLE:
LONGITUDINAL TABLE TRAVEL ............. 51- 13/16"
LONGITUDINAL TABLE TRAVEL PER
 TURN OF HANDWHEEL:
  COARSE .............................. 25/32"
  FINE ................................ 3/32"
TABLE TRAVERSE SPEED (HYDRAULIC) ...... 0.6 - 240" IPM
MIN. TABLE OSCILLATION ................ 0.10"
TABLE SWIVELS ......................... +9°/-9°
REVERSING DWELL ....................... 0 TO 5 SECONDS


GRINDING WHEEL INFEED:
TRAVEL WITH HANDWHEEL, COARSE/FINE .... 9- 5/8"
INFEED PER REV. OF HANDWHEEL,
  COARSE/FINE ......................... 0.32"/0.04"
1 GRADUATION OF FEED SCALE ............ 0.0002"
DIVISION OF MICRO-CORRECTION .......... 0.000050"
AUTOMATIC HYDRAULIC INFEED, MAX. ...... 0.035"
AUTO. INFEED PER TABLE REVERSAL .... 0.00005" TO 0.0012"
INFEED FOR PLUNGE GRINDING ......... 0.00001" TO 0.0001"
PLUNGE GRINDING: INFEED SPEED ...... 10 TO 1000 uIN/SEC
MICROMETER STOP, 1 GRADUATION ......... 0.000050"

UNIVERSAL GRINDING SPINDLE HEAD:
TRANSVERSE MOVEMENT OF WHEEL SLIDE .... 9- 5/8""
HYDRAULIC RAPID WHEEL SLIDE
 ADVANCE/RETRACTION STROKE ............ 1-9/16"
GRINDING WHEEL SPEEDS (4) ........ 1500, 1700, 2200 RPM
GRINDING WHEEL FOR CYLINDRICAL
   GRINDING ......................... 16" x 2" x 5"
GRINDING WHEEL (SURFACE GRINDING) ... 9" x 3/4" x 3"
GRINDING WHEEL SWIVELS ................ 270°
SWIVEL OF GRINDING HEAD, WITH
 INDEXED/LOCKING STOP EVERY ........... 90°
VERTICAL MOTION OF GRINDING SPINDLE
 HEAD, HEIGHT OF CENTERS ......... 4-59/64" TO 13-25/32"

WORKHEAD:
INFINITELY VARIABLE SPINDLE SPEEDS .... 6 - 600 RPM
WORKHEAD SWIVELS ...................... 360°
INSIDE TAPER OF WORK SPINDLE .......... #5MT
MOTOR OUTPUT .......................... 2.4 KW

TAILSTOCK:
INTERNAL TAPER SLEEVE ................. #4 MT
SPINDLE STROKE ........................ 1- 3/16"

APPROX. FLOOR SPACE REQUIRED ..... 106" X 64" X 66"H
APPROX. MACHINE WEIGHT ................ 6,500 LBS

MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:

-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED, DUAL RATE, WITH "ROUGH"
  AND FINE RATE CROSS-OVER
-RAPID WHEEL ADVANCE & RETRACTION

SPARKOUT TIMER
ADJUSTABLE CENTER HEIGHT FEATURE, RISE & FALL
 MECHANISM BY HANDWHEEL
INFEED HANDWHEEL WITH MICRO-ADJUSTMENT
"HYDODYNAMIC" WHEELHEAD SPINDLE BEARINGS


EQUIPPED WITH:

- LATER KELLENBERGER DESIGN - WHEELHEAD TRAVELS
   ON ROLLER GUIDED CROSS-SLIDE
- CAPABLE OF HAVING THREE WHEELHEADS, ....
   O.D./I.D/AND FACE GRINDING WHEELHEADS
- SWING AROUND I.D. GRINDING ATTACHMENT,
   WITH INTERNAL GRINDING SPINDLE.
- WHEELHEAD SWIVELS FULLY AROUND 360°.
   QUICK LOCKING OF WHEELHEAD SWIVEL
   IS PROVIDED, EVERY 90°.  MANUAL CLAMPING
   IN ANY POSITION.
- CURRENTLY SET-UP AS 13.8" SWING, ....
   THE CAPACITY CAN BE INCREASED
   TO 19- 5/8" MAX. SWING BY PURCHASING COPIES
   OF KELLENBERGER FACTORY RISER BLOCKS.
   IN STOCK, AVAILABLE IMMEDIATELY (NO WAIT).
- STANDARD WORKHEAD, WITH DUAL LIVE
    & DEAD WORKHEAD SPINDLE
- WORKHEAD HAS THE OPTIONAL SINE BAR ATTACHMENT
- FINE TAPER ADJUSTMENT ON TAILSTOCK OPTION
- CENTER IN TAILSTOCK
- CENTER FOR THE WORKHEAD IS PROVIDED
- 4 H.P. AC MOTOR FOR WHEELHEAD,
   FACE GRINDING & I.D. SPINDLES
- SEIMENS DC MOTOR & ELECTRONIC VFD DRIVE
   FOR THE WORKHEAD
- INDEPENDENT AUTOMATIC POWER LUBRICATION SYSTEM,
   FOR WHEELHEAD & TABLE WAYS.

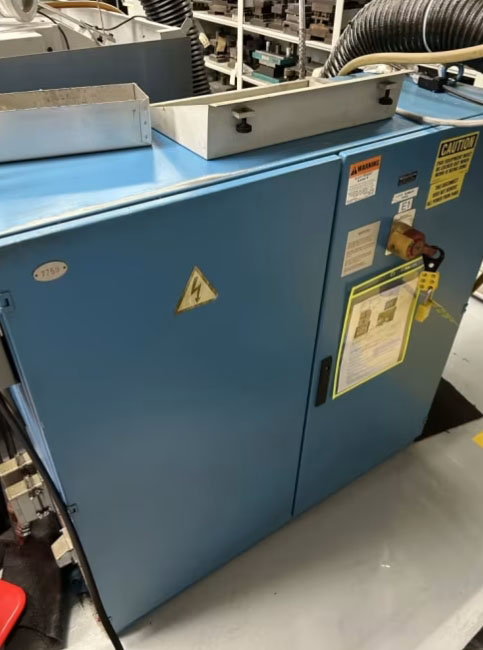

   TIMER CONTROL IS INSIDE THE ELCTRICAL CABINET.
- COOLANT SYSTEM WITH PAPER FILTRATION
- COOLANT GUARDING
- KELLENBERGER LEVELLING BLOCKS

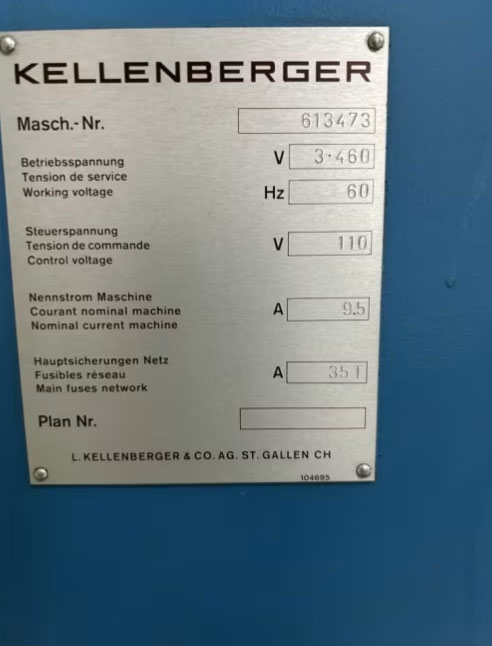

- MACHINE IS WIRED FROM THE FACTORY FOR 3/60/460 VOLTS


SPECIAL NOTE:

COPIES OF THE KELLENBERGER FACTORY RISER BLOCKS,
 DIFFERENT HEIGHTS, ARE IN OUR STOCK,
 READY (NO WAIT), AVAILABLE TO PURCHASE
 FROM US.  YOU CAN INCREASE THE SWING
 OF THIS MACHINE TO 19- 5/8"


** EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
