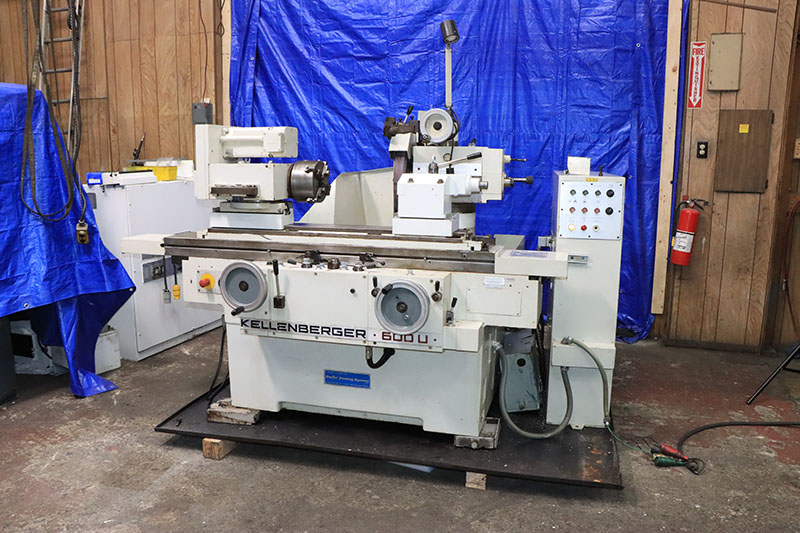

Kellenberger 600U, 1986, I.D. SPINDLE, FULL AUTO CYCLE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 600U, 1986, I.D. SPINDLE, FULL AUTO CYCLE

Year:: 1986

Ref #:: 179000

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

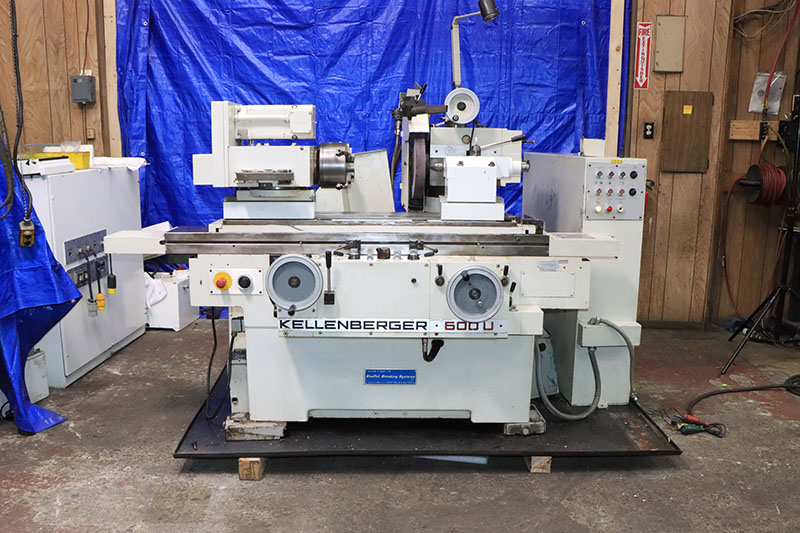

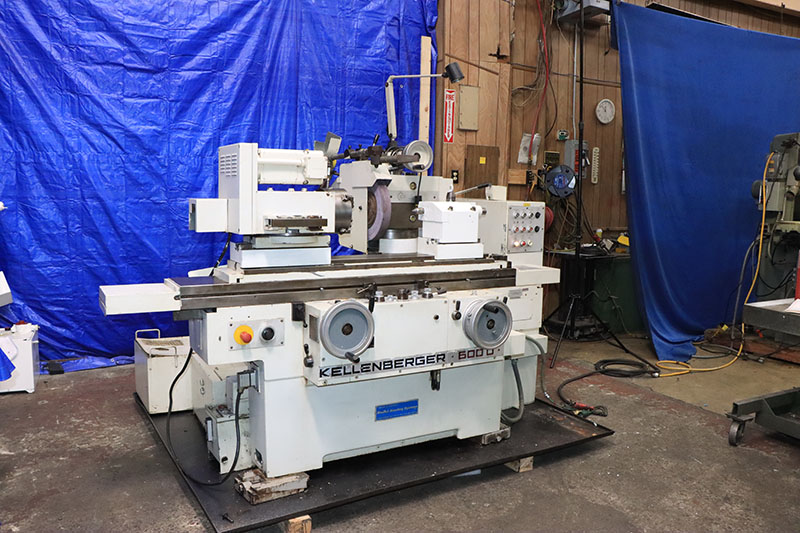

          15.9" x 24" KELLENBERGER
        "SWISS" "HIGH PRECISION"
 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

AS EQUIPPED PRESENTLY, OUR MACHINE HAS COPIES
    OF THE ORIGINAL 75mm FACTORY RISERS.
       OUR MACHINE CAN SWING 15.9"

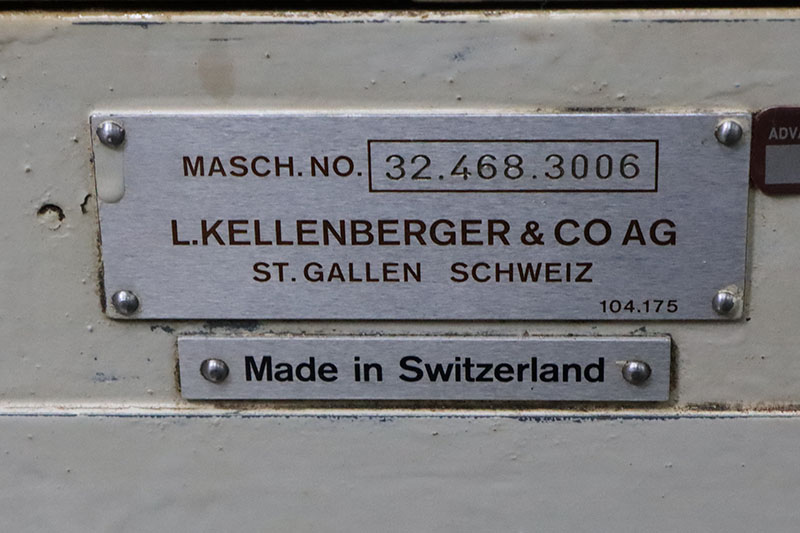

MODEL:  600U    S/N: 32.468.3006    NEW: 1986

CAPACITY:
STANDARD SWING FOR THIS MACHINE,
  WITHOUT RISERS ...................... 9.8"
SWING WITH THE COPIES OF THE FACTORY
  ORIGINAL 75mm RISERS ................ 15.9"
MAX. SWING WITH OTHER
  FACTORY RISERS .............. ....... 19.8"
DISTANCE BETWEEN CENTERS (NOMINAL)..... 23- 5/8"
DISTANCE BETWEEN CENTERS
  WITH TAILSTOCK  OVERHANGING ......... 29- 1/2"

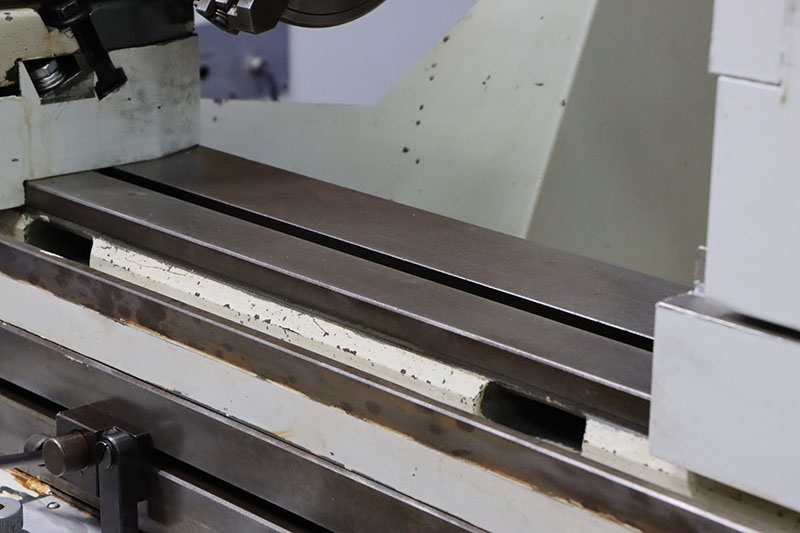

TABLE:
LONGITUDINAL TABLE TRAVEL ............. 35- 7/16"

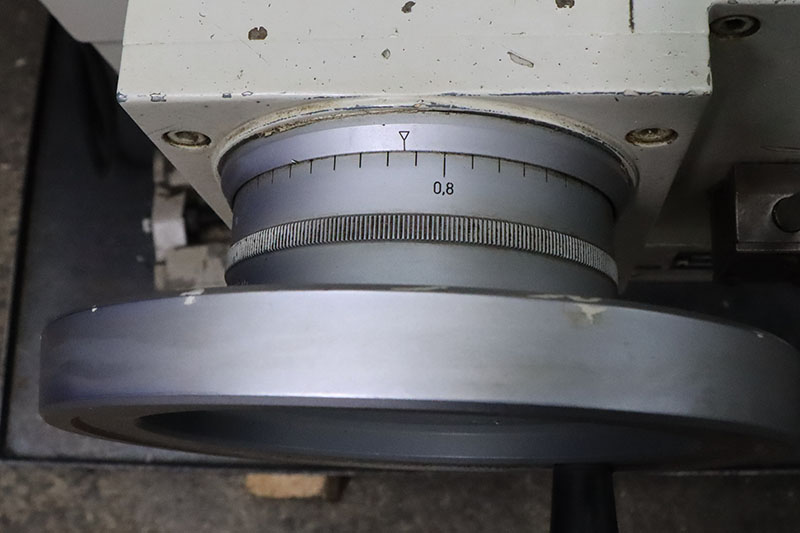

LONGITUDINAL TABLE TRAVEL PER
  TURN OF HANDWHEEL:
  COARSE .............................. 0.8"
  FINE ................................ 0.1"
LONGITUDINAL TABLE SPEED (HYDRAULIC) .. 0 TO 20' FPM
TABLE SWIVELS ......................... 11°
REVERSING DWELL ....................... 0 TO 5 SECONDS

GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE .......... 0.0002"
  AUTOMATIC HYDRAULIC INFEED, ......... 0 TO 0.037"
  AUTO INFEED PER TABLE REVERSAL .. 0.00004" TO 1.18"
  PLUNGE GRINDING: INFEED SPEED ... 0.00001 TO .0001 IN/S
  MICROMETER STOP, 1 GRADUATION ....... 0.00005"

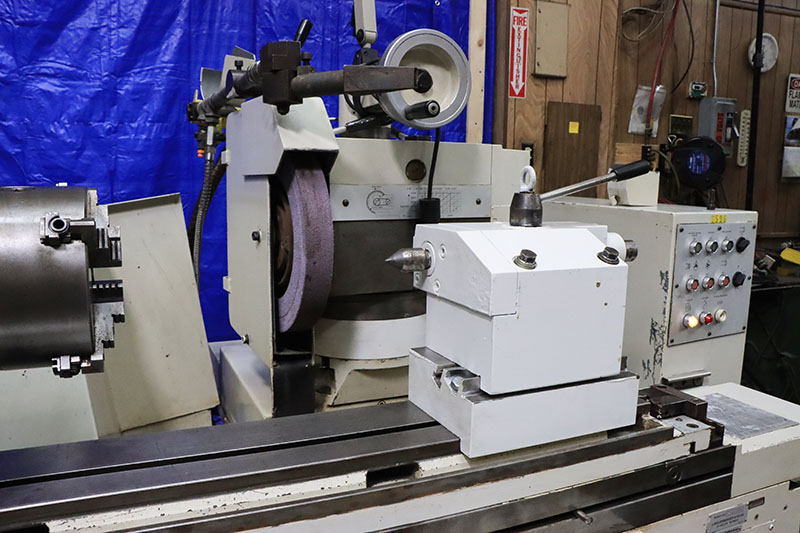

UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF
    WHEEL SLIDE ....................... 8- 21/32"

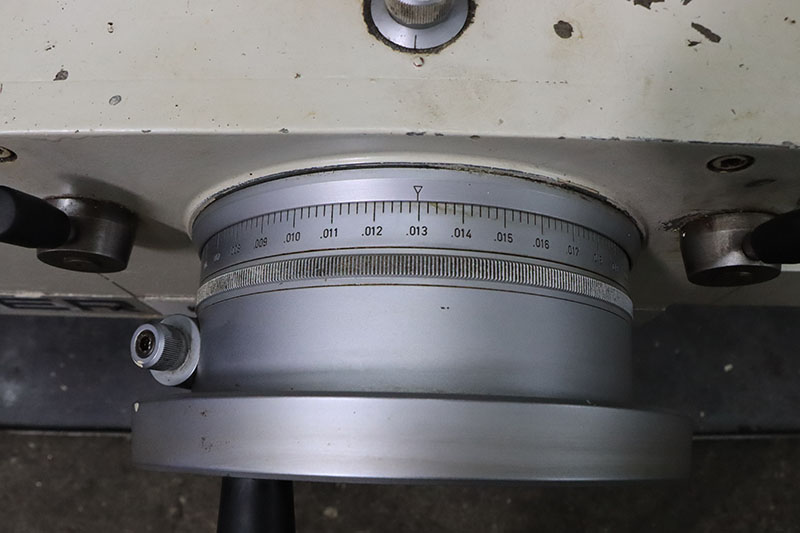

  INFEED PER REV. OF HANDWHEEL:
  - COARSE ............................ 0.3"
  - FINE .............................. 0.04"
  HYDRAULIC RAPID WHEEL SLIDE
   ADVANCE/RETRACTION STROKE .......... 1-9/16"
  GRINDING WHEEL SPEEDS ........... 1500, 1700, 2200 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING ........................ 16" X 2" X 5"
  GRINDING WHEEL (FACE GRINDING) ... 9" X 1/2" X 3"
  SWIVEL OF GRINDING HEAD
   W/LOCKING EVERY 90 DEGREES ......... 270°

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS .... 6 - 600 RPM
  WORKHEAD SWIVELS .................... 360°
  INSIDE TAPER OF WORK SPINDLE ........ #5MT

TAILSTOCK:
  INSIDE TAPER OF SPINDLE ............. #4MT
  STROKE OF SPINDLE ................... 1- 3/16"

APPROXIMATE FLOOR SPACE REQUIRED ... 102" x 64" x 66"H
APPROXIMATE MACHINE WEIGHT ............ 6,000 LBS

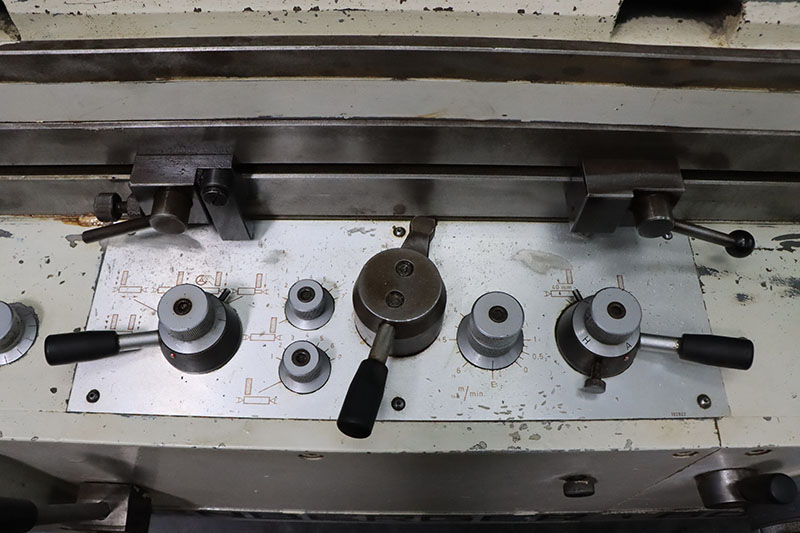

MACHINE FEATURES:

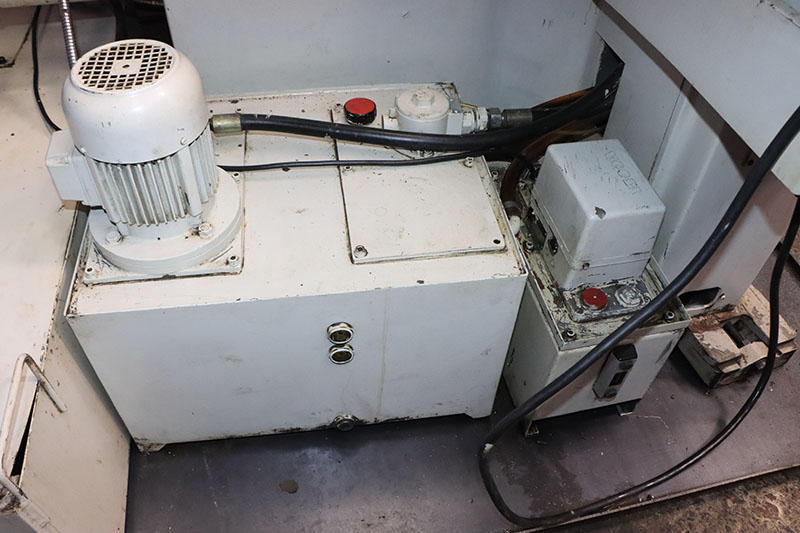

HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
SPARKOUT TIMER
DUAL LEFT-HAND & RIGHT-HAND WHEEL MOUNTING

EQUIPPED WITH:
- 15.9" SWING, WITH COPIES OF THE FACTORY ISSUE
   RISERS, FROM KELLENBERGER
- ADJUSTABLE RISE & FALL MECHANISM OF WHEELHEAD
   BY TURN OF HANDWHEEL

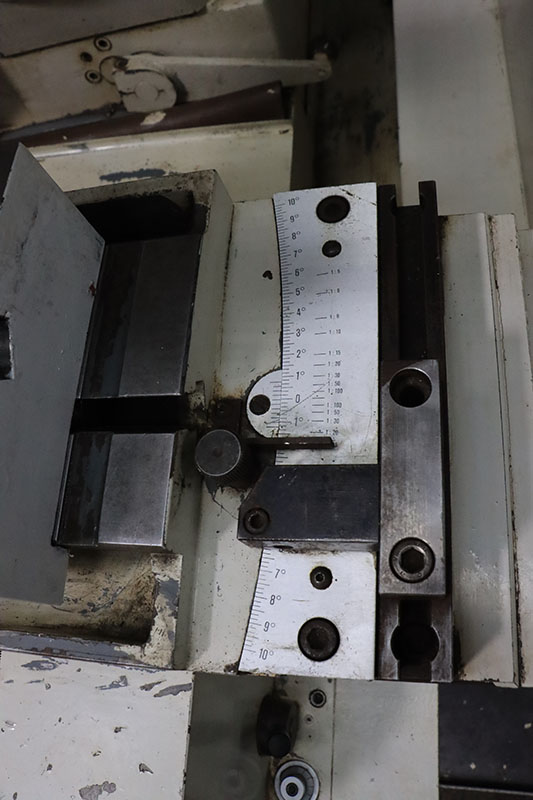

- OPTIONAL "SINE BAR" OPTION, FOR SETTING THE
   WORKHEAD SWIVEL

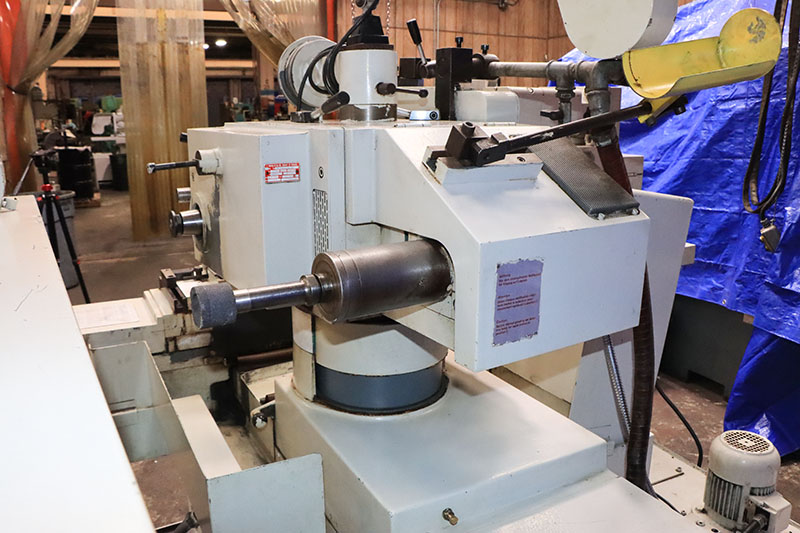

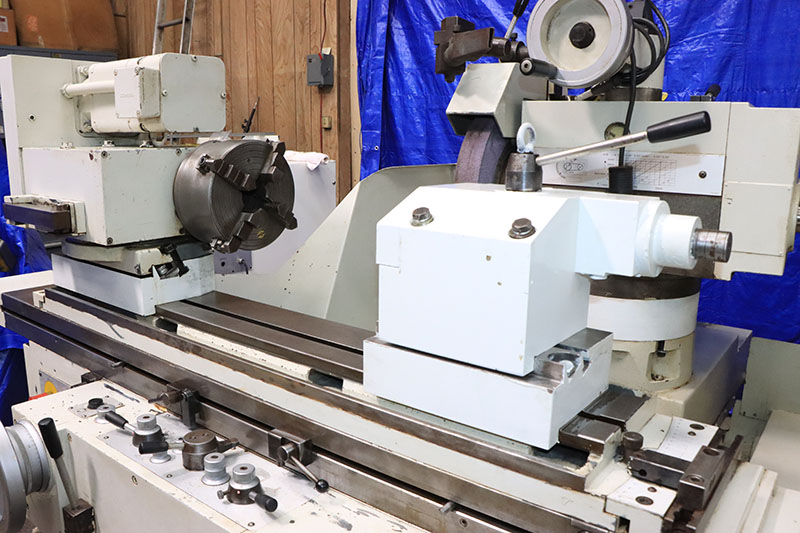

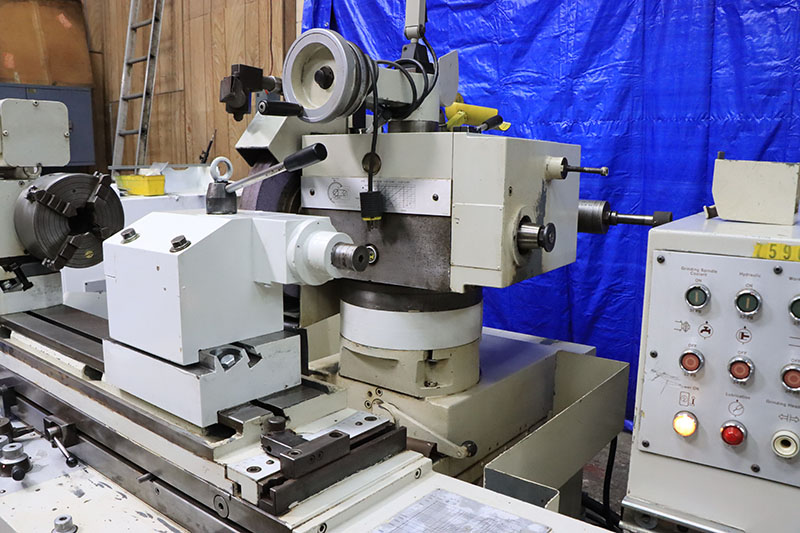

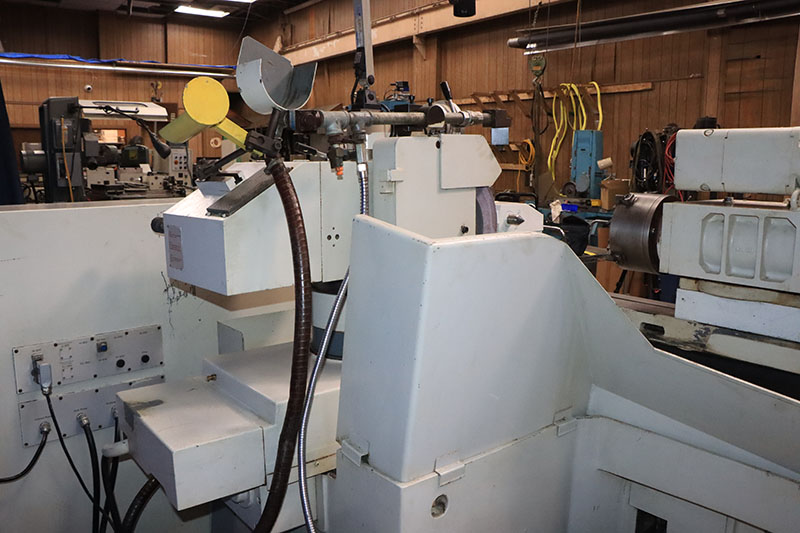

- SWING AROUND INTERNAL GRINDING ATTACHMENT
- (1) INTERNAL GRINDING SPINDLE
- 16" x 2" WIDE O.D. WHEEL PRESENTLY ON OUR MACHINE

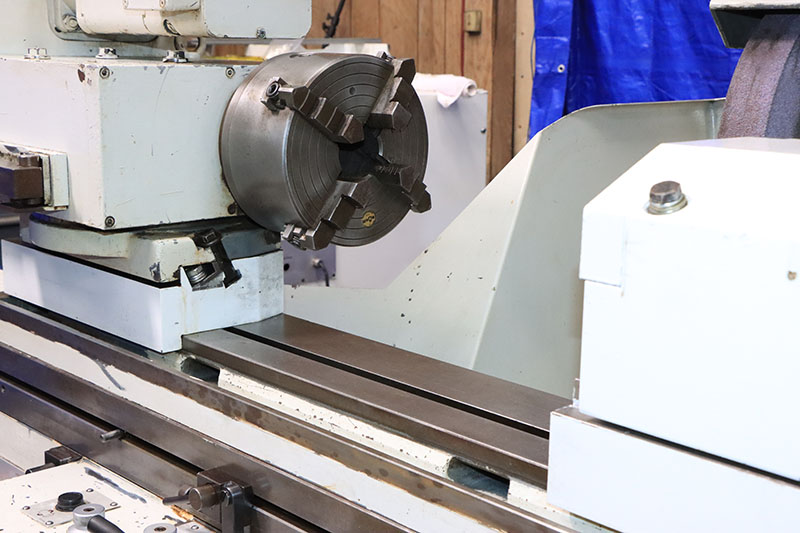

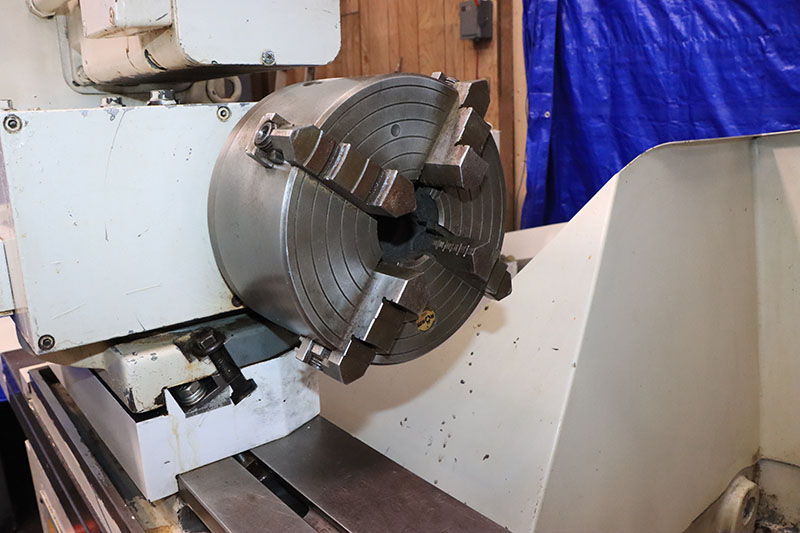

- 8" "ROHM" (MADE IN GERMANY) 4-JAW CHUCK,
   WITH No. 5MT ADAPTOR, BACKPLATE & DRAW BAR
- WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE

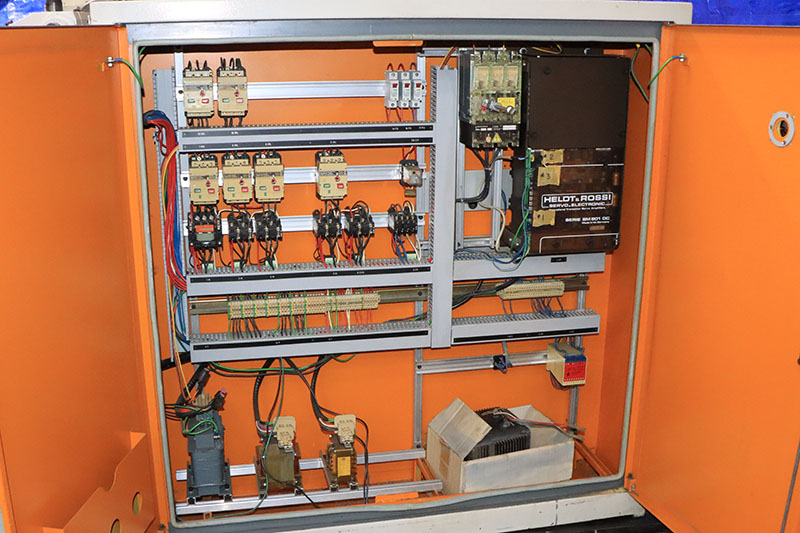

- "HELDT & ROSSI", "SERVO-ELECTRONIC", MADE IN
   GERMANY, SERIES SM 801 DC, VARIABLE SPEED
   CONTROL UNIT, FOR THE WORKHEAD.
- "SIEMENS" DC MOTOR, HIGH PRECISION, FOR
   HIGH ACCURACY - LOW/NO VIBRATION PERFORMANCE
- WHEELHEAD MOTOR, MADE BY "F. GEHRIG & Co. AG
   IN SWITZERLAND.  3KW - 4 H.P..
   5 AMPS DRAW, AS WIRED FOR 460 VOLTS.
- WORK LIGHT

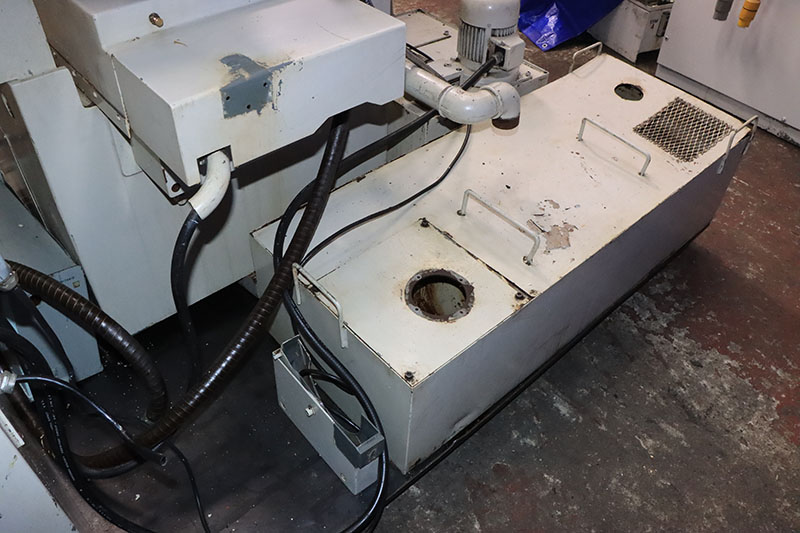

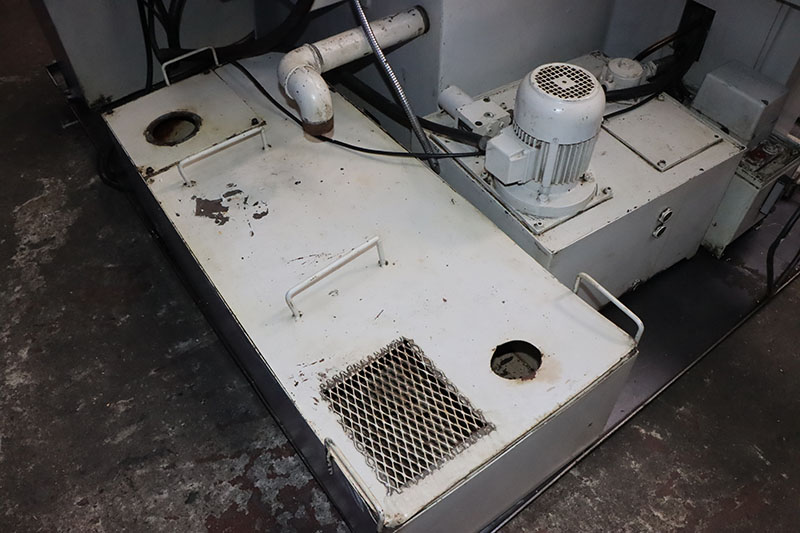

- COOLANT SYSTEM, WITH GUARDING
- MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS


** EXCELLENT CONDITION & APPEARANCE **
** BEAUTIFUL "SWISS" MACHINE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
