Kent SGS-1640HD, 2015, 3-AXIS AUTO FEEDS, AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Kent

Model:: SGS-1640HD, 2015, 3-AXIS AUTO FEEDS, AUTO IDF

Year:: 2015

Ref #:: 178384

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

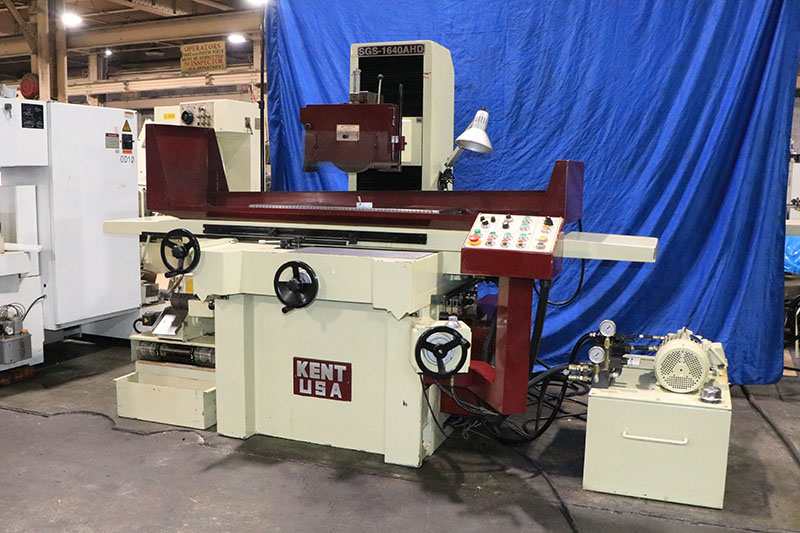

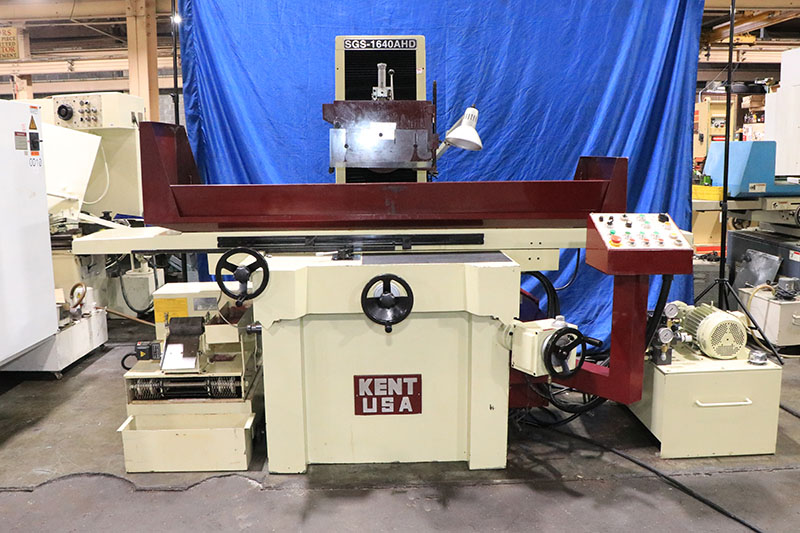

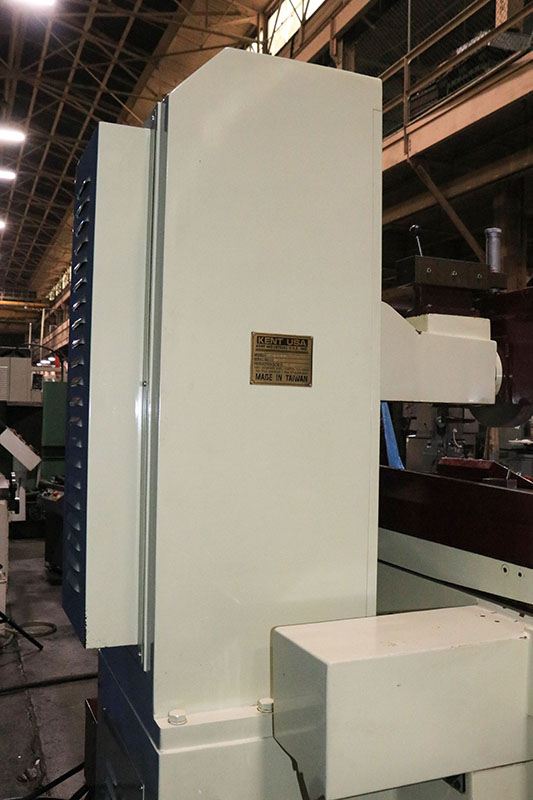

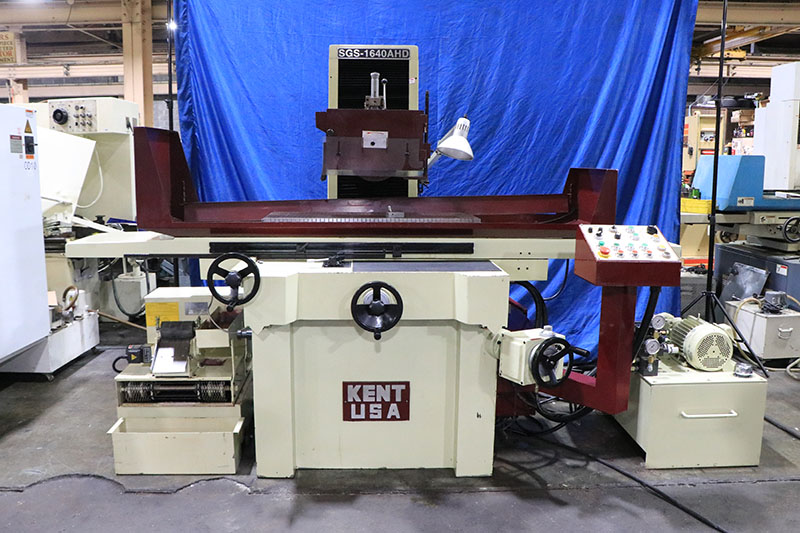

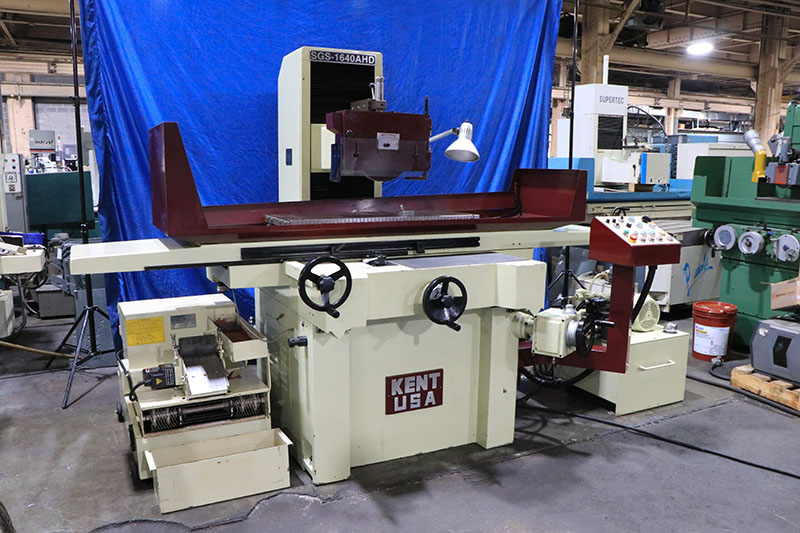

  16" X 40" KENT MODEL #SGS-1640
      HYDRAULIC SURFACE GRINDER,
      3-AXIS AUTOMATIC FEEDS,
 WITH AUTOMATIC INCREMENTAL DOWNFEED

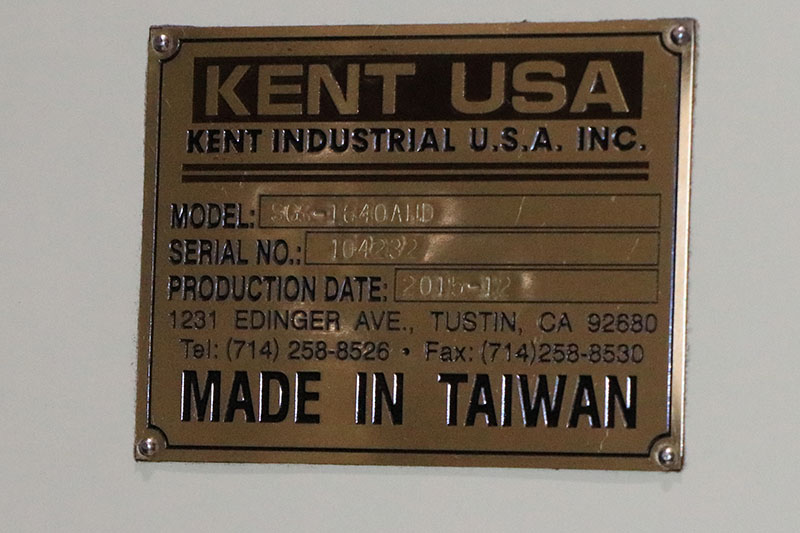

   S/N: 104232     NEW: 2016


MAX. GRINDING CAPACITY ................ 16" X 40"
DIST. FROM SPINDLE CENTER TO TABLE .... 23"
LONGITUDINAL TABLE TRAVEL ............. 43"
CROSS TRAVEL .......................... 17- 3/4"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT ......... 0 TO 5/8"
RAPID CROSS TRAVERSE RATE ............. 35" IPM
AUTO INCREMENTAL DOWNFEED ............. 0.001" TO .0001"

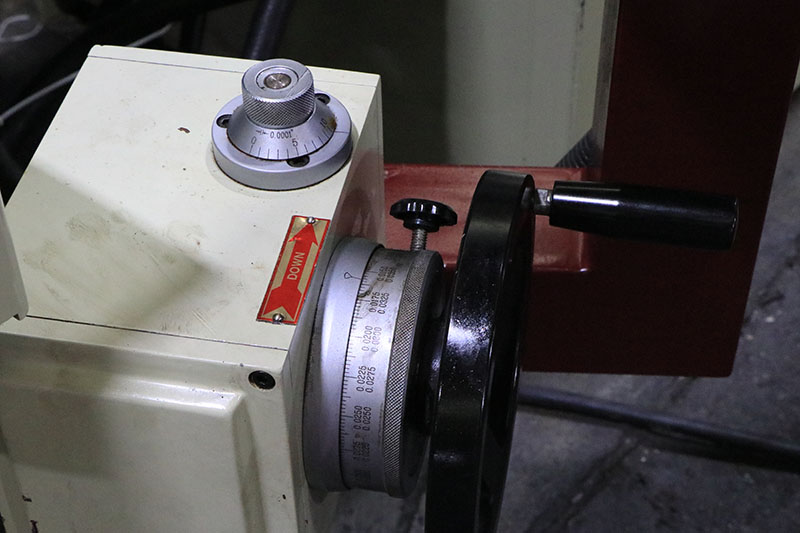

DOWNFEED HANDWHEEL PER GRADUATION ..... 0.0005"
PER REVOLUTION ........................ 0.1"
CROSSFEED HANDWHEEL PER GRADUATION .... 0.001"
PER REVOLUTION ............. .......... 0.2"
SPINDLE MOTOR ......................... 7.5 H.P.

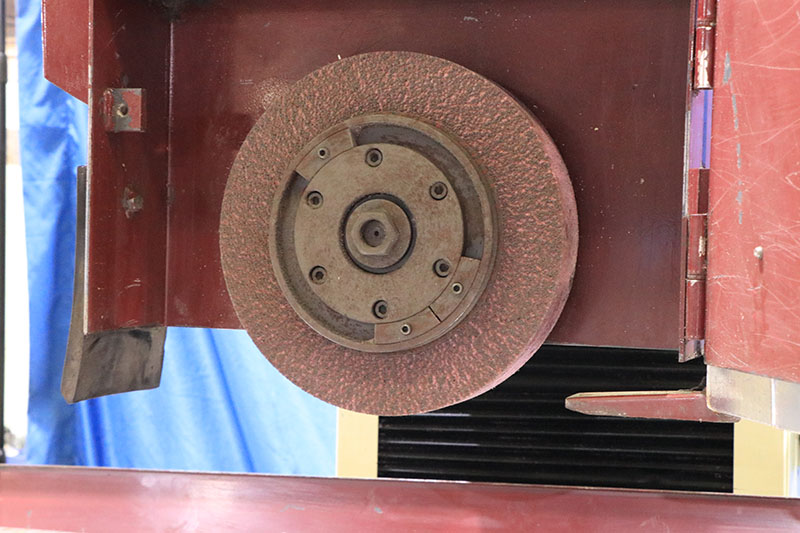

STANDARD GRINDING WHEEL ............. 14"D x 2" x 5"
APPROX. WEIGHT ........................ 7,480 LBS

EQUIPPED WITH:
AUTO INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED

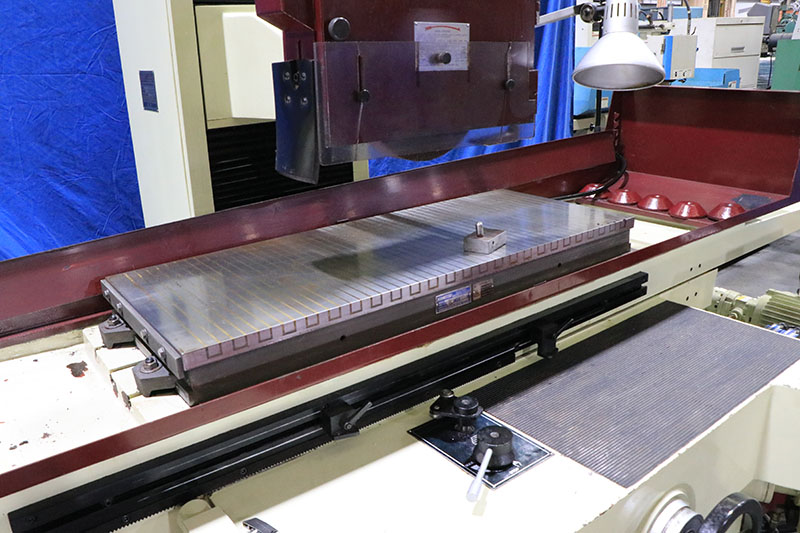

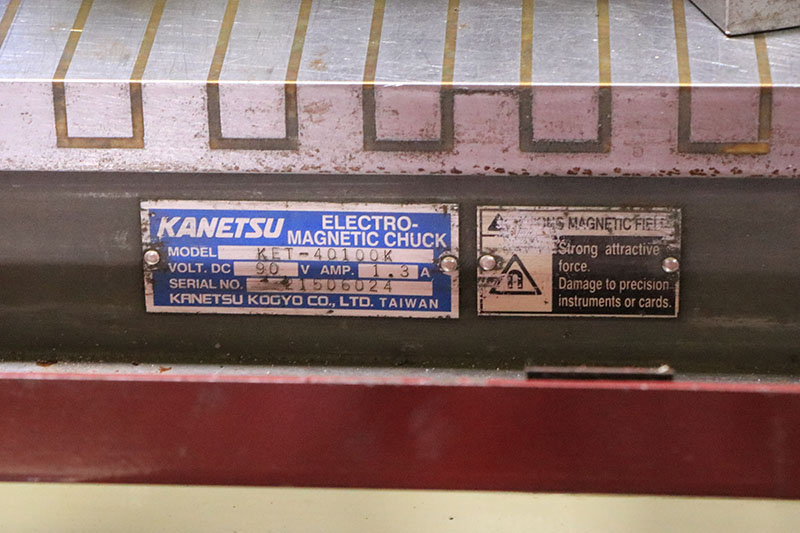

16" X 40" KANETSU "KET-40100K" ELECTRO-MAGNETIC CHUCK
  W/VARIABLE HOLD NEUTROFIER CONTROL

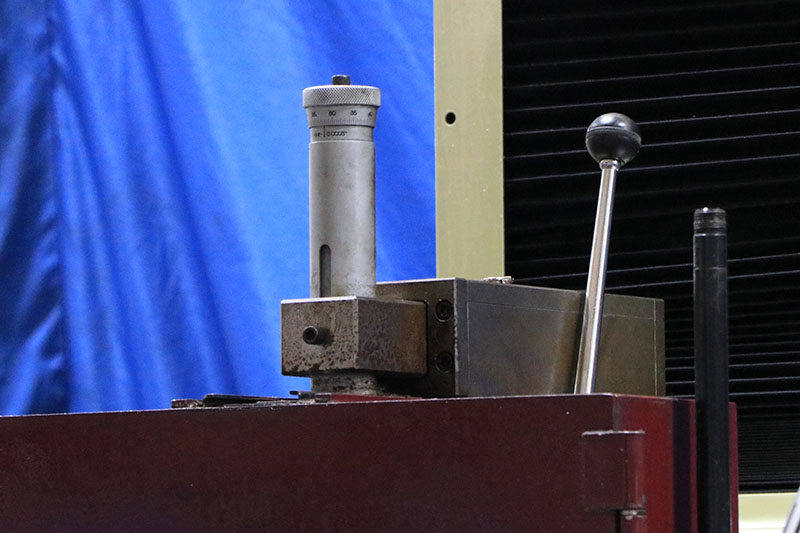

OVER-THE-WHEEL DRESSER, WITH MICROMETER ADJUSTMENT
  OF THE DIAMOND

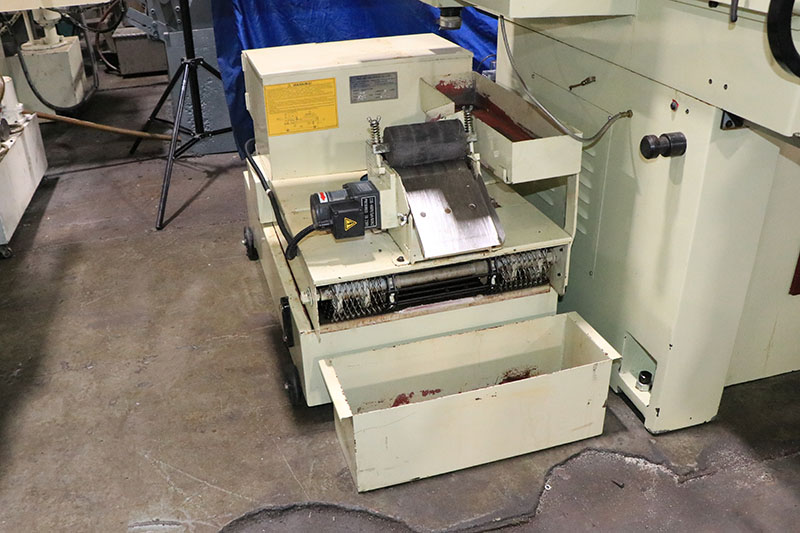

COOLANT SYSTEM w/PAPER FILTRATION & MAGNETIC SEPARATOR
MEEHANITE CASTING
V & FLAT TURCITE WAYS FOR SMOOTH LONGITUDINAL TRAVEL

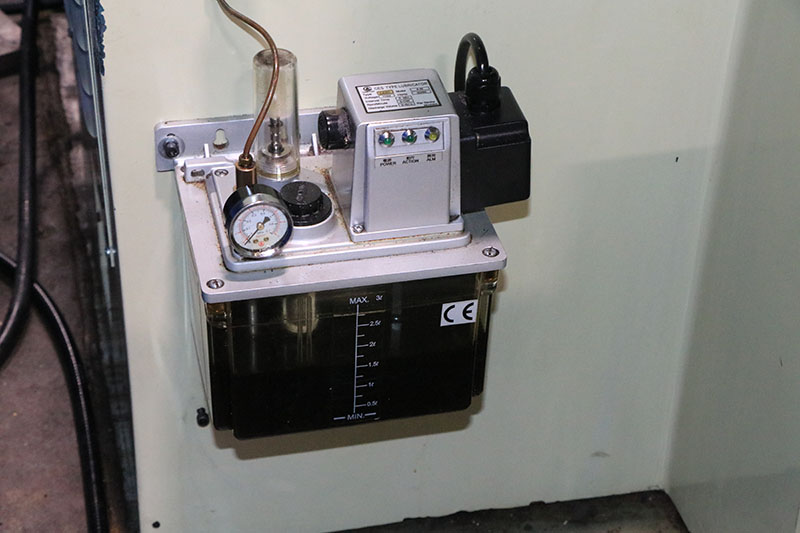

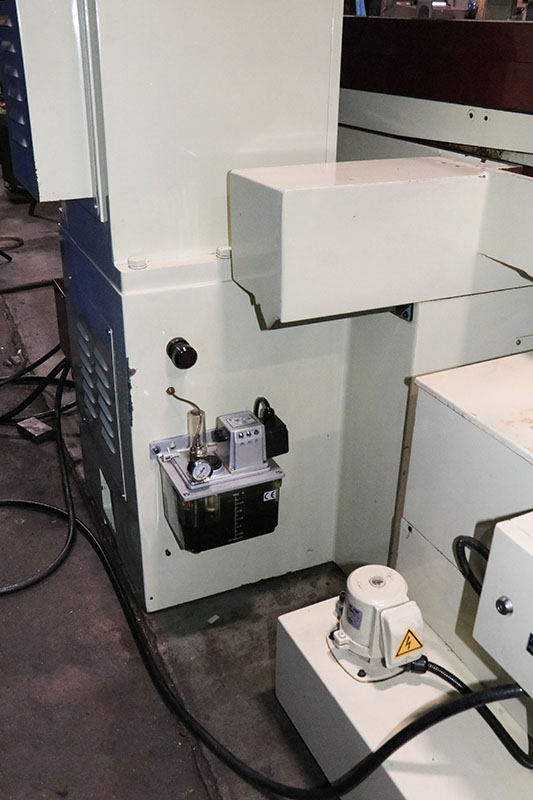

CENTRALIZED LUBRICATION SYSTEM

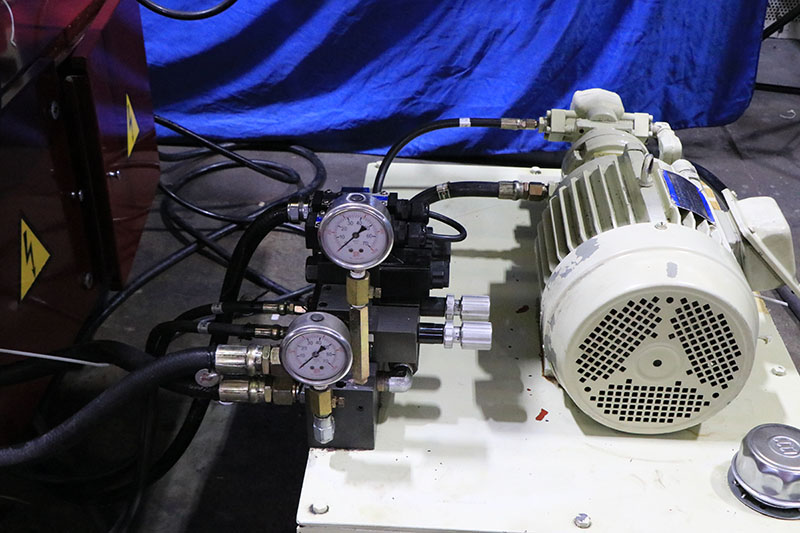

EXTERNAL HYDRAULIC SYSTEM
WIRED PRESENTLY FOR 3/60/230 VOLTS

SPECIAL NOTE:
"AS EQUIPPED", OUR MACHINE IS OVER 60K NEW TODAY!


  ** ORIGINAL PAINT - EXCEPTIONAL CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
