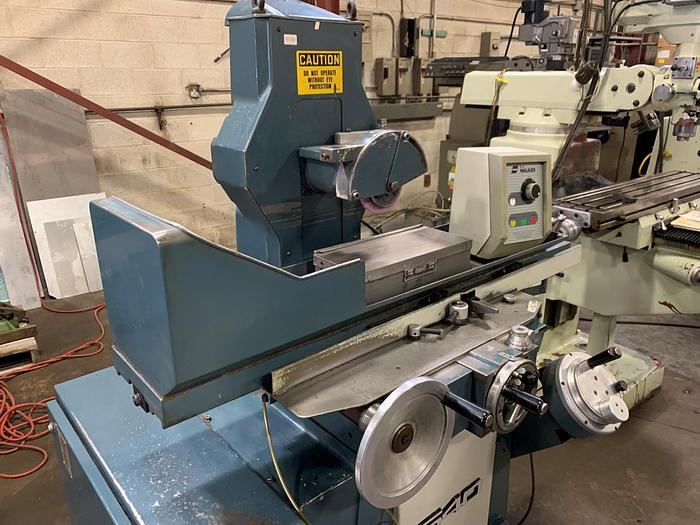

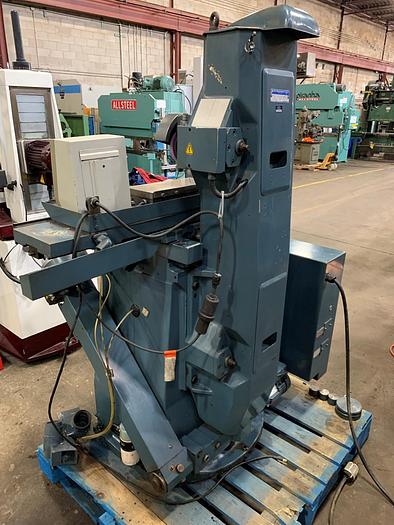

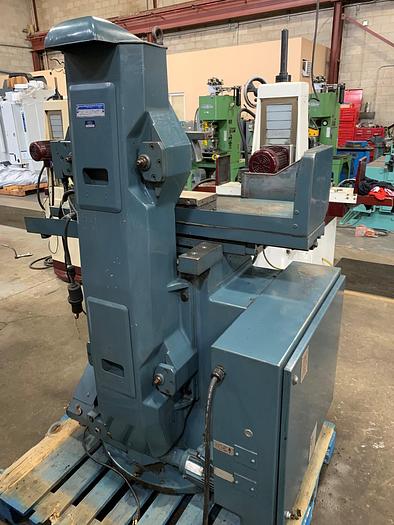

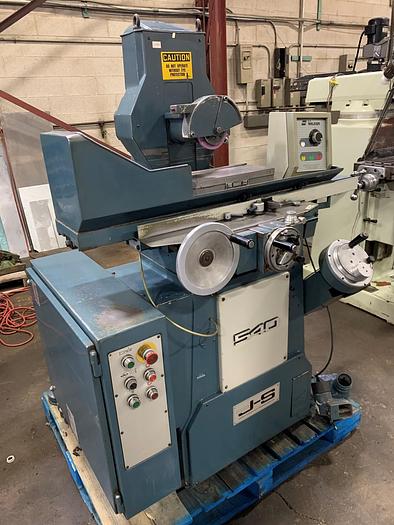

Jones & Shipman 540AP, HYD. TABLE & CROSS FEEDS, POWER ELEV. SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:
Jones & Shipman
Model:
540AP, HYD. TABLE & CROSS FEEDS, POWER ELEV.
Year:
1986
Ref #:
162265

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


  6" X 18" JONES & SHIPMAN "PRECISION"
     HYDRAULIC SURFACE GRINDER

  MODEL: 540AP     NEW: 1986

WIDTH & LENGTH GROUND ................. 6" X 18"
LONGITUDINAL TABLE TRAVEL ............. 19"
CROSS TRAVEL .......................... 6- 3/4"
LONGITUDINAL TABLE SPEED .............. 5' TO 60' FPM
AUTOMATIC CROSS FEED INCREMENT ........ 0.007" TO .07"
FINE CROSS FEED KNOB GRADUATED IN ..... 0.0001"
VERTICAL FEED ADJ. IN INCREMENTS OF.... 0.00005"
MAX. VERTICAL MOVEMENT OF WHEELHEAD ... 11"
STANDARD GRINDING WHEEL ............... 7" X 1/2" X 1- 1/4"
SPINDLE MOTOR ......................... 2 H.P
HYDRAULIC MOTOR ....................... 1 H.P
APPROX. MACHINE WEIGHT ................ 2,000 LBS

  EQUIPPED WITH:
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC LONGITUDINAL & CROSS FEEDS
SUPER-SENSITIVE WHEELHEAD SLIDE - WHEELHEAD SLIDE
  OPERATES ON PRELOADED, GREASE PACKED, BALL& ROLLER
  BEARINGS RUNNING ON PRECISION GROUND BAR GUIDES.
SELF-CONTAINED HYDRAULIC SYSTEM
6" X 18" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

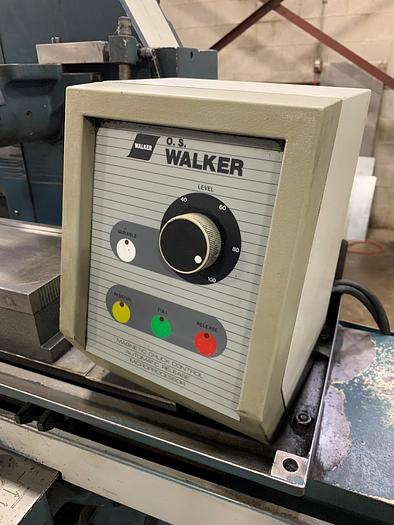

O.S. WALKER "SMART' SERIES VARI-HOLD NEUTROFIER
3/60/575 VOLT ELECTRICS

link to three videos, first one not posted to website:



  ** INSPECT UNDER POWER IN TORONTO, ONTARIO CANADA **
** EXCELLENT CONDITION & APPEARANCE  **
