Kingston 30" HR2000, Inch/Metric,4" Hole, 20HP ENGINE LATHES

$29,500

Make:

Kingston

Model:

30" HR2000, Inch/Metric,4" Hole, 20HP

Year:

1985

Ref #:

179303

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

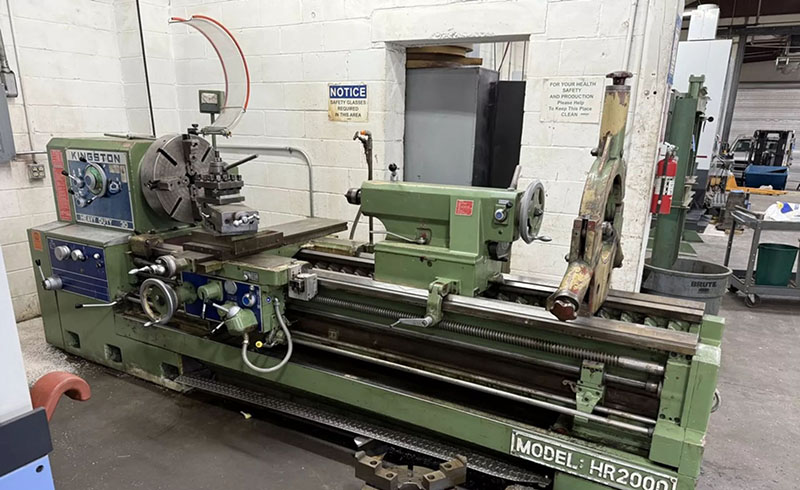

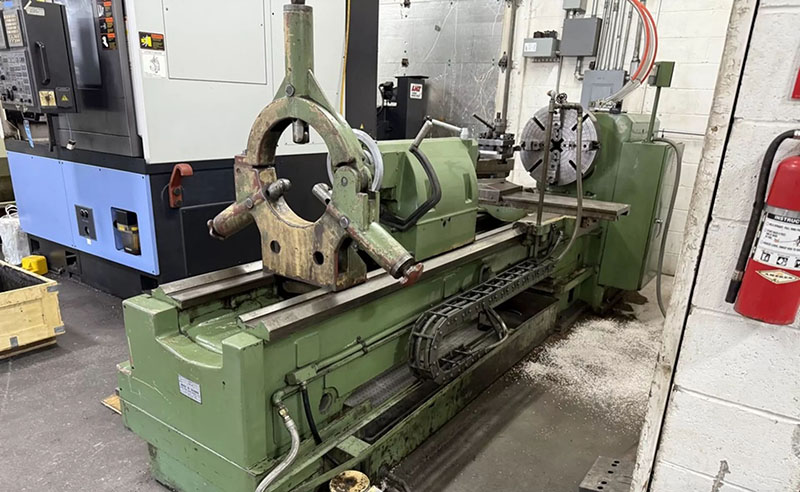

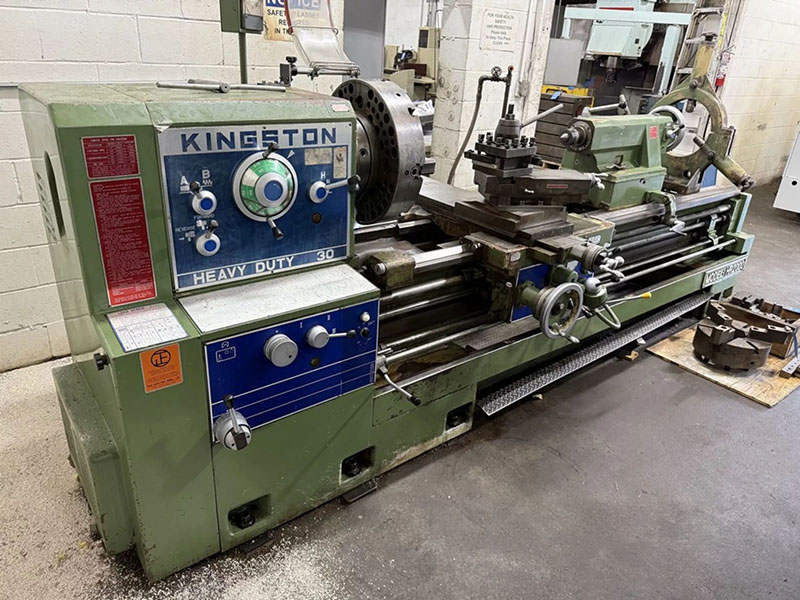

30"/40" X 80" KINGSTON GAP BED ENGINE LATHE

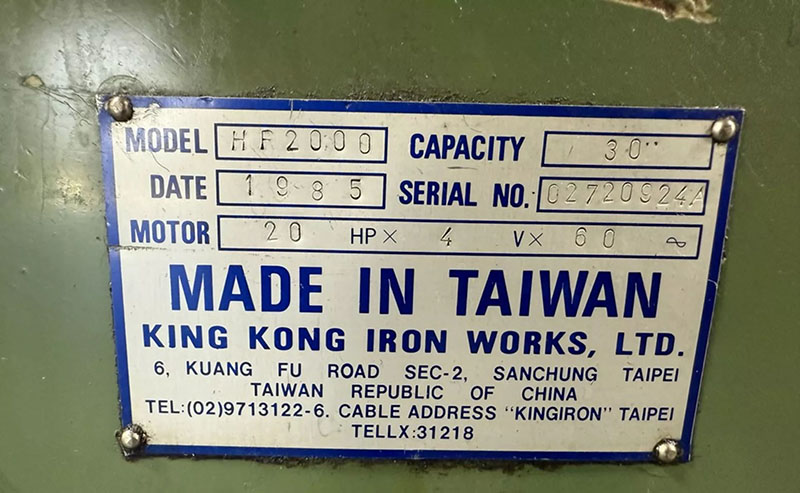

MODEL: 30" HR2000  S/N: 02720924A,  YEAR: 1985



SPECIFICATIONS:

SWING OVER BED ........................ 34"

SWING OVER CROSS SLIDE ................ 20-3/4"

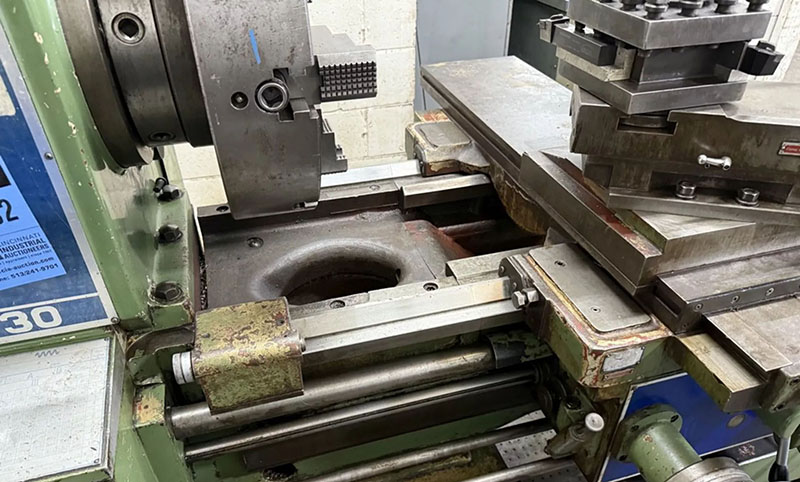

SWING IN REMOVABLE GAP ................ 40-1/8"

SPINDLE NOSE CAMLOCK .................. D1-11"

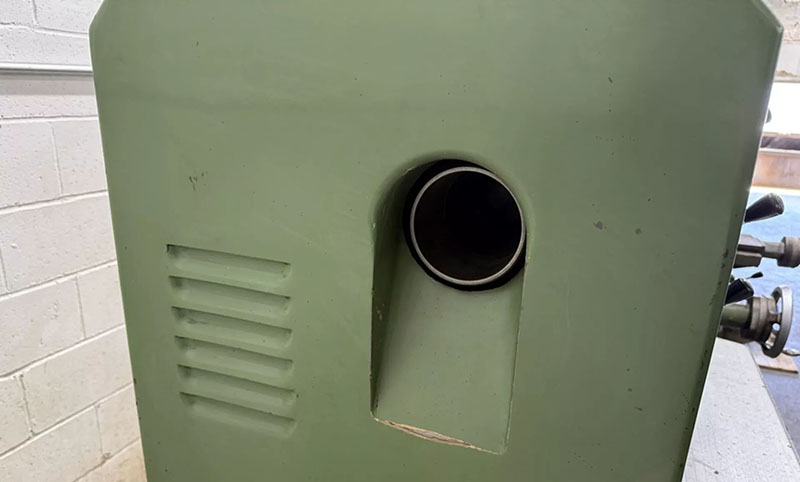

HOLE THROUGH SPINDLE .................. 4-1/16"

DISTANCE BETWEEN CENTERS .............. 80"

WIDTH OF BED .......................... 22"

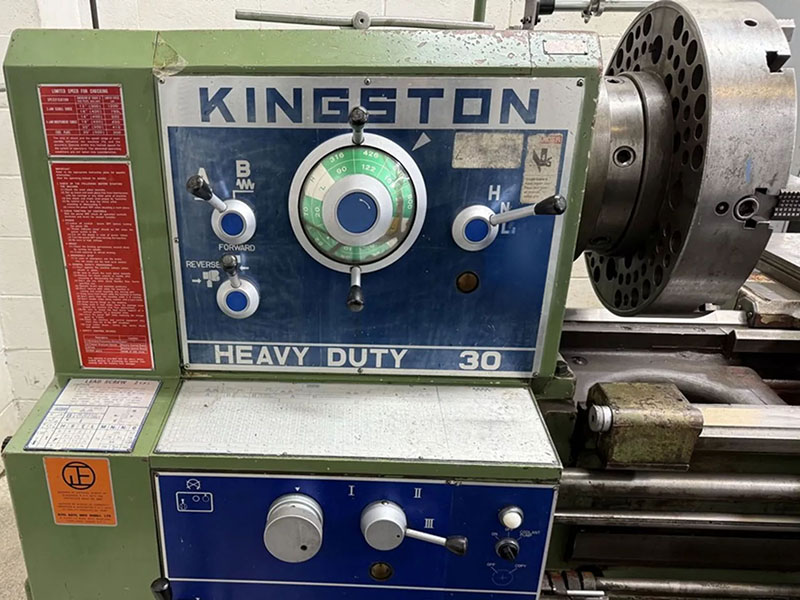

SPINDLE SPEED RANGE (16) .............. 8 - 800 RPM

LONGITUDINAL FEED RANGE (40) .......... .0024" - .0337" IPR

CROSS FEEDS HALF OF LONGITUDINAL

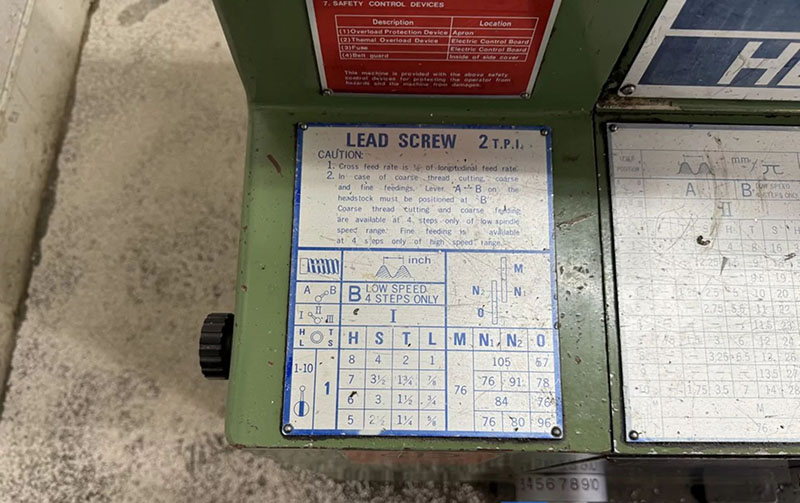

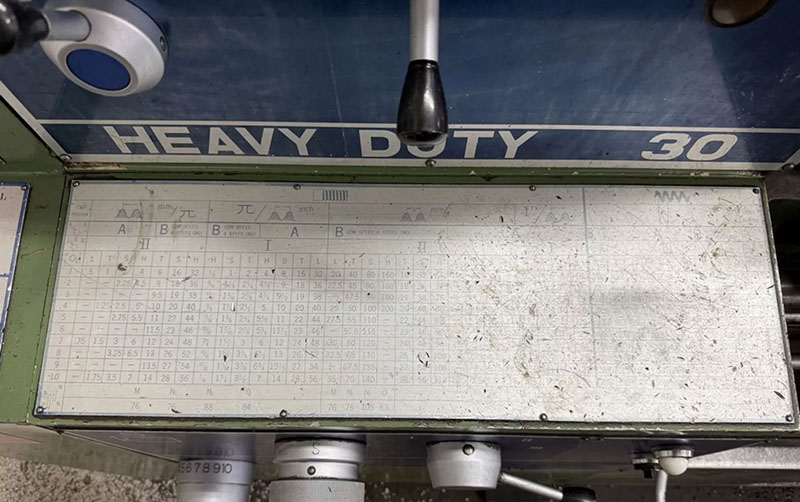

ENGLISH THREADING RANGE(40) ........... 2 - 28 TPI

METRIC THREADING RANGE(31) ............ 1 - 14MM

TAILSTOCK SPINDLE DIAMETER ............ 3-15/16"

TAILSTOCK SPINDLE TRAVEL .............. 11-3/4"

TAILSTOCK SPINDLE TAPER ............... #6MT

APPROXIMATE WEIGHT .................... 12,450 LBS.



EQUIPPED WITH:

  - INCH & MTRIC THREADING CAPABILITY

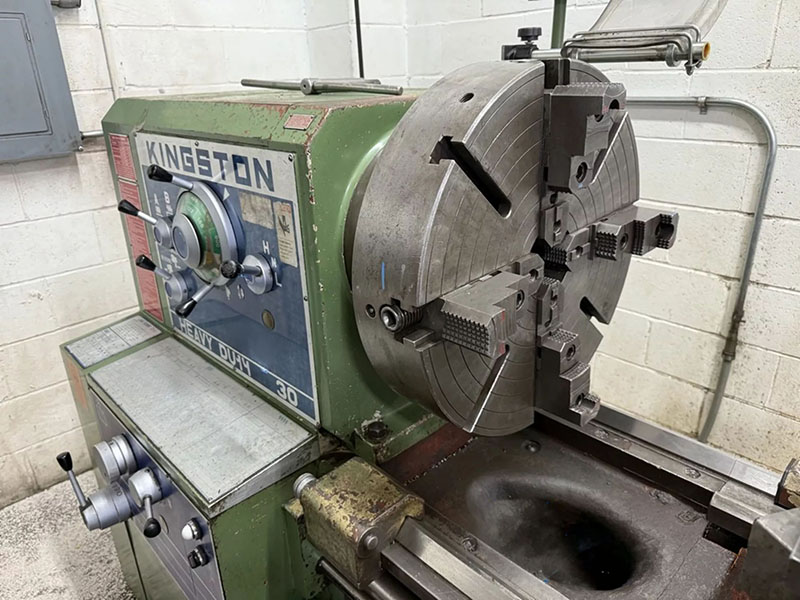

  - 21" 4-JAW CHUCK

  - 15" 3-JAW CHUCK

  - 14" CAPACITY ROLLER TYPE STEADY REST

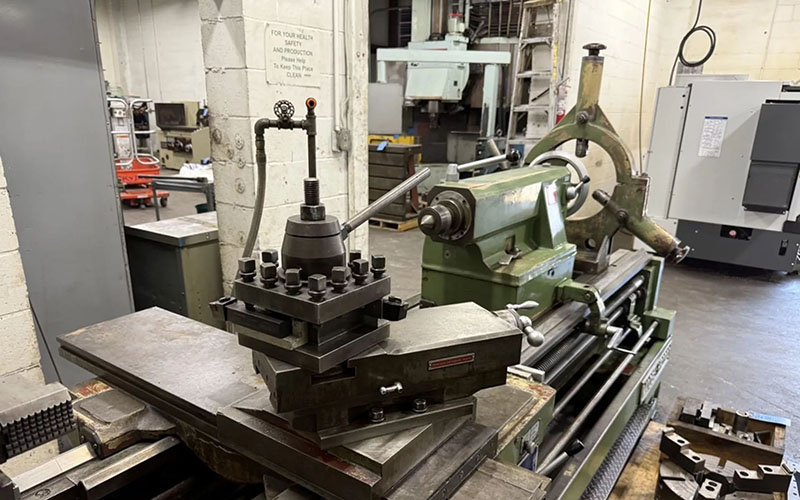

  - FOURWAY TURRET TOOLPOST

  - MICROMETER CARRIAGE STOP

  - THREAD DIAL INDICATOR

  - LIVE CENTER

  - COOLANT SYSTEM

  - FOOT BRAKE

  - RAPID TRAVERSE

  - TWO SPEED TAILSTOCK

  - 20 HP MAIN DRIVE MOTOR



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
